Husqvarna Z142-967924801-00 rear engine riding mower

Husqvarna Z142-967924801-00 rear engine riding mower Parts

Here are the diagrams and repair parts for Husqvarna Z142-967924801-00 rear engine riding mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for Z142-967924801-00 Riding Mowers & Tractors

  • Lawn Tractor 42-in Deck High-lift Blade for Husqvarna Z142-967924801-00 - Part 532138971

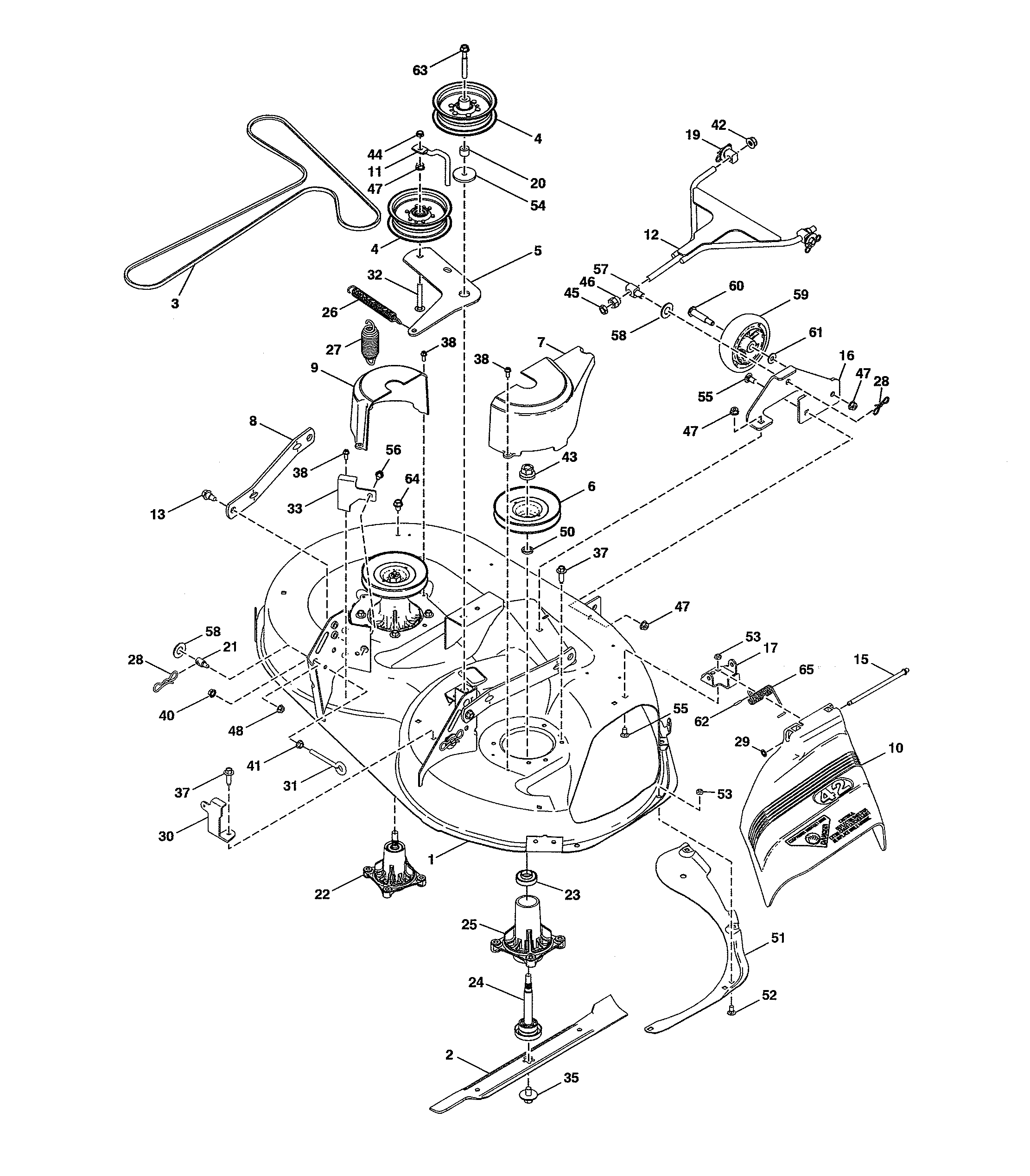

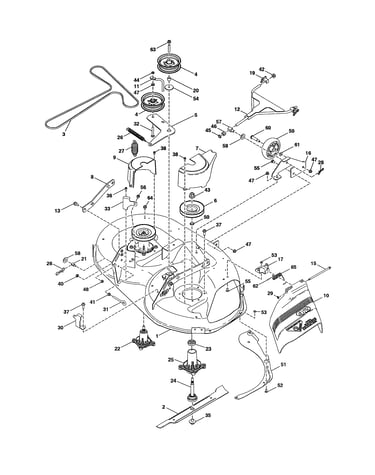

    Mower deck/cutting deck diagram

  • Husqvarna Lawn Tractor Axle Cap for Husqvarna Z142-967924801-00 - Part 532104757

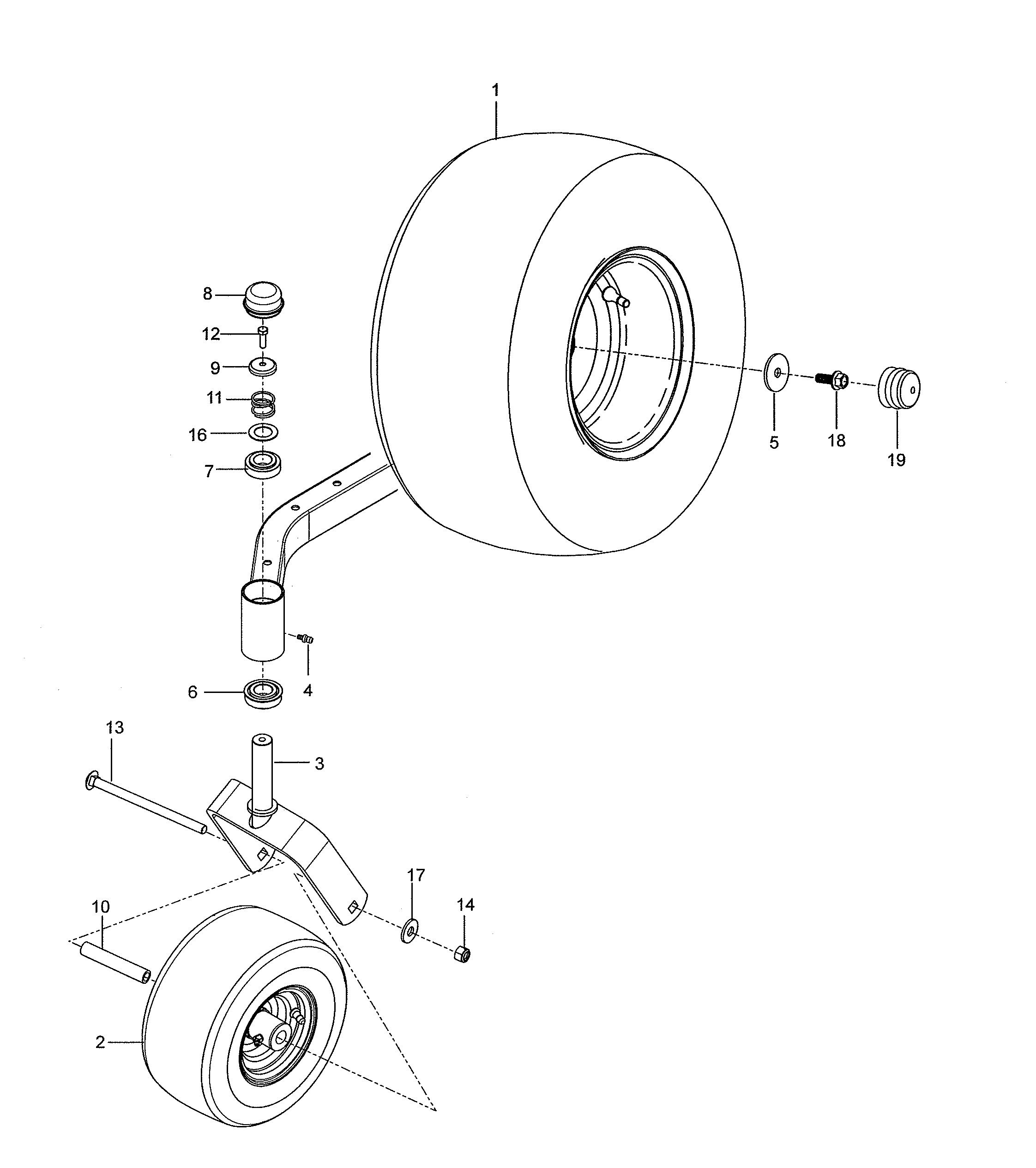

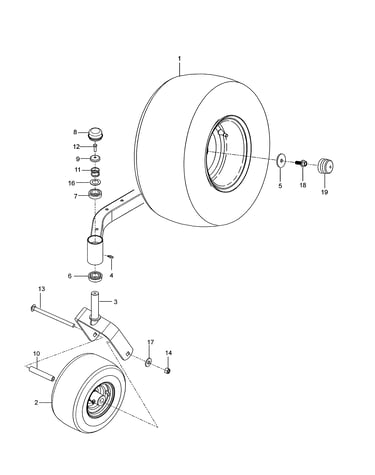

    Wheels & tires diagram

    Hub Cap

    Part #532175039

    Replaced by #532104757

    Info Icon
    Manufacturer substitution
    This part replaces 532175039. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.47
    13% OFF Phone Price : $7.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Mower Lock Nut, 3/8-in for Husqvarna Z142-967924801-00 - Part 532409149

    Mower deck/cutting deck diagram

    Locking Flange Nut

    Part #873900600

    Replaced by #532409149

    Info Icon
    Manufacturer substitution
    This part replaces 873900600. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.08
    25% OFF Phone Price : $4.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Tractor Self-tapping Bolt for Husqvarna Z142-967924801-00 - Part 584953901

    Mower deck/cutting deck diagram

    Husqvarna Lawn Tractor Self-tapping Bolt

    Part #584953901
    This item is not returnable
    In Stock
    $2.77
    27% OFF Phone Price : $3.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Tractor Starter Solenoid for Husqvarna Z142-967924801-00 - Part 582042802

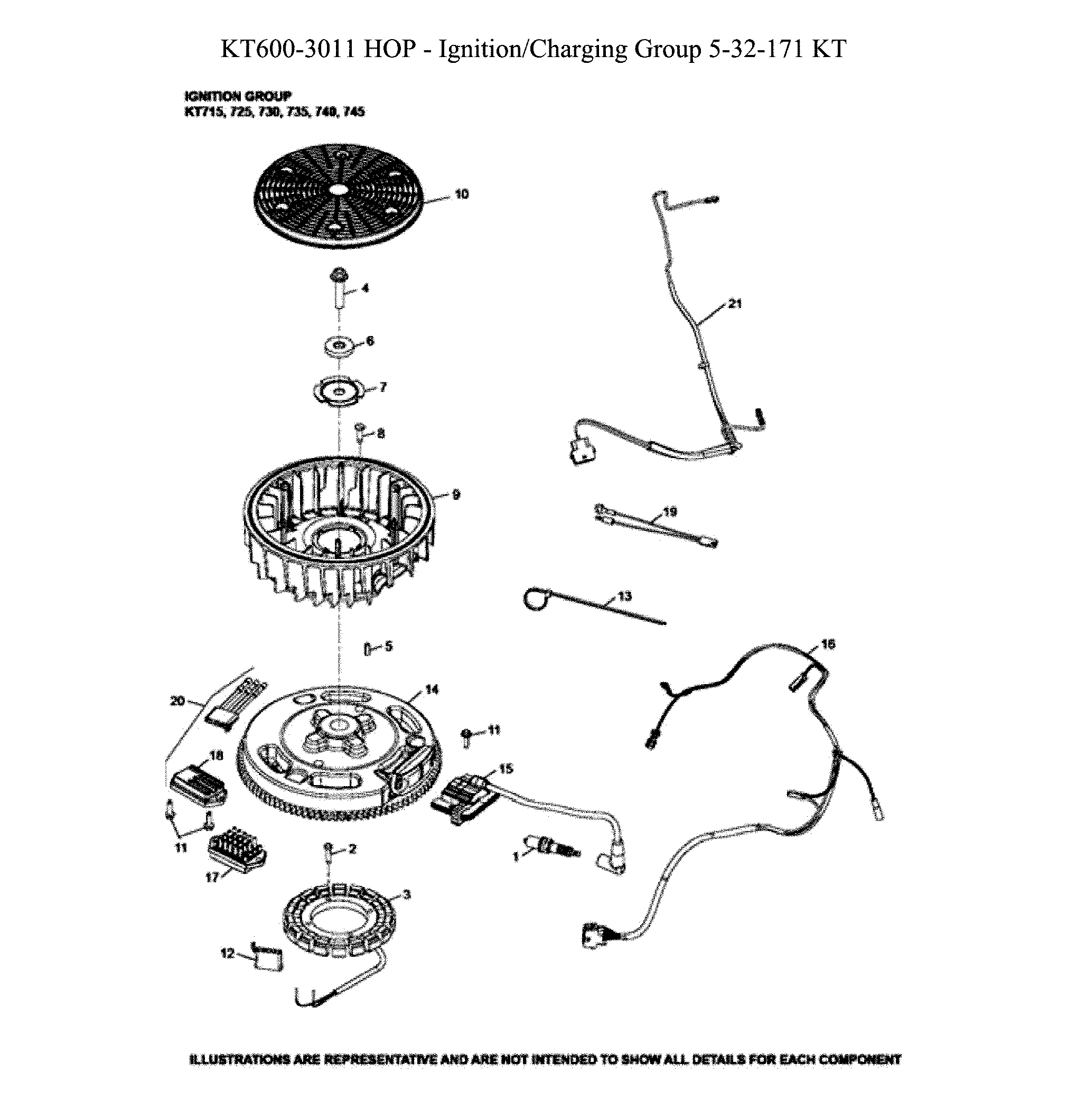

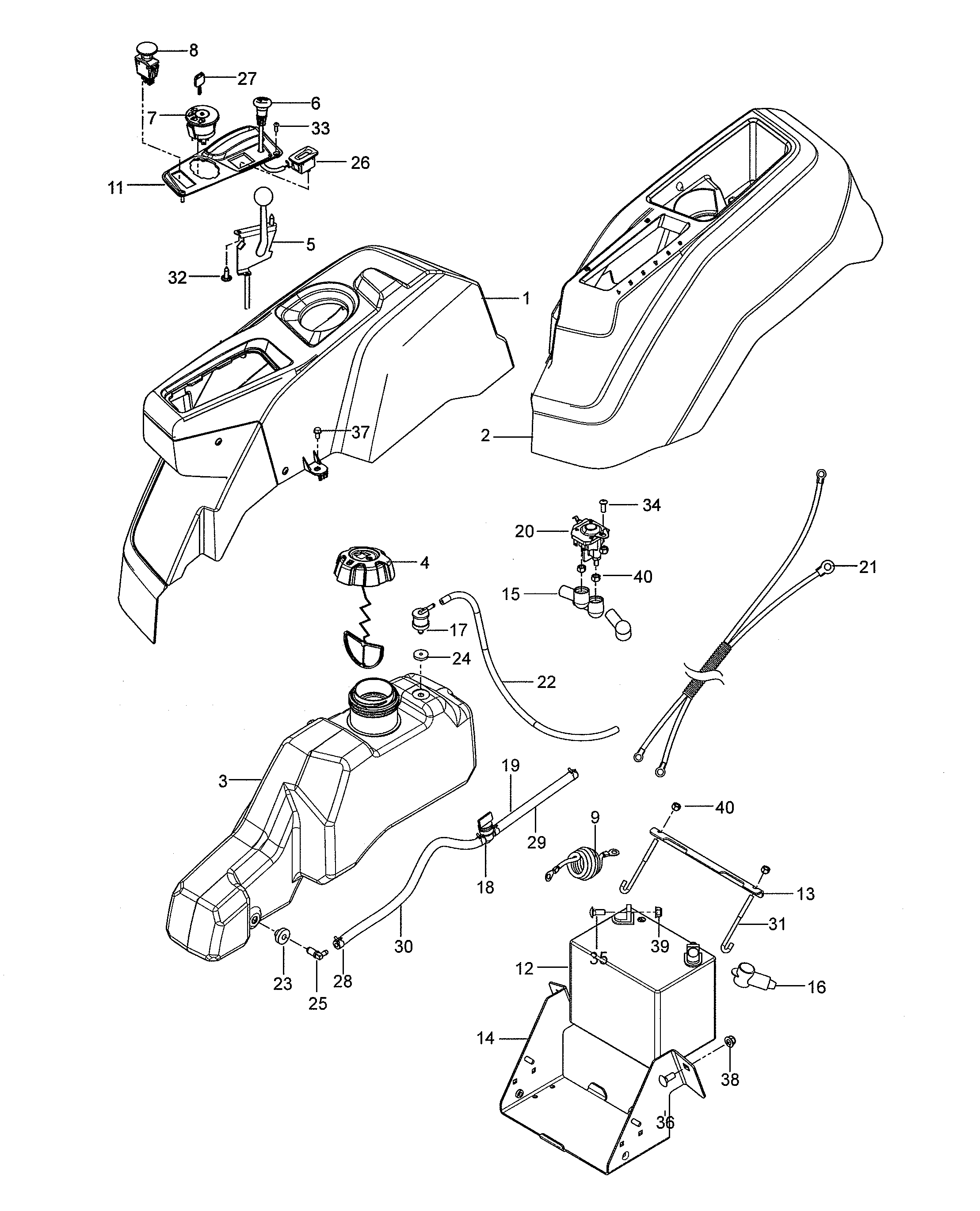

    Ignition system diagram

    Lawn Tractor Starter Solenoid

    Part #582042801

    Replaced by #582042802

    Info Icon
    Manufacturer substitution
    This part replaces 582042801. Substitute parts can look different from the original.
    In Stock
    $42.69
    12% OFF Phone Price : $48.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Tractor Nut for Husqvarna Z142-967924801-00 - Part 596322601

    Mower deck/cutting deck diagram

    Crown Lock Nut

    Part #873680600

    Replaced by #596322601

    Info Icon
    Manufacturer substitution
    This part replaces 873680600. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.87
    15% OFF Phone Price : $6.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Craftsman Push Nut for Husqvarna Z142-967924801-00 - Part 532110452

    Mower deck/cutting deck diagram

    Nut

    Part #532110452

    Replaced by #532110452

    Info Icon
    Manufacturer substitution
    This part replaces 532110452. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.33
    16% OFF Phone Price : $6.33Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Tractor Deflector Shield Hinge Rod for Husqvarna Z142-967924801-00 - Part 595297001

    Mower deck/cutting deck diagram

    Hinge Rod

    Part #532131491

    Replaced by #595297001

    Info Icon
    Manufacturer substitution
    This part replaces 532131491. Substitute parts can look different from the original.
    In Stock
    $11.12
    15% OFF Phone Price : $13.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Husqvarna Lawn Tractor Cotter Pin for Husqvarna Z142-967924801-00 - Part 532194208

    Husqvarna Lawn Tractor Cotter Pin

    Part #532194208
    This item is not returnable
    In Stock
    $2.82
    26% OFF Phone Price : $3.82Info Icon
    Minus Item
    Qty
    Plus Item
  • Lawn Tractor Screw for Husqvarna Z142-967924801-00 - Part 584309301

    Mower deck/cutting deck diagram

    Lawn Tractor Screw

    Part #584309301

    The manufacturer no longer makes this part, and there's no substitute part

Husqvarna Rear Engine Riding Mower Z142-967924801-00 FAQs

A Husqvarna riding mower like model Z142-967924801-00 typically lasts 600 to 1,500 engine hours. Most owners see 600 to 800 hours with regular weekly mowing; with lighter use and consistent maintenance, it commonly reaches 1,000 to 1,500 hours.

What makes the biggest difference in lifespan

  • Maintenance intervals: oil changes, air filter service, and belt inspections on schedule
  • Operating conditions: dusty mowing and heavy loads shorten service life
  • Cooling and cleanliness: keeping the engine cooling air intake clear prevents overheating
  • Blade and deck care: sharp blades reduce strain on belts, pulleys, and the engine
  • Storage habits: clean, dry storage reduces corrosion and electrical issues

Maintenance checkpoints we recommend following

Your operator manual includes a service schedule and a service journal; using it consistently is the fastest way to extend mower life. See the Z142-967924801-00 owner’s manual.

Here are common hour-based checkpoints pulled from typical ride-on maintenance schedules:

Meter reading What to do Why it matters
8 to 10 hours (first service) Change engine oil Removes break-in debris and protects bearings
Every 25 hours Clean cooling air intake, inspect belts and deck Prevents overheating and belt failures
Every 50 hours (heavy load or high heat) Change engine oil Maintains lubrication under stress
Every 100 hours Replace fuel filter, check V-belts, service spark plugs Prevents fuel starvation and misfires
300 hours Major service (often shop-performed) Restores performance and reliability

Parts that commonly affect mowing performance

If cut quality drops or the mower starts laboring in grass, the deck components are a frequent cause. For a 42-inch deck setup, a common wear item is the lawn tractor 42-in deck high-lift blade 532138971.

Why it matters

Engine hours are the best “odometer” for a riding mower. Hitting the early oil change, keeping the cooling intake clean, and staying on top of filters and belts directly reduces heat and friction, which are the main causes of early engine and hydrostatic drive wear.

Last updated: January 2026

A “42-inch riding mower” refers to the cutting width, not the machine’s overall width. For the Husqvarna Z142-967924801-00, the base machine width is 41-1/2 in, and the overall width is 44 in with the discharge chute up or 50 in with the chute down (the widest point). See the Z142-967924801-00 owner's manual for the full dimensions.

Quick width numbers for Husqvarna Z142-967924801-00

  • Cutting width: 42 in (deck cut)
  • Base machine width: 41-1/2 in (tractor body)
  • Overall width, chute up: 44 in
  • Overall width, chute down: 50 in

Why “42-inch” and “overall width” are different

A 42-inch deck measures the swath the blades cut. The mower can be wider because of:

  • The discharge chute sticking out on the side
  • Tire sidewalls and wheel offset
  • Deck shell and anti-scalp or gauge wheel hardware

Fit check: will it clear my gate or shed door?

Use the overall width that matches how you’ll move it:

  • If you roll it through with the chute down, plan for 50 in clearance.
  • If you can secure the chute up, plan for 44 in clearance.
  • Add extra space for steering corrections and uneven ground.
Measurement you need Use this width Best for
Tightest storage/transport width 44 in (chute up) Shed doors, trailers
Widest real-world mowing profile 50 in (chute down) Gates, fence openings
Cutting path per pass 42 in Estimating mowing time

Why it matters

Using the correct width prevents getting stuck at gates, damaging the discharge chute, and scraping door frames. It also helps you choose the right trailer and storage space.

Last updated: January 2026

The Husqvarna Z142-967924801-00 riding mower uses a Kohler engine. Your operator manual confirms the mower is equipped with a four-stroke overhead valve (OHV) engine; the engine ID label in the engine compartment verifies the exact Kohler model and spec for ordering tune-up parts.

How to confirm the engine brand and exact model on Z142-967924801-00

Use the engine identification label so you match the correct air filter, oil filter, spark plug, and fuel filter.

  • Park on a level surface, set the parking brake, and let the engine cool.
  • Open the engine compartment and find the engine ID label (usually on the blower housing or valve cover area).
  • Record the engine brand (Kohler), model/family, and spec numbers.
  • Cross-check maintenance procedures and service intervals in the Z142-967924801-00 owner's manual.
  • Use the recorded engine numbers when selecting engine maintenance parts.

What the manual tells you (and what the engine label adds)

Source What it confirms What you use it for
Operator manual Four-stroke OHV engine; operating and maintenance guidance Service intervals, oil type guidance, safe procedures
Engine ID label Kohler engine model and spec numbers Exact-fit filters, plugs, and engine-specific parts

Why it matters

Kohler engines often have multiple spec variations within the same engine family. Using the engine model and spec numbers prevents ordering the wrong maintenance parts and helps you follow the correct tune-up schedule.

Last updated: January 2026
