Kenmore Elite 79691028900 dryer Parts

Yes. A 7.2 cu. ft. dryer is considered large capacity because standard dryers typically fall in the 5.0 to 7.0 cu. ft. range. For the Kenmore Elite 79691028900, the installation specs list an IEC drying capacity of 7.4 cu. ft., which is firmly in the large-capacity class; see the owner's manual.

What “large capacity” means in real use

Large-capacity dryers handle bulkier loads with fewer cycles, which helps reduce dry time and wear on fabrics.

Common examples that fit better in a 7.2 to 7.4 cu. ft. drum:

• Queen comforters and thicker blankets
• Large towel loads
• Mixed family loads (jeans, sweatshirts, tees)
• Bulky items that need more tumbling room

Capacity quick guide

Dryer capacity	Typical label	Best for
5.0 to 7.0 cu. ft.	Standard	Everyday loads, smaller households
7.0+ cu. ft.	Large capacity	Bigger loads, bulky items
8.0+ cu. ft.	Extra-large (common marketing term)	Frequent large loads, comforters

Why it matters

When the drum is too full, clothes cannot tumble freely; that causes longer dry times, more wrinkles, and higher energy use. With a large-capacity drum like the 79691028900, you can dry more per cycle while still leaving enough space for proper airflow.

Tips to get the best performance from a large-capacity dryer

• Fill the drum loosely; stop around 3/4 full for mixed loads.
• Clean the lint screen before every load (a clogged screen restricts airflow).
• Avoid overdrying by using sensor-dry cycles when available.
• Keep venting efficient; long or kinked ducts increase dry time.

Last updated: February 2026

Kenmore Elite dryer model 79691028900 does not use a dedicated reset button. Most “reset” situations are handled by power-cycling the dryer (turning it off, then restoring power) and by unlocking the controls if Control Lock is on; see the owner's manual.

How to “reset” the dryer safely

1. Press Power to turn the dryer off.
2. Wait 1 minute.
3. Turn the dryer back on and start a cycle.

If the dryer is unresponsive, you can also turn the dryer’s breaker off, wait 1 minute, then turn it back on.

Check Control Lock first (common “won’t respond” cause)

When Control Lock is enabled, the dryer can power on but the controls stay disabled and “CL” shows on the display.

• Press and hold Control Lock for 5 seconds to toggle it off
• Try Power, then Start/Pause
• If the dryer was paused, restart within 4 minutes or it shuts off and loses cycle settings

If it still will not start after power-cycling

These quick checks solve most no-start complaints on this style of Kenmore dryer:

• Confirm the plug is fully seated in the correct outlet
• Reset the house breaker (or replace a blown fuse) without increasing fuse size
• Close the door firmly (a door not fully latched can prevent starting)
• Try a different cycle and press Start/Pause
• If the drum light and display are dead, recheck the home power supply

What “reset” can and cannot fix

Symptom	What a reset helps	What to check next
Controls won’t respond, “CL” shows	Yes	Turn off Control Lock (hold 5 seconds)
Cycle canceled mid-run	Sometimes	Restart cycle; avoid pressing Power during a cycle
Dryer won’t turn on at all	Sometimes	Breaker/fuse, outlet power, door latch
Dryer runs but won’t heat	No	Venting, gas supply (gas models), thermostats/thermistor

Why it matters

A “no reset button” design means the dryer relies on normal control logic (Power, Start/Pause, Control Lock) and home power protection (breaker/fuse). Using the correct reset steps prevents lost settings and helps you pinpoint whether the issue is a control lockout, power supply problem, or a part failure.

Last updated: February 2026

Common problems on Kenmore dryers like model 79691028900 are long dry times from poor venting, no-heat conditions from power or gas supply issues, and drum problems such as a broken belt or worn idler/rollers. Our owner's manual also points out that restricted exhaust airflow is the most common cause of dryer performance complaints.

Most common symptoms and what usually causes them

• Clothes take too long to dry: lint buildup in the exhaust duct, crushed or too-long vent run, or a clogged outside vent hood
• Dryer runs but does not heat: tripped breaker or blown fuse (electric), gas shutoff valves closed (gas), or a failed temperature-sensing part
• Dryer will not start: loose power cord connection, tripped breaker, blown fuse, or a door switch issue

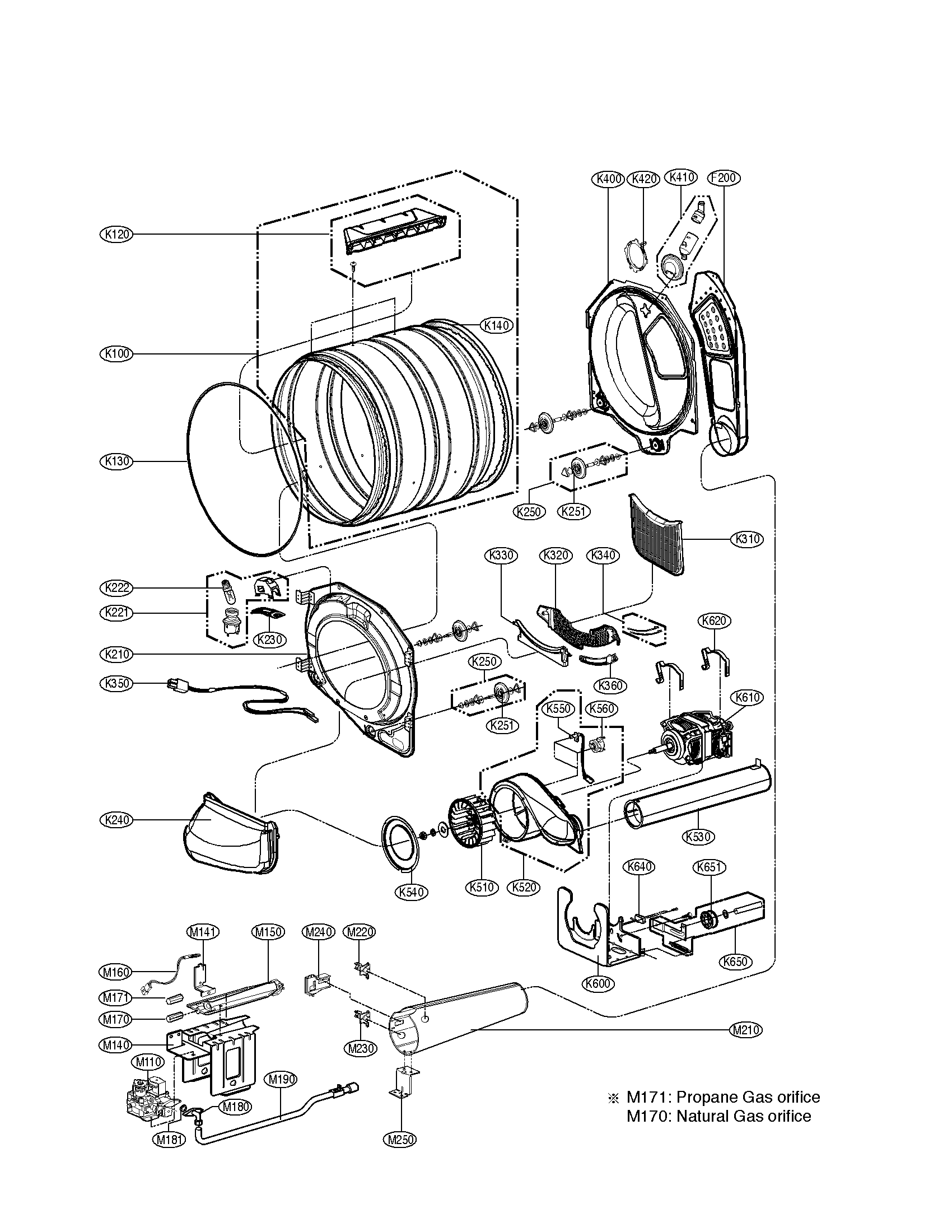

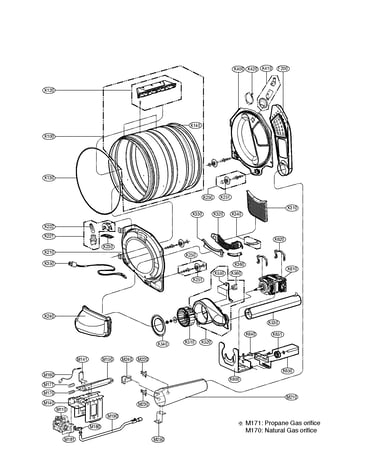

• Drum will not turn: worn or broken belt, idler pulley problem, or motor issue
• Loud squealing or thumping: worn idler pulley, drum support rollers, or debris in the blower housing
• Stops mid-cycle or shuts off early: overheating from restricted airflow, or sensor-dry issues with very small loads

Quick checks we recommend first (fast, high-impact)

1. Clean the lint filter before every load and hold it up to a light; if it looks coated, wash it per the manual’s cleaning steps.
2. Inspect venting end-to-end: rigid or semi-rigid metal ducting only; replace plastic or foil vent.
3. Check the outside vent hood: remove lint and confirm the damper opens freely.
4. Confirm power and fuel:
   • Electric: verify both sides of the breaker are on (a dryer can run with no heat if one side trips).
   • Gas: confirm the house and dryer gas shutoff valves are fully open.

Parts that commonly fix these issues on 79691028900

If troubleshooting points to a worn component, these are common replacements for this model:

Symptom	Common part to check	Example part on this model
Drum not turning	Drum belt	Dryer drum belt 4400EL2001F
Squealing, poor tension	Idler pulley	Dryer idler pulley 4560EL3001A
Overheating, cycling heat issues	Thermostats/thermistor	Dryer thermistor AGM30045804
Lint bypass, airflow issues at filter	Lint filter/housing	Lint filter - dryer part by lg ADQ56656401

Why it matters

Most “dryer problems” trace back to airflow. When venting is restricted, drying times increase, energy use goes up, and the dryer can overheat and shut down. Keeping the lint filter and exhaust system clean prevents repeat failures and protects key components like thermostats and the motor.

Last updated: February 2026

On the Kenmore Elite 79691028900 dryer, AF means the dryer is detecting restricted airflow through the exhaust system. This usually points to a clogged lint screen, blocked vent duct, crushed vent hose, or a dirty exterior vent hood; fixing the restriction restores normal drying and helps prevent overheating.

What to check first (fast airflow fixes)

• Clean the lint screen before every load; wash it with warm water and a soft brush if you see residue.
• Confirm the lint screen seats correctly and the housing is not packed with lint.
• Inspect the vent hose behind the dryer for kinks, crushing, or long runs.
• Check the outside vent hood for lint buildup or a stuck flap.
• Verify duct joints are taped or clamped (not screwed); screws catch lint.
• Use rigid or semi-rigid metal duct whenever possible.

If you need diagrams and the exact venting rules for this model, use the owner's manual.

Why AF happens on this model

This dryer uses a duct blockage sensing system (often shown as a “check vent” indicator) to alert you when exhaust flow is reduced. Poor venting causes longer dry times and can trip airflow-related warnings.

Venting guidelines that prevent AF

The installation instructions for this Kenmore Elite dryer call out best practices that directly reduce AF events:

Venting item	What works best	What to avoid
Duct material	Rigid or semi-rigid metal	Plastic or thin foil duct
Connections	Duct tape or clamps	Screws through the duct
Layout	Few elbows, shortest run	Long runs, multiple elbows

Parts that commonly relate to airflow issues

If the warning persists after cleaning the vent path, check the lint handling parts for fit and blockage:

• Lint filter - dryer part by lg ADQ56656401
• Lg dryer lint screen housing MCK49049101
• Lg dryer lint screen guide MEA49050001

Why it matters

Restricted airflow makes the dryer run hotter and longer, which increases energy use and can lead to repeated shutdowns or heat-related component failures (thermostats, thermistor, and burner/heat system parts).

Last updated: February 2026
