Model # 113298090 Official Craftsman 10" table saw

Here are the diagrams and repair parts for Official Craftsman 113298090 10" table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

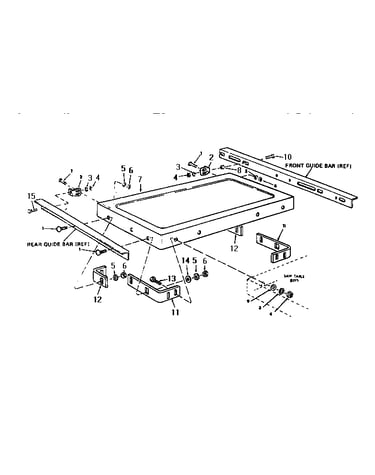

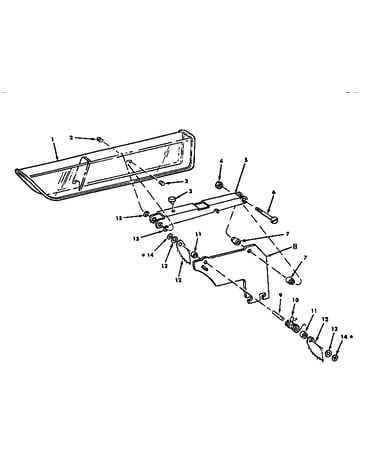

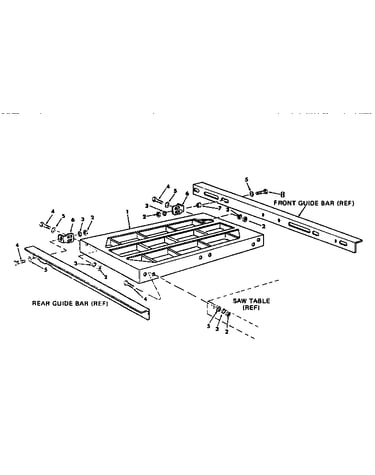

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#38

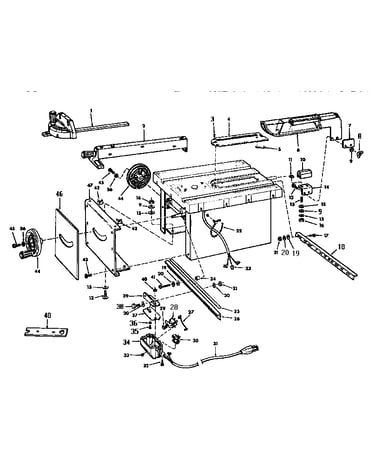

Unit diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Miter Gauge Clamp Stud 62225
#9

Miter gauge assembly diagram

Table saw miter gauge clamp stud

Part #62225

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Motor Relay 62975
#30

Unit diagram

Table saw motor relay

Part #62975

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Rip Fence Guide Spacer 62539
Table saw rip fence guide spacer

Part #62539

The manufacturer no longer makes this part, and there's no substitute part

Flat Head Screw 805297-1
#2A

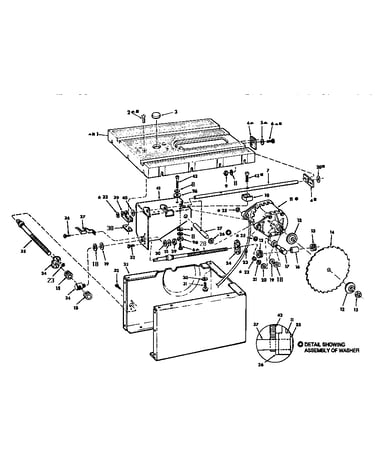

Motor assembly diagram

Flat head screw

Part #805297-1

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Table Insert Screw 447441
#3

Unit diagram

Table saw table insert screw

Part #447441

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Screw 9404336
#5

Fence assembly diagram

Table saw screw

Part #9404336

The manufacturer no longer makes this part, and there's no substitute part

Emerson Table Saw Arbor Nut 6362
#15

Motor assembly diagram

Emerson table saw arbor nut

Part #6362

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Blade Guard Clamp 62643
#7

Unit diagram

Table saw blade guard clamp

Part #62643

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Rip Fence Handle 62692
Table saw rip fence handle

Part #62692

The manufacturer no longer makes this part, and there's no substitute part
