How to change the bottom seal on a Whirlpool dishwasher?

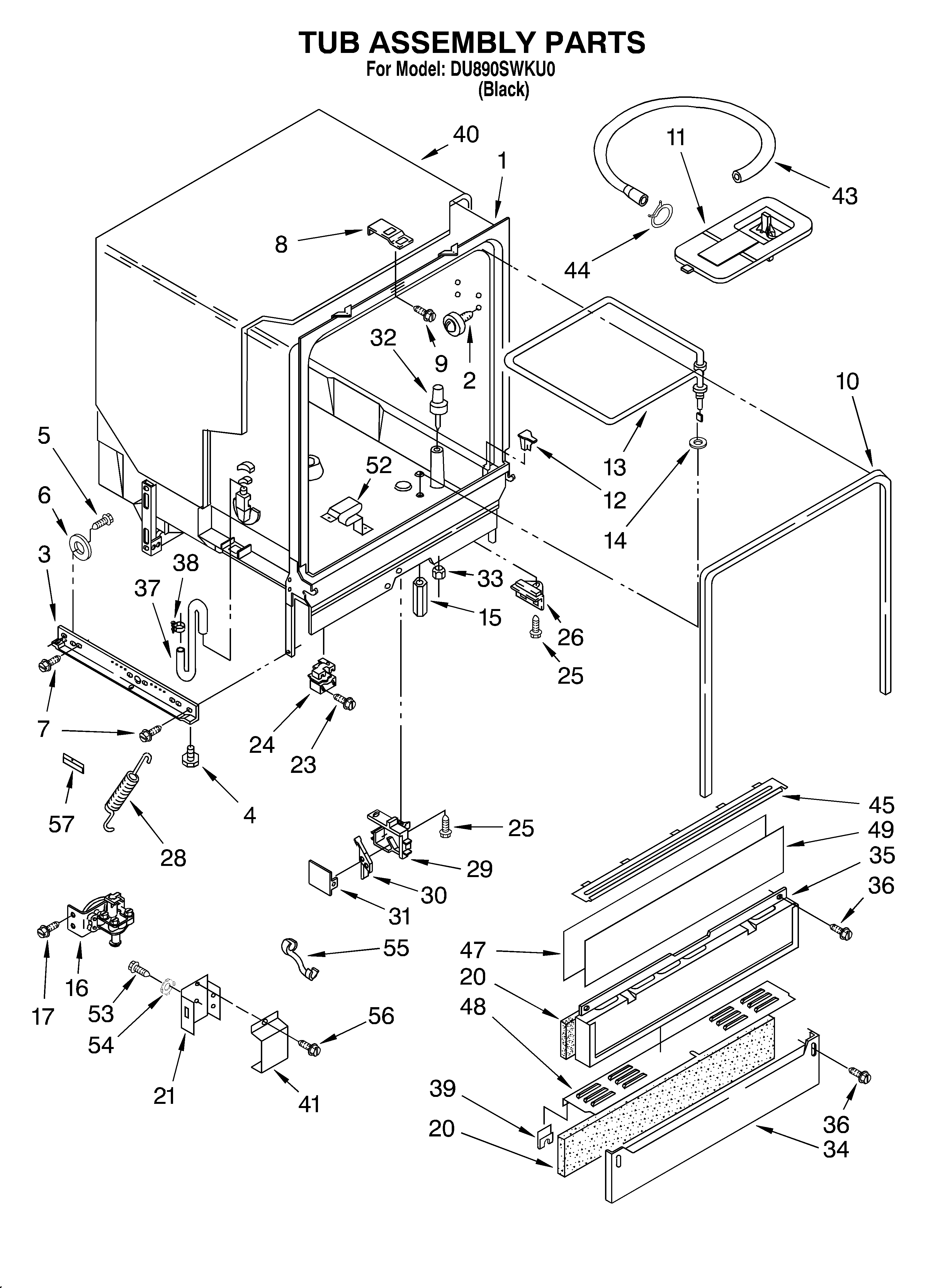

On Whirlpool dishwasher model DU890SWKU0, the “bottom seal” is most often the door gasket that seals the tub opening. Replacing it is usually a simple pull-out and press-in job; if yours is leaking at the bottom edge, start by replacing the dishwasher door seal WPW10509257.
- Turn off power at the breaker (dishwashers are hard-wired or plugged in under the sink).
- Let the unit cool if it recently ran a heated cycle.
- Open the door and inspect the gasket for tears, flattening, or gaps.
- Clean the tub lip where the seal sits (grease and scale can cause leaks).
- If the leak is only at the very bottom center, also check for over-sudsing or a loading issue.
- Open the door fully.
- Starting at one end, pull the old seal straight out of the channel around the tub opening.
- Wipe the channel clean and dry.
- Press the new seal into the channel, working evenly from the top center toward both sides.
- Make sure the seal is fully seated with no twists, waves, or stretched sections.
- Close the door and run a short cycle to check for leaks.
- Confirm the door closes firmly and latches; a weak latch can let the door relax and drip.
- Look for a warped inner door or debris along the bottom edge.
- Verify the dishwasher is level front-to-back and side-to-side.
- Reduce detergent if you see foam; suds can push water past the seal.
| Symptom | Most likely cause | What to do first |
|---|---|---|
| Drips from bottom corners | Seal not seated or torn | Reseat or replace the door seal |
| Water runs down inner door | Over-sudsing or spray deflection | Reduce detergent, improve loading |
| Door feels loose | Latch not holding tight | Inspect/replace latch components |
A leaking door seal can let water escape during wash and drain, leading to cabinet damage and poor cleaning. A properly seated gasket helps the pump pressure stay in the tub where it belongs.
Last updated: February 2026
What does F4 mean on a Whirlpool dishwasher?
On a Whirlpool dishwasher, an F4 code points to a drain problem (the dishwasher is not pumping water out as expected). On model DU890SWKU0, we treat F4 as a “not draining” symptom and troubleshoot the drain path, pump, and water level first.
- Cancel the cycle and let the unit try to drain; listen for a drain-pump hum.
- Remove standing water (if needed) so you can inspect the sump area safely.
- Check the sink drain and garbage disposal inlet (a blocked inlet stops dishwasher draining).
- Inspect the drain hose for kinks, crushing, or a low loop that can cause backflow.
- Clean the filter/sump area of labels, glass, food, or twist ties.
| What you notice | Most likely cause | What usually fixes it |
|---|---|---|
| Water stays in tub, pump sounds weak or rattly | Debris in pump/impeller area | Clear obstruction; inspect impeller |
| No drain sound at all | Door not latching, control not allowing drain | Verify door closes firmly; check latch |
| Drains slowly, then stops | Partial clog in hose or sink connection | Clear hose and sink/disposal connection |
| Overfilling then draining issues | Inlet/level problem leading to poor cycle performance | Check fill and float movement |
If the drain path is clear and the dishwasher still will not drain, these model-related parts are commonly involved:
- Valve-inlt W10844024 (fill issues can contribute to poor cycle behavior)

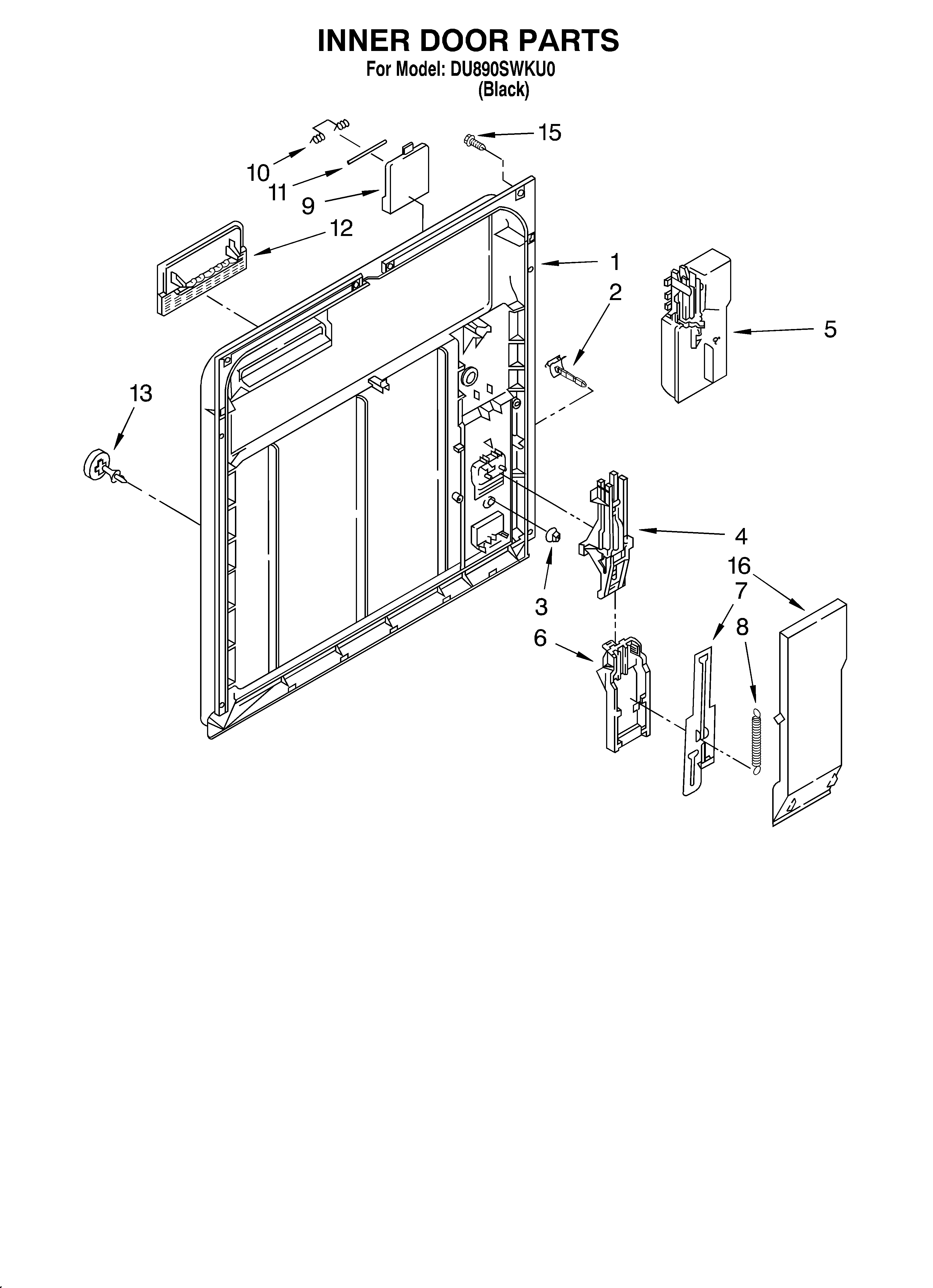

- Dishwasher door latch WP3380854 (a weak latch can prevent the dishwasher from running or draining correctly)

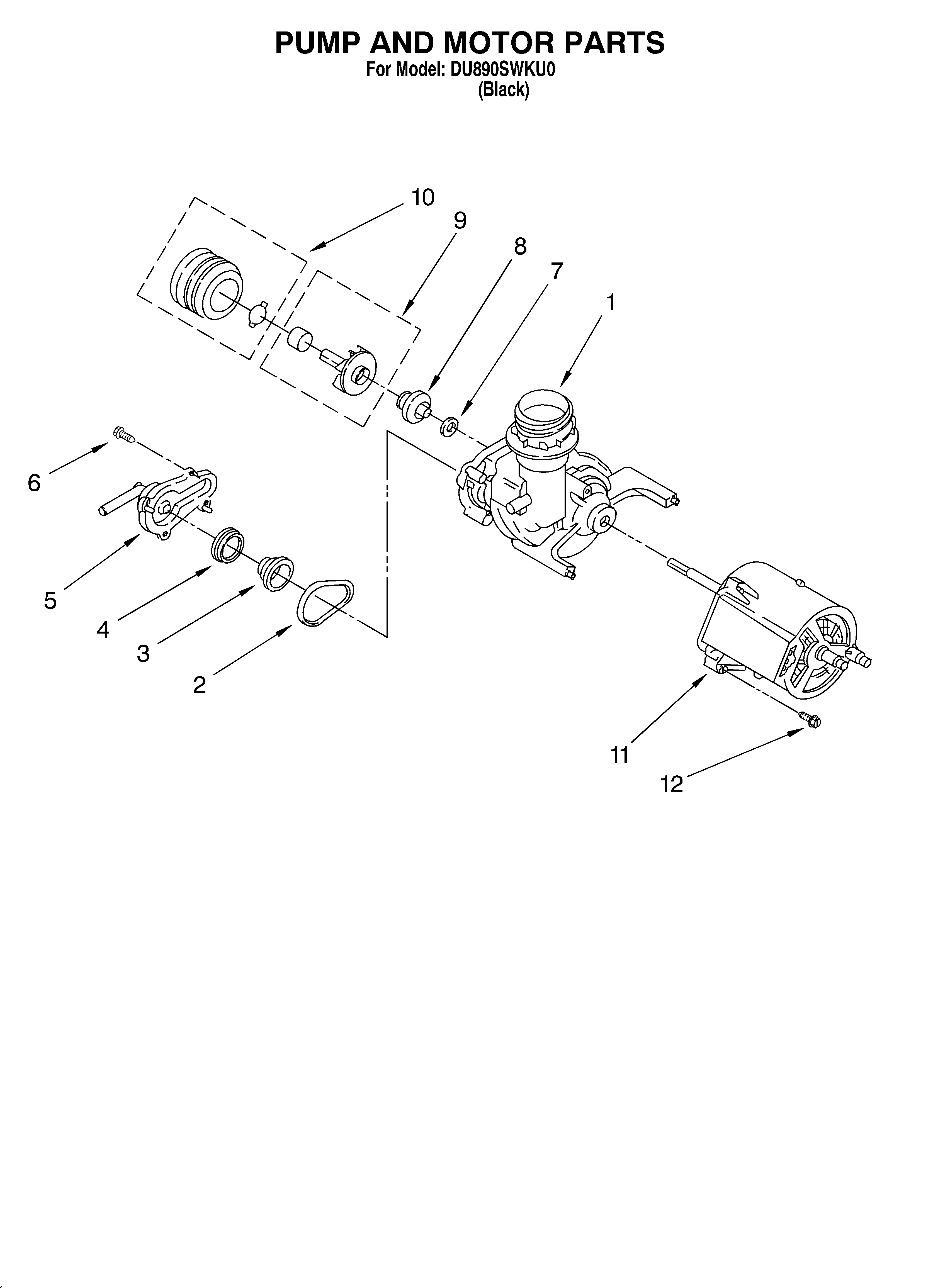

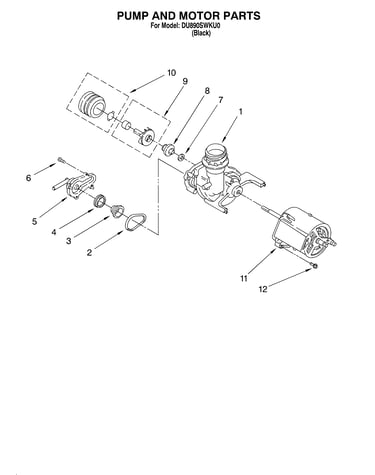

- Impeller 4386996A (damage or blockage can reduce pumping performance)
A dishwasher that cannot drain can leave dirty water in the tub, trigger repeated beeping or stopping mid-cycle, and can cause odors. Fixing the drain path early also prevents strain on the pump and motor.
Last updated: February 2026
What could be wrong with my Whirlpool dishwasher?
Several common issues can cause a Whirlpool dishwasher like model DU890SWKU0 to act up, including a door that is not latching, a fill problem, poor draining, or a heating and drying problem. We narrow it down fastest by matching the symptom (won’t start, won’t fill, won’t drain, not cleaning, or not drying) to a few targeted checks.
- Won’t start or stops mid-cycle: confirm the door closes firmly; inspect the latch.
- Won’t fill or fills slowly: verify the water supply valve is fully open; check the inlet valve.
- Not draining: check the sink/disposer connection and drain hose routing for a clog or kink.

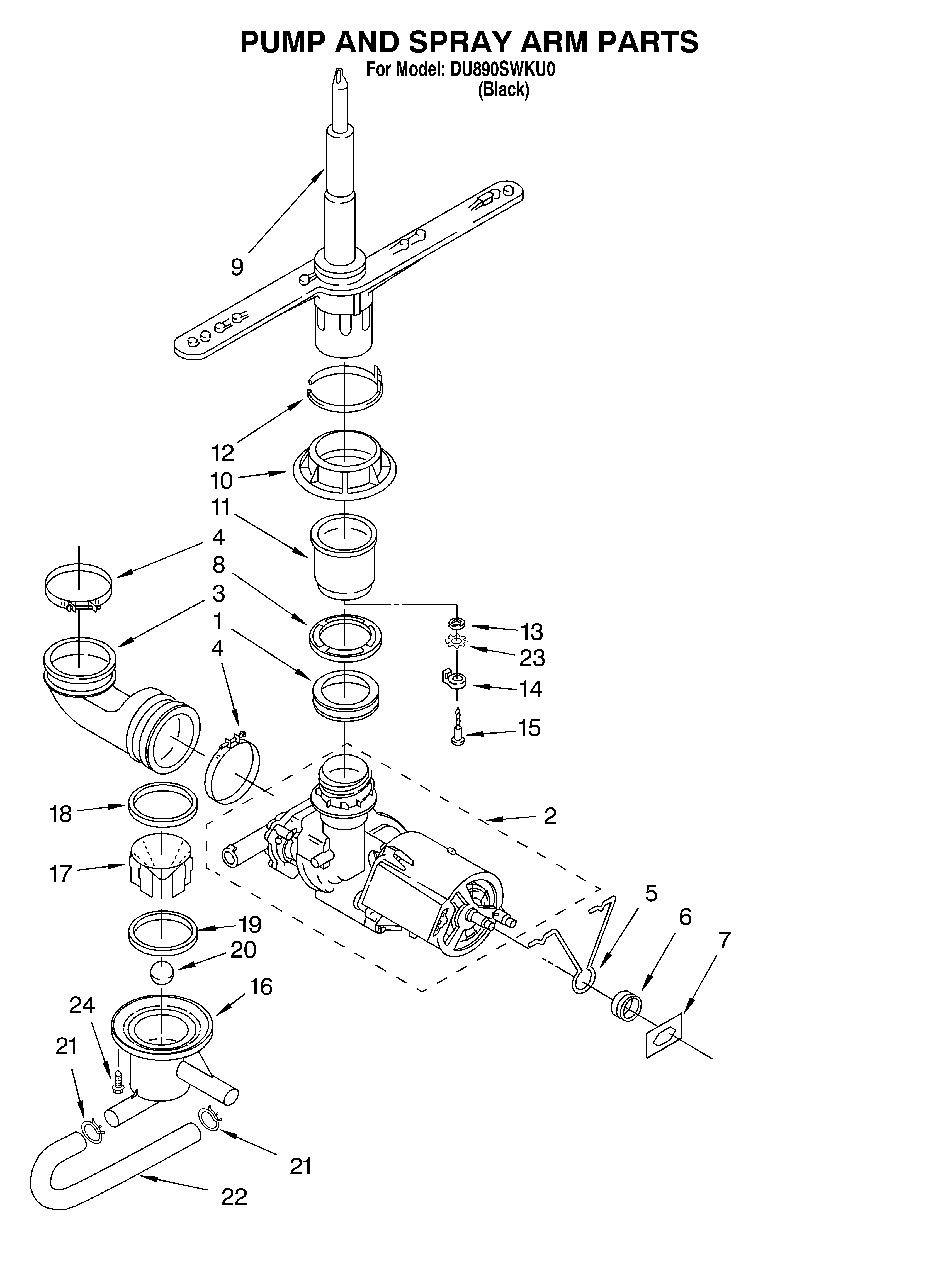

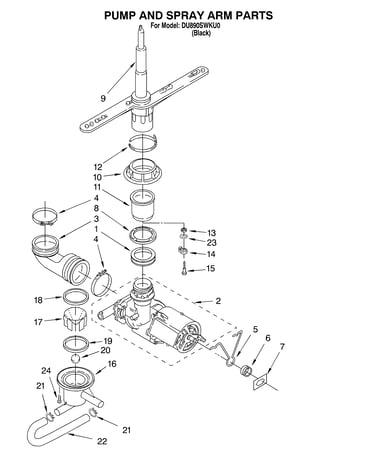

- Not cleaning well: confirm spray arms can spin freely; avoid blocking them with tall items.
- Not drying: use rinse aid, select a heated dry option (if equipped), and check for heating issues.
| Symptom | Likely cause | What to check first |
|---|---|---|
| Won’t start | Door not fully latched | Inspect/replace dishwasher door latch WP3380854 |
| Leaks at the door | Worn or deformed seal | Inspect/replace dishwasher door seal WPW10509257 |
| Won’t fill | Water inlet problem | Check supply; test/replace valve-inlt W10844024 |
| Poor drying | Heating issue or rinse aid | Look for heat in cycle; check heater seals and wiring |
- Reset the control: try a reset sequence for Whirlpool units using how to reset a Whirlpool dishwasher.
- Confirm the door switch is being engaged: close the door slowly and listen/feel for a solid latch.
- Check for proper filling: after starting, you should hear water flow in within the first couple minutes.
- Check draining: if water remains in the tub, clear the drain path and air gap (if used).
- Check heating and drying: if dishes are cold and wet at the end, focus on heater circuit, wiring connections, and rinse aid use.
Dishwasher problems often look the same (for example, a unit that “won’t run” can be a door latch issue, a fill issue, or a drain issue). Starting with the symptom-based checks prevents unnecessary part replacement and gets your DU890SWKU0 back to normal wash performance faster.
Last updated: February 2026

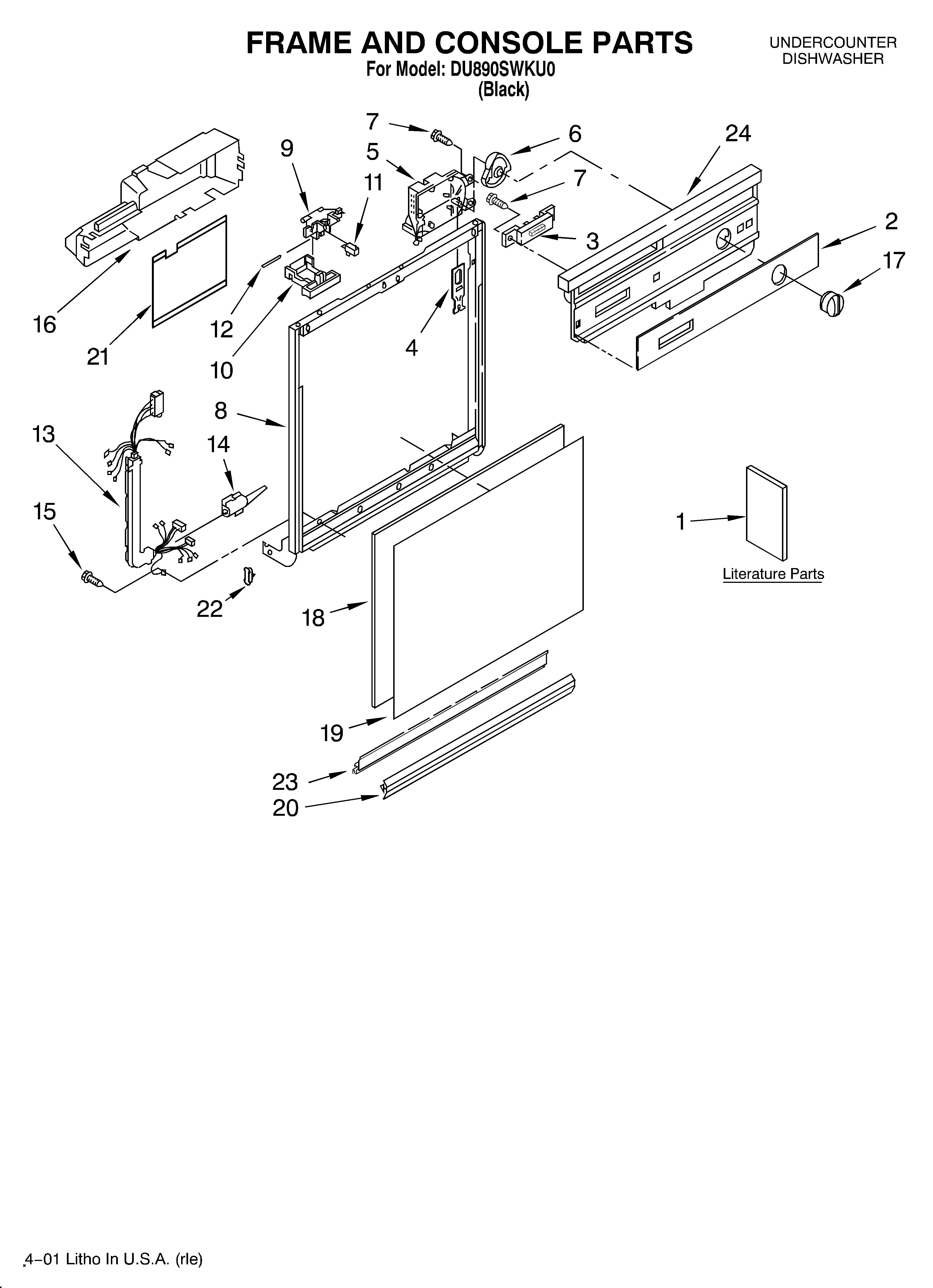

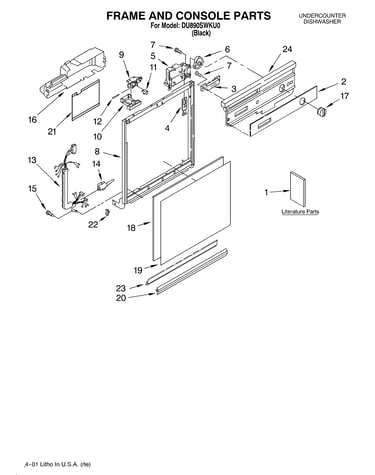

How much to replace control panel on Whirlpool dishwasher?
For Whirlpool dishwasher model DU890SWKU0, the total cost to replace the control panel depends on which console or keypad assembly your exact unit uses and whether you hire service. Typical installed pricing for dishwasher control-panel repairs runs about $250 to $600 (part plus labor), with labor commonly 1 to 2 hours.
Most of the price comes from the specific control panel style (color, button layout, overlay) and the service call.
- Control panel or console assembly: price varies by exact version
- Service call/diagnostic: often a flat fee that may apply even if you decline repair
- Labor time: usually 1 to 2 hours for door disassembly and reassembly
- Extra parts: sometimes a trim piece, overlay, or fasteners are needed
- Taxes and local rates: can shift the total noticeably
| Repair path | What you pay for | Typical total | Best for |
|---|---|---|---|
| DIY | Part only | $100 to $300 | Confident with wiring and door panel removal |
| Pro repair | Part + labor + service call | $250 to $600 | Fast diagnosis and labor warranty |
A “dead” or unresponsive panel is often caused by a door-latch or timer issue, not the panel itself. Check these first:
- Confirm power at the breaker and dishwasher junction box
- Verify the door closes fully and latches firmly
- Look for loose or corroded wiring at the console area
- If the unit is timer-driven, confirm the cycle advances
- Use symptom matching with Whirlpool dishwasher error codes
If the dishwasher will not start, these DU890SWKU0-COMPATIBLE parts are frequent causes:
- Dishwasher door latch WP3380854 (a weak latch can prevent the door switch from closing)
- Timer WP8535368 (a failed timer can stop cycles and make the console seem “dead”)
Control-panel repairs can be one of the higher-cost dishwasher fixes. Verifying latch and timer operation first helps you avoid buying the wrong part and can reduce the repair to a simpler, lower-cost solution.
