GE
Upright Freezer

Model # FUF17SMREWW Official GE upright freezer

Here are the diagrams and repair parts for Official GE FUF17SMREWW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

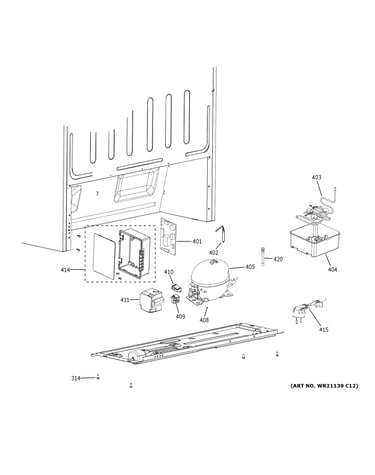

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

R600 Drier W/ Red Cap WR87X30875
R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
In Stock
R600 Process WR87X30876
R600 process

Part #WR87X30876

BEST SELLER
$11.41
15% OFF Phone Price : $13.41
In Stock
Compressor WR87X32223
Compressor

Part #WR87X32223

BEST SELLER
In Stock
Refrigerator R600a Refrigerant WR98X60
Refrigerator r600a refrigerant

Part #WR98X60

BEST SELLER
In Stock
Freezer Electronic Control Board (replaces Wr55x27229) WR55X30692
Freezer electronic control board (replaces wr55x27229)

Part #WR55X30692

BEST SELLER
$241.56
5% OFF Phone Price : $253.56
In Stock
Freezer Evaporator Fan Motor Assembly WR60X27189
Freezer evaporator fan motor assembly

Part #WR60X27189

Replaced by #WR60X35365

?
Manufacturer substitution
This part replaces WR60X27189. Substitute parts can look different from the original.
BEST SELLER
In Stock
Freezer Defrost Sensor WR09X27221
Freezer defrost sensor

Part #WR09X27221

$158.88
7% OFF Phone Price : $170.88
In Stock
Evaporator WR87X31030
Evaporator

Part #WR87X31030

In Stock
Defrost Heater WR09X31028
#207

Freezer section diagram

Defrost heater

Part #WR09X31028

In Stock
Set Screw WR02X37146
#112

Door diagram

Set screw

Part #WR02X37146

In Stock
