Dacor
Electric Wall Oven

Model # CPS230 Official Dacor oven

Here are the diagrams and repair parts for Official Dacor CPS230 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

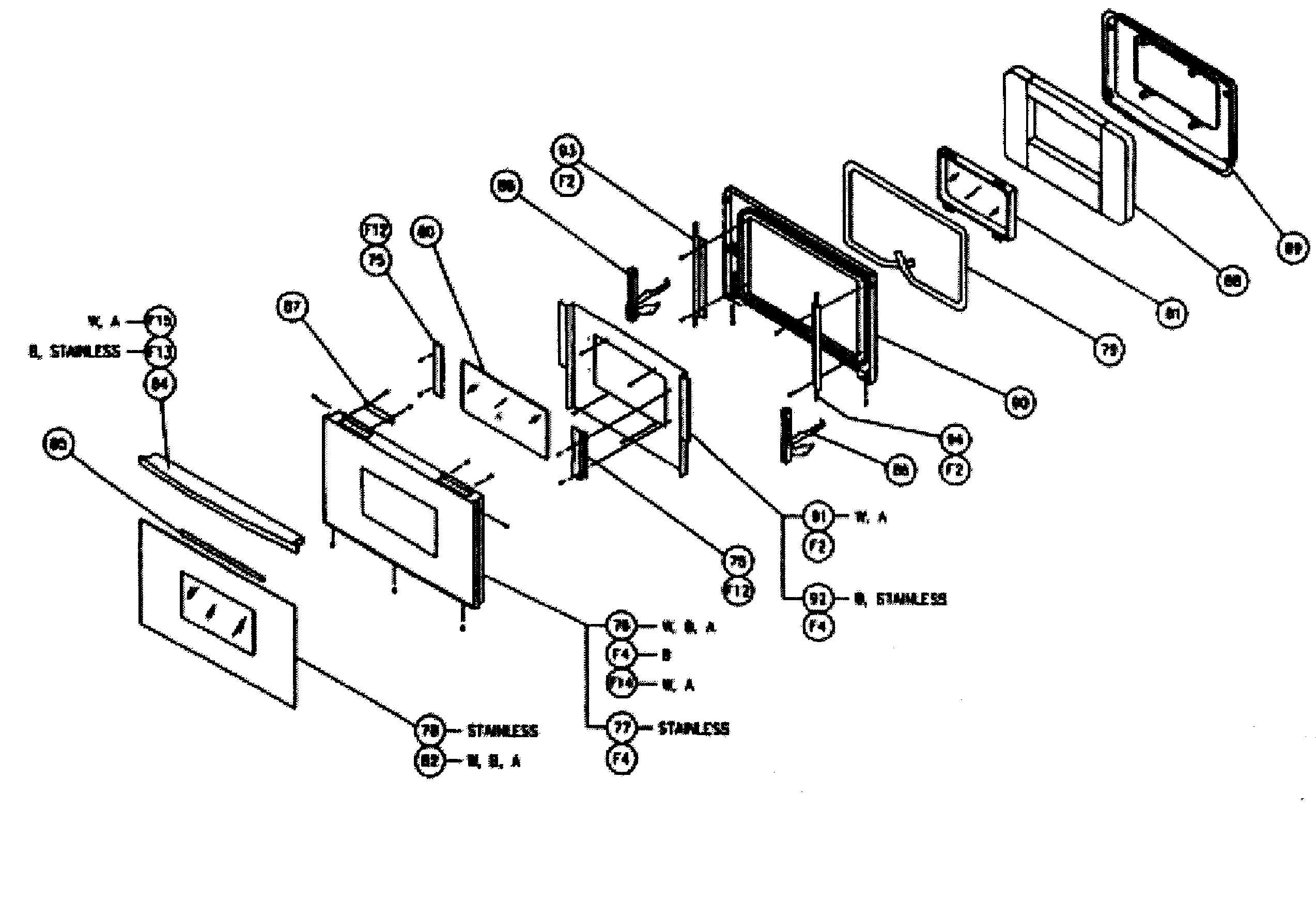

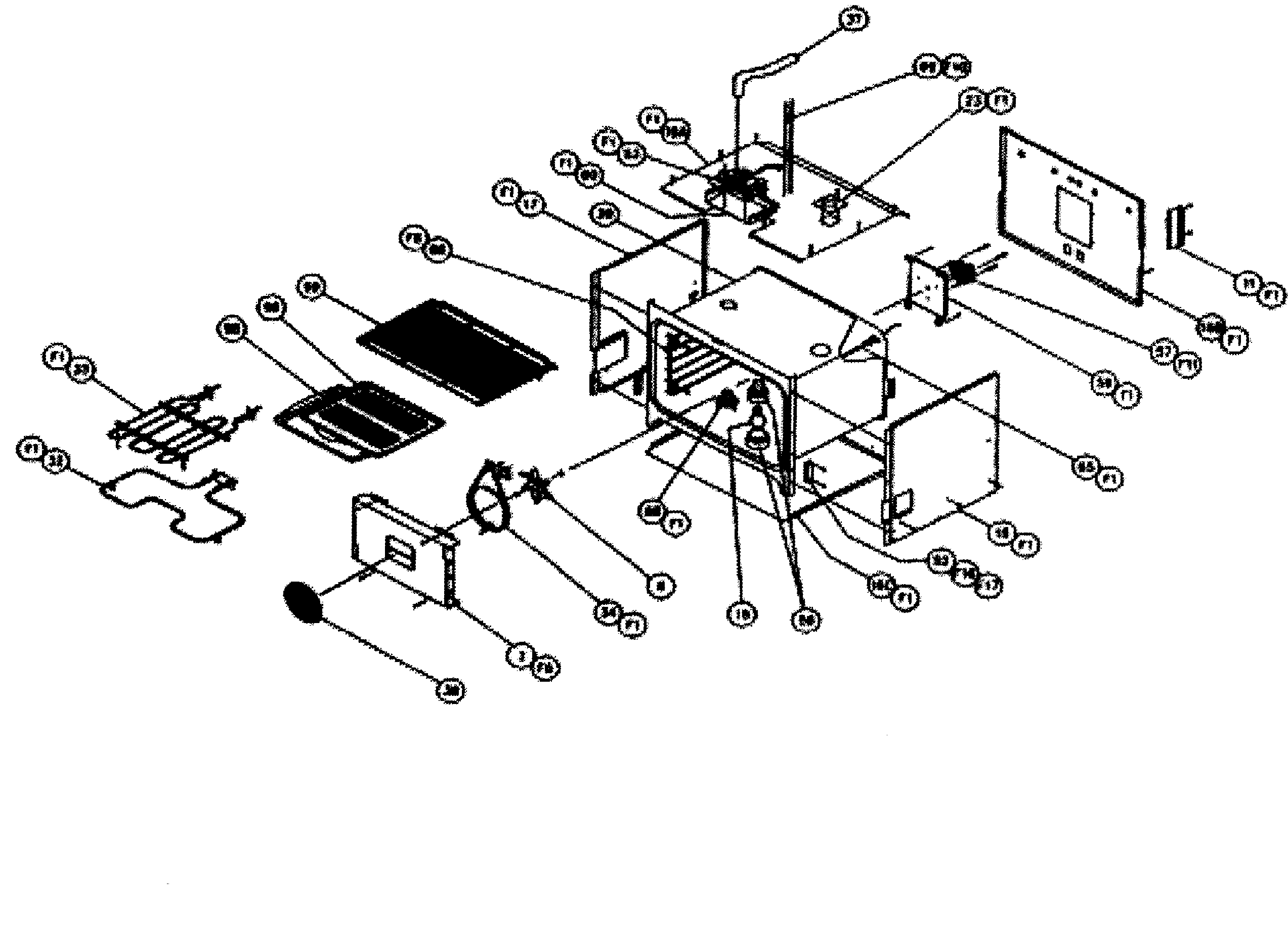

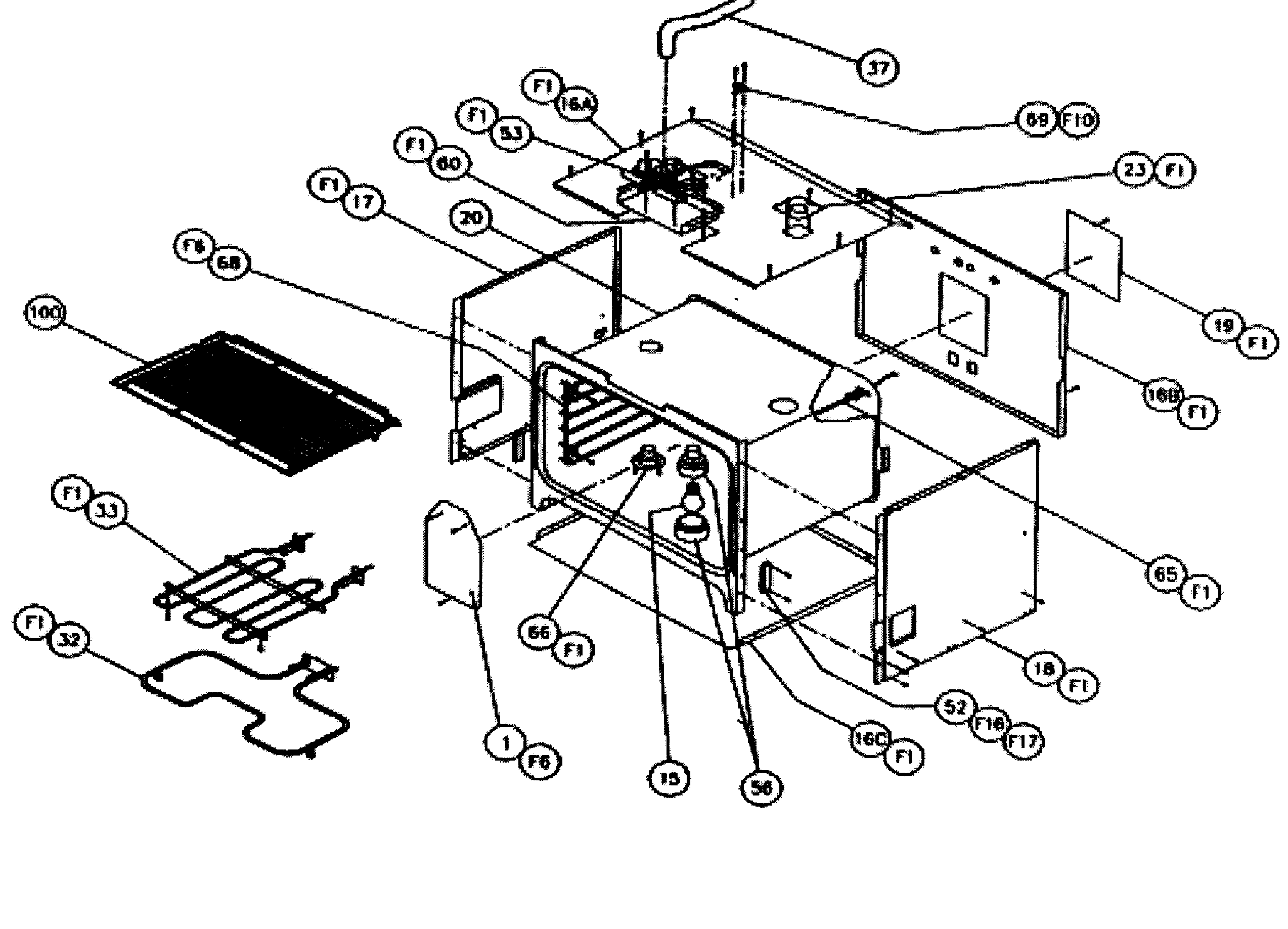

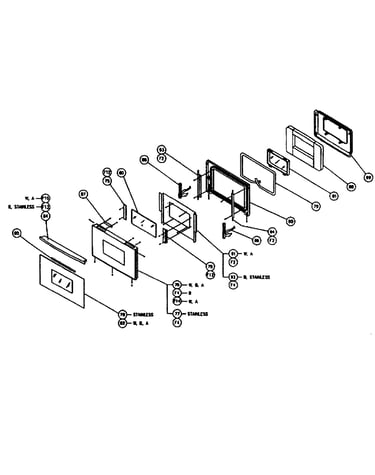

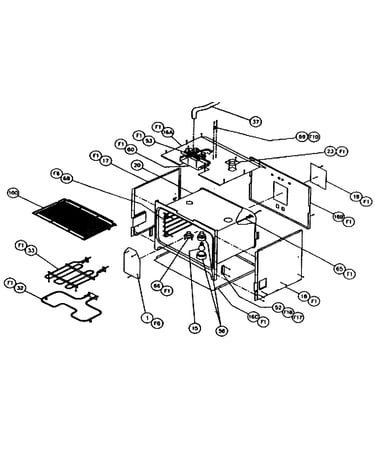

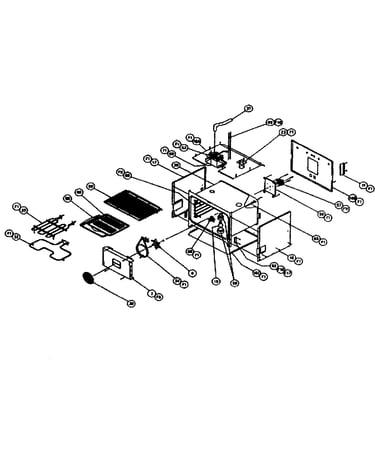

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Oven Grille Exhaust 82229B
#45A

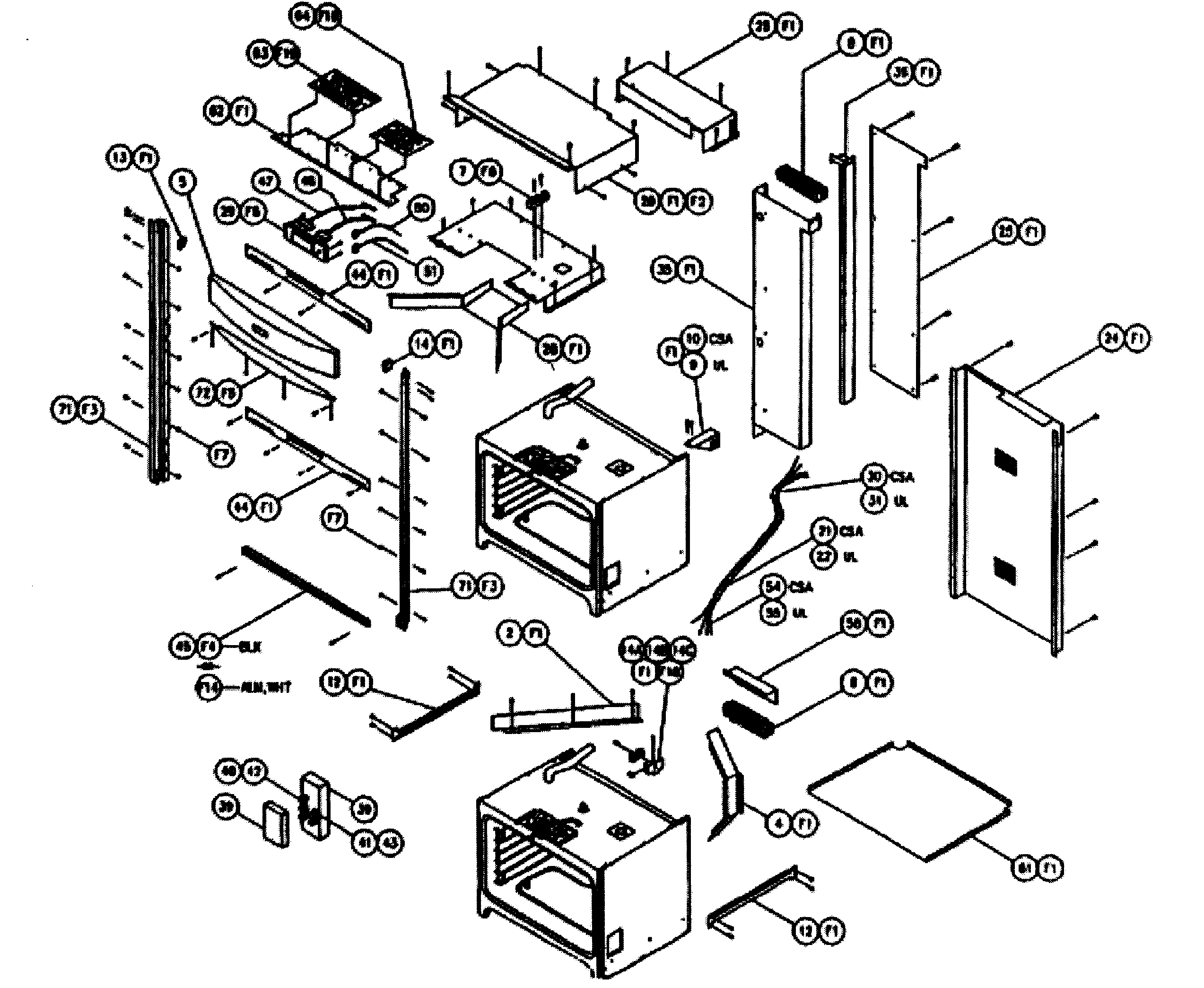

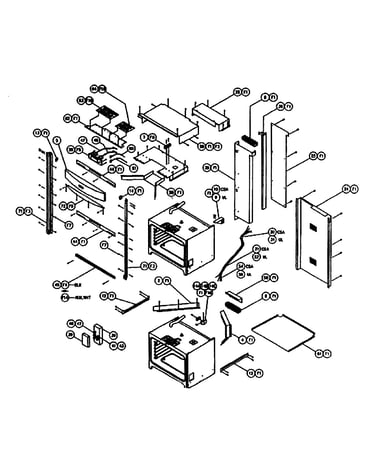

Cabinet parts diagram

Oven grille exhaust

Part #82229B

$84.44
In Stock
Wall Oven Convection Fan Cover 82891
Wall oven convection fan cover

Part #82891

$62.49
In Stock
Range Oven Temperature Sensor 86663
Range oven temperature sensor

Part #86663

$79.49
In Stock
Conduit Mt 26584
#9

Cabinet parts diagram

Conduit mt

Part #26584

This item is not returnable
$7.49
In Stock
Cvr Top Fr 26636
#26

Cabinet parts diagram

Cvr top fr

Part #26636

$44.99
In Stock
Hrns Erc/r 82446
#47

Cabinet parts diagram

Hrns erc/r

Part #82446

$22.49
In Stock
Oven Video 85605
#101

Cabinet parts diagram

Oven video

Part #85605

$12.49
In Stock
Wall Oven Control Board Mounting Stud 83538
#F19

Cabinet parts diagram

Wall oven control board mounting stud

Part #83538

This item is not returnable
$2.16
In Stock
Exhaust Duct 26657
#35

Cabinet parts diagram

Exhaust duct

Part #26657

$39.49
In Stock
Terminal Block 83556
#14B

Cabinet parts diagram

Terminal block

Part #83556

This item is not returnable
$2.16
In Stock
