Craftsman 917271532 lawn tractor Parts

Lawn mower decks are not universal. On the Craftsman 917271532 lawn tractor, the deck must match the tractor’s frame, lift links, anti-sway hardware, belt routing, and spindle (mandrel) setup; even decks with the same cutting width can mount differently. Use the 917271532 owner's manual to confirm deck type and adjustment points.

A deck is interchangeable only when the mounting and drive systems match your tractor. Key fit points include:

• Deck size and shell style (for this model, the manual parts list shows a 42-inch deck assembly)
• Front links and suspension arms connection style
• Anti-sway bar and retainer springs locations
• PTO/clutch engagement and belt path
• Mandrel (spindle) pattern and pulley alignment
• Discharge direction and deflector shield position

Use this checklist to avoid a deck that “almost” fits:

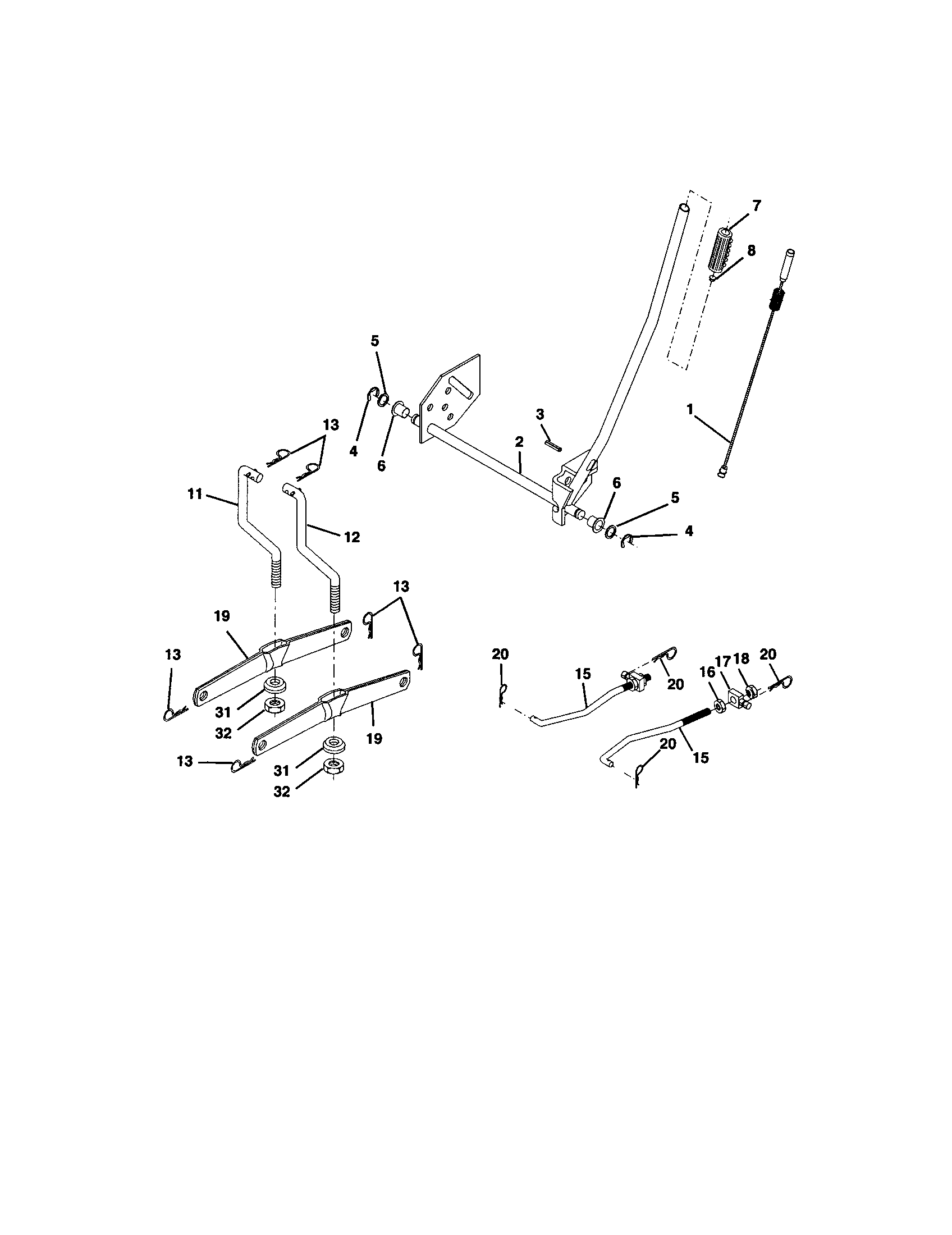

Our manual procedure for removing and installing the mower deck shows multiple linkages and retainers (front links, suspension arms, anti-sway bar, clutch spring). That’s why “universal” decks rarely work on riding tractors.

If your goal is better mulching rather than a full deck swap, a blade change is often the right move. For a compatible option, use the husqvarna lawn tractor mulching blade, 21-in 532134149 when your deck and blade setup match the specified application.

A mismatched deck can cause poor cut quality, uneven height, belt wear, and blade vibration. Correct fit also makes it possible to level the deck properly (side-to-side and front-to-back) for the best cutting results.

Last updated: February 2026

Yes. Manufacturers do make 32-inch zero-turn mowers, but your Craftsman lawn tractor model 917271532 is a traditional front-engine riding tractor (not a zero-turn). If you want a smaller, more maneuverable mower, a 32-inch zero-turn is a real option.

A 32-inch zero-turn typically refers to the cutting deck width. It’s designed for tighter gates and smaller yards than common 42-inch to 54-inch zero-turns.

Key points to compare:

• Deck size: 32 in vs. your tractor’s larger deck options
• Turning: zero-turn pivots in place; tractors need a wider turn radius
• Terrain: tractors often feel steadier on slopes; zero-turns excel around obstacles
• Maintenance: both need blade, belt, and spindle (mandrel) upkeep

We recommend matching the mower type to your yard layout and storage access.

• Choose a 32-inch zero-turn if you have narrow gates, lots of trees, or tight landscaping
• Stick with a lawn tractor if you tow attachments, mow longer straight runs, or deal with uneven ground
• If you mainly want a cleaner cut from your current tractor, start with deck setup and blade condition

Deck width and steering style directly affect cut time, trimming effort, and how easily you can mow around fences and landscaping.

If your cut looks uneven, leveling the mower deck makes a big difference. Follow the deck leveling steps in the 917271532 owner’s manual.

Last updated: February 2026

Replacing the engine on a Craftsman lawn tractor model 917271532 typically costs about $800 to $3,000+ installed, depending on the engine type, whether you choose OEM-equivalent vs. aftermarket, and local labor rates. Labor is commonly 4 to 8 hours for a riding mower engine swap.

Most of the cost is the engine itself; the rest is labor and the “while you’re in there” items that keep the tractor reliable after the swap.

• Engine price: single-cylinder engines usually cost less than V-twins
• Labor time: varies by shop, rust, and accessibility
• Extra parts: belts, pulleys, hardware, battery cables, fuel line, filters
• Shop fees: pickup/delivery, disposal, diagnostics
• Condition of drive and deck: worn components can add time and parts

We often see these items addressed at the same time because they affect starting, drive performance, and belt alignment.

• Ignition key (lost or worn): molded ignition key 532140403
• Ground drive belt if cracked or glazed: v-belt 532138255
• Engine pulley if worn or wobbling: husqvarna companion lawn tractor engine pulley 532175410
• Lock nuts and fasteners that are stripped or seized
• Battery and cables if cranking is weak

A new engine only performs as well as the tractor systems supporting it. Worn belts, pulleys, or safety interlocks can cause no-starts, poor drive, or premature belt wear even after the engine is replaced. For model-specific safety and service guidance, follow the procedures and precautions in the 917271532 owner’s manual.

Last updated: February 2026

The fastest way to get the right parts for a Craftsman riding mower is to match parts to the exact model number on the tractor’s ID label. For this unit, the owner’s manual lists the model as 917.271532 (often shown without the dot as 917271532); use that full number when searching parts.

Most Craftsman lawn tractors have a product identification label in one of these common spots:

• Under the seat (lift the seat and look on the seat pan or fender area)
• On the frame near the rear wheels
• Under the hood near the engine compartment
• Along the left or right side of the frame rail
• Near the footrest area on the chassis

If the label is dirty or faded, wipe it with a damp rag and mild cleaner so the digits are readable.

On Craftsman tractors, you may see several numbers. Use the model number for parts lookup.

• Enter the model number exactly as printed; include all digits (dots are optional)
• If you’re buying deck parts, confirm deck size; this model is a 42-inch mower deck per the manual
• Use the illustrated parts diagrams in the 917271532 owner's manual to confirm the correct section (mower deck, steering, wheels, drive)
• When replacing cutting parts, match by application; for example, a 42-inch deck commonly uses specific blade styles such as a mulching blade like husqvarna lawn tractor mulching blade, 21-in 532134149 when it’s listed for your deck setup

Craftsman tractors can look similar across years, but small differences in deck linkage, belts, and steering parts depend on the exact model number. Using 917271532 keeps your parts match accurate and reduces returns.

Last updated: February 2026

The Craftsman lawn tractor model 917271532 is an electric-start, 42-inch mower with a 6-speed transaxle; the exact engine brand and horsepower are listed in the product specifications section of the 917271532 owner's manual.

Check these spots in the manual for the engine make, model, and tune-up specs:

• Product specifications section (engine type, displacement, oil capacity)
• Maintenance section (spark plug type and gap, air filter service)
• Repair parts section (engine-related diagrams and part callouts)
• Operation section (throttle and starting instructions)

From the documentation for Craftsman 917271532, we can confirm these core drivetrain features:

• Electric start system
• 42-inch mower deck
• 6-speed transaxle (gear drive)
• Throttle control guidance: best performance is at full throttle

Knowing the exact engine make and model helps you buy the correct maintenance parts (spark plug, air filter, fuel filter) and use the right oil type and capacity. It also speeds up troubleshooting if the engine clicks, spins, or will not start.

Last updated: February 2026

The Craftsman lawn tractor model 917271532 is equipped with a Briggs & Stratton engine model 287707 with type number 1259-E1. Use the engine model and type (not just horsepower) to match the correct carburetor, gasket, and ignition parts.

You can confirm the engine identification in two places:

• On the Briggs & Stratton ID label on the blower housing or engine shroud
• In the engine parts breakdown for tractor model 917271532
• By writing down model, type, and code from the label (the code is the build date)
• After cleaning the label; oil and grass buildup often hides digits

For the documentation listing, use the 917271532 owner's manual.

Briggs & Stratton engines commonly share a model number across multiple configurations; the type number narrows it to the exact parts list.

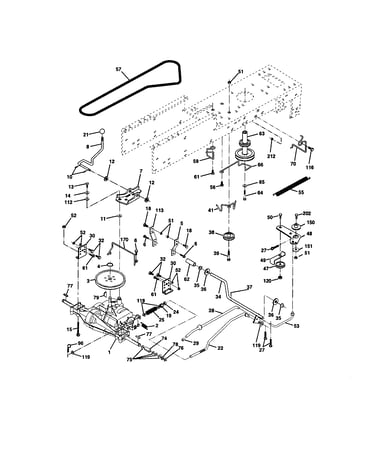

If you are servicing the drive system or controls on model 917271532, these model-listed parts are commonly replaced:

• Ground drive belt: v-belt 532138255
• Engine pulley (drive system): husqvarna companion lawn tractor engine pulley 532175410
• Ignition key: molded ignition key 532140403

Using the correct engine model and type number prevents wrong-part returns and speeds up repairs because many Briggs & Stratton parts vary by type, even within the same engine model.

Last updated: February 2026

For the Craftsman lawn tractor model 917271532, the mower deck shown in our parts list is a 42-inch deck, so a “54-inch deck belt size” does not apply to this specific tractor. Use the deck and belt routing information in the 917271532 owner's manual to match the correct belt by deck type and configuration.

Before buying a belt, we match the belt to the deck actually installed on the tractor.

• Check the deck shell for a stamped size (often near the discharge chute)
• Measure blade length; 42-inch decks commonly use three blades around 14 inches each

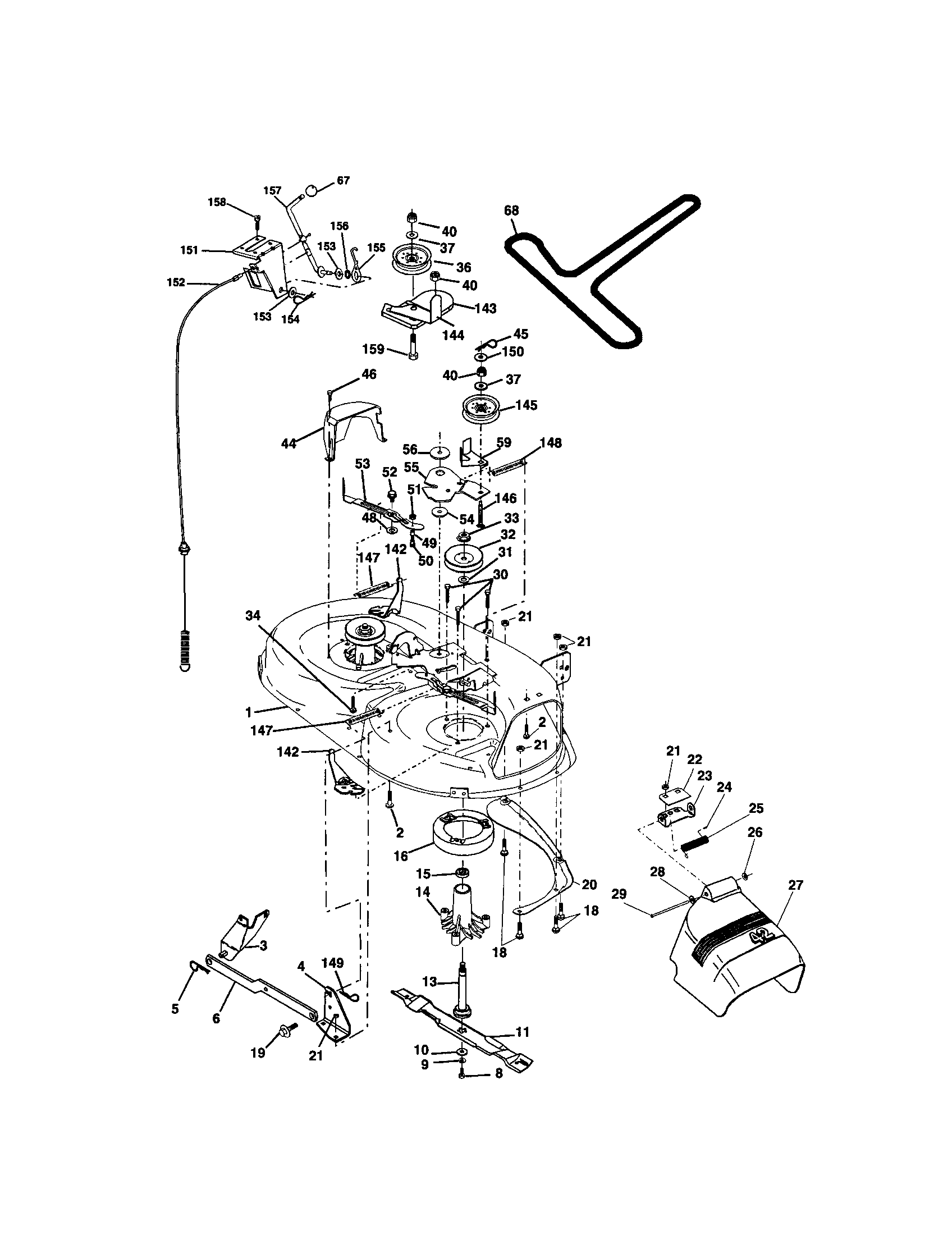

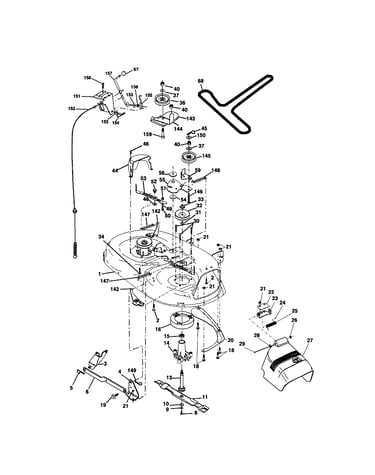

• Compare your deck parts to the 42-inch deck listing (mandrel, idler, belt keepers)
• Verify the model number on the tractor frame tag is 917271532
• Use the belt routing diagram in the manual to confirm pulley path

On riding mowers, deck belt size varies by:

• Deck width (42-inch vs 54-inch)
• Pulley diameters and idler layout
• Whether the deck is standard, mulching, or has a different tensioning arm

Because this model’s documentation excerpt does not list a belt length for a 54-inch deck, we use the manual’s deck section and belt routing to identify the correct belt for the installed deck.

If the belt keeps slipping, squealing, or jumping off, we also inspect the wear items that control belt tension and tracking.

Helpful model-matched examples from this tractor’s deck parts list:

• V-belt 532138255 (belt used on this tractor’s drive system; confirm application before ordering)
• Lawn tractor blade idler spring 532169022 (helps maintain belt tension)

A belt that is even slightly wrong in length or width can slip, overheat, or derail, which reduces cut quality and can damage pulleys, idlers, and mandrel components.

Last updated: February 2026

Craftsman lawn tractor model 917271532 is identified in the parts documentation, but the model number alone does not map to one single published model year. The most reliable way to pin down the year for your exact tractor is to match the model and serial information on the frame ID label using the 917271532 owner's manual.

Use the tractor’s product ID label first; that label ties your exact unit to a production run.

• Locate the product ID label (commonly under the seat, on the frame rail, or near the engine area)
• Confirm the model is 917271532 (sometimes printed with a dot as 917.271532)
• Write down the serial number from the label
• Check the manual’s identification section for label location and format
• Use the serial number when ordering parts to avoid look-alike Craftsman tractors

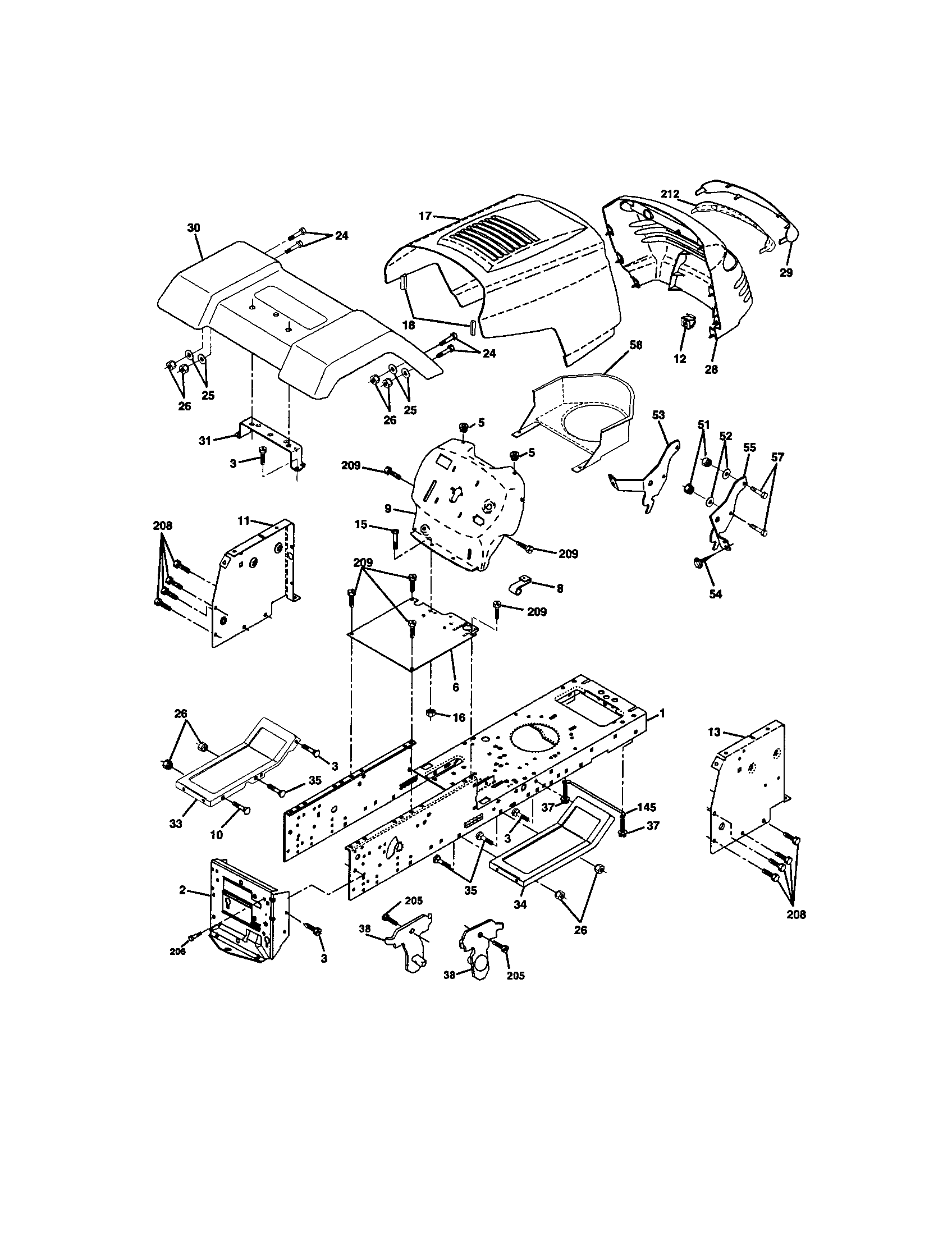

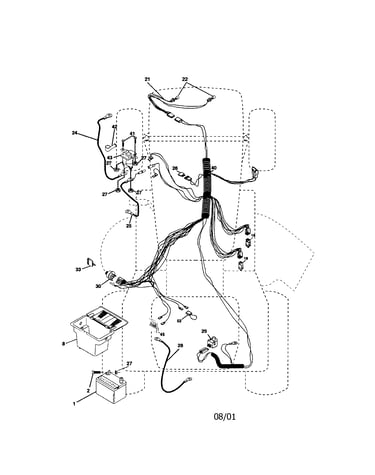

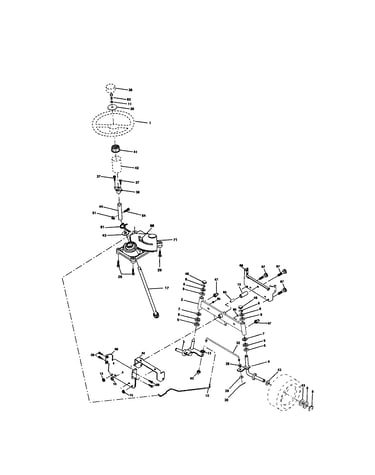

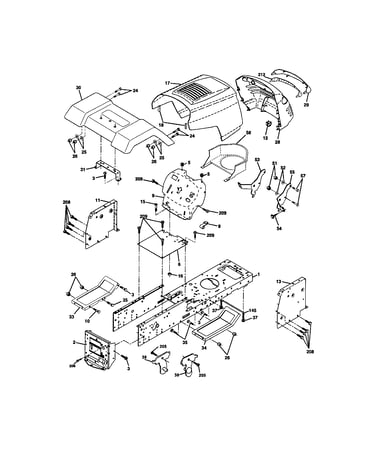

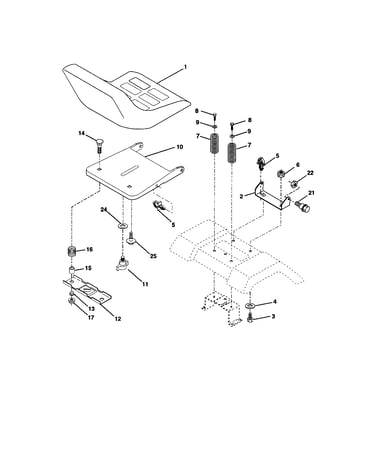

The manual text repeatedly lists “TRACTOR - MODEL NUMBER 917.271532” in multiple sections (electrical, chassis, steering, seat), which confirms you have the correct documentation for this model. Model-year dating still comes from the frame label details.

Craftsman tractors can share similar decks, frames, and controls across multiple years. Using the frame label and the correct manual prevents ordering the wrong belt, blade, steering, or electrical parts.

Last updated: February 2026

On the Craftsman lawn tractor model 917271532, the engine model number is on the engine’s identification label or stamping on the engine itself (typically on the blower housing, valve cover area, or near the cylinder). Use that engine model and type code when ordering engine-specific parts.

Check these common spots first (wipe off dirt and oil so you can read it):

• Top and sides of the engine near the cylinder head or valve cover
• Blower housing/shroud (the metal or plastic cover around the flywheel)
• Near the muffler or fuel tank area on a tag or stamped pad
• Frame rail near the engine (sometimes a secondary label is used)

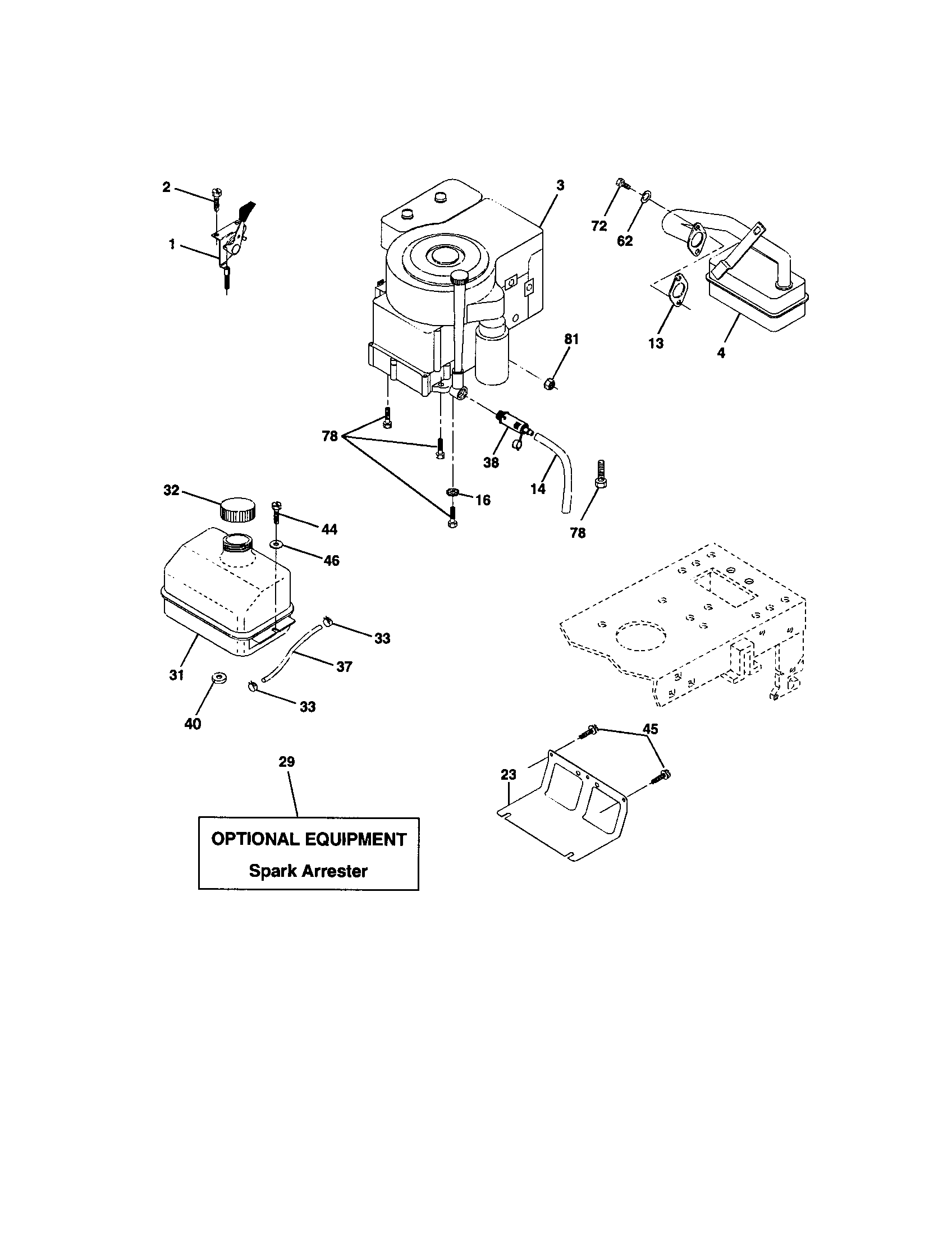

For this tractor, the owner’s manual parts breakdown identifies the engine as a Briggs & Stratton model 287707, type 1259-E1, which helps confirm you are reading the correct label. See the 917271532 owner’s manual for the engine breakdown pages and part listing.

Engine labels usually include multiple identifiers. Here is what to capture before you shop:

The tractor model number (917271532) identifies the chassis and mower deck (like the 42-inch deck), but engine parts are matched to the engine model and type. Using the engine model/type prevents wrong-fit items like carburetor parts, ignition components, and gaskets.
