GE
Trash Compactor

Model # ZCGP150RII-00 Official GE compactor

Here are the diagrams and repair parts for Official GE ZCGP150RII-00 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Trash Compactor Bag WC60X10005
#602

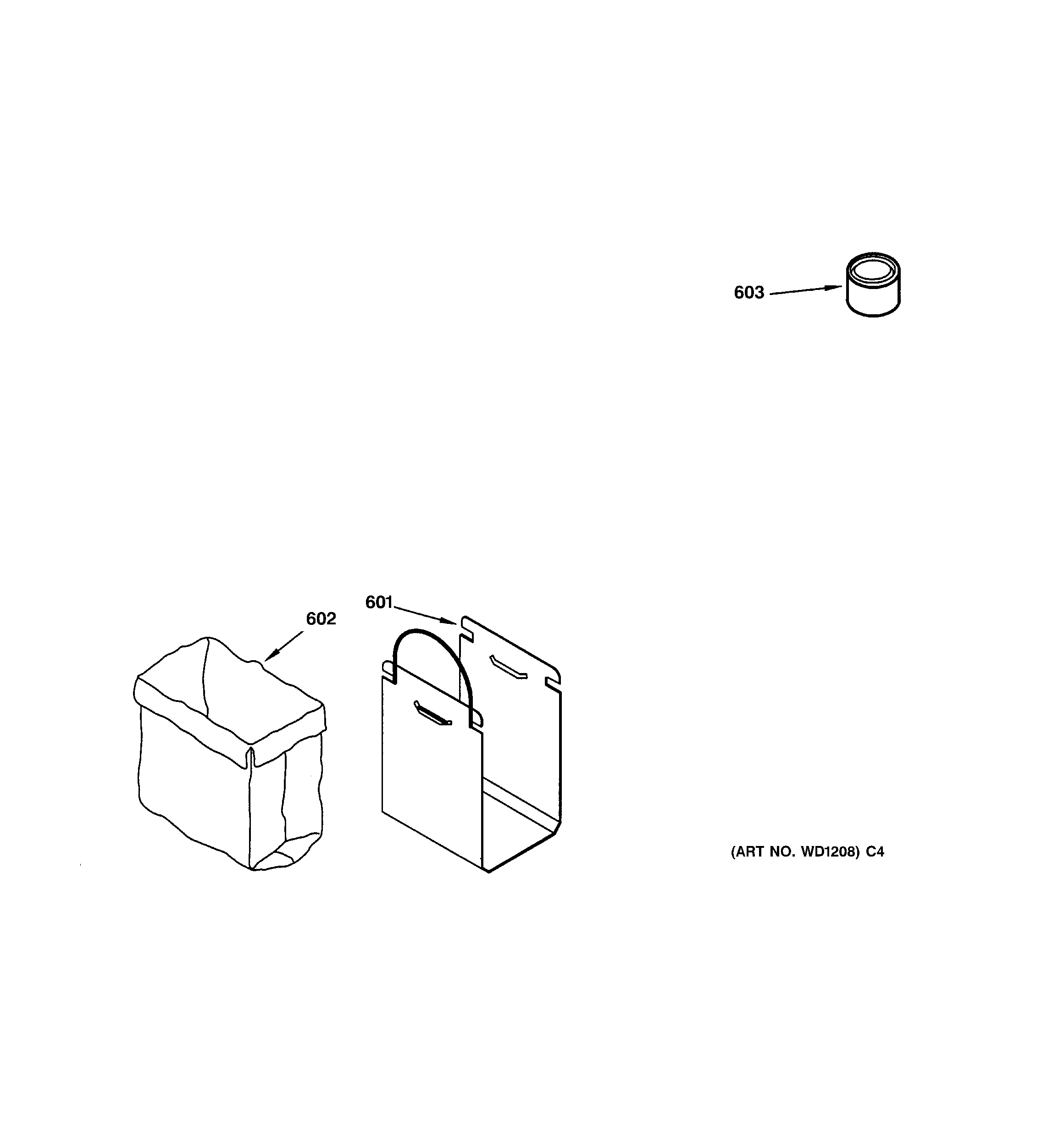

Accessory parts diagram

Trash compactor bag

Part #WC60X10005

BEST SELLER
$37.29
12% OFF Phone Price : $42.29
In Stock
Drive Gear WC22X10002
#410

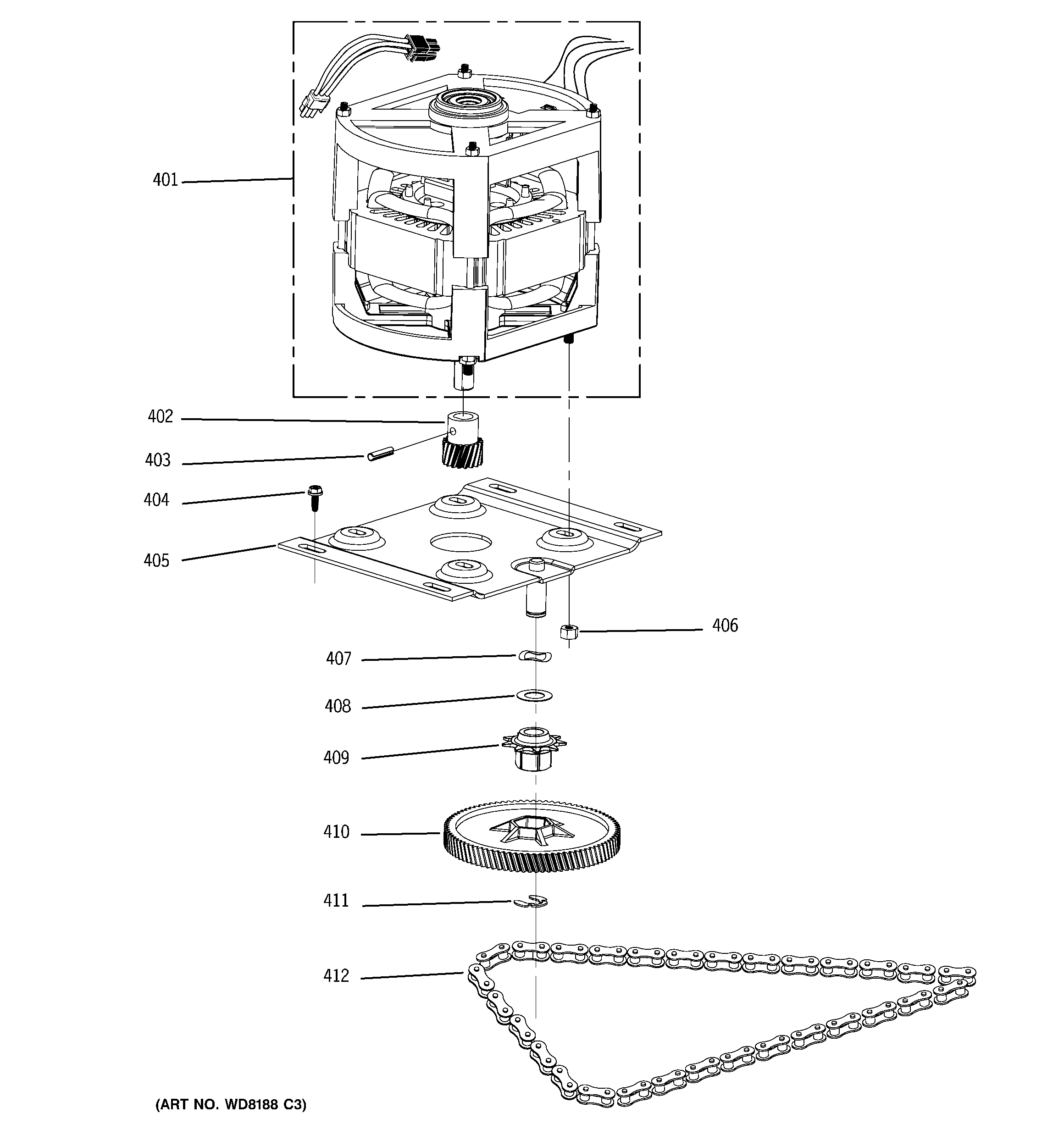

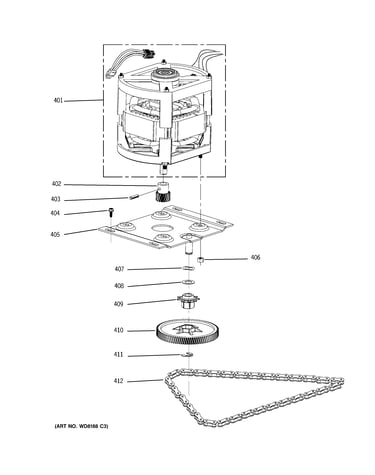

Motor & drive parts diagram

Drive gear

Part #WC22X10002

Replaced by #WC22X10005

?
Manufacturer substitution
This part replaces WC22X10002. Substitute parts can look different from the original.
$42.73
10% OFF Phone Price : $47.73
In Stock
Trash Compactor Power Nut WC02X10021
#503

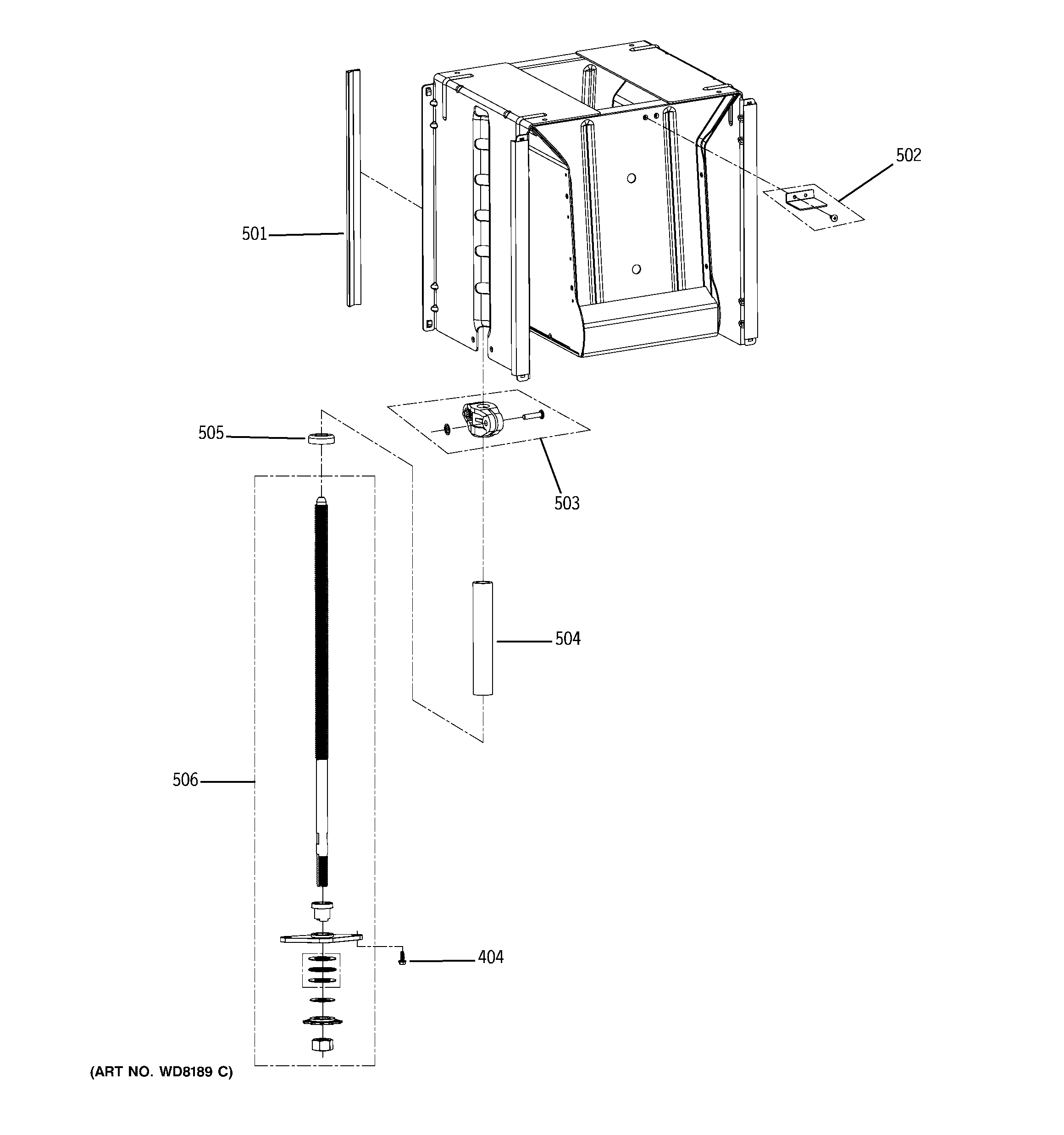

Powerscrew & ram parts diagram

Trash compactor power nut

Part #WC02X10021

Replaced by #WC01X20127

?
Manufacturer substitution
This part replaces WC02X10021. Substitute parts can look different from the original.
$30.55
14% OFF Phone Price : $35.55
In Stock
Trash Compactor Drawer Roller WC02X10019
#209

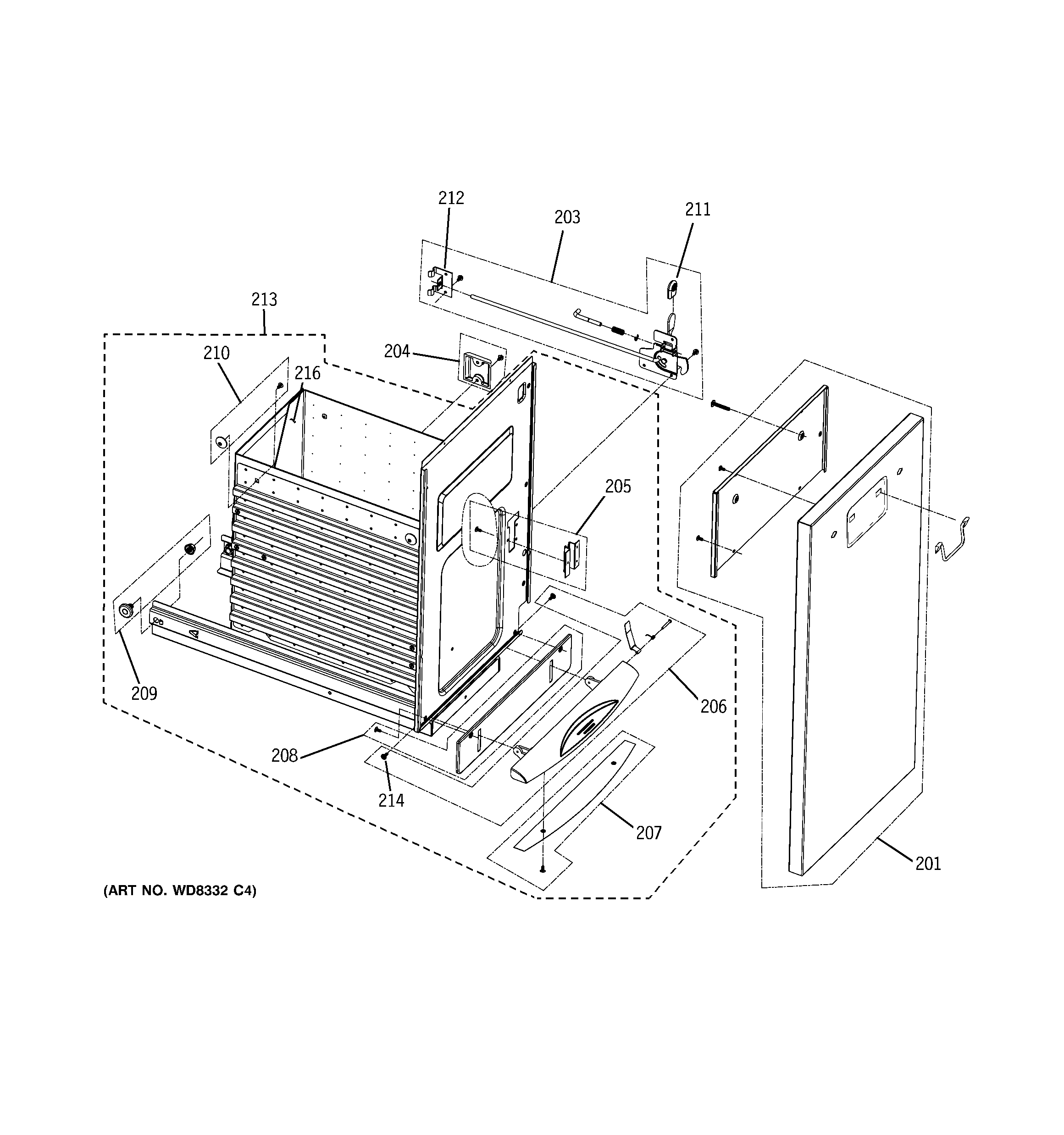

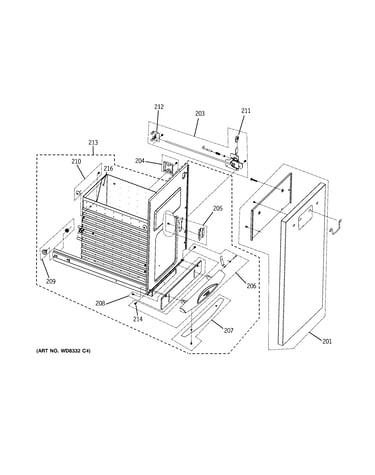

Container parts diagram

Trash compactor drawer roller

Part #WC02X10019

Replaced by #WC02X20110

?
Manufacturer substitution
This part replaces WC02X10019. Substitute parts can look different from the original.
$37.45
12% OFF Phone Price : $42.45
In Stock
Motor Cover WC17X10021
#119

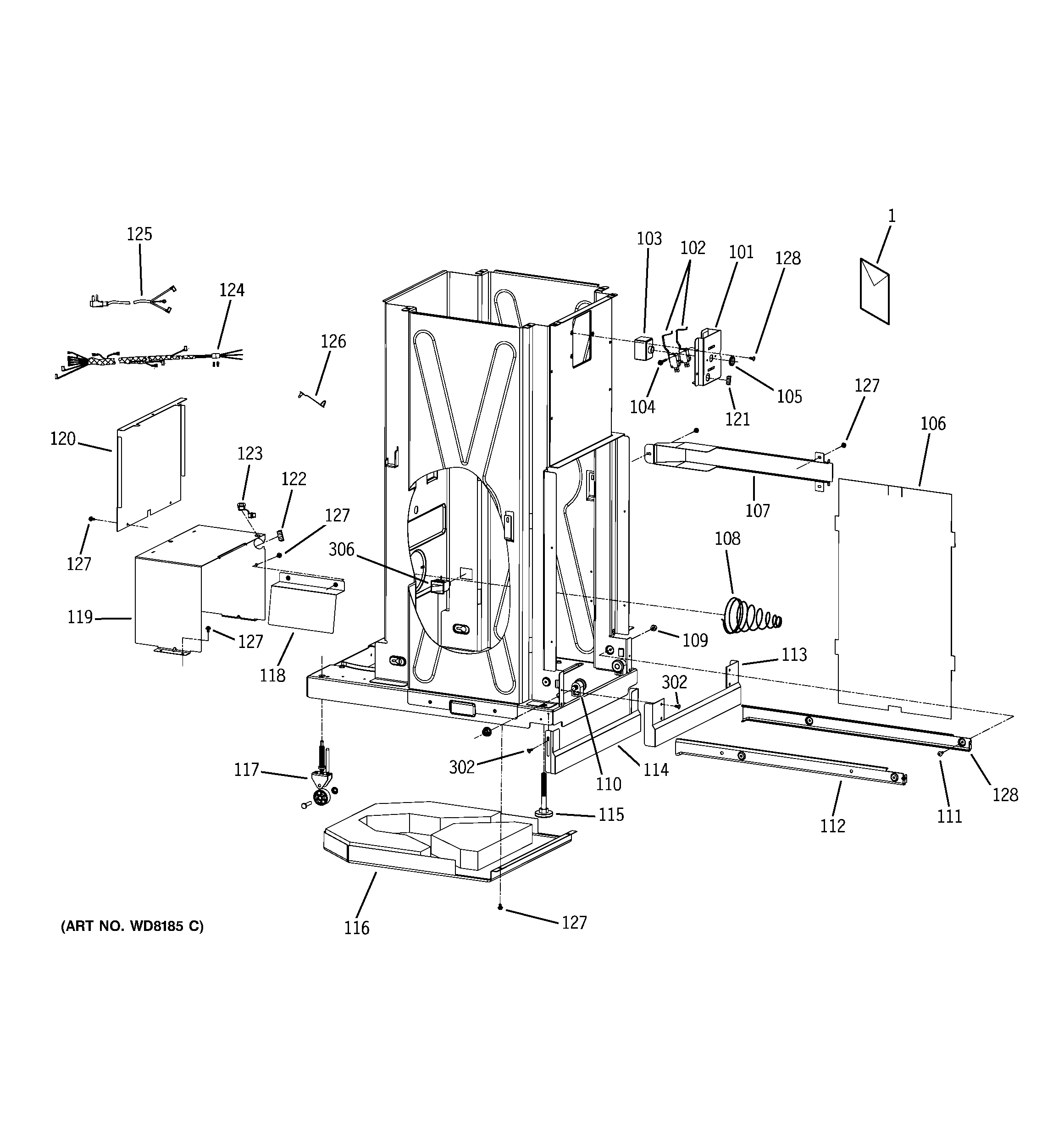

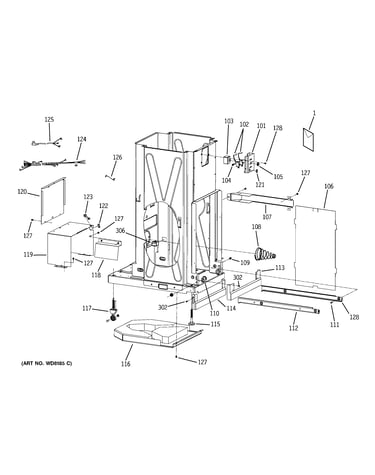

Frame parts diagram

Motor cover

Part #WC17X10021

In Stock
Levelling Le WC01X10011
#115

Frame parts diagram

Levelling le

Part #WC01X10011

In Stock
Adjustable P WC17X10008
#114

Frame parts diagram

Adjustable p

Part #WC17X10008

In Stock
Rear Cover M WC17X10022
#120

Frame parts diagram

Rear cover m

Part #WC17X10022

In Stock
Kit, Custom WC17X10025
#9999

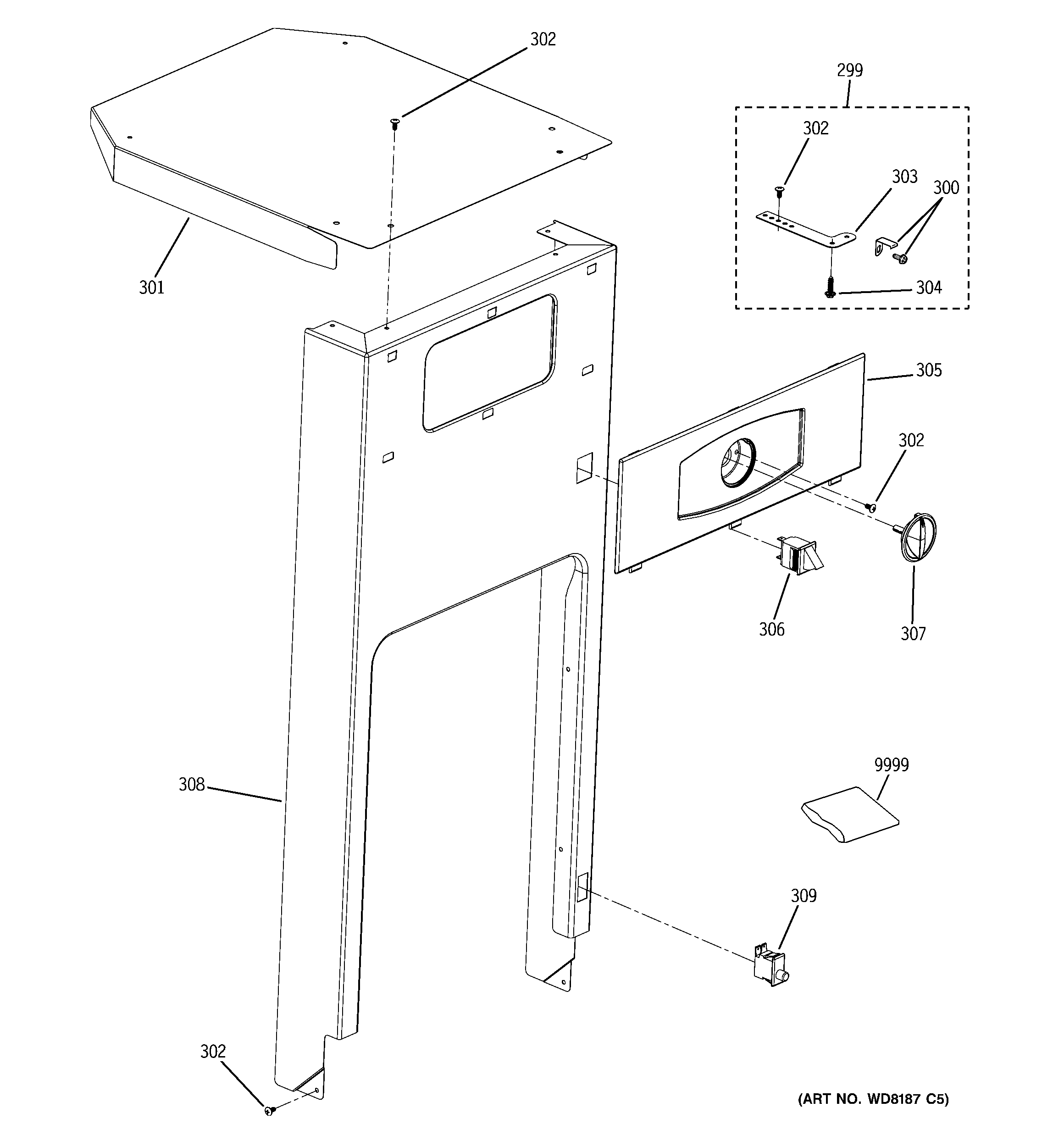

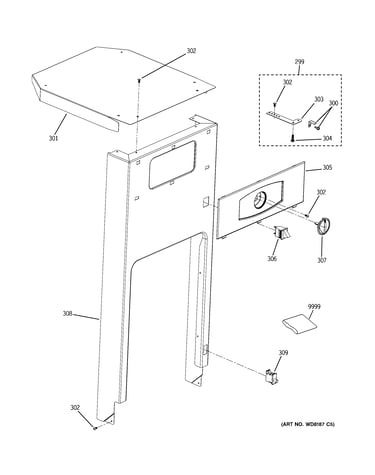

Cabinet & control parts diagram

Kit, custom

Part #WC17X10025

In Stock
Toe-kick Ss WC17X10006
#113

Frame parts diagram

Toe-kick ss

Part #WC17X10006

$63.13
7% OFF Phone Price : $68.13
In Stock

Most common symptoms to help you fix your trash compactors

Choose a symptom to see related trash compactor repairs.

Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…

Main causes: stuck foot pedal, bad momentary start switch, power switch failure…

Main cause: faulty drawer tilt switch …

Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…

Main causes: bent drawer support rollers, damaged trash container…

Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…
