Model # S3655 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3655 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

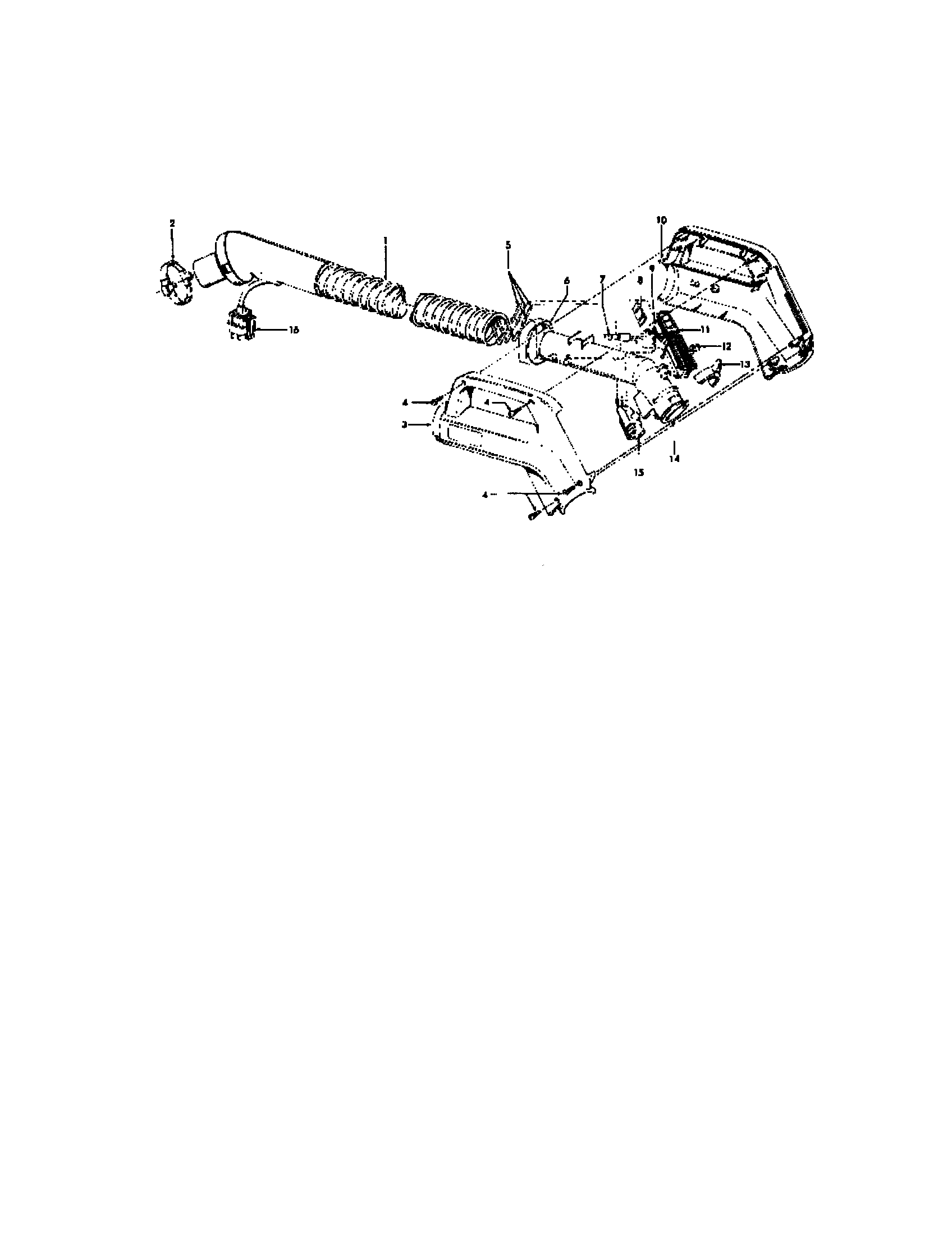

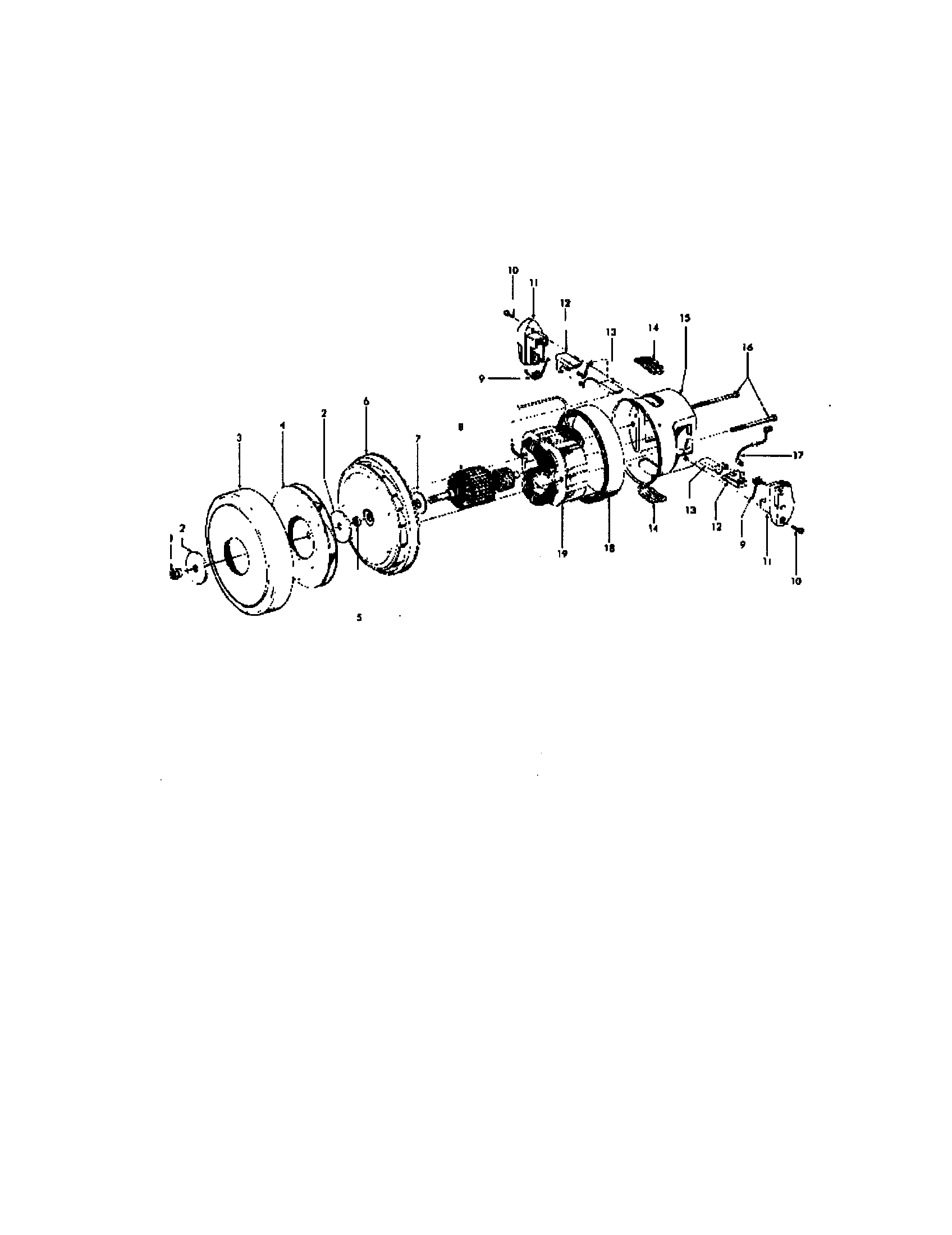

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |

Speed Clip 21378159
#61

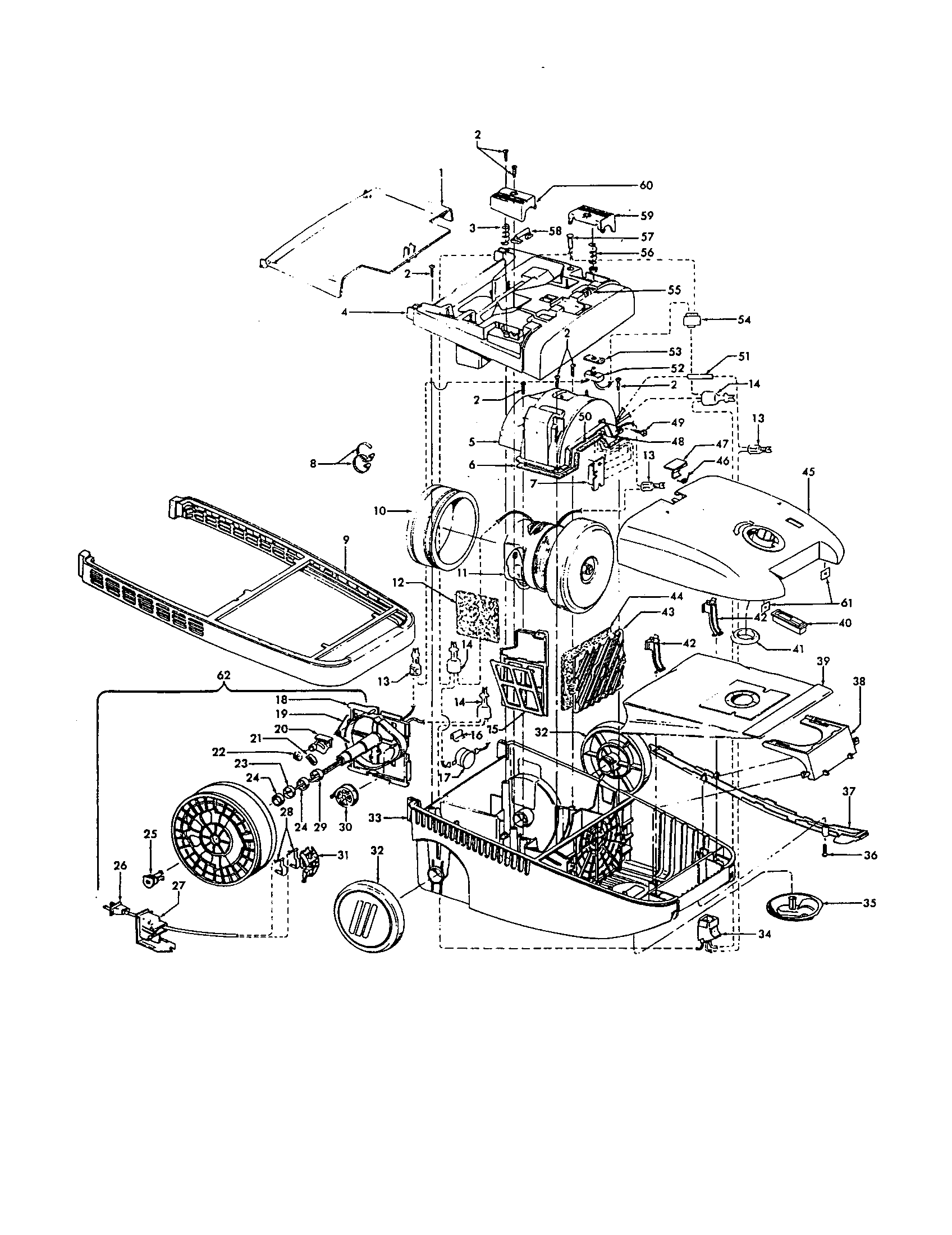

Wind tunnel diagram

Speed clip

Part #21378159

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453027
#7A

Tube attachments diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush Attachment Swivel 38644020
#4

Cleaning attachments diagram

Vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27317307
#4

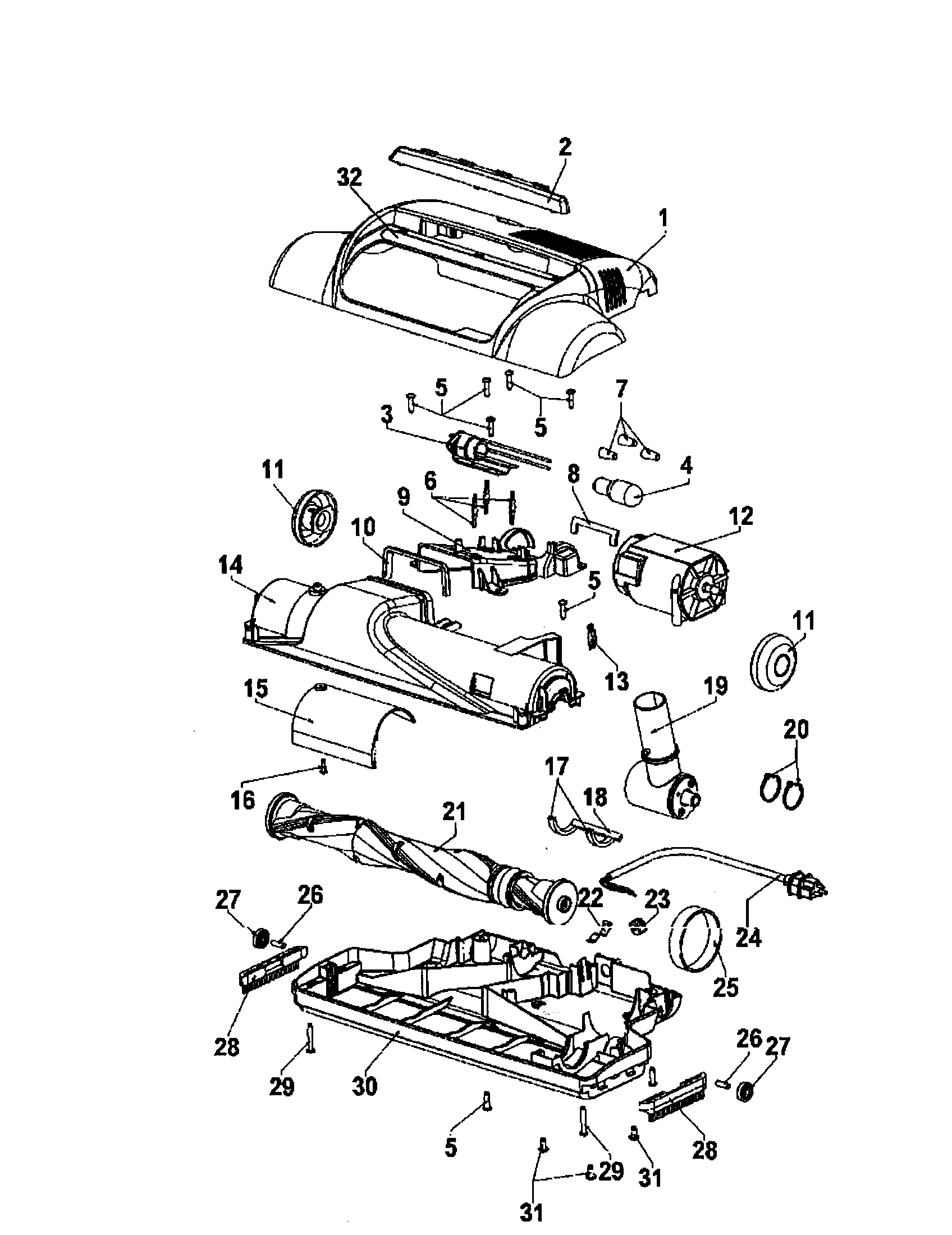

Power nozzle diagram

Vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Bag Support 36424010
#38

Wind tunnel diagram

Bag support

Part #36424010

The manufacturer no longer makes this part, and there's no substitute part

Wire Connector 27618508
#7

Power nozzle diagram

Wire connector

Part #27618508

The manufacturer no longer makes this part, and there's no substitute part

Torsion Spring 38351009
#46

Wind tunnel diagram

Torsion spring

Part #38351009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upholstery Nozzle 43414057
Vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag Level Indicator 51151010
#40

Wind tunnel diagram

Vacuum bag level indicator

Part #51151010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 43414064
Vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part
