On the Frigidaire FFHS2311PF5, the 5Y CF code points to a communication problem between the main electronic control and the user interface (display) board. We focus first on power stability and wiring connections because a loose harness or power event can interrupt board-to-board signals.

What to do first (quick checks)

• Unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Confirm the outlet has steady power (a tripped GFCI or loose plug can trigger control issues).
• Check that the refrigerator is fully plugged in and the house power is turned on.
• If your model has a front filter, make sure the water filter is fully seated and flush in the housing.
• If the display is flashing or showing multiple codes, record them before resetting power.

What usually causes 5Y CF

In most side-by-side refrigerators like the FFHS2311PF5, this code is triggered by one of these conditions:

• Loose or oxidized wiring harness connection between boards
• Pinched or damaged harness (often near hinges or where the harness routes through panels)
• Power interruption or surge that disrupts control communication
• Failed electronic control or failed interface board

Parts that are commonly involved

If basic power and connection checks do not clear the code, these parts are often part of the repair path:

Symptom you notice	Most likely area to inspect	Example part on this model page
Code returns immediately after reset	Control communication / main control	Refrigerator electronic control board A01078804
Cooling seems normal but display acts erratic	User interface or harness	(inspect connectors and harness seating)
Multiple odd behaviors at once (fans, temps, dispenser)	Main control logic / power event	Refrigerator electronic control board A01078804

Why it matters

When the control and interface cannot communicate, the refrigerator may not respond correctly to temperature settings, dispenser commands, or diagnostic inputs. Addressing the wiring and control issue early helps prevent temperature swings that can affect food safety.

Helpful references

• Use the troubleshooting and “Solutions to common problems” sections in the FFHS2311PF5 owner's manual.
• If your display shows additional codes, match them using Frigidaire refrigerator error codes.

Last updated: February 2026

On the Frigidaire FFHS2311PF5 side-by-side refrigerator, defrost is handled by the electronic control system rather than a simple, stand-alone mechanical defrost timer on most versions of this design. For model-specific access points and service checks, follow the FFHS2311PF5 owner's manual.

What you will typically find on this model

Instead of a removable “timer” you can point to, the defrost function is usually managed by the control board and defrost sensors.

Common defrost-related components include:

• Electronic control (manages cooling and defrost cycles)
• Defrost heater (melts frost off the evaporator)
• Defrost bi-metal thermostat (opens/closes based on evaporator temperature)
• Temperature sensor (thermistor) inputs to the control

If you are troubleshooting a defrost problem, the parts most often involved for this model include:

• Refrigerator electronic control board A01078804
• Refrigerator defrost bi-metal thermostat 5303918214
• Refrigerator defrost heater 242044113

Where to look when you are trying to “find the defrost timer”

On side-by-side refrigerators like the FFHS2311PF5, the defrost controls are usually accessed in one of these areas:

• Inside the fresh food section near the temperature control panel
• Behind a rear cover panel (control housing area)
• Behind the toe grille area for wiring access (varies by configuration)

Always unplug the refrigerator before removing covers or handling wiring.

Quick troubleshooting checklist (before replacing parts)

• Confirm the unit is cooling and not accidentally turned off at the control panel
• Check for heavy frost on the freezer back wall (a strong defrost-system clue)
• Listen for the evaporator fan; no airflow can mimic a defrost failure
• Make sure door gaskets seal; warm air intrusion increases frost load
• Verify the freezer temperature is set correctly and doors are closing fully

Defrost system parts: what each one does

Part	What it does	Common symptom when it fails
Control board	Schedules/controls defrost	Repeated icing or erratic temps
Defrost heater	Melts evaporator frost	Solid frost blanket, warm fridge
Defrost bi-metal thermostat	Safety and defrost control feedback	Heater never turns on or overheats

Why it matters

If you spend time searching for a “defrost timer” that is not used on your configuration, you can miss the real cause of icing, warm fresh food temps, or poor airflow. Focusing on the control board, heater, and defrost thermostat gets you to the correct fix faster.

Last updated: February 2026

Food freezes in the fresh food section of your Frigidaire FFHS2311PF5 when the fresh food setting is too cold, the damper is stuck open and dumps freezer air into the refrigerator side, or airflow is blocked and creates cold spots. Confirm the actual temperature with a thermometer, then adjust.

Quick checks (fastest fixes)

• Put a thermometer in the fresh food compartment; some displays are reference-only. See the FFHS2311PF5 owner's manual.
• Raise the fresh food setting 1 degree warmer; wait 24 hours to stabilize.
• Keep packages away from the air inlet and return vents.
• Make sure doors close fully and the gasket seals all the way around.
• Use crisper humidity controls correctly for produce.

Common causes and what to do

Temperature control set too cold

The Use & Care guidance for this model is to adjust in small steps and allow time for stabilization.

Symptom	Likely cause	What to do
Freezing near vents/top shelf	Airflow concentrated	Move food away from vents; set warmer
Random freezing throughout	Setting too cold	Set 1 degree warmer; wait 24 hours

Air damper stuck open

If the damper does not regulate freezer air, the refrigerator side overcools.

• Listen for constant airflow into the fresh food section
• Look for freezing mainly near the air inlet
• Replace the damper if it is stuck or broken: refrigerator air damper control assembly 242303001

Temperature sensor (thermistor) reading wrong

A bad sensor can make the control board run the refrigerator too cold.

• Freezing continues even after warmer settings
• Temperatures swing widely day to day
• Common replacement part: refrigerator temperature sensor 240597220

Why it matters

Overcooling dehydrates produce, freezes liquids, and can increase run time. Correct settings and proper airflow keep the fresh food section near 37°F and protect food quality.

If you decide to order parts, use the parts list for FFHS2311PF5 or search by model on Sears PartsDirect.

Last updated: February 2026

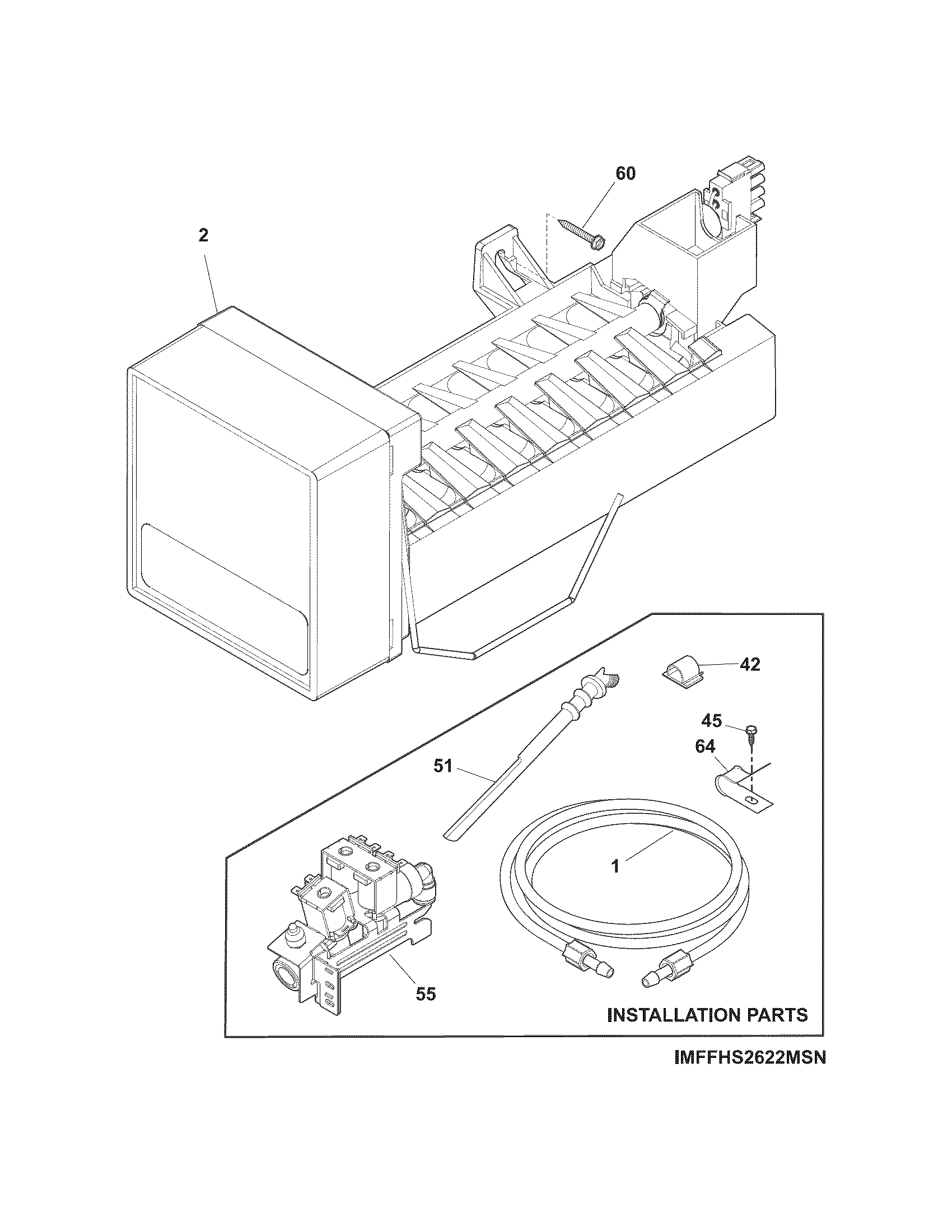

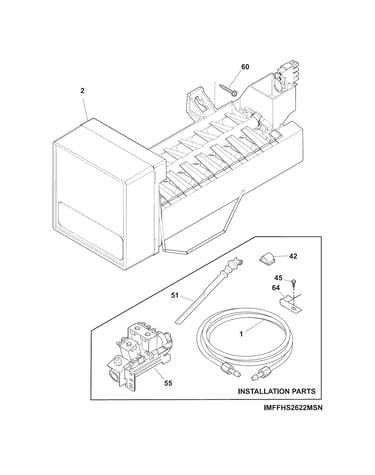

On the Frigidaire FFHS2311PF5, we do not “force” a harvest cycle with an external test button; we cycle it by confirming the ice maker is ON and the water system is primed so the unit can run through its normal harvest and refill. For the exact ON/OFF locations, use the FFHS2311PF5 owner's manual.

Safest way to make it run a normal cycle

• Turn the ice maker ON using the correct control:
  • Side-mounted: lower the wire signal arm to DOWN/ON.
  • Rear-mounted: set the power switch to ON (“I”).
• Prime and flush the water supply; air in the line causes 2 to 3 empty cycles.
• Keep the ice bin installed and the freezer door closed so temperature stays cold enough to harvest.

If it still will not harvest or refill

• Check for a small cube or ice chips jammed in the mechanism.
• If cubes are small or hollow, replace the filter; use refrigerator water filter WF3CB.
• If dispenser flow is slow, fix that first; low flow prevents proper ice maker fill.
• If water supply is good but the mold never refills, replace the valve; use Frigidaire refrigerator water inlet valve assembly 242252702.

What “cycling” looks like on this model

What you observe	What it usually means	What to do next
Harvests ice but no refill	Water supply restriction	Check filter, then inlet valve
No harvest, no movement	Ice maker not on or jammed	Verify ON control, clear jam
Loud valve chatter	Water not connected/open	Turn ice maker OFF, open supply

Why it matters

Manually advancing gears can spill water into the freezer and hides the real cause (air in the line, restricted filter, or weak inlet valve). Using the FFHS2311PF5 ON/OFF method gives a cleaner diagnosis.

You can order model-matched parts from the parts list for FFHS2311PF5, or search by model on Sears PartsDirect.
