GE JKP30BM1BB wall oven Parts

Most electric wall ovens cost about $1,000 to $3,500, with budget models sometimes near $500 and premium or specialty models reaching $5,000+. For a built-in GE wall oven like model JKP30BM1BB, the total cost can also include installation, electrical work, and any needed cabinet modifications.

What changes the price the most

• Size and configuration (27-inch vs 30-inch, single vs double)
• Features (convection, self-clean, advanced controls)
• Finish and design (standard vs premium styling)
• Electrical and installation requirements (hard-wiring, junction box access)
• Labor and carpentry needs (cutout changes, trim, leveling)

Installation costs to plan for (common add-ons)

GE electric wall ovens are typically hard-wired (direct-wired) into an approved junction box, not plugged into an outlet. That means installation often includes electrical labor in addition to mounting the oven. See the installation guide for the wiring and junction box expectations.

Cost item	Typical range	Notes
Electric wall oven (unit only)	$500 to $5,000+	Price varies widely by features and brand
Professional installation	$200 to $800+	More if cabinet work is needed
Electrical updates (if needed)	$150 to $600+	Junction box, wiring, breaker, conduit/strain relief
Cabinet modifications (if needed)	$100 to $1,000+	Cutout resizing, trim, support rails

Why it matters

Wall ovens are built-in appliances, so the “real” price is usually the oven plus installation. Planning for hard-wiring, clearances, and cutout fit up front helps avoid delays and surprise labor costs.

For model-specific fit and install requirements, we recommend checking the JKP30BM1BB installation guide before you buy or schedule installation.

Last updated: January 2026

On the GE JKP30BM1BB wall oven, the model and serial number label is typically on the side trim or on the front of the lower oven frame behind the oven door. Use that exact model number when ordering parts or scheduling service.

Where to look on the oven

Check these common label locations first:

• Open the oven door and look along the front frame (especially the lower oven on double-oven styles)
• Look on the side trim near the oven opening
• Check just behind the oven door on the front edge of the cavity
• If your unit has a front control panel, look just under the control area along the frame

Use the location guidance in the JKP30BM1BB owner’s manual to match what you see on your specific configuration.

What to write down (and why)

Record both numbers exactly as shown on the tag.

Item	What it’s used for	Example format
Model number	Ensures parts fit your exact oven design	JKP30BM1BB
Serial number	Helps identify production details for service	Letters and numbers

Why it matters

GE wall ovens can look similar across series (JKP, JTP, etc.), but parts like the control faceplate, thermal fuse, door gasket, and bake or broil element can vary by model. Using the correct model number helps prevent ordering the wrong part and avoids installation delays.

Last updated: January 2026

On the GE JKP30BM1BB electric wall oven, you disable Control Lockout by pressing and holding the correct two pads together for 3 seconds until the display changes from LOCON (locked) to LOCOFF (unlocked). The exact pad pair depends on your control style.

Steps to turn Control Lockout off (JKP30BM1BB)

Follow the method that matches your control panel:

• If your oven has Hour and Min - pads: press Hour and Min - at the same time for 3 seconds until the display shows LOCOFF.
• If your oven uses number pads: press 9 and 0 at the same time for 3 seconds until the display shows LOCOFF.
• If the control beeps and shows LOCON when you press pads, the lock is still on.
• On double ovens with presspad controls for both ovens, this locks or unlocks both ovens together.
• On models with oven knob(s), Control Lockout is not available for the lower oven.

For the exact pad layout on your version of the control, use the JKP30BM1BB owner’s manual.

Quick check: locked vs unlocked

Display message	What it means	What to do
LOCON	Controls are locked	Hold the correct 2 pads for 3 seconds
LOCOFF	Controls are unlocked	Normal operation resumes

If it still will not unlock

These checks solve most “stuck lock” situations:

• Make sure you are pressing the two pads at the same time and holding a full 3 seconds.
• If the oven is in or just finished Self Clean, wait for the oven to cool until the LOCKED light goes out (the door lock can prevent normal operation until temperatures drop).
• Press Clear/Off once, then try the unlock pad combination again.

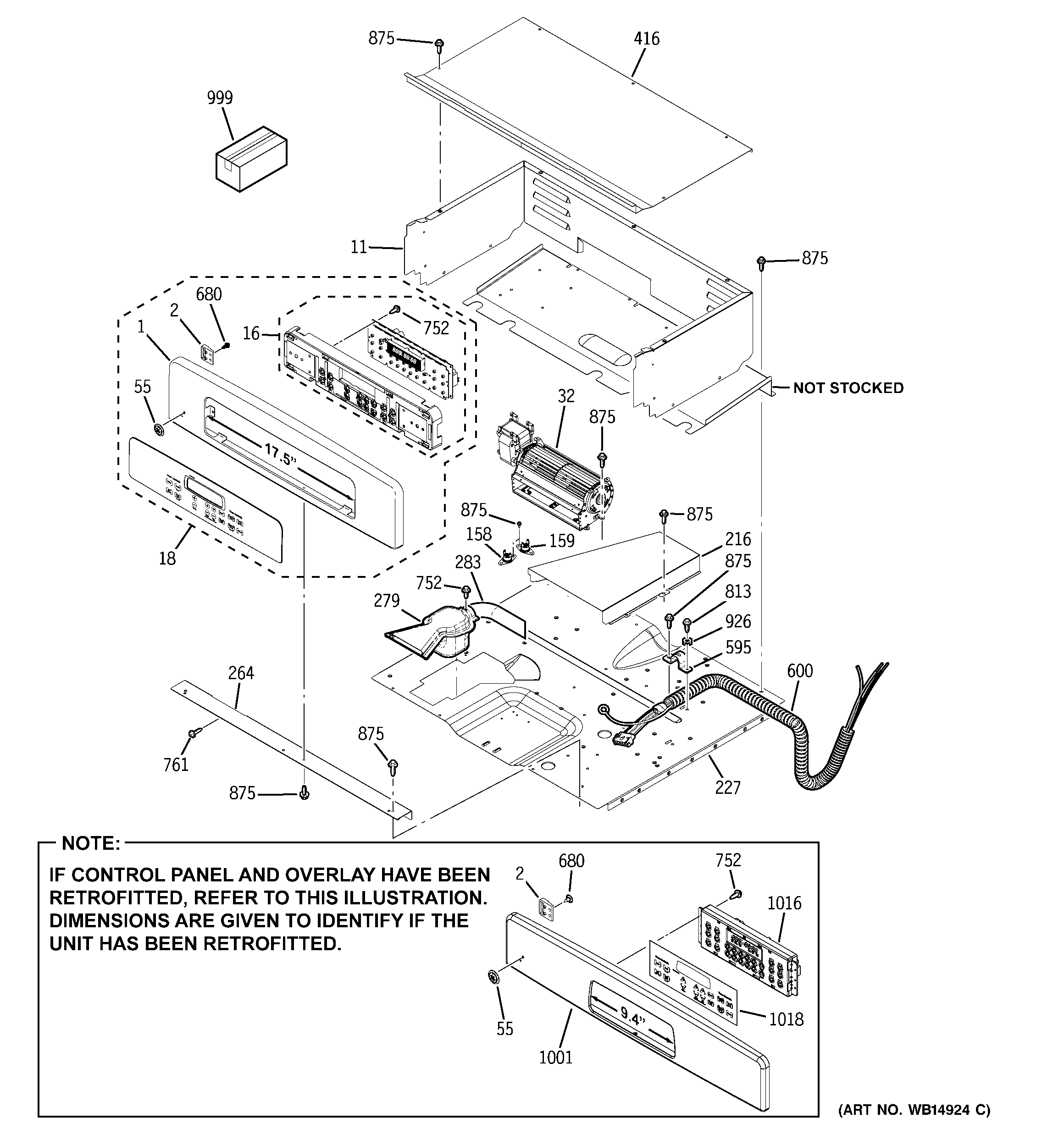

• If the keypad is unresponsive or some pads do not register, inspect for a damaged overlay; the wall oven control faceplate WB27T11229 is the model-matched part used for the control panel face.

Why it matters

Control Lockout prevents accidental keypad presses during cooking and cleaning. Unlocking restores normal use of Bake, Broil Hi/Lo, timer, and other presspad functions.

Last updated: January 2026

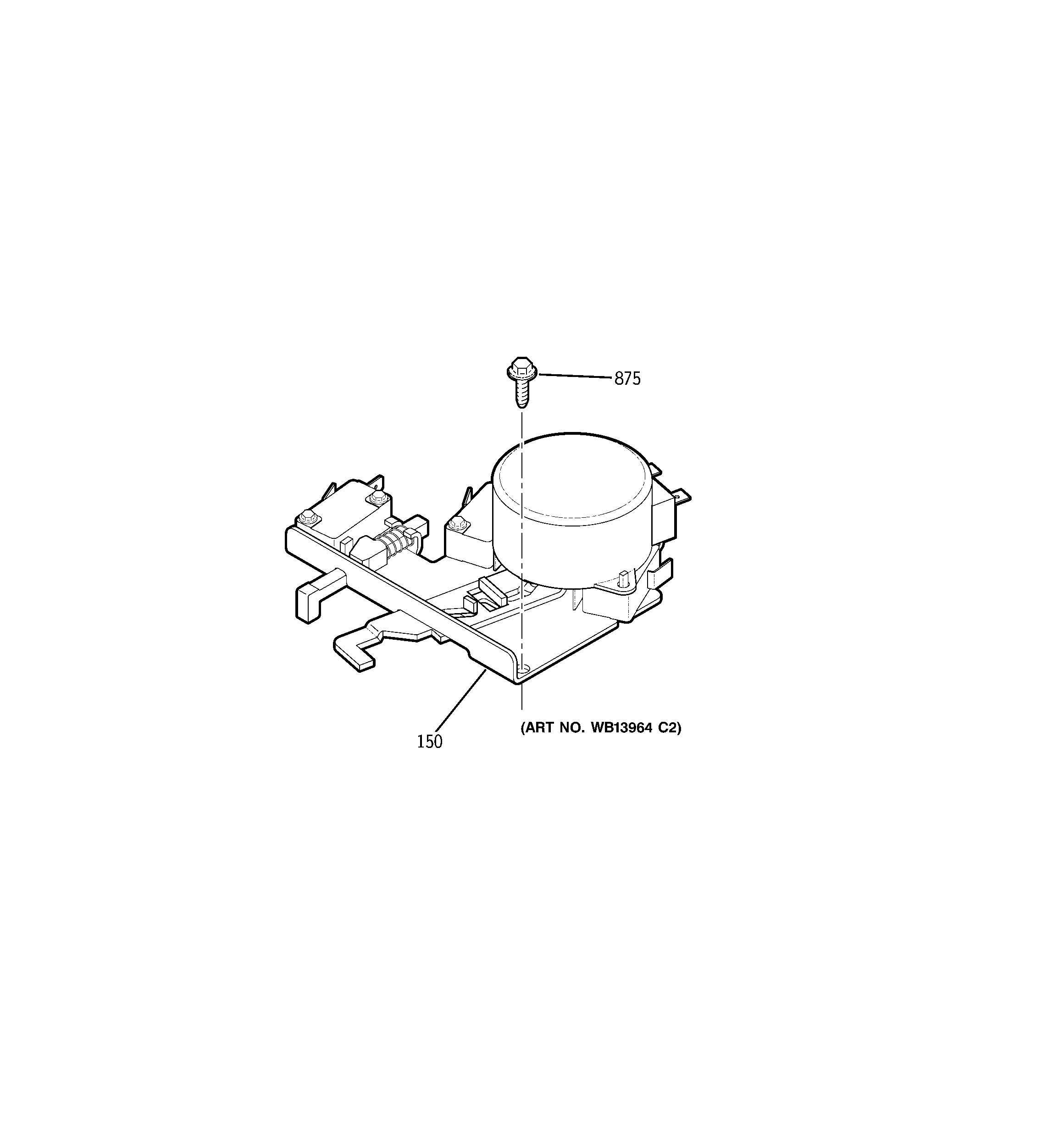

On the GE JKP30BM1BB electric wall oven, an F9 error code typically points to a problem in the door lock circuit (the system that locks and senses the lock during self-clean). Clear the code and check whether it returns, especially after using Self Clean.

What to do first (safe, quick checks)

• Press Clear/Off to stop the beeping and clear the display.
• Let the oven cool completely if the code appeared during or after Self Clean.
• Try a basic reset: turn the breaker OFF for 1 minute, then back ON.
• If the oven is stuck locked, do not force the door; wait for cool-down and retry.
• If F9 returns immediately, avoid Self Clean until the issue is corrected.

Common causes of an F9 code

In most GE wall ovens, F9 is triggered when the control does not see the expected door lock feedback.

• Door lock switch not changing state
• Lock motor or linkage binding
• Wiring/connector issue in the lock circuit
• Control not interpreting the lock signal correctly

When a part is likely involved

If F9 happens after a high-heat event (often Self Clean), a heat-related safety device can open and stop normal operation.

Symptom you see	Most likely area to check	What it affects
F9 after Self Clean, oven seems “dead” or unresponsive	Thermal protection	Power to controls/heating circuits
F9 plus door will not unlock	Door lock circuit	Lock motor/switch feedback
F9 returns right after reset	Control sensing circuit	Lock feedback or control issue

A common heat-protection part to check on this model is the wall oven thermal fuse WB24K5085.

Why it matters

The door lock circuit is a safety system. If the control cannot confirm the lock position, it may disable cooking or cleaning functions to prevent unsafe operation.

Helpful references

• Use the troubleshooting and error-code guidance in the JKP30BM1BB owner's manual.
• For GE-specific fault code explanations, see GE wall oven error codes.

Last updated: January 2026
