Whirlpool WED8740DC1 electric dryer Parts
Here are the diagrams and repair parts for Whirlpool WED8740DC1 electric dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

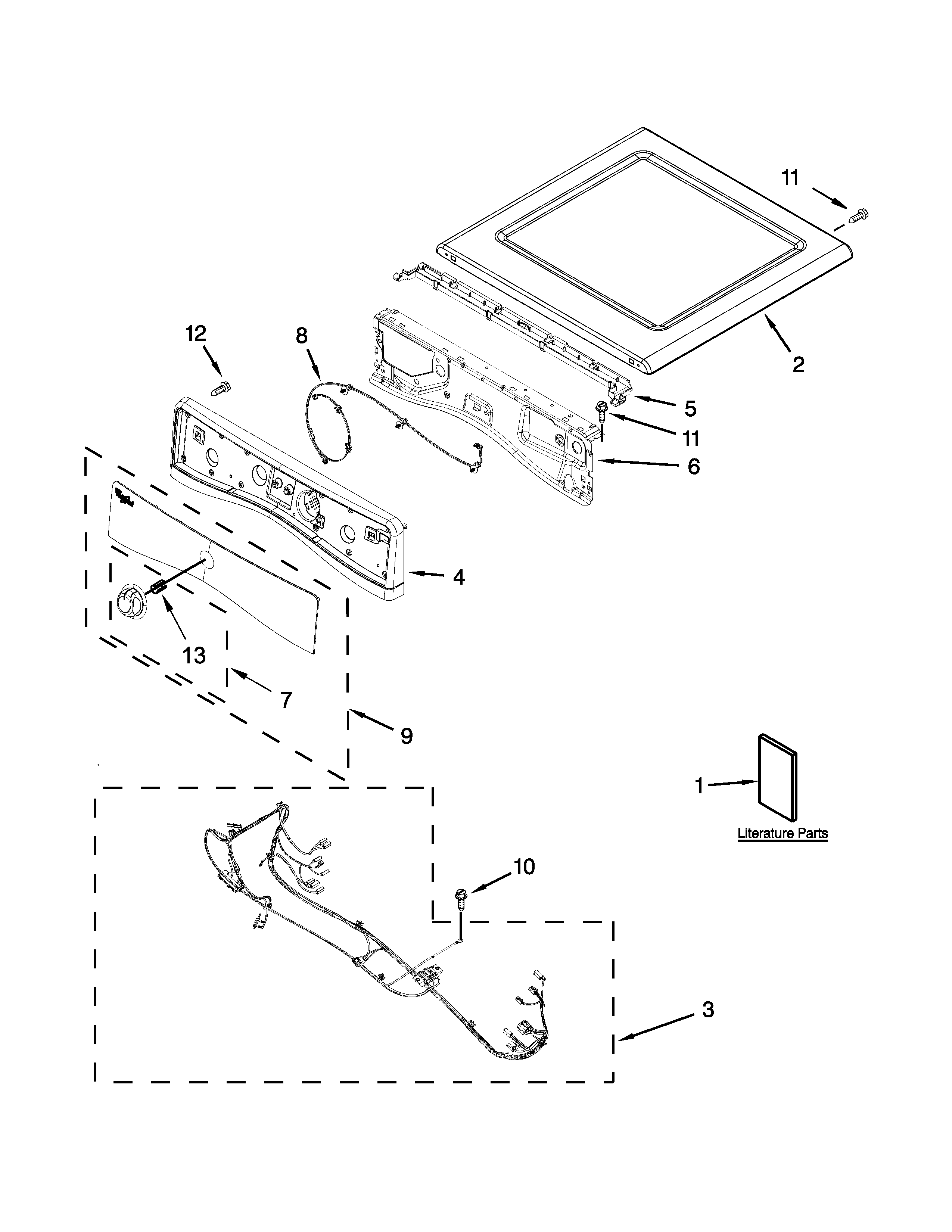

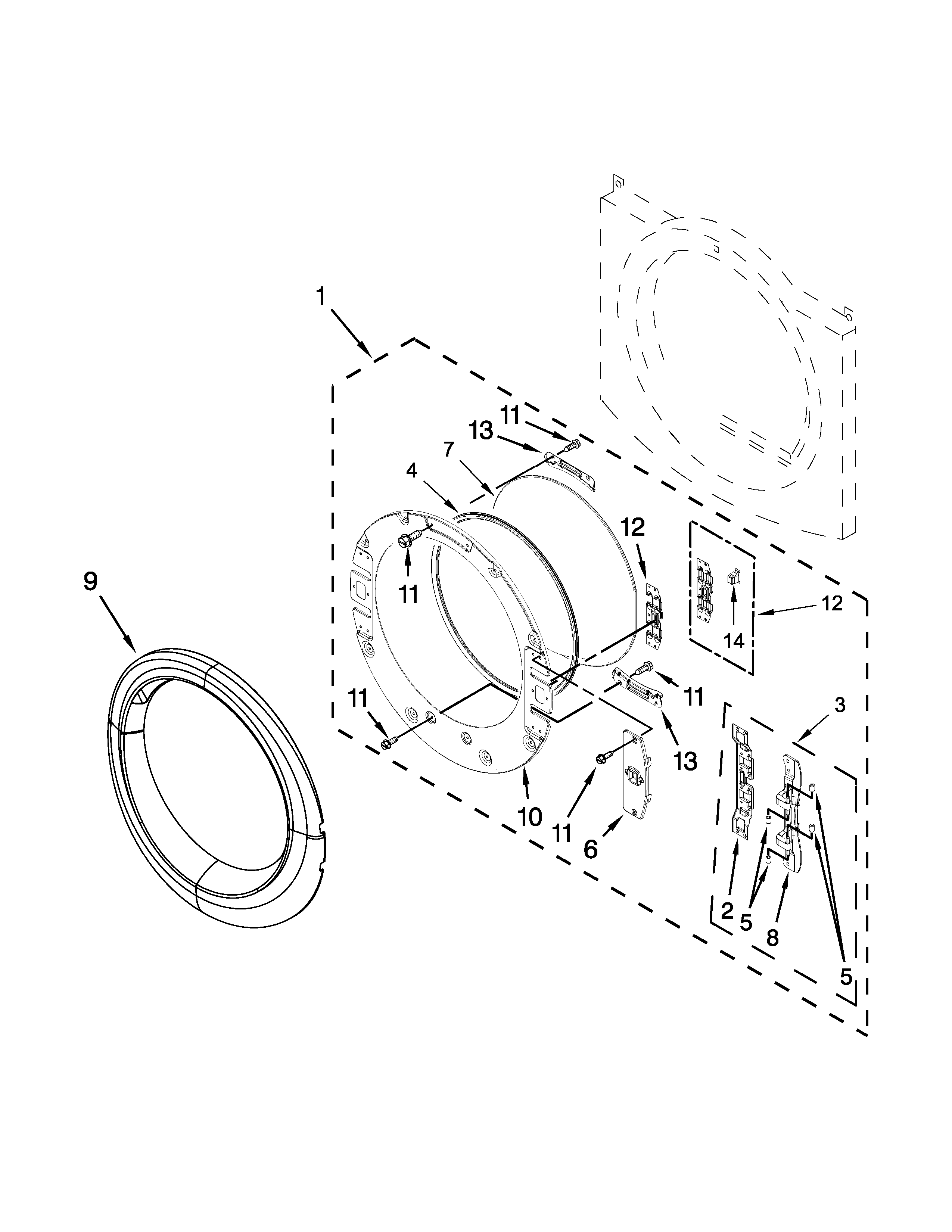

Browse Parts for WED8740DC1 Electric Dryer

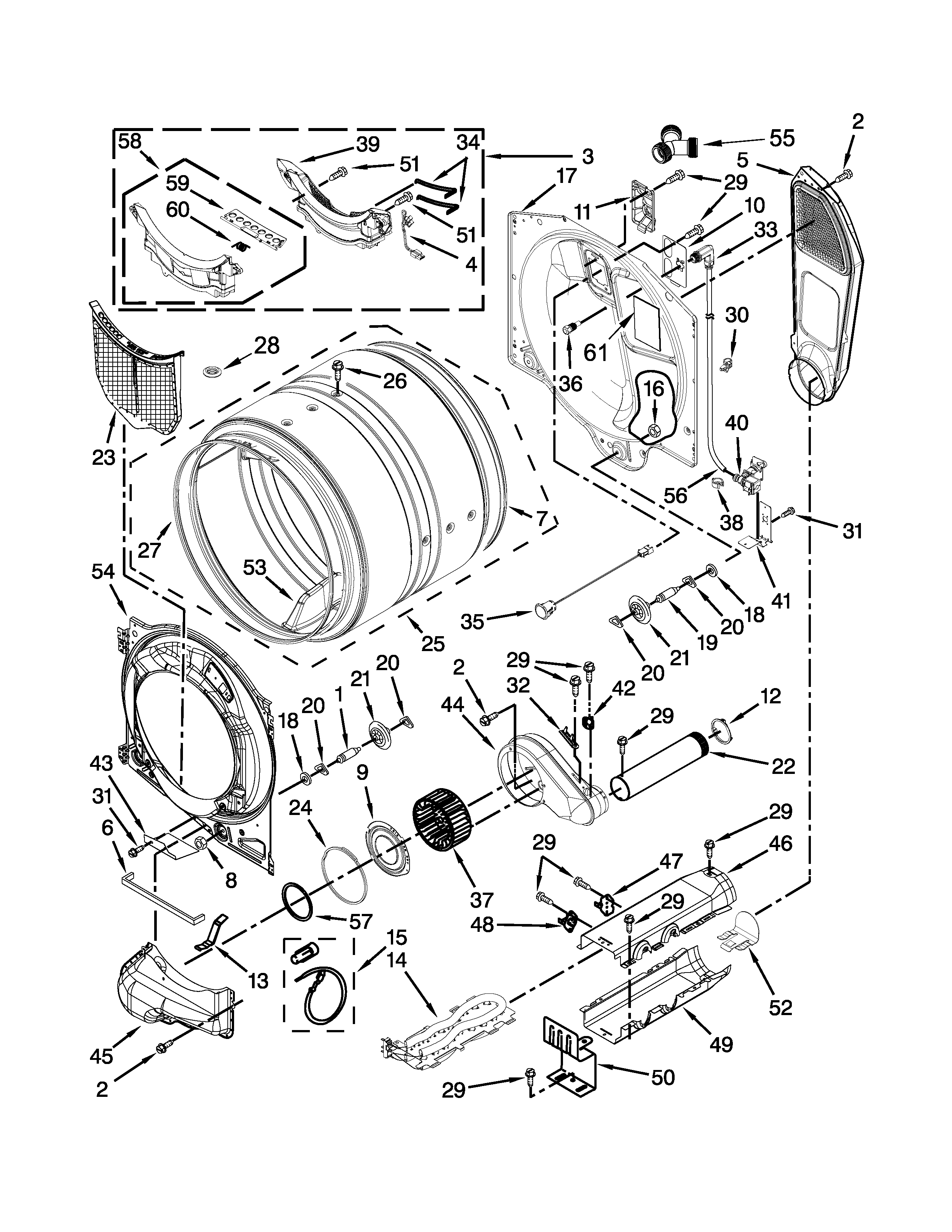

Bulkhead parts diagram
Dryer High-limit Thermostat
Part #8557403Replaced by #WP8557403
Manufacturer substitutionThis part replaces 8557403. Substitute parts can look different from the original.In Stock$82.307% OFF Phone Price : $88.30
Qty
Bulkhead parts diagram
Dryer Blower Seal
Part #697770Replaced by #WP697770
Manufacturer substitutionThis part replaces 697770. Substitute parts can look different from the original.This item is not returnableIn Stock$8.2011% OFF Phone Price : $9.20QtyBulkhead parts diagram
Dryer Drum Support Roller Shaft
Part #W10359271Replaced by #WPW10359271

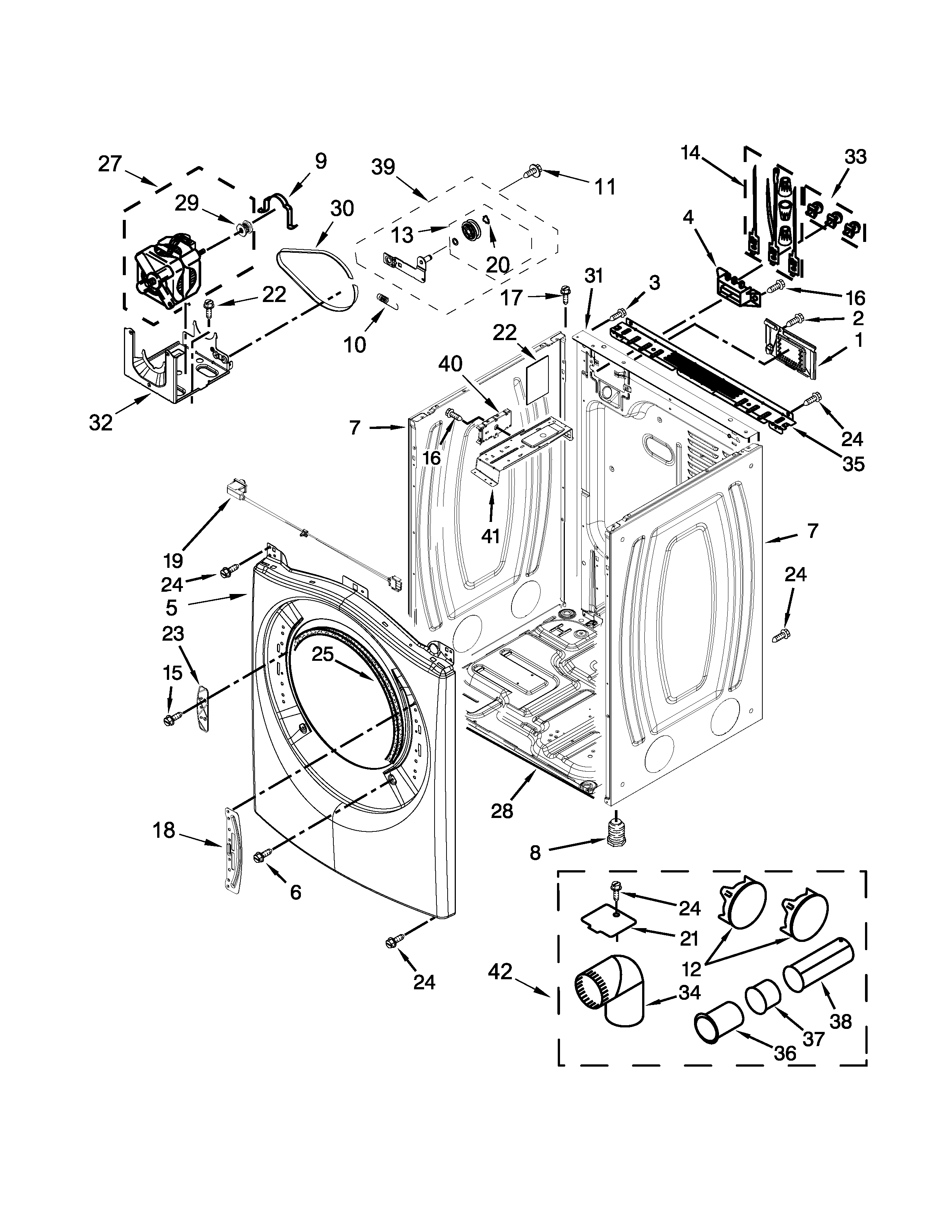

Manufacturer substitutionThis part replaces W10359271. Substitute parts can look different from the original.In Stock$45.4412% OFF Phone Price : $51.44QtyCabinet parts diagram
Motor Assembly
Part #W10806758Replaced by #W11511154
Manufacturer substitutionThis part replaces W10806758. Substitute parts can look different from the original.In Stock$235.22QtyScrew
Part #3390647Replaced by #WP488729
Manufacturer substitutionThis part replaces 3390647. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93QtyCabinet parts diagram
Dryer Terminal Block Wire Set
In Stock$61.349% OFF Phone Price : $67.34QtyCabinet parts diagram
Dryer Terminal Block Screw And Nut Set
In Stock$31.1016% OFF Phone Price : $37.10QtyBulkhead parts diagram
Dryer Lint Screen
Part #W10516085Replaced by #W11758174
Manufacturer substitutionThis part replaces W10516085. Substitute parts can look different from the original.In Stock$50.9111% OFF Phone Price : $56.91QtyCabinet parts diagram
Screw
Part #3357011Replaced by #WP308685
Manufacturer substitutionThis part replaces 3357011. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09QtyCabinet parts diagram
Screw
Part #3393008Replaced by #WP308685
Manufacturer substitutionThis part replaces 3393008. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09Qty
