Electric Wall Oven

Model # PT925SN1SS Official GE electric oven

Here are the diagrams and repair parts for Official GE PT925SN1SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

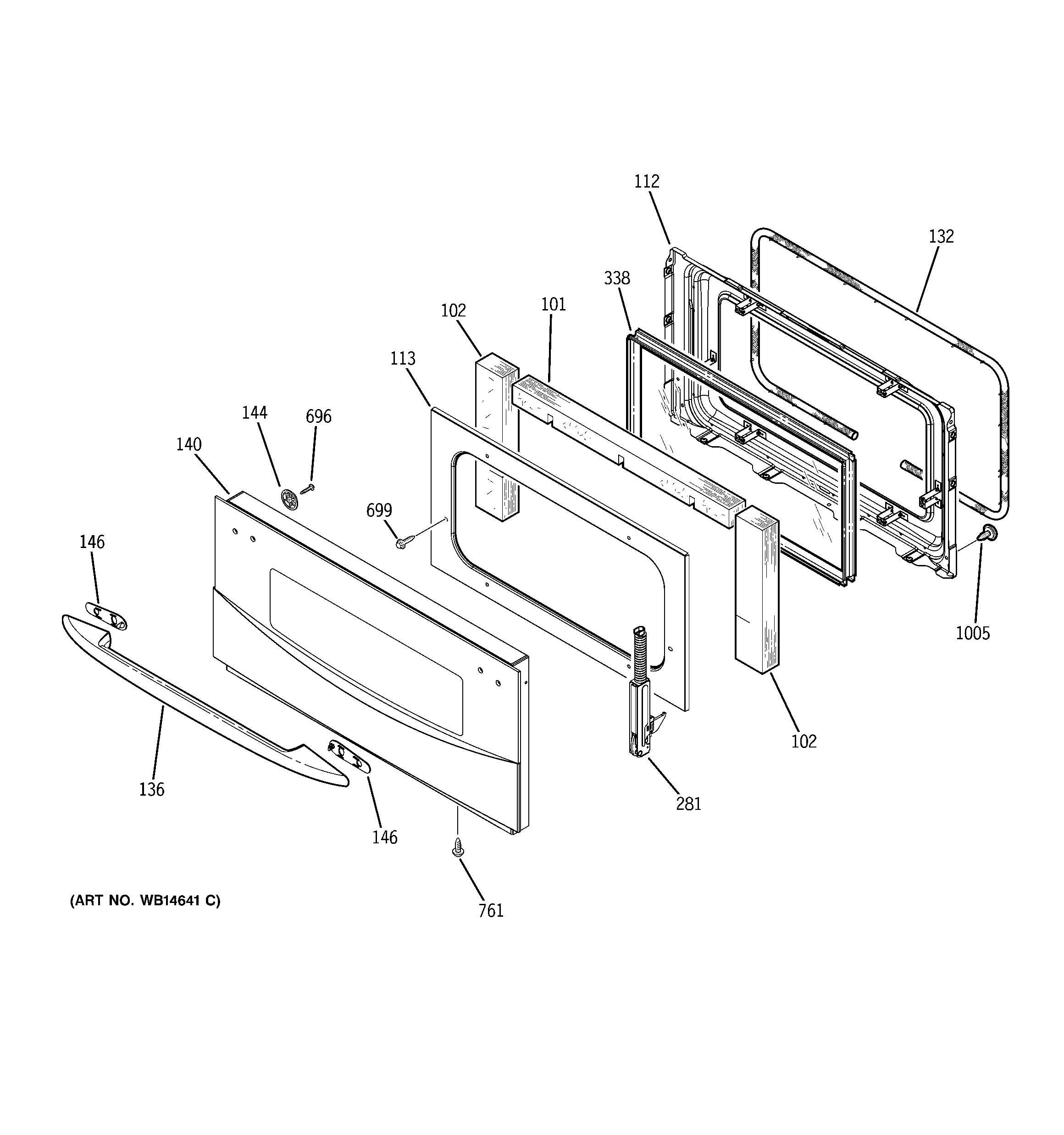

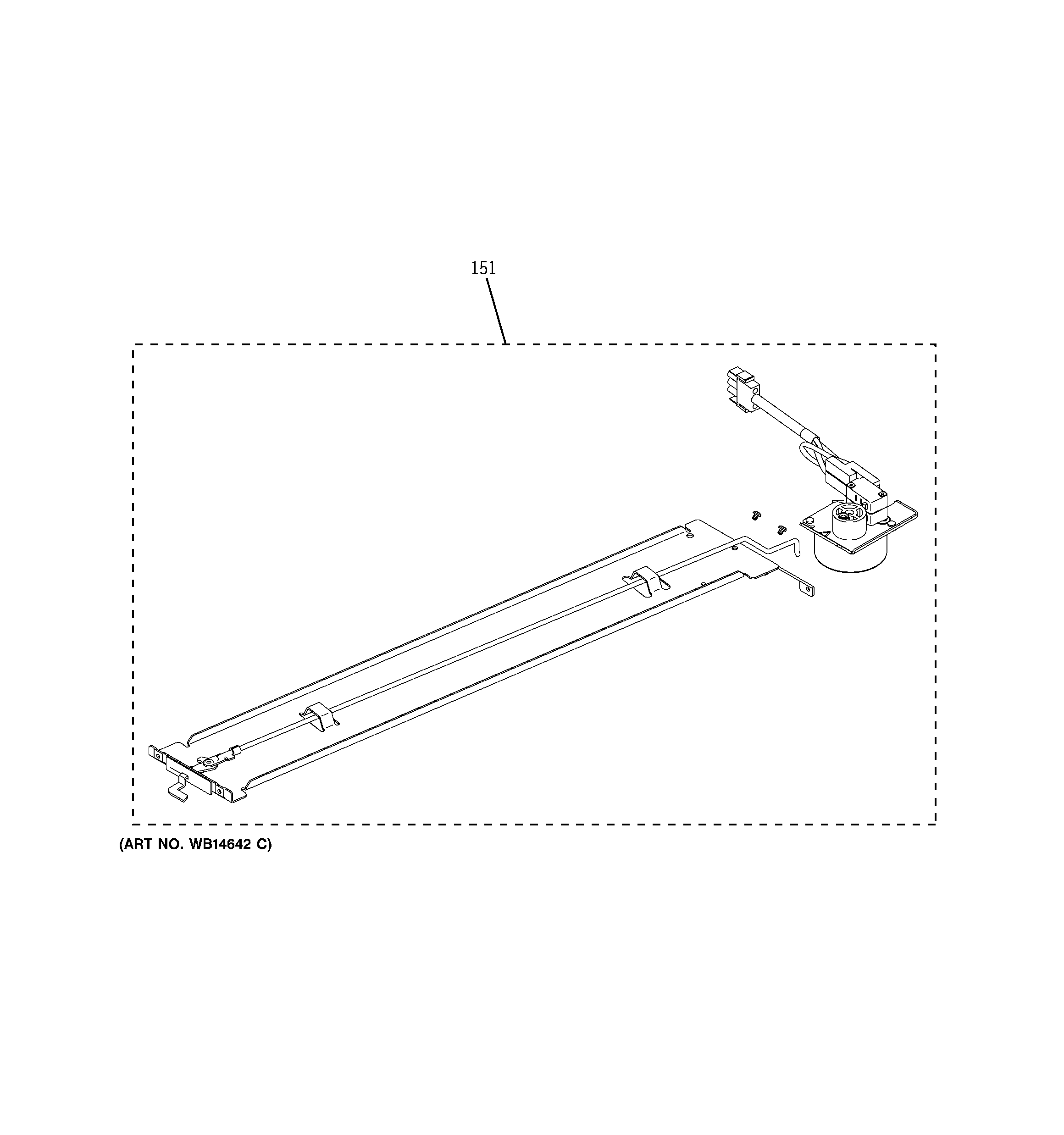

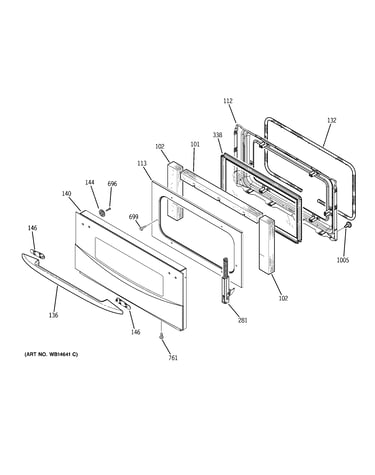

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Wall Oven Temperature Sensor WB21T10007
Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$25.86 |
19% OFF Phone Price : $31.86
In Stock
Range Oven Meat Probe Sensor WB20T10025
#280

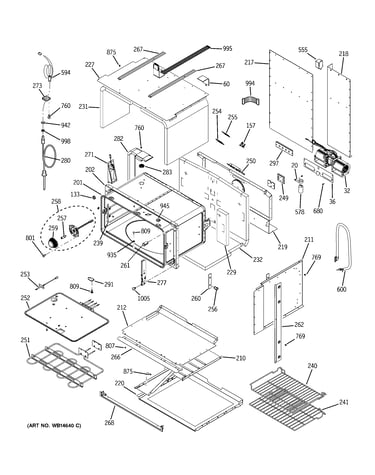

Lower oven diagram

Range oven meat probe sensor

Part #WB20T10025

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb WB08T10007
Light bulb

Part #WB08T10007

Replaced by #WB08T10023

?
Manufacturer substitution
This part replaces WB08T10007. Substitute parts can look different from the original.
This item is not returnable
$12.78 |
14% OFF Phone Price : $14.78
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#977

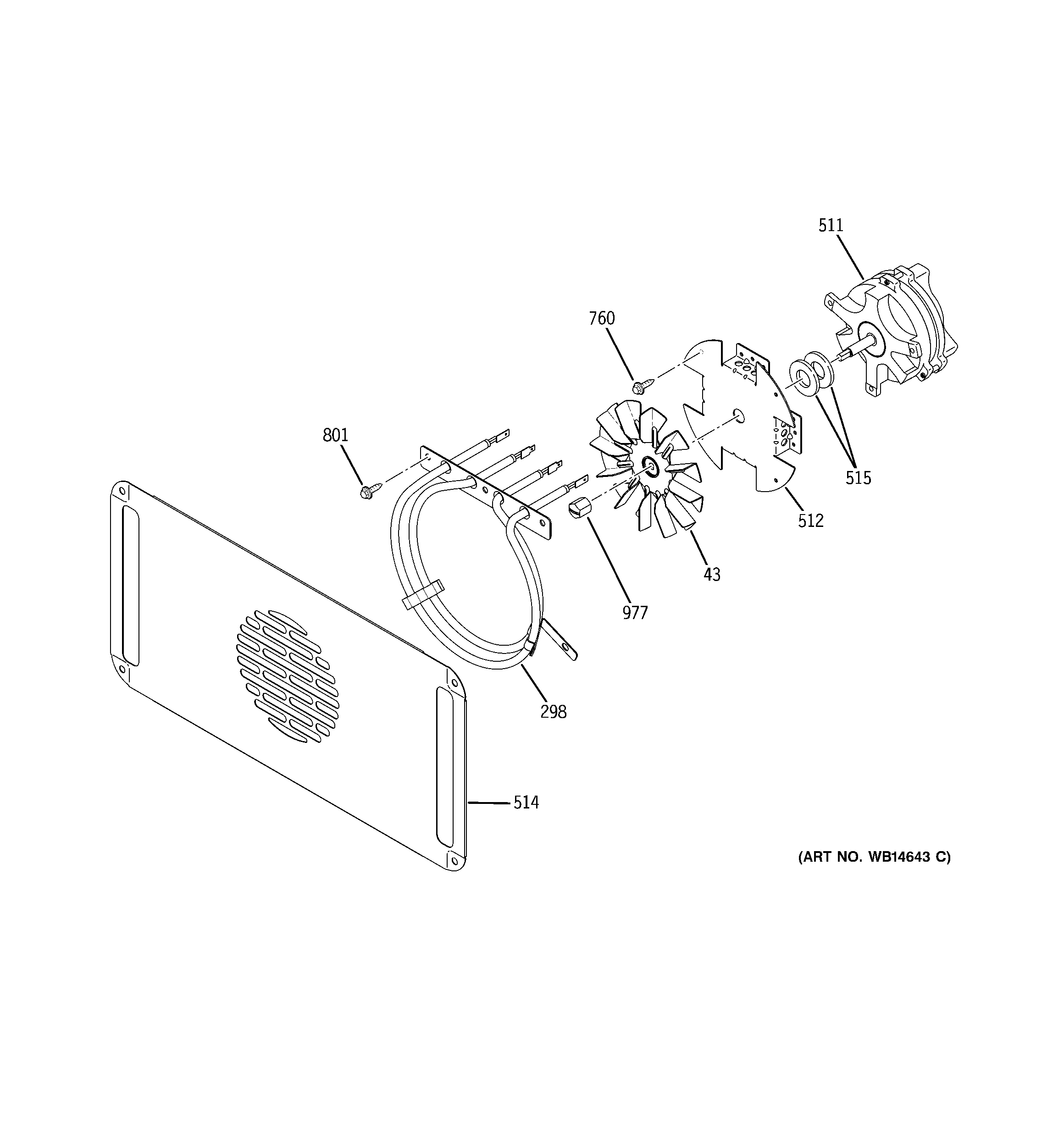

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
#578

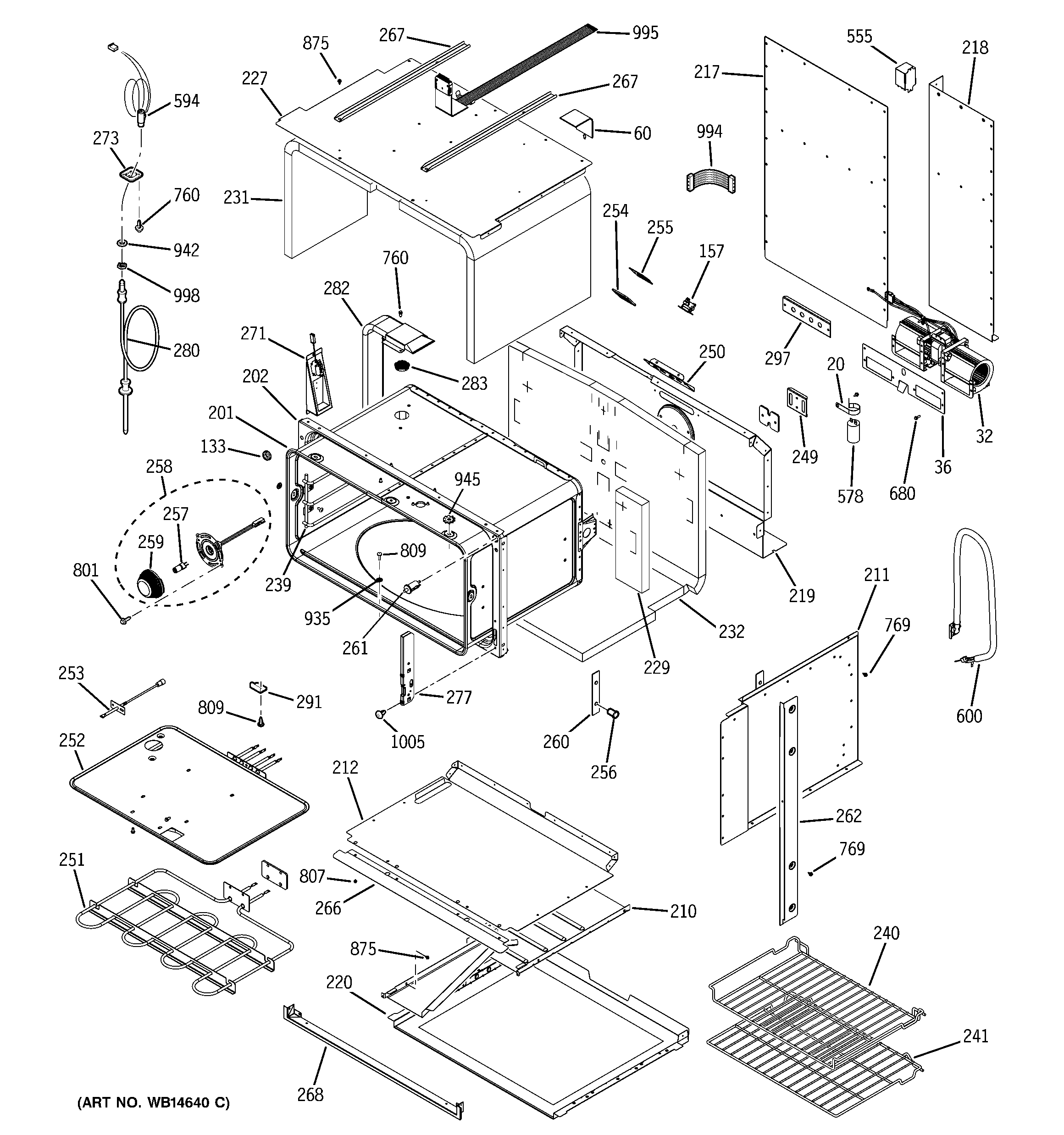

Lower oven diagram

Range convection fan motor start capacitor

Part #WB27T10662

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw WB01X1137
#809

Lower oven diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Upper Oven Relay Control Board WB27T11069
#408

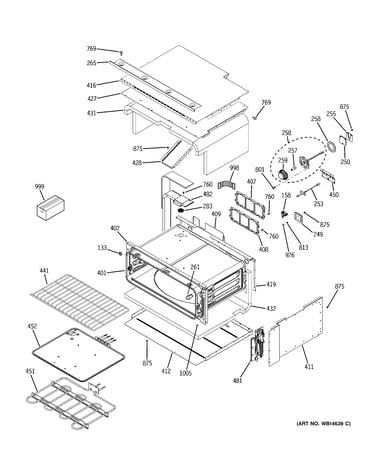

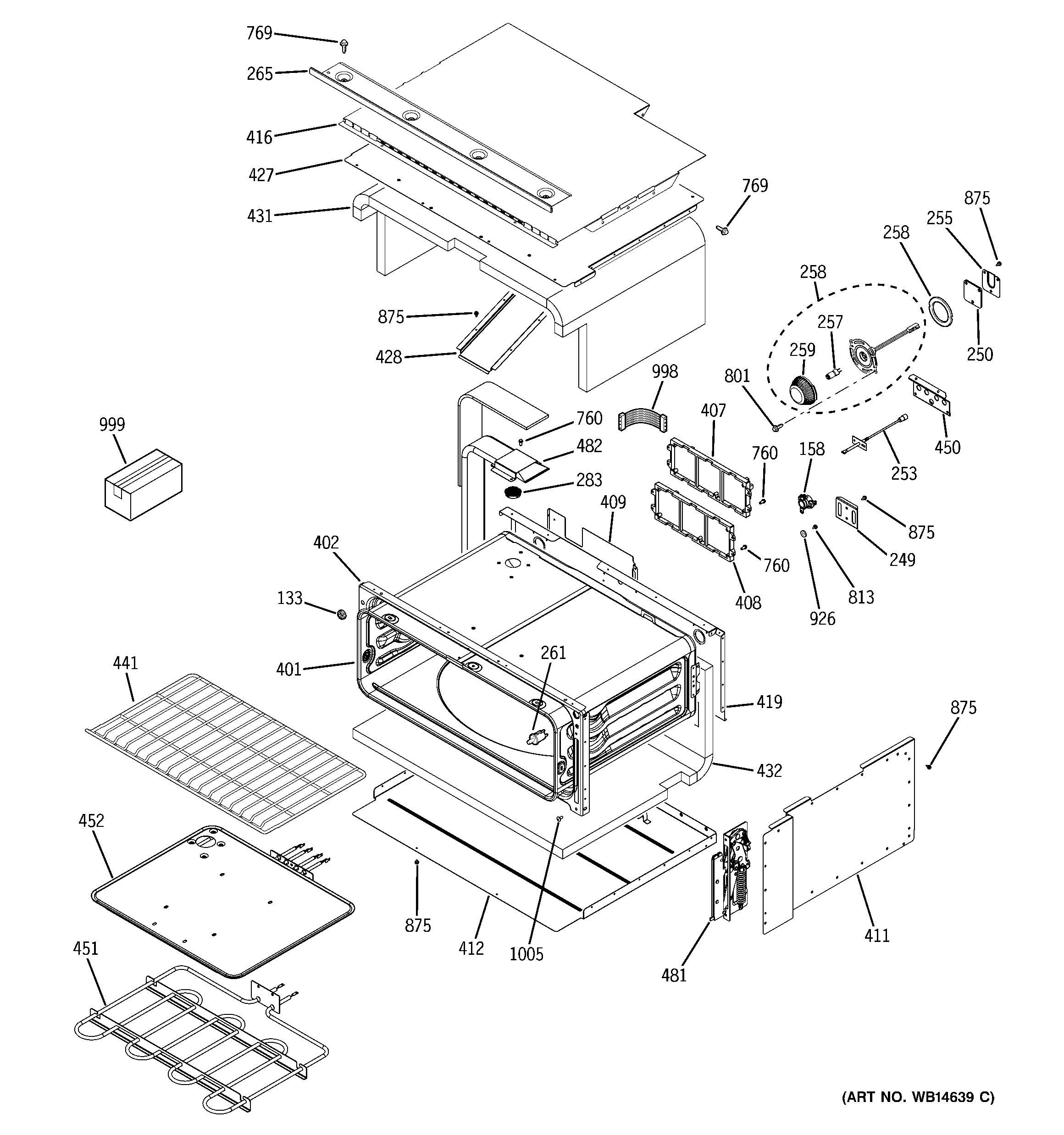

Upper oven diagram

Wall oven upper oven relay control board

Part #WB27T11069

$128.52 |
9% OFF Phone Price : $140.52
In Stock
Door Bumper WB01T10022
Door bumper

Part #WB01T10022

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Display Control Board WB27T11067
#16

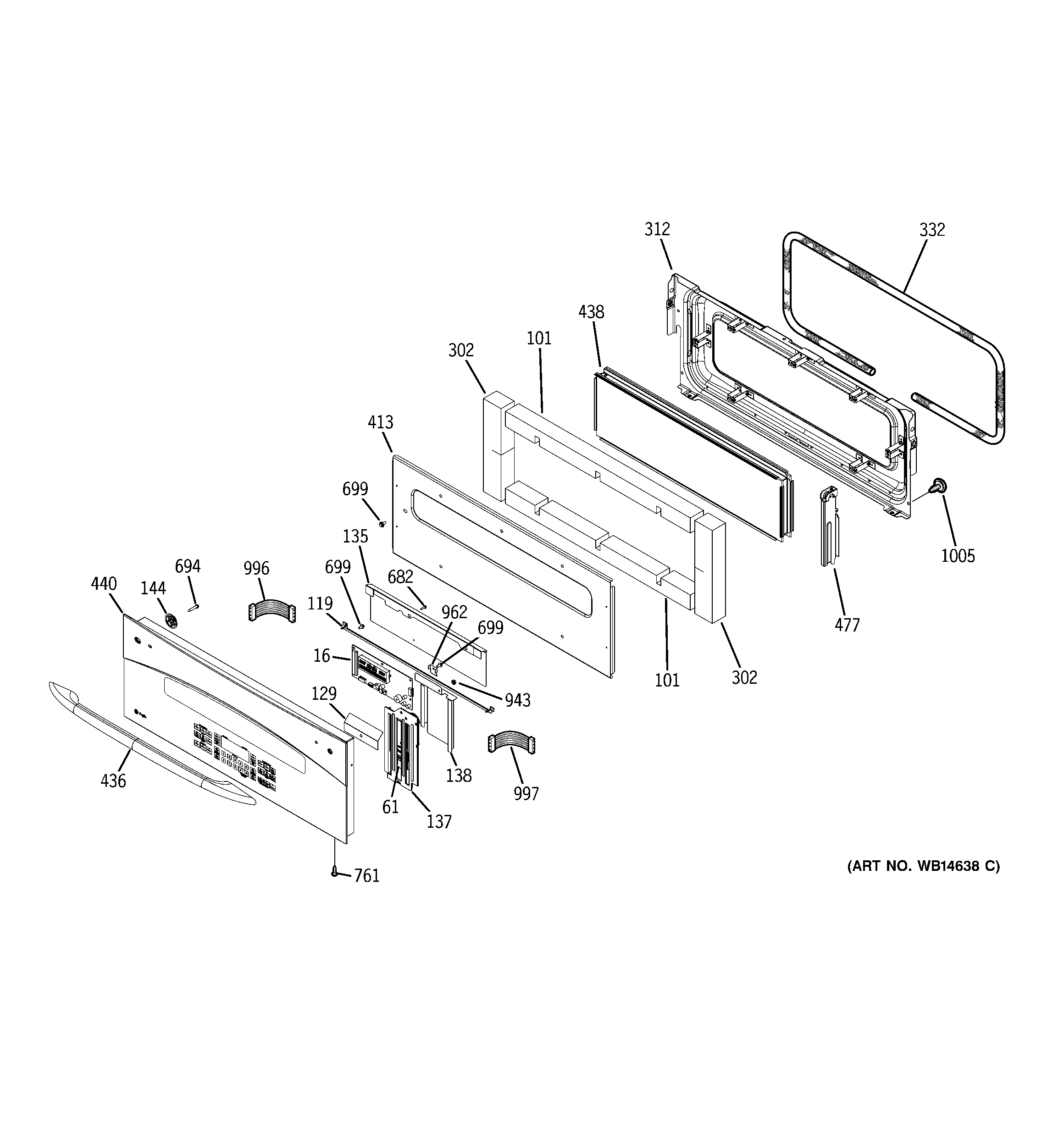

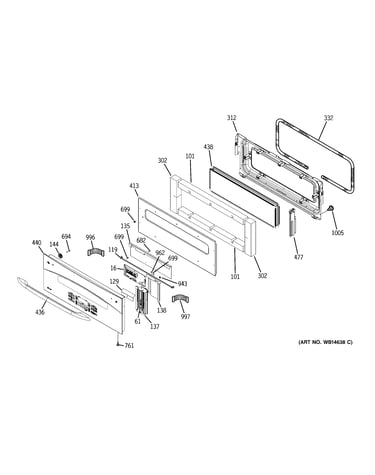

Control panel & upper door diagram

Wall oven display control board

Part #WB27T11067

$383.32 |
$12.00 OFF Phone Price : $395.32
In Stock
