Maytag MBF1958XES3 refrigerator

Maytag MBF1958XES3 refrigerator Parts

Here are the diagrams and repair parts for Maytag MBF1958XES3 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MBF1958XES3 Refrigerators

  • Refrigerator Uv Filter Dryer for Maytag MBF1958XES3 - Part WPW10143759

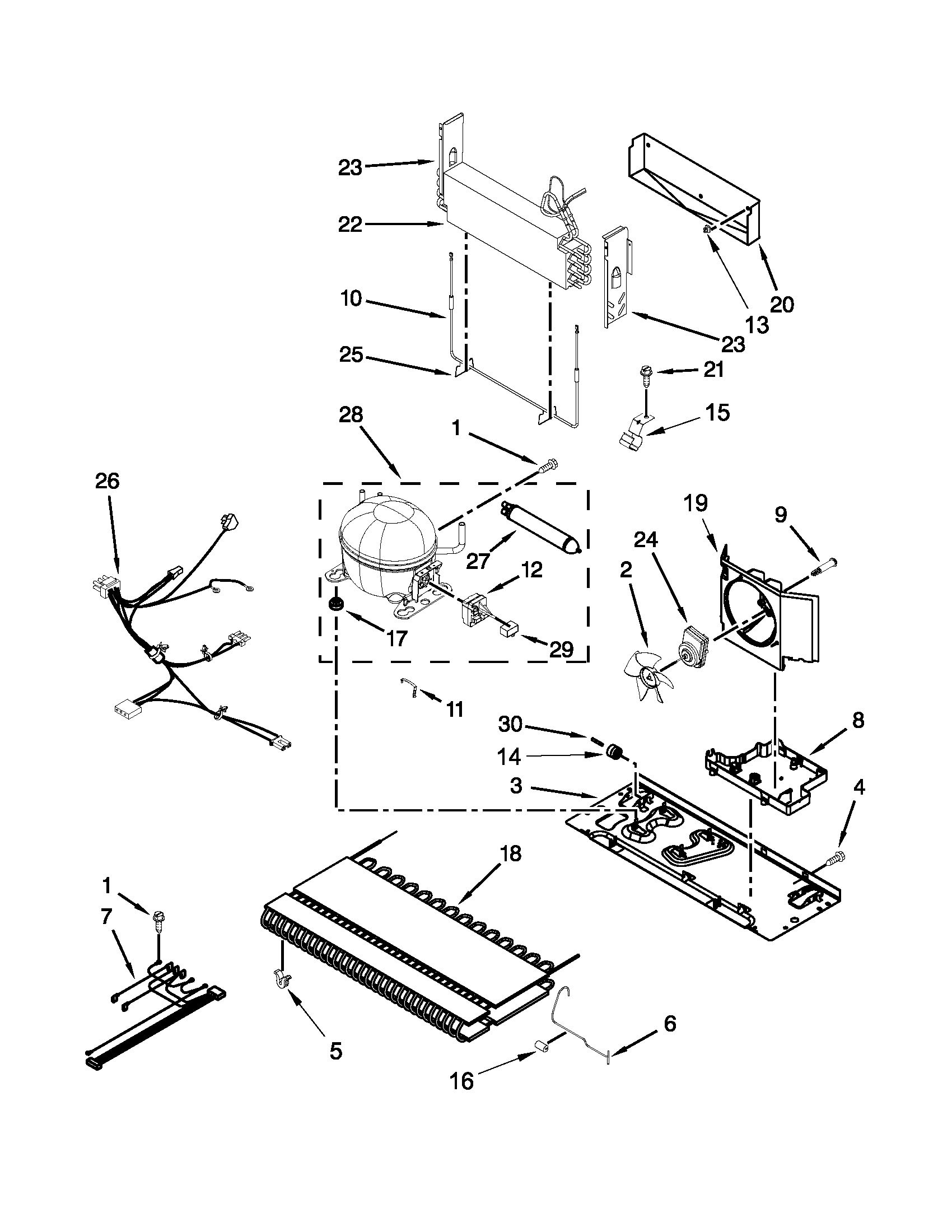

    Unit parts diagram

    Refrigerator Uv Filter Dryer

    Part #W10143759

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces W10143759. Substitute parts can look different from the original.
    In Stock
    $22.16
    21% OFF Phone Price : $28.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Maker Assembly for Maytag MBF1958XES3 - Part W10884390

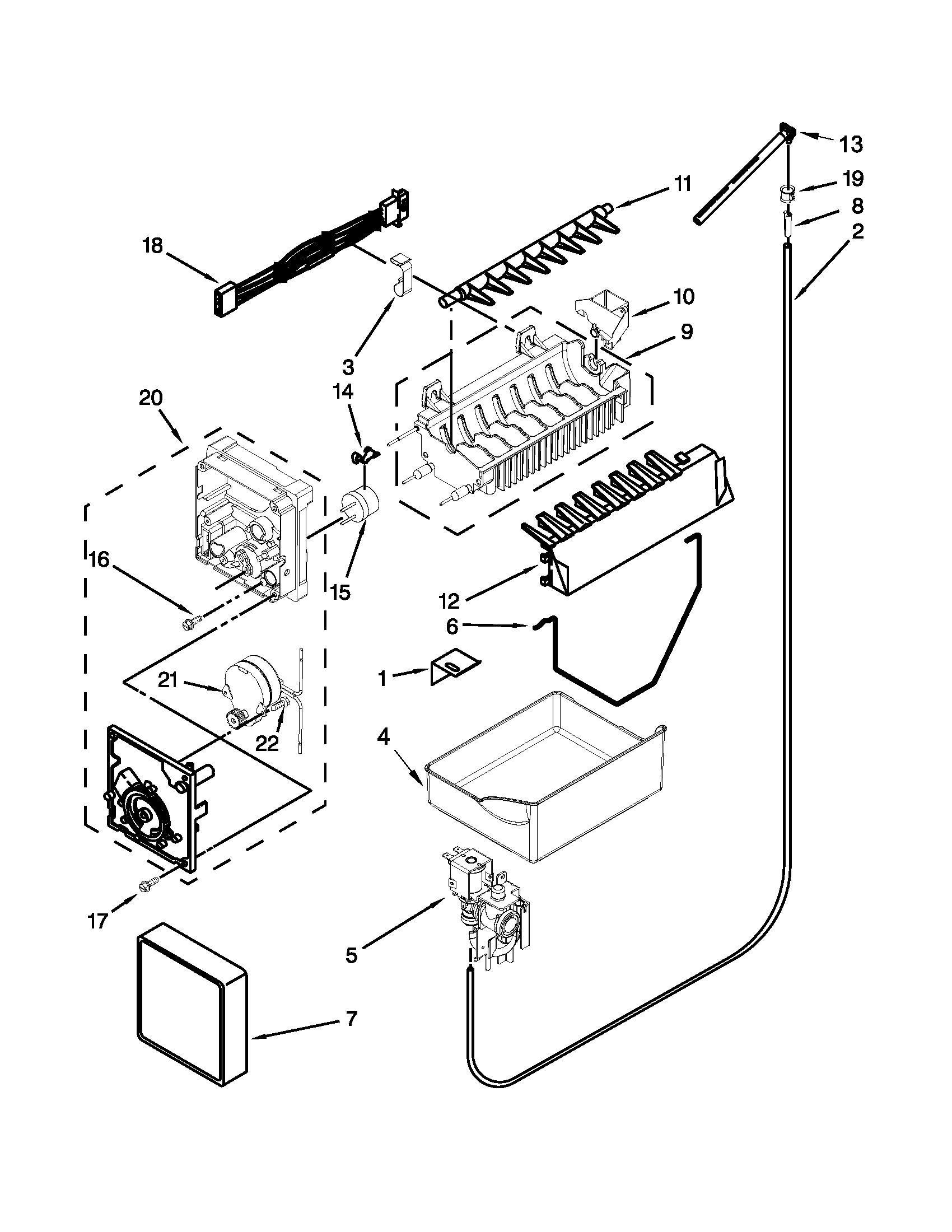

    Icemaker parts diagram

    Refrigerator Ice Maker Assembly

    Part #W10469286

    Replaced by #W10884390

    Info Icon
    Manufacturer substitution
    This part replaces W10469286. Substitute parts can look different from the original.
    In Stock
    $86.69
    6% OFF Phone Price : $92.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Run Capacitor for Maytag MBF1958XES3 - Part WPW10662129

    Unit parts diagram

    Refrigerator Run Capacitor

    Part #2264017

    Replaced by #WPW10662129

    Info Icon
    Manufacturer substitution
    This part replaces 2264017. Substitute parts can look different from the original.
    In Stock
    $43.74
    12% OFF Phone Price : $49.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for Maytag MBF1958XES3 - Part WP2169142

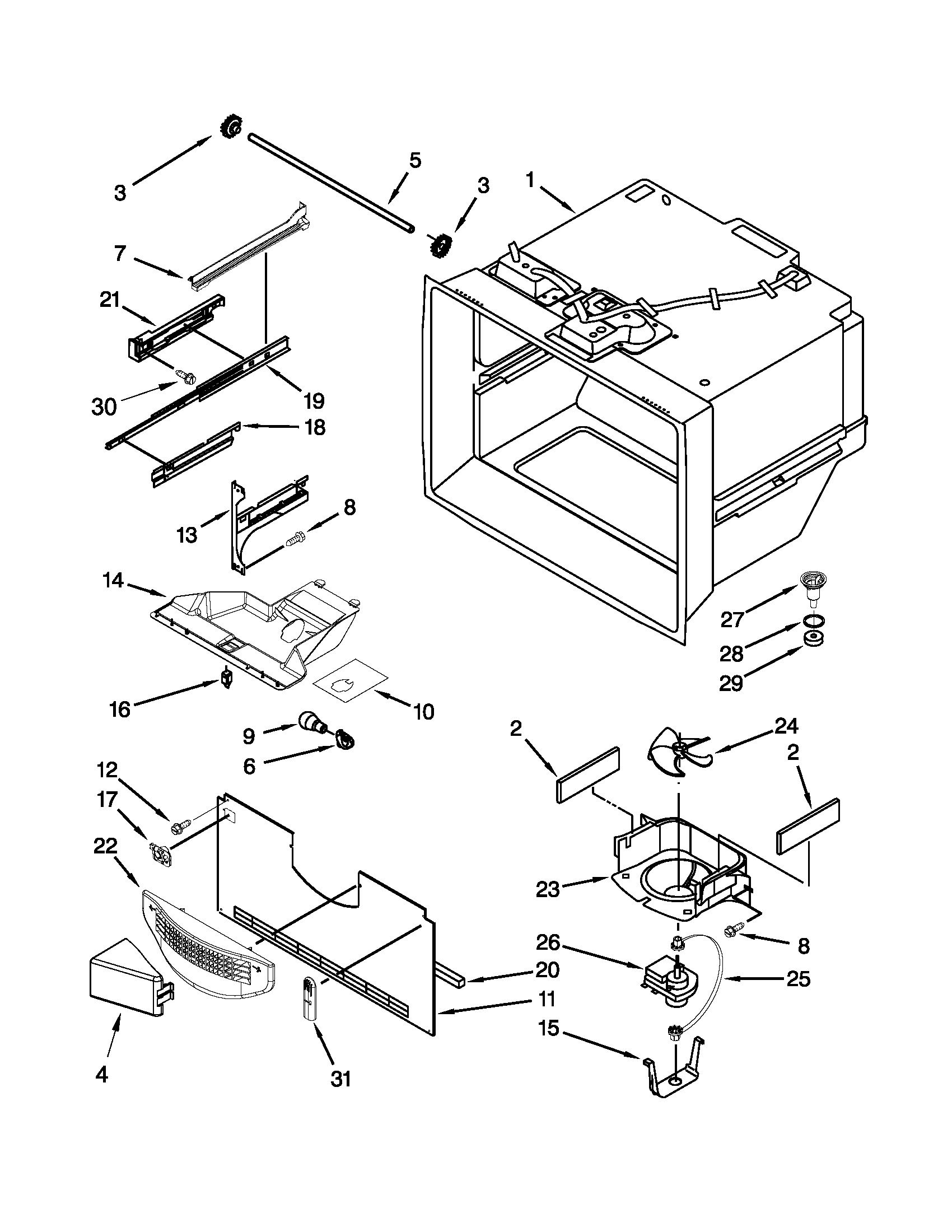

    Freezer liner parts diagram

    Refrigerator Evaporator Fan Blade

    Part #2169142

    Replaced by #WP2169142

    Info Icon
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    In Stock
    $24.25
    20% OFF Phone Price : $30.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Maytag MBF1958XES3 - Part W10233960

    Unit parts diagram

    Refrigerator Compressor

    Part #W10445422

    Replaced by #W10233960

    Info Icon
    Manufacturer substitution
    This part replaces W10445422. Substitute parts can look different from the original.
    In Stock
    $357.09
    $12.00 OFF Phone Price : $369.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Crisper Drawer Center Rail for Maytag MBF1958XES3 - Part WPW10671238

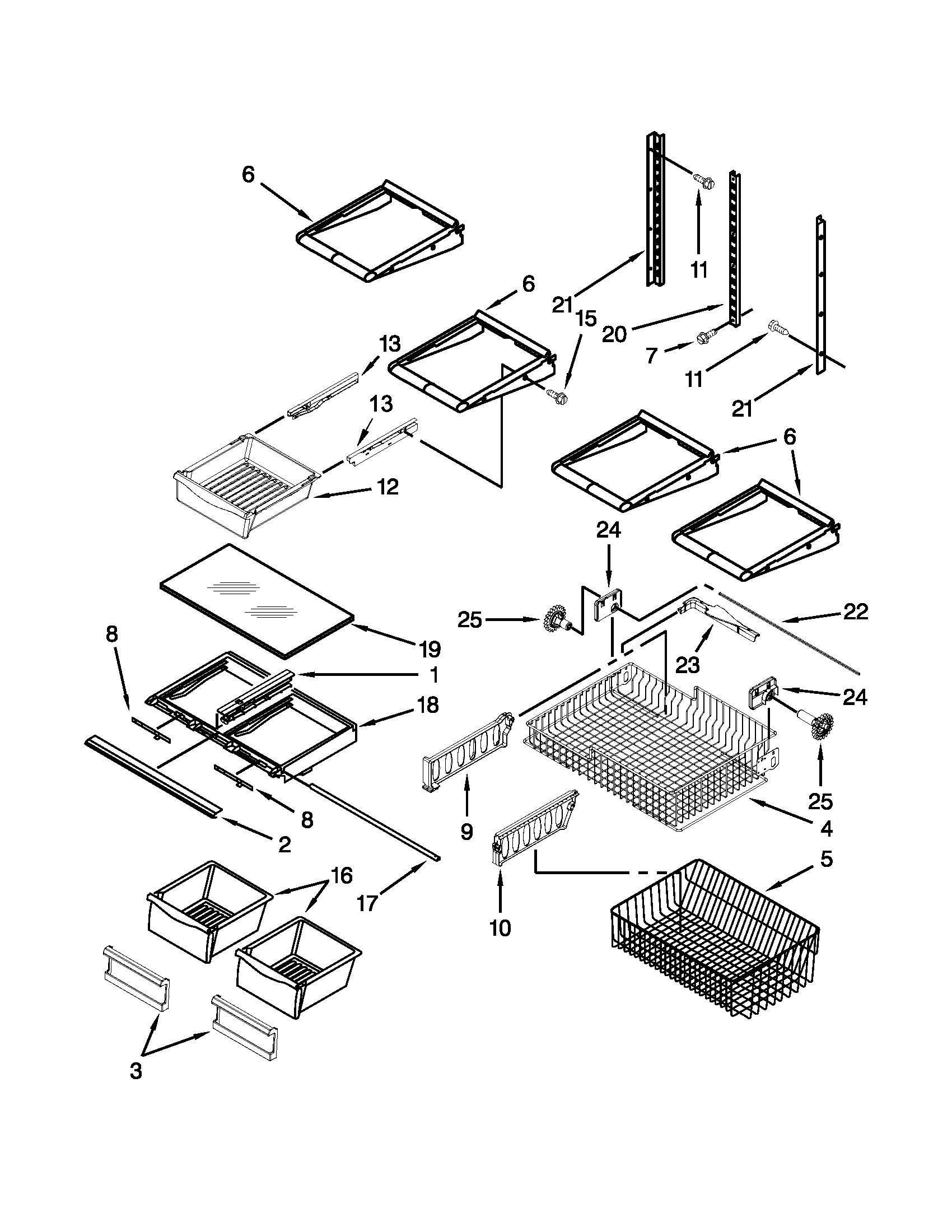

    Shelf parts diagram

    Refrigerator Central Rail

    Part #12530701N

    Replaced by #WPW10671238

    Info Icon
    Manufacturer substitution
    This part replaces 12530701N. Substitute parts can look different from the original.
    In Stock
    $48.55
    11% OFF Phone Price : $54.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Electronic Control Board for Maytag MBF1958XES3 - Part WPW10503278

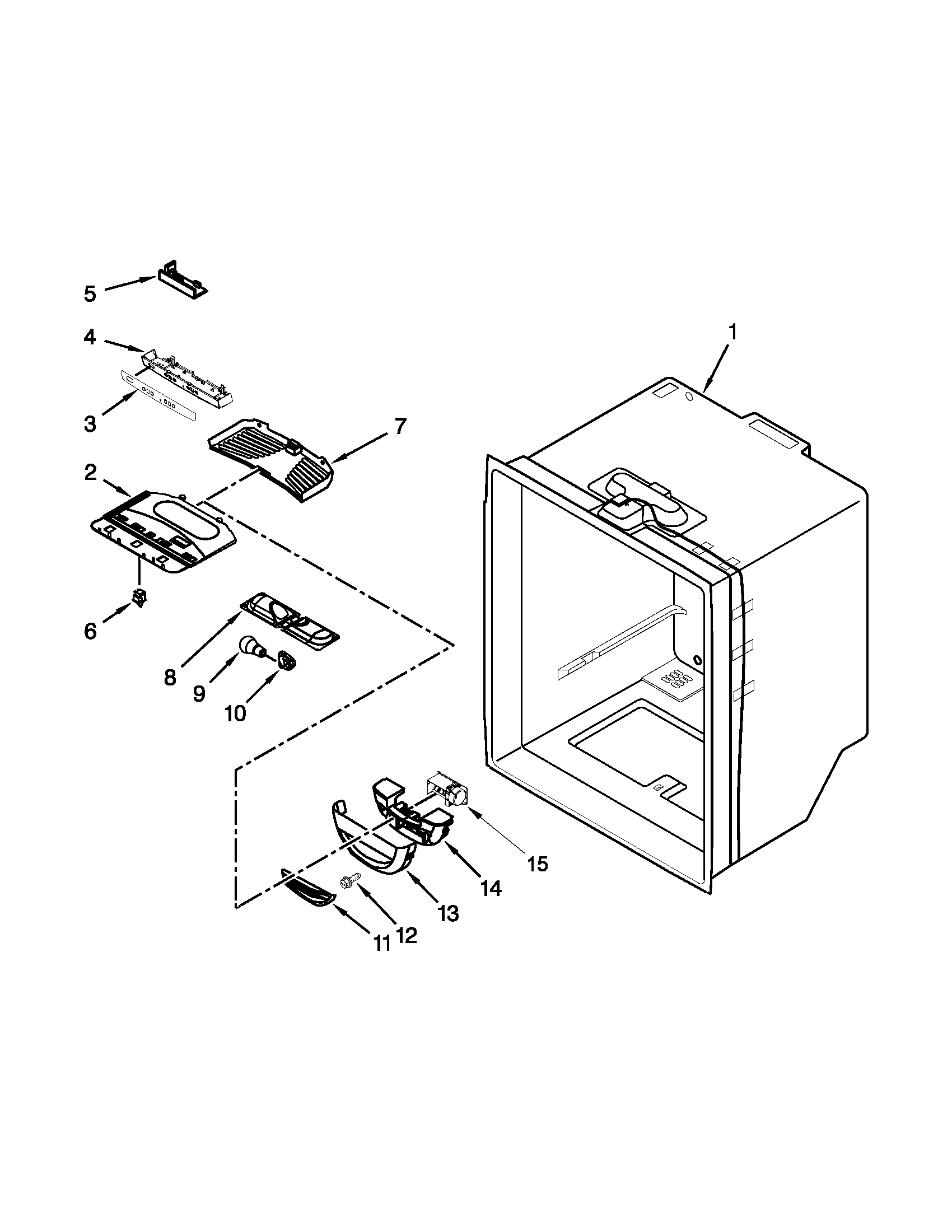

    Refrigerator liner parts diagram

    Refrigerator Electronic Control Board

    Part #W10503278

    Replaced by #WPW10503278

    Info Icon
    Manufacturer substitution
    This part replaces W10503278. Substitute parts can look different from the original.
    In Stock
    $167.20
    7% OFF Phone Price : $179.20Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Maytag MBF1958XES3 - Part W11024089

    Freezer liner parts diagram

    Refrigerator Evaporator Motor

    Part #13062901

    Replaced by #W11024089

    Info Icon
    Manufacturer substitution
    This part replaces 13062901. Substitute parts can look different from the original.
    In Stock
    $54.35
    10% OFF Phone Price : $60.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Slide for Maytag MBF1958XES3 - Part W11658402

    Freezer liner parts diagram

    Refrigerator Freezer Slide Rail

    Part #W10120018

    Replaced by #W11658402

    Info Icon
    Manufacturer substitution
    This part replaces W10120018. Substitute parts can look different from the original.
    In Stock
    $198.70
    Minus Item
    Qty
    Plus Item
  • 40 Watt Refrigerator Bulb for Maytag MBF1958XES3 - Part W11679940

    Refrigerator liner parts diagram

    Bulb-light

    Part #2255743N

    Replaced by #W11679940

    Info Icon
    Manufacturer substitution
    This part replaces 2255743N. Substitute parts can look different from the original.
    In Stock
    $39.43
    13% OFF Phone Price : $45.43Info Icon
    Minus Item
    Qty
    Plus Item

Maytag Refrigerator MBF1958XES3 FAQs

Bottom-freezer refrigerators (including the Maytag MBF1958XES3) are less popular mainly because they typically cost more than basic top-freezer models and the freezer drawer layout can be less convenient for stacking bulky or flat items. Many shoppers also prefer the lower upfront price and simpler layout of a top-freezer design.

Common reasons some people avoid bottom-freezer models
  • Higher purchase price: bottom-freezer designs often include more features, upgraded drawers, and styling that raise cost.
  • Drawer organization tradeoffs: deep freezer drawers can hide items and make it harder to keep frozen foods sorted.
  • Heavier access: a loaded freezer drawer can feel heavy to pull out, especially when packed.
  • Less “grab-and-go” for frozen items: baskets and dividers help, but it is still different than open shelves.
  • Space planning: the freezer drawer needs clearance to open fully, which can be awkward in tight kitchens.
What you gain with a bottom-freezer refrigerator

Many owners still choose a bottom-freezer because it improves day-to-day access to fresh food.

Feature Bottom freezer Top freezer
Fresh food access Easier (at eye level) Requires more bending
Frozen food access Drawer pull-out Door swing with shelves
Typical price Higher Lower
Organization style Baskets/drawers Shelves/door bins
Quick decision guide (what to choose)
  • Choose bottom freezer if you use the refrigerator section most and want fresh food at a comfortable height.
  • Choose top freezer if you want the lowest cost and prefer simple shelf-style freezer storage.
  • If you already own a bottom-freezer and it feels “messy,” add bins and label zones (meat, vegetables, quick meals) to reduce digging.
Why it matters

Popularity is mostly about shopping priorities: many buyers optimize for upfront price and familiar storage. Bottom-freezer models trade some freezer convenience for better fresh-food ergonomics, which is a big win for many households.

For model-specific features and storage setup tips, follow the layout and care guidance in the MBF1958XES3 owner's manual.

Last updated: January 2026

A bottom-freezer (bottom-mount) refrigerator like the Maytag MBF1958XES3 typically lasts 13 years with normal household use. Keeping the condenser area clean, maintaining good door seals, and fixing cooling or defrost issues early helps you reach (or exceed) that expected lifespan.

Typical lifespan and what affects it

Most bottom-mount refrigerators land in a similar range, but real-world life depends on usage and maintenance.

  • Typical lifespan: about 13 years
  • Heavy use (large household, frequent door openings) can shorten life
  • Poor airflow around the cabinet and dusty condenser coils increase compressor run time
  • Weak door gaskets cause warm air leaks and extra wear on the sealed system
  • Recurring frost buildup can strain the evaporator fan and reduce cooling efficiency
Quick maintenance checklist (high impact)

These steps reduce run time, prevent temperature swings, and protect major components like the compressor and control board.

  • Vacuum dust from the condenser area regularly
  • Keep doors closed tightly; check for gaps and torn gasket sections
  • Set stable temps (avoid extreme cold settings that force nonstop running)
  • Keep vents inside the fridge and freezer unblocked
  • Address water leaks or puddles quickly to prevent icing and airflow problems
Common “end-of-life” symptoms vs. fixable issues
Symptom Often fixable? Common area to check
Warm fridge, freezer OK Yes Airflow and damper system
Frost-packed freezer back wall Yes Defrost system and airflow
Loud buzzing/clicking at start Sometimes Start components and compressor
Temps swing widely Yes Sensors, controls, airflow

If you’re troubleshooting cooling or airflow problems on MBF1958XES3, the MBF1958XES3 owner's manual is the best place to confirm normal operating sounds, temperature recommendations, and care steps.

Why it matters

A refrigerator’s most expensive wear items are typically the sealed-system components (compressor, evaporator) and electronics. Basic upkeep and early repairs often cost far less than running the unit hot for weeks and overworking the system.

Last updated: January 2026

The most common Maytag refrigerator complaint is ice maker trouble (no ice, slow ice, or odd-shaped cubes). On the Maytag MBF1958XES3 bottom-mount refrigerator, the fastest wins are checking the freezer temperature, water supply, and the ice maker assembly before replacing major components; see the MBF1958XES3 owner's manual for model-specific checks.

Quick checks we recommend first
  • Confirm the freezer is at 0°F (typical target for proper ice production).
  • Make sure the ice maker is turned on and the shutoff arm is down (if equipped).
  • Verify the household water shutoff valve is fully open and the supply line is not kinked.
  • Dump old ice and reset production: turn the ice maker off for 30 seconds, then back on.
  • Look for frost buildup or blocked airflow near the evaporator cover and vents.
Common symptoms and the parts that often solve them
Symptom Most likely area Part examples for MBF1958XES3
No ice at all Ice maker or water fill Refrigerator ice maker assembly W10884390, water inlet valve
Small or hollow cubes Low water flow Water inlet valve, supply line restriction
Freezer cold but fridge warm Airflow/damper issue Damper control assembly, evaporator fan motor
Warm temps and clicking/humming Start components Run capacitor, compressor circuit
Why it matters

Ice maker issues are often the first sign of a bigger problem like low water flow, poor airflow, or temperature instability. Fixing the root cause helps protect food temperatures and prevents repeat failures.

When replacement is more likely than adjustment

Replace parts when you see one of these patterns:

  • Ice maker cycles but never fills with water (valve or fill issue)
  • Ice maker mold never ejects cubes (ice maker module failure)
  • Intermittent cooling with temperature swings (control or airflow components)

Last updated: January 2026

For many households, yes: a bottom-mount refrigerator like the Maytag MBF1958XES3 is often “better” because the fresh-food section sits at eye and waist level, so you reach less for everyday items while still getting full freezer storage below. Check the MBF1958XES3 owner's manual for features specific to your exact configuration.

What “better” usually means with bottom-mount refrigerators

Bottom-mount designs tend to prioritize fresh-food convenience and organization.

  • More ergonomic access to milk, produce, and leftovers (less bending)
  • Wider refrigerator shelves and clearer sight lines for frequently used foods
  • Freezer drawer storage that can be easier to sort than a top-freezer shelf
  • Often better for cooks who use fresh ingredients daily
When a bottom-mount might not be the best fit

A bottom-mount is not automatically the best choice for every kitchen or user.

  • If you use the freezer more than the refrigerator, you will bend more often
  • Freezer drawers can feel heavy when fully loaded
  • Some layouts have less usable freezer height for tall boxes
  • Door swing and drawer clearance matter in tight kitchens
Quick comparison
Feature Bottom-mount (like MBF1958XES3) Top-freezer
Fresh-food access Best Good
Freezer access Good (drawer) Best
Organization Strong in fridge Strong in freezer
Ergonomics for daily items Strong Moderate
Why it matters

Most households open the refrigerator section far more than the freezer. Putting the fresh-food compartment at a comfortable height reduces strain and helps you see what you have, which can cut down on food waste.

Helpful tip for water and ice performance

If your model uses a water filter, staying on top of filter changes helps protect the water system and can reduce slow fill issues.

  • Replace the filter on schedule
  • Flush water after installing a new filter
  • Keep the supply valve fully open

For step-by-step guidance, use how to replace the water filter in a Maytag refrigerator.

Last updated: January 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Bottom-Mount Refrigerator
Dishwasher
Electric Wall Oven
Freestanding Ice Maker
Front-Engine Lawn Tractor
Gas Chainsaw
Gas Line Trimmer
Gas Range
Refrigerator
Room Air Conditioner
Side-By-Side Refrigerator
Treadmill
Washer
Water Pump
