Model # GFDN160EJ0WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE GFDN160EJ0WW electric dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

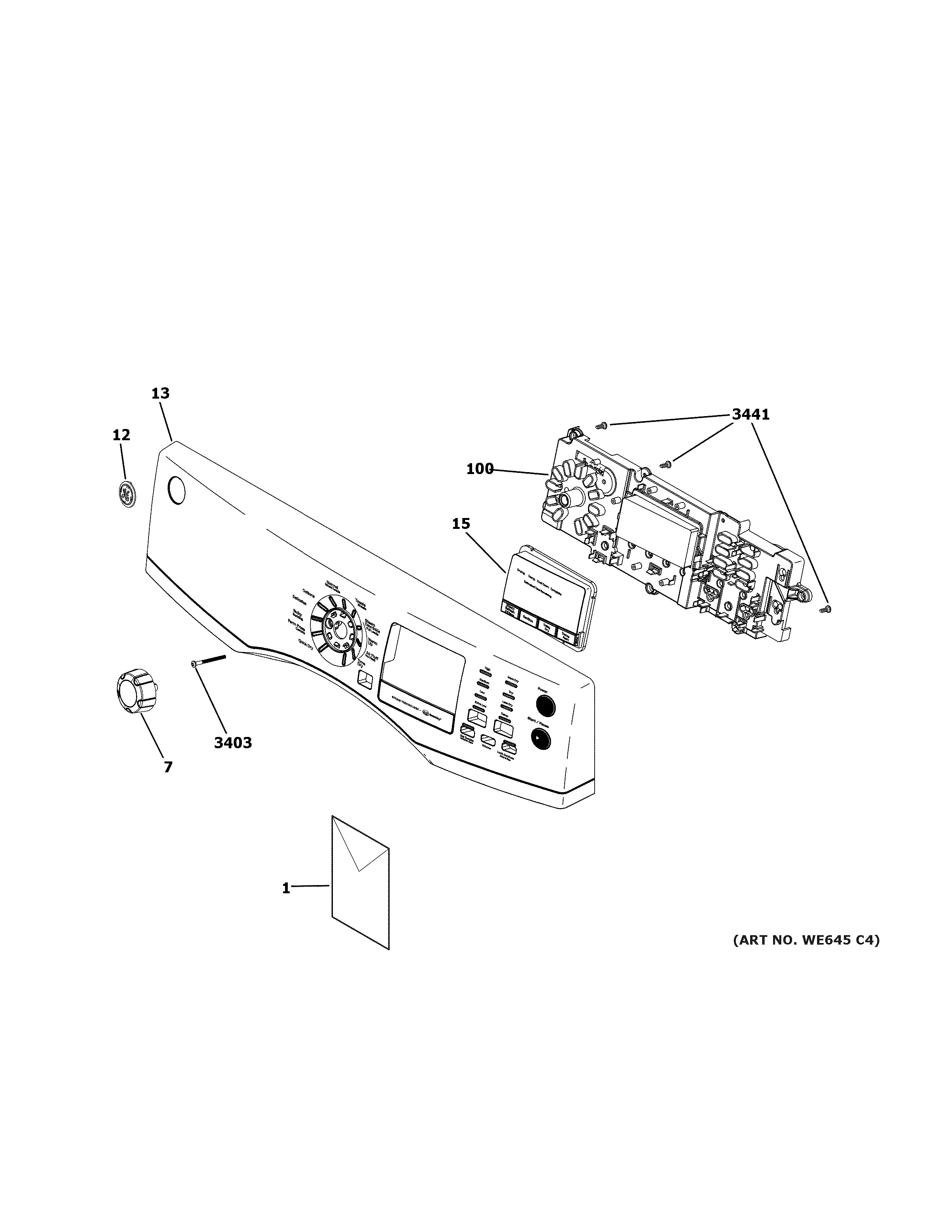

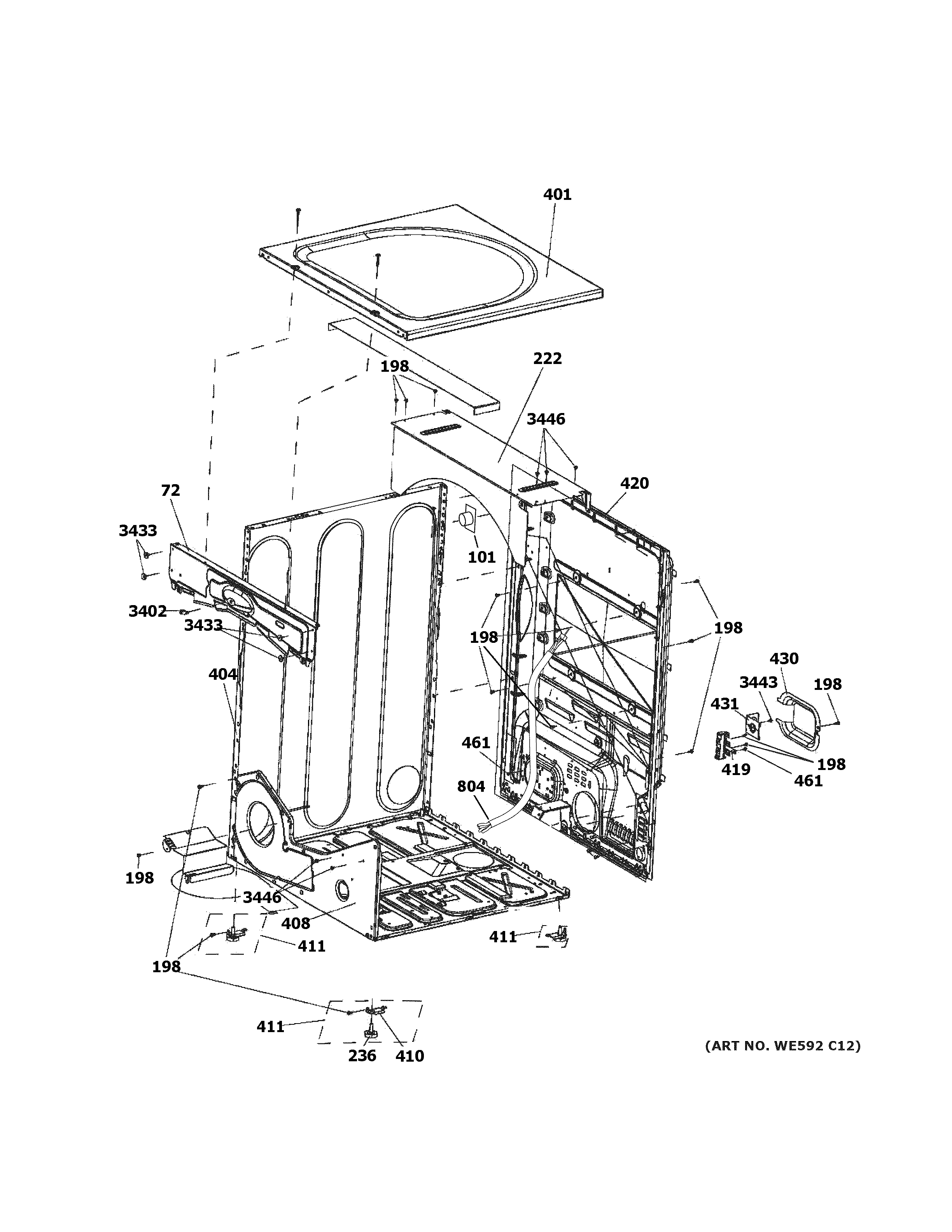

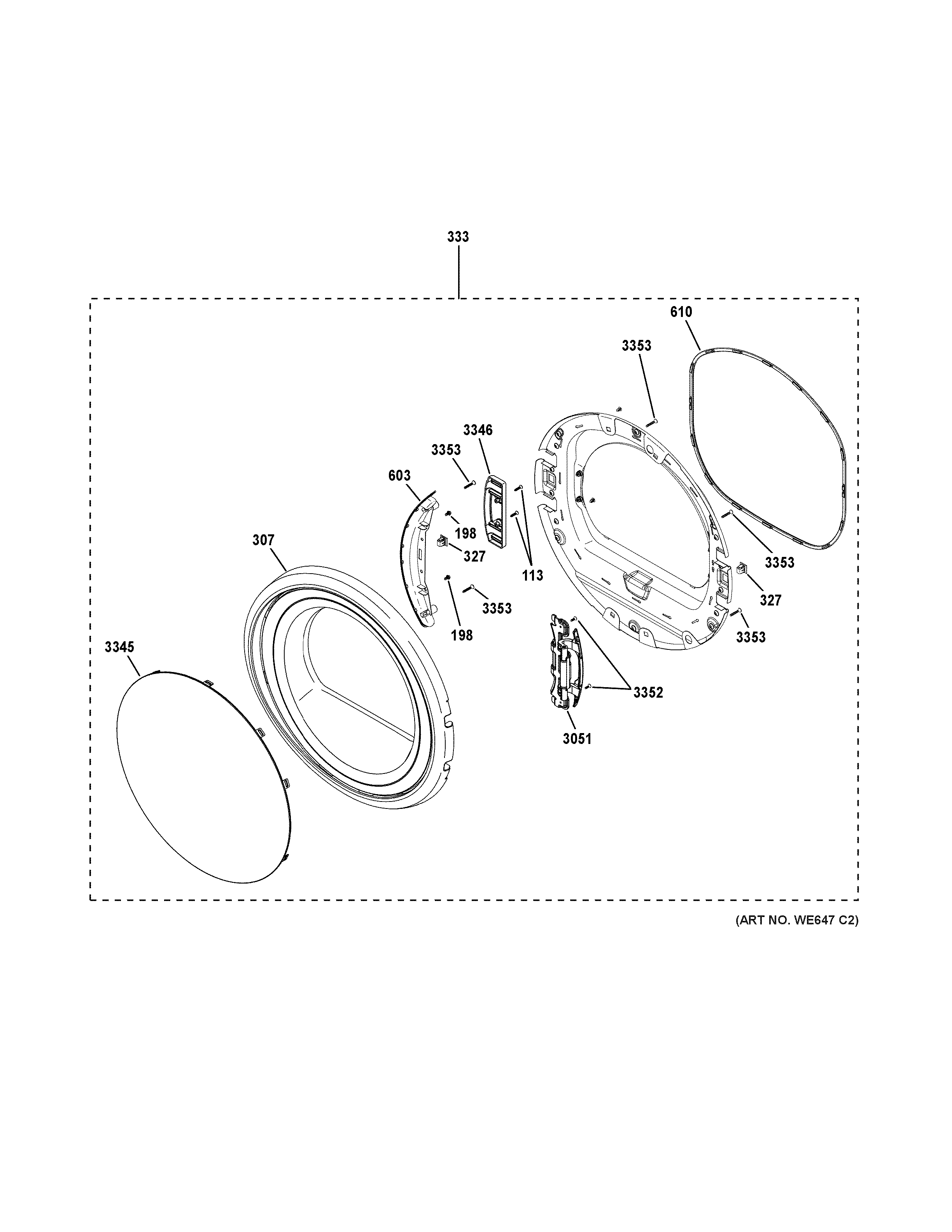

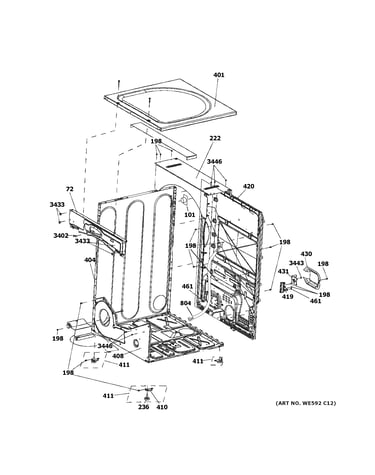

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGFDN160EJ0WW Electric Dryer

  • G.e. Dryer Heater Assembly WE11X21156
    #512

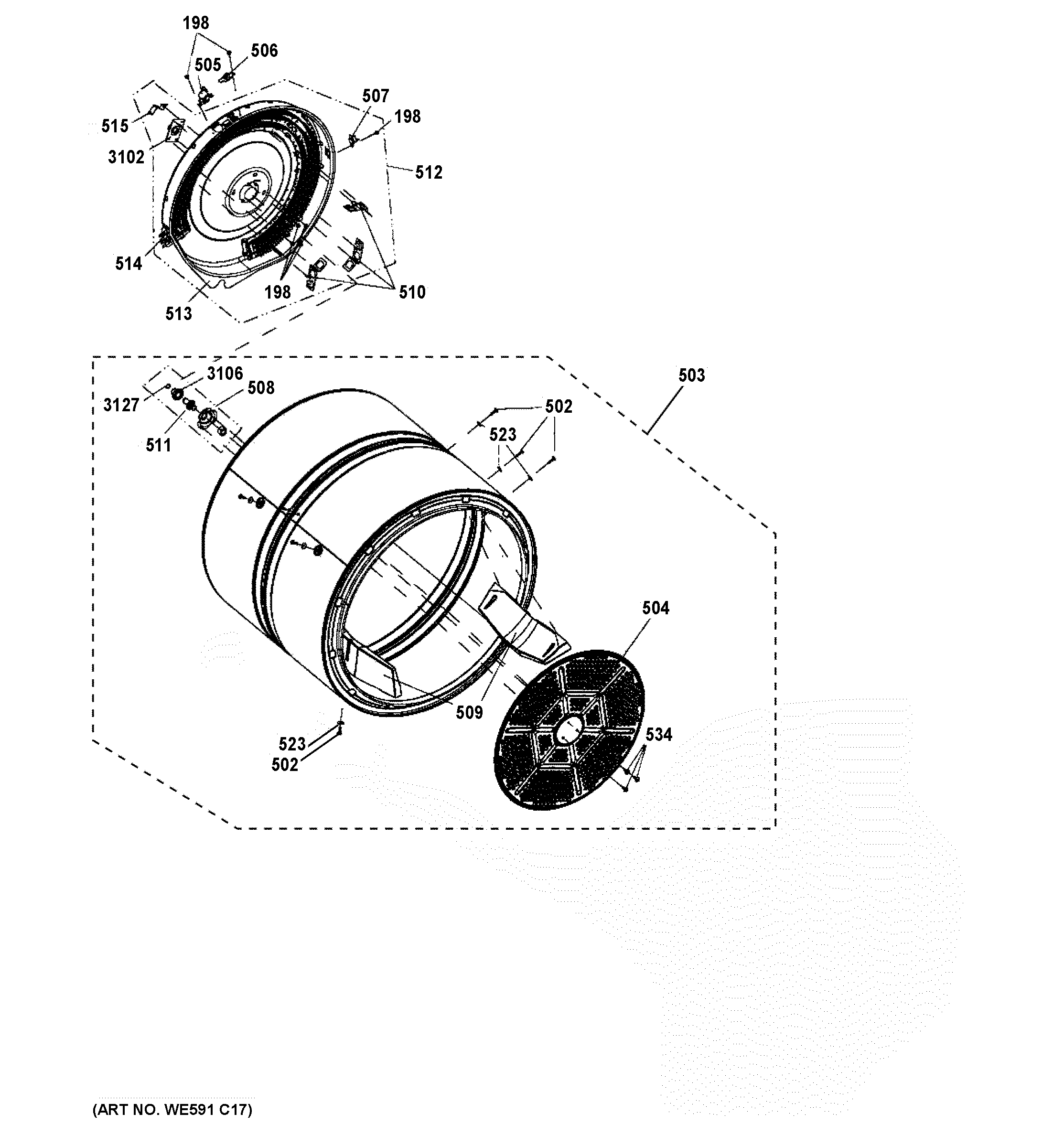

    Drum diagram

    G.e. dryer heater assembly

    Part #WE11X21156

    BEST SELLER
    $177.73 |
    6% OFF Phone Price : $189.73
    In Stock
  • Kenmore Dryer Drum Support Shaft WE3M33
    #508

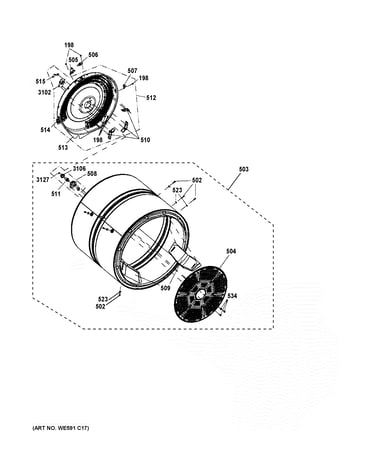

    Drum diagram

    Kenmore dryer drum support shaft

    Part #WE3M33

    BEST SELLER
    $35.18 |
    15% OFF Phone Price : $41.18
    In Stock
  • Dryer Heating Element Control Thermistor WE4M398
    #506

    Drum diagram

    Dryer heating element control thermistor

    Part #WE4M398

    BEST SELLER
    $33.96 |
    15% OFF Phone Price : $39.96
    In Stock
  • Kenmore Dryer Rear Bearing WE1M462
    #3106

    Drum diagram

    Kenmore dryer rear bearing

    Part #WE1M462

    BEST SELLER
    $24.50 |
    20% OFF Phone Price : $30.50
    In Stock
  • Dryer Drum Felt Seal WE09X20441
    #312

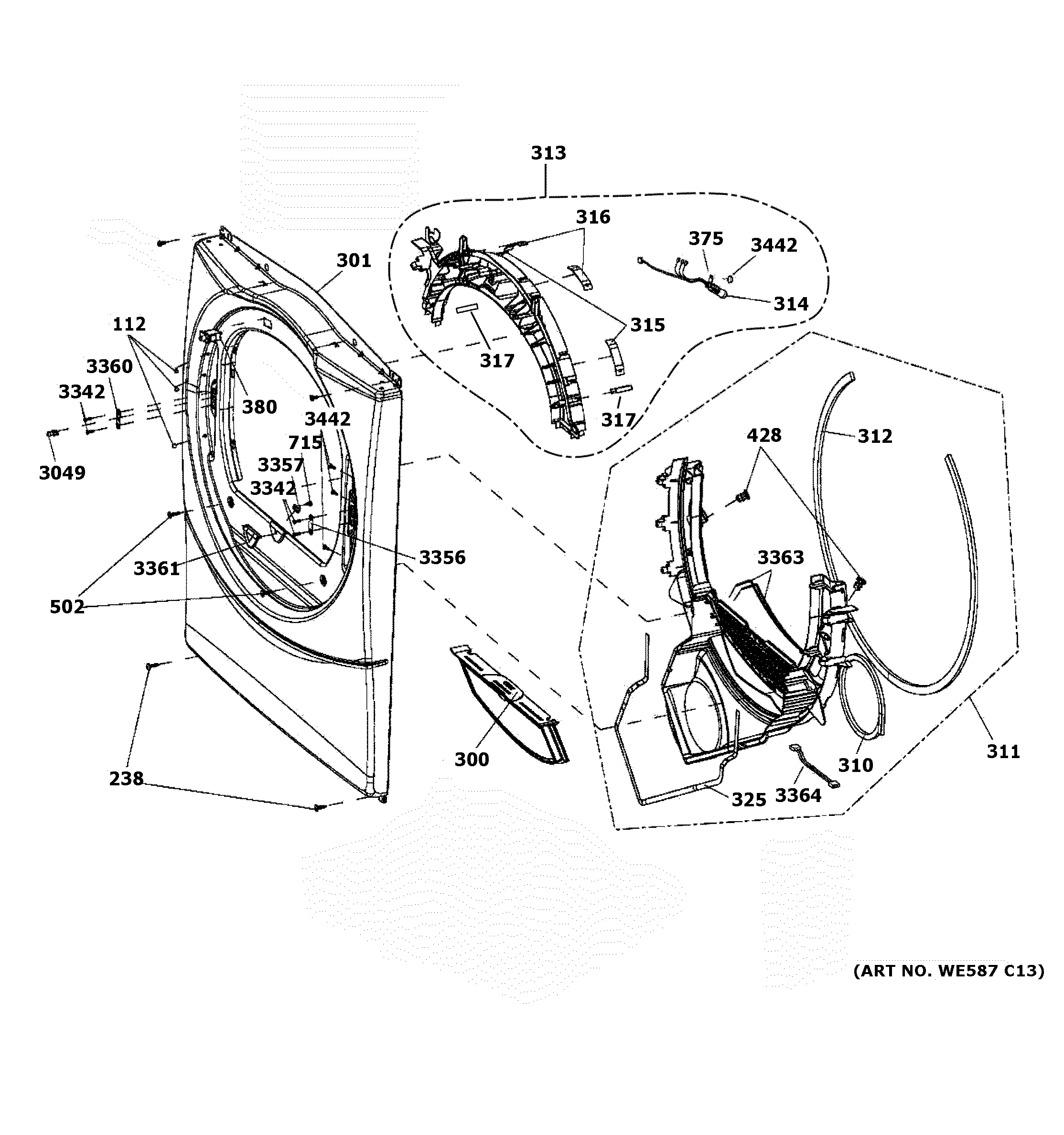

    Front panel diagram

    Dryer drum felt seal

    Part #WE09X20441

    Replaced by #WE09X27634

    ?
    Manufacturer substitution
    This part replaces WE09X20441. Substitute parts can look different from the original.
    BEST SELLER
    $29.51 |
    17% OFF Phone Price : $35.51
    In Stock
  • Dryer Idler Pulley WE12X20395
    #216

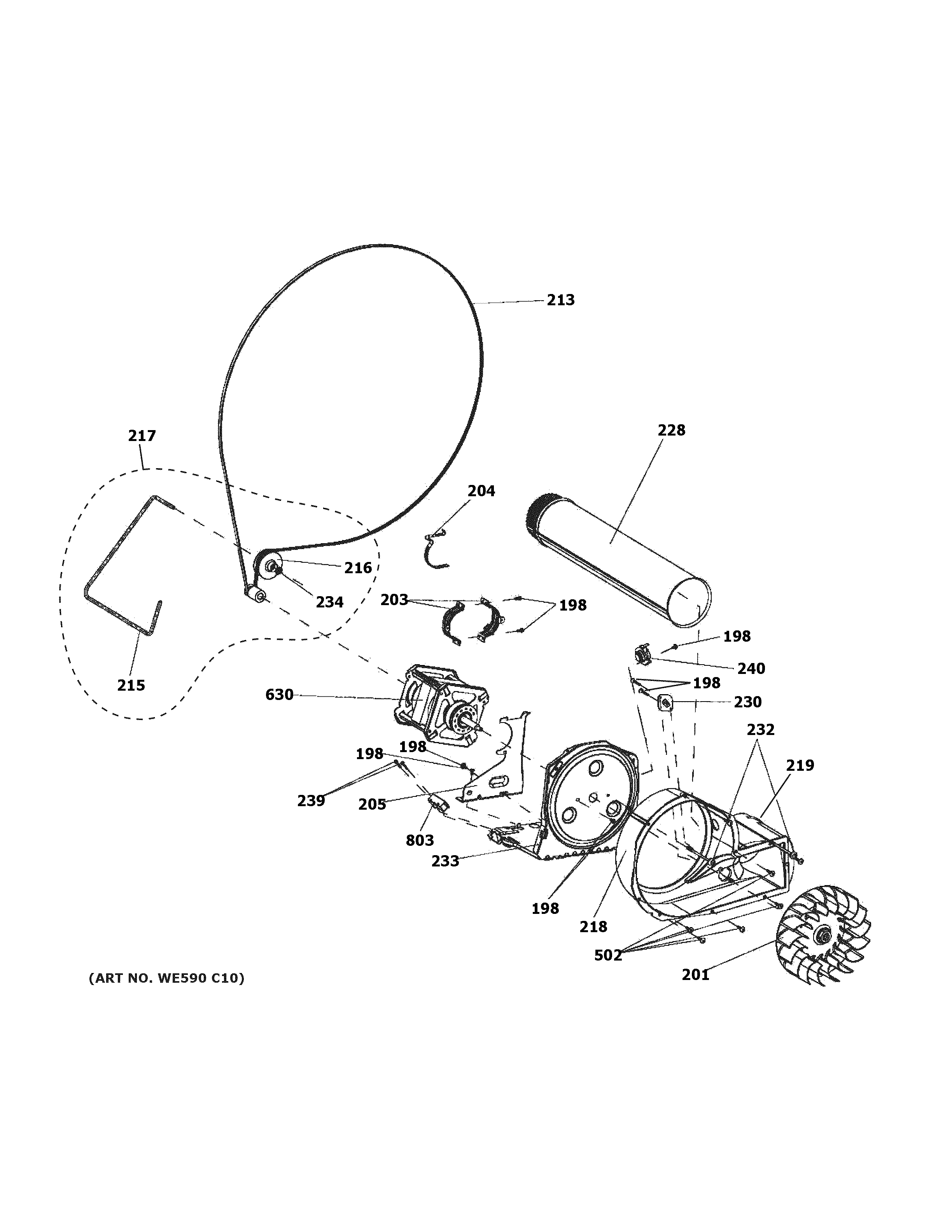

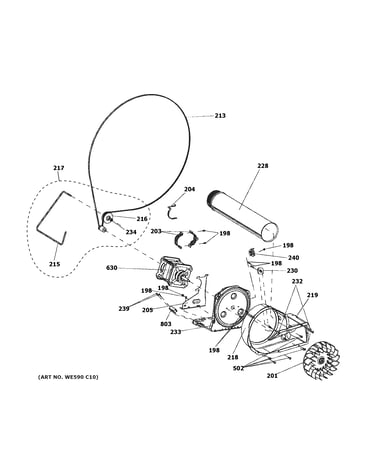

    Blower & motor diagram

    Dryer idler pulley

    Part #WE12X20395

    Replaced by #WE03X31620

    ?
    Manufacturer substitution
    This part replaces WE12X20395. Substitute parts can look different from the original.
    BEST SELLER
    $60.35
    In Stock
  • Dryer Drum Glide Bearing, Upper WE3M52
    #316

    Front panel diagram

    Dryer drum glide bearing, upper

    Part #WE3M52

    Replaced by #WE03X37320

    ?
    Manufacturer substitution
    This part replaces WE3M52. Substitute parts can look different from the original.
    BEST SELLER
    $19.17 |
    9% OFF Phone Price : $21.17
    In Stock
  • Dryer Drum Glide Bearing WE3M51
    #315

    Front panel diagram

    Dryer drum glide bearing

    Part #WE3M51

    Replaced by #WE03X37319

    ?
    Manufacturer substitution
    This part replaces WE3M51. Substitute parts can look different from the original.
    BEST SELLER
    $11.11 |
    15% OFF Phone Price : $13.11
    In Stock
  • Outlet Control WE4M391
    #230

    Blower & motor diagram

    Outlet control

    Part #WE4M391

    Replaced by #WE4M448

    ?
    Manufacturer substitution
    This part replaces WE4M391. Substitute parts can look different from the original.
    BEST SELLER
    $45.47 |
    12% OFF Phone Price : $51.47
    In Stock
  • Bearing WE14X22579
    #313

    Front panel diagram

    Bearing

    Part #WE14X22579

    Replaced by #WE03X25094

    ?
    Manufacturer substitution
    This part replaces WE14X22579. Substitute parts can look different from the original.
    BEST SELLER
    $91.63 |
    6% OFF Phone Price : $97.63
    In Stock
