Kenmore 25329111990 upright freezer

Kenmore 25329111990 upright freezer Parts

Here are the diagrams and repair parts for Kenmore 25329111990 upright freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 25329111990 Freestanding Freezers

  • Refrigerator Filter Dryer for Kenmore 25329111990 - Part 5303305677

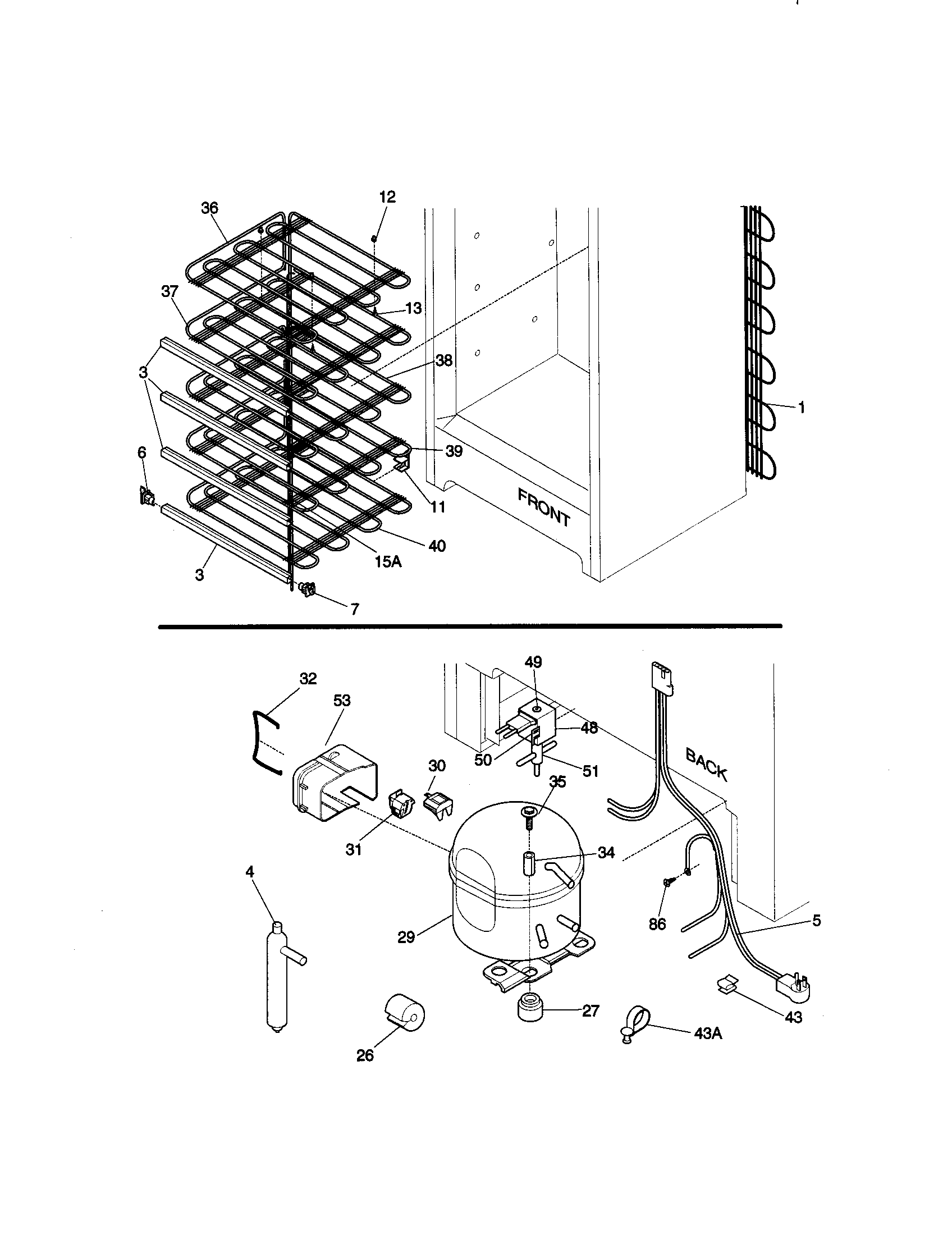

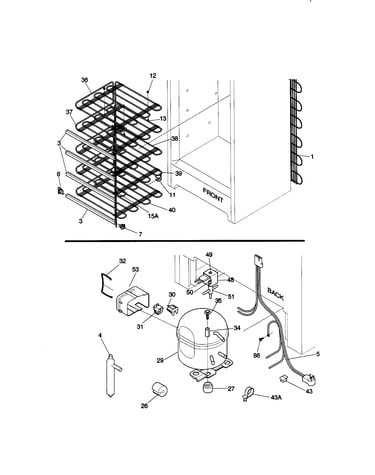

    System diagram

    Filter Drier

    Part #216634500

    Replaced by #5303305677

    Info Icon
    Manufacturer substitution
    This part replaces 216634500. Substitute parts can look different from the original.
    In Stock
    $26.12
    19% OFF Phone Price : $32.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Gasket - Refrigeration Seal Part By Frigidaire for Kenmore 25329111990 - Part 5304507199

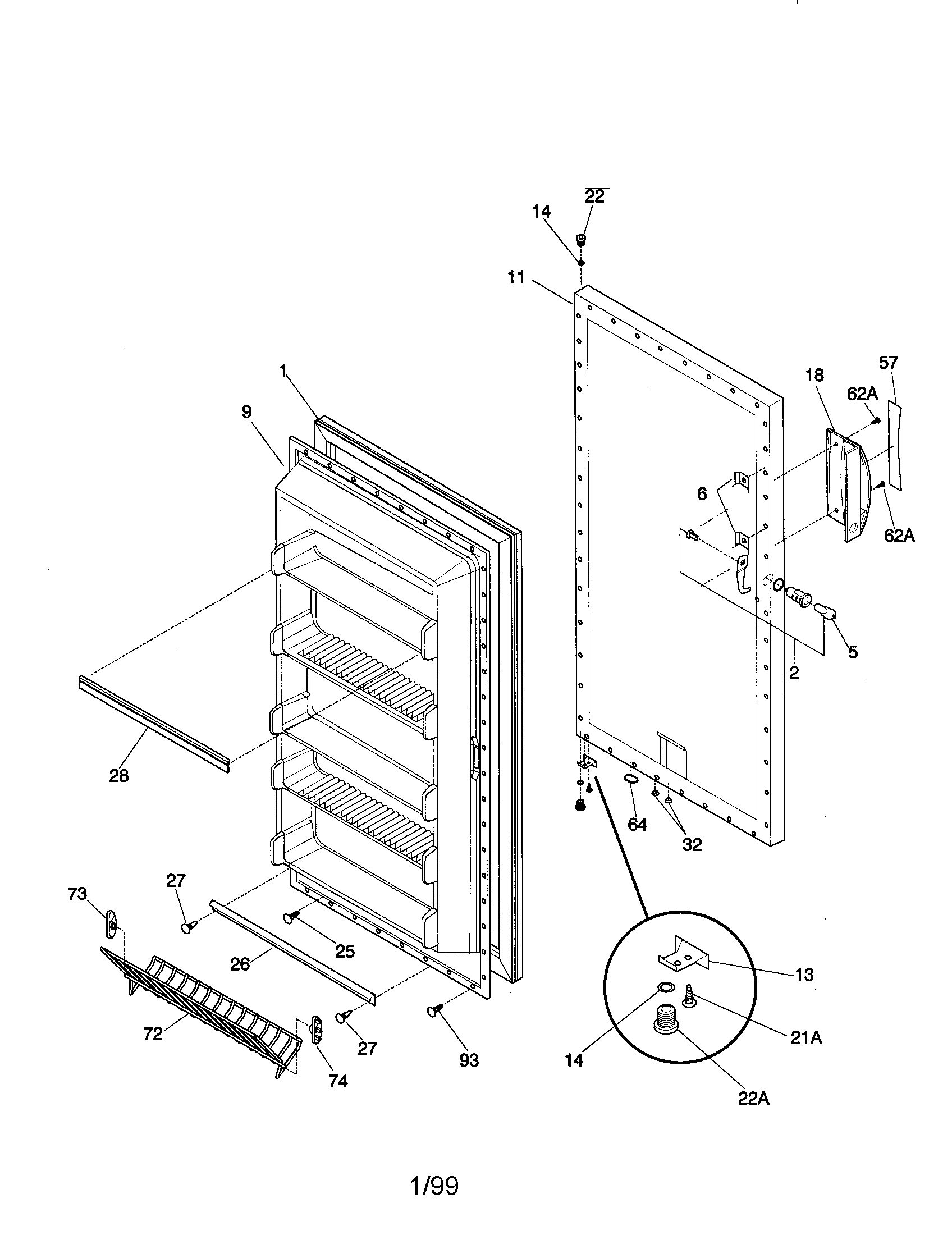

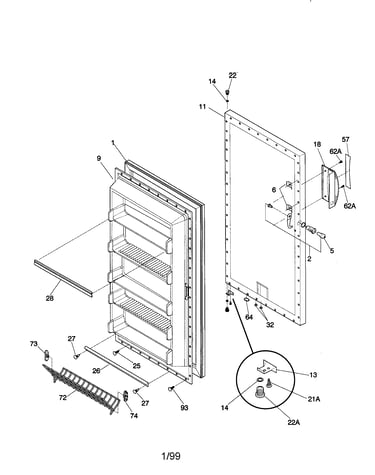

    Door diagram

    Freezer Door Gasket

    Part #216522312

    Replaced by #5304507199

    Info Icon
    Manufacturer substitution
    This part replaces 216522312. Substitute parts can look different from the original.
    In Stock
    $100.16
    11% OFF Phone Price : $112.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Kit for Kenmore 25329111990 - Part 5304511983

    System diagram

    Compressor

    Part #216639800

    Replaced by #5304511983

    Info Icon
    Manufacturer substitution
    This part replaces 216639800. Substitute parts can look different from the original.
    In Stock
    $537.14
    $12.00 OFF Phone Price : $549.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Door Hinge Bearing for Kenmore 25329111990 - Part 297006800

    Door diagram

    Hinge Bearing

    Part #216503200

    Replaced by #297006800

    Info Icon
    Manufacturer substitution
    This part replaces 216503200. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $14.94
    12% OFF Phone Price : $16.94Info Icon
    Minus Item
    Qty
    Plus Item
  • Tappan Freezer Drain Hose Adapter for Kenmore 25329111990 - Part 5304511843

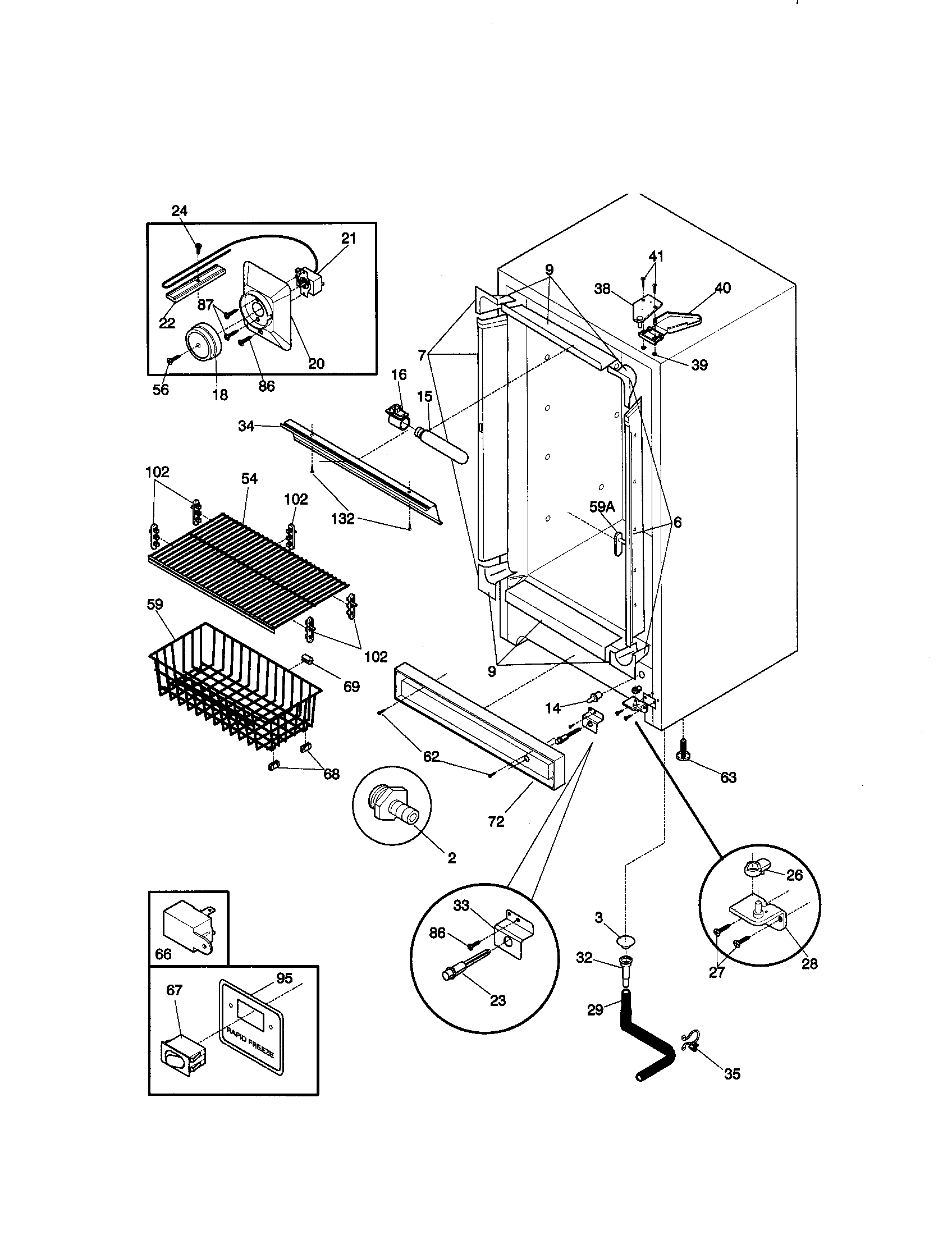

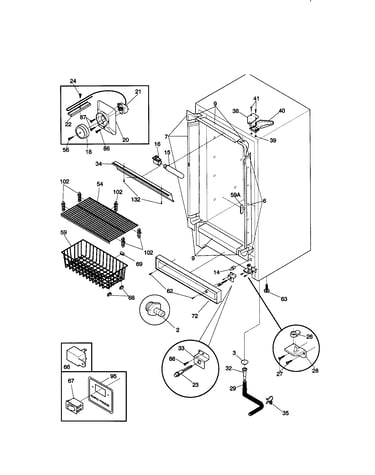

    Cabinet diagram

    Freezer Drain Hose Adapter

    Part #5308005500

    Replaced by #5304511843

    Info Icon
    Manufacturer substitution
    This part replaces 5308005500. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.83
    47% OFF Was : $14.78Info Icon
    Minus Item
    Qty
    Plus Item
  • White-westinghouse Freezer Shelf Support for Kenmore 25329111990 - Part 297001500

    System diagram

    Support

    Part #08037928

    Replaced by #297001500

    Info Icon
    Manufacturer substitution
    This part replaces 08037928. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.29
    49% OFF Was : $20.13Info Icon
    Minus Item
    Qty
    Plus Item
  • White-westinghouse Freezer Shelf Support for Kenmore 25329111990 - Part 297001600

    System diagram

    Support

    Part #3091418

    Replaced by #297001600

    Info Icon
    Manufacturer substitution
    This part replaces 3091418. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $18.24
    10% OFF Phone Price : $20.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Leveling Leg for Kenmore 25329111990 - Part 216396900

    Cabinet diagram

    Appliance Leveling Leg

    In Stock
    $28.28
    18% OFF Phone Price : $34.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Kenmore 25329111990 - Part 5303161215

    Door diagram

    Screw

    Part #5303161215

    The manufacturer no longer makes this part, and there's no substitute part

  • Appliance Touch-up Paint, 0.6-oz (white) for Kenmore 25329111990 - Part 5303321319

    #NI

    All parts diagram

    Touch Paint

    Part #5303305324

    Replaced by #5303321319

    Info Icon
    Manufacturer substitution
    This part replaces 5303305324. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.58
    11% OFF Phone Price : $18.58Info Icon
    Minus Item
    Qty
    Plus Item

Kenmore Upright Freezer 25329111990 FAQs

A Kenmore upright freezer typically lasts 10 to 15 years. For Kenmore model 25329111990, lifespan depends most on steady temperatures, good airflow around the cabinet, and keeping the door sealing tightly so the compressor does not have to run nonstop.

Typical lifespan and what affects it

Most upright freezers fall into the same life range, but these factors make the biggest difference:

  • Door seal condition (air leaks cause longer run times and frost)
  • Room temperature and ventilation (hot garages shorten compressor life)
  • Condenser cleanliness (dust buildup raises operating temperatures)
  • How often the door is opened and how long it stays open
  • How heavily it is loaded and how quickly you add unfrozen food

What “normal operation” looks like

Your freezer may run continuously for the first several hours during initial cool-down. For safe food storage, allow about 4 hours to cool completely, then make temperature changes gradually and give the cabinet time to stabilize (details in the 25329111990 owner's manual).

What you notice Usually normal Often points to a problem
Compressor runs a lot After loading food or warm-room days Constant running with poor freezing
Frost on walls/shelves Light frost over time Heavy frost, ice buildup, or door not sealing
Temperature swings Small changes after door openings Large swings, thawing, or soft food

Maintenance that helps you reach 10 to 15 years

We recommend these simple habits to extend service life:

  • Keep the freezer level so the door closes easily
  • Leave space around the cabinet for airflow
  • Clean dust from the condenser area periodically
  • Avoid overloading with unfrozen food all at once
  • Replace a worn door seal; a leaking gasket is a common efficiency killer (see freezer door gasket 5304507199)

Why it matters

A freezer that runs longer than it should uses more electricity and puts extra wear on sealed-system components like the compressor. Preventing air leaks and heat buildup is the most reliable way to maximize lifespan.

Last updated: January 2026

Kenmore upright freezer model 25329111990 has a capacity of 17.1 cubic feet. You can also confirm the capacity on the rating label inside the cabinet and in the 25329111990 owner's manual.

How to verify the 17.1 cu. ft. capacity on the appliance

  • Open the freezer door and look for the model and serial number plate (commonly on the upper left interior wall on upright models).
  • Confirm the model number reads 25329111990.
  • Find the line that lists capacity (often shown as cu. ft.).
  • If the label is worn, use the specifications information in the manual.

Quick planning guide for loading food

The manual guidance for this style of freezer is to freeze about 3 pounds of fresh food per cubic foot at one time.

Capacity Fresh food to freeze at once (3 lb per cu. ft.)
17.1 cu. ft. About 51 lb

Why it matters

Knowing the cubic-foot capacity helps you plan bulk shopping, organize shelves and door racks, and avoid overloading the freezer during initial freeze-down, which supports steadier temperatures and better food storage.

Last updated: January 2026

Most Kenmore upright freezers, including model 25329111990, do not have a single dedicated “reset” button. The practical reset is to turn the temperature control OFF, restore power, then set the control back to a normal setting and allow the freezer time to stabilize (about 4 hours for full cool-down). See the 25329111990 owner's manual for the exact control location and feature details.

How to “reset” a Kenmore upright freezer (safe, effective steps)

  • Turn the temperature control to OFF.
  • Unplug the freezer (or switch off the breaker) for 5 minutes.
  • Plug it back in (or turn the breaker on).
  • Set the temperature control back to a normal setting (many units are factory pre-set around 4).
  • Allow temperatures to stabilize; plan on 4 hours for complete cool-down before loading unfrozen food.

If you are trying to clear an alarm or beeping

Some versions include a Temp Alarm feature. If the buzzer is sounding, use the Temp Alarm OFF button to silence it, then focus on why the freezer is warm.

What you see/hear What it usually means What to do next
Light out, no buzzer Normal operation No action needed
Blinking red, no buzzer Warm after install or power outage Give it time to recover, keep door closed
Blinking red with buzzer Warm temperature condition Press Temp Alarm OFF, check airflow and door seal

Why it matters

A “reset” does not fix the root cause of warming. If the freezer is not cooling, the most common causes are power interruption, a door not sealing, or a cooling system issue that needs diagnosis.

When a part may be involved

If the freezer runs but struggles to start or clicks repeatedly, a failed start device is a common suspect. For this model, the freezer compressor start relay 216594300 is one of the parts used in the start circuit.

Last updated: January 2026

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Repair guides for upright freezers

How to replace a freezer evaporator fan

How to replace a freezer evaporator fan

Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…

Repair time and Difficulty

 45 minutes or less
How to replace a freezer door switch

How to replace a freezer door switch

When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…

Repair time and Difficulty

 15 minutes or less
How to replace a freezer LED light board

How to replace a freezer LED light board

The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…

Repair time and Difficulty

 15 minutes or less
