What size is Kenmore refrigerator model 59676603601?
Kenmore Elite refrigerator model 59676603601 is a bottom-mount design in the common 33-inch class; most units in this family are about 33 inches wide and roughly 69 to 71 inches tall (without measuring, exact dimensions vary by configuration). For the exact cabinet and door-swing clearances, use the 59676603601 owner's manual.
Most Kenmore Elite bottom-mount refrigerators like 59676603601 fit standard kitchen cutouts. Use these as planning ranges, then confirm by measuring your unit.
- Width: about 33 in (common “33-inch” footprint)
- Height: typically 69 to 71 in (varies with hinges and leveling legs)
- Depth: often 33 to 35 in overall (varies with handles)
- Recommended clearance: about 1/2 in at the top and behind for ventilation
- Hinge-side clearance: at least 2 1/2 in next to a fixed wall for door swing
Measure your refrigerator and the opening in three places (top, middle, bottom) to catch out-of-square cabinets.
| What to measure | How to measure | Why it matters |
|---|---|---|
| Width | Cabinet edge to edge | Confirms the “33-inch class” fit |
| Height | Floor to top of cabinet | Avoids hitting upper cabinets |
| Depth | Back wall to front (include handles if present) | Prevents doors/handles from sticking out |
| Door swing | Hinge side to nearby wall | Ensures doors open fully |
Correct sizing prevents poor airflow and door-interference issues. The manual’s clearance guidance (top/behind space and hinge-side spacing) helps the compressor and condenser system run efficiently and keeps doors from binding.
Last updated: January 2026
What does DH mean on Kenmore Elite refrigerator?
On Kenmore Elite model 59676603601, DH commonly indicates a defrost heater (defrost heat) problem, meaning the refrigerator is not warming the evaporator enough during the defrost cycle. This can lead to frost buildup, warm temperatures, and reduced airflow; follow the troubleshooting steps in the 59676603601 owner's manual.
- Freezer temperature rises or swings
- Refrigerator section warms because airflow is restricted
- Frost or ice buildup on the freezer’s back wall
- Evaporator fan noise changes (airflow gets weaker)
- Ice maker slows down or stops making ice
- Power reset: Unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
- Check for heavy frost: If the freezer back panel is packed with frost, the defrost system is likely not clearing ice.
- Confirm doors seal well: A leaking door gasket can add moisture and accelerate frost buildup.
- Listen for the evaporator fan: If the fan is running but airflow is weak, frost may be blocking the evaporator.
| What can fail | What it does | What you’ll see |
|---|---|---|
| Defrost heater | Melts frost off the evaporator | Heavy frost, warm temps |
| Defrost control (board/timer) | Starts and ends defrost | Repeating frost return |
| Temperature sensor/thermistor | Tells control when to defrost/stop | Erratic temps, defrost errors |
If you’re diagnosing the defrost circuit with a meter, a failed heater is a common root cause; for this model, the listed heater is refrigerator defrost heater WP67002493.
When the defrost system can’t clear frost, the evaporator can ice over and block airflow. That makes the refrigerator work harder, temperatures drift warmer, and food can spoil faster.
Last updated: January 2026
What is the average lifespan of a Kenmore Elite refrigerator?
Most Kenmore Elite refrigerators, including model 59676603601, typically last 10 to 15 years with normal household use. Regular care (cleaning, good door sealing, and steady temperatures) helps you reach the high end of that range; major sealed-system failures often drive replacement decisions.
- Average range: 10 to 15 years
- Longer life is common when: condenser area stays clean, doors seal tightly, and airflow is not blocked
- Shorter life is common when: the unit runs hot, coils are clogged, or temperatures swing often
- High-impact components: compressor, evaporator fan motor, defrost system, temperature sensors
- Usage factors: frequent door openings, warm room location, overpacking, and poor ventilation
Use these habits to reduce compressor run time and frost issues:
- Keep door gaskets clean and check for gaps or tears
- Vacuum dust from the condenser area regularly (frequency depends on pets and dust)
- Avoid blocking air vents inside the fresh food and freezer sections
- Set stable temps (most homes do well around 37°F fresh food and 0°F freezer)
- Follow the care and cleaning guidance in the 59676603601 owner's manual
| Symptom | Often indicates | Usually worth checking first |
|---|---|---|
| Warm fridge and freezer, loud running | Sealed system or compressor strain | Condenser cleaning, airflow, door seal |
| Frost buildup, weak cooling | Defrost problem | Defrost heater and airflow |
| Temps swing, food spoils faster | Sensor or airflow issue | Damper control and fan operation |
| Ice maker stops, no ice | Water supply or ice maker issue | Water inlet valve, ice maker module |
A refrigerator near the 10 to 15 year mark can still be reliable, but preventive maintenance reduces energy use and helps avoid expensive failures in the sealed refrigeration system.
Last updated: January 2026

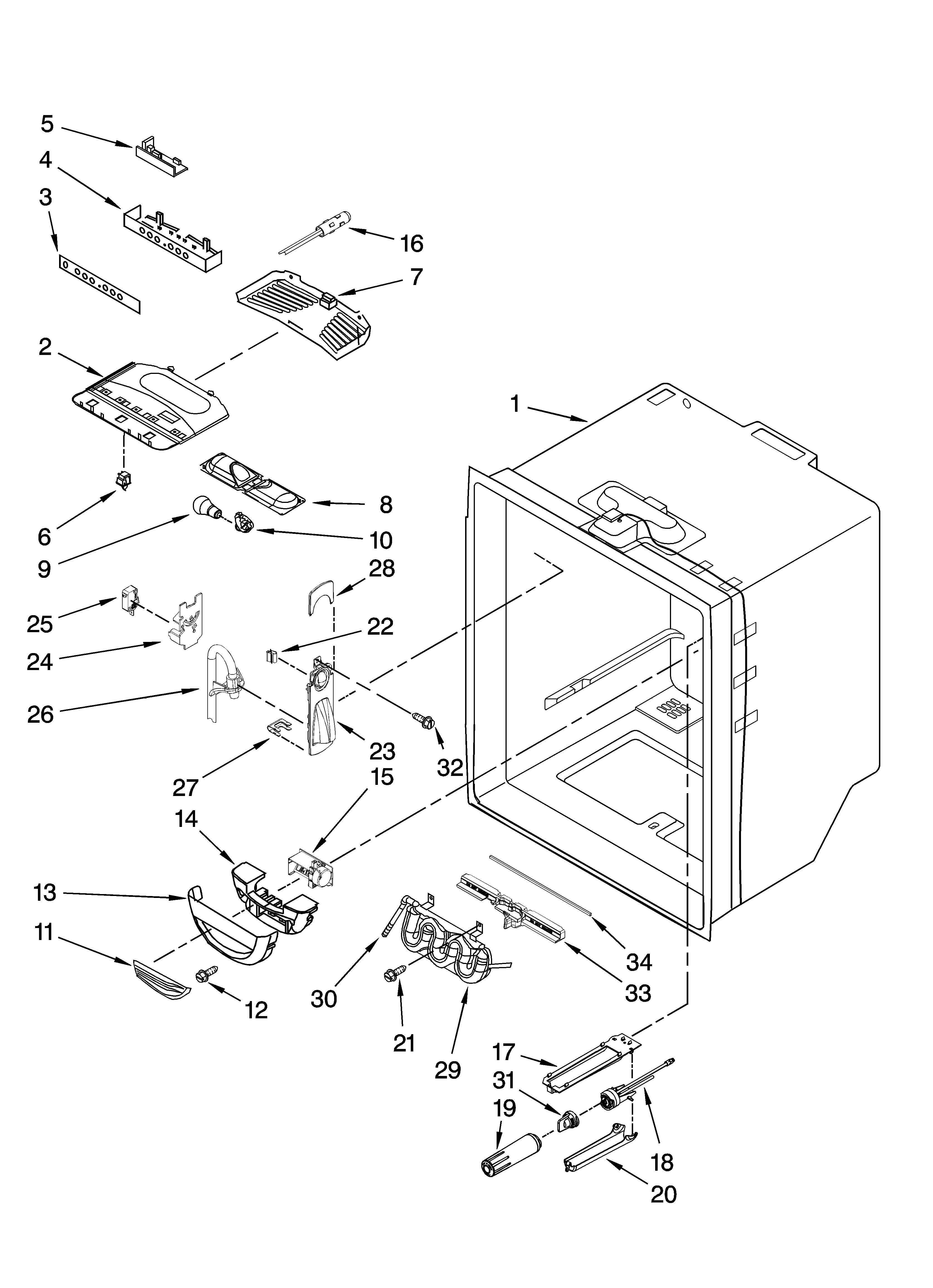

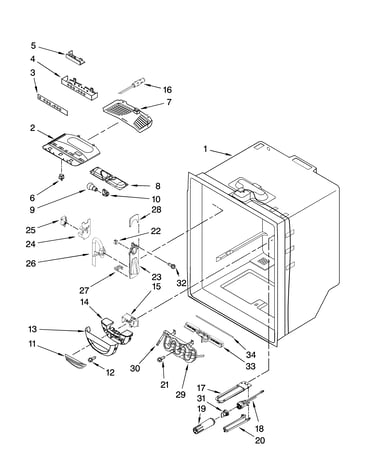

Where is the damper control on a Kenmore Elite refrigerator?
On Kenmore Elite refrigerator model 59676603601, the damper control is typically located inside the fresh food (refrigerator) compartment where cold air enters from the freezer, usually behind an upper rear cover or housing near the air inlet. For your exact access steps, use the 59676603601 owner's manual.
In most bottom-mount designs, the damper sits at the top rear of the refrigerator compartment and connects to an air duct coming from the freezer.
- Look along the upper back wall of the refrigerator compartment for an air vent or diffuser
- Check behind a snap-on cover or small plastic housing near that vent
- Listen for a soft opening/closing sound when temperatures are changing
- If you see frost buildup near the vent, the damper area is a key place to inspect
A damper can make clicking, tapping, or buzzing noises when it cycles. Common causes include ice interference, a sticking door, or a failing motor/gear.
| Symptom | What it often points to | What to do first |
|---|---|---|
| Loud clicking during cycling | Damper door sticking or worn drive | Inspect for ice or broken plastic |
| Buzzing/humming near top rear | Damper motor working hard | Check for blockage at the air inlet |
| Temperature swings in fridge | Damper not regulating airflow | Verify settings, then inspect damper |
- Set refrigerator temp to a normal mid setting and wait 24 hours for stabilization
- Make sure food packages are not blocking the air vent
- Check for visible frost/ice around the vent area (unplug first if you need to remove covers)
- If the refrigerator is too warm, also confirm the evaporator fan is running; a weak fan can mimic damper problems (see evaporator motor WPW10128551)
The damper control regulates how much freezer air enters the refrigerator compartment. When it sticks open or closed, you can get warm food, frozen produce, excess noise, and uneven temperatures.
Last updated: January 2026
