On the Frigidaire LFSS2612TP3 side-by-side refrigerator, CF (sometimes shown as SY CF) means the controls are not communicating correctly, typically between the main electronic control board and the user interface (display). A power reset often clears it; if it returns, a control or wiring issue is likely.

What to do first (quick checks)

• Unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Confirm the outlet has steady power; avoid outlets controlled by a wall switch.
• Check that the temperature control panel responds normally after power is restored.
• If the display is flashing or showing other codes, note them before resetting.
• Review the control and display information in the LFSS2612TP3 owner's manual.

If CF comes back after a reset

CF returning usually points to an intermittent connection or a failing electronic component.

Common causes include:

• Loose or oxidized wiring connections between the display and main control
• Moisture intrusion at the user interface area
• A failing main control board
• A failing dispenser or display module

Parts that are often involved

Area	What it affects	Example part on this model page

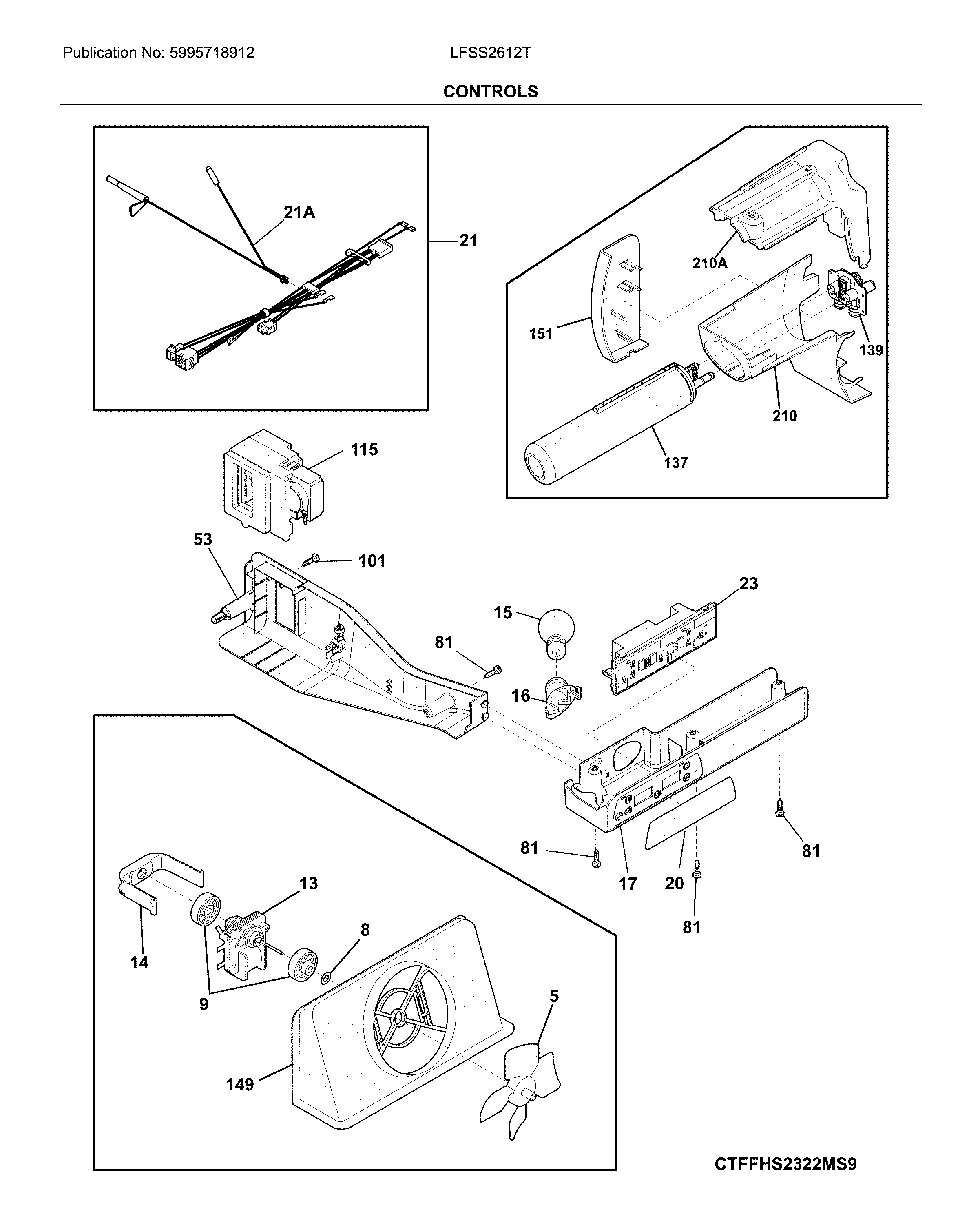

Main control	Overall operation and communication	Refrigerator electronic control A01078804

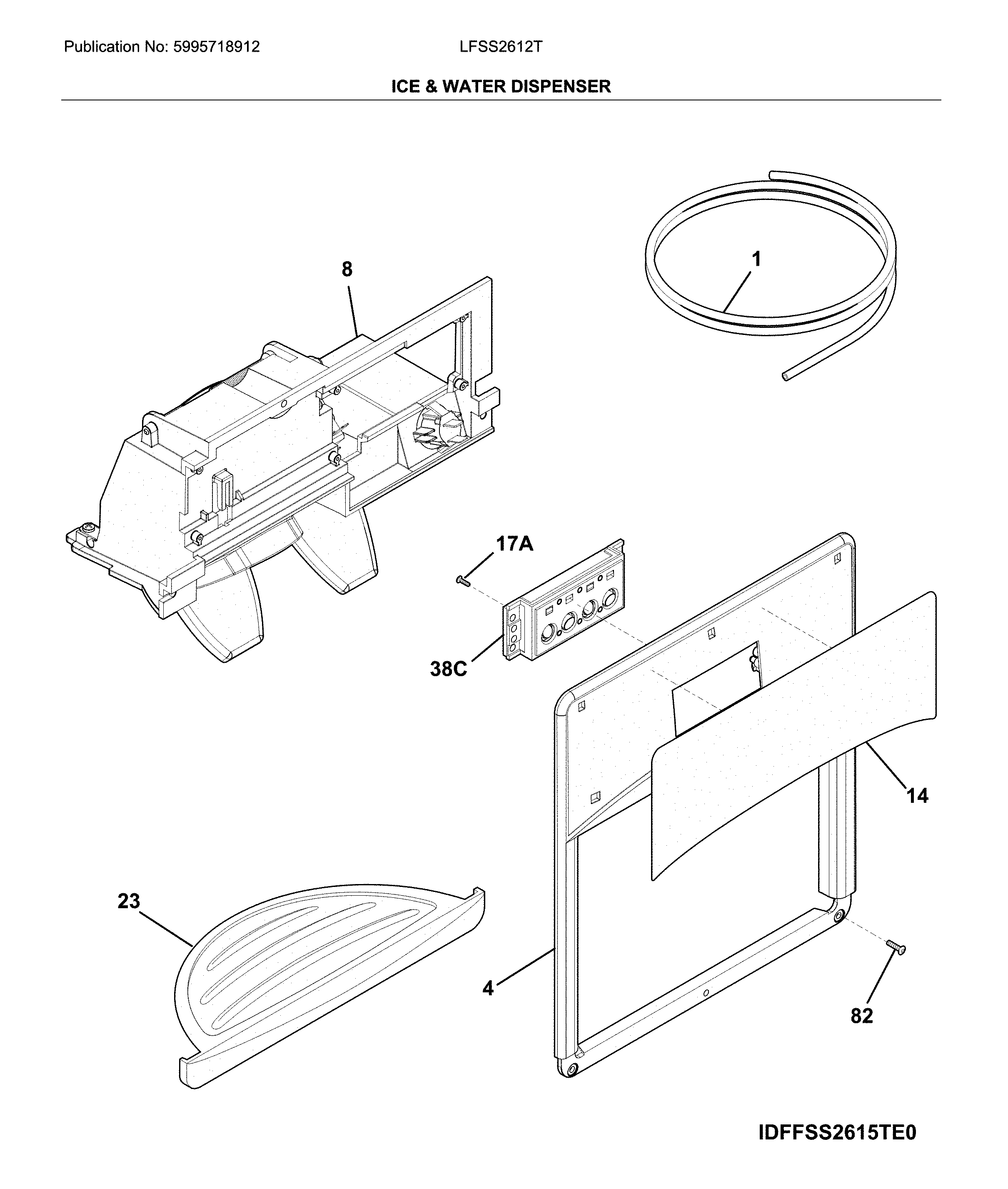

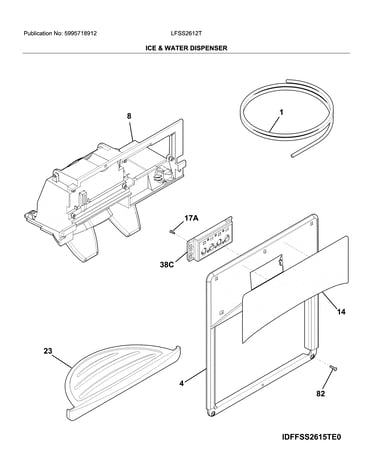

Dispenser/display area	User interface and dispenser functions	Refrigerator dispenser module (model-specific options vary)

Why it matters

A communication fault can prevent accurate temperature control, disable dispenser functions, or cause the refrigerator to run incorrectly. Clearing the code is helpful, but repeated CF codes mean the underlying issue should be corrected to protect cooling performance.

When to stop and get service

• CF returns repeatedly within 24 to 48 hours
• Cooling becomes inconsistent (warm refrigerator or freezer)
• The display is flashing and won’t respond to button presses

Last updated: January 2026

The most common problem we see with Frigidaire refrigerators like model LFSS2612TP3 is a cooling complaint (refrigerator too warm, freezer too warm, or the unit runs too long). In many cases, the root cause is restricted airflow or heat removal from dirty condenser coils, a weak evaporator fan, or a door that is not sealing tightly.

Quick checks that fix many “not cooling” complaints

• Make sure the doors fully close and nothing is holding them open.
• Check for a torn, dirty, or loose door gasket; air leaks make the compressor run longer.
• Clean the condenser coils and confirm the condenser fan area is clear of dust.
• Confirm vents inside the fresh food section are not blocked by food packages.
• Give temperature changes time; allow about 24 hours for temperatures to stabilize after adjustments.

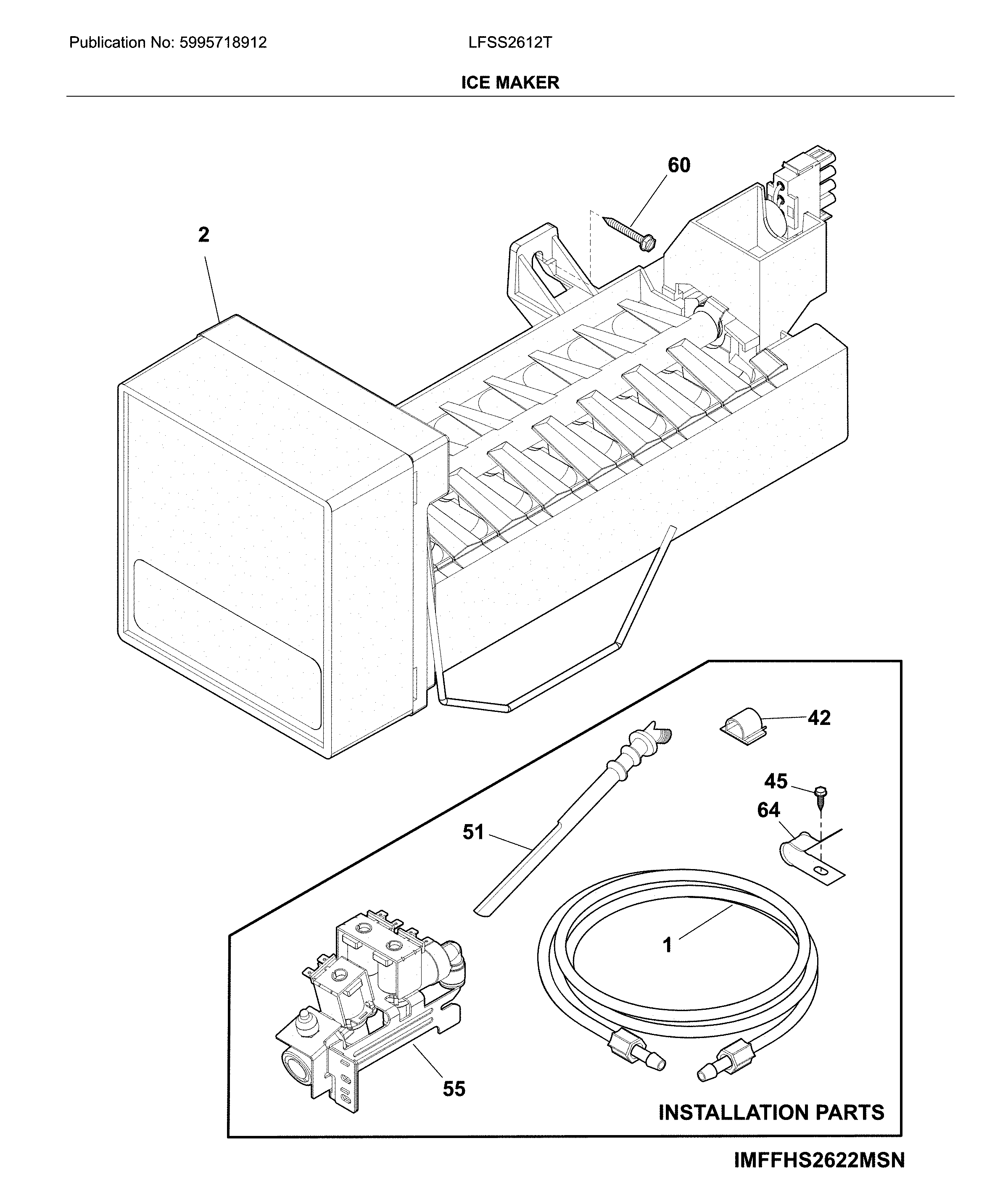

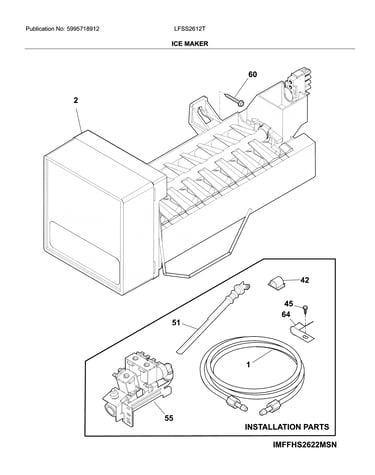

Ice maker and dispenser issues are also very common

Water and ice problems often trace back to water supply or filtration. The LFSS2612TP3 Use & Care guide notes that spurting/sputtering is normal while purging air, and it recommends replacing the water filter at least every 6 months.

• If water dispenses slowly, replace the refrigerator water filter WF3CB.
• After a filter change, flush water for about 4 minutes to clear air and carbon fines.
• Reset the filter status by holding the Water Filter button for 3 seconds (until it changes from Red to Green).

Symptom-to-cause guide (fast triage)

Symptom	Most likely cause	What to do first
Fridge warm, freezer OK	Airflow issue between sections	Check vents and the damper area; review LFSS2612TP3 owner's manual
Freezer warm, no strong airflow	Evaporator fan problem	Inspect fan area; consider Frigidaire refrigerator evaporator fan motor 242077705
Runs too long	Dirty coils or door leak	Clean coils; inspect gaskets
Water/ice slow or stops	Clogged filter or air in line	Replace filter; purge air and flush

Why it matters

Cooling and airflow problems can look like “the fridge is bad,” but they are often maintenance-related (coils, gaskets, blocked vents). Fixing those first protects food temperatures, reduces run time, and helps prevent ice maker and dispenser complaints.

For display messages or flashing temperature indicators, use the Frigidaire refrigerator error codes reference and follow the troubleshooting steps in the manual.

Last updated: January 2026

Most 25.6 cu. ft. side-by-side refrigerators are about 36 inches wide; the Frigidaire LFSS2612TP3 is designed for a standard 36-inch-wide opening, plus small side clearances for airflow. For the exact cabinet width and required opening, use the LFSS2612TP3 installation guide.

Typical width and what to plan for

A “25.6 cu. ft.” capacity does not guarantee an exact width, but this size class is commonly built to fit standard kitchen cutouts.

• Typical cabinet width for 25 to 26 cu. ft. side-by-side models: about 35 7/8 to 36 inches
• Typical door swing needs: more than the cabinet width (handles and door arc add space)
• Installation clearance guidance for LFSS2612TP3: 3/8 inch at the sides and top for air circulation
• Rear clearance guidance for LFSS2612TP3: 1 inch for connections and airflow
• Leveling matters: cabinet should be level and tilted slightly 1/4 inch (6 mm) front-to-back so doors seal well

Quick planning table

What you’re measuring	What to expect	Why it matters
Cabinet width	~36 inches	Determines if the refrigerator fits the opening
Side clearance (LFSS2612TP3 guidance)	3/8 inch each side	Helps airflow and prevents rubbing
Rear clearance (LFSS2612TP3 guidance)	1 inch	Makes room for water line and power cord
Door swing space	More than cabinet width	Ensures drawers/bins can open fully

How we recommend measuring (so you do it once)

• Measure the opening width at the front and back (walls are not always square).
• Measure height to the lowest cabinet or soffit.
• Measure depth from the back wall to the front edge of counters.
• Confirm you can get it inside: measure doorways and tight turns; the installation instructions note removing doors can help in tight entrances.
• If you have an ice and water dispenser, confirm you have a cold water supply that meets typical requirements (the guide calls out 30 to 100 psi).

Why it matters

Even when the cabinet width is “36 inches,” the real-world fit depends on airflow clearances, door swing, and whether the refrigerator can be leveled correctly so the door gaskets seal and temperatures stay stable.

Last updated: January 2026

On a Frigidaire LFSS2612TP3 side-by-side refrigerator, repeated beeping is most often the door alarm (a door not fully closed) or an alert tied to temperature or the electronic control system. Start by confirming both doors seal tightly and the controls show normal temperatures.

Quick checks that stop most beeping

• Close both doors firmly; remove any bins, shelves, or food packages that prevent full closure.
• Inspect the door gaskets for gaps, tears, or areas that are dirty and not sealing.
• Make sure the refrigerator is level so the doors self-close properly.
• Reduce door openings for a few hours; warm air intrusion can trigger temperature-related alarms.
• If the temperature display is flashing, treat it as a performance alert from the control system.

What the beeping usually means

Symptom	Most likely cause	What to do next
Beeps when a door is open or not fully shut	Door alarm	Clear obstructions, re-seat bins, confirm gasket seal
Beeping after power loss or moving the unit	Power interruption or warm temps	Allow 24 hours to stabilize; keep doors closed
Temperature display flashing	Electronic control detected a performance problem	Check for airflow blockage; then use diagnostics guidance
Beeping with poor cooling	Airflow or defrost-related issue	Check vents, listen for fan, look for frost buildup

Parts that commonly contribute (when sealing or cooling is the issue)

If the beeping is paired with warm temperatures, frost, or long run times, these model-matched parts are common suspects:

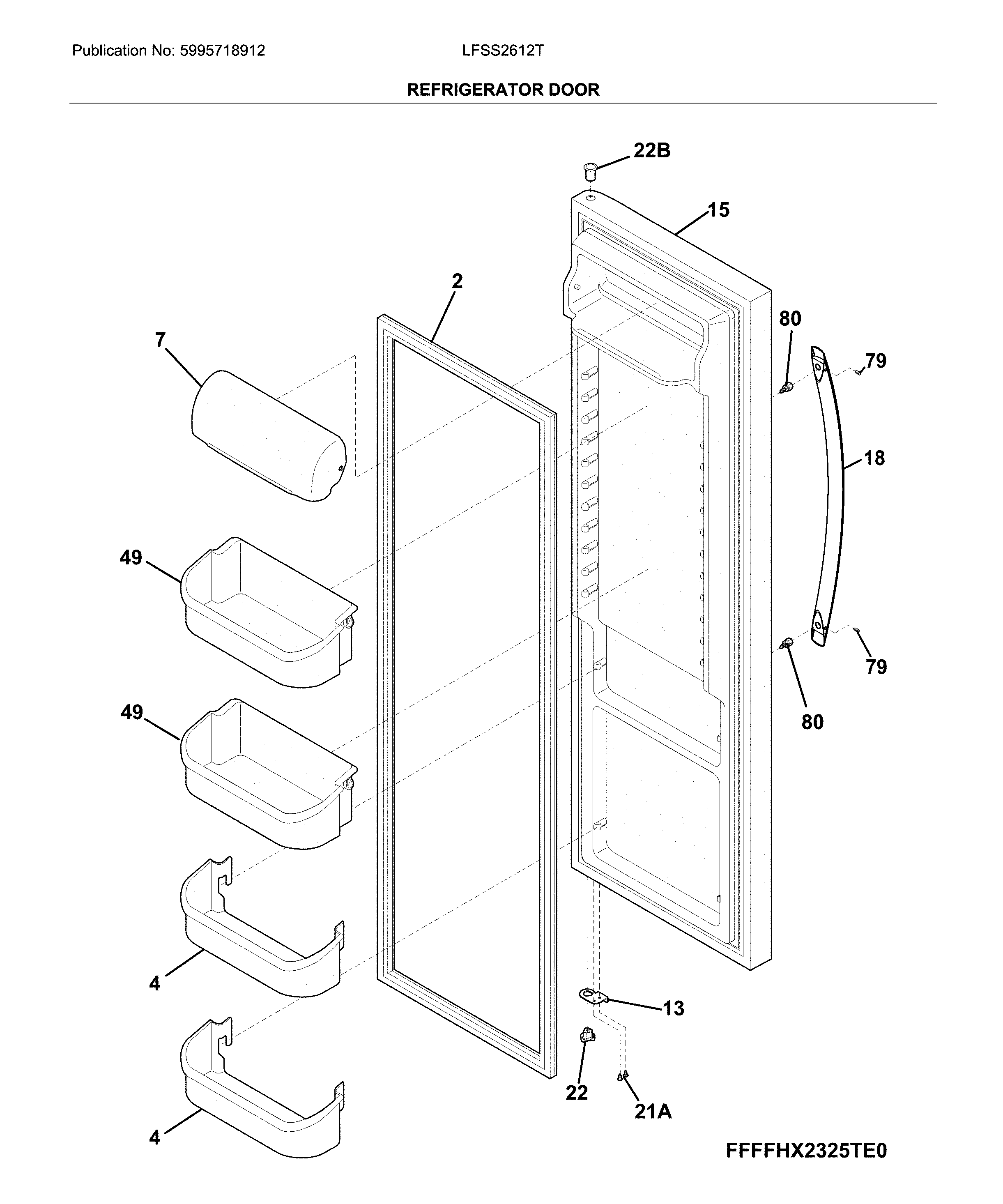

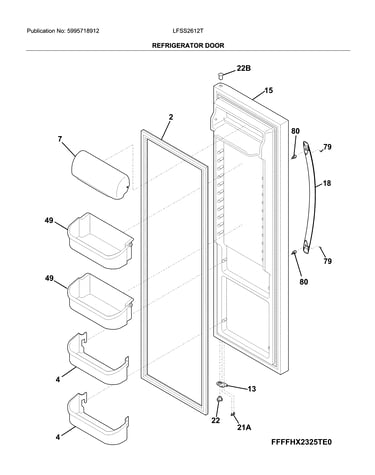

• Refrigerator door gasket (white) 241786013 if the fresh food door is leaking air.

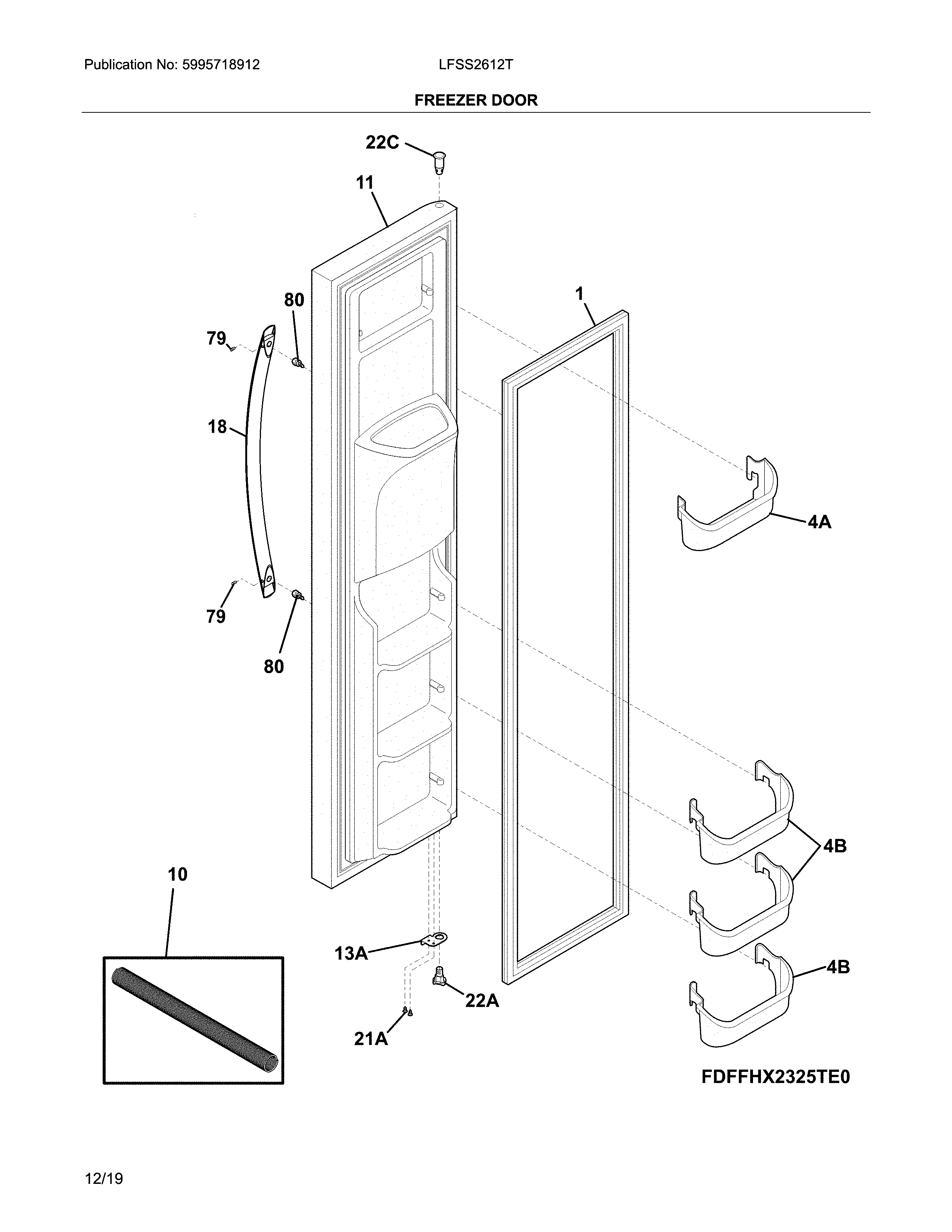

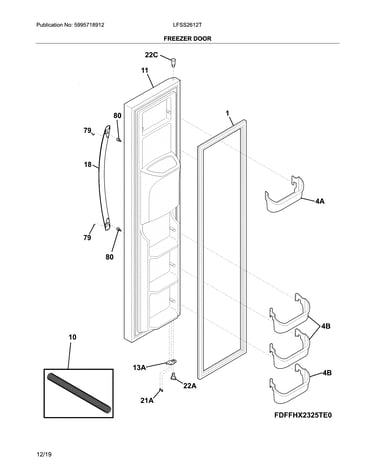

• Refrigerator freezer door gasket (gray) 241786014 if the freezer door is leaking air.
• Refrigerator air damper control assembly 242303001 if the refrigerator section is warm but the freezer is cold.

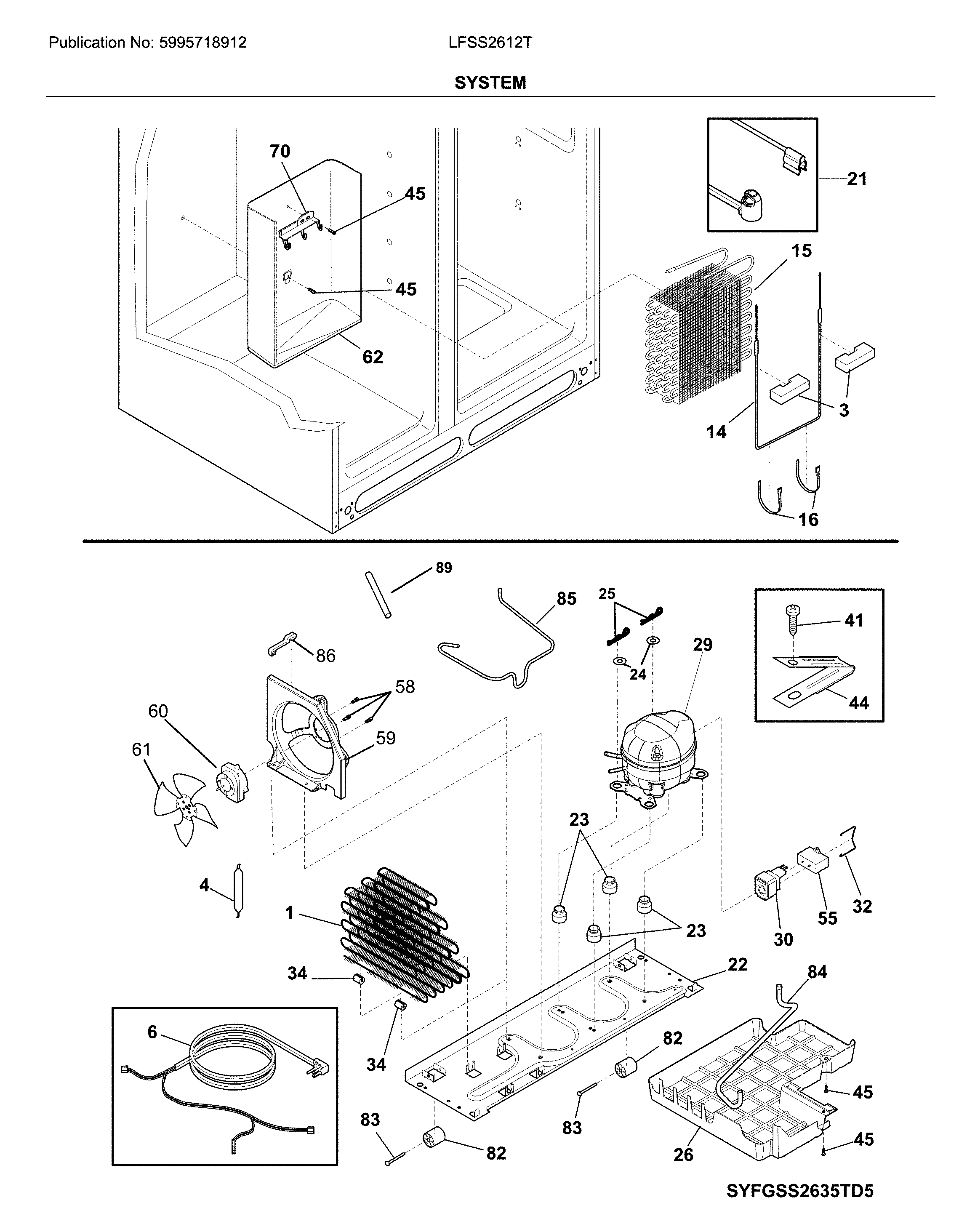

• Frigidaire refrigerator evaporator fan motor 242077705 if airflow is weak or you do not hear the fan running.

Why it matters

A door that is slightly open or a leaking gasket lets warm, humid air in. That forces the compressor to run longer, can cause moisture or frost issues, and can trigger alarms or flashing temperature displays.

Where to confirm alarm behavior and control indicators

Use the LFSS2612TP3 user manual to identify the specific alarm tones, control panel indicators, and the “Before You Call” checks for your exact refrigerator.

Also, if you see codes or unusual display behavior, follow the Frigidaire refrigerator error codes guidance to narrow the problem to the door switch, thermistor, fan, or control.
