Electric Wall Oven

Model #CT9070SH1SS GE wall oven

Here are the diagrams and repair parts for GE CT9070SH1SS wall oven, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 118 parts

Range High-Limit Thermostat

#157

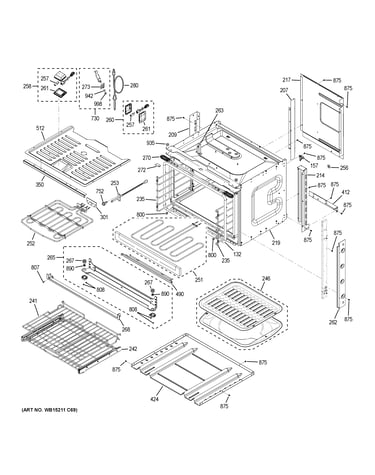

Body parts Diagram

$95.58

In Stock

Hidden Cover

#490

Body parts Diagram

Hidden cover

Part #WB55T10197
$18.84

In Stock

Range Oven Rack

#242

Body parts Diagram

Range oven rack

Part #WB48X21764
$194.01

In Stock

Cover Top Le

#402

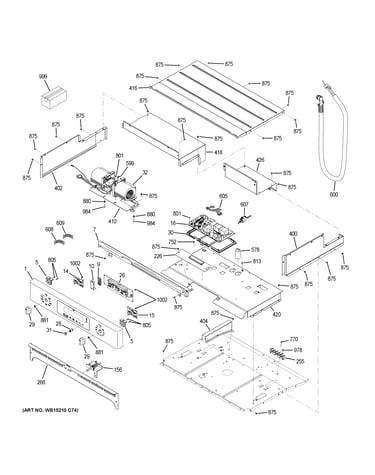

Control panel Diagram

Cover top le

Part #WB44T10126
$26.54

In Stock

Timer Knob

#28

Control panel Diagram

Timer knob

Part #WB03X23783
$18.15

In Stock

Screw 7-19 1

#984

Control panel Diagram

Screw 7-19 1

Part #WB01T10130
This item is not returnable
$4.35

In Stock

Channel Uppe

#404

Control panel Diagram

Channel uppe

Part #WB34T10150
$9.06

In Stock

Bushing Control

#31

Control panel Diagram

Bushing control

Part #WB01X23782
$9.68

In Stock

Seal

#120

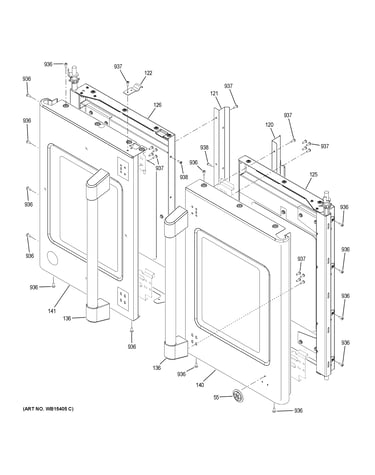

Doors Diagram

Seal

Part #WB35X23767
$174.28

In Stock

Trim Bottom Assembly

#268

Body parts Diagram

Trim bottom assembly

Part #WB07X23779
$115.65

In Stock

Symptoms common to all wall oven

Choose a symptom to see related wall oven repairs.

Main causes: broken broil element, faulty broil burner igniter, control system failure
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, control system failure
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element
