Whirlpool DU1055XTPQ3 dishwasher Parts

Drainage problems are the most common issue we see on Whirlpool dishwashers like model DU1055XTPQ3; they usually trace back to a clog or restriction in the filter/sump area, drain hose routing, or a weak pump. Poor cleaning and drying are also frequent, often caused by spray-arm blockage, loading issues, or heating problems.

Quick checks that fix many “common problems”

• Cancel the cycle and check for standing water in the bottom.
• Inspect the drain path for food debris (sump area) and clear it.
• Verify the sink drain/disposer connection is clear (a blocked sink drain can mimic a dishwasher drain failure).
• Confirm the drain hose is routed correctly (high loop or air gap, depending on your setup).
• Run hot water at the sink for 30 to 60 seconds before starting a cycle.
• Use the right detergent amount for your water hardness and avoid overfilling.

Most common symptoms and what they usually point to

Symptom	Most likely cause	What to check first
Won’t drain	Clog or restricted hose	Dishwasher drain hose 8269144A and sink/disposer inlet
Dishes not dry	Heating or venting issue	Rinse aid level and dishwasher heater W10518394
Leaks at the door	Worn or mis-seated seal	Dishwasher door seal W10542314 and door alignment
Poor cleaning	Low spray pressure or blockage	Spray arms, loading, and chopper/sump debris

Why it matters

A dishwasher that is not draining or not heating correctly can leave dirty water in the tub, cause odors, and extend cycle times. Catching a simple clog, hose routing issue, or worn seal early helps prevent repeat failures and water damage.

Where to confirm model-specific steps

For DU1055XTPQ3, follow the cleaning, operating, and troubleshooting steps in the DU1055XTPQ3 owner's manual. For mounting, drain routing, and connection details that affect draining and leaks, use the DU1055XTPQ3 installation guide.

Last updated: February 2026

Most Whirlpool dishwashers, including model DU1055XTPQ3, typically last 10 to 12 years with normal household use. Consistent cleaning, correct detergent use, and fixing small problems early (like poor draining or weak washing) are the biggest factors that extend service life; see the DU1055XTPQ3 owner's manual for the maintenance routine.

What affects how long a dishwasher lasts

A dishwasher’s life is usually determined by heat, water quality, and how hard the wash system works over time.

• Hard water and heavy detergent use can speed up mineral buildup
• Frequent heavy loads increase wear on the pump and motor
• Clogged filters or a blocked chopper can reduce wash performance and strain the motor
• Leaks can damage the door area and lower components
• Poor drying can point to heater or venting issues that also affect overall reliability

Quick maintenance checklist (best return for the effort)

We recommend these habits to keep a Whirlpool dishwasher running longer:

• Run hot water at the sink before starting a cycle
• Clean the bottom area and remove debris regularly
• Use the right amount of detergent (more is not better)
• Use rinse aid to improve drying and reduce spotting
• Inspect the door seal for gaps, tears, or flattening

Common “end-of-life” symptoms and what they usually mean

Symptom	Most common cause	What to check first
Not drying well	Heating or venting problem	Rinse aid level, cycle selection, heater operation
Not draining	Drain path restriction	Air gap/garbage disposal inlet, drain hose routing
Poor cleaning	Low spray pressure or blockage	Spray arms, chopper area, loading pattern
Intermittent power	Electrical protection issue	House breaker, door latch closure, thermal fuse

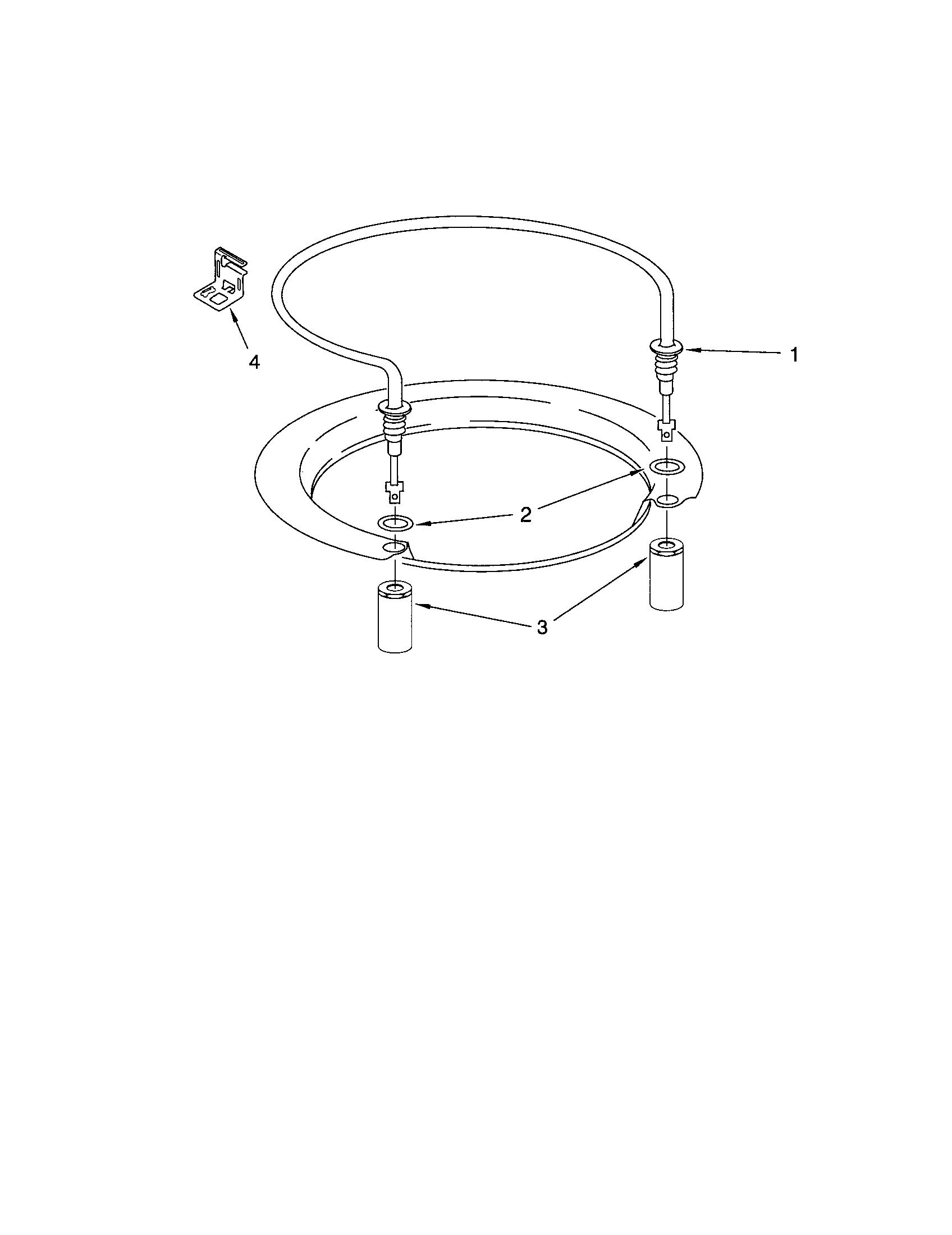

If drying performance is consistently poor, the heater is a frequent wear item; for this model, the dishwasher heater W10518394 is the correct replacement part when diagnosis confirms a heater failure.

Why it matters

Knowing the typical 10 to 12 year lifespan helps you decide whether to repair (often best for a single failed part) or replace (more practical when multiple major symptoms show up together).

Last updated: February 2026

On your Whirlpool dishwasher model DU1055XTPQ3, the most reliable identifier to use when ordering parts is the model and serial number label/plate on the dishwasher. Once you have that, we can match the correct parts list for your exact unit; individual parts may also have their own numbers printed on them.

Where to look on the dishwasher

Check these common locations first (they are the most typical for Whirlpool dishwashers like DU1055XTPQ3):

• Open the door and look along the inner door frame (left or right side)
• Check the top edge of the tub opening (around the door opening)
• Look near the side wall of the tub close to the front
• If the label is worn, use a flashlight and look for etched or faint printing

For diagrams showing the label location and what the fields mean, use the DU1055XTPQ3 owner's manual.

Model number vs. part number (what to use when)

We recommend using the model number to find the correct parts breakdown first, then confirm the part number for the specific item you are replacing.

What you have	What it identifies	Best use
Model number (DU1055XTPQ3)	Your exact dishwasher version	Finding the correct parts list
Serial number	Production run details	Verifying compatibility when needed
Part number (on the part)	The individual component	Ordering the exact replacement

Why it matters

Whirlpool often uses similar-looking components across multiple dishwasher series. Using the complete model number from the label/plate helps prevent ordering a look-alike part that does not fit, such as a heater, door seal, or pump motor.

Quick tip if you are replacing a common part

If you already know which component failed, match it to the correct listing for DU1055XTPQ3. For example, the dishwasher heater W10518394 is a common replacement item tied to heating and drying performance.

Last updated: February 2026

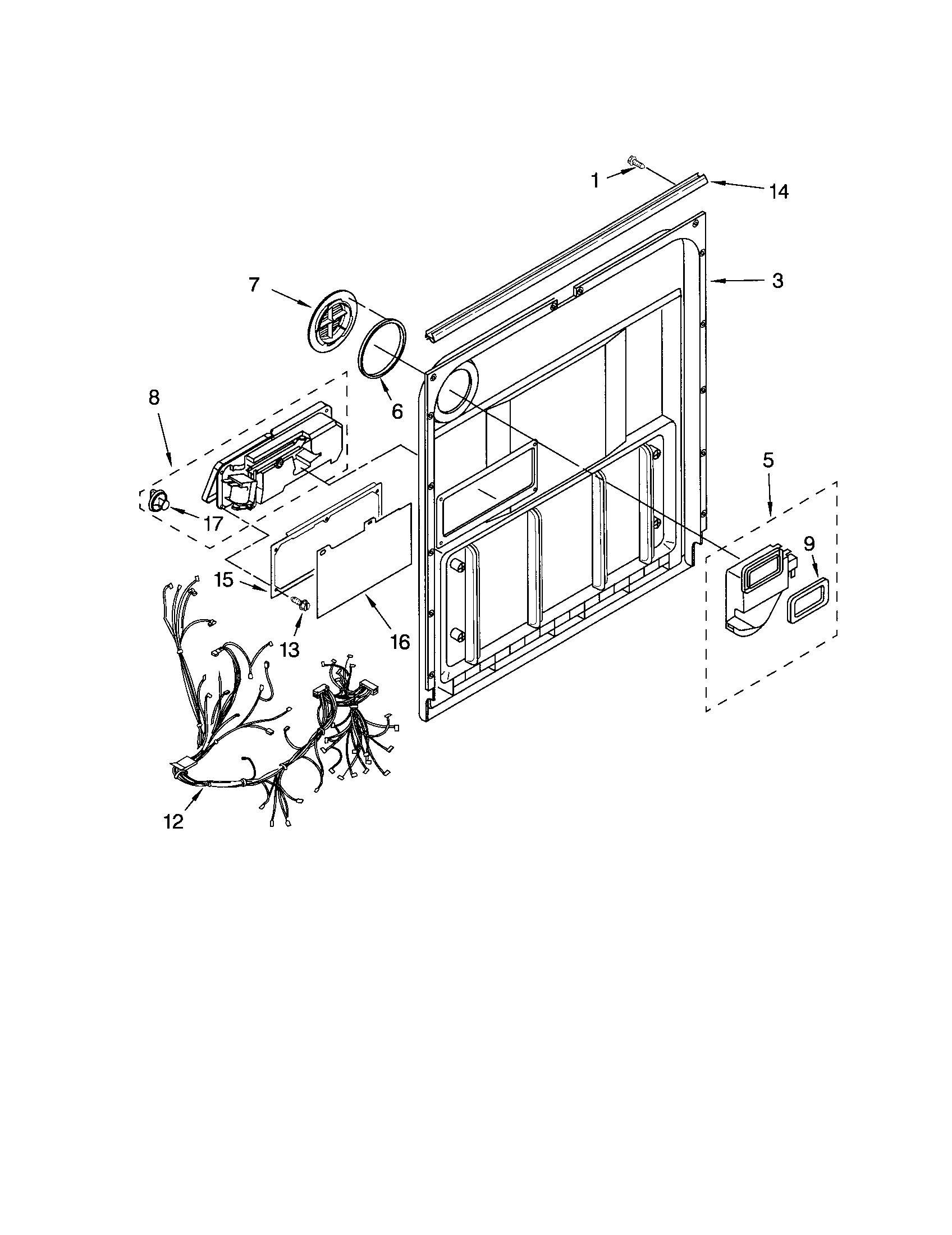

On the Whirlpool DU1055XTPQ3 dishwasher, replacing the bottom door seal typically means removing the inner door panel, transferring the seal (or seal strip) to the same position, then reassembling the door so it closes evenly against the tub. Use the steps and diagrams in the DU1055XTPQ3 installation guide for safe access and proper door alignment.

Before you start (safety and prep)

• Turn off power at the breaker; do not rely on the control panel.
• Shut off the water supply under the sink.

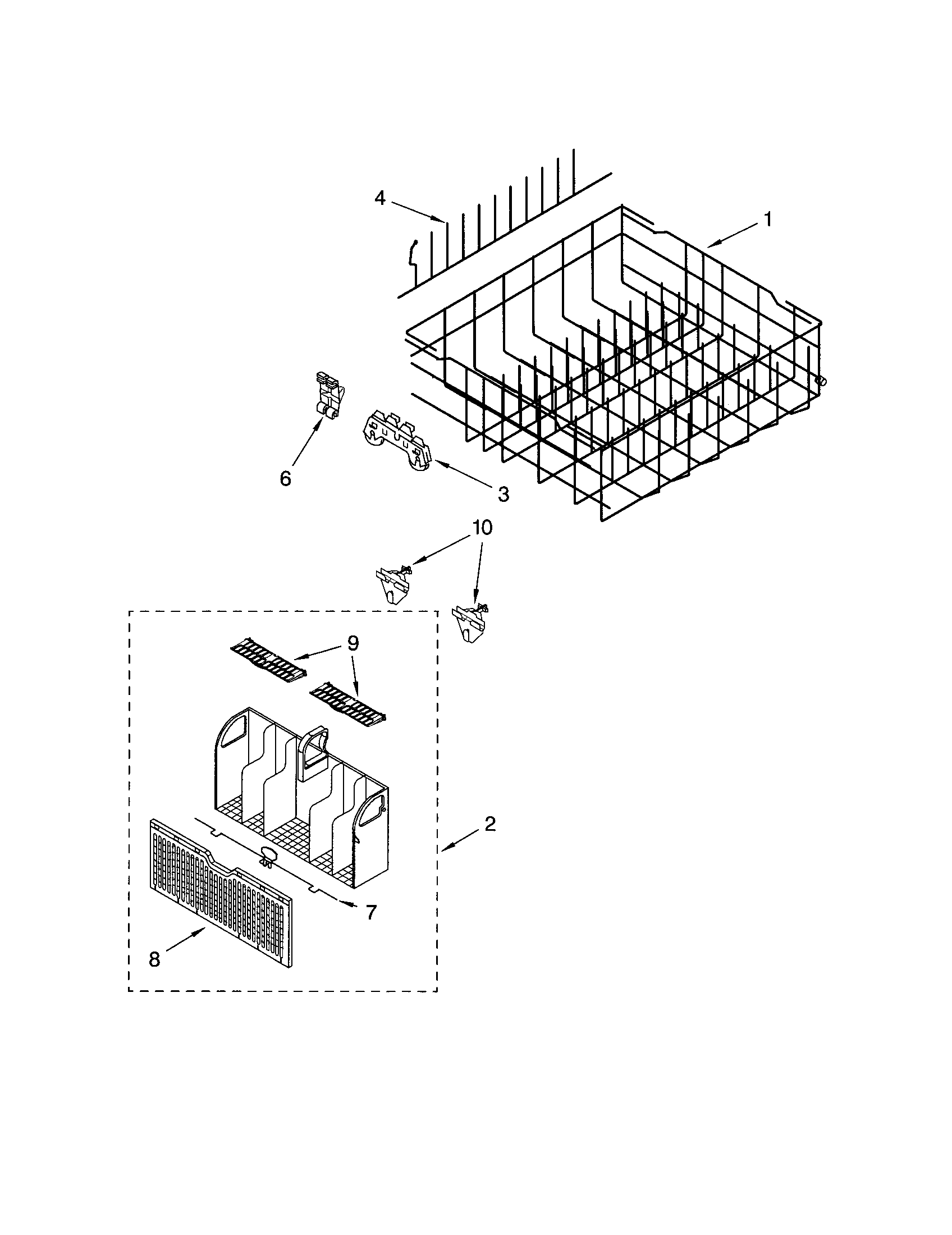

• Open the door and remove the lower dishrack for working room.
• Protect the pump area with a towel if you are removing door screws (this helps prevent dropped screws from falling into the bottom).
• Avoid loading sharp items against seals; sharp edges can cut or deform sealing surfaces (see the DU1055XTPQ3 owner’s manual).

Replacement steps (typical for this Whirlpool design)

1. Open the door and remove the screws around the inner door panel (support the outer panel as screws come out).
2. Separate the inner panel enough to access the bottom seal area.
3. Remove the old bottom seal; clean the channel and mating surfaces with mild soap and water, then dry.
4. Install the new seal in the same orientation; press it fully into the channel from one end to the other.
5. Reinstall the inner door panel and tighten screws evenly.
6. Check door alignment: open the door about 3 inches and confirm the gap between the inner door and tub looks even on both sides; adjust mounting/positioning if needed.

Quick checks after replacement

What you see	Most common cause	What to do
Leak at bottom corners	Seal not fully seated	Re-press seal into channel; confirm ends are flush
Door rubs or hits countertop	Dishwasher not level or shifted	Re-level and re-center in the opening
Drips during drain	Drain path issue, not the door	Inspect the dishwasher drain hose 8269144A and connections

Why it matters

A correctly installed bottom door seal keeps wash water inside the tub, protects surrounding cabinets and flooring, and helps the dishwasher maintain proper wash pressure for better cleaning.

Last updated: February 2026
