Kenmore 79072803012 gas range Parts

A Kenmore gas range like model 79072803012 typically lasts 15 years with normal household use. Keeping burners clean, ensuring proper ignition, and addressing heating or ignition issues early helps you get the full life from key parts like igniters, sensors, and gas valves; see the 79072803012 owner's manual for care and cleaning guidance.

Typical lifespan and what affects it

Most ranges reach their expected service life when they are installed correctly, kept clean, and repaired promptly when symptoms start.

• Cooking frequency (daily cooking shortens life compared to occasional use)
• Grease and spill cleanup on the cooktop and burner heads
• Proper burner ignition (burners should light quickly and consistently)
• Oven temperature accuracy (avoids overworking the bake system)
• Ventilation and heat management around the range

Parts that commonly drive “end of life” decisions

When a range feels “worn out,” it is often one or two repairable components.

Symptom	Common part area	Example part for this model
Oven will not heat or takes too long to ignite	Oven igniter / bake system	Tappan range oven burner igniter 316489403
Oven temperature swings or bakes unevenly	Oven temperature sensor	Frigidaire range oven temperature sensor 316490000
Surface burners click but do not light reliably	Spark/ignition system	Range spark module 5304508269

Quick checks that help you reach 15 years

Use these practical checks before assuming the range is “done.”

• Surface ignition check: turn a burner knob to LITE; you should hear sparking and the burner should light within about 4 seconds after air is purged from the gas line.
• Flame color: a brief orange flame can happen at first; after a few minutes it should trend blue.
• Keep burner ports clear: remove caps/heads and clean food debris that blocks gas flow.
• Confirm oven performance: if preheat times get longer, the igniter is a common cause.
• Inspect wiring connections: heat and vibration can loosen terminals over time.

Why it matters

A 15-year lifespan is realistic for a Kenmore gas stove, but small issues like a weak igniter or dirty burner head can make the range seem “old” years early. Fixing ignition and temperature problems quickly reduces stress on the bake burner, gas valve, and control components.

Last updated: February 2026

On Kenmore gas range model 79072803012, the cooktop is not removable, so we do not remove the “top” as a single piece. For cleaning and service access, we remove surface parts (grates, burner caps, and burner heads) and, when needed, pull the range out after shutting off gas and power; see the installation guide.

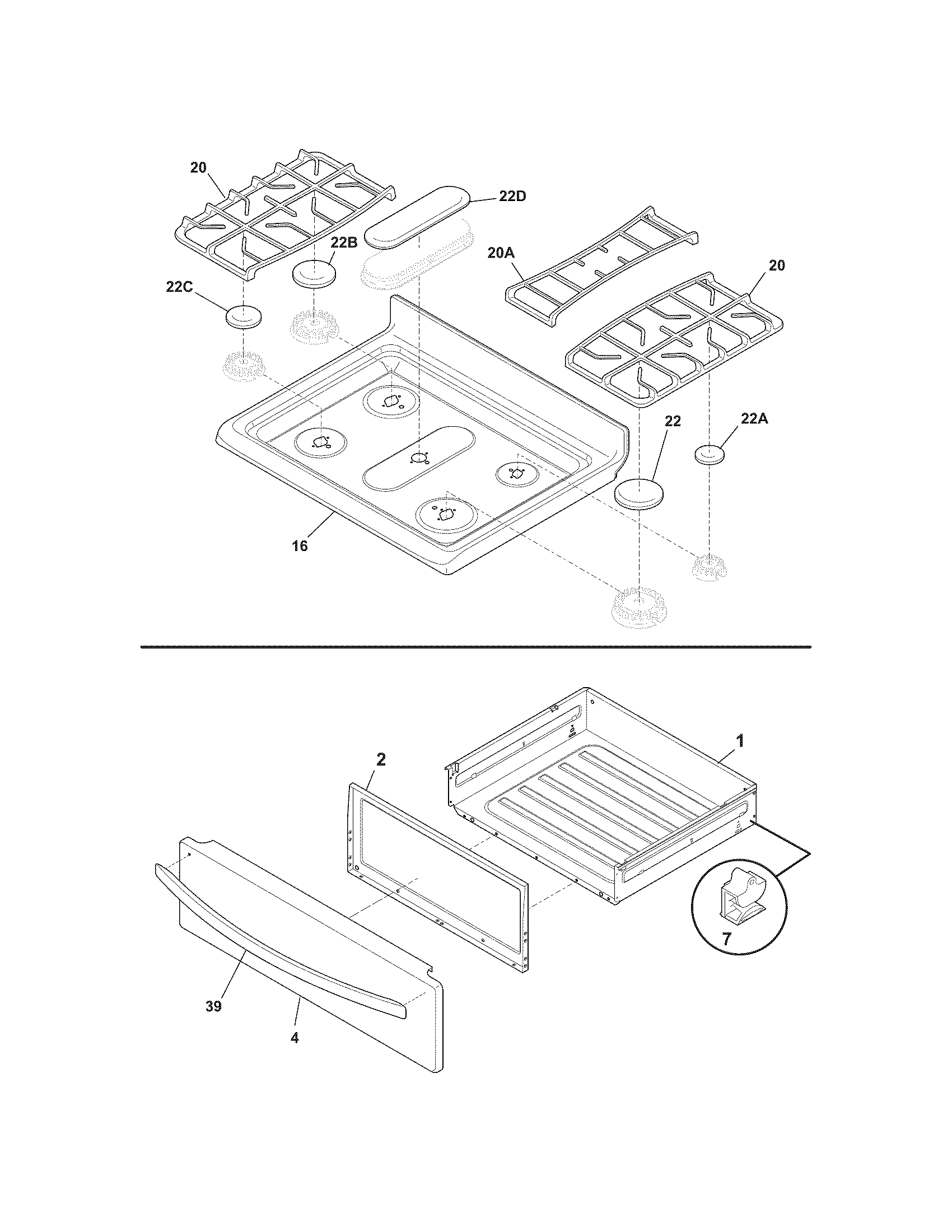

What you can remove from the cooktop (safe, normal steps)

• Turn all burner knobs to OFF and let everything cool.
• Lift off the grates.
• Remove burner caps.
• Lift off burner heads (if your configuration allows them to lift straight up).
• Wipe spills from the cooktop surface; keep liquids out of igniters and burner openings.

When you need more access (moving the range)

If you are trying to reach wiring, the gas regulator, or rear connections, access typically comes from pulling the range forward, not removing the cooktop.

• Shut off the gas supply at the manual shut-off valve.
• Unplug the range (or switch off the breaker).
• Carefully slide the range forward; avoid stressing the gas line.
• After service, slide it back, re-level if needed, and check gas connections for leaks; follow the 79072803012 owner’s manual safety guidance.

Quick comparison: “remove the top” vs. “service access”

Goal	What to do	What not to do
Clean spills and burner area	Remove grates, caps, heads	Do not lift the cooktop as an assembly
Reach gas/electrical connections	Pull range forward (gas and power off)	Do not work with gas on or power connected
Fix ignition issues	Clean/dry burner parts; inspect igniters	Do not enlarge burner ports with tools

Why it matters

Trying to force a non-removable cooktop can bend panels, damage igniters, and create gas leak risks. Using the correct access method protects the burner system, spark ignition components, and gas supply connections.

Last updated: February 2026

On the Kenmore 79072803012 gas range, an oven that stops working is usually caused by a power issue, a control fault (often shown as an F code), or a failed heating system component such as the oven igniter or temperature sensor. Start with power and error-code reset steps, then move to part testing.

Quick checks we recommend first

• Confirm the range is plugged in securely and the outlet has power.
• Check your home breaker or fuse; reset if tripped.
• If the display is beeping and shows an F code, press STOP to clear it.
• If the F code returns, unplug (or switch off the breaker) for 5 minutes, restore power, reset the clock, then try Bake or Broil again.
• If the cooktop works but the oven does not heat, focus on oven-specific parts (igniter, gas valve, sensor).

Most common causes (and what they look like)

Symptom	Likely cause	What to do next
No display, nothing works	No power supply	Verify outlet power, breaker, and cord connection
Beeping with F code	Control detected a fault	Clear with STOP, power-cycle 5 minutes, retry
Oven won’t heat, no gas ignition	Weak or failed igniter	Inspect and test; replace if not glowing properly (common fix)
Oven heats erratically or wrong temp	Temperature sensing problem	Test/replace sensor; verify wiring connections

Parts that commonly fix “oven not working” on this model

If your troubleshooting points to a failed component, these are common replacements for the 79072803012:

• Tappan range oven burner igniter 316489403 (bake ignition problems)
• Range oven igniter 5304506545 (broil ignition problems)
• Frigidaire range oven temperature sensor 316490000 (temperature regulation issues)

Why it matters

A gas range can appear “dead” from a simple power interruption because the electronic oven control and igniters need electricity to operate. Clearing an F code and restoring stable power often gets you back to baking quickly; if not, the igniter and sensor are the most frequent repair paths.

For model-specific operating steps, safety notes, and the “Before you call” checklist, use the 79072803012 owner’s manual.

Last updated: February 2026

On Kenmore gas range model 79072803012, the model and serial number are on the identification plate on the right-hand surface of the oven front frame. You can see it by opening the storage drawer, warmer drawer, or broiler drawer (depending on your configuration); see the installation guide.

Where to look on model 79072803012

Check these spots in this order:

• Open the bottom drawer (storage, warmer, or broiler drawer) and look at the lower right oven frame.
• Look for a metal or foil identification plate with the model and serial number.
• Write down the model number, serial number, and lot number/letter.
• If the drawer is hard to open, remove items and pull straight out evenly.
• If the label is greasy, wipe gently so the numbers are readable.

What the identification plate tells you (and why it matters)

Besides the model number, the plate typically lists key details used for parts matching and service:

Label item	What it’s used for
Model number	Ensures diagrams and parts lists match your exact range
Serial number	Helps confirm production run and compatible replacements
Lot number/letter	Helps narrow down version changes within the same model
Fuel/rating info	Confirms natural gas vs. LP setup and burner ratings

Tips for ordering the right parts

Using the exact model number prevents wrong-part returns and repeat repairs.

• Match the full model number exactly: 79072803012
• Use the model and serial when selecting parts like an igniter, sensor, or spark module
• Keep a photo of the label on your phone for quick reference

Why it matters: Kenmore ranges can have similar-looking versions with different burners, igniters, and controls; the identification plate is the fastest way to confirm the correct parts for your exact build.

Last updated: February 2026
