Craftsman 917388122 lawn mower Parts

Yes. Multiple manufacturers make 36-inch zero-turn mowers; they are a common choice when you need zero-turn maneuverability but have tight gates, smaller lawns, or limited storage space. Your Craftsman walk-behind mower model 917388122 is a different mower type, but the deck-size question is straightforward.

What “36-inch zero-turn” typically means

A 36-inch zero-turn is a riding mower with a 36-inch cutting deck and lap-bar style steering (or similar) that allows near-zero-radius turns.

Common reasons people choose 36-inch zero-turns

• Fits through many narrow gates and between landscape features
• Turns tightly around trees, beds, and hardscape edges
• Cuts faster than most walk-behind mowers on open areas
• Easier to handle than larger 48-inch to 60-inch zero-turns
• Often available with bagging or mulching options

How it compares to your Craftsman 917388122 walk-behind

Your Craftsman 917388122 is a rotary walk-behind mower; it uses an operator presence control bar and safety guards to help reduce blade-contact risk during operation. For operating and safety details, follow the owner's manual.

Feature	36-inch zero-turn mower	Craftsman 917388122 walk-behind
Typical use	Faster mowing with tight turning	Smaller lawns, tighter spaces, lower cost
Turning	Near-zero radius	Push/drive turning radius
Storage	Larger footprint	More compact
Maintenance	More systems (hydro drive, belts)	Simpler overall

If you are deciding whether to switch

These checks help you pick the right deck size and mower type:

• Measure your narrowest gate opening and tightest path
• Consider slope and traction needs (zero-turns vary by tire and drive design)
• Decide whether you want bagging, side discharge, or mulching
• Compare service items you will maintain (blades, belts, filters)

Why it matters

Deck size and mower type affect cut time, trimming time, and how safely you can mow around obstacles. Even with a walk-behind mower like the 917388122, keeping guards and discharge components installed is important for safe operation.

Last updated: February 2026

A 52-inch zero-turn mower typically weighs about 500 to 900 lb, depending on the brand, engine, frame, and whether it has a fabricated deck or added accessories. Your Craftsman walk-behind mower model 917388122 is a different mower type, so its manual will not list 52-inch zero-turn weight specs.

Typical weight ranges (what you can expect)

Most 52-inch zero-turn mowers fall into these common ranges:

• Residential 52-inch zero-turn: ~500 to 700 lb
• Prosumer 52-inch zero-turn: ~650 to 850 lb
• Commercial 52-inch zero-turn: ~750 to 1,000+ lb

Quick comparison table

52-inch zero-turn type	Typical weight	Common reasons it’s heavier
Residential	500 to 700 lb	lighter frame, smaller hydros
Prosumer	650 to 850 lb	stronger deck, larger tires
Commercial	750 to 1,000+ lb	heavy-duty frame, bigger hydros, guards

How to get the exact weight for your specific 52-inch mower

Use these checks to pin down the correct number:

• Look for the model number tag on the mower frame (often near the seat or rear frame rail).
• Check the specifications section in that mower’s owner documentation.
• If you’re weighing for transport, include installed items like a bagger, hitch kit, or full fuel.

Why it matters

Weight affects trailer selection, ramp rating, tie-down points, and whether the mower will rut soft turf. It also helps you choose the right jack/lift and plan safe loading.

Related info for your Craftsman 917388122 walk-behind mower

For maintenance specs that do apply to model 917388122 (oil capacity, blade bolt torque, and operating controls), use the owner's manual.

Last updated: February 2026

You can buy replacement parts for your Craftsman walk-behind mower model 917388122 directly from the parts list for this model on Sears PartsDirect. Using the model number helps you match the correct blade, hardware, and bagging parts so they fit and function properly.

Best way to get the right part for model 917388122

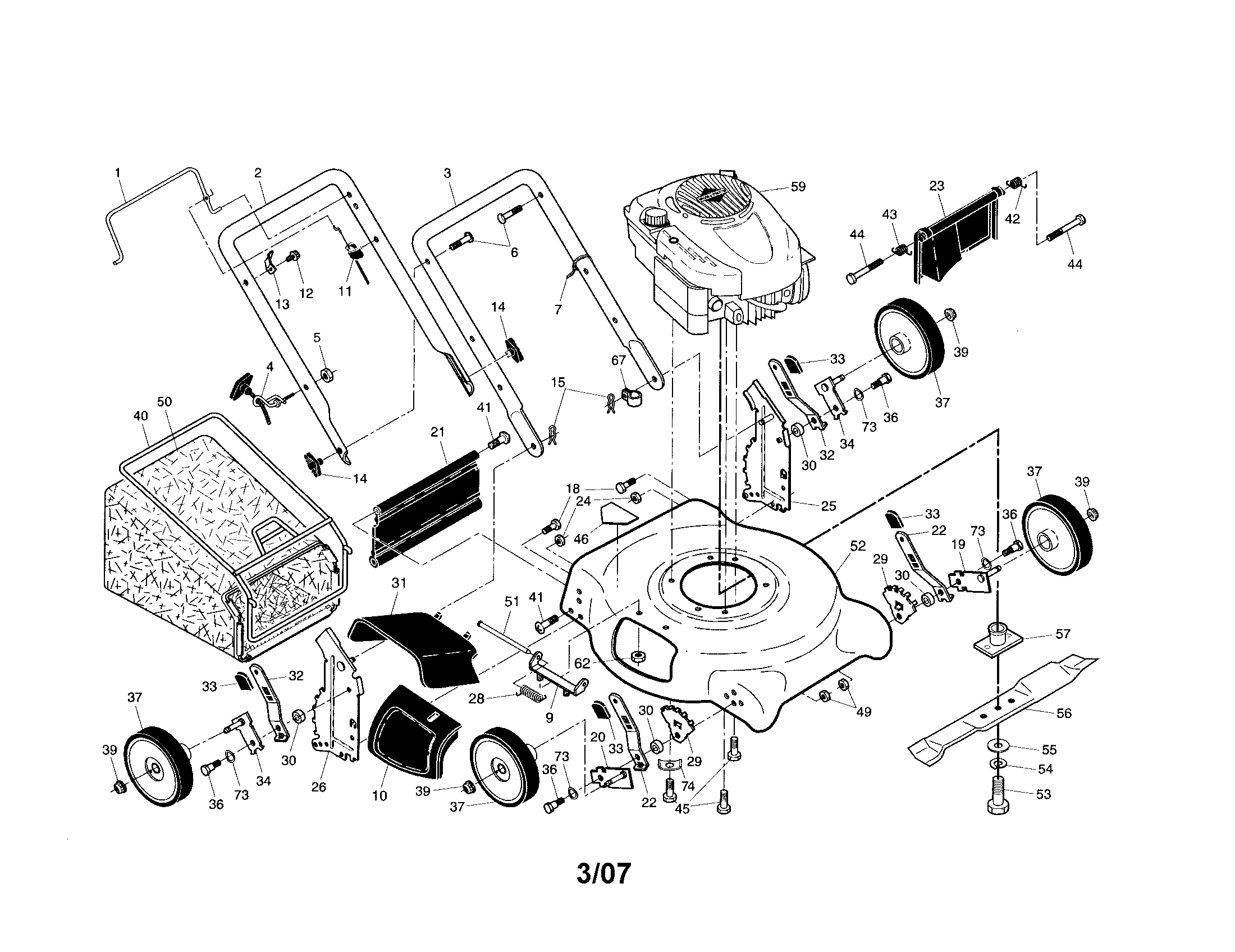

We recommend starting with the exploded parts list for your exact model and cross-checking the part description with the diagrams in the owner's manual. This prevents ordering a look-alike part that mounts differently.

• Confirm your model number from the decal on the rear of the mower housing
• Identify the mower section you are repairing (deck, handle, bagger, discharge)
• Match the part name to the diagram callout
• Replace worn “expendable” items as needed (blade, blade adapter, etc.)
• Order using the exact part ID to avoid fit issues

Common replacement parts customers order for this model

These are examples of parts available for Craftsman 917388122 that are frequently replaced during maintenance or repairs:

What you are fixing	Part to check first	Example part ID on this model
Poor cut quality or vibration	Blade and blade mounting	Lawn mower 21-in deck mulching blade 532406706
Blade won’t stay tight or wobbles	Blade hub connection	Blade adapter 532418373
Bagging or rear discharge issues	Rear door and bagger parts	Rear door assembly 532401814
Side discharge flap damage	Discharge shield	Discharge guard 589482402

Why it matters

Walk-behind mower parts can look similar across Craftsman and Husqvarna-built platforms, but the mounting pattern, deck style, and hardware stack-up can differ. Ordering by model 917388122 helps ensure the blade, adapter, and guards align correctly and tighten safely.

Last updated: February 2026

The model number 917388122 on a Craftsman walk-behind mower does not directly tell the year it was made. To identify the year, we use the mower’s product/serial number label (often on the rear of the deck or near the handle mounts) and match it to the identification details in the owner's manual.

Where to find the build date information

On Craftsman mowers like model 917.388122, the manufacturing date is typically tied to the serial number or a separate date code on the product label, not the model number itself.

Check these common label locations:

• Rear of the mower deck (near the discharge opening)
• Top of the deck behind the engine
• Near the handle bracket area
• Under the rear door area (bagging opening)
• On a frame tag near the wheel height adjuster

How to decode what you find

Once you locate the label, look for fields such as Serial, DOM (date of manufacture), or a stamped code.

Use this quick guide:

• If you see a clear date (MM/YY or MM/DD/YY): that is the build date
• If you see a long serial number: the date is often embedded in the first several characters
• If you see multiple numbers: record them all; the correct one is usually labeled “Serial”

Model number vs. serial number (what matters)

Item	What it tells you	Example	Best use
Model number	Configuration and parts fit	917.388122	Ordering correct parts
Serial number/date code	Manufacturing date and production run	Varies by unit	Determining year

Why it matters

Knowing the correct year helps when you are matching parts that can change across production runs, especially wear items like the blade, blade adapter, and hardware. For example, this model uses a 21-inch blade listed as lawn mower 21-in deck mulching blade 532406706 in the parts breakdown.

Last updated: February 2026

A 42-inch Craftsman riding mower deck belt size depends on the exact tractor and deck model; common 42-inch deck belts are typically about 1/2-inch wide and roughly 95 to 100 inches around. Your Craftsman 917388122 is a 21-inch walk-behind mower and does not use a 42-inch deck belt; it uses a blade and blade adapter system instead (see the owner's manual).

Confirming what you actually have

Use this quick check so you buy the right belt (or avoid buying one you do not need):

• If you sit on it and it has a 42-inch deck, it is a riding mower and uses deck belts.
• If you walk behind it and it has a 21-inch deck (like model 917388122), it does not use a 42-inch deck belt.
• Check the model number tag on the mower frame; match it exactly when ordering parts.
• If you already removed the belt, measure the old belt length and width and match the cross-section.
• If the deck is 42 inches, identify whether you need a deck drive belt or a transmission motion drive belt.

Typical 42-inch Craftsman deck belt sizing (general guidance)

Most 42-inch Craftsman deck drive belts fall into a narrow range, but the exact length varies by deck design and idler routing.

Deck size	Typical belt width	Typical belt length (outside circumference)	Notes
42-inch	~1/2 inch	~95 to 100 inches	Length varies by tractor series and deck configuration

If you are actually working on Craftsman 917388122

For this walk-behind mower, the common wear items are in the cutting system, not a deck belt. If you have vibration, poor cut, or the blade will not spin correctly, check these parts:

• Lawn mower 21-in deck mulching blade 532406706 for bends, dull edges, or damage
• Blade adapter 532418373 for stripped splines or wobble
• Lawn & garden equipment nut 532409149 and blade hardware for looseness

Why it matters

A belt that is even slightly wrong can slip, jump off, or overload spindle bearings and idlers on a 42-inch deck. On a walk-behind mower like 917388122, chasing a “deck belt” problem can waste time when the real issue is the blade, adapter, or mounting hardware.

Last updated: February 2026
