GE MRSC20BASBWH refrigerator Parts
Here are the diagrams and repair parts for GE MRSC20BASBWH refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

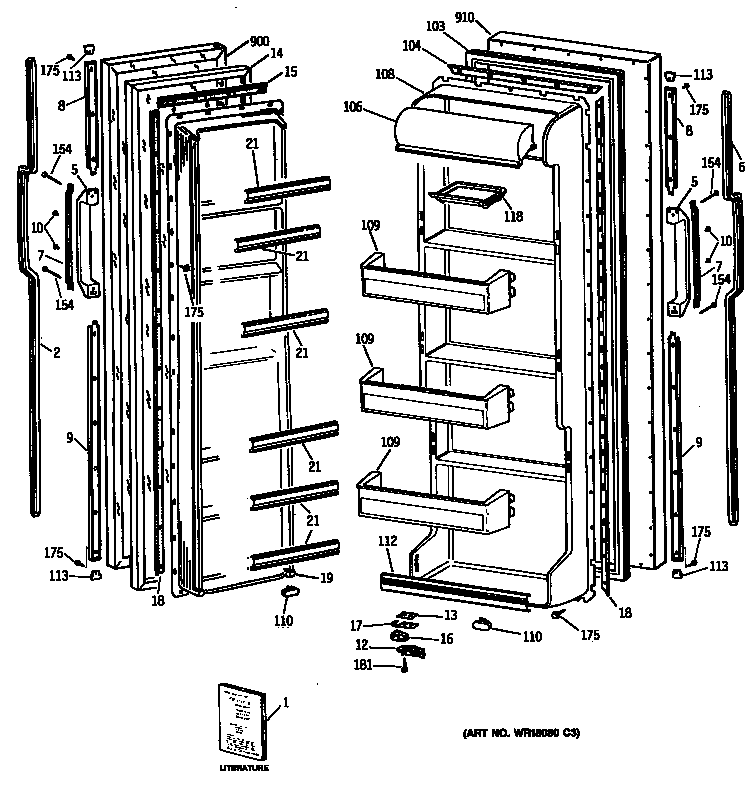

SELECT DIAGRAM
Browse Parts for MRSC20BASBWH Refrigerators

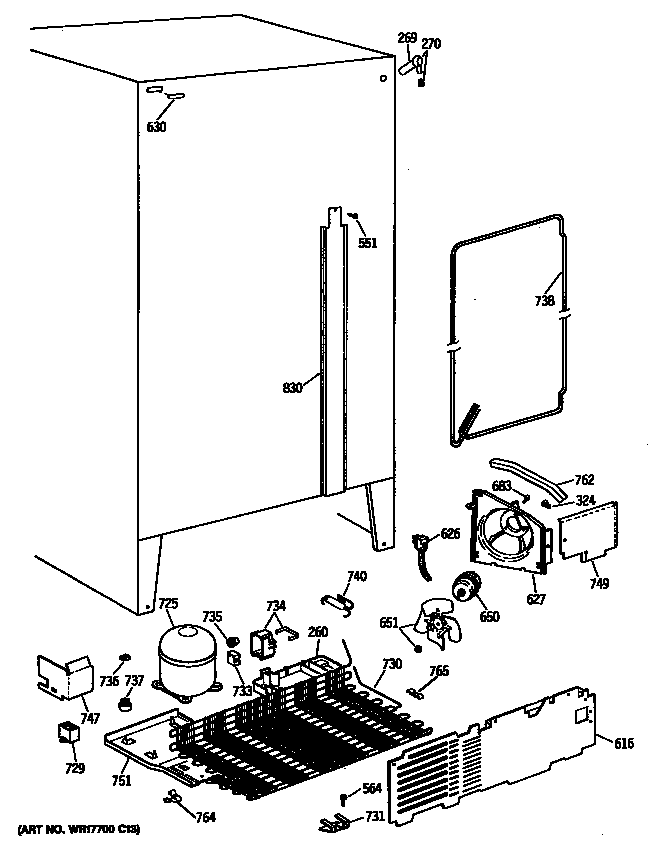

Unit diagram
Power Cord
Part #WR23X108Replaced by #WR23X10300
Manufacturer substitutionThis part replaces WR23X108. Substitute parts can look different from the original.In Stock$28.2518% OFF Phone Price : $34.25
Qty

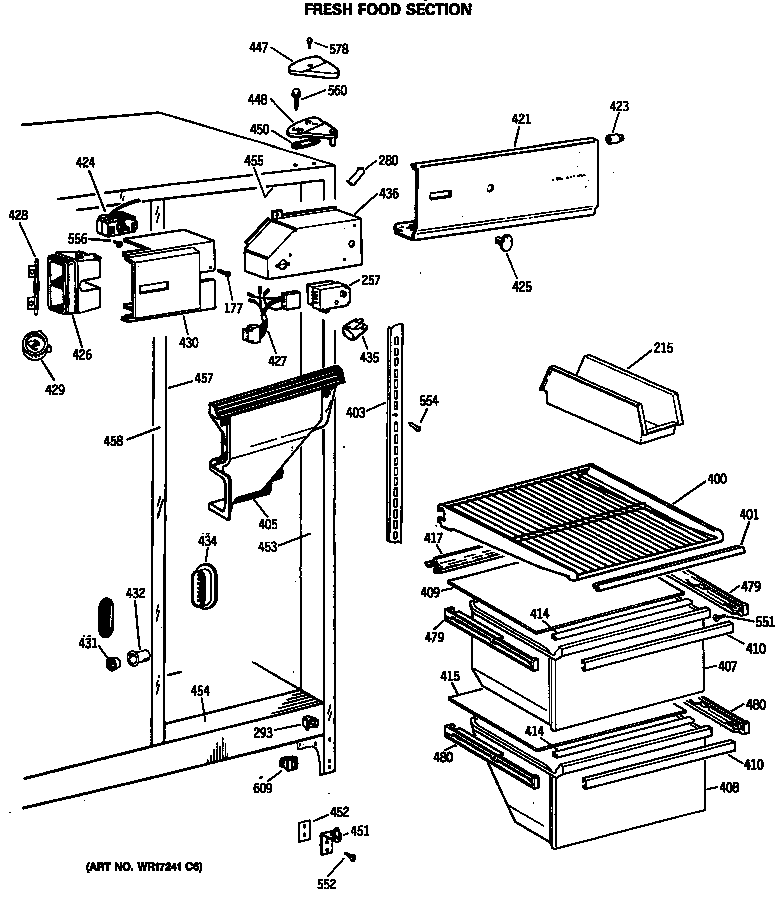

Fresh food section diagram
Door Hinge Pin, Lower
Part #WR13X614Replaced by #WR13X10020
Manufacturer substitutionThis part replaces WR13X614. Substitute parts can look different from the original.In Stock$45.7412% OFF Phone Price : $51.74QtyFresh food section diagram
Refrigerator Slide Assembly, Left
Part #WR72X231Replaced by #WR72X207
Manufacturer substitutionThis part replaces WR72X231. Substitute parts can look different from the original.In Stock$44.2812% OFF Phone Price : $50.28QtyRefrigerator Filter
Part #WZ2X503Replaced by #WZ2X464D

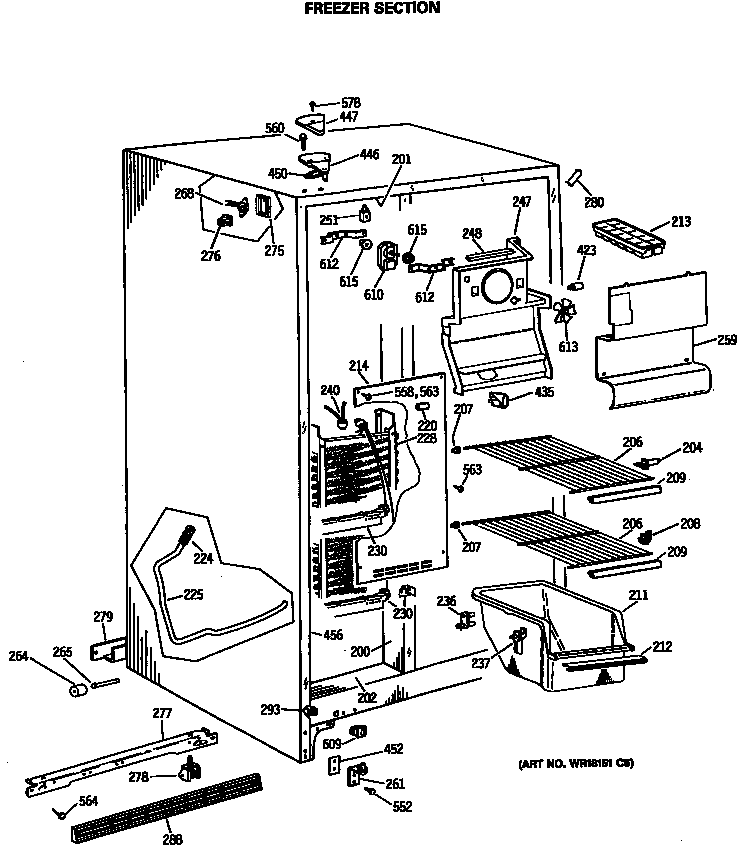

Manufacturer substitutionThis part replaces WZ2X503. Substitute parts can look different from the original.In Stock$35.1515% OFF Phone Price : $41.15QtyFreezer section diagram
Lo-side Kit
Part #WR85X282Replaced by #WR87X28949
Manufacturer substitutionThis part replaces WR85X282. Substitute parts can look different from the original.In Stock$466.04Qty#NI
All parts diagram
Refrigerator Screw, 2-pack
Part #WR1X1466Replaced by #WZ5X158D
Manufacturer substitutionThis part replaces WR1X1466. Substitute parts can look different from the original.In Stock$19.5748% OFF Was : $37.28QtyUnit diagram
Hi Side Kit
Part #WR87X424Replaced by #WR87X10079
Manufacturer substitutionThis part replaces WR87X424. Substitute parts can look different from the original.In Stock$828.58$12.00 OFF Phone Price : $840.58QtyUnit diagram
Plate Cp Mtg
Part #WR17X3101Replaced by #WR17X10202
Manufacturer substitutionThis part replaces WR17X3101. Substitute parts can look different from the original.In Stock$108.86QtyFreezer section diagram
Refrigerator Ice Maker Wire Harness
Part #WR23X312
The manufacturer no longer makes this part, and there's no substitute part
Freezer section diagram
Refrigerator Clamp
Part #WR1X5042
The manufacturer no longer makes this part, and there's no substitute part
