Kenmore 9119563991 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119563991 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

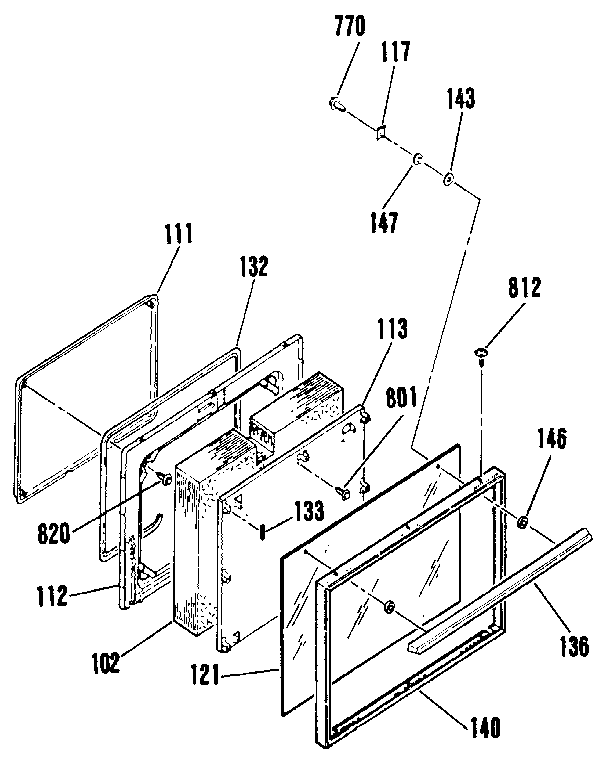

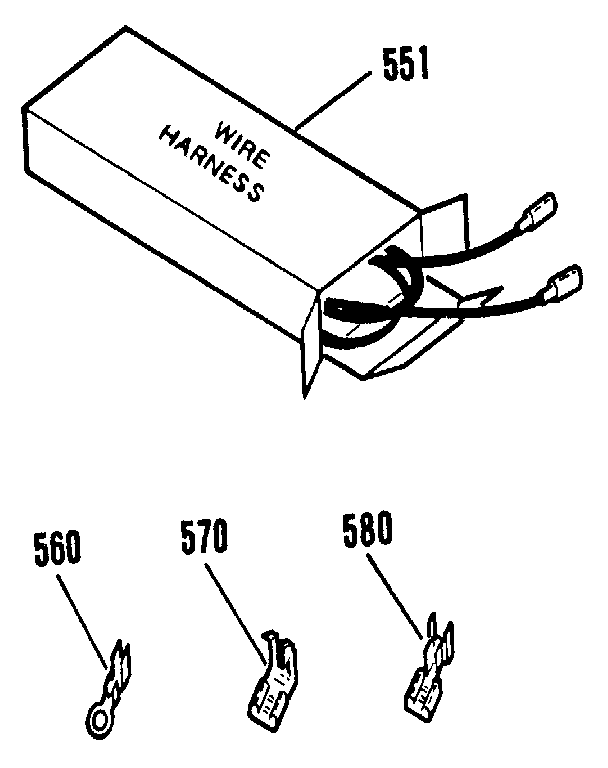

Browse Parts for 9119563991 Ranges

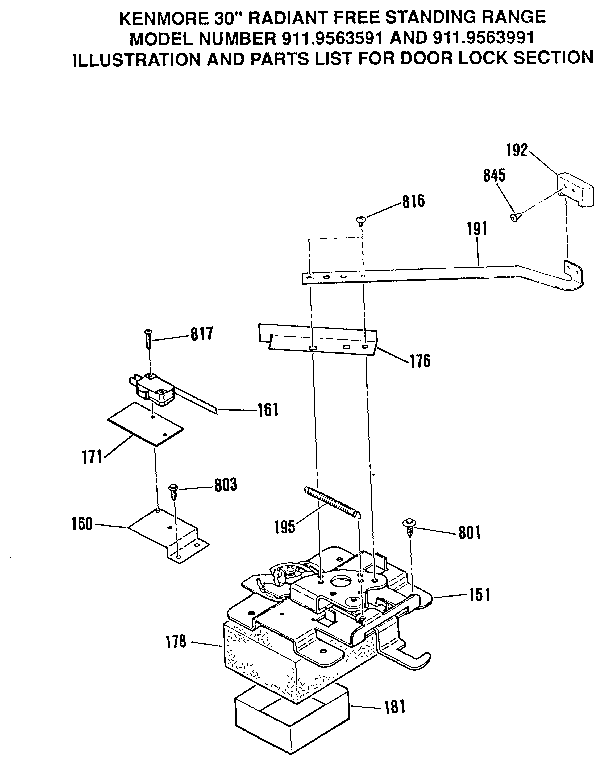

Door lock section diagram
Lever Switch
Part #WB02X9881Replaced by #WB2X9881
Manufacturer substitutionThis part replaces WB02X9881. Substitute parts can look different from the original.In Stock$28.22
Qty

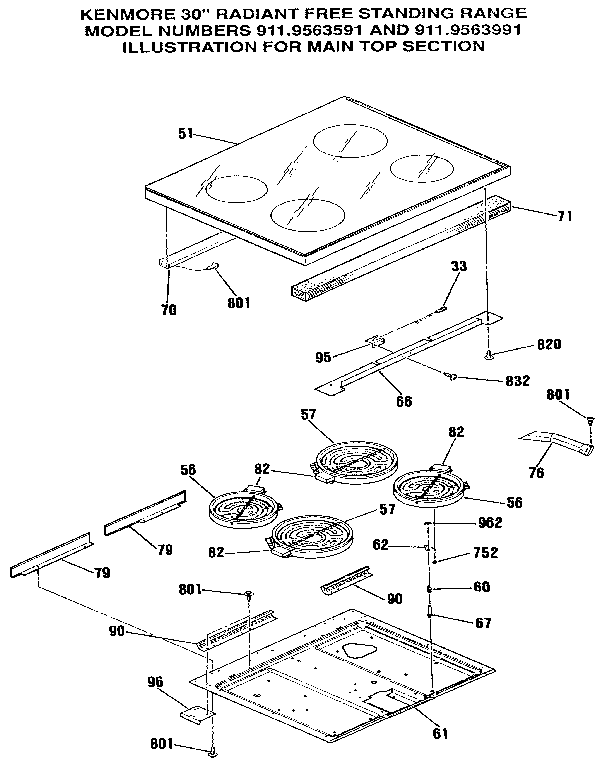

Main top section diagram
Indicator Light
Part #WB25K5016Replaced by #WB25K5016
Manufacturer substitutionThis part replaces WB25K5016. Substitute parts can look different from the original.In Stock$48.17QtyBody section diagram
Washer
Part #WB01X1254Replaced by #WB1X119D
Manufacturer substitutionThis part replaces WB01X1254. Substitute parts can look different from the original.This item is not returnableIn Stock$24.6020% OFF Phone Price : $30.60

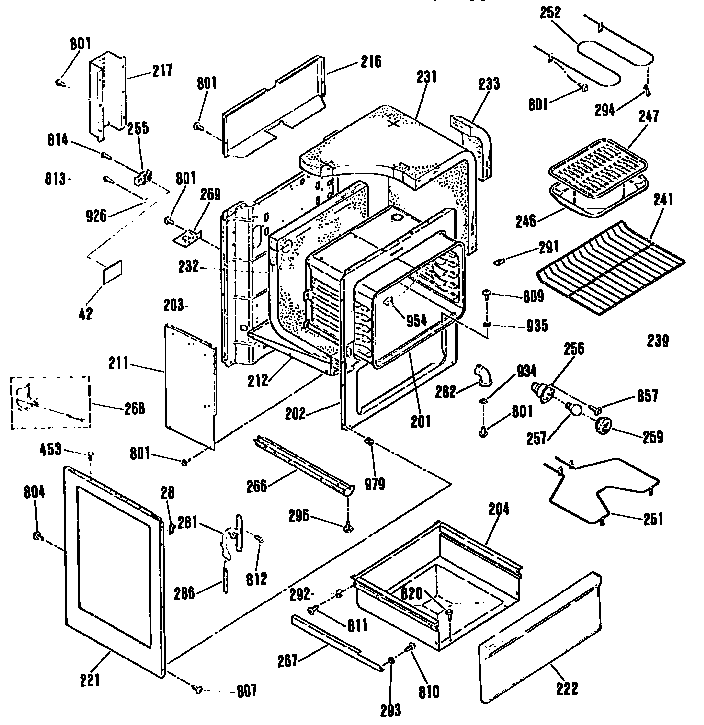

QtyBody section diagram
Spacer
Part #WB01X1177Replaced by #WB1X1177
Manufacturer substitutionThis part replaces WB01X1177. Substitute parts can look different from the original.In Stock$47.64QtyBody section diagram
Washer
Part #WB01X1260Replaced by #WB1X1260
Manufacturer substitutionThis part replaces WB01X1260. Substitute parts can look different from the original.In Stock$31.10QtyMain top section diagram
Hot Lit Brkt
Part #WB02K5157Replaced by #WB2K5157
Manufacturer substitutionThis part replaces WB02K5157. Substitute parts can look different from the original.In Stock$34.52Qty#NI
All parts diagram
Rzr Bld Scrp
Part #WB06K5036Replaced by #WX10X302
Manufacturer substitutionThis part replaces WB06K5036. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic ReorderIn Stock$28.78QtyBody section diagram
Screw
Part #WB01X1258Replaced by #WB1X1258
Manufacturer substitutionThis part replaces WB01X1258. Substitute parts can look different from the original.In Stock$32.52QtyDoor lock section diagram
Screw (white)
Part #WB01X1149Replaced by #WB1X1149

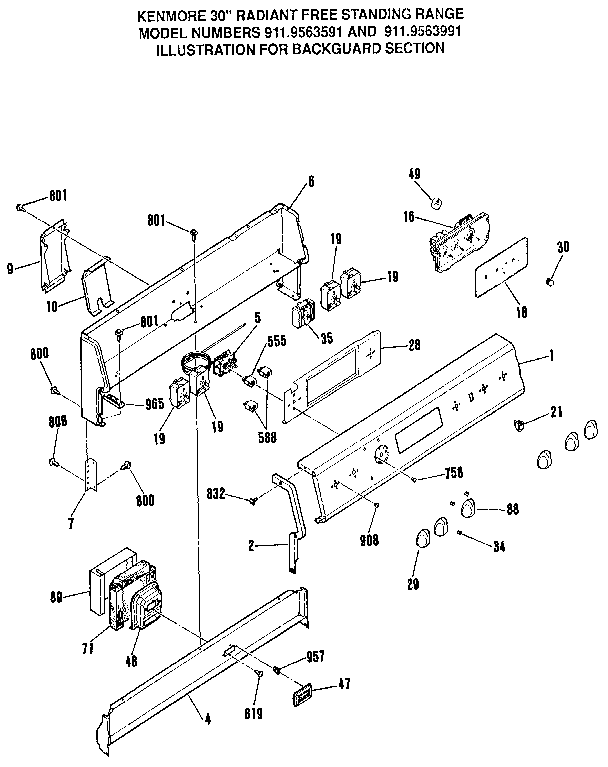

Manufacturer substitutionThis part replaces WB01X1149. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38QtyBackguard section diagram
Backguard Body
Part #WB37K5016Replaced by #WB37K5035
Manufacturer substitutionThis part replaces WB37K5016. Substitute parts can look different from the original.In Stock$107.96Qty
