Model #WWP1170GFB GE washer

Here are the repair parts and diagrams for your GE WWP1170GFB washer.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 171 parts

Use and Care Guide

#1

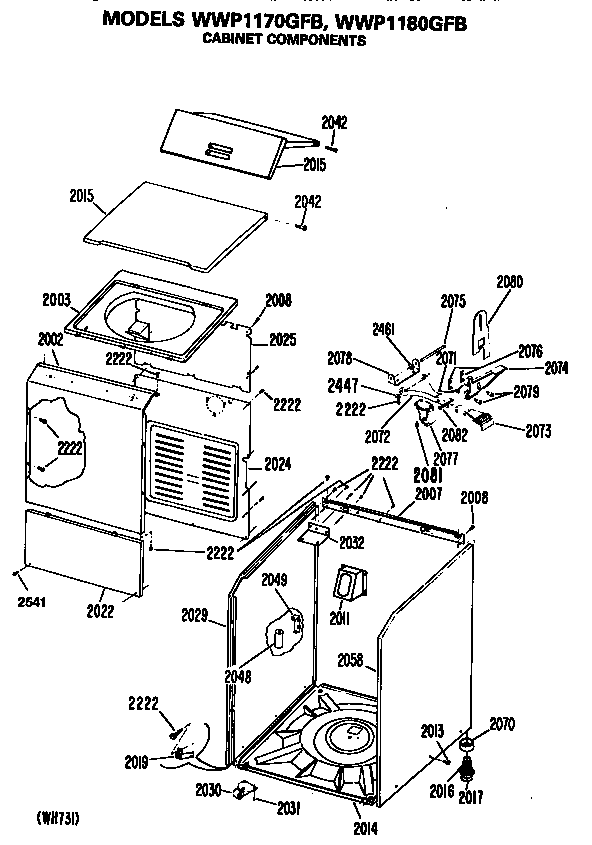

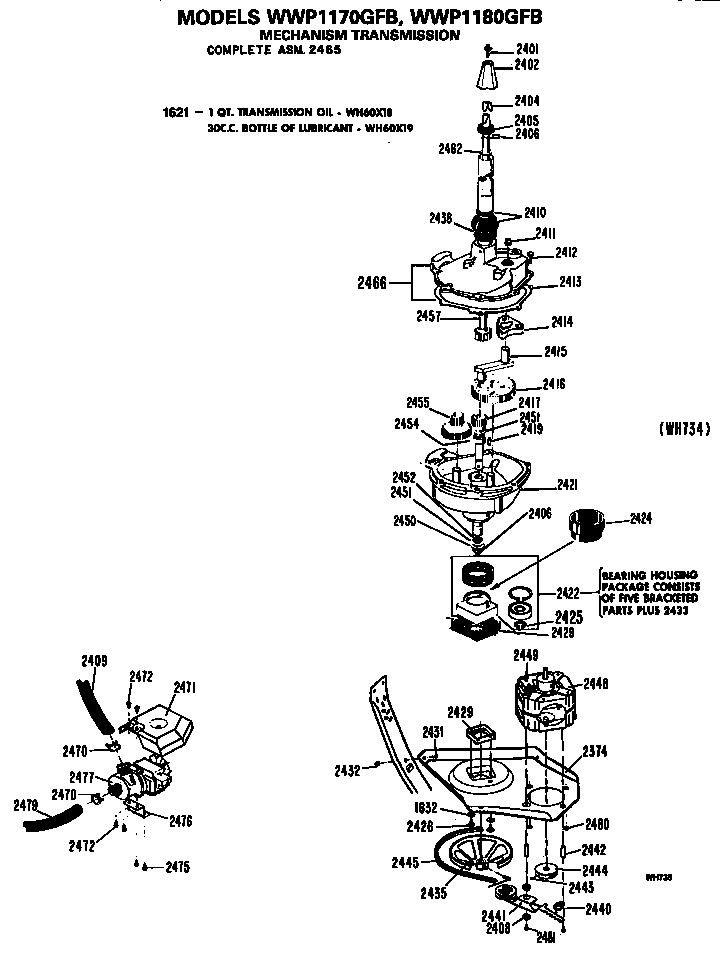

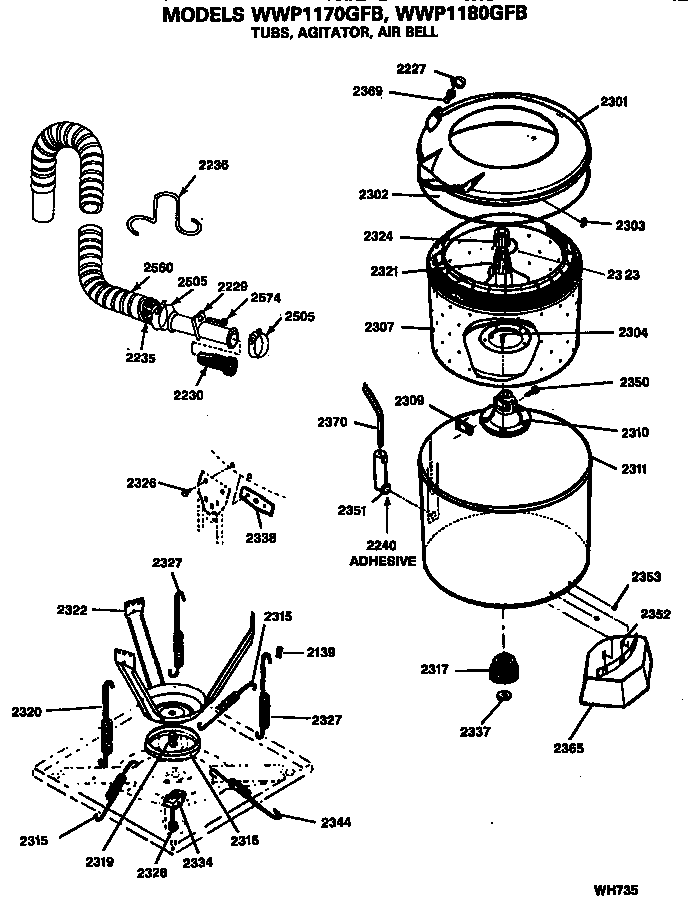

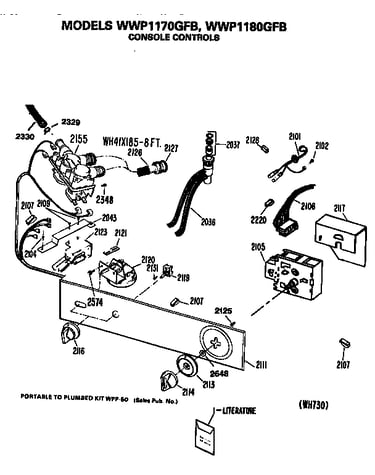

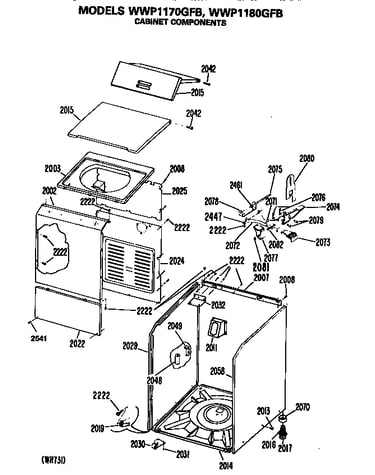

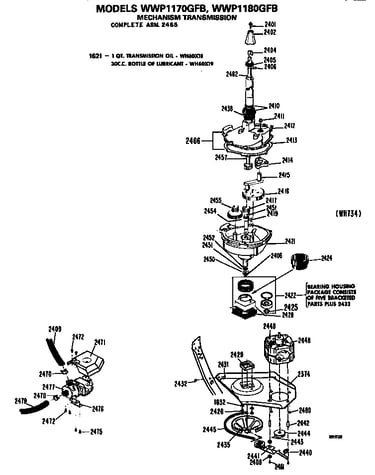

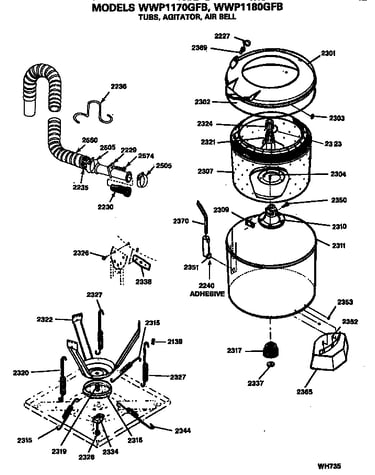

All parts Diagram

Use and care guide

Part #49-9692
$8.49

In Stock

Spring Was

#2461

All parts Diagram

Spring was

Part #WH2X1094
This item is not returnable
$5.72

In Stock

Snubber Ring

#2316

All parts Diagram

Snubber ring

Part #WH1X2312
$83.28

In Stock

Spacr Lev

#2070

All parts Diagram

Spacr lev

Part #WH1X2520
$8.99

In Stock

Set Screw

#2443

All parts Diagram

Set screw

Part #WH2X1028
This item is not returnable
$5.49

In Stock

Washer Screw

#2304

All parts Diagram

Washer screw

Part #WH2X1142
$20.31

In Stock

Lock Plate

#2309

All parts Diagram

Lock plate

Part #WH1X2549
$41.99

In Stock

Wtr Temp S

#2119

All parts Diagram

Wtr temp s

Part #WH12X738
$41.13

In Stock

Stud Bolt

#2401

All parts Diagram

Stud bolt

Part #WH2X972
$17.19

In Stock

Spacer Washer

#2648

All parts Diagram

Spacer washer

Part #WE1X1126
$16.56

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
