GE
Gas Range

Model #JGBP85SEJ5SS Official GE gas range

Here are the diagrams and repair parts for GE JGBP85SEJ5SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

Showing 10 of 203 parts

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)#235

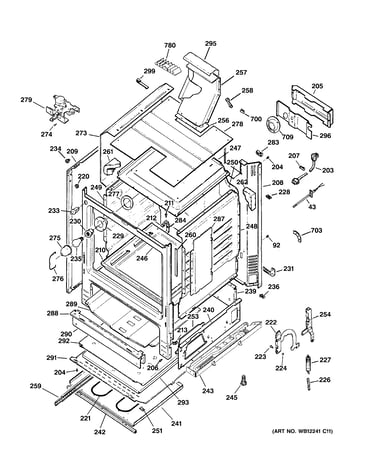

Body parts Diagram

40a15bulb

Part #STD372401
Replaced by #40A15
?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.75 |
11% OFF
Phone Price: $8.75
Range Oven Burner Igniter (replaces WB13K0021, WB13K10009, WB13K10026, WB13K12, WB13K13, WB13K14)#218

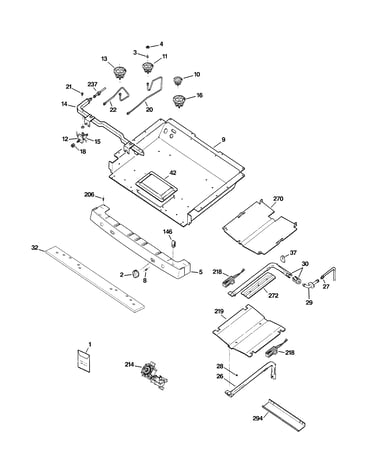

Gas & burner parts Diagram

Bake burner ignition

Part #WB13K0021
Replaced by #WB13K21
?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
In Stock
$57.91 |
8% OFF
Phone Price: $62.91
Range Oven Burner Igniter (replaces WB13K0021, WB13K10009, WB13K10026, WB13K12, WB13K13, WB13K14)#218

Gas & burner parts Diagram

Oven igniter

Part #WB13K10026
Replaced by #WB13K21
?
Manufacturer substitution
This part replaces WB13K10026. Substitute parts can look different from the original.
BEST SELLER
In Stock
$57.91 |
8% OFF
Phone Price: $62.91

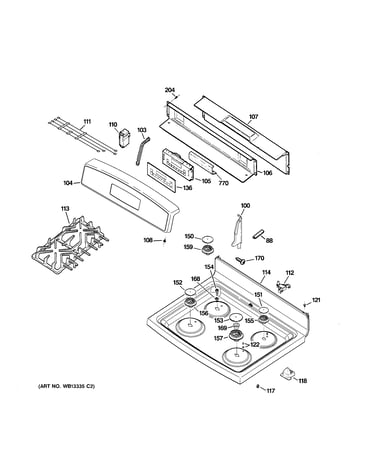

Range Surface Burner Cap#150

Control panel & cooktop Diagram

Range surface burner cap

Part #WB29K10023
BEST SELLER
In Stock
$17.54 |
10% OFF
Was: $19.49
Range Surface Burner Cap#153

Control panel & cooktop Diagram

Range surface burner cap

Part #WB28K10222
BEST SELLER
In Stock
$18.29 |
10% OFF
Phone Price: $20.29
Range Surface Burner Cap#152

Control panel & cooktop Diagram

Range surface burner cap

Part #WB29K10024
BEST SELLER
Back Order
$10.89 |
16% OFF
Phone Price: $12.89
Range Oven Rack (replaces WB48K5019)#200

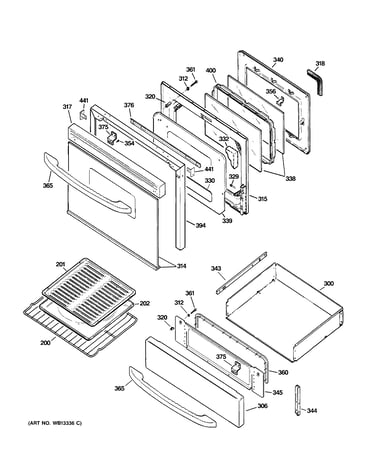

Door & drawer parts Diagram

Oven rack

Part #WB48K5019
Replaced by #WB48T10095
?
Manufacturer substitution
This part replaces WB48K5019. Substitute parts can look different from the original.
BEST SELLER
In Stock
$44.39 |
10% OFF
Phone Price: $49.39
Range Surface Burner Cap#151

Control panel & cooktop Diagram

Range surface burner cap

Part #WB29K10022
BEST SELLER
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Range Surface Burner Head, Medium (replaces WB16K10023, WB16K10030)#159

Control panel & cooktop Diagram

In Stock
$24.38 |
17% OFF
Phone Price: $29.38
Range Surface Burner Igniter#154

Control panel & cooktop Diagram

Range surface burner igniter

Part #WB13K10014
BEST SELLER
In Stock
$8.45 |
11% OFF
Phone Price: $9.45
