GE GTS22KMNBRES top-mount refrigerator Parts
Here are the diagrams and repair parts for GE GTS22KMNBRES top-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for GTS22KMNBRES Refrigerators

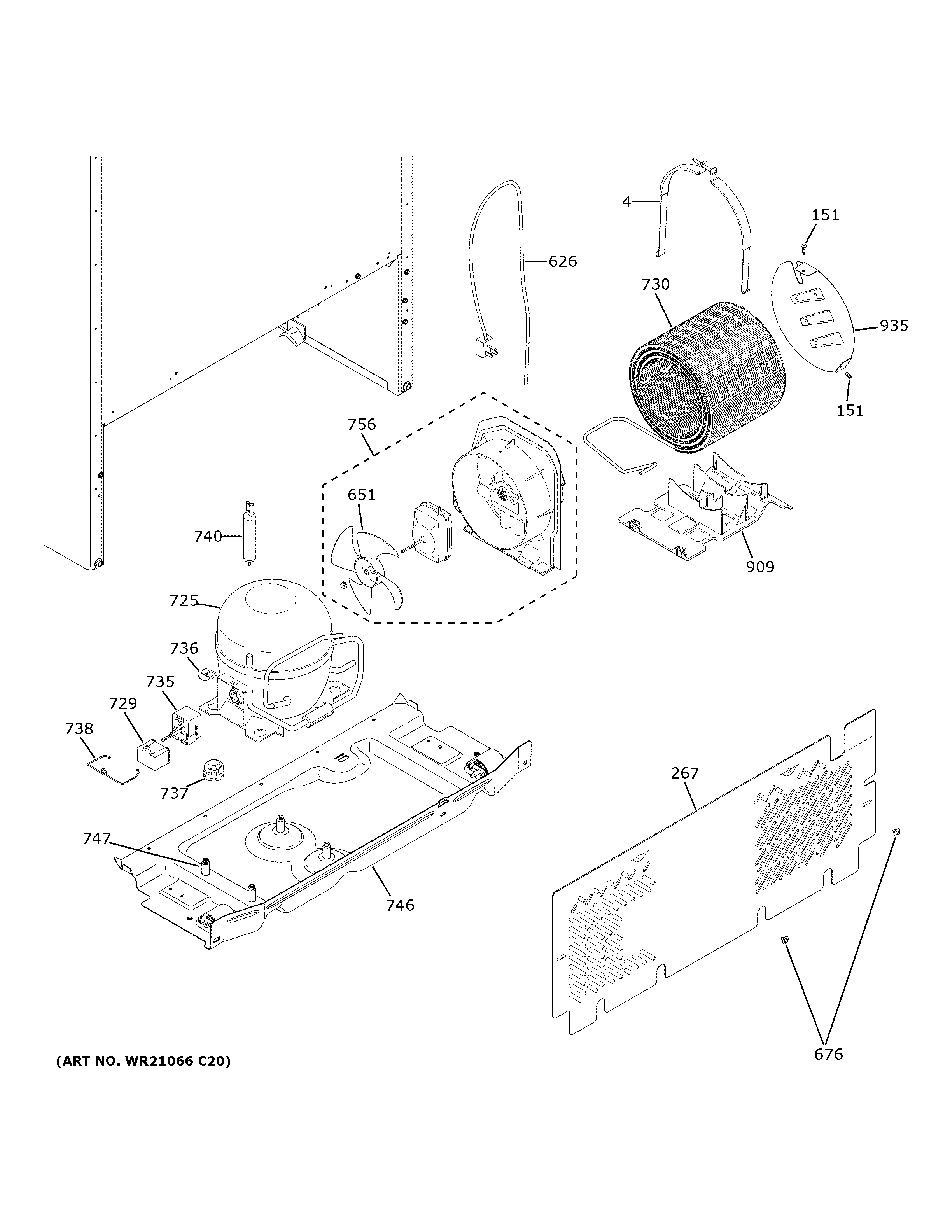

Machine compartment diagram
R600 Drier W/ Red Cap
In Stock$95.19
Qty

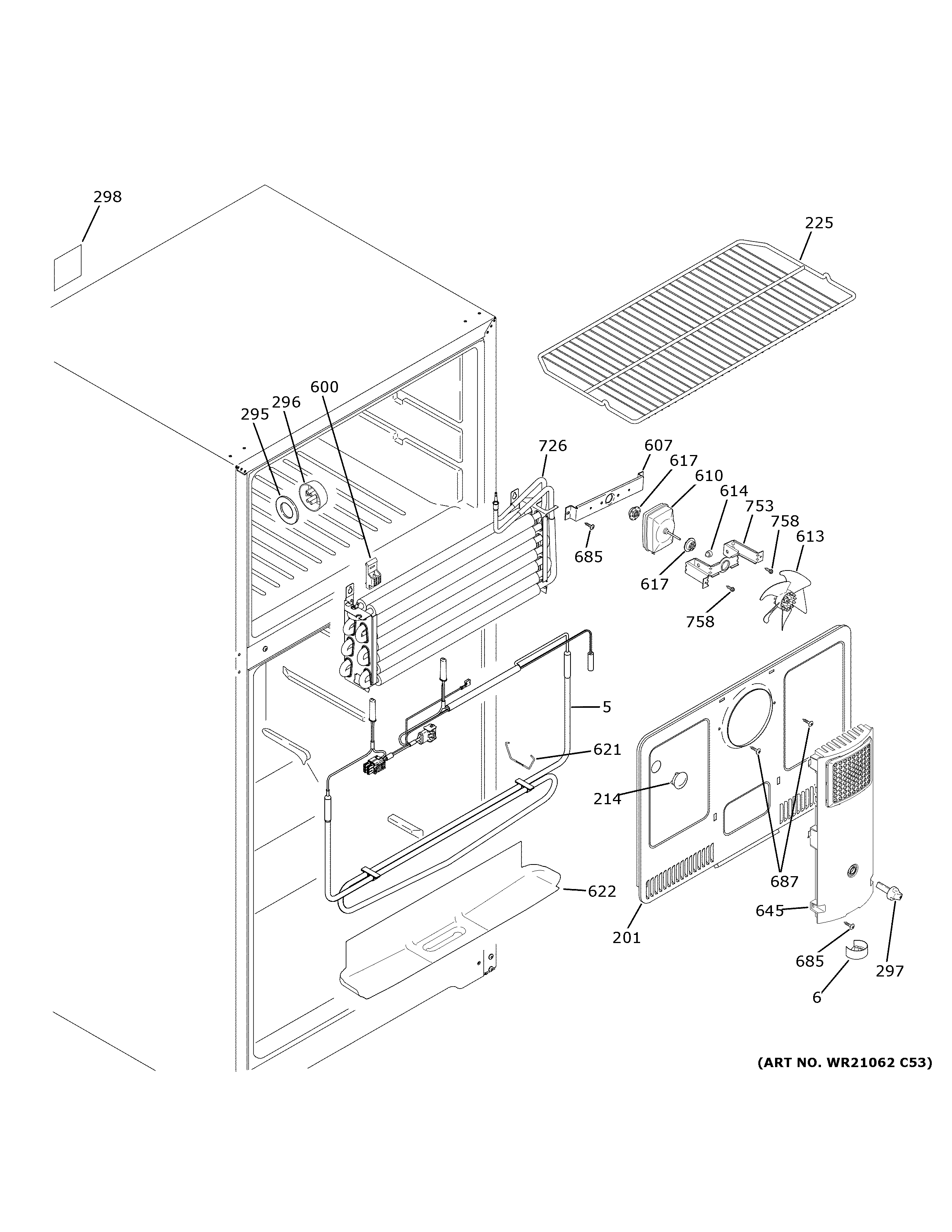

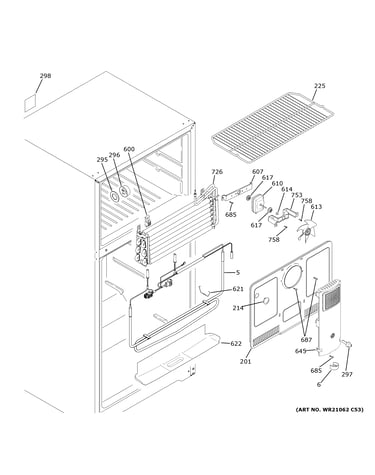

Freezer section diagram
Evaporator F
Part #WR60X31122Replaced by #WR60X31522
Manufacturer substitutionThis part replaces WR60X31122. Substitute parts can look different from the original.In Stock$76.097% OFF Phone Price : $82.09

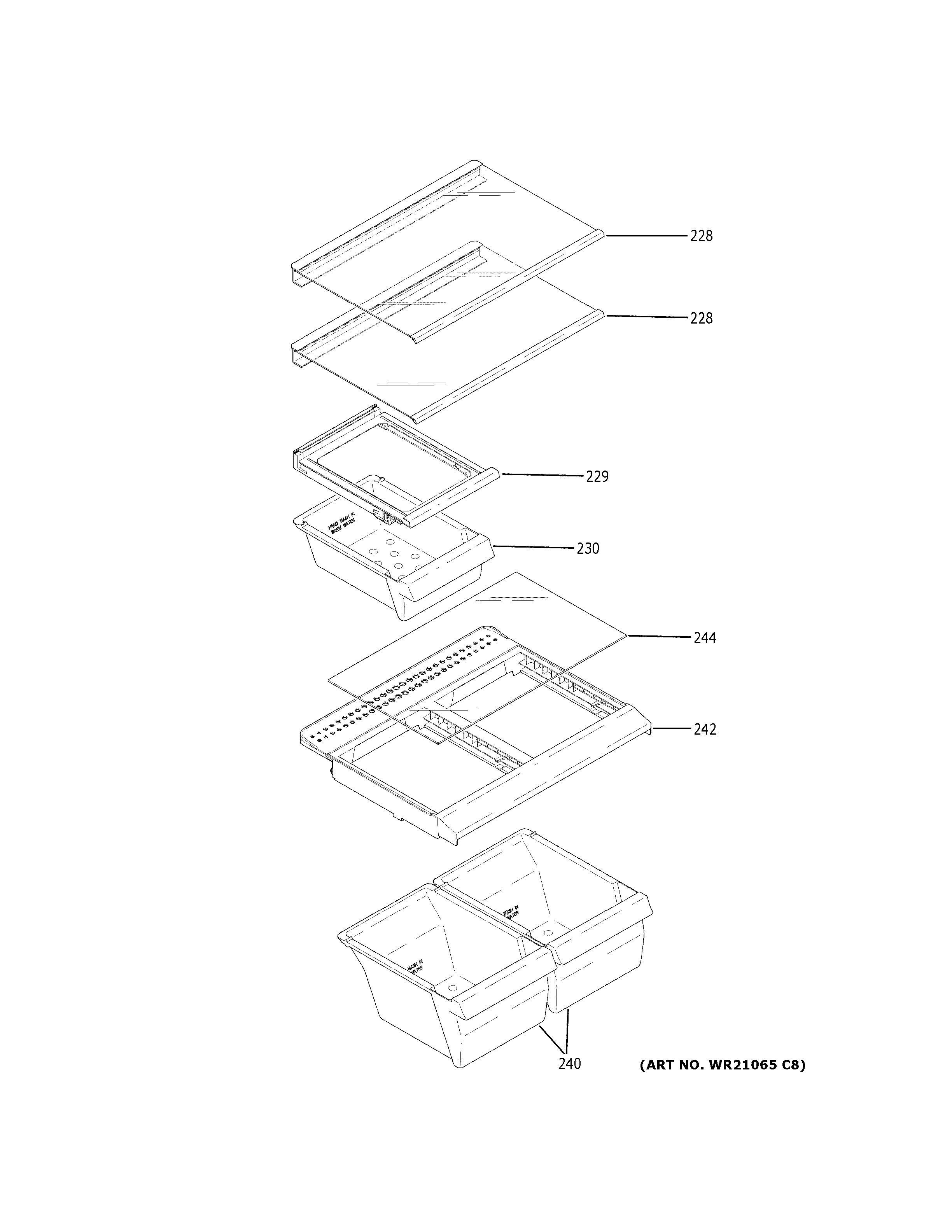

QtyFresh food shelves diagram
G.e. Refrigerator Deli Drawer Cover

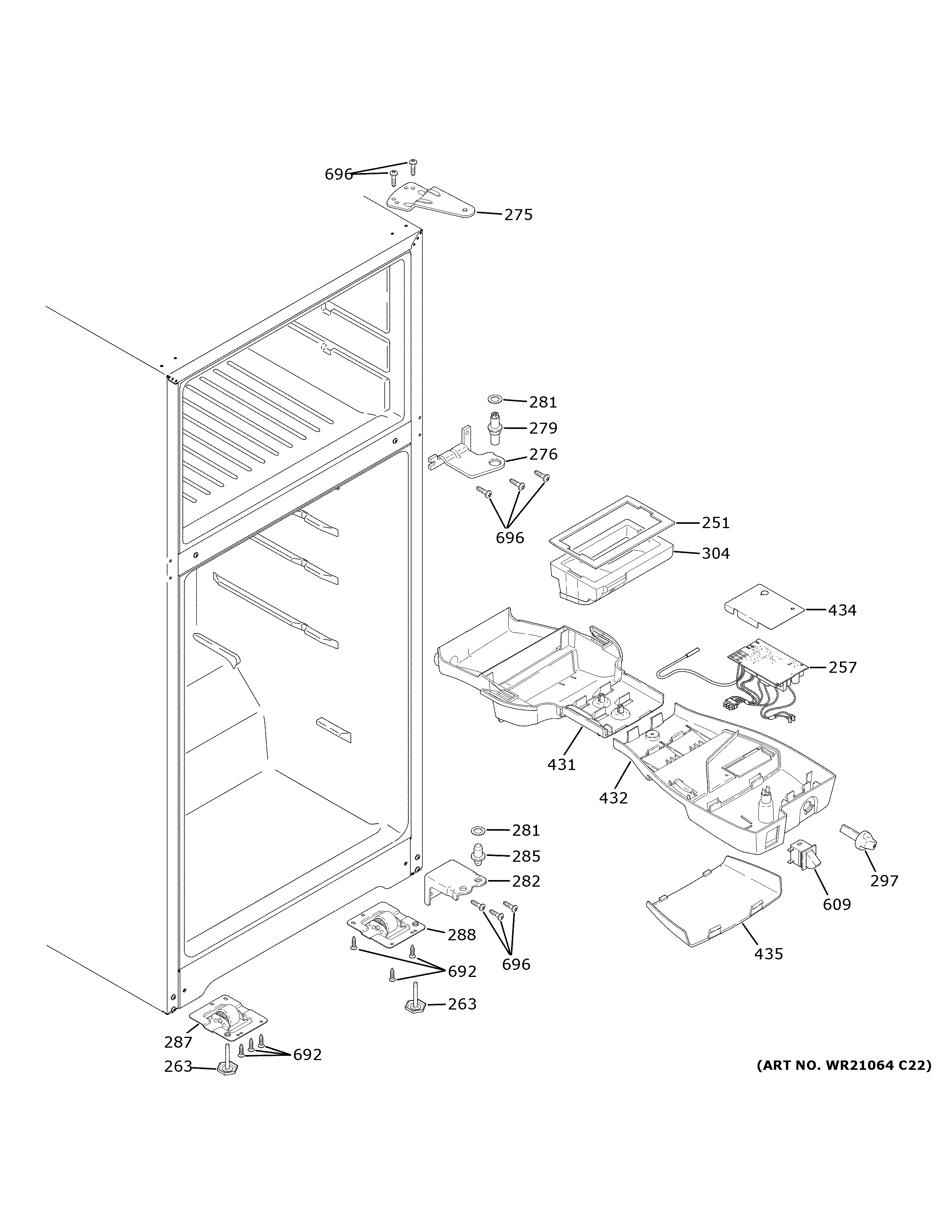

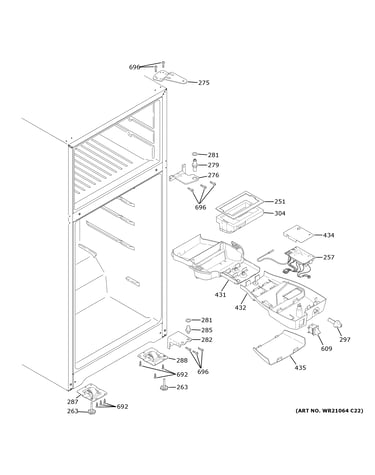

In Stock$31.7116% OFF Phone Price : $37.71QtyFresh food section diagram
Refrigerator Door Switch

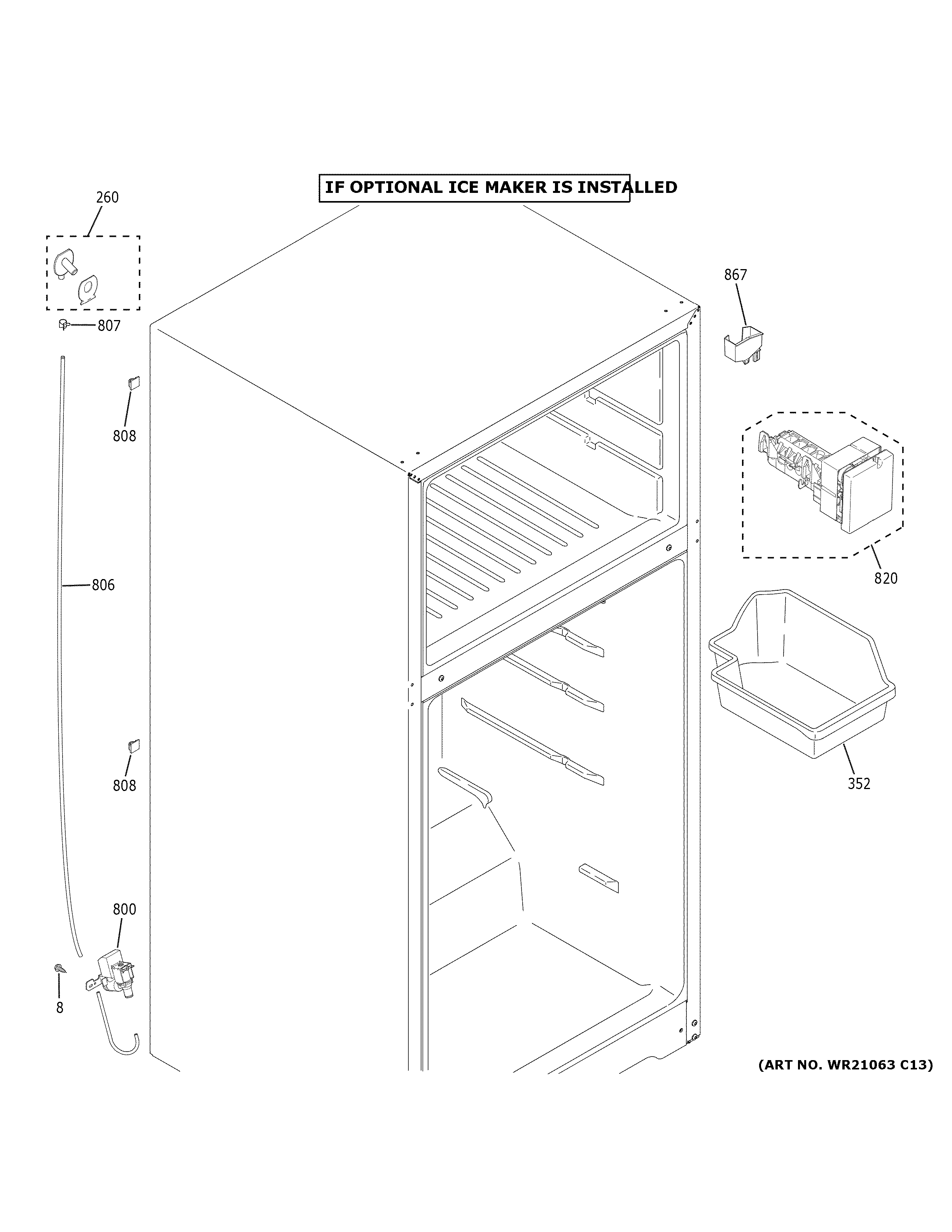

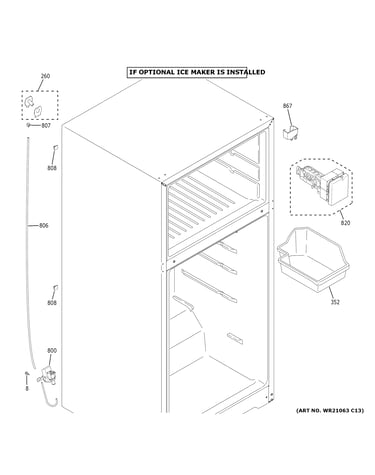

In Stock$69.978% OFF Phone Price : $75.97QtyIce maker diagram
Icemaker Rep
Part #WR30X30719Replaced by #WR30X30972
Manufacturer substitutionThis part replaces WR30X30719. Substitute parts can look different from the original.In Stock$189.396% OFF Phone Price : $201.39QtyMachine compartment diagram
Compressor
Part #WR87X32209Replaced by #WR87X31765
Manufacturer substitutionThis part replaces WR87X32209. Substitute parts can look different from the original.In Stock$203.2311% OFF Was : $227.28QtyFresh food shelves diagram
Vegetable Pan Cover 33
Part #WR32X31227Replaced by #WR32X31481
Manufacturer substitutionThis part replaces WR32X31227. Substitute parts can look different from the original.In Stock$40.6713% OFF Phone Price : $46.67QtyMachine compartment diagram
Condenser Fan And Housing
Part #WR17X31219Replaced by #WR17X31476
Manufacturer substitutionThis part replaces WR17X31219. Substitute parts can look different from the original.In Stock$143.848% OFF Phone Price : $155.84QtyFreezer section diagram
Evaporator
Part #WR87X32220Replaced by #WR87X47505

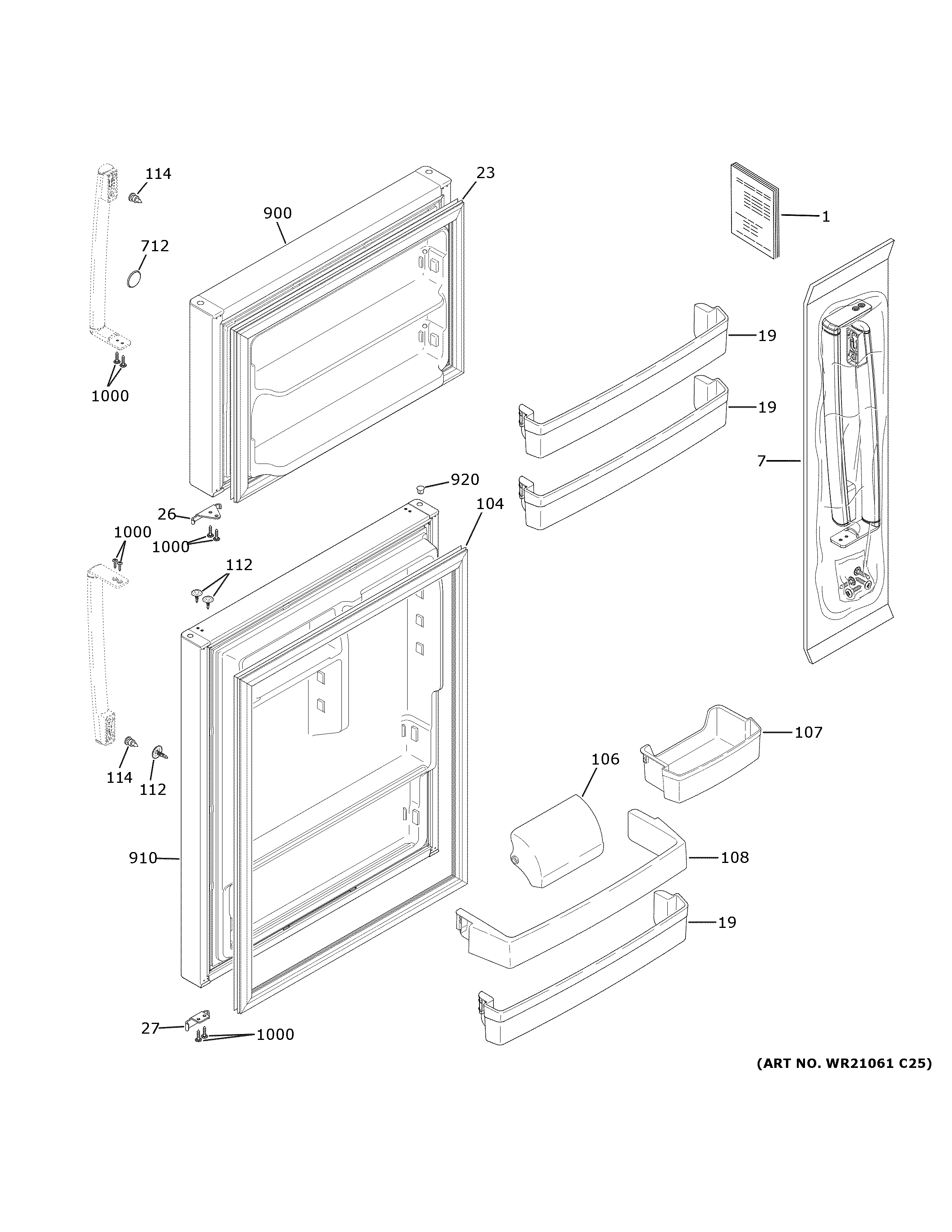

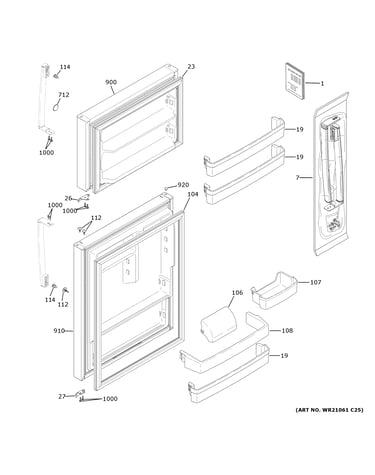

Manufacturer substitutionThis part replaces WR87X32220. Substitute parts can look different from the original.In Stock$201.21QtyDoors diagram
Refrigerator Door Gasket (dorian Gray)
In Stock$61.119% OFF Phone Price : $67.11Qty
