Frigidaire FAFW3517KR1 washer Parts

To remove the front panel on your Frigidaire FAFW3517KR1 washer, we unplug power, shut off water, then remove the lower access fasteners and lift the panel off its mounting tabs. Use the steps in the FAFW3517KR1 installation guide for safe handling and moving.

Before you start (safety and prep)

• Unplug the washer from the outlet.
• Turn off both water supply valves.
• If you need to move the washer, use two people; front-load washers are heavy.
• Protect the floor with a rug, blanket, or cardboard if you need to tip the unit.
• Keep a shallow pan and towels ready; a small amount of water can spill.

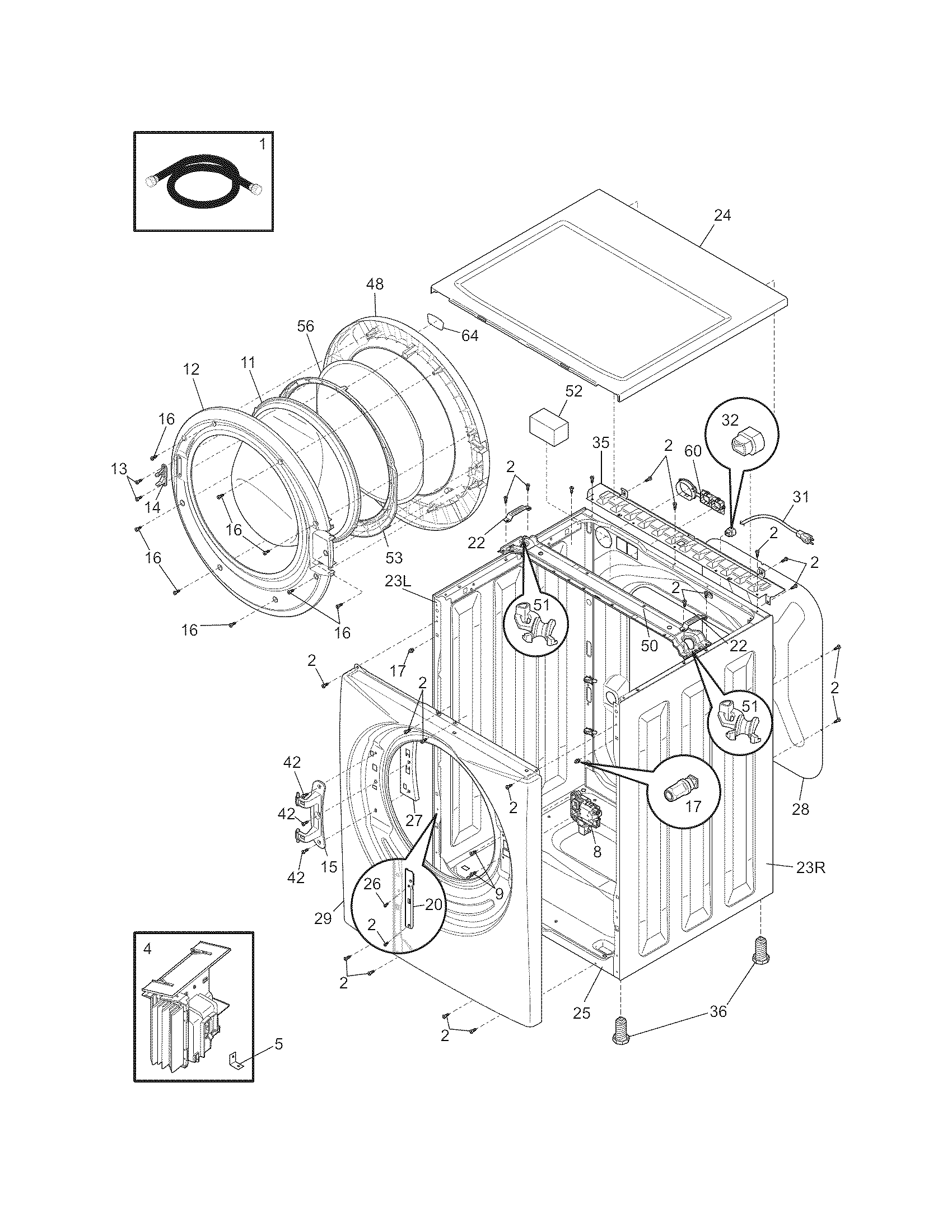

Typical front panel removal steps (FAFW3517KR1)

1. Remove the top panel first (usually screws at the back, then slide back and lift off).
2. Remove the detergent drawer and any screws hidden behind it (if equipped).
3. Remove the lower toe/kick panel or access panel screws along the bottom edge.
4. Open the door; remove the spring clamp and peel the door boot lip off the front panel if the boot overlaps the panel.
5. Support the front panel, remove the remaining mounting screws, then lift the panel up and off the tabs.

Parts you may handle during this repair

Area you are working near	What you might see	When it matters
Door opening	Door boot and clamp	Needed if the boot overlaps the front panel
Door latch area	Door lock wiring and latch	Avoid pulling on wires when separating the panel
Bottom front	Drain pump area	Expect residual water if hoses are disturbed

If the door boot clamp is damaged or won’t reseat, use the exact replacement for this model: washer door boot spring clamp 134527100.

Why it matters

Removing the front panel correctly prevents torn bellows, pinched wiring to the door lock, and leaks after reassembly. It also gives you proper access to common service items like the drain pump and door latch.

Last updated: February 2026

Yes. For your Frigidaire washer model FAFW3517KR1, using the full model number is the most accurate way to find compatible replacement parts because it filters results to the exact door lock, drain pump, inlet valve, and other components built for that washer.

How to look up parts by model number (FAFW3517KR1)

• Find the model tag on the washer (commonly around the door opening, on the door frame, or behind the lower access panel).
• Write the model number exactly as shown: FAFW3517KR1.
• Use that model number to shop by model so you only see parts that fit your washer.
• Match by part name and confirm the part number before ordering.
• Use diagrams in the FAFW3517KR1 owner's manual to identify where the part sits and what it connects to.

Common parts customers look up for this model

If you are troubleshooting a symptom, these are frequently searched items for FAFW3517KR1:

• Door won’t lock or won’t start: washer door lock assembly 131763256
• Won’t drain or leaves water in the tub: water pump 137221600
• Won’t fill or fills slowly: washer water inlet valve 134371220
• Excessive shaking or banging: shock absorbers and tub support parts

Symptom	Part type to check	Example for FAFW3517KR1
Door won’t latch	Door lock	Door lock assembly
No drain / slow drain	Drain pump	Water pump
No fill / weak fill	Inlet valve	Water inlet valve

Why it matters

Model-number lookup prevents ordering the wrong revision of a Frigidaire washer part. Even similar-looking front-load parts can have different connectors, mounting points, or electrical ratings, so matching to FAFW3517KR1 saves time and avoids returns.

Last updated: February 2026

If your Frigidaire FAFW3517KR1 washer powers on but will not wash (won’t fill, won’t tumble, or stops early), the most common causes are a power or control interruption, water supply problems, a door not locking, or a drain issue that prevents the cycle from continuing. Start with the quick checks in the FAFW3517KR1 installation guide.

Quick checks we recommend first

• Confirm the washer is plugged into a properly grounded 3-prong outlet; do not use a 2-slot receptacle.
• Check your home breaker or fuse; reset the breaker fully if it tripped.
• Verify both hot and cold water valves are fully open.
• Make sure inlet hoses are not kinked and the screens are not clogged.
• Close the door firmly; a front-load washer will not wash if the door does not lock.
• If the tub is full of water, address draining first (a washer that can’t drain often won’t advance to wash or spin).

What “not washing” usually means (and what to check)

Symptom	Most likely cause	What to do next
Won’t start a cycle	Power supply, door not locked	Check outlet/breaker; re-close door; inspect door lock
Fills but won’t tumble	Load imbalance, control/drive issue	Reduce load; try a rinse/spin; check for error code
Stops mid-cycle	Drain restriction, door lock issue	Check drain setup; look for standing water; check lock
Won’t fill	Water supply/pressure, inlet valve issue	Open valves; clean screens; consider inlet valve

Parts that commonly cause “won’t wash” on this model

If the basic checks don’t fix it, these parts are frequent culprits on the FAFW3517KR1:

• Washer door lock assembly 131763256: if the door won’t latch/lock, the washer may not agitate or continue.
• Washer water inlet valve 134371220: if the washer won’t fill or fills very slowly.
• Water pump 137221600: if the washer won’t drain or stops because it can’t pump water out.

Why it matters

Front-load washers use safety interlocks and fill and drain checks before tumbling. If the washer can’t confirm a locked door, adequate water flow, or proper draining, it will pause or end the cycle to prevent leaks and electrical hazards.

Last updated: February 2026

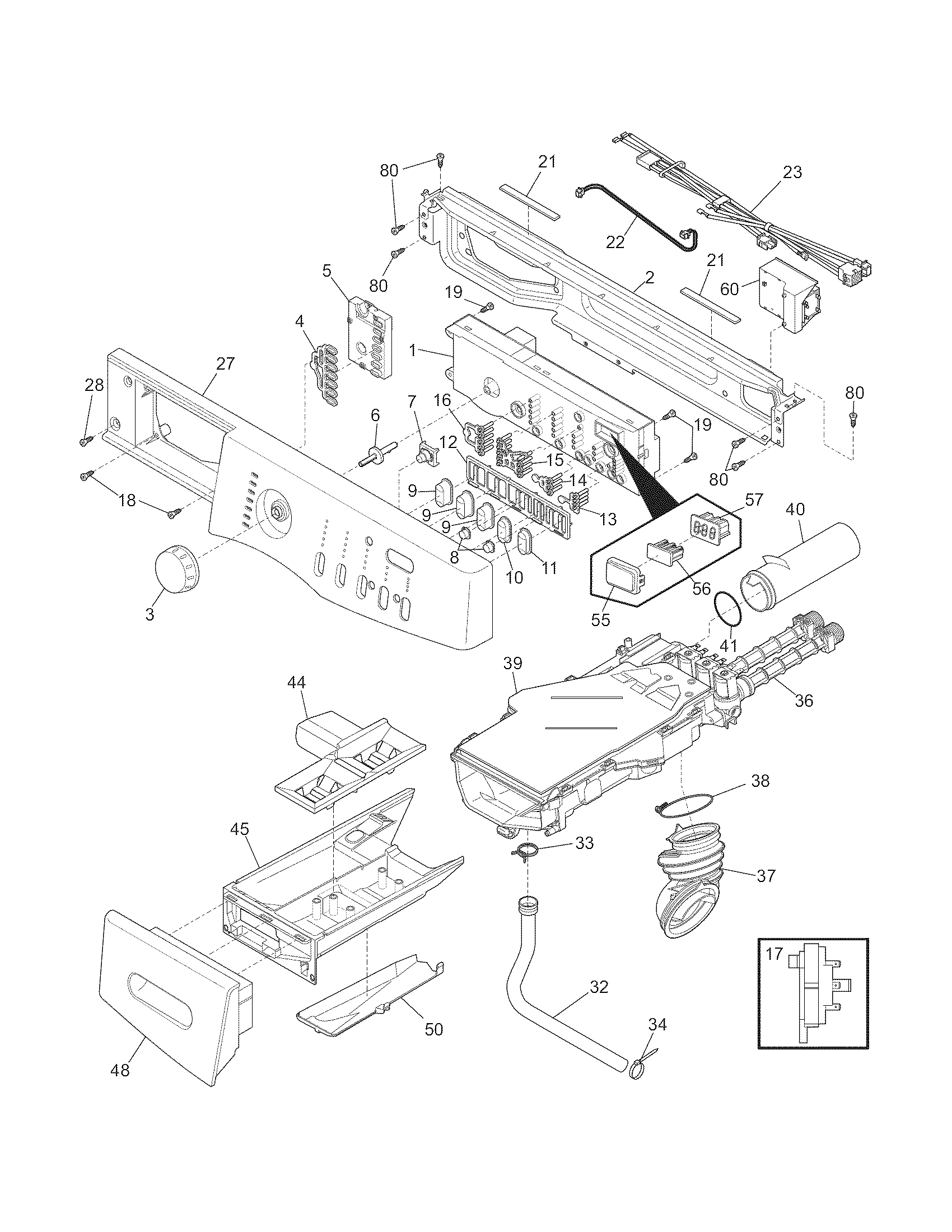

A washing machine like the Frigidaire FAFW3517KR1 is built around a wash tub and rotating drum, plus systems that fill, heat (on some models), drain, and control the cycle. The main internal parts work together to move water, tumble clothes, and spin out moisture.

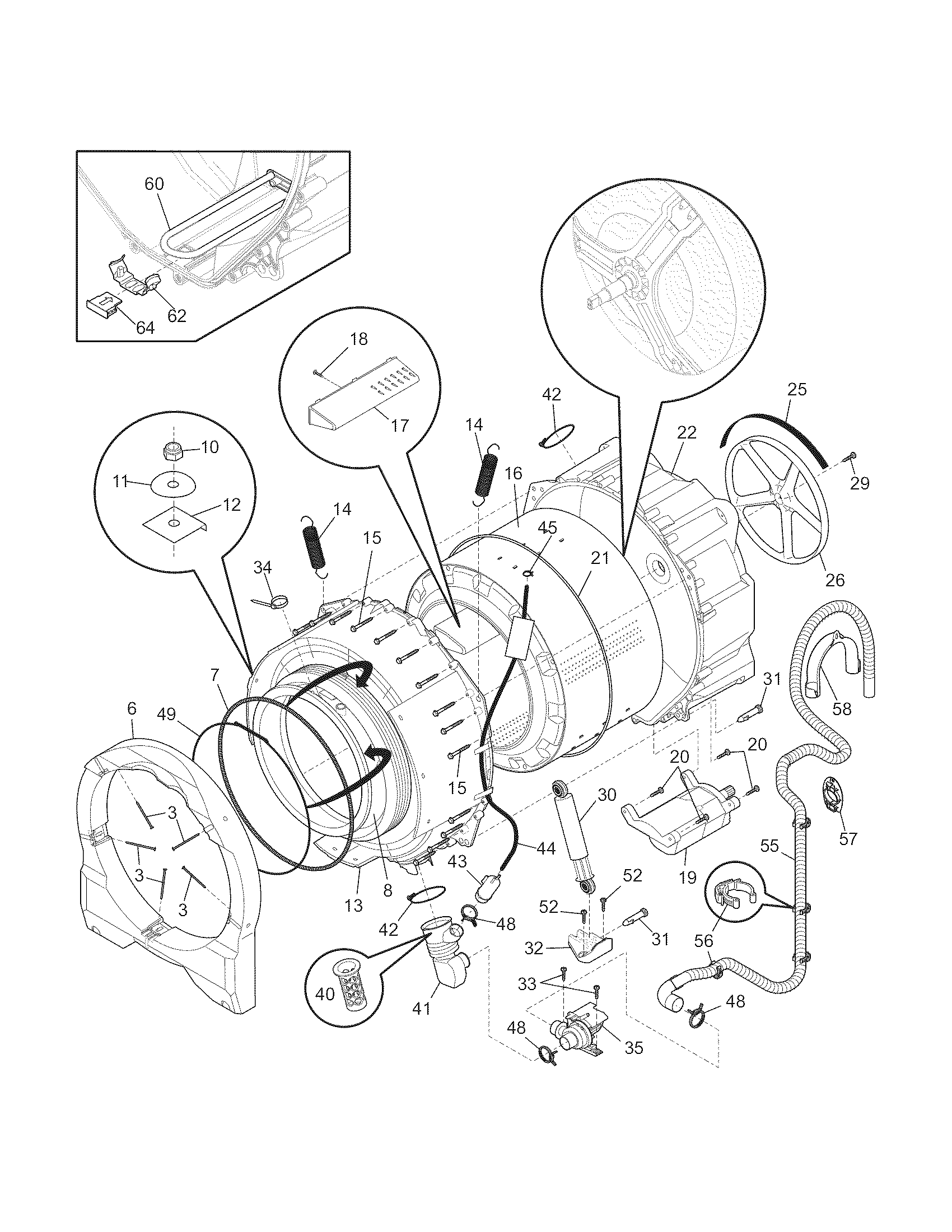

Core internal parts (what they do)

• Outer tub and inner drum: hold water and laundry; the drum spins to wash and extract water.
• Drive system (motor and controls): turns the drum at wash and spin speeds.
• Water fill system: brings hot and cold water in through an inlet valve.
• Drain system: pumps water out through the drain hose.
• Door lock system: locks the door during operation for safe, leak-free washing.
• Suspension system: reduces vibration and keeps the tub stable.

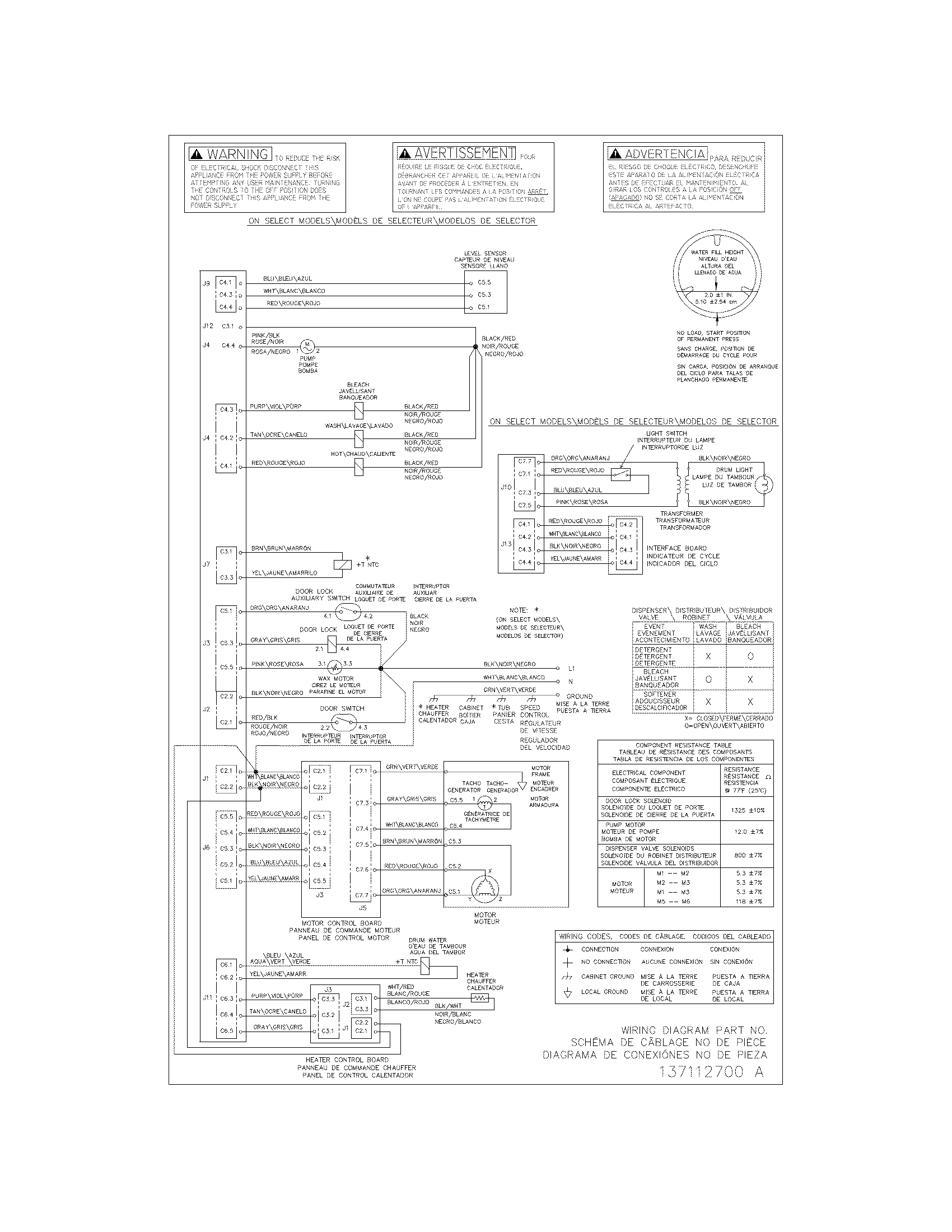

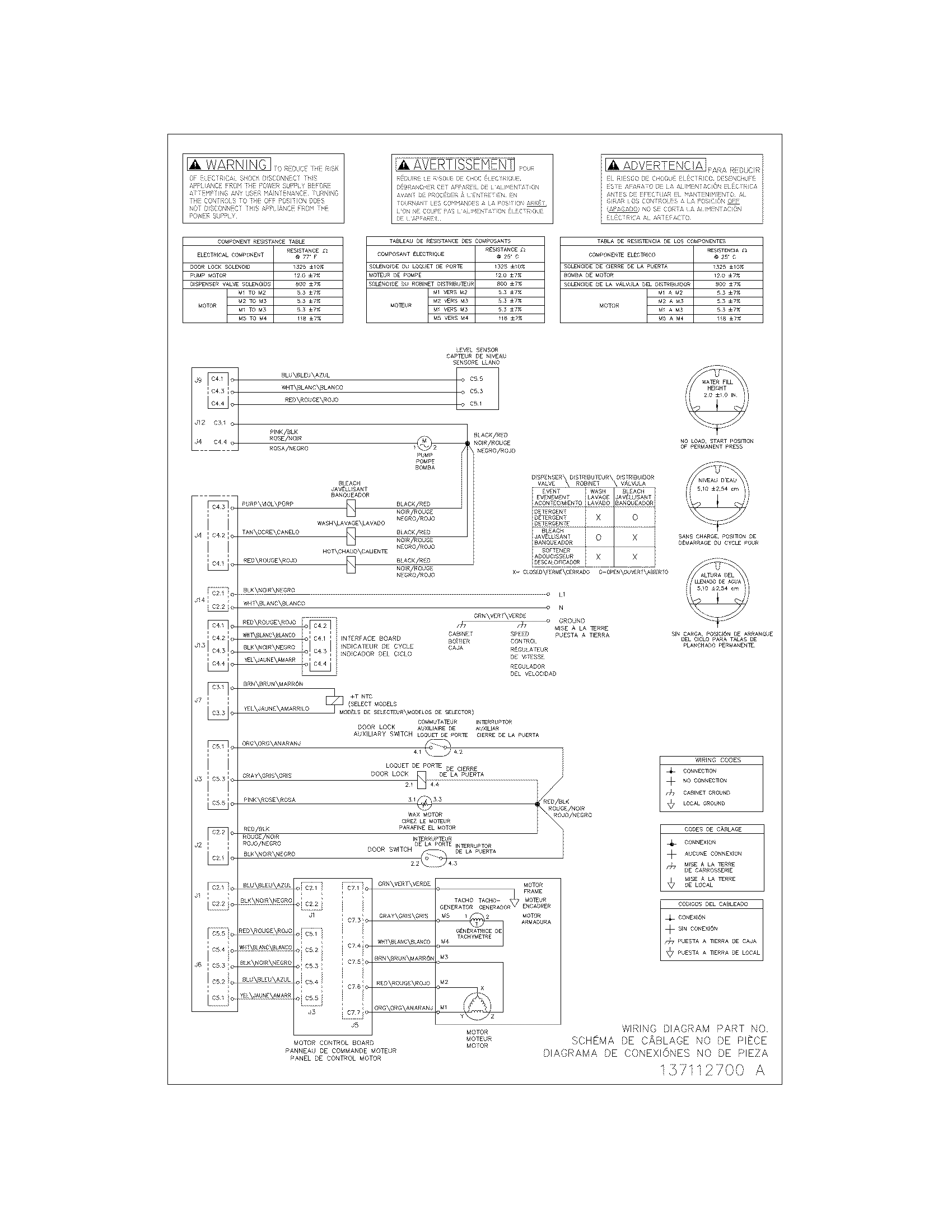

• Wiring harness and control boards: manage timing, sensing, and motor operation.

Parts you will commonly replace on FAFW3517KR1

These are frequent “internal” service parts for this model when symptoms point to a failure:

• Washer door lock assembly 131763256 (won’t start, door won’t lock, door lock errors)
• Water pump 137221600 (won’t drain, water left in tub, drain errors)
• Washer water inlet valve 134371220 (won’t fill, slow fill, hot or cold not entering)
• Shock absorber 5304485917 (banging, walking, excessive vibration)
• Washer motor control board 5304504863 (no spin, erratic motor behavior)

Quick symptom-to-part guide

Symptom	Most likely system	Common part examples
Won’t drain or drains slowly	Drain system	Drain pump, drain hose, pump filter/obstruction
Won’t fill or fills slowly	Water fill system	Inlet valve, inlet hose screens
Door won’t lock, cycle won’t start	Door lock system	Door lock assembly
Loud banging in spin	Suspension/leveling	Shock absorbers, leveling legs

Why it matters

Knowing the internal parts helps you troubleshoot faster and order the right replacement part the first time. It also helps you separate installation issues (leveling, hoses, power) from true component failures.

Helpful model-specific references

• Use the FAFW3517KR1 installation guide for grounding, inlet hose hookup, and leveling steps that prevent vibration and noise.

Last updated: February 2026

Yes. Frigidaire makes front load washers, and your Frigidaire FAFW3517KR1 is a front load washer model. If you are shopping for another unit or confirming features, the best match is to compare capacity, cycle options, and installation requirements in the FAFW3517KR1 installation guide.

How we confirm it for FAFW3517KR1

Front load washers use a front door and a door lock system; this model’s parts list includes a door lock assembly, which is typical for front load designs.

• The washer loads through the front door (front load design)
• It uses a door lock to allow spinning safely
• It must be leveled carefully to reduce vibration and noise
• It connects to hot and cold inlet water lines

What to compare when choosing a Frigidaire front load washer

Use these checkpoints to compare models accurately (especially if you are replacing an older Frigidaire washer).

What to compare	Why it matters	What to look for
Capacity (cu. ft.)	Determines load size	Similar or larger than your current washer
Electrical and space needs	Prevents install surprises	Outlet type, clearance, door swing
Cycle and temperature options	Impacts cleaning results	Normal, heavy duty, sanitize/steam (if desired)
Serviceability	Affects repair cost and downtime	Common parts availability (pump, lock, valve)

Why it matters

Front load washers can deliver strong cleaning with less water, but they are more sensitive to installation details. Proper leveling and stable footing reduce excessive vibration and noise, which helps protect components like shocks, the tub, and the drain system.

Related parts you may see on front load Frigidaire washers

If you are troubleshooting a front load washer, these are common components we see replaced:

• Washer door lock assembly 131763256 (won’t start, door won’t lock)
• Water pump (won’t drain, standing water)
• Washer water inlet valve (won’t fill, slow fill)
• Shock absorber (banging, walking during spin)

Last updated: February 2026

A bottom leak on your Frigidaire FAFW3517KR1 washer usually comes from a loose or damaged fill connection, a drain system leak, or a door boot (bellows) leak that runs down the cabinet and drips underneath. Start by checking the inlet hoses for seepage, then inspect the pump and hoses for cracks.

Quick checks we recommend first

• Unplug the washer before inspecting internal parts.
• Pull the washer forward and look for the wettest point (front-center, left, right, or rear).
• Run a short rinse and watch for leaks during fill, tumble, and drain.
• Check that inlet hoses are snug; then tighten each supply connection another 2/3 turn with pliers (do not overtighten).
• Confirm the drain hose is secured so it cannot whip or pull out during draining.

Most common bottom-leak sources on this model

When it leaks	Most likely area	What you’ll usually see
During fill	Inlet hose connections or valve area	Drips at the back, water tracks down to the base
During wash/tumble	Door boot (bellows) or dispenser hose	Water at the front, sometimes only with larger loads
During drain/spin	Drain pump or drain hose	Sudden puddle, often front-lower area

Parts that often fix a bottom leak

If your leak timing points to a failed component, these model-matched parts are common solutions:

• Water pump 137221600 if leaking during drain or you see water at the pump body
• Washer water inlet valve 134371220 if leaking during fill and connections are dry but water still seeps
• Bellows 134515300 if water appears at the door opening and runs down to the bottom
• Washer door boot spring clamp 134527100 if the boot is intact but not sealing tightly

Why it matters

Even a small leak can damage flooring, cause corrosion on wiring and control boards, and lead to repeated drain or spin problems. Fixing the source early also prevents mold and odor buildup.

Where to confirm the correct setup

We recommend following the hose-connection and leak-check steps in the installation guide. For model-specific diagrams and access steps, use the FAFW3517KR1 owner’s manual.

Last updated: February 2026

To reset your Frigidaire washer model FAFW3517KR1, power-cycle it first (turn it off, then back on). If the control panel supports a factory reset, press and hold Spin Speed and Soil Level together until you hear a signal, then release.

Quick reset steps (most common)

• Press Cancel (if your washer has it) to stop the cycle.
• Turn the washer off.
• Unplug the power cord (or switch the breaker off).
• Wait 2 to 5 minutes.
• Restore power and start a Rinse/Spin or quick cycle to confirm normal operation.

Factory reset (control-panel button reset)

Some FAFW3517KR1 control panels support a button reset:

• Turn the washer on.
• Press and hold Spin Speed + Soil Level at the same time.
• Hold for a few seconds until you hear a signal tone.
• Release the buttons; settings return to default.

For the exact button sequence and indicator behavior for your specific control panel version, follow the FAFW3517KR1 owner's manual.

When a “reset” will not clear the problem

If the washer immediately shows the same symptom after resetting, the issue is usually not a software lockup. Use this checklist:

• Door will not lock or cycle will not start: check the latch and wiring; a failed washer door lock assembly 131763256 can prevent operation.
• Won’t drain or stops mid-cycle: check for a drain restriction; a failing pump can cause repeated drain errors.
• Won’t fill or fills slowly: verify both faucets are fully open and inlet screens are not clogged.
• Repeated error codes: match the code to the failure and test the related circuit.

Common “reset vs repair” guide

What you see	Reset helps?	What to check next
Random lights, unresponsive keys	Often	Power-cycle, then check for error codes
Door won’t lock	Sometimes	Door lock, strike alignment, harness
Won’t drain	Rarely	Drain path, pump, filter/coin trap (if equipped)
Won’t fill	Rarely	Water supply, inlet valve screens, hoses

Why it matters

Resetting clears temporary control glitches and cancels stuck cycles, but it does not fix mechanical failures (like a door lock problem) or water flow issues. Identifying whether the symptom returns right away helps you avoid replacing the wrong washer parts.

For code-based troubleshooting, use Frigidaire front load washer error codes.

Last updated: February 2026

On the Frigidaire FAFW3517KR1 washer, an E3 code is most often tied to a door not closing or locking correctly. We fix it by confirming the door closes firmly, the washer sits level, and the door lock engages; then we troubleshoot the lock circuit if it still will not start.

Quick checks that solve most E3 errors

• Press the door closed firmly; remove any clothing caught between the door glass and the bellows.
• Power reset: unplug (or switch off the breaker) for 2 minutes, then restore power.
• Confirm the washer is stable and level; recheck after sliding it back into place.
• Start a cycle and listen for the lock “click”; no click usually points to a lock or wiring issue.
• If the door locks but the code returns, check for loose connections at the lock and control.

Parts that commonly cause E3 on this model

If the door will not lock, the most common fix is replacing the lock assembly.

Symptom	Most likely cause	What we do next
Door will not lock, no click	Failed door lock	Replace washer door lock assembly 131763256
Door locks sometimes	Loose wiring or intermittent lock	Inspect harness connections, then replace lock if needed
Washer shakes and errors during start/spin	Out-of-level install or suspension wear	Level the unit; inspect shocks

Why leveling matters (and how to confirm it)

A front-load washer that rocks can misalign the door and strain the latch, which can trigger lock-related errors. After moving the washer into position, we recheck level and stability at the corners.

For model-specific steps, safety notes, and setup checks (hoses, drain routing, power), use the FAFW3517KR1 installation guide.

Last updated: February 2026
