Side-By-Side Refrigerator

Model # GSS22WGMACC Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE GSS22WGMACC refrigerator - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

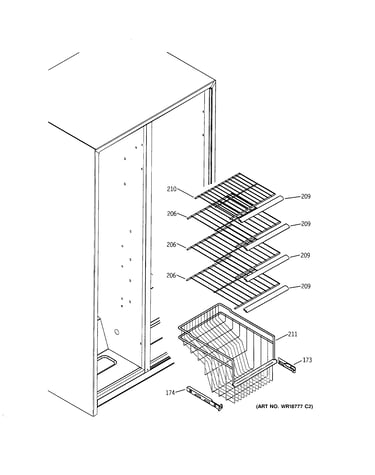

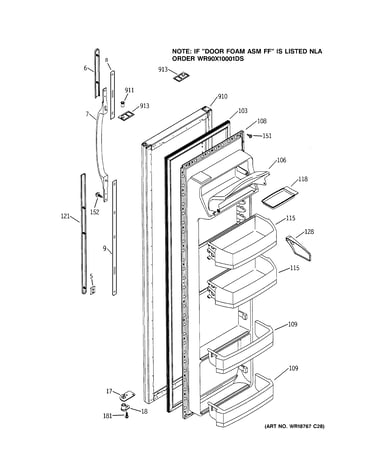

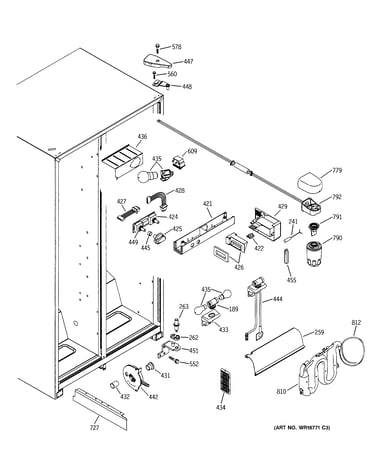

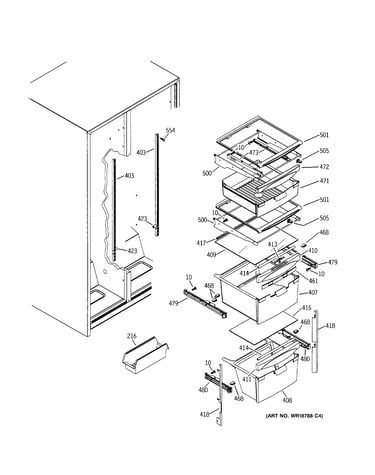

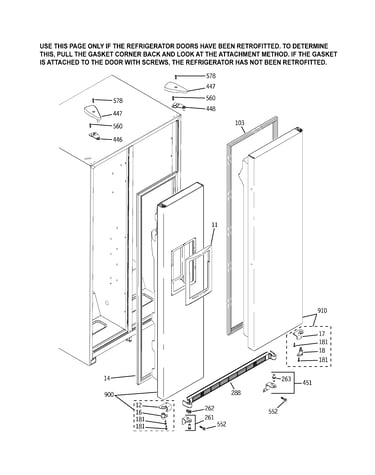

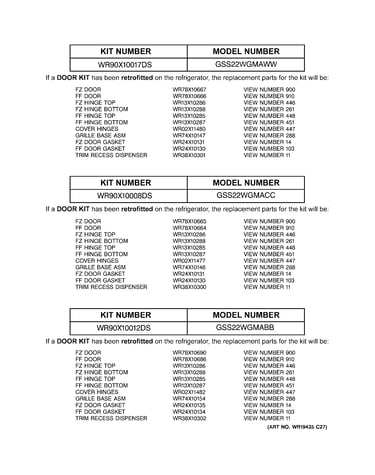

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 322 parts  |

Refrigerator Temperature Sensor WR50X10027
Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$20.49
6% OFF Phone Price : $21.89
In Stock
Refrigerator Ice Maker WR30X10012
#820

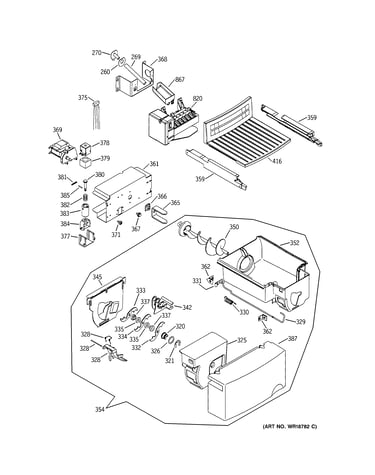

Ice maker & dispenser diagram

Refrigerator ice maker

Part #WR30X10012

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10012. Substitute parts can look different from the original.
BEST SELLER
$207.15
$5.79 OFF Phone Price : $212.94
In Stock
Dryer Filter WR86X0096
#740

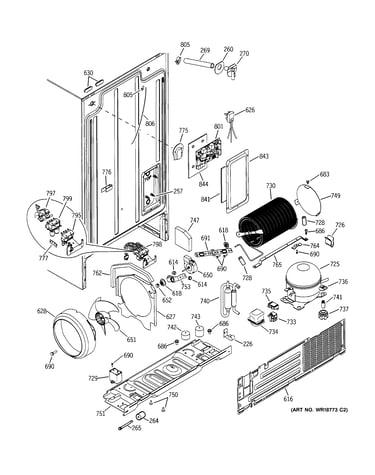

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$12.45
16% OFF Phone Price : $14.83
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$12.45
16% OFF Phone Price : $14.83
In Stock
Refrigerator Thermostat WR50X10015
#240

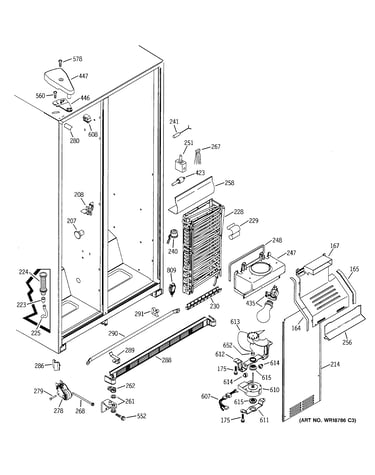

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93
22% OFF Phone Price : $26.93
In Stock
Refrigerator Solenoid WR62X10020
#36

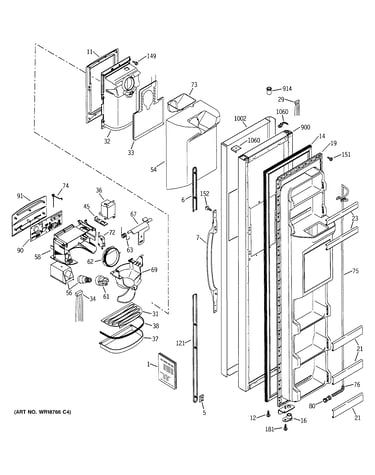

Freezer door diagram

Refrigerator solenoid

Part #WR62X10020

Replaced by #WR62X10055

?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
BEST SELLER
$54.06
10% OFF Phone Price : $60.06
In Stock
Dr Reces Asm WR17X3093
#62

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76
14% OFF Phone Price : $14.76
In Stock
Refrigerator Water Tube Fitting WR02X10471
#80

Freezer door diagram

Refrigerator water tube fitting

Part #WR02X10471

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X10471. Substitute parts can look different from the original.
BEST SELLER
$8.20
11% OFF Phone Price : $9.20
In Stock
Refrigerator Main Board WR55X10037
#801

Sealed system & mother board diagram

Refrigerator main board

Part #WR55X10037

Replaced by #WR55X10942

?
Manufacturer substitution
This part replaces WR55X10037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$397.89
$12.00 OFF Phone Price : $409.89
In Stock
