GE JBP81SM2SS electric range

GE JBP81SM2SS electric range Parts

Here are the diagrams and repair parts for GE JBP81SM2SS electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JBP81SM2SS Ranges

  • G.e. Range Halogen Surface Element for GE JBP81SM2SS - Part WB30T10130

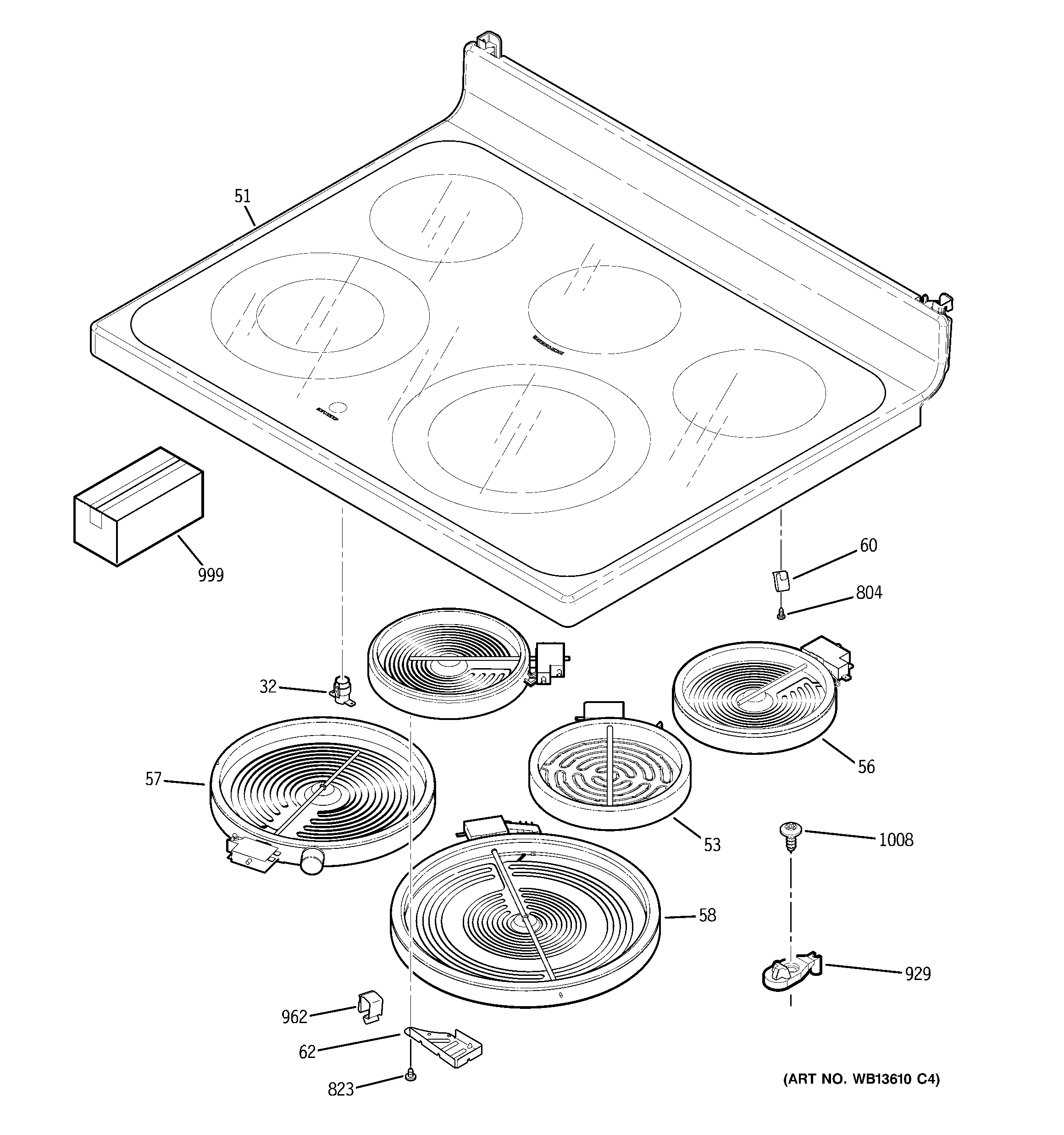

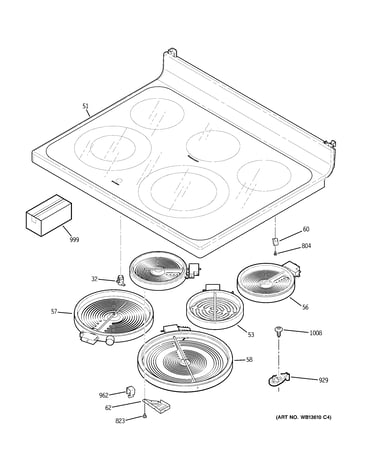

    Cooktop diagram

    G.e. Range Halogen Surface Element

    In Stock
    $188.49
    6% OFF Phone Price : $200.49Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Wall Oven Control Board for GE JBP81SM2SS - Part WB27X45466

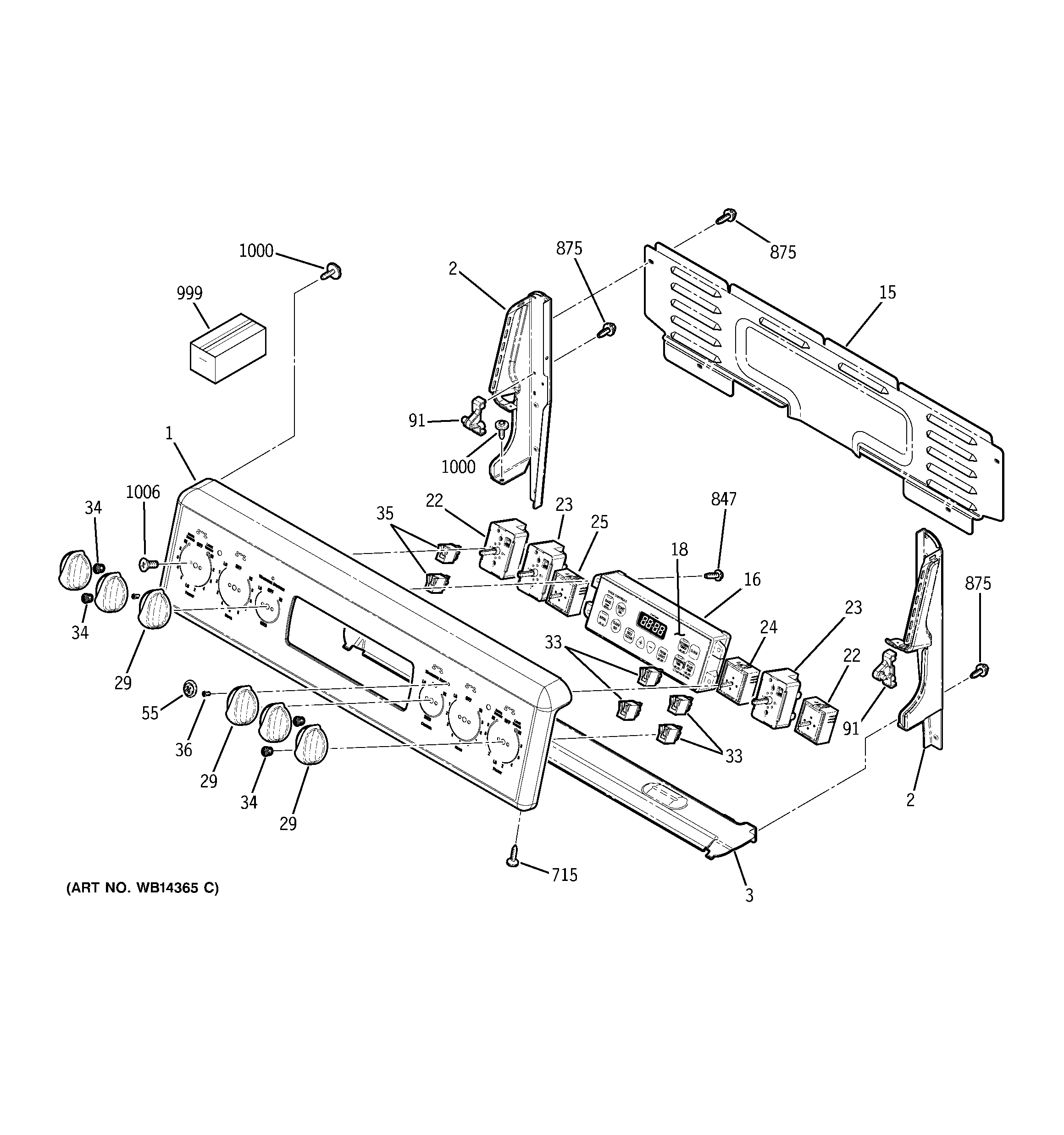

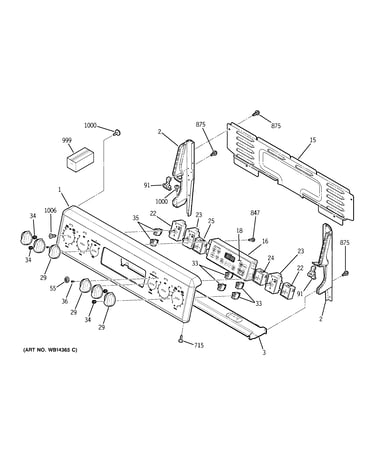

    Control panel diagram

    Oven Control

    Part #WB27T10864

    Replaced by #WB27X45466

    Info Icon
    Manufacturer substitution
    This part replaces WB27T10864. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $138.50
    8% OFF Phone Price : $150.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Range Oven Temperature Sensor for GE JBP81SM2SS - Part WB21X22134

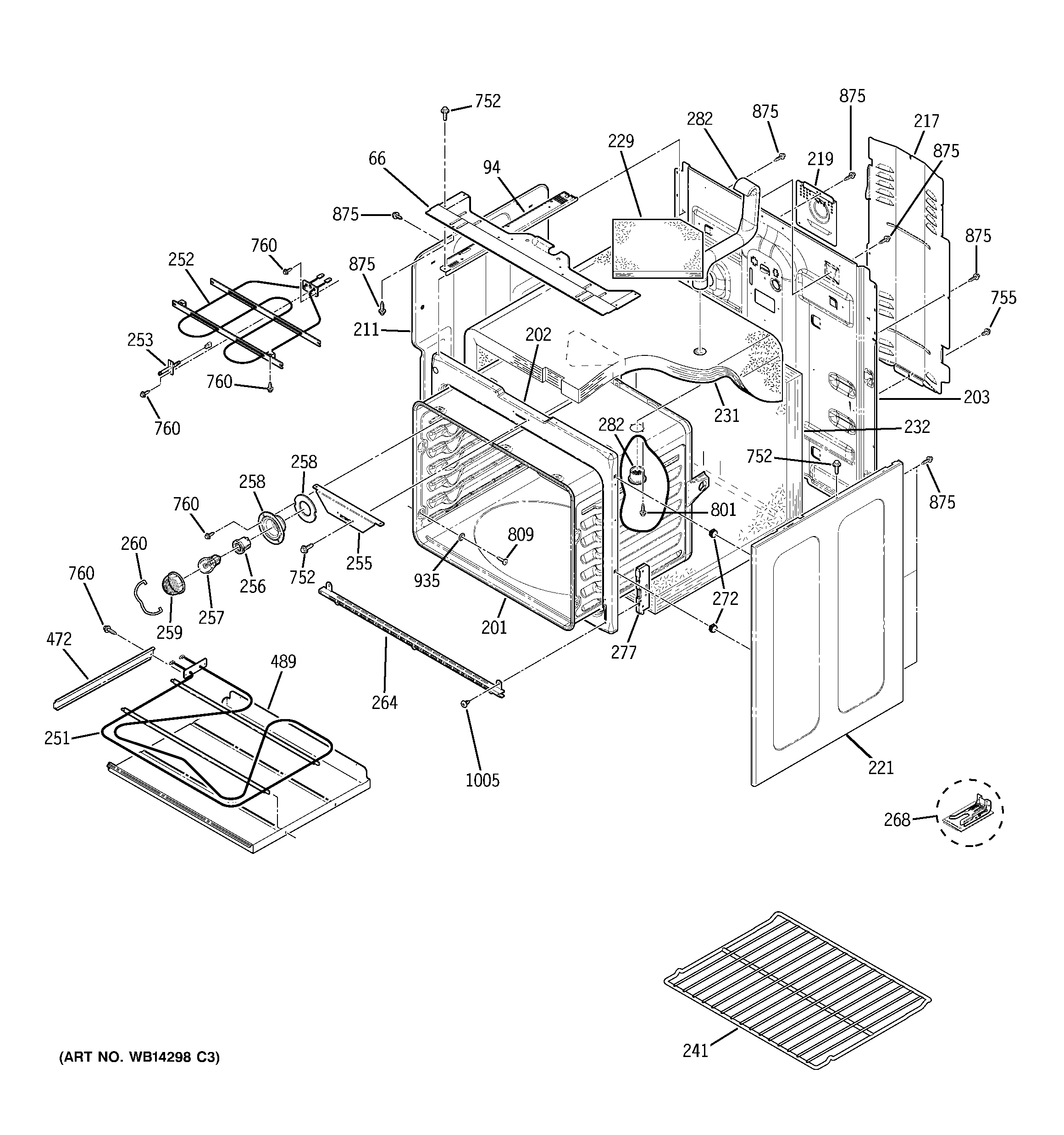

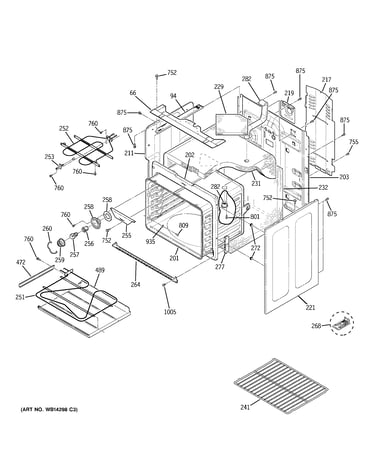

    Body parts diagram

    Wall Oven Temperature Sensor

    Part #WB21T10007

    Replaced by #WB21X22134

    Info Icon
    Manufacturer substitution
    This part replaces WB21T10007. Substitute parts can look different from the original.
    In Stock
    $24.74
    20% OFF Phone Price : $30.74Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for GE JBP81SM2SS - Part 40A15

    Body parts diagram

    Range Oven Light Bulb

    Part #WX12X1510

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces WX12X1510. Substitute parts can look different from the original.
    In Stock
    $14.95
    12% OFF Phone Price : $16.95Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Dual Radiant Element for GE JBP81SM2SS - Part WB30T10133

    Cooktop diagram

    G.e. Range Dual Radiant Element

    In Stock
    $110.11
    10% OFF Phone Price : $122.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Radiant Surface Element, 6-in for GE JBP81SM2SS - Part WB30T10129

    Cooktop diagram

    Halogen Element

    Part #WB30T10125

    Replaced by #WB30T10129

    Info Icon
    Manufacturer substitution
    This part replaces WB30T10125. Substitute parts can look different from the original.
    In Stock
    $119.59
    9% OFF Phone Price : $131.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Light Socket for GE JBP81SM2SS - Part WB08T10026

    Body parts diagram

    Range Light Socket

    Part #WB08T10026
    This item is not returnable
    In Stock
    $10.15
    16% OFF Phone Price : $12.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Gasket for GE JBP81SM2SS - Part WB04T10086

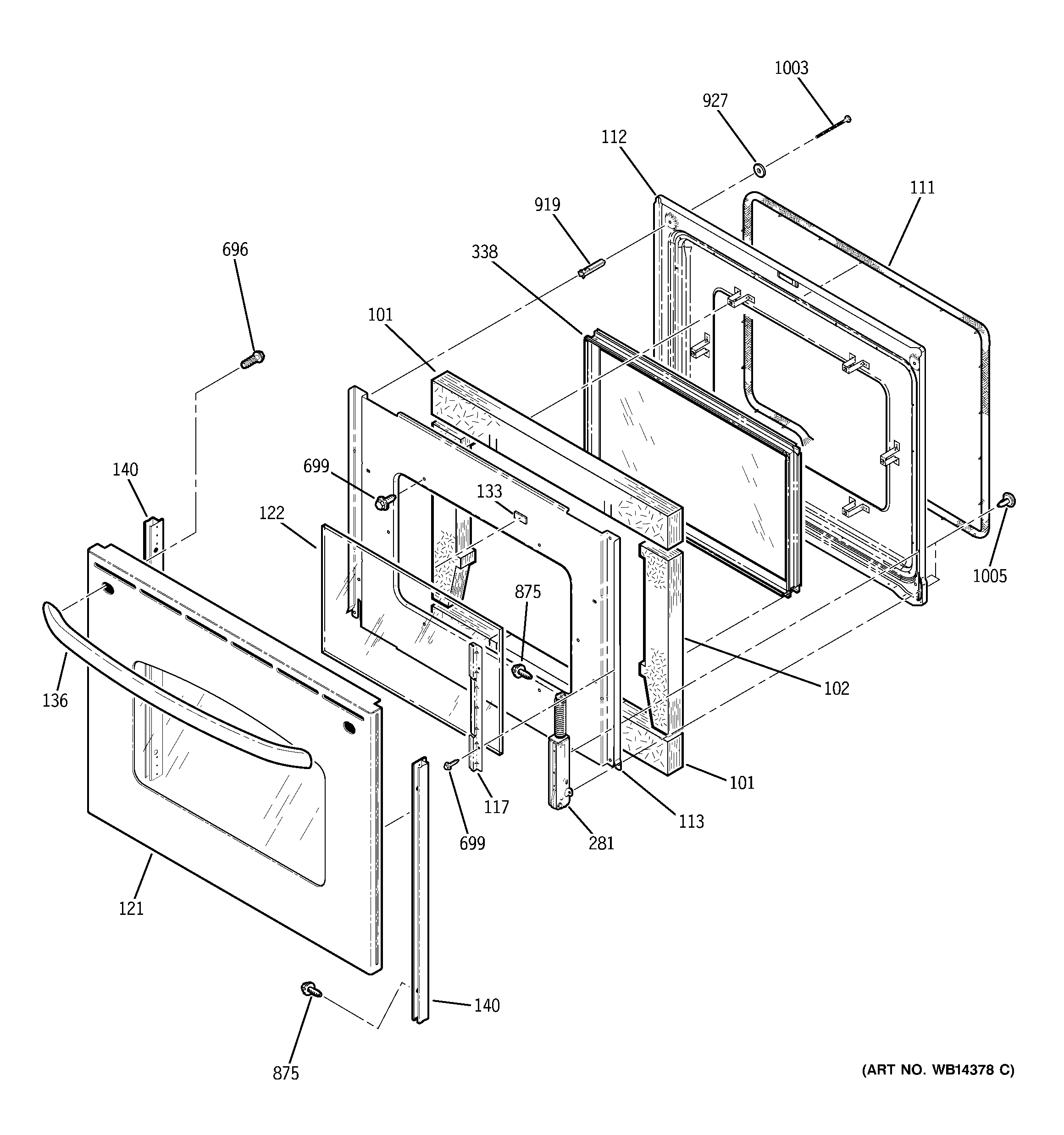

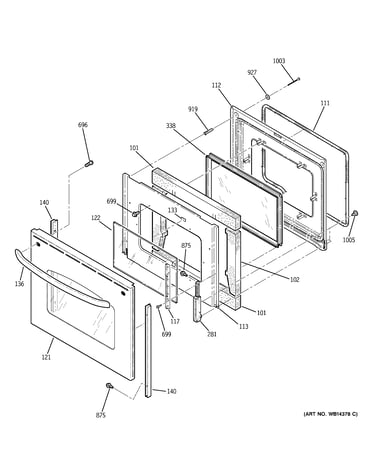

    Door diagram

    Range Oven Door Gasket

    Part #WB04T10001

    Replaced by #WB04T10086

    Info Icon
    Manufacturer substitution
    This part replaces WB04T10001. Substitute parts can look different from the original.
    In Stock
    $51.65
    10% OFF Phone Price : $57.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Dual Surface Element Control Switch for GE JBP81SM2SS - Part WB24T10058

    Control panel diagram

    Range Dual Surface Element Control Switch

    In Stock
    $80.61
    27% OFF Was : $110.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Bake Element for GE JBP81SM2SS - Part WB44X45499

    Body parts diagram

    Unit Asm (h/

    Part #WB44T10049

    Replaced by #WB44X45499

    Info Icon
    Manufacturer substitution
    This part replaces WB44T10049. Substitute parts can look different from the original.
    In Stock
    $126.17
    Minus Item
    Qty
    Plus Item

GE Electric Range JBP81SM2SS FAQs

Yes. GE Profile is widely considered GE’s higher-end mainstream line: it typically adds more cooking features, upgraded styling, and more electronic controls than standard GE models, while still sitting below true luxury lines. For your GE range model JBP81SM2SS, the exact feature set is listed in the JBP81SM2SS owner's manual.

How GE Profile typically compares to other GE lines

In most kitchens, shoppers see these tiers as a practical way to compare value and features.

GE family Typical positioning What you usually get
GE (standard) Core, value-focused Basic cooking modes, simpler controls
GE Profile Mid-to-high end More features, more electronics, upgraded design
GE Café / Monogram Premium / luxury Pro-style design, specialty features, higher price points
What “high end” means for an electric range

“High end” usually comes down to performance features and convenience, not just the badge.

  • More precise oven temperature control and more cooking modes
  • More advanced control panel features (timers, settings, diagnostics)
  • Higher-output or specialty cooktop elements (dual elements, halogen/radiant styles)
  • Better fit-and-finish details (glass, trim, knob feel)
  • More options for cleaning and maintenance features
Why it matters when you’re buying parts or troubleshooting

Higher-end lines often use more electronic controls and specialized surface elements, so accurate model matching matters. When you’re diagnosing a cooktop or control issue on JBP81SM2SS, we recommend confirming the exact feature configuration in the manual first, then matching parts by model.

If you’re troubleshooting control behavior or display issues, the GE freestanding range error codes guide can help you interpret common fault patterns before replacing parts.

Last updated: February 2026

Common problems on the GE JBP81SM2SS electric range include an oven that won’t bake evenly, surface elements that won’t heat, a blank or flashing display with an “F-” code, and an oven light that won’t work. Many issues trace to settings, power supply, or a failed heating or control part.

Most common symptoms we see
  • Oven not baking or roasting properly (temperature or rack position issues)
  • Surface element not heating or heating unevenly
  • Display flashes “F-” plus a number/letter (function error)
  • Display shows “bAd” then “linE” (miswire indication)
  • Clock/timer dead or intermittent (power supply problem)
  • Oven light not working (bulb loose or failed)
Quick checks you can do first (before replacing parts)
  • Confirm the range is fully plugged into a properly grounded outlet; a loose plug can stop the clock/timer.
  • Check the home breaker or fuse; a tripped breaker can cause a blank display.
  • For “F-” errors: disconnect power for at least 30 seconds, then restore power.
  • If an “F-” error happens during self-clean: verify the door latch is fully in the locked position, then press Clear/Off and let the oven cool.
  • If the oven won’t bake right: verify the bake settings and try a different rack position; then follow the thermostat adjustment steps in the JBP81SM2SS owner’s manual.
Common causes and likely fixes
Problem Likely cause Typical fix
Oven won’t heat or cooks unevenly Controls set incorrectly, thermostat needs adjustment, heating circuit issue Verify settings, adjust thermostat, test heating components
Surface element won’t heat Failed element or infinite switch Inspect element, test switch, replace failed part
“F-” code flashing Control detected a function error Power reset; if it returns, service diagnosis
“bAd linE” House wiring to unit is miswired Electrician corrects wiring per JBP81SM2SS installation guide
Oven light out Bulb loose or defective Tighten or replace bulb (use range oven light bulb 40A15)
Why it matters

Heating and control problems can look similar, but the fix is very different. A simple power reset, latch position, or thermostat adjustment can restore normal baking, while repeated error codes or a dead element usually point to a part failure.

Last updated: February 2026

If you have a GE JBP81SM2SS electric range, the oven does not use a gas igniter. When it seems like it is “not igniting,” the usual cause is the oven not getting power, the controls not being set correctly, or a heating circuit issue that prevents the bake or broil element from heating. See the JBP81SM2SS owner’s manual for the correct oven operation steps and troubleshooting checks.

Quick checks we recommend first
  • Confirm the range is fully plugged into a live, properly grounded outlet.
  • Reset the house circuit breaker (or replace the fuse) if it tripped or blew.
  • Make sure the oven controls are set correctly (Bake, temperature selected, then Start/On).
  • If the door is locked from self-clean, let the oven cool and unlock it before baking.
  • Test Broil mode too; if neither Bake nor Broil heats, the issue is often power supply or control.
What “not igniting” usually means on an electric range

On electric ranges like this GE model, you are looking for heat, not a flame. Use this table to narrow it down:

Symptom Most likely cause What to do next
Display dead, clock/timer not working No power to range Check outlet, breaker/fuse, power cord connection
Display works, oven will not heat Controls not set or door locked Re-enter settings; unlock door after cooling
Oven light does not work Bulb loose or failed Tighten or replace the bulb; consider range oven light bulb 40A15
Neither Bake nor Broil heats, but display works Control or power issue Verify 240V supply; if supply is good, suspect control
Why it matters

An electric oven needs the correct power supply and correct control settings to energize the heating elements. A tripped breaker or an improperly set control can look like an “ignition” failure even though the appliance is working as designed.

Last updated: February 2026

GE Profile is GE’s premium line; it typically adds more advanced cooking features, upgraded controls, and higher-end styling than standard GE models, which focus on core performance and value. For your GE electric range model JBP81SM2SS, the exact feature set is best confirmed in the JBP81SM2SS owner's manual.

What you usually get with GE Profile vs standard GE
  • More cooking modes and convenience features (varies by model)
  • More advanced electronic controls and display options
  • More premium finishes and design details
  • More “feature density” at a higher price point
  • Standard GE models prioritize straightforward operation and essential features
How to compare two specific ranges quickly

Use this checklist when you are deciding between a standard GE range and a GE Profile range:

What to compare Standard GE GE Profile
Controls Basic to mid-level More advanced, feature-rich
Cooking features Core bake/broil More specialty modes (model-dependent)
Design/finish Practical More premium styling
Price Lower Higher
Why it matters

If you want the simplest operation and best value, standard GE is usually the better fit. If you want more cooking options and a more premium look and control experience, GE Profile is typically the upgrade path.

Last updated: February 2026
