KitchenAid KBFN402ESS00 refrigerator Parts

The most common KitchenAid refrigerator problems are cooling issues (fresh food too warm or freezer too warm), ice maker or water dispenser trouble, and water leaks. On the KitchenAid KBFN402ESS00, these symptoms usually trace back to airflow problems, a restricted filter, a drain issue, or a failing fan or temperature sensor; see the KBFN402ESS00 owner's manual for model-specific checks.

Most common symptoms and what they usually point to

• Fridge not cooling evenly: dirty condenser area, blocked vents, or a weak evaporator fan
• Freezer cold but fridge warm: evaporator fan or airflow restriction

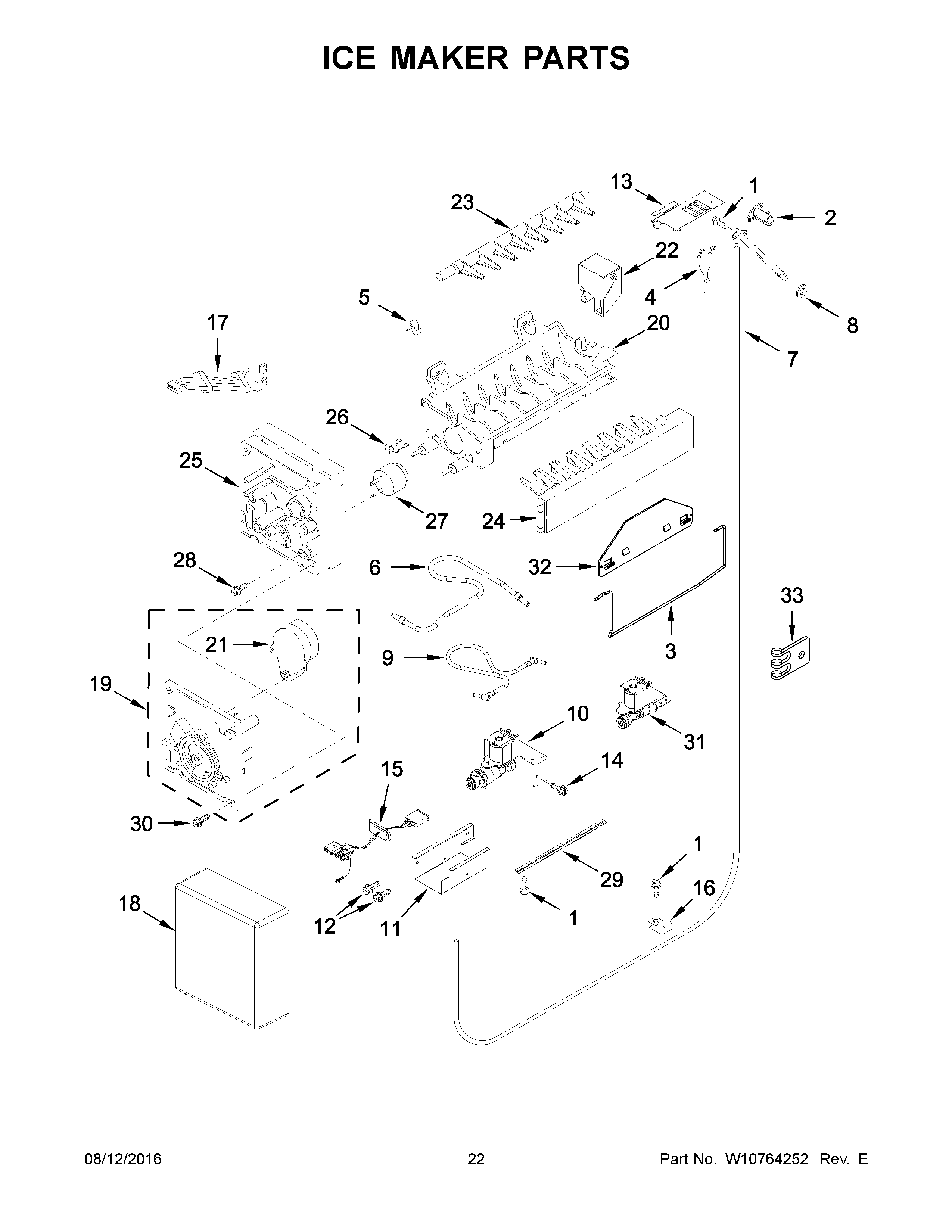

• No ice or slow ice: water supply restriction, filter restriction, or ice maker temperature control issue
• Water under the refrigerator: defrost drain problem or condensation management issue
• Bad odors: saturated air filter or spoiled food trapped in drawers

Quick checks we recommend before replacing parts

1. Confirm temperature settings and allow 24 hours after any adjustment.
2. Make sure air vents are not blocked by food packages.
3. Clean dust from the grille and condenser area (restricted airflow causes temperature swings).
4. If water or ice is slow, replace the water filter and flush the system.
5. If you hear unusual fan noise or the fridge warms up, check for frost buildup that can interfere with airflow.

Parts that commonly solve these problems on this model

Problem you see	Common part involved	Example part on this page
Slow water, weak ice production	Water filter restriction	Refrigerator filter EDR3RXD1
Odors that return quickly	Air filter saturated	Refrigerator air filter W10311524

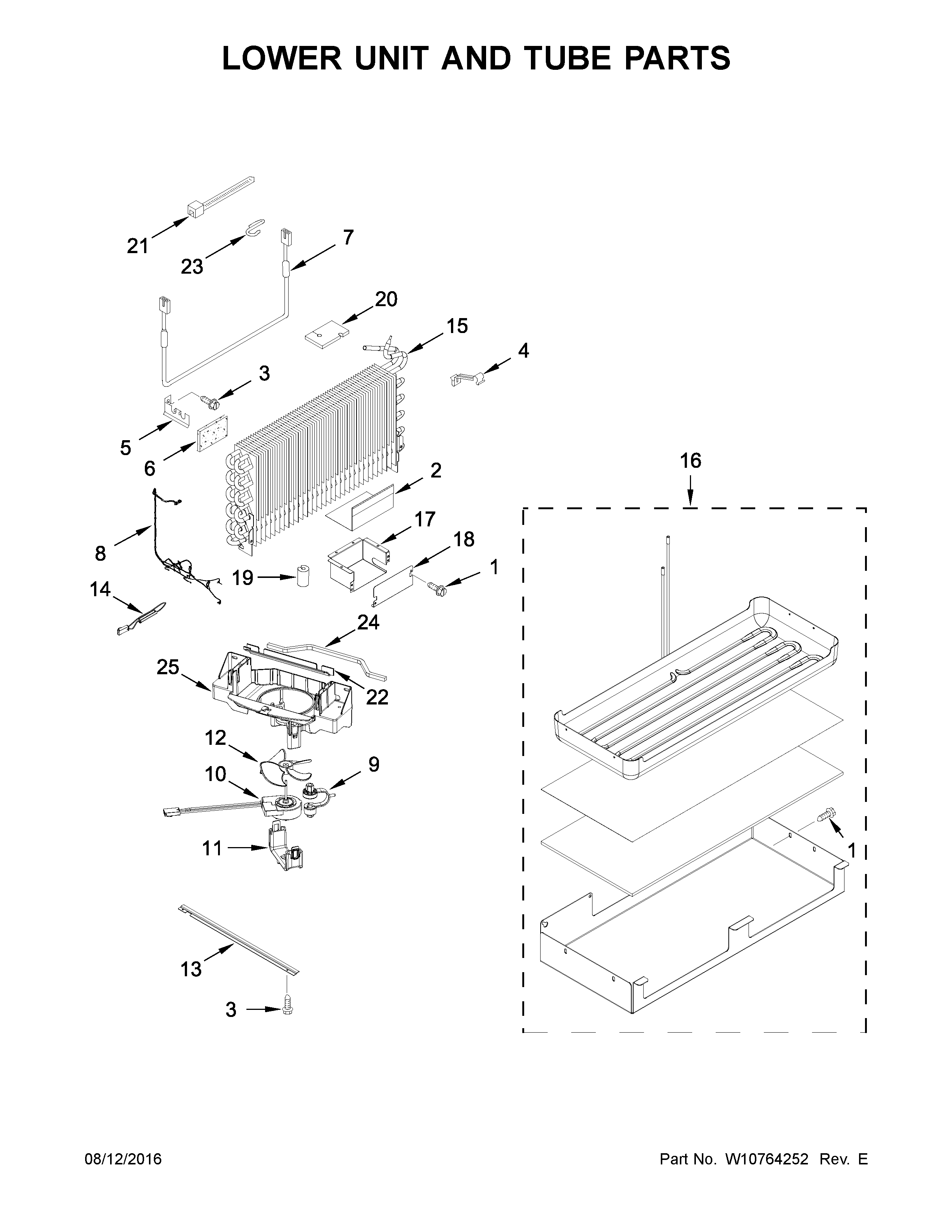

Warm temps, poor airflow, fan noise	Evaporator fan not running correctly	Refrigerator evaporator fan motor W11396715
Erratic temps or false readings	Temperature sensor issue	Refrigerator thermistor W11724692

Why it matters

Cooling, ice, and leak complaints often share the same root cause: restricted airflow or restricted water flow. Fixing the underlying restriction first (cleaning, vent clearance, filter replacement) prevents repeat failures and helps the compressor and sealed system run normally.

If you need to order replacement parts for KBFN402ESS00, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A bottom-mount refrigerator like KitchenAid model KBFN402ESS00 keeps the fresh-food section higher, where we use it most, and places the freezer in the lower compartment. That layout improves everyday ergonomics and makes it easier to see and reach refrigerated items.

Key advantages of bottom-mount design

• Fresh foods sit higher, so we bend less for daily items like milk, produce, and leftovers
• Better visibility of refrigerator shelves helps reduce forgotten food and waste
• The lower freezer compartment keeps bulky frozen items out of the main sightline
• Wide refrigerator shelving is convenient for platters and tall containers
• Built-in bottom-mount models often support panel-ready installations; follow the installation guide for required clearances and panel spacing

Bottom-mount vs. top-freezer: quick comparison

Feature	Bottom-mount refrigerator	Top-freezer refrigerator
Fresh-food access	Most convenient (higher shelves)	Requires more bending
Freezer location	Lower compartment	Upper compartment
Best fit for	Heavy fresh-food use	Heavy frozen-food use
Typical organization	More emphasis on fridge shelving	More emphasis on freezer shelving

What to consider for KBFN402ESS00

Bottom-mount built-in designs can be sensitive to installation details. We recommend checking these items before purchase or a remodel:

• Cabinet opening and ventilation requirements
• Door swing clearance and handle clearance
• Panel dimensions, reveal, and safe gaps to reduce pinch risk
• Leveling and alignment so doors seal correctly

Why it matters

Most households open the refrigerator compartment far more often than the freezer. Keeping fresh food higher reduces strain and speeds up meal prep, while the lower freezer compartment preserves prime, easy-reach space for everyday refrigerated items.

Last updated: February 2026

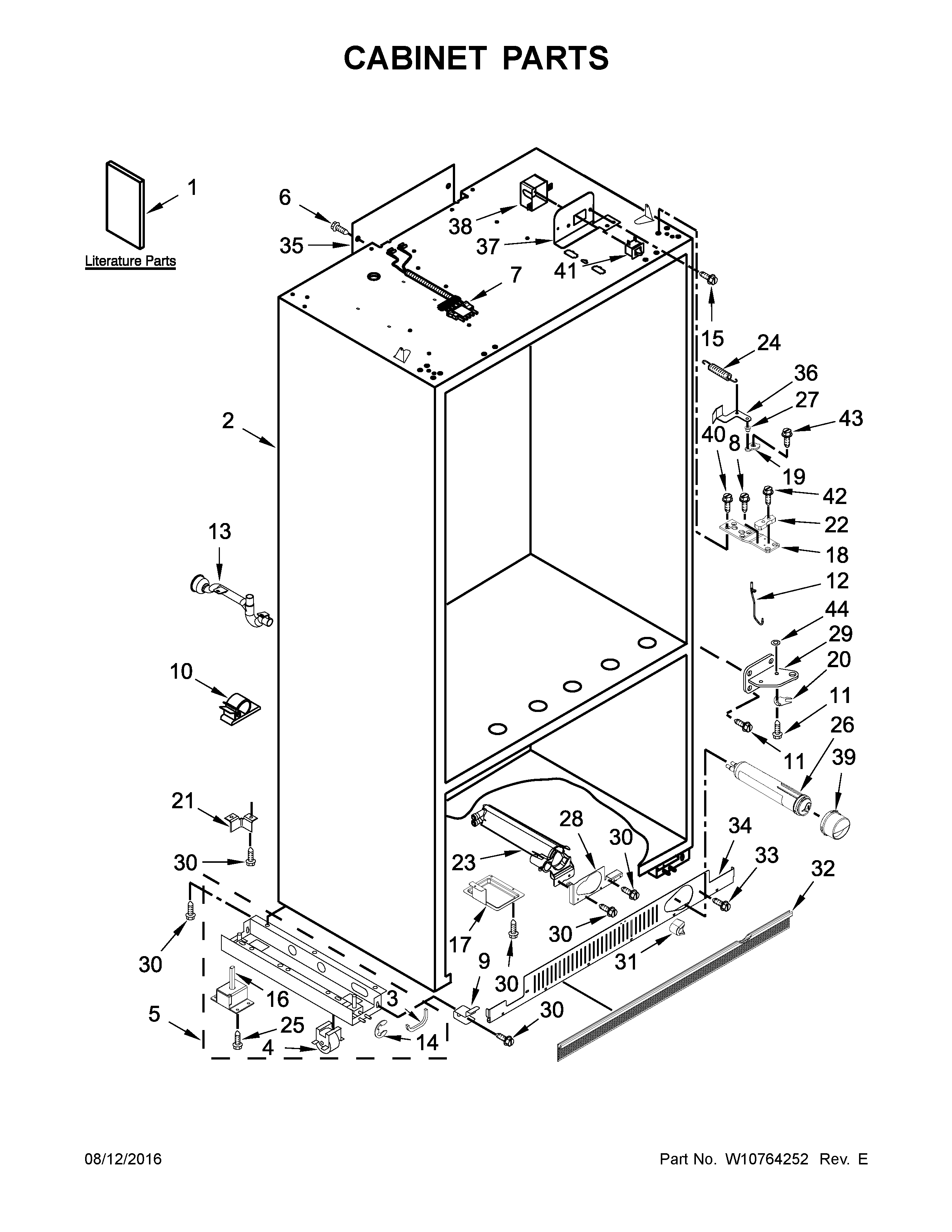

On KitchenAid refrigerator model KBFN402ESS00, the bottom grille (toe grille or toe-kick) typically releases from spring clips; you grasp both ends, lift slightly if needed, then pull straight out evenly to remove it without bending the panel. Use the KBFN402ESS00 installation guide for the exact grille style on your unit.

Steps to remove the bottom grille (toe-kick)

• Open both refrigerator doors for clearance and better grip.
• Place a towel on the floor to protect the finish.
• Grasp the grille at both ends (left and right corners).
• Pull straight forward with steady, even pressure; avoid twisting.
• If it resists, lift the grille slightly while pulling to disengage the clips.
• Set the grille on a soft surface to prevent scratches.

Reinstalling the grille

• Line up the grille with the lower frame and clip locations.
• Press straight in at both ends until it snaps fully into place.
• Confirm it sits flush and does not rattle.

If the grille will not come off

What you notice	What to do
One side releases first	Re-grip both ends and pull evenly to prevent bending.
It feels stuck	Check for packing tape, debris, or a misaligned edge; clear the obstruction.
It flexes a lot	Reduce force; pull closer to the ends and keep the pull straight out.

Why it matters

The bottom grille helps protect the machine compartment and supports proper airflow. Removing it correctly prevents cosmetic damage and makes routine cleaning easier.

If your grille is damaged or missing, the model parts list includes the refrigerator grille assembly W11747344. You can also search by model number on Sears PartsDirect.

Last updated: February 2026
