Hotpoint
Top-Mount Refrigerator

Model # CTX18EACGRAA Official Hotpoint refrigerator - c series

Here are the diagrams and repair parts for Official Hotpoint CTX18EACGRAA refrigerator - c series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |

40a15/22 STD372402
#435A

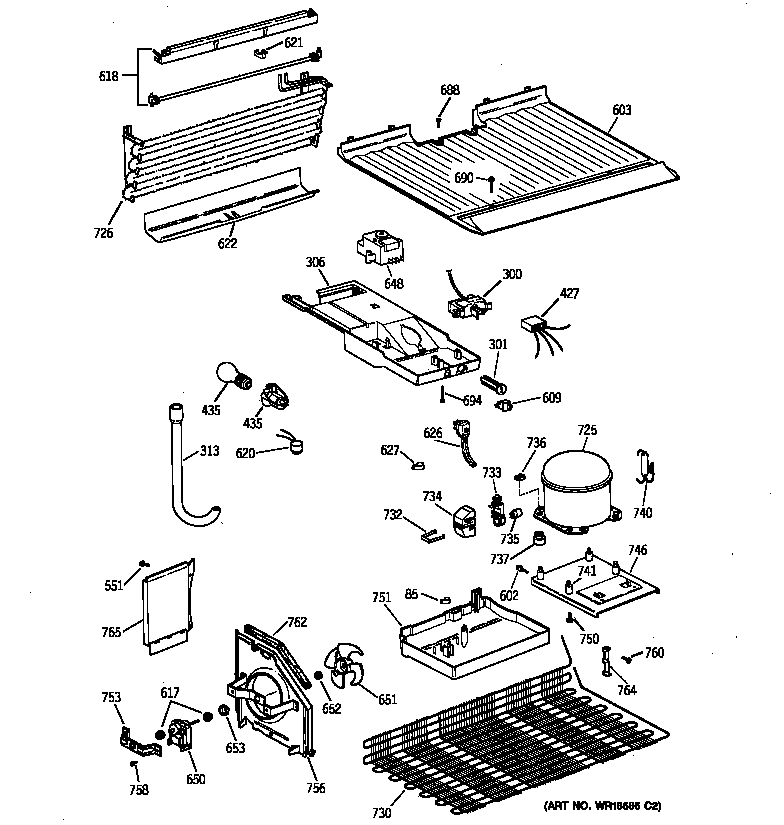

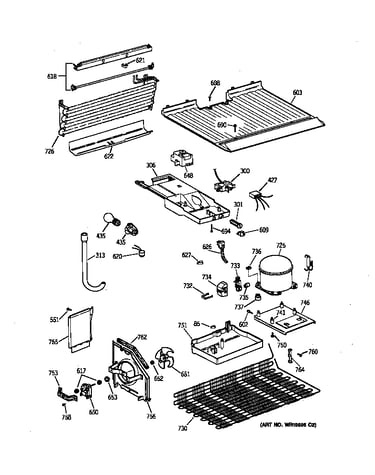

Unit parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Refrigerator Freezer Wire Shelf (replaces Wr71x2076) WR71X2086
#212

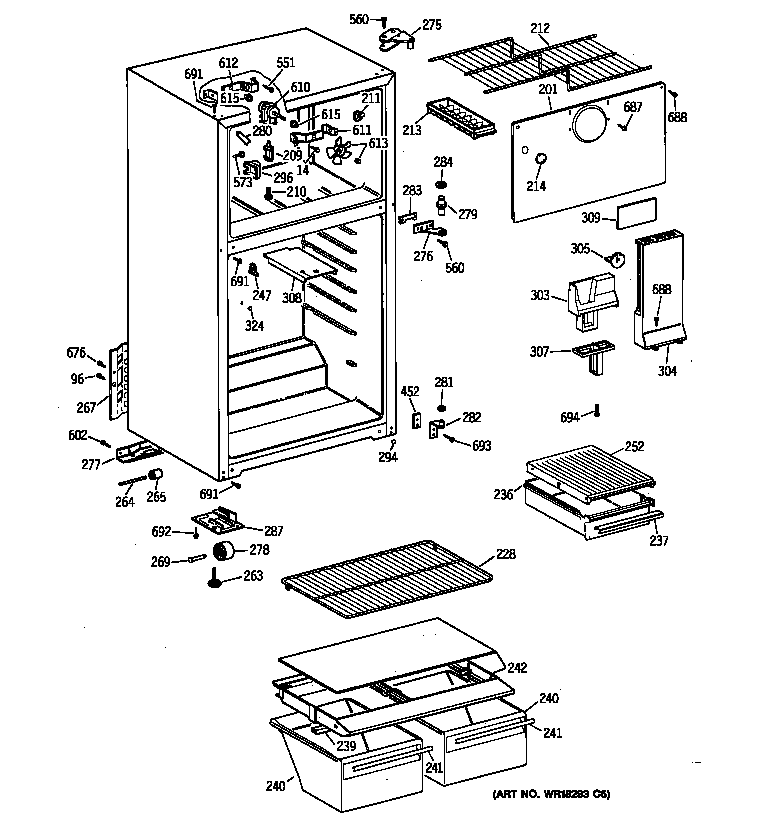

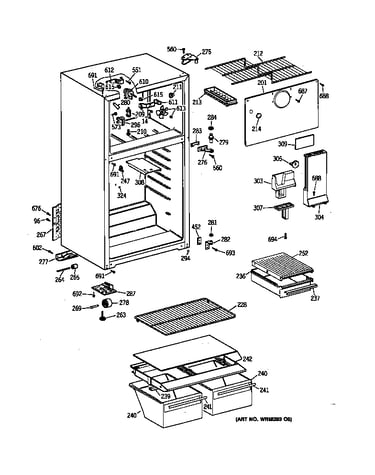

Cabinet diagram

Refrigerator freezer wire shelf (replaces wr71x2076)

Part #WR71X2086

BEST SELLER
$82.03
6% OFF Phone Price : $87.03
In Stock
Refrigerator Dairy Door WR22X503
#106

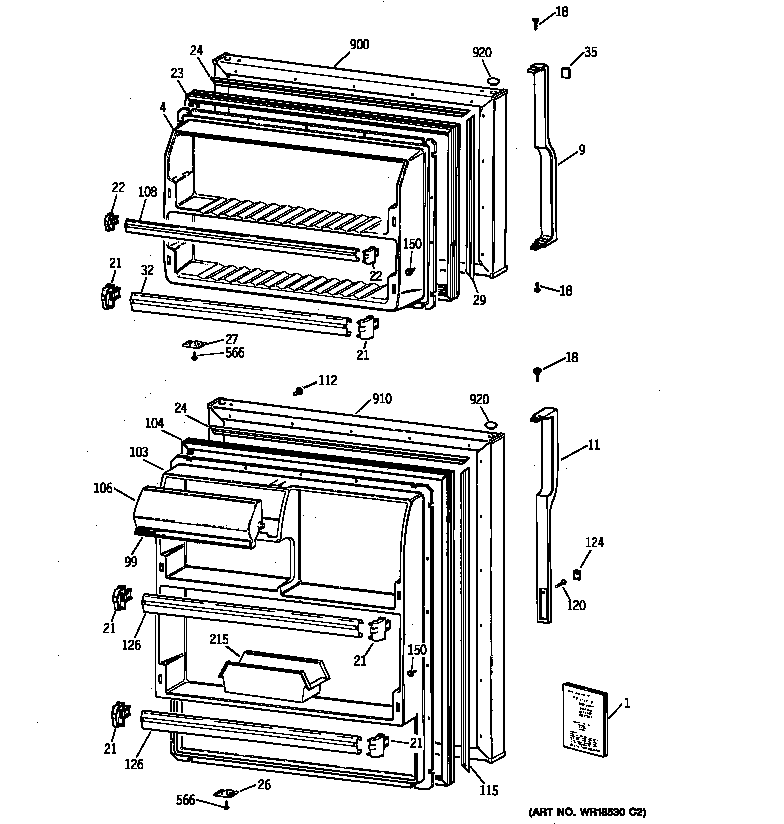

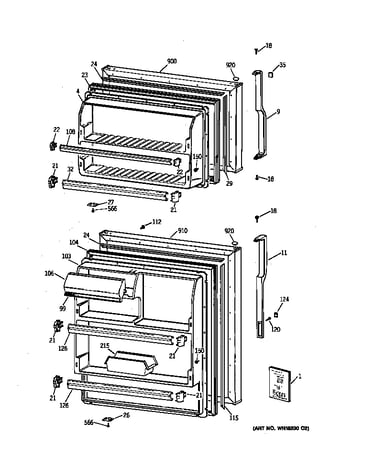

Doors diagram

Refrigerator dairy door

Part #WR22X503

Replaced by #WR22X10068

?
Manufacturer substitution
This part replaces WR22X503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.42
13% OFF Phone Price : $15.42
In Stock
Refrigerator Freezer Door Shelf Rail (replaces Wr02x8345, Wr2x7617) WR2X8345
#21

Doors diagram

Refrigerator freezer door shelf rail (replaces wr02x8345, wr2x7617)

Part #WR2X8345

BEST SELLER
This item is not returnable
$15.26
12% OFF Phone Price : $17.26
In Stock
Refrigerator Freezer Door Shelf Rail (replaces Wr17x3691, Wr17x3985, Wr17x4026, Wr71x10006) WR17X3880
Refrigerator freezer door shelf rail (replaces wr17x3691, wr17x3985, wr17x4026, wr71x10006)

Part #WR17X3880

$24.38
17% OFF Phone Price : $29.38
In Stock
Grommet WR2X10098
#617

Unit parts diagram

Grommet

Part #WR2X10098

Replaced by #WR02X10098

?
Manufacturer substitution
This part replaces WR2X10098. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Shelf WR17X4026
#32

Doors diagram

Refrigerator door shelf

Part #WR17X4026

Replaced by #WR17X3880

?
Manufacturer substitution
This part replaces WR17X4026. Substitute parts can look different from the original.
$24.38
17% OFF Phone Price : $29.38
In Stock
Shelf Asm St WR71X2487
#228

Cabinet diagram

Shelf asm st

Part #WR71X2487

Replaced by #WR71X10378

?
Manufacturer substitution
This part replaces WR71X2487. Substitute parts can look different from the original.
$126.58
7% OFF Phone Price : $136.58
In Stock
Refrigerator Light Socket (replaces Swr2x7270, Wr02x11990, Wr02x9391, Wr2x7270, Wr2x8265) WR2X9391
#435B

Unit parts diagram

Refrigerator light socket (replaces swr2x7270, wr02x11990, wr02x9391, wr2x7270, wr2x8265)

Part #WR2X9391

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Refrigerator Deli Drawer WR32X1448
#236

Cabinet diagram

Refrigerator deli drawer

Part #WR32X1448

$68.97
7% OFF Phone Price : $73.97
In Stock
