For a Maytag bottom-mount refrigerator like model MFI2670XEM0, a bottom-mount design is usually “better” when you want fresh-food items at eye level and more freezer organization; a top-mount is usually “better” when you want a simpler layout and typically lower purchase and repair costs. Use your cooking habits and kitchen layout to decide.

Quick comparison

Feature	Top-mount (freezer on top)	Bottom-mount (freezer on bottom)
Everyday access	Freezer is easiest to reach	Fresh food is easiest to reach
Freezer organization	Often fewer pull-out options	Usually better with baskets/drawers
Ergonomics	More bending for fresh food	Less bending for fresh food
Typical cost	Typically lower	Typically higher
Common “fit”	Smaller kitchens, basic needs	Families, frequent fresh-food use

How to choose for your household

• If you use fresh foods daily (produce, deli, leftovers), bottom-mount usually feels more convenient.
• If you use the freezer more than the fridge, top-mount can be more comfortable.
• If you want better freezer organization (baskets, dividers), bottom-mount usually wins.
• If you want the simplest design with fewer convenience features, top-mount is often the better match.
• If you are tight on space, compare door swing and drawer clearance using the owner's manual.

Why it matters

The “better” refrigerator is the one that matches how you reach for food. Layout affects comfort (bending and lifting), how well you can organize groceries, and how often doors stay open, which can impact temperature stability.

Model-specific tip for MFI2670XEM0 owners

If your decision is driven by features like filtered water and ice, keep in mind that bottom-mount models like the MFI2670XEM0 commonly use a replaceable filter; the correct replacement for this model is the refrigerator water filter EDR4RXD1.

Last updated: February 2026

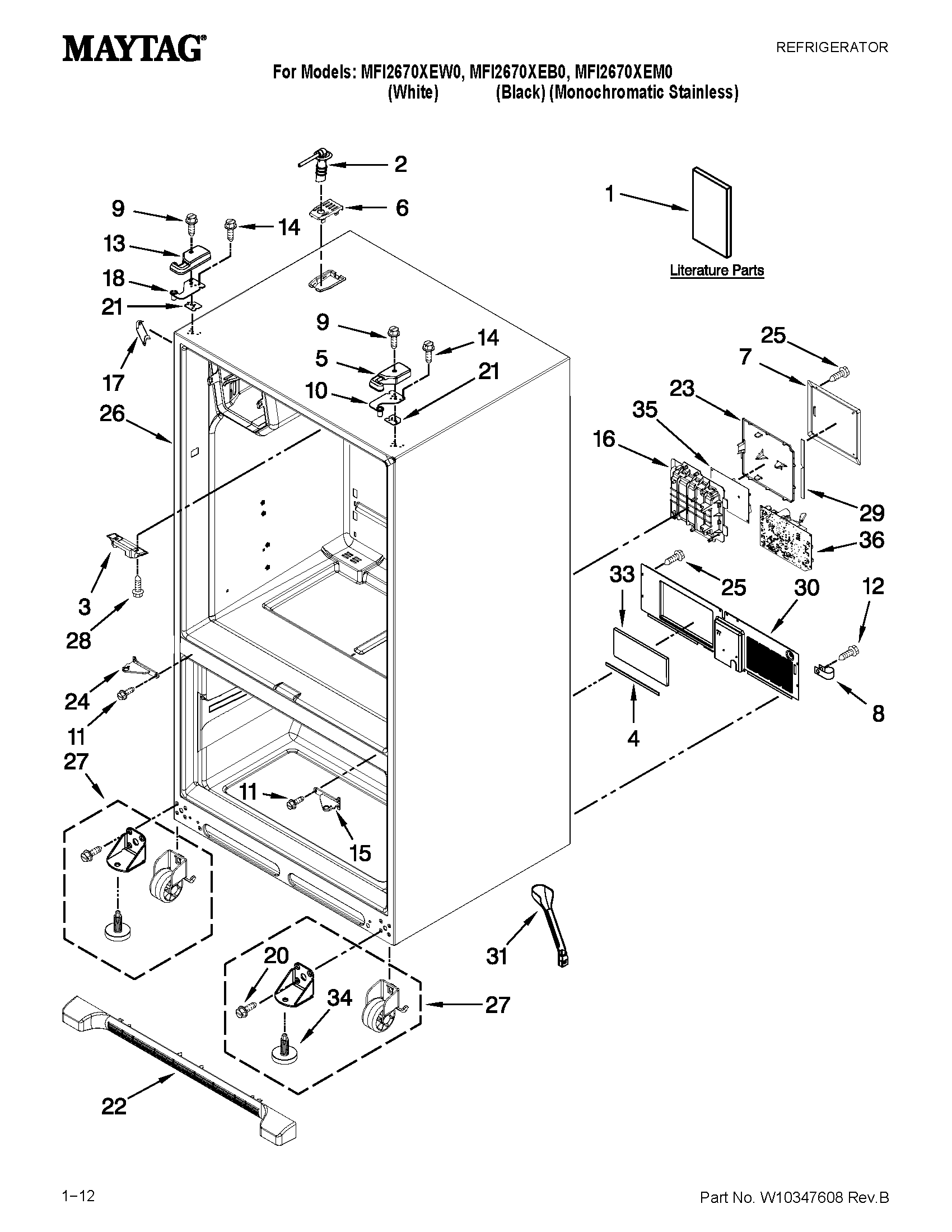

To lower the front of your Maytag MFI2670XEM0 refrigerator, we adjust the front leveling legs (not the rear wheels). Turn the leveling legs counterclockwise to lower the front, then recheck door swing and sealing. Use the steps in the MFI2670XEM0 owner's manual for your exact access points.

How to lower the front (leveling legs)

1. Unplug the refrigerator (or switch off power) for safety.
2. Remove the base grille or toe grille at the bottom front (most snap off or use a few screws).
3. Locate the left and right front leveling legs near the front corners.
4. Use a wrench or nut driver to turn each leveling leg:
   • Counterclockwise: lowers that front corner
   • Clockwise: raises that front corner
5. Adjust both sides in small, equal turns to keep the cabinet level side-to-side.

Quick checklist

• Keep the refrigerator stable; it should not rock.
• Set a slight backward tilt so the doors close on their own.
• Confirm the door gasket seals all the way around.

What to check after you lower it

• Door alignment and closing: doors should close smoothly without popping open.
• Gasket seal: look for gaps, wrinkles, or warm air leaks.
• Ice maker and dispenser performance: leveling affects door sealing, which affects temperature.

If the door seal is torn or no longer sealing after leveling, replacing the gasket is the right fix (for example, the refrigerator gasket panel (gray) W10830055 is one gasket option listed for this model).

Common issues and fixes

• Legs hard to turn: take weight off the legs by slightly tilting the refrigerator back, then adjust.
• Still not level: verify the floor is solid and the rollers are not sitting in a dip.
• Doors not sealing: warm the gasket with a hair dryer on low and reshape, or replace the gasket if damaged.

Why it matters

Proper leveling on the MFI2670XEM0 helps the doors self-close, keeps the door gasket sealed, and supports stable refrigerator and freezer temperatures (which helps prevent frost buildup and ice maker issues).

Leveling targets (typical)

Check	What you want	Why
Side-to-side	Level	Prevents door twist and uneven sealing
Front-to-back	Slight tilt back	Helps doors close and seal

Last updated: February 2026

Water on the floor around your Maytag MFI2670XEM0 refrigerator usually comes from a loose or leaking water supply connection, a cracked supply line, a clogged/iced defrost drain, or a problem in the dispenser or ice maker water circuit. We focus first on the simplest checks you can do safely.

Quick checks (most common causes)

• Verify the household shutoff valve and the tubing connection at the back of the refrigerator are tight and not seeping.
• Inspect the water supply line for kinks, rub marks, pinholes, or cracks.

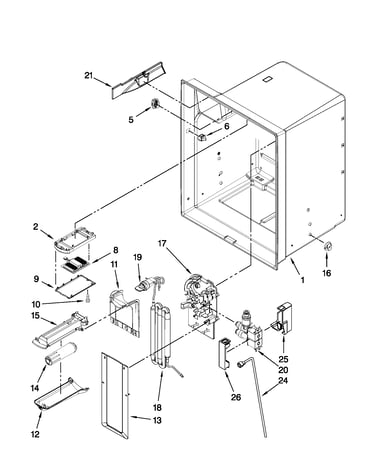

• Look for dripping at the water filter area; reseat the filter and check the housing for cracks.
• Check the freezer floor for a sheet of ice (often points to a clogged defrost drain overflowing during defrost).
• If the leak appears only when dispensing water or making ice, suspect the inlet valve or an internal water line.

Step-by-step: isolate where the leak starts

1. Dry everything: Wipe up water and dry the back wall, floor, and under the crisper and freezer bins.
2. Run one function at a time:
   • Dispense water for 30 to 60 seconds.
   • Wait for an ice maker fill cycle (or turn the ice maker off, then on).
3. Check these leak points:
   • Back of unit: supply line connection and valve area
   • Under fresh food section: filter housing and tubing
   • Under freezer: drain trough area and bottom pan

Parts that commonly cause floor leaks

Symptom you see	Most likely area	Part to consider
Leak only during ice/water use	Water inlet valve or fittings	Refrigerator inlet valve WPW10498990
Drips near filter compartment	Filter not seated, housing issue	Refrigerator water filter EDR4RXD1
Water appears after defrost, ice on freezer floor	Defrost drain restriction	Check drain path per owner's manual

Why it matters

Even a small leak can warp flooring, cause odors, and create ice buildup that reduces cooling efficiency. Finding whether the leak is supply-side (pressurized) or defrost-side (gravity drain) speeds up the fix.

Last updated: February 2026

Ice on the bottom of the freezer in your Maytag MFI2670XEM0 almost always means the defrost drain is clogged or frozen. During defrost, meltwater cannot reach the drain pan, so it refreezes on the freezer floor and builds into a thick sheet. See the defrost and drain details in the owner's manual.

What’s happening

During the automatic defrost cycle, water should flow into a drain trough, down a drain tube, and into the drain pan underneath the refrigerator. When that path is restricted by ice or debris, water backs up and freezes where it lands.

Why it matters

A blocked drain causes repeat ice buildup, can reduce airflow, and can lead to water leaking into the fresh food section when the ice melts.

Quick checks we recommend

• Look for a flat ice sheet on the freezer floor (not just frost on food).
• Check for ice buildup under the rear freezer panel near the evaporator area.
• Inspect the freezer door seal for gaps, tears, or food packages preventing closure.
• Confirm the refrigerator is level; a slight backward tilt helps water drain correctly.
• Watch for water near the crisper drawers, a common sign of drain backup.

How to clear the drain (typical method)

1. Unplug the refrigerator.
2. Remove the freezer drawer and bins.
3. Thaw the ice on the freezer floor using warm towels or a hair dryer on low.
4. Find the drain hole/trough under the evaporator area.
5. Flush the drain with hot water using a turkey baster or squeeze bottle until it flows freely.

Symptom guide

What you see	Most likely cause	What fixes it
Ice sheet on freezer floor	Clogged or frozen defrost drain	Thaw and flush drain
Water under crispers	Drain backing up into fresh food section	Clear drain; level unit
Frost plus ice buildup	Door not sealing or left ajar	Clean/adjust gasket and door

Parts you may handle during access

If you remove the rear freezer panel for access, reinstalling it correctly is important for airflow; use the refrigerator evaporator cover W10308421 if yours is damaged.
