GE JKP45WP1 electric wall oven Parts
Here are the diagrams and repair parts for GE JKP45WP1 electric wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JKP45WP1 Wall Ovens
#253

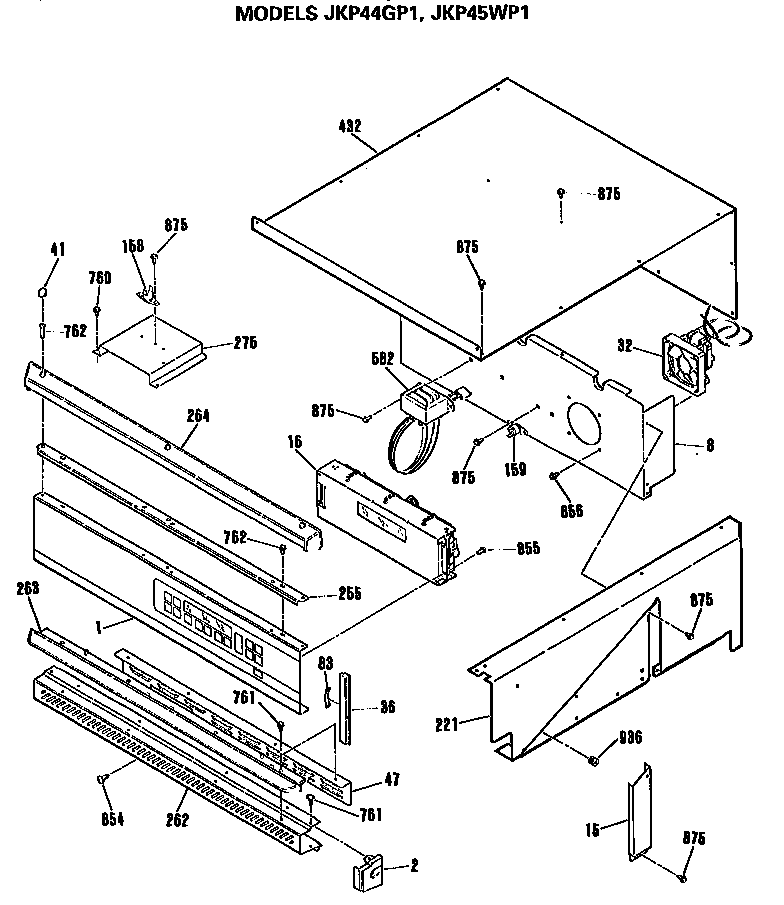

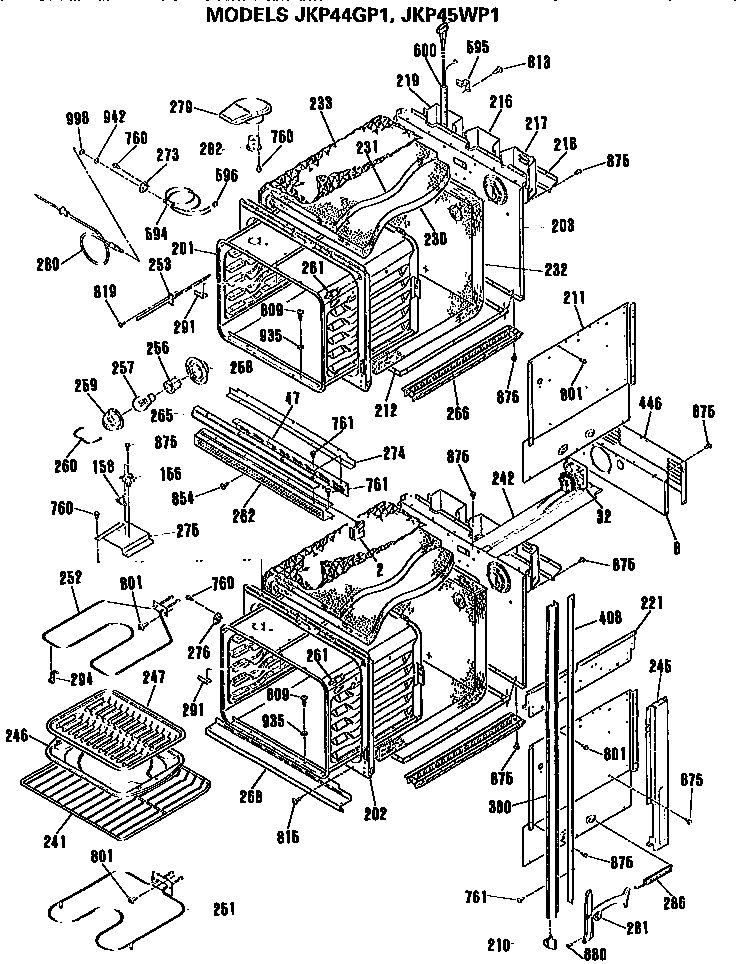

All parts diagram
Sensor
Part #WB20X106Replaced by #WB21X5301
Manufacturer substitutionThis part replaces WB20X106. Substitute parts can look different from the original.In Stock$128.509% OFF Phone Price : $140.50
Qty
#856
All parts diagram
Range Screw
Part #WB1X1293This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86Qty#294
All parts diagram
Range Broil Element Support
In Stock$10.8416% OFF Phone Price : $12.84Qty#280
All parts diagram
Range Oven Meat Probe Sensor
Part #WB20X5050
The manufacturer no longer makes this part, and there's no substitute part
#158
All parts diagram
Wall Oven Cooling Fan Limit Switch
In Stock$44.4116% OFF Was : $53.04Qty#801
All parts diagram
Screw-4-pk
Part #WB1M01Replaced by #WB1M1
Manufacturer substitutionThis part replaces WB1M01. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1311% OFF Phone Price : $9.13Qty#158
All parts diagram
Limit Switch
Part #WB24K5034Replaced by #WB24K5085
Manufacturer substitutionThis part replaces WB24K5034. Substitute parts can look different from the original.In Stock$56.4710% OFF Phone Price : $62.47Qty#156
All parts diagram
Wall Oven High-limit Thermostat
In Stock$83.307% OFF Phone Price : $89.30Qty#761
All parts diagram
Range Screw
Part #WB1K5062This item is not returnableIn Stock$5.1448% OFF Was : $9.86Qty#132
All parts diagram
Oven Door Gasket
Part #WB2X9683Replaced by #WB32K5038
Manufacturer substitutionThis part replaces WB2X9683. Substitute parts can look different from the original.In Stock$125.769% OFF Phone Price : $137.76Qty
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
