Kelvinator
Top-Mount Refrigerator

Model # TPK160PN1T Official Kelvinator top-mount refrigerator - lk30588300

Here are the diagrams and repair parts for Official Kelvinator TPK160PN1T top-mount refrigerator - lk30588300, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 168 parts  |
Refrigerator Defrost Timer
#17

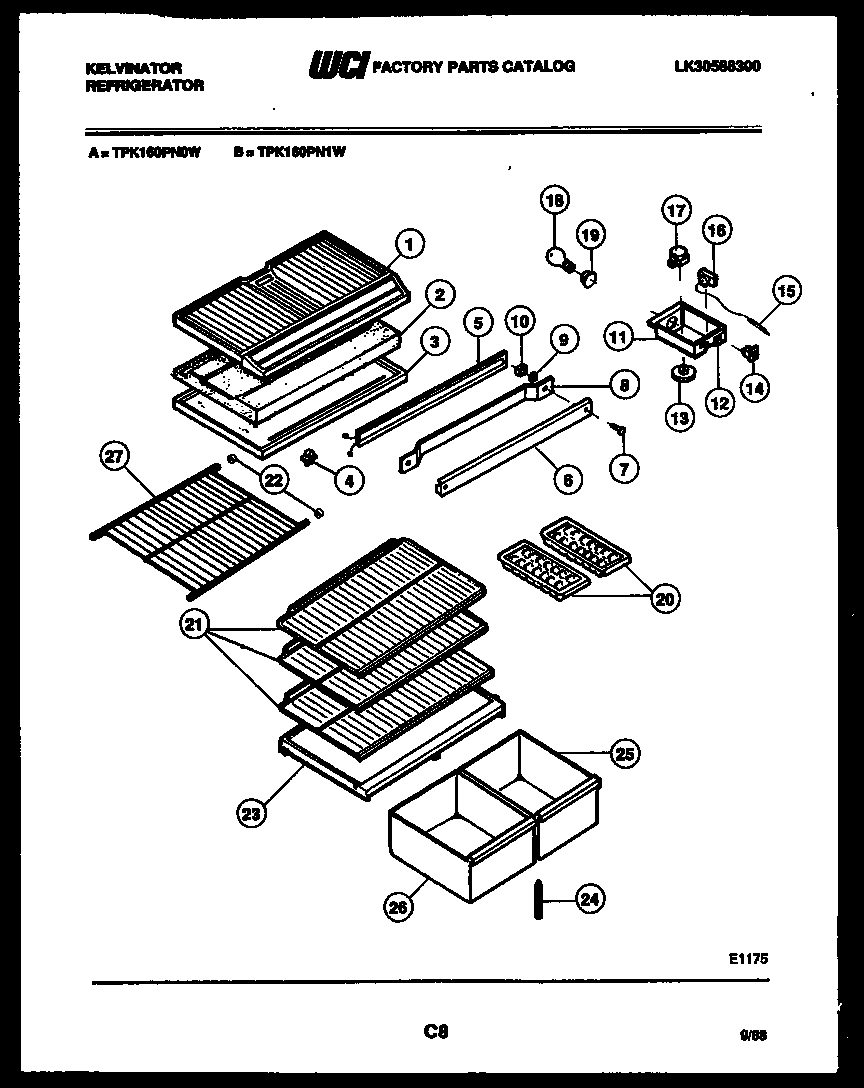

Shelves and supports diagram

Defrost timer

Part #G187484

Replaced by #215846602

?
Manufacturer substitution
This part replaces G187484. Substitute parts can look different from the original.
BEST SELLER
$30.53 |
14% OFF Phone Price : $35.53
In Stock
Refrigerator Defrost Bi-Metal Thermostat
#21

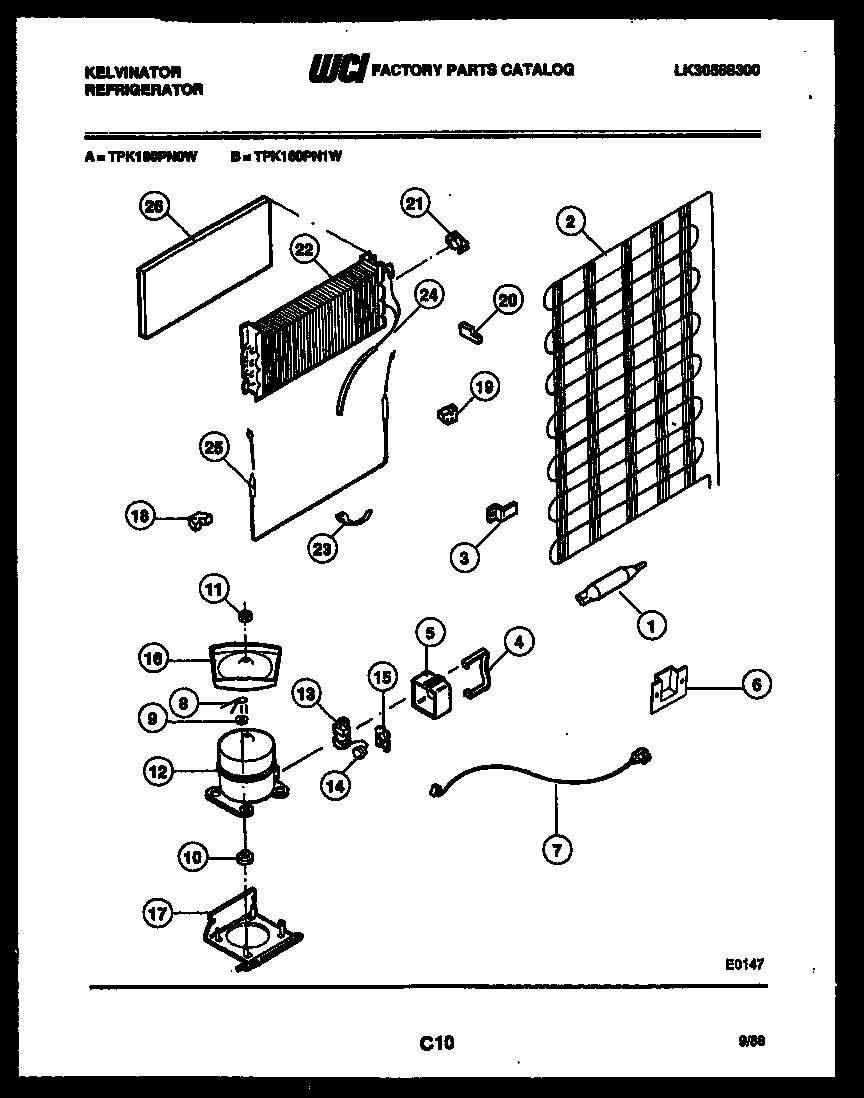

System and automatic defrost parts diagram

Defrost thermostat

Part #G162690-01

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G162690-01. Substitute parts can look different from the original.
BEST SELLER
$23.79 |
17% OFF Phone Price : $28.79
In Stock
Refrigerator Ice Cube Tray
#20

Shelves and supports diagram

Refrigerator ice tray

Part #G156376-18

Replaced by #215667501

?
Manufacturer substitution
This part replaces G156376-18. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Refrigerator Door Hinge
#22

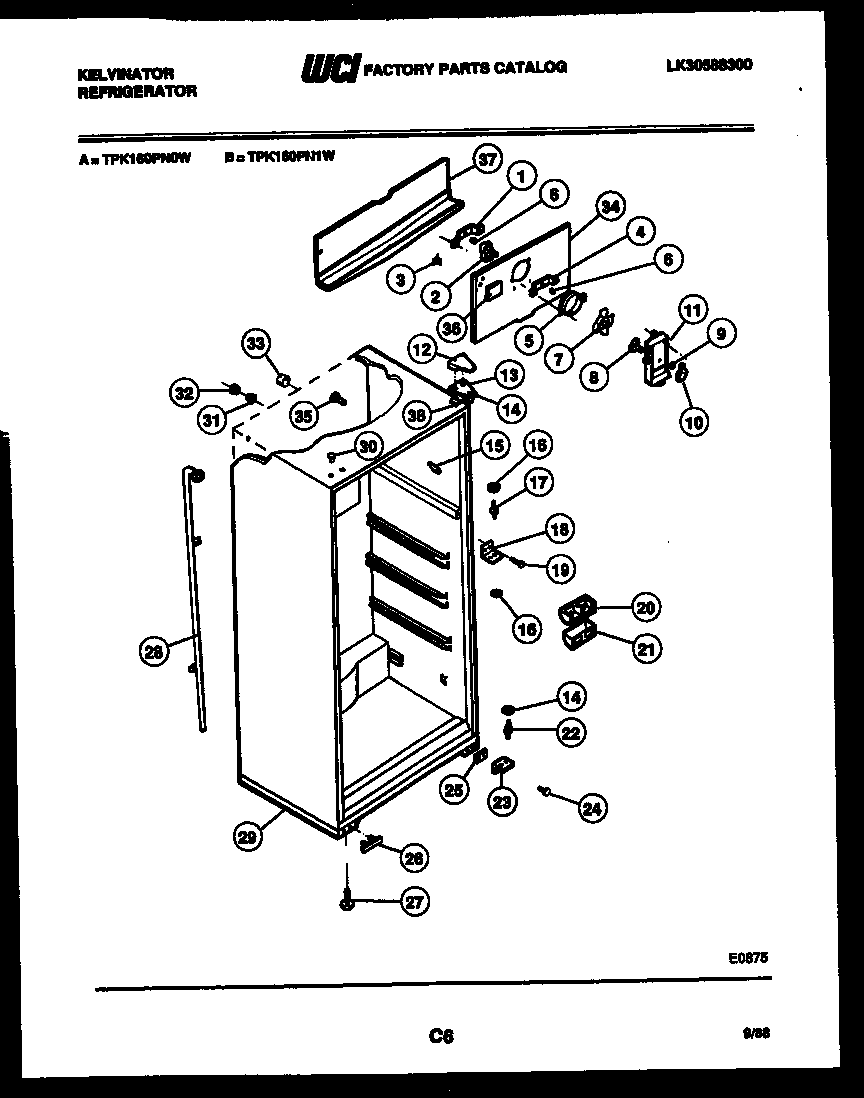

Cabinet parts diagram

Lower hinge pin

Part #G166505

Replaced by #5303001321

?
Manufacturer substitution
This part replaces G166505. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Refrigerator Door Hole Plug (replaces 218110901, 218915701, 240383001, 240428301, 240479601, 297095300)
#8

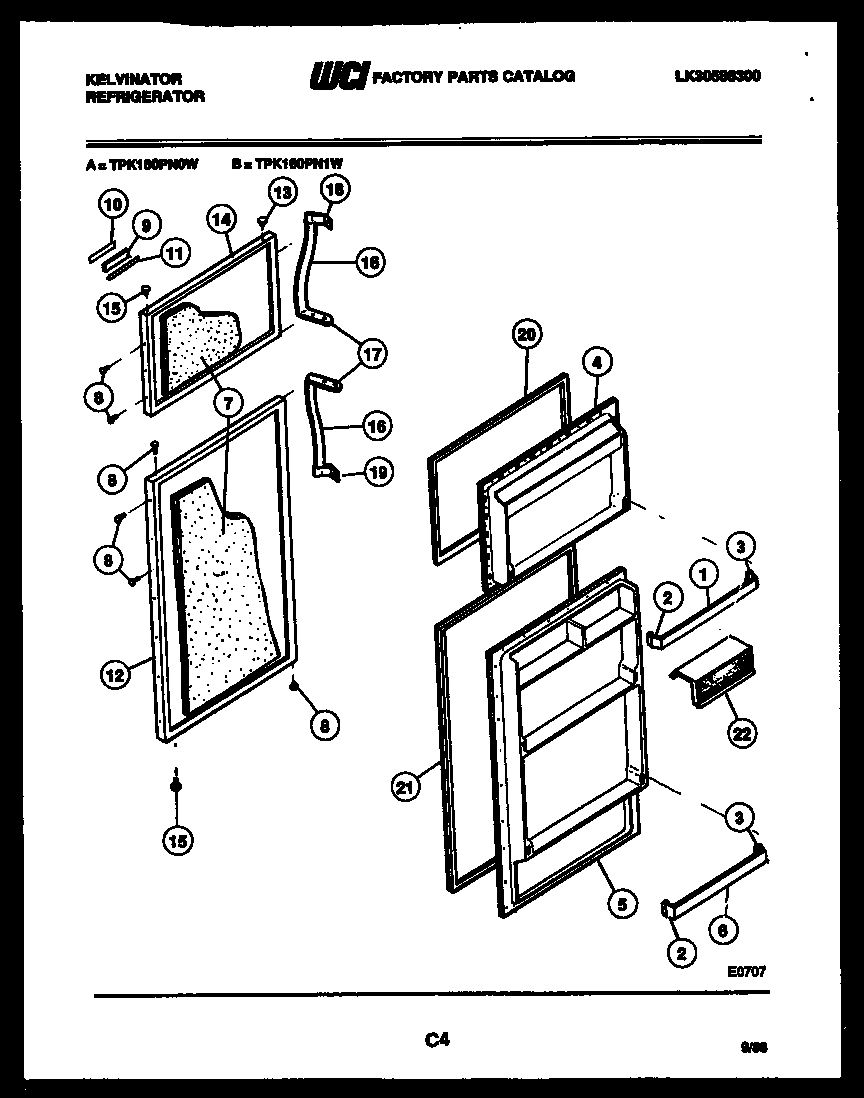

Door parts diagram

Refrigerator button plug

Part #G162977-01

Replaced by #240494001

?
Manufacturer substitution
This part replaces G162977-01. Substitute parts can look different from the original.
This item is not returnable
$19.78 |
9% OFF Phone Price : $21.78
In Stock
Refrigerator Sound Dampening Pad

#NI

All parts diagram

Dampening sound

Part #G169873

Replaced by #5303307583

?
Manufacturer substitution
This part replaces G169873. Substitute parts can look different from the original.
$54.79 |
8% OFF Phone Price : $59.79
In Stock
Refrigerator Screw
#17A

Shelves and supports diagram

Timer screw

Part #G105289

Replaced by #5304455649

?
Manufacturer substitution
This part replaces G105289. Substitute parts can look different from the original.
$16.77
In Stock
Refrigerator Compressor
#12

System and automatic defrost parts diagram

Compr-r12 w/

Part #G175410

Replaced by #5304476642

?
Manufacturer substitution
This part replaces G175410. Substitute parts can look different from the original.
$452.57 |
28% OFF MSRP : $630.00
In Stock
Refrigerator Screw, 8-15A x 0.5-in
#5A

Cabinet parts diagram

Screw

Part #G144049

Replaced by #218843801

?
Manufacturer substitution
This part replaces G144049. Substitute parts can look different from the original.
$13.26
In Stock
Refrigerator Evaporator Fan Motor
#2

Cabinet parts diagram

Evaporator motor

Part #G173301

Replaced by #5300158289

?
Manufacturer substitution
This part replaces G173301. Substitute parts can look different from the original.
$86.18 |
5% OFF Phone Price : $91.18
Back Order
