GE JGHC60GEJ3 gas range Parts
Here are the diagrams and repair parts for GE JGHC60GEJ3 gas range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forJGHC60GEJ3 Ranges

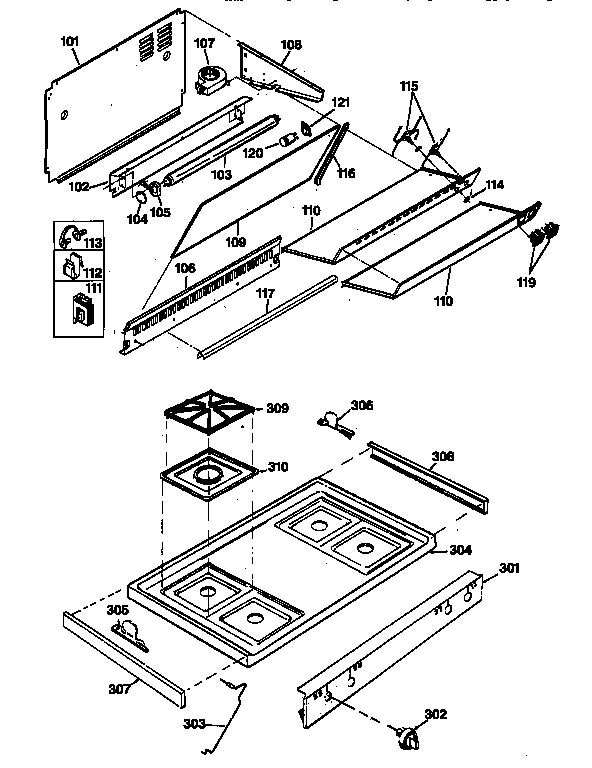

Backsplash & cooktop diagram
Trim Up L.h.
Part #WB07X1385
The manufacturer no longer makes this part, and there's no substitute part

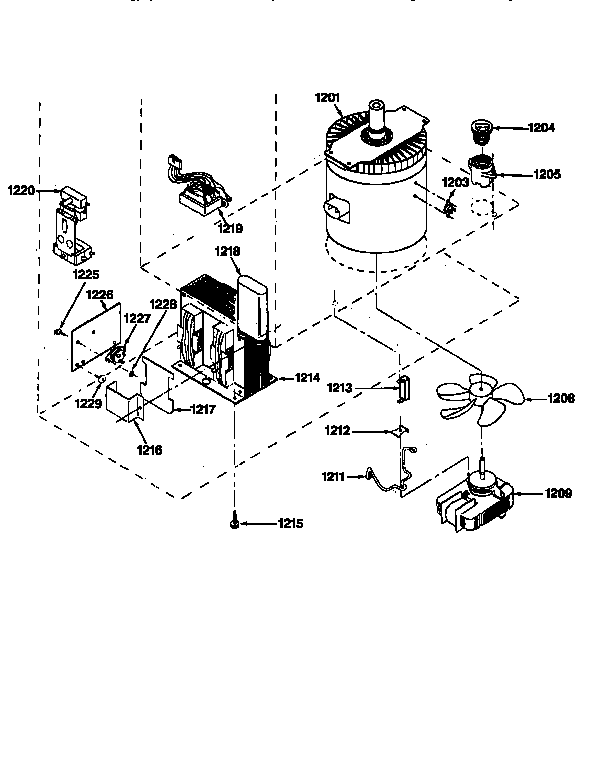

Power control diagram
Relay
Part #WB27X376
The manufacturer no longer makes this part, and there's no substitute part

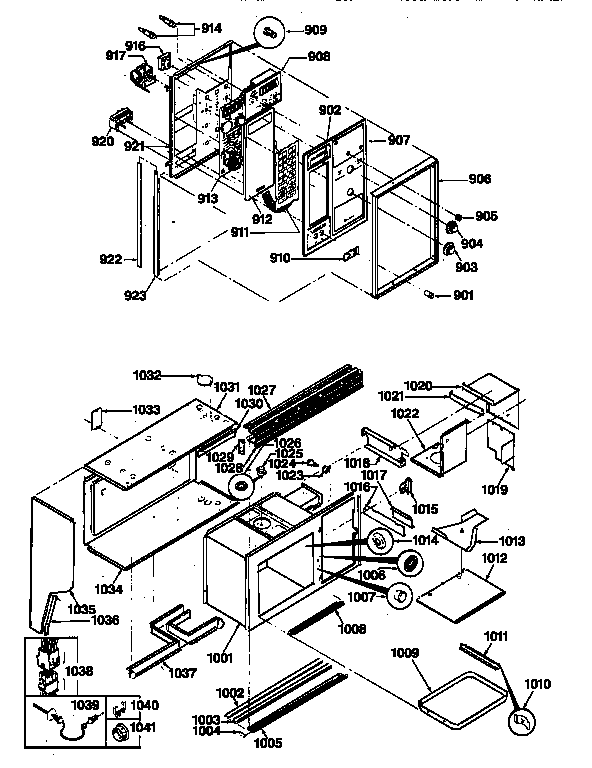

Upper control panel & oven body diagram
Light
Part #WB02X10069
The manufacturer no longer makes this part, and there's no substitute part

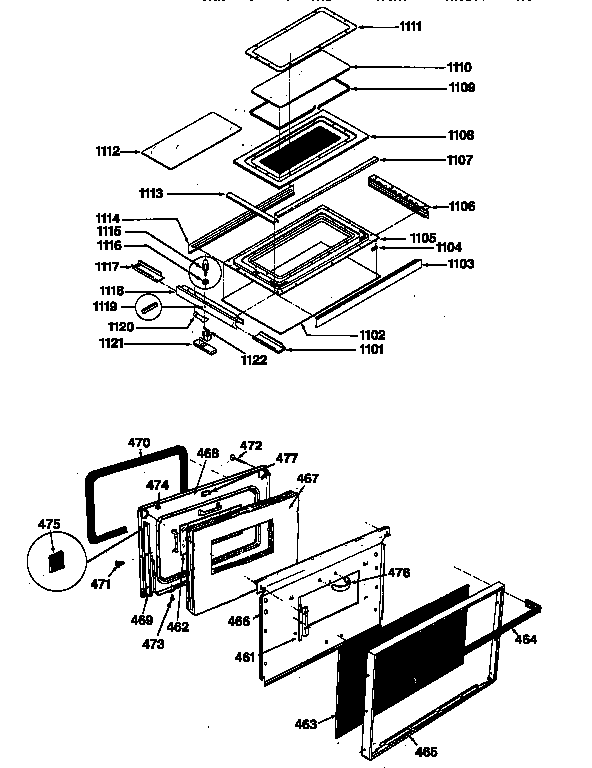

Upper & lower oven door diagram
Inner Glass
Part #WB56X1834
The manufacturer no longer makes this part, and there's no substitute part
Upper & lower oven door diagram
Door Insulation
Part #WB2X4985
The manufacturer no longer makes this part, and there's no substitute part

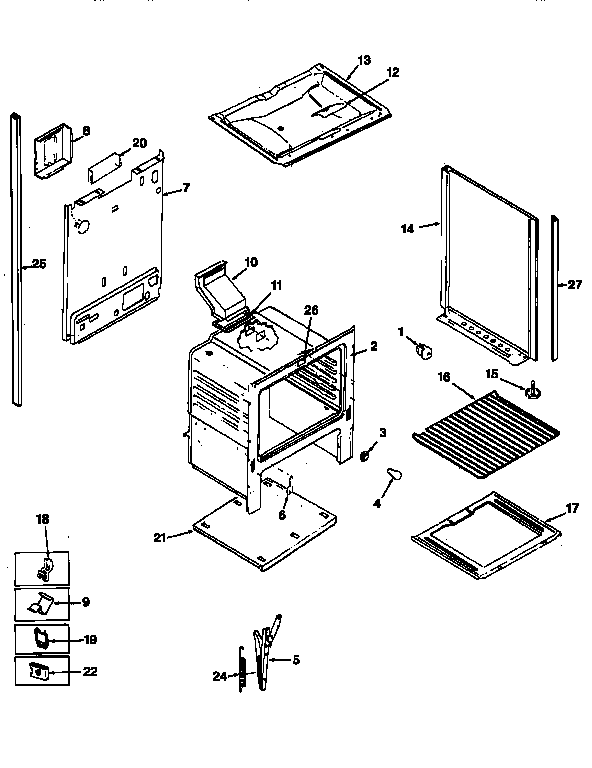

Main body diagram
Door Hinge
Part #WB10X245
The manufacturer no longer makes this part, and there's no substitute part
Power control diagram
Transformer
Part #WB27X0307
The manufacturer no longer makes this part, and there's no substitute part
Power control diagram
Capacitor
Part #WB27X0321
The manufacturer no longer makes this part, and there's no substitute part
Broiler unit & gas control system diagram
Spring R
Part #WB9X197
The manufacturer no longer makes this part, and there's no substitute part
Power control diagram
Mounting Channel
Part #WB02X4429
The manufacturer no longer makes this part, and there's no substitute part
