Kenmore Elite 79574042410 refrigerator Parts

On Kenmore Elite refrigerator model 79574042410, the model number is typically printed on a rating label inside the fresh food (refrigerator) compartment, most often on a side wall near the crisper drawers. Check the label first before ordering parts or using the 79574042410 owner's manual.

Common places to check

Look for a white or silver sticker or plate with the model and serial number. On bottom-mount refrigerators like this one, the label is usually in one of these spots:

• Inside the refrigerator section on the left or right side wall
• On the wall behind or just above the crisper drawers
• Along the door frame (hinge side) when the refrigerator door is open
• Behind the lower toe grille (kick plate) at the front (less common, but possible)

How to read the label correctly

The label usually includes both a model number and a serial number. For parts lookup and troubleshooting, we use the model number.

What you see on the label	What it’s used for
Model number (example: 79574042410)	Finding the correct parts list and diagrams
Serial number	Identifying production details (helpful for service history)

Why it matters

Kenmore Elite refrigerators can look similar across multiple 795-series models, but parts like a water filter, air filter, ice maker, or user interface can vary by model. Using the exact model number helps ensure you match the right replacement part the first time.

Parts you may match after confirming the model number

Once you confirm 79574042410, common maintenance parts on this model page include:

• Genuine Kenmore refrigerator water filter 9690 AGF80300801
• Lg refrigerator air filter ADQ73214408
• Lg refrigerator ice maker AEQ73130004

Last updated: February 2026

A Kenmore Elite refrigerator like model 79574042410 typically lasts 10 to 15 years. Regular maintenance (clean airflow, good door sealing, and on-time filter changes) helps you reach the high end of that range and reduces cooling and ice maker problems.

Typical lifespan and what affects it

Most modern bottom-mount refrigerators land in the same general window, but these factors make the biggest difference:

• Condenser cleanliness: Dust buildup makes the compressor work harder and shortens life.
• Door seal condition: Air leaks force longer run times and can cause frost and temperature swings.
• Filter maintenance: Clogged water and air filters can reduce dispenser flow and increase odors.
• Temperature settings: Keeping the refrigerator near 37°F and freezer near 0°F reduces strain.
• Usage habits: Frequent door openings and overpacking restrict airflow.

For model-specific care and maintenance intervals, follow the 79574042410 owner's manual.

Quick maintenance checklist (high impact)

We recommend these routine steps to extend the life of your Kenmore Elite 79574042410:

• Vacuum and brush the condenser area every 6 to 12 months.
• Keep food from blocking vents in the fresh food section and freezer.
• Clean door gaskets with mild soap and water; replace if torn or warped.
• Replace the water filter on schedule; use the correct filter for this model.
• Replace the air filter when odors linger or airflow through the filter housing seems restricted.

Common “end-of-life” symptoms vs. fixable issues

Some symptoms point to normal wear, while others are often solved with maintenance or a targeted part replacement.

Symptom	Often fixable with	When it suggests major wear
Warm refrigerator, freezer OK	Airflow issue, frost buildup, fan-related problems	Repeated failures after repairs
Slow water dispensing	Water filter restriction	Persistent low flow with a new filter
Odors that return quickly	Air filter replacement, cleaning	Odors tied to insulation or liner damage
Loud running or long run times	Dirty condenser, door seal leak	Compressor struggling to start or stay running

Parts that support long-term reliability

These are common maintenance parts for this model that help reduce strain and nuisance problems:

• Genuine Kenmore refrigerator water filter 9690 AGF80300801
• Lg refrigerator air filter ADQ73214408

A good filter routine is one of the simplest ways to keep the sealed system and ice maker operating smoothly.

Why it matters

A refrigerator that runs hotter, longer, or with restricted airflow puts extra load on the compressor and cooling system. Preventive maintenance helps stabilize temperatures, protect food, and avoid expensive breakdowns.

Last updated: February 2026

Common problems on the Kenmore Elite 79574042410 bottom-mount refrigerator include warm temperatures (cooling loss), ice maker or dispenser issues, water leaks, and odor or airflow complaints. Most causes trace back to airflow restrictions, dirty condenser areas, defrost system faults, or water filtration and ice system components; our owner's manual troubleshooting section is the best starting point.

Most common symptoms and what usually causes them

• Not cooling or weak cooling: dirty condenser coil, blocked vents, evaporator fan or airflow control problems
• Ice maker not making ice: restricted water supply, clogged filter, ice maker assembly failure
• Water leaking or puddles: clogged/iced drain path, loose water line connection, dispenser area leaks
• Bad tastes or odors: overdue water filter, saturated air filter, spills in drawers
• Frost buildup: defrost sensor or defrost control issues, door not sealing fully

Model-relevant parts that often solve these issues

If your symptom matches, these are common replacement items for model 79574042410:

Symptom	Part to check/replace	What it does
Slow water flow, poor ice quality	Genuine Kenmore refrigerator water filter 9690 AGF80300801	Reduces contaminants; restores flow when clogged
Odors in fresh food section	Lg refrigerator air filter ADQ73214408	Helps reduce food odors
Frost or defrost-related cooling issues	Refrigerator defrost sensor assembly 6615JB2005R	Monitors evaporator temperature for defrosting
Ice dispensing problems	Refrigerator dispenser ice chute door motor EAU59551204	Opens/closes chute door to prevent clogs and warm air entry
No ice production	Lg refrigerator ice maker AEQ73130004	Cycles to fill, freeze, and harvest ice

Quick checks we recommend before replacing parts

• Confirm temperature settings; allow 24 hours after changes for stabilization.
• Make sure air vents inside the refrigerator are not blocked by food containers.
• Clean dust from the condenser area; restricted heat release can cause warm temps.
• If water or ice is slow, replace the water filter and flush several gallons.
• If you see frost on the back freezer panel, suspect a defrost or airflow problem.

Why it matters

Cooling, ice, and leak problems often share the same root issue: restricted airflow or restricted water flow. Fixing the underlying cause protects food temperatures, reduces compressor run time, and prevents repeat failures.

Last updated: February 2026

A bottom leak on your Kenmore Elite refrigerator model 79574042410 is usually caused by a clogged defrost drain that overflows into the base, or a water supply leak from the dispenser/ice maker tubing or fittings. Start by checking for ice or debris in the drain area and inspecting the water line connections.

Quick checks we recommend first

• Unplug the refrigerator before inspecting internal components.
• Look for a sheet of ice or standing water under the crisper drawers (often points to a defrost drain issue).
• Check the water filter area and nearby tubing for drips.

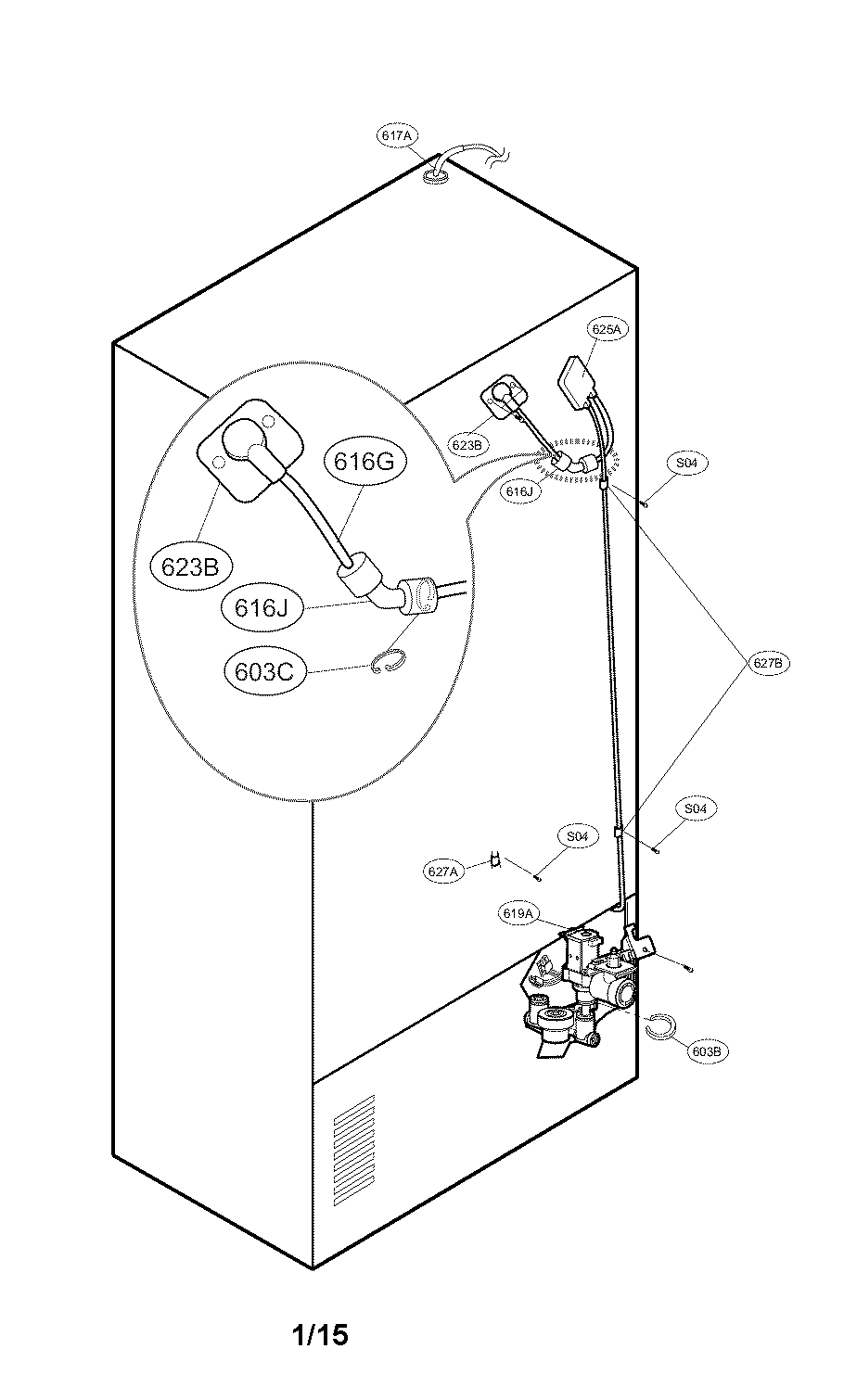

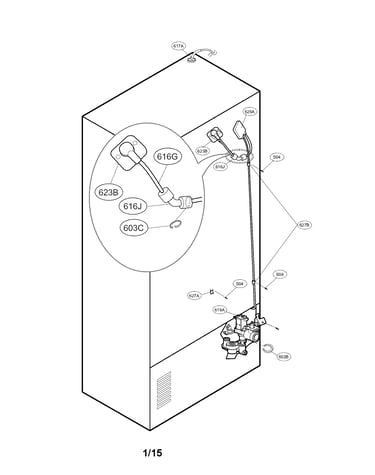

• Inspect the water tube and connector at the top hinge area for seepage (the manual shows how the tube disconnects at the fitting).
• Confirm the freezer door is closing fully; warm air can increase frost and drain icing.

Most common causes (and what to look for)

Likely cause	What you typically see	What to do next
Defrost drain clogged or frozen	Water pooling inside, then leaking to the floor	Clear the drain path and melt any ice blockage
Dispenser/ice maker water tubing leak	Drips near the back, under the unit, or at door hinge	Reseat fittings, inspect tubing for cracks
Water filter not seated or housing leaking	Drips near filter compartment	Reinstall filter, check O-rings and housing
Defrost system sensing issue	Heavy frost buildup, recurring drain freeze-ups	Test defrost components such as the sensor

Parts that commonly relate to leaks on this model

If you find heavy frost buildup that keeps re-freezing the drain, a defrost sensing problem can contribute. For model 79574042410, a common related component is the refrigerator defrost sensor assembly 6615JB2005R.

If the leak is tied to the water system, also check the filter installation and replacement interval; see the owner's manual for the correct procedure and routing notes.

Why it matters

Water leaking from the bottom can damage flooring and can also signal airflow or defrost problems that reduce cooling performance. Fixing the root cause helps prevent repeat leaks, ice buildup, and temperature swings.

Last updated: February 2026

For Kenmore Elite model 79574042410, the most accurate way to get cubic-foot capacity is to use the model’s specification section in the 79574042410 owner's manual or read the rating plate inside the fresh food compartment. Model numbers help identify the unit, but the capacity is confirmed in the specs.

Fast ways to find your refrigerator’s capacity

Use these options in order; they give the most reliable result first:

• Check the rating plate (usually inside the refrigerator section on a side wall or near a crisper area); it often lists capacity or key specs.
• Look up the specifications in the 79574042410 owner's manual.
• Measure interior space only if you need an estimate (useful when the label is missing).
• If you are comparing models, match by full model number (79574042410) to avoid mixing similar 795-series units.

Estimating cubic feet (when you only need a ballpark)

If you cannot access the rating plate right away, you can estimate capacity from interior dimensions.

What to measure	How to measure	Notes
Fresh food compartment	Width x depth x height (inches)	Do not include door bins; measure usable interior space
Freezer compartment	Width x depth x height (inches)	Measure drawer cavity, not the exterior drawer front
Convert to cubic feet	(W x D x H) / 1728	Add fridge + freezer for total

Why it matters

Cubic-foot capacity helps you choose correctly sized replacement items and accessories (for example, bins and filters), and it also helps when troubleshooting cooling complaints because overloading a smaller-capacity compartment restricts airflow.

Related parts that often come up when checking specs

If you are confirming capacity because you are planning maintenance, these are common model-matched items customers replace:

• Refrigerator water filter: genuine Kenmore refrigerator water filter 9690 AGF80300801
• Air filtration: lg refrigerator air filter ADQ73214408
• Storage bin fitment: Kenmore refrigerator door bin AAP73252302

Last updated: February 2026
