Whirlpool ED5JHEXTS10 side-by-side refrigerator Parts

The Whirlpool side-by-side refrigerator model ED5JHEXTS10 is approximately 35 3/4 inches wide, 69 1/4 inches tall, and about 35 1/4 inches deep without handles (plan roughly 34 1/2 inches deep with handles). For the exact cabinet and clearance specs, use the ED5JHEXTS10 owner's manual.

Dimensions to use for planning

Use these measurements when checking a cabinet opening, doorway clearance, and door swing:

• Width: 35 3/4 in.
• Height: 69 1/4 in.
• Depth (without handles): 35 1/4 in.
• Depth (with handles): about 34 1/2 in.
• Clearance: leave space behind and above for airflow and water line routing

Quick planning table

Measurement	ED5JHEXTS10 approx.	Why it matters
Width	35 3/4 in.	Fit in the cabinet opening
Height	69 1/4 in.	Overhead cabinet clearance
Depth (no handles)	35 1/4 in.	How far the cabinet projects
Depth (with handles)	about 34 1/2 in.	Walkway and door swing space

How we recommend measuring at home

Even with published dimensions, measuring your actual unit and space prevents surprises:

• Measure width at the widest point (often the hinge side)
• Measure height from floor to the top (include hinge cover if it sits higher)
• Measure depth from the back to the front of the handle
• Confirm the floor is level; leveling legs can change height slightly

Why it matters

Correct dimensions help you avoid doors hitting walls, drawers not pulling out fully, and airflow restrictions that can cause warm temperatures.

If you are planning for water and ice, the correct replacement filter for this model is the refrigerator water filter EDR3RXD1, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

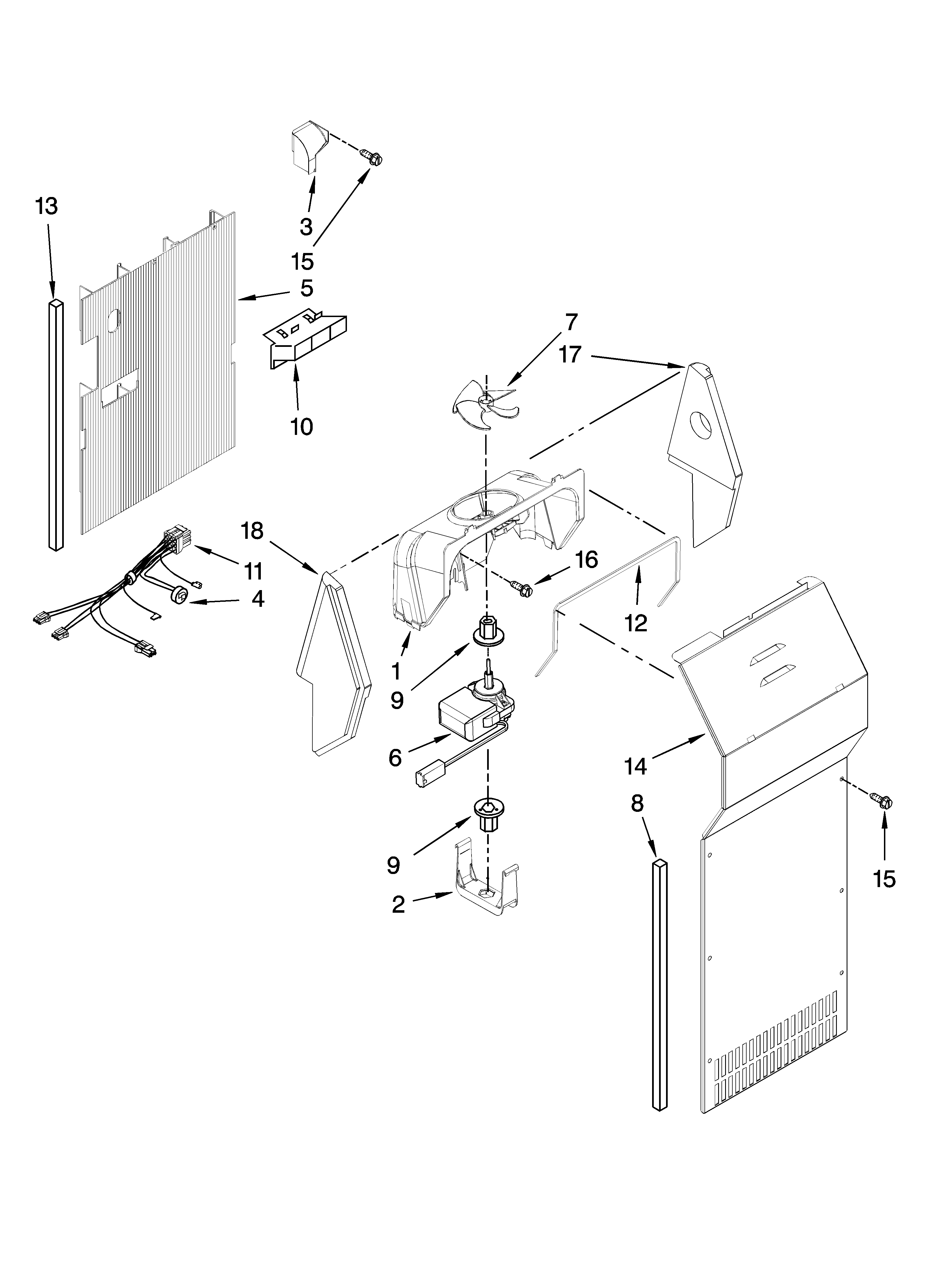

On Whirlpool side-by-side refrigerators like model ED5JHEXTS10, the most common issue we see is a cooling airflow problem, often tied to the evaporator fan not moving cold air through the fresh food section and freezer. Use the troubleshooting steps in the owner's manual to confirm symptoms before replacing parts.

Quick signs it is an airflow (evaporator fan) problem

• Freezer is cold but the refrigerator section is warm
• You hear the compressor running but feel weak airflow at the vents
• Frost buildup on the back wall of the freezer (can point to a defrost issue that blocks airflow)
• Temperatures swing after doors are opened often
• The unit seems to run “too much” without stabilizing temperature

What to check first (fast, no-parts steps)

1. Confirm controls are set correctly; setting controls to the coldest setting will not cool faster.
2. Listen for normal vs. abnormal sounds; buzzing when the valve fills the ice maker and fan/compressor pulsing can be normal.
3. Inspect door closing and loading; frequent door openings and warm room conditions make the refrigerator run longer.
4. Look for frost patterns in the freezer; heavy frost can restrict airflow.
5. Check for water-related clues (ice maker not filling, dispenser issues) that can point to a separate water supply problem.

Common causes and the parts that often solve them

Symptom	Most likely system	Part on this model that may be involved
Warm fresh food, freezer OK	Air circulation	Evaporator fan system (not listed here); use the manual’s troubleshooting to pinpoint
Frost blocking vents, warming over time	Defrost system	Refrigerator defrost bi-metal thermostat WPW10225581 or refrigerator heater WP2323198
No ice, weak water flow, buzzing at fill	Water supply/fill	Refrigerator inlet valve W10408179

Why it matters

A failed evaporator fan or a defrost failure can stop cold air from circulating, so food temperatures rise even while the compressor keeps running. Catching it early helps prevent long run times and inconsistent cooling.

For model-specific operating notes, normal noises, and troubleshooting flowcharts, follow the owner's manual. If you need to order replacement parts beyond the list shown for ED5JHEXTS10, search by model number on Sears PartsDirect.

Last updated: February 2026

Most Whirlpool refrigerators, including the Whirlpool ED5JHEXTS10 side-by-side refrigerator, typically last 10 to 15 years. Consistent temperature control, clean airflow (condenser area), and keeping door seals tight are the biggest factors that help you reach the high end of that range.

What affects refrigerator lifespan the most

• Condenser cleanliness: Dust buildup makes the compressor work harder.
• Door gasket condition: Leaks cause longer run times and frost issues.
• Stable temperatures: Frequent warm-ups shorten component life.
• Water system maintenance: A clogged filter can reduce dispenser and ice maker performance.
• Proper loading: Overpacking blocks vents and stresses the cooling system.

Quick maintenance checklist (best return for the effort)

• Vacuum the condenser area every 6 to 12 months.
• Keep freezer and fresh food vents clear.
• Confirm doors close on their own and seal evenly.
• Replace the water filter on schedule; for this model, a common replacement is the refrigerator water filter EDR3RXD1.
• Use the care and cleaning steps in the owner's manual.

Common “end-of-life” symptoms and what they usually point to

Symptom	Common cause	Typical next step
Warm refrigerator, freezer OK	Airflow or defrost issue	Check frost pattern; inspect defrost components
Both sections warm	Sealed system or compressor issue	Check condenser airflow; consider sealed system diagnosis
Water/ice slows down	Restricted filter or valve	Replace filter; test inlet valve
Doors not closing or sweating	Worn gasket or alignment	Inspect gasket, hinges, and door cam

Why it matters

A refrigerator that runs longer to hold temperature uses more energy and puts extra wear on key components like the compressor, evaporator, and thermostat. Simple upkeep (seals, airflow, and filter changes) is the most reliable way to extend service life.

Last updated: February 2026
