GE GDF510PGD2WW dishwasher Parts

On the GE GDF510PGD2WW dishwasher, we remove the control panel by opening the door, removing the inner-door fasteners, then releasing the control assembly from its retaining tabs so it can lift away from the door. Follow the step-by-step access details in the GDF510PGD2WW installation guide.

Before you start (safety and prep)

• Turn off power at the breaker (dishwashers use line voltage behind the control area).
• Open the door and support it so it cannot drop or twist.
• Protect the door finish; screws and brackets can scratch the panel if they contact it.
• Keep screws grouped by location; lengths can differ.
• If the unit is installed tight to cabinets, confirm the door and control panel are not rubbing adjacent surfaces.

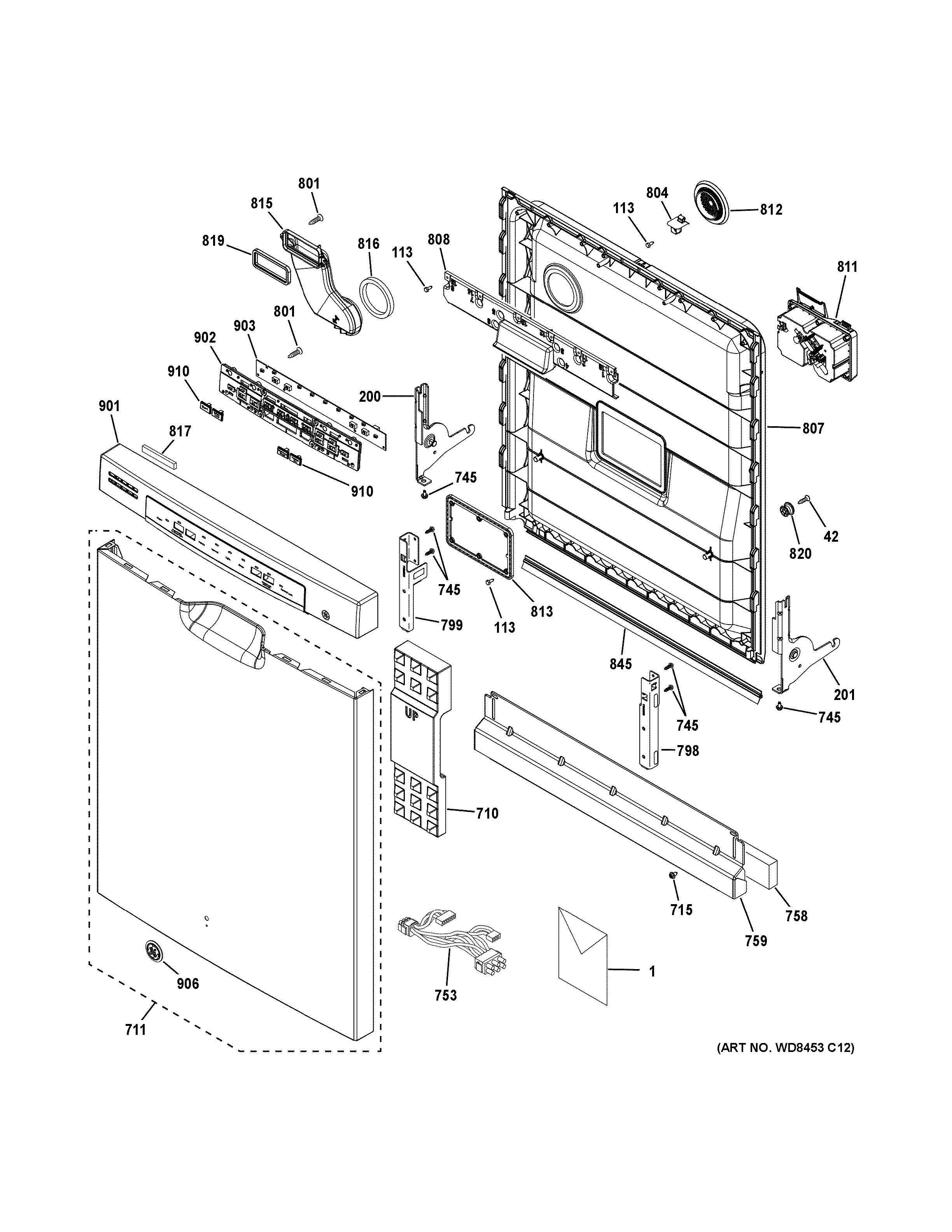

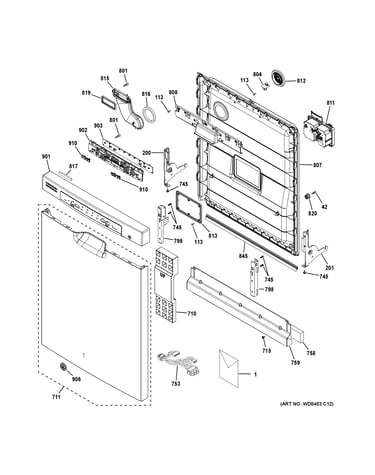

Control panel removal steps (typical GE top-control door)

1. Open the door fully.
2. Remove the screws around the inner door perimeter (these secure the inner door liner to the outer door).
3. Carefully separate the inner door liner enough to access the control assembly area.
4. Release the control assembly from its plastic retaining tabs (a small pick tool helps) and pull the control panel/console forward.
5. If you need the panel fully off, disconnect wire connectors one at a time (take a photo first), then lift the panel away.

What you will usually need

Item	Why it helps
Phillips screwdriver	Removes inner door screws
Small pick or flat screwdriver	Releases control tabs without breaking them
Painter’s tape or towel	Protects the door panel from scratches
Phone camera	Records wire routing and connector positions

Why it matters

Removing the control panel the right way prevents cracked tabs, pinched wiring, and cosmetic damage. GE installation guidance also emphasizes preventing door and control panel damage from misalignment or protruding screw heads.

Last updated: February 2026

A GE dishwasher typically lasts 10 to 12 years. For your GE GDF510PGD2WW, lifespan depends most on water quality, how often it runs, and routine care like keeping the filters and spray arms clear; consistent maintenance helps you reach the upper end of that range.

Typical lifespan range (what to expect)

Most dishwashers fall into a predictable window based on use and upkeep:

• 8 to 10 years: heavy daily use, hard water, limited cleaning
• 10 to 12 years: typical household use with basic maintenance
• 12 to 15 years: lighter use plus regular cleaning and prompt repairs

Usage pattern	What you’ll usually see	Best focus area
1+ loads/day	Shorter lifespan	Keep wash system clean, avoid overloads
4 to 7 loads/week	Average lifespan	Clean filters, use rinse aid
1 to 3 loads/week	Longer lifespan	Run hot water before starting, periodic deep clean

What shortens a dishwasher’s life fastest

These are the most common “lifespan killers” we see in the field:

• Hard water scale buildup on the heater and internal passages
• Clogged filters that restrict circulation and strain the pump
• Food debris blocking spray arm jets (poor cleaning leads to repeat cycles)
• Leaks at the door seal or tub gasket that go unaddressed
• Frequent power interruptions or stopping cycles mid-wash

Maintenance that adds years

We recommend these habits for the GDF510PGD2WW:

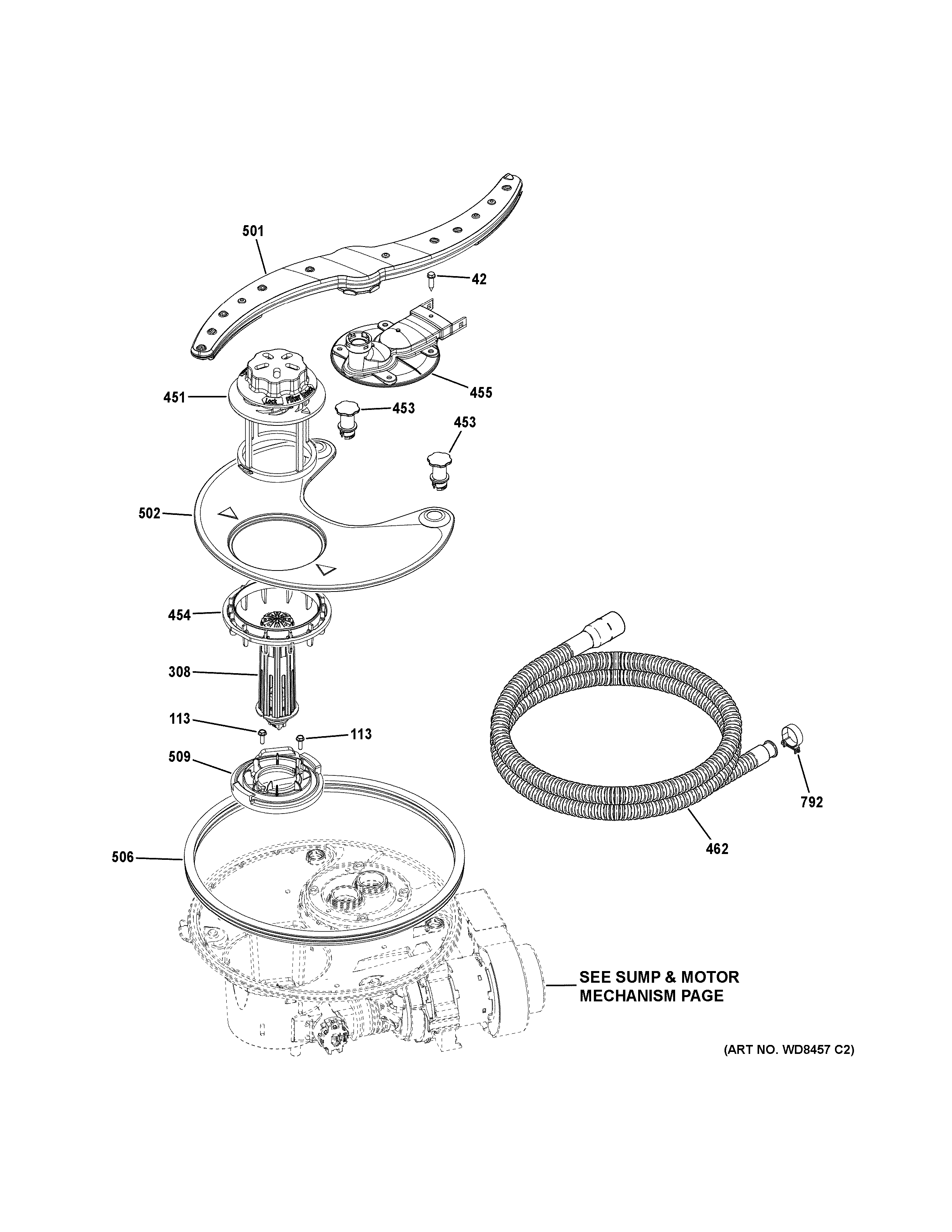

• Clean the filter area regularly; check the dishwasher circulation pump filter WD49X24057 for debris

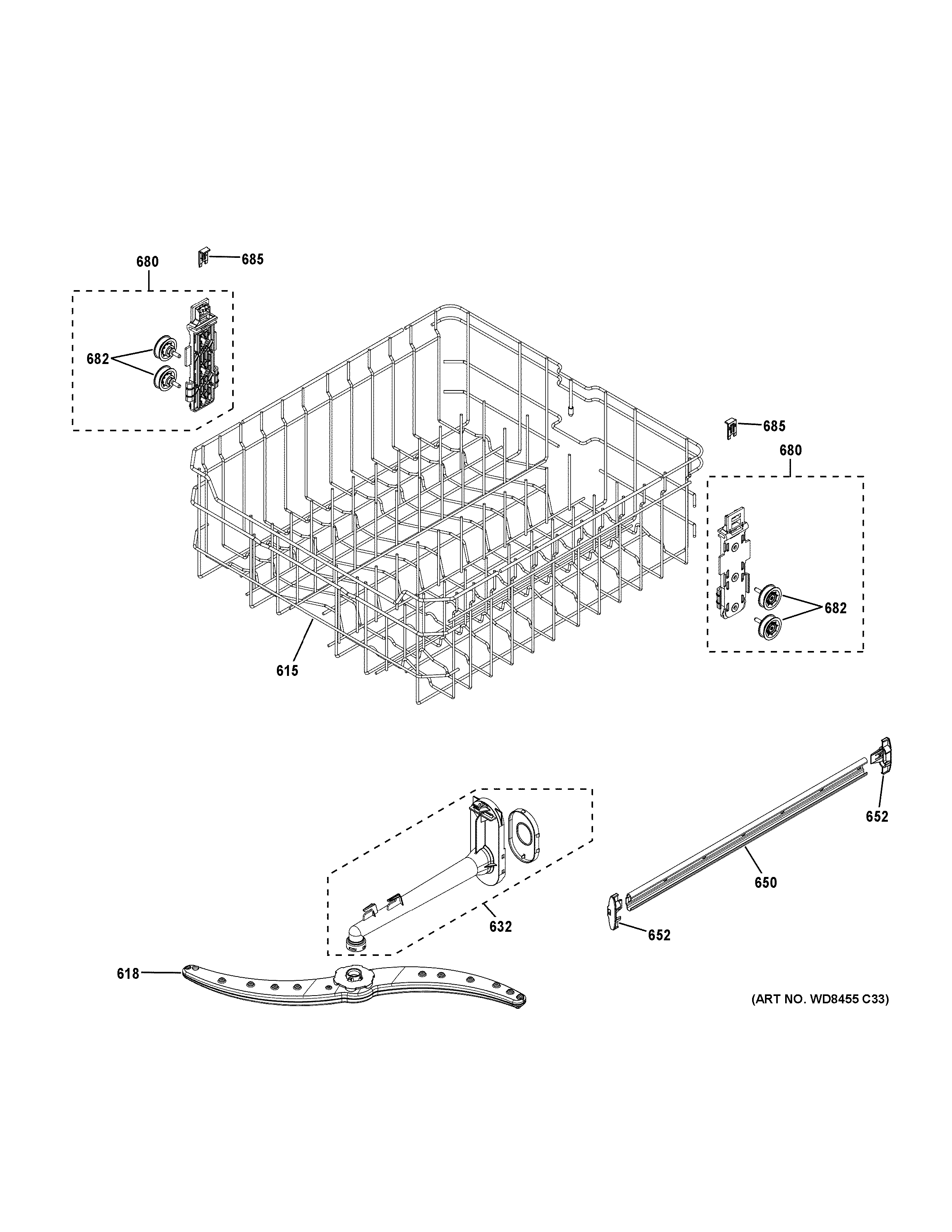

• Inspect and rinse spray arms; clear blocked holes on the dishwasher spray arm, lower WD22X33499
• Use a quality detergent and rinse aid as directed in the GDF510PGD2WW owner’s manual
• Run hot water at the sink before starting to improve wash temperature
• Fix small leaks early (a worn tub gasket can turn into cabinet damage)

Why it matters

A dishwasher near end-of-life often shows up as longer cycles, poor drying, and inconsistent cleaning. Keeping the wash system (filters, spray arms, heater) clean reduces strain on the circulation pump and helps the machine hit proper wash temperatures, which directly affects performance and longevity.

Last updated: February 2026

The most common GE dishwasher problem is poor draining or poor cleaning caused by a dirty filter area and restricted water flow. On the GE GDF510PGD2WW, regular filter cleaning and checking the drain path usually restores normal wash performance; if not, a drain or circulation component may need attention.

Quick checks we recommend first

• Clean the filter area; gritty dishes and reduced wash performance are strong clues (see the GDF510PGD2WW owner's manual).
• Make sure the door fully latches; a loose latch can interrupt a cycle.
• Confirm the spray arms spin freely and the holes are not clogged.
• Check for standing water and a blocked drain path (sink/disposer/air gap if used).
• Use the right detergent and refill rinse aid if drying and spotting are issues.

Common symptoms and the most likely causes

Symptom	Most common cause	What to do next
Water left in tub	Drain restriction or drain pump issue	Inspect drain hose routing and clogs; consider the dishwasher drain hose WD24X10062 if the hose is kinked or damaged.
Dishes not clean	Clogged spray arm or restricted circulation	Clean spray arm holes; inspect the dishwasher spray arm, lower WD22X33499 for cracks or heavy buildup.
Won’t start or stops mid-cycle	Door not latched, door switch/latch issue	Check alignment and strike; if it won’t latch reliably, the GE dishwasher door latch lock WD21X10490 is a common fix.
Not drying well	Heater or rinse aid issue	Verify rinse aid use; if heat is missing, test the dishwasher heater element WD05X30818.

Why it matters

A restricted filter or drain forces the dishwasher to recirculate dirty water, which causes gritty residue, longer cycle times, and can strain the circulation and drain system. Keeping the filter area clean every month or two prevents many “GE dishwasher not draining” and “not cleaning” complaints.

Last updated: February 2026

A leak at the bottom of the door on your GE GDF510PGD2WW dishwasher is usually caused by the door not sealing evenly. The most common fixes are leveling the dishwasher, correcting door-to-cabinet rubbing, and replacing a worn tub gasket.

Quick checks we recommend first

• Look for the door rubbing or hitting adjacent cabinets; rubbing can create a gap that leaks.
• Confirm the dishwasher is level left-to-right and front-to-back; an out-of-level tub can prevent a tight seal.
• Inspect the bottom edge of the door and tub lip for food debris or detergent buildup.
• Check the gasket for cracks, flattening, or sections that have pulled loose.
• Make sure racks are fully seated; a rack that rolls forward can interfere with door closure.

Leveling and alignment (most common installation-related cause)

The installation instructions for this model call out that the dishwasher must be level for proper door operation and that door leaks can happen if the door rubs against nearby cabinets. Use the steps and diagrams in the GDF510PGD2WW installation guide to level the unit by adjusting the legs and to correct alignment so the door closes without hitting the tub or cabinet frame.

What “good” looks like

Check	What you want	What causes leaks
Level side-to-side	Bubble centered	Door seal compresses unevenly
Level front-to-back	Bubble centered	Water shifts toward the door
Door swing	No cabinet contact	Door can’t fully latch/seal

Parts that commonly cause a door-area leak

If leveling and cleaning do not stop the leak, the door seal area is the next place to focus.

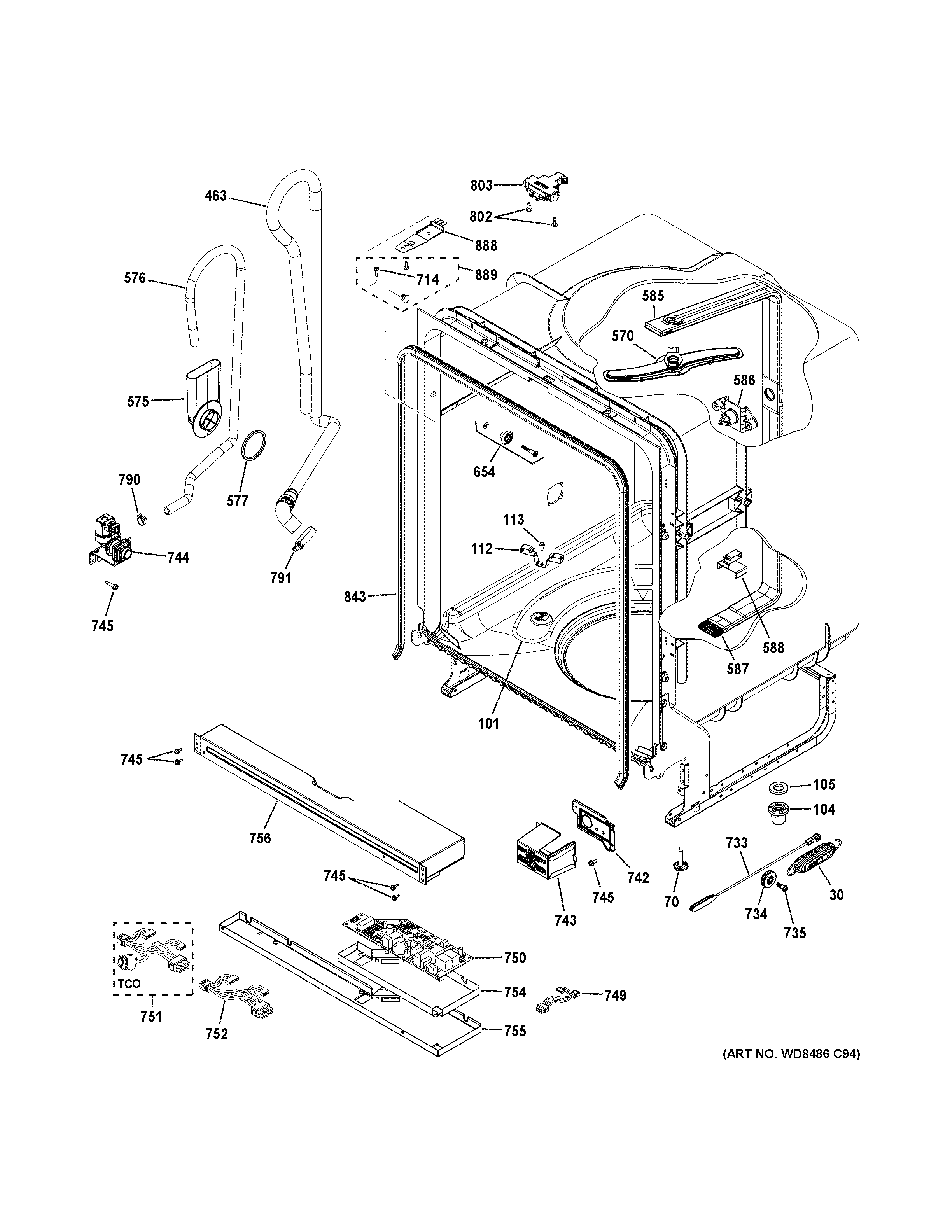

• Primary seal: The tub gasket seals the door to the tub opening. Replace it if it is torn, hardened, or deformed: dishwasher tub gasket WD08X23476.
• Door not staying tightly shut: A weak latch can let the door relax during wash pressure. If the door feels loose when latched, check the latch and strike alignment; replace the latch if needed: GE dishwasher door latch lock WD21X10490.

Why it matters

Door-area leaks can drip onto the toe-kick area and flooring, and they often get worse over time as the gasket continues to deform. Correct leveling and a healthy gasket keep wash pressure and spray contained inside the tub.

Last updated: February 2026
