How do I read my Kenmore refrigerator model number?
On Kenmore refrigerator model 10658562890, the model number is read exactly as it appears on the model and serial number label. For this style of side-by-side refrigerator, that label is typically on the inside side wall of the fresh food (refrigerator) compartment or the freezer compartment; use the full number when ordering parts or checking the manual.
Where to find the model and serial number label
We see this label location called out in the Parts and Features section for this refrigerator. Check these common spots:
- Inside the refrigerator compartment on a side wall (often near the crisper area)
- Inside the freezer compartment on a side wall
- Near the lower crisper drawers (look along the liner walls)
- Behind the base grille area (some models store a tech sheet there, but the model label is usually inside)
For the exact diagram and label callout, use the 10658562890 owner's manual.
How to “read” the number correctly (so parts match)
Use these rules when you write it down:
- Copy every digit in order; do not add spaces or dashes
- Keep leading digits (for this model, it starts with 106)
- Use the full model number, not just the first three digits
- Record the serial number too; it helps confirm production details for some parts
Quick example
| What to use | Example for this refrigerator | Why |
|---|---|---|
| Model number | 10658562890 | Identifies the exact Kenmore refrigerator design |
| Serial number | (from the same label) | Helps narrow down version changes |
Why it matters
Kenmore model numbers often share a prefix across many refrigerators. Using the complete model number (like 10658562890) prevents ordering a similar-looking part that does not fit, such as an ice maker assembly, thermostat, or door gasket.
Last updated: February 2026
What are the most common problems with Kenmore refrigerators?
The most common problems we see on Kenmore refrigerators like model 10658562890 are cooling issues, ice maker problems, water leaks, and unusual noises. Many of these come down to airflow (dirty condenser coils or a fan issue), door sealing, or the defrost system; the 10658562890 owner's manual covers the key checks.
Most common symptoms and what usually causes them
- Not cooling well: dirty condenser coils, doors not closing fully, or door gaskets not sealing
- Runs too long: frequent door openings, controls not set for conditions, dirty coils
- Ice maker not making ice: freezer not cold enough, ice maker arm off, water valve shut off, or a jam
- Ice production is low: new install needs time, water valve not fully open, clogged/incorrect filter
- Noises: normal operating sounds, or a fan blade/motor issue
Quick checks we recommend first (fast, no parts)
- Confirm doors close tightly and nothing inside is blocking them.
- Clean condenser coils (dirty coils make the compressor work harder).
- Verify temperature controls are set correctly; allow 24 hours after changes.
- For ice maker issues, confirm the shut-off arm is ON (down) and the water supply valve is fully open.
- If ice is jammed in the ejector area, clear it with a plastic utensil.
Common problems and the best “next step”
| Problem | What you notice | Best next step |
|---|---|---|
| Poor cooling | Warm fridge or freezer | Clean coils; check door seal; confirm control settings |
| Ice maker not producing | No ice after hookup | Wait 24 hours; confirm arm ON; confirm water valve ON |
| Too little ice | Slow output | Wait 72 hours for full production; check water valve fully open |
| Noise complaints | Humming, fan noise | Compare to normal sounds in the manual; inspect fans |
Parts that are often involved (when troubleshooting points there)
If your checks point to a specific failure, these model-compatible parts are commonly involved:

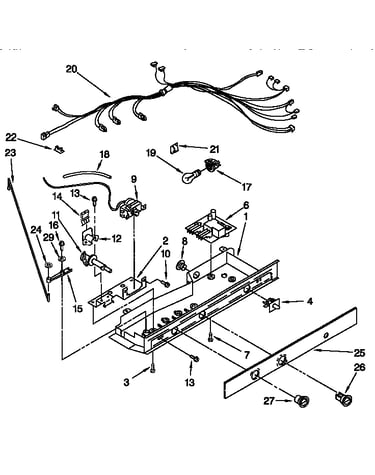

- Refrigerator thermostat WP2198202 (temperature control issues)
- Refrigerator defrost bi-metal WPW10225581 and refrigerator heater WP2323198 (frost buildup, defrost problems)

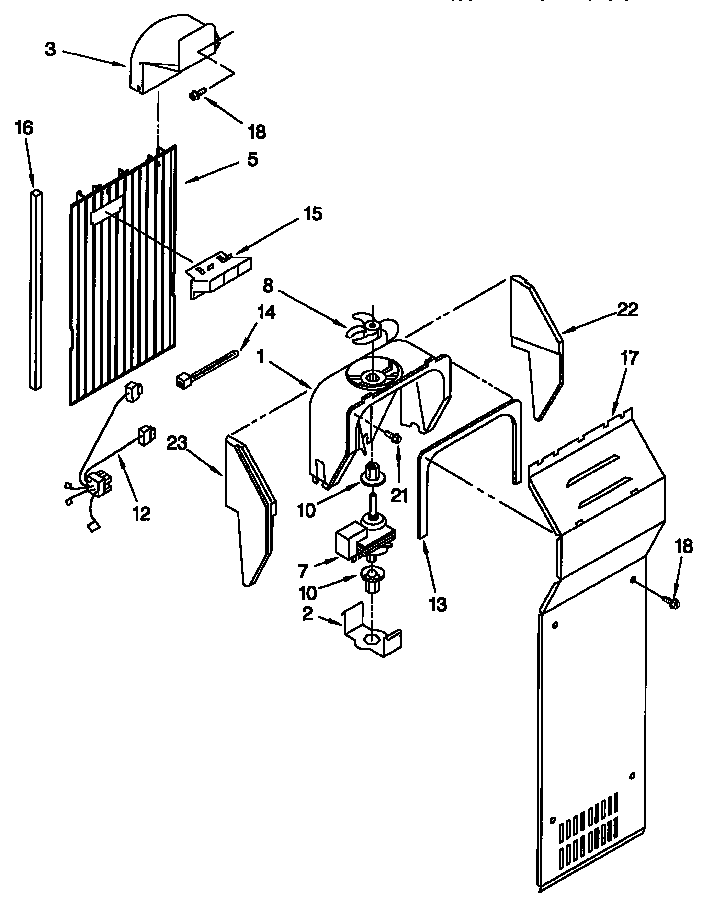

- Refrigerator evaporator fan blade WP2169142 (airflow and noise symptoms)

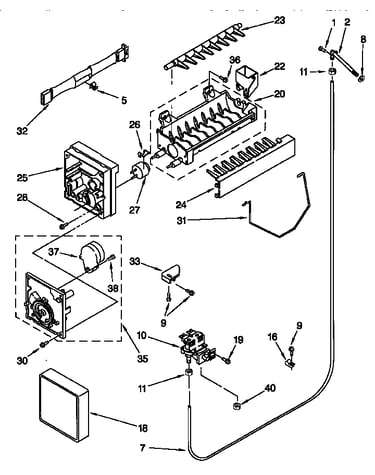

- Ice maker assembly - refrigerator ice maker by whirlpool 4317943 (no ice, intermittent ice)
Why it matters
Cooling, ice production, and leak symptoms often share the same root causes: restricted airflow, poor door sealing, or water supply problems. Fixing the basic causes first prevents food spoilage, reduces energy use, and avoids repeat failures.
Last updated: February 2026
What does er if mean on kenmore elite refrigerator?
On Kenmore model 10658562890, ER IF is an ice and airflow related fault; it points you to the ice room or freezer fan airflow being blocked or the fan not running as expected. Clearing ice buildup and restoring airflow often clears the code.
What to do first (safe, quick checks)
- Unplug the refrigerator for 2 minutes, then restore power.
- Make sure the freezer door closes fully and stays shut.
- Remove the ice bin; break up clumped ice and reseat the bin.
- Look for frost or ice blocking vents near the ice bin or ice room.
- Listen for fan operation when the unit is cooling.
- Set the freezer to about 0°F and the refrigerator to about 37°F.
Common causes and the most likely fix
| What’s happening | What you’ll notice | What usually fixes it |
|---|---|---|
| Ice buildup blocking airflow | Frost near ice room, slow ice | Clear ice, improve door sealing |
| Fan blade obstructed or damaged | Rattling, weak airflow | Inspect and replace the fan blade if needed |
| Door not sealing well | Frost, moisture, longer run time | Inspect gasket, correct door alignment |
| Defrost problem causing heavy frost | Thick frost behind freezer panel | Check defrost heater and defrost thermostat |
Parts that commonly relate to ER IF symptoms on this model
These parts can be involved when airflow is restricted or frost keeps returning:

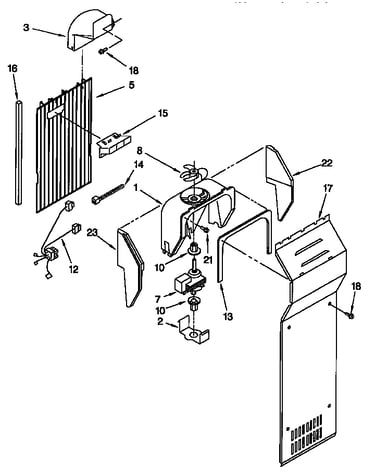

- Refrigerator evaporator fan blade WP2169142 (damaged blade can reduce airflow and cause noise)
- Refrigerator defrost bi-metal WPW10225581 (defrost thermostat; failures can contribute to frost buildup)
- Refrigerator heater WP2323198 (defrost heater; failures can lead to heavy frost)
Why it matters
The ice maker area depends on steady cold airflow. When airflow is blocked or the fan system cannot move air, ice production drops, ice can clump, and the refrigerator may run longer than normal.
For safety steps and component locations on Kenmore 10658562890, use the 10658562890 owner's manual.
Last updated: February 2026
What is the lifespan of a Kenmore refrigerator?
Most Kenmore refrigerators, including the Kenmore 10658562890 side-by-side, typically last 10 to 15 years. With consistent maintenance (cleaning condenser coils, keeping door gaskets sealing, and fixing cooling or ice maker issues early), many units reach the upper end of that range.
Typical lifespan and what affects it
A refrigerator’s life is mostly determined by how hard the sealed system and fans have to work day to day.
- Dirty condenser coils make the compressor run hotter and longer
- Worn door gaskets let warm air in, increasing run time and frost
- Poor airflow (overpacked shelves, blocked vents) reduces cooling efficiency
- Water and ice system leaks can cause corrosion and ice buildup
- Delayed repairs often turn small issues into compressor or defrost failures
Maintenance schedule we recommend
Use this as a simple baseline; then follow the model-specific care steps in the 10658562890 owner's manual.
| Task | How often | Why it matters |
|---|---|---|
| Clean condenser coils | Every 6 to 12 months | Reduces compressor run time and heat |
| Check door seal for gaps/tears | Every 3 months | Prevents warm air leaks and frost |
| Replace water filter (if equipped) | About every 6 months | Maintains dispenser flow and taste |
| Verify temps (fresh food and freezer) | Monthly | Catches cooling problems early |
Quick signs your refrigerator is nearing end-of-life
These symptoms usually mean a major component is wearing out or the unit is working too hard.
- Compressor runs almost constantly and temps still drift
- Repeated heavy frost buildup (defrost system problems)
- Warm refrigerator section but freezer seems “okay” (airflow or evaporator fan issues)
- Water dispenser flow drops even after filter replacement
- Frequent service calls for the same cooling complaint
Why it matters
A well-maintained refrigerator uses less energy, holds safer food temperatures, and avoids expensive sealed-system stress. If you are troubleshooting cooling performance, the refrigerator thermostat WP2198202 is one of the common control parts that can affect temperature regulation on this model.
Last updated: February 2026
What size is a Kenmore refrigerator model 10658562890?
The Kenmore side-by-side refrigerator model 10658562890 uses standard full-size side-by-side exterior dimensions; for planning purposes, most units in this class are about 32 to 36 inches wide, 65 to 70 inches tall, and 28 to 34 inches deep (depth increases when you include handles). For the exact dimensions for your specific unit, use the measurements and clearance guidance in the 10658562890 owner's manual.
How to measure your refrigerator correctly
Measure the cabinet and the “real-world” installed size so you do not get surprised by handles, hinges, or door swing.
- Width: measure the widest point (often hinge side)
- Height: floor to top of cabinet (include hinge covers if present)
- Depth (cabinet): back to front of cabinet, excluding handles
- Depth (installed): back to front of handles (most important for walkways)
- Door swing: confirm you can open doors fully without hitting a wall
Clearances to plan for (from the manual)
The manual calls out installation spacing that affects the “space required,” even if the cabinet itself is smaller.
- Allow 1/2 inch (1.25 cm) space on each side and at the top for ventilation
- If installed next to a fixed wall, allow at least 2 inches (5.08 cm) on each side (depending on setup) for door swing
- If your refrigerator has an ice maker, leave extra space behind for the water line connection
Quick planning table
| What you need | What to use | Why |
|---|---|---|
| Exact exterior size | Your tape-measure readings | Ensures it fits your opening and delivery path |
| Space required | Manual clearances plus your measurements | Prevents airflow and door-swing problems |
| Depth in a walkway | Depth including handles | Avoids blocking aisles and cabinets |
Why it matters
Correct sizing and clearance keeps airflow unrestricted (better cooling), prevents doors from binding or not sealing, and leaves room for water line routing if your model uses an ice maker.
Last updated: February 2026
Where can I find discontinued refrigerator parts?
For Kenmore model 10658562890, the best way to find discontinued refrigerator parts is to search by the exact part number and confirm fit by model; start with our model parts list, then expand to compatible substitutions and reputable used-part sources when the original item is no longer available.
Best places to look (in order)
- Check the exploded-view diagrams and part lists in the 10658562890 owner's manual to identify the correct part name and number.
- Search by part number first (more accurate than part name); then cross-check that it lists Kenmore 10658562890 as compatible.
- Look for manufacturer substitutions (a newer part number that replaces the old one).
- Consider used, refurbished, or “new old stock” parts from reputable resellers when new OEM stock is gone.
- If the part is cosmetic (bins, pans, covers), used parts are often a practical option.
How to search so you get the right match
Use this checklist before buying a discontinued part:
- Match the model number: 10658562890
- Match the part number (if you have it)
- Compare the part description and location (freezer door, dispenser, crisper area)
- Verify any color/finish (for example, door gaskets can vary)
- Confirm return policy for discontinued or special-order items
Common “discontinued” parts and what to do
| Part type | What usually happens | Smart next step |
|---|---|---|
| Ice maker and dispenser parts | Often superseded | Check for replacement assemblies |
| Shelves, bins, pans | Often discontinued first | Consider used parts if condition is acceptable |
| Sealed system components | Not typically DIY | Use a qualified technician for diagnosis |

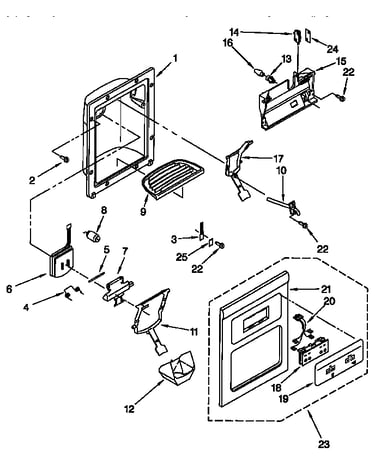

If you are chasing an ice or dispenser issue, it can help to start with known assemblies used on this model, such as the ice maker assembly - refrigerator ice maker by whirlpool 4317943 or the refrigerator ice bin WPW10670845, then troubleshoot the root cause (water supply, freezing, door switch, controls).
Why it matters
Discontinued parts are easy to mis-buy because many Kenmore side-by-side refrigerators share similar-looking components. Searching by part number and confirming compatibility to 10658562890 prevents wrong-part returns and repeat repairs.
Last updated: February 2026
Where is the model number on a Kenmore side by side refrigerator?
On Kenmore side-by-side refrigerator model 10658562890, the model and serial number label is located on the inside side wall of the fresh food (refrigerator) compartment. The label is typically easiest to see after you open the refrigerator door and look along the cabinet liner.
Where to look (fast checklist)
- Open the refrigerator (fresh food) door, not the freezer door
- Look on the inside side wall of the refrigerator compartment
- Check near the crisper drawers and lower shelf area (common sightline)
- Use a flashlight; the label can be small or partially shadowed
- Wipe condensation or smudges off the liner so the print is readable
What you should see on the label
The label lists both identifiers you may need for parts and service.
| Item on label | What it’s used for |
|---|---|
| Model number (example: 10658562890) | Matching the correct parts diagrams and replacement parts |
| Serial number | Identifying production details for service and support |
Why it matters
We use the exact model number to match your Kenmore refrigerator to the correct parts list (for example, an ice maker assembly, thermostat, or door gasket). Even small model-number differences can change which parts fit.
Helpful reference
For a diagram showing the label location and other key features, use the 10658562890 owner's manual.
Last updated: February 2026
