To reload the spool on a Hitachi CG23ECPSL gas line trimmer, we stop the engine, remove the trimmer head cover, wind new flexible nylon line onto the reel, then route the line ends through the cord guide and snap the cover back on until it clicks. See the CG23ECPSL owner's manual for the exact reel and cover steps.

Safety first

• Shut off the engine and let hot parts cool before handling the trimmer head
• Disconnect the spark plug boot if you are doing more than a quick line reload
• Wear gloves when handling cutting equipment
• Never use wire or metal line; use flexible, non-metallic line recommended for trimmer heads

Reload steps (semi-auto cutting head)

1. Stop the engine completely.
2. Remove the cover from the trimmer head (release the locking tabs and lift off).
3. Wind the line onto the reel in the direction shown on the reel (keep the wraps neat and tight).
4. Set the line ends in the stopper holes, leaving about 4 in. (10 cm) of loose end on each side.
5. Place the reel back into the case and feed both loose ends through the cord guide.
6. Reinstall the cover: align the cap locking tabs with the long holes, then push until it clicks.

Quick checks after reloading

• Pull both line ends to confirm they feed smoothly through the cord guide
• Make sure the cover is fully latched (no gaps)
• Before trimming, set line length to the normal operating range (most heads cut best when the line is not over-extended)

Line length and feed: what to expect

Task	What to do	What happens
Bump feed	Run at low speed and tap head on ground	Line advances about 1-3/16 in. (3 cm) per tap
Manual pull	Pull line out by hand	Engine must be completely stopped

Why it matters

Correctly winding and routing the nylon line prevents tangles, poor feed, and vibration. It also helps the semi-auto head advance line consistently, so the trimmer cuts cleanly without overloading the clutch or engine.

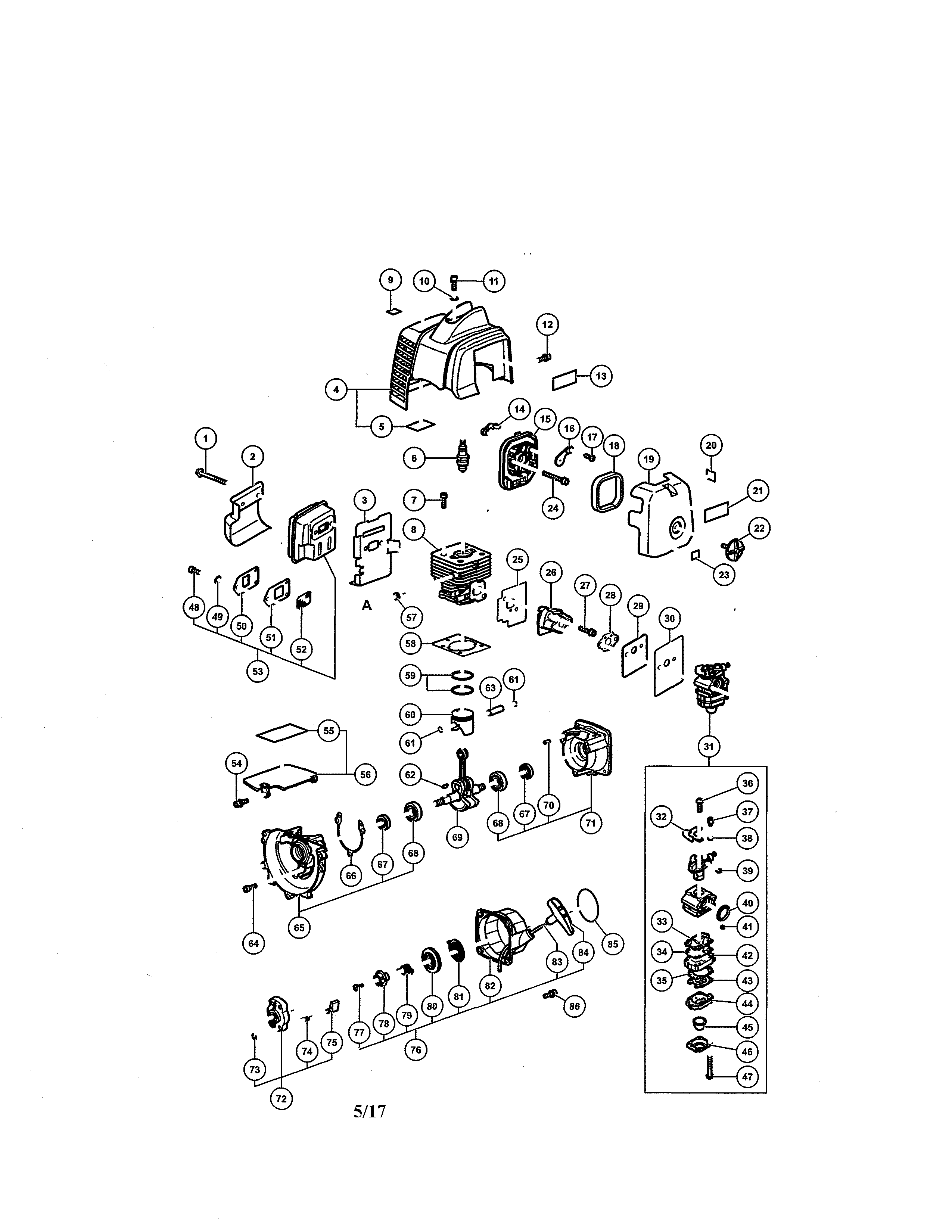

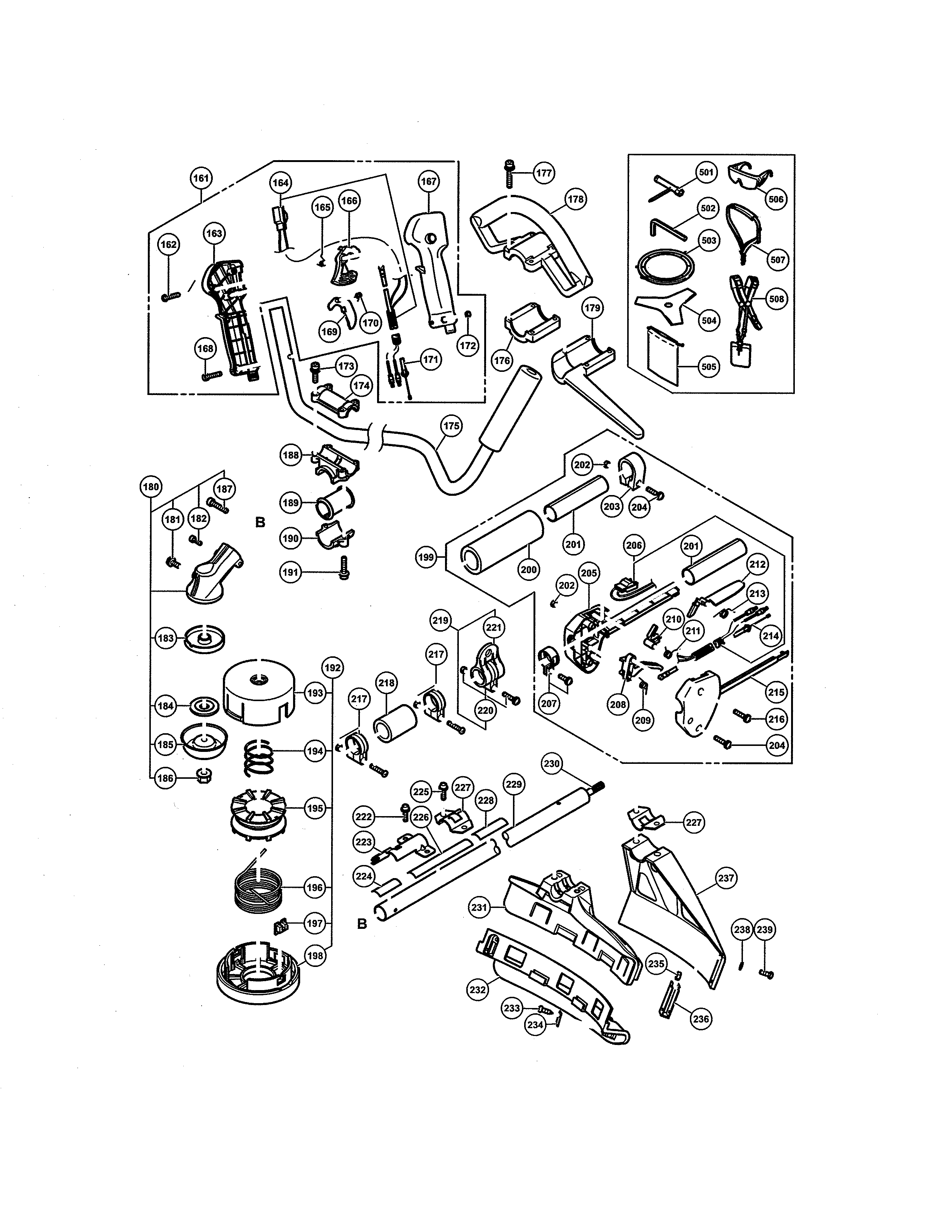

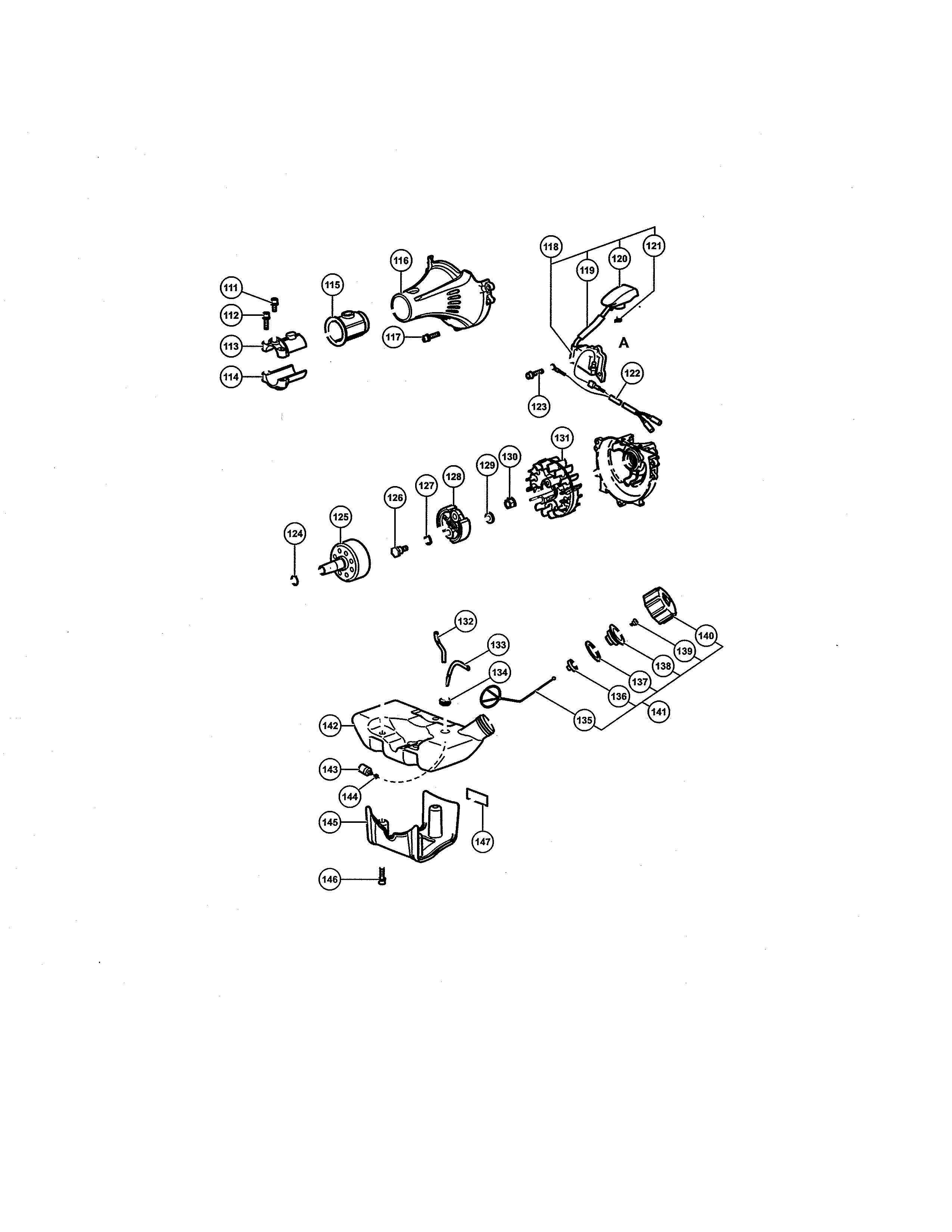

To look up diagrams and replacement items for your Hitachi CG23ECPSL, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

On your Hitachi CG23ECPSL gas line trimmer, 2.4 mm line cuts with less engine load and typically feeds easier for routine trimming; 2.7 mm line is more abrasion-resistant for heavier weeds but can make the trimmer work harder. Confirm your cutting head’s allowed line diameter in the CG23ECPSL owner's manual.

How to choose the right diameter

• Light grass and edging: 2.4 mm
• Thicker weeds and rough edges (rocks, fence lines): 2.7 mm
• If the engine bogs down: switch to 2.4 mm
• If line breaks too often: switch to 2.7 mm
• Always use nylon, flexible, non-metallic line: never wire or metal line

What changes when you go thicker

Feature	2.4 mm line	2.7 mm line
Cutting feel	Faster, smoother	More aggressive, heavier cut
Durability	Good	Better (especially abrasion)
Engine load	Lower	Higher
Best use	Routine trimming	Tough growth and rough surfaces

CG23ECPSL setup tips that affect performance

Line diameter helps, but correct line length and feeding technique matter just as much.

• Set engine speed low and tap the head to advance line; it feeds about 1-3/16 inch (3 cm) per tap.
• Keep both line ends equal length when winding the spool.
• Adjust the exposed nylon line to a total working length of 4-11/32 to 5-1/2 inches (11 to 14 cm) before operation.

Why it matters

Using line that is too thick for the job increases drag, which can reduce RPM and make a 2-stroke trimmer run rough. Using line that is too thin can snap constantly and slow trimming. Matching diameter to conditions helps protect the cutting head and keeps cutting consistent.

If you need diagrams or replacement items for the CG23ECPSL, use the model parts list first; you can also search by model on Sears PartsDirect.

Last updated: February 2026

For the Hitachi CG23ECPSL gas line trimmer, .095 line is the better all-around choice for tougher weeds and longer line life, while .080 line is better for light trimming and edging. The best pick is the thickest line your cutting head is designed to use; check the CG23ECPSL owner's manual for the specified cord diameter.

What the CG23ECPSL manual says about line size

This model’s manual specifies an applicable nylon cord diameter of 3/32 inch (2.4 mm) for the semi-auto cutting head. That size is closest to .095 inch, and it is noticeably thicker than .080 inch.

Quick comparison

Line size	Best for	Tradeoffs	Typical fit on gas trimmers
.080 in	Light grass, detail edging	Breaks faster in thick weeds	Common on lighter-duty heads
.095 in	Mixed grass and weeds, faster clearing	Slightly more load, can reduce runtime	Common on many gas trimmers

How to choose between .080 and .095 for real yard conditions

Use these rules of thumb when you are deciding what to spool:

• Choose .095 for thick grass, fence lines, and weeds where line breakage is your main problem.
• Choose .080 for clean edging and lighter trimming where control matters more than durability.
• Match the line to the cutting head rating; oversized line can feed poorly and overload the head.
• Stick with flexible, non-metallic line only; never use wire or cable.
• Keep the line at the correct operating length; overly long line slows cutting and increases engine load.

Why it matters (performance and wear)

Line diameter changes how hard the engine and cutting head have to work. Thicker line (.095) usually lasts longer and cuts more aggressively, but it can increase load. Using the correct diameter and keeping the guard and line limiter in place helps protect the clutch, head, and drive components.

Helpful DIY guidance

If you are also dealing with poor cutting, constant breakage, or feeding issues, we recommend starting with the basics in the solving common problems with line trimmer cutting lines guide.

Ordering the right supplies

We list model-specific replacement parts and diagrams for the Hitachi CG23ECPSL on this model page; you can also search by model number on Sears PartsDirect if you are shopping for additional maintenance items.
