Yes, replacing the engine on your Craftsman lawn tractor model 917271841 is worth it when the tractor’s deck, steering, and drive system are still solid and the total engine-swap cost stays well below the cost of replacing the whole machine. It is usually not worth it when multiple major systems are worn or unsafe.

• The mower deck is structurally sound (no major rust-through or cracks)
• The transmission and ground drive still pull strongly (no slipping or loss of power)
• Steering and front axle are tight enough to control safely
• You can still get key wear parts (belts, blades, mandrel parts) for 917271841
• The engine failure is truly internal (not a fuel, spark, or safety interlock issue)
• You can DIY the swap or have a clear labor estimate

A practical guideline is to replace the engine only when the all-in cost (engine + any required adapters + incidentals + labor) is well under 50% of what you would spend to replace the tractor with a comparable unit.

Your troubleshooting chart in the owner's manual points to frequent causes like a weak battery, corroded terminals, blown fuse, loose wiring, faulty ignition switch, or a faulty solenoid/starter.

Start here:

• Verify the clutch/brake pedal is fully depressed and the attachment clutch is disengaged
• Check battery condition and clean/tighten battery terminals

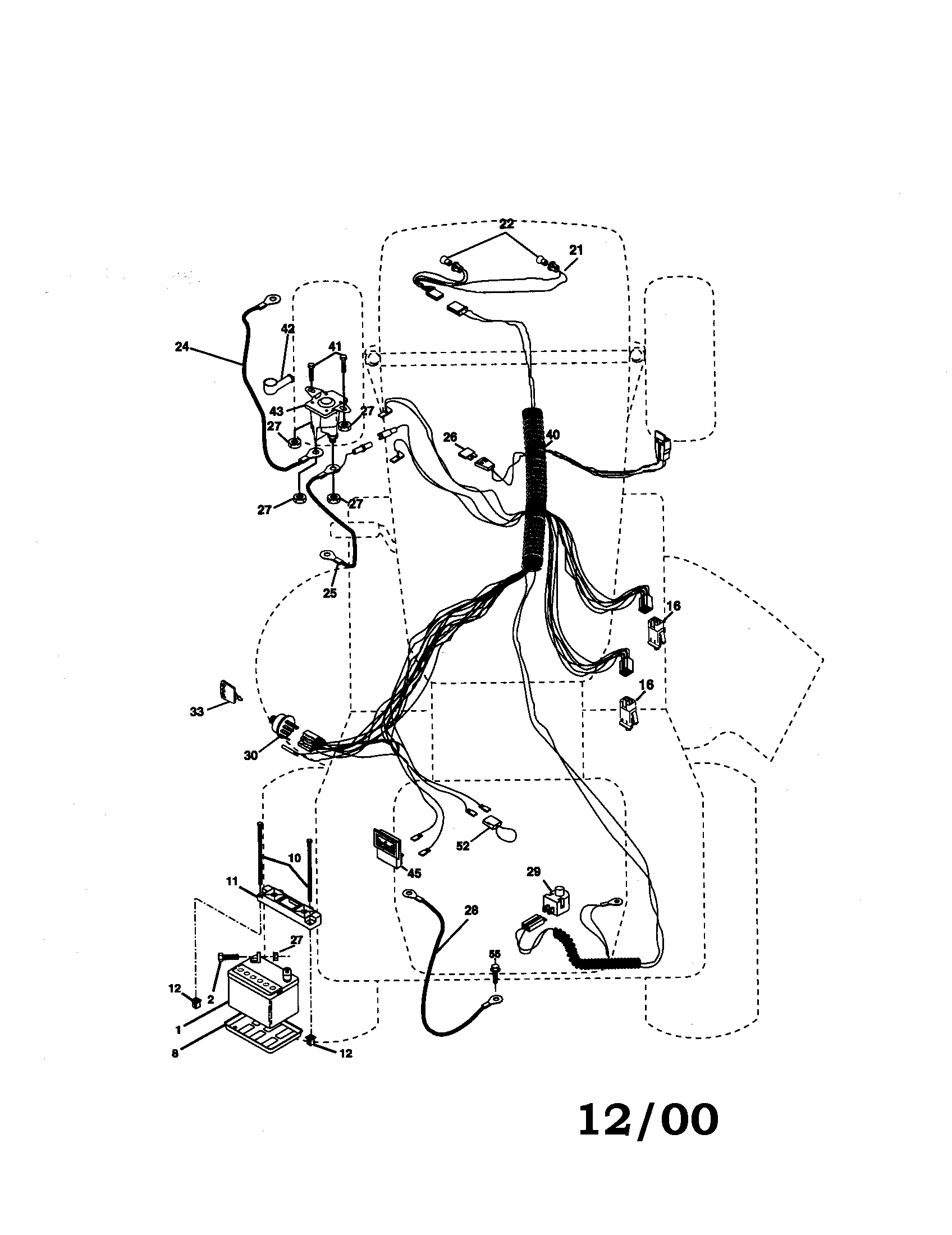

• Inspect wiring for looseness or damage
• If you hear a click but no crank, test the starter circuit and solenoid

If the solenoid is the culprit, replacing it is far cheaper than an engine swap; see solenoid 532146154.

An engine swap can be a smart investment, but only if it does not mask bigger safety or reliability problems. The manual also stresses safe service practices (for example, never adjust or repair with the engine running and keep blade hardware tight), which becomes even more important after major work.

Last updated: February 2026

The most common issues we see on the Craftsman 917271841 lawn tractor involve drive and deck belt wear, blade engagement problems, starting or no-crank symptoms, and steering or deck-spindle noise. These problems usually trace back to normal wear items and simple adjustments outlined in the owner's manual.

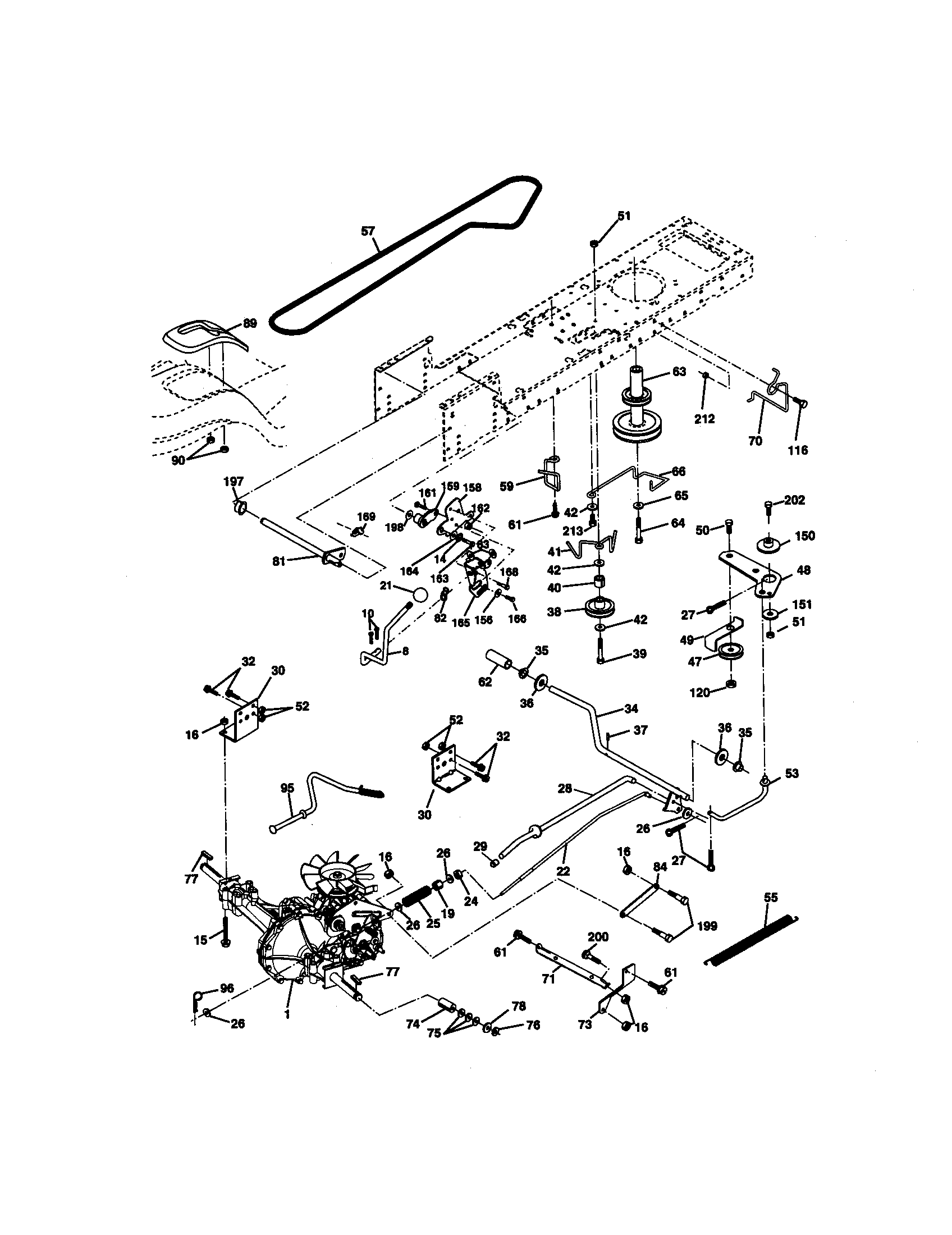

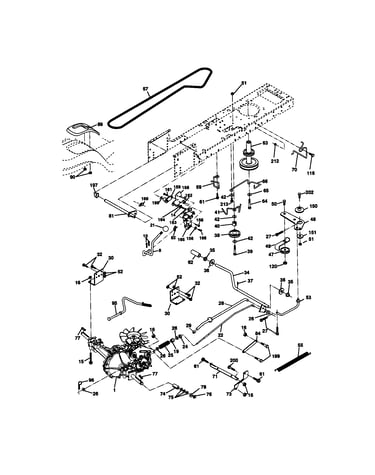

• Tractor will not move or slips under load: worn or stretched ground drive belt, misrouted belt, or idler tension issue

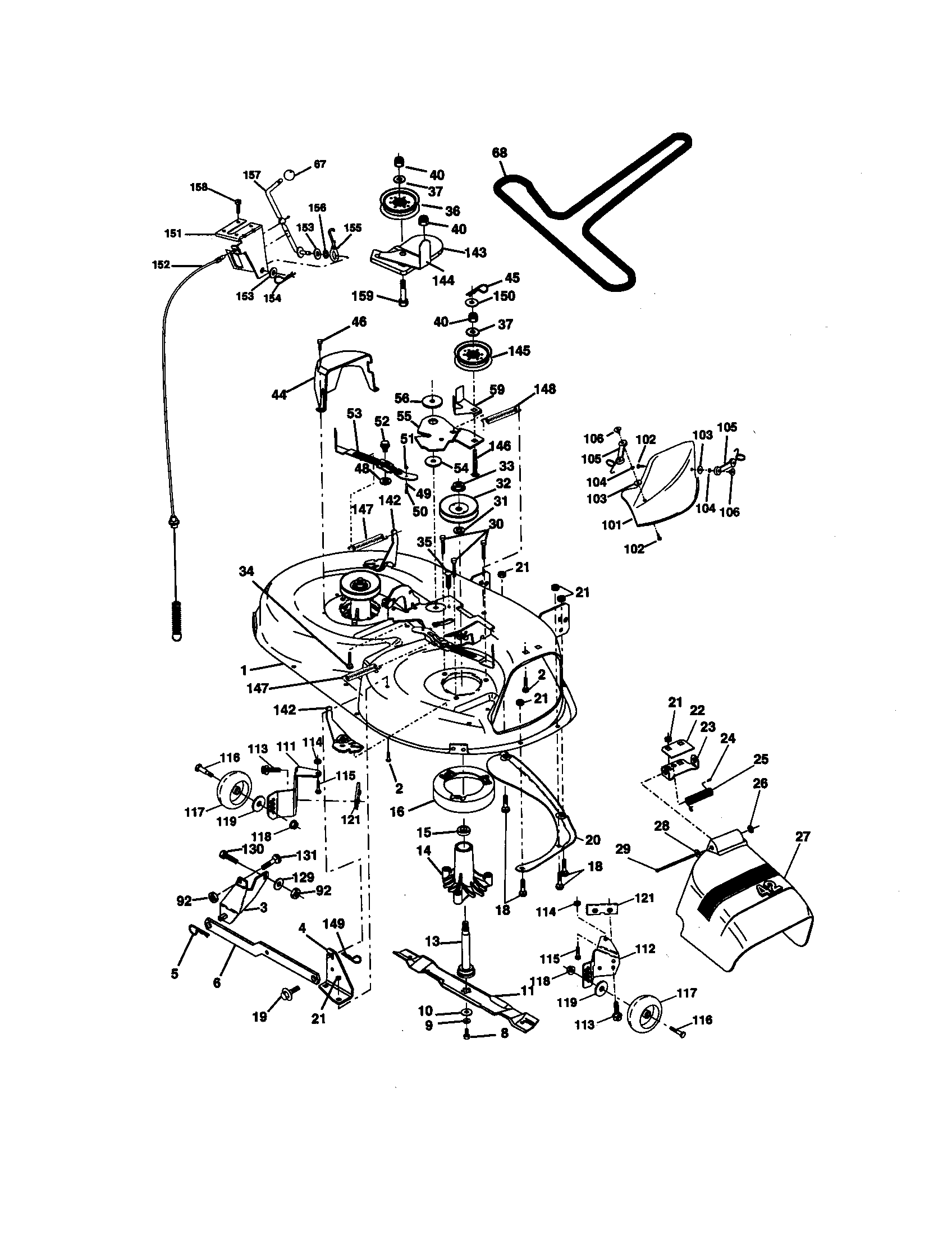

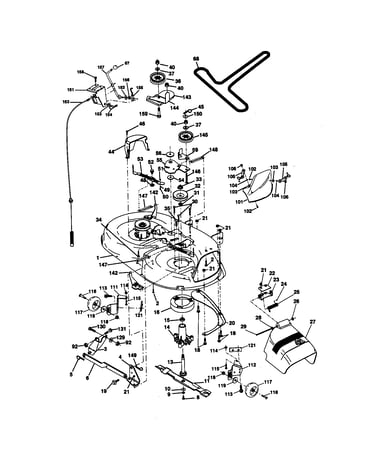

• Blades will not engage or cut is uneven: deck belt/engagement cable out of adjustment, idler pulley wear, or spindle (mandrel) wear
• Clicking but no crank: weak battery connections, failed starter solenoid, or safety switch not closing
• Vibration, squeal, or grinding from the deck: damaged blade, worn mandrel bearings, or loose hardware

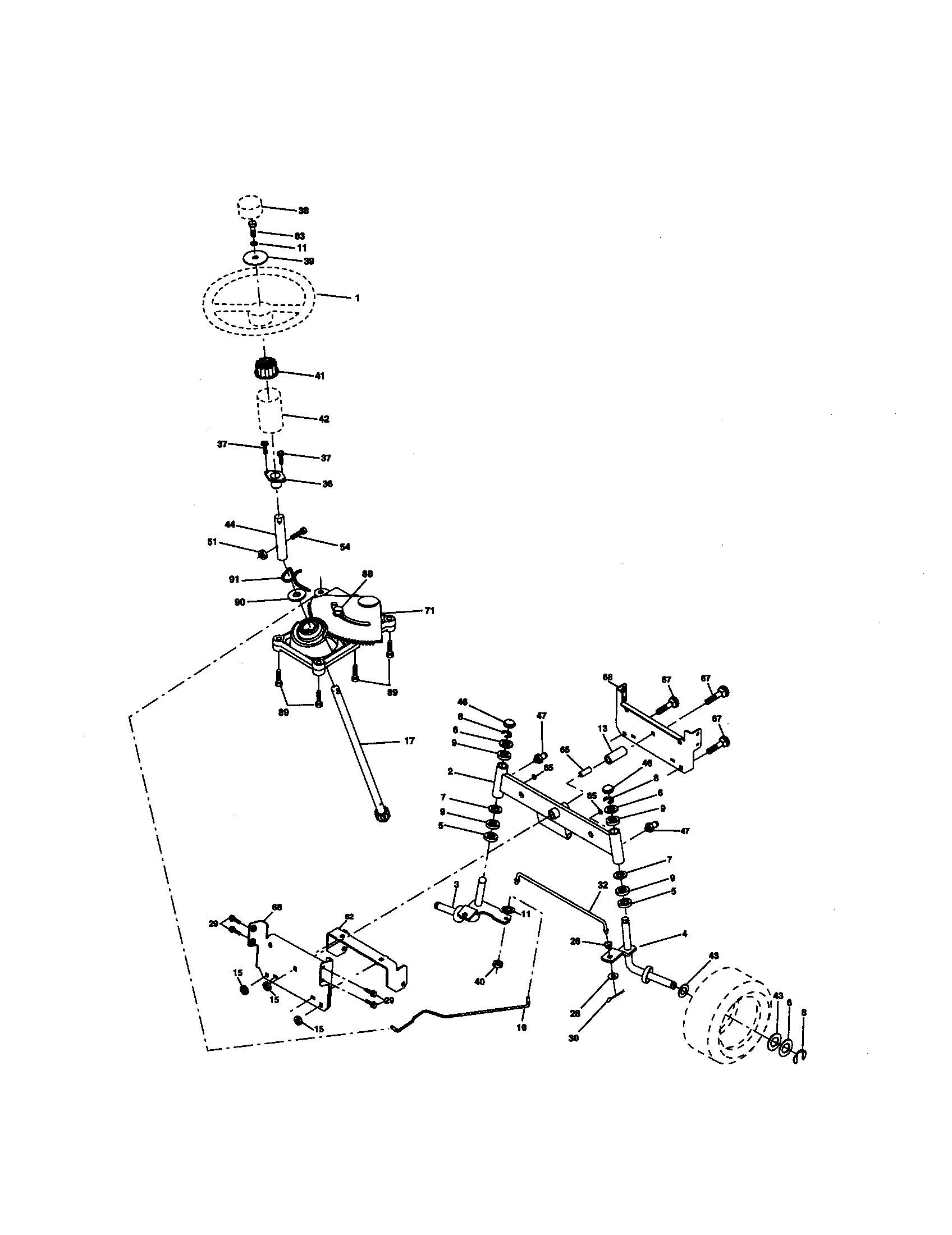

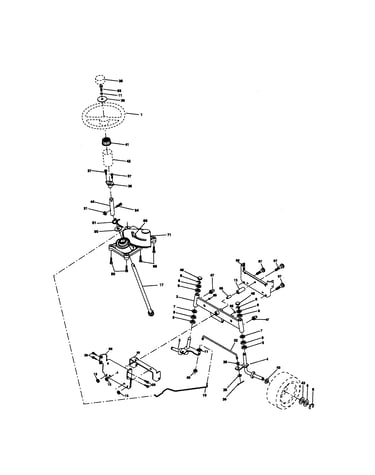

• Loose steering or wandering: worn steering sector gear, drag link wear, or loose fasteners

If your symptoms match, these model-compatible parts are often involved:

• Park on level ground; set parking brake; remove the key and disconnect the spark plug wire.
• Inspect belts for glazing, cracks, fraying, or oil contamination.
• Confirm the deck is level and the blade hardware is tight.
• Check battery terminals for corrosion and tightness; verify safety interlocks are being pressed.
• Spin deck pulleys by hand (engine off); listen for rough bearings or wobble.

Catching belt, pulley, and mandrel wear early prevents secondary damage to the mower deck, reduces vibration, and restores safe blade engagement and consistent cutting performance.

Last updated: March 2026

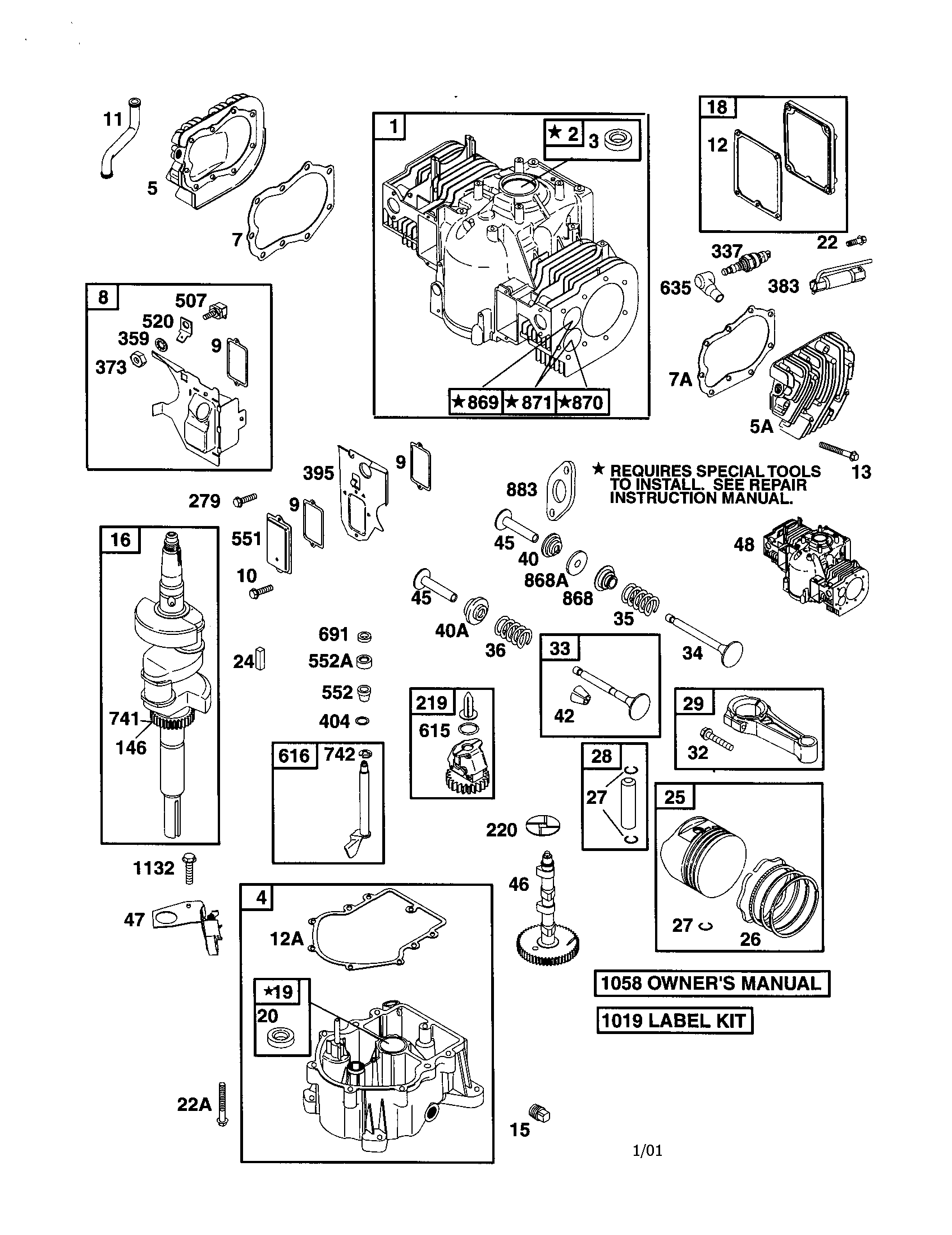

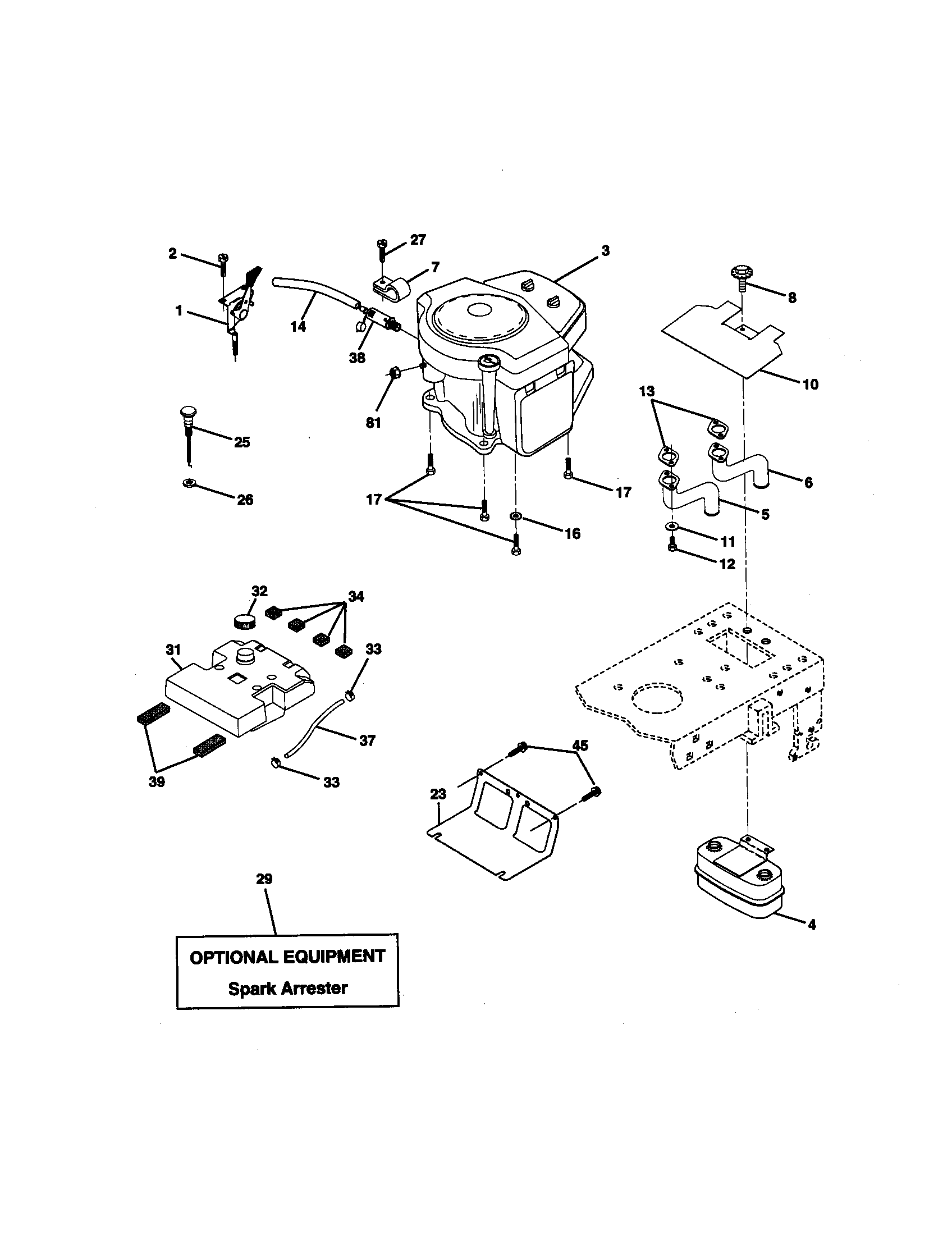

The Craftsman lawn tractor model 917271841 uses a gasoline engine, but the exact engine brand, model, and horsepower are identified on the engine label and in the specifications section of the owner's manual. Use that information to match tune-up parts and service procedures correctly.

Look for the engine identification label (usually on the blower housing, valve cover, or near the starter). Record these items:

• Engine manufacturer (commonly Briggs & Stratton, Kohler, or Tecumseh on tractors of this era)
• Engine model number
• Type and code numbers (or spec number)
• Horsepower or displacement (CC)
• Serial number

• If the decal shows an engine HP rating, use it as a starting point, but match parts by engine model/type/code.
• If the tractor has been repowered, the engine label is the only reliable identifier.
• Use fresh fuel; the manual notes fuel should typically be used within 30 days to avoid stale-fuel issues.

Many service parts are engine-specific, even when the tractor model number is the same. Correct engine identification helps you get the right:

• Spark plug and air filter
• Fuel filter and oil filter

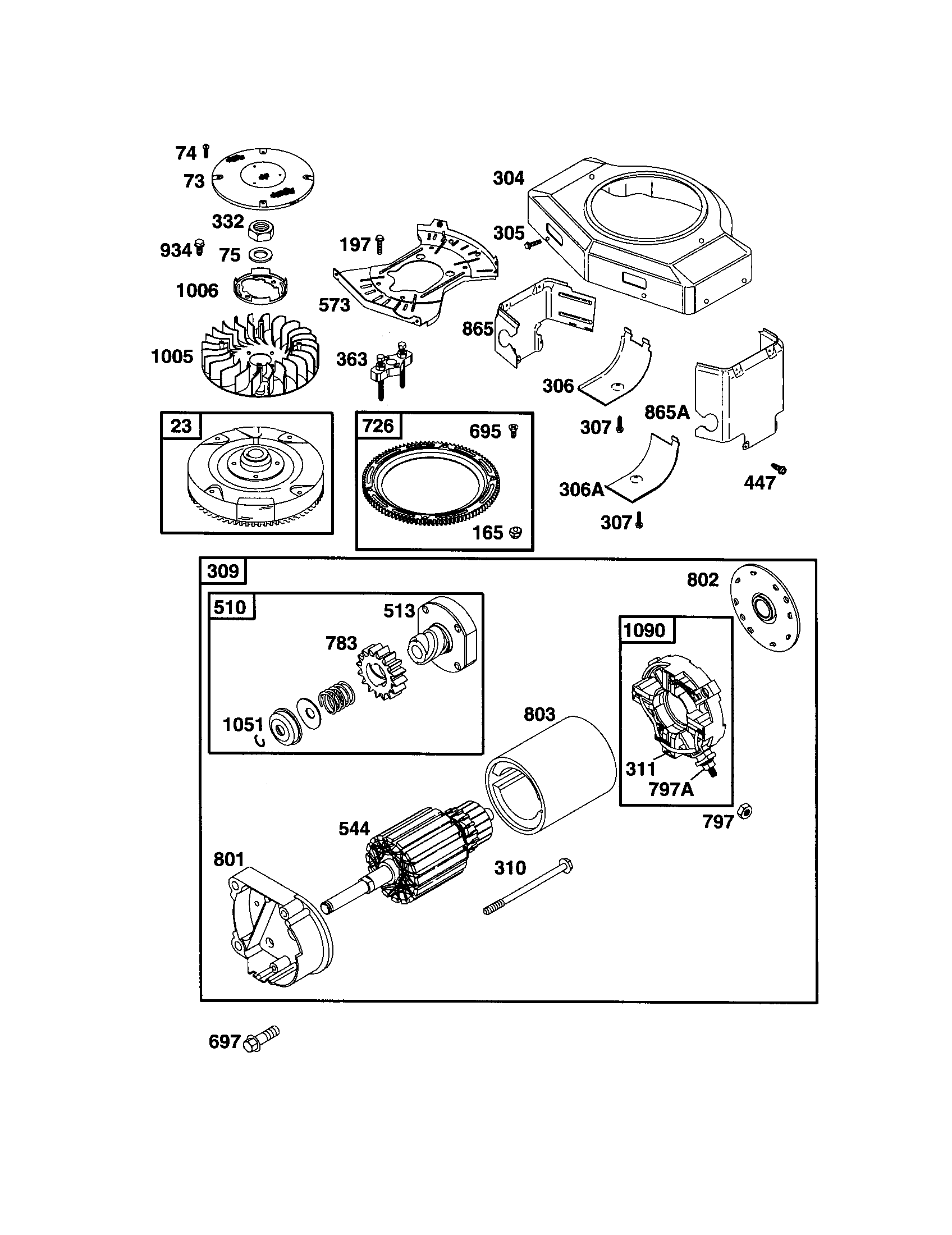

• Starter and charging components

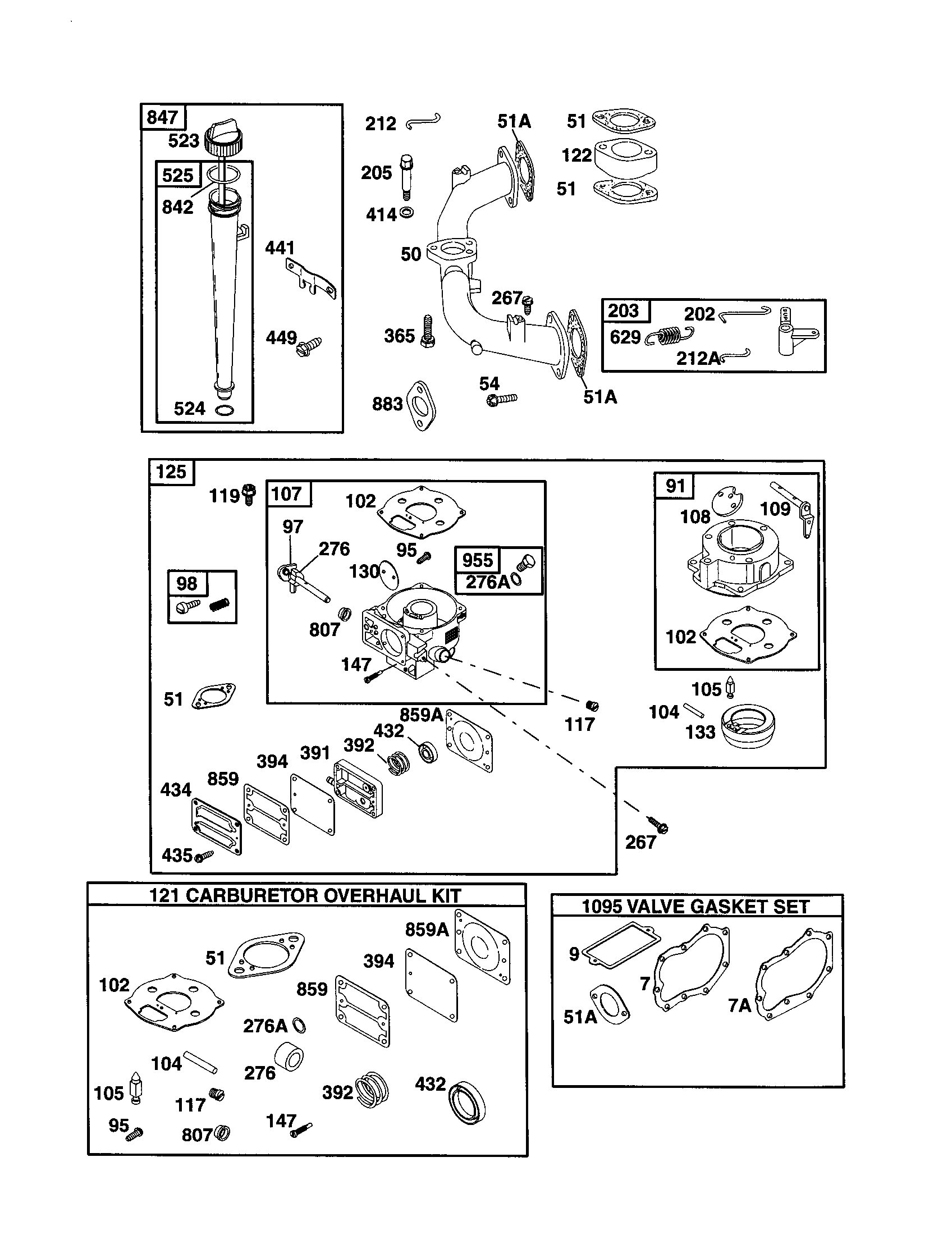

• Carburetor parts and gaskets

If you are servicing the cutting system (not the engine), these model-matched parts are commonly replaced:

• Husqvarna lawn tractor mulching blade, 21-in 532134149
• Lawn tractor ground drive belt, 1/2 x 82-in 532140294
• Solenoid 532146154

Using the correct engine identification prevents wrong-part returns and saves time during maintenance and troubleshooting, especially for starting, charging, and fuel-system problems.
