GE
Dishwasher

Model # CDT836P2M4S1 Official GE dishwasher

Here are the diagrams and repair parts for Official GE CDT836P2M4S1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

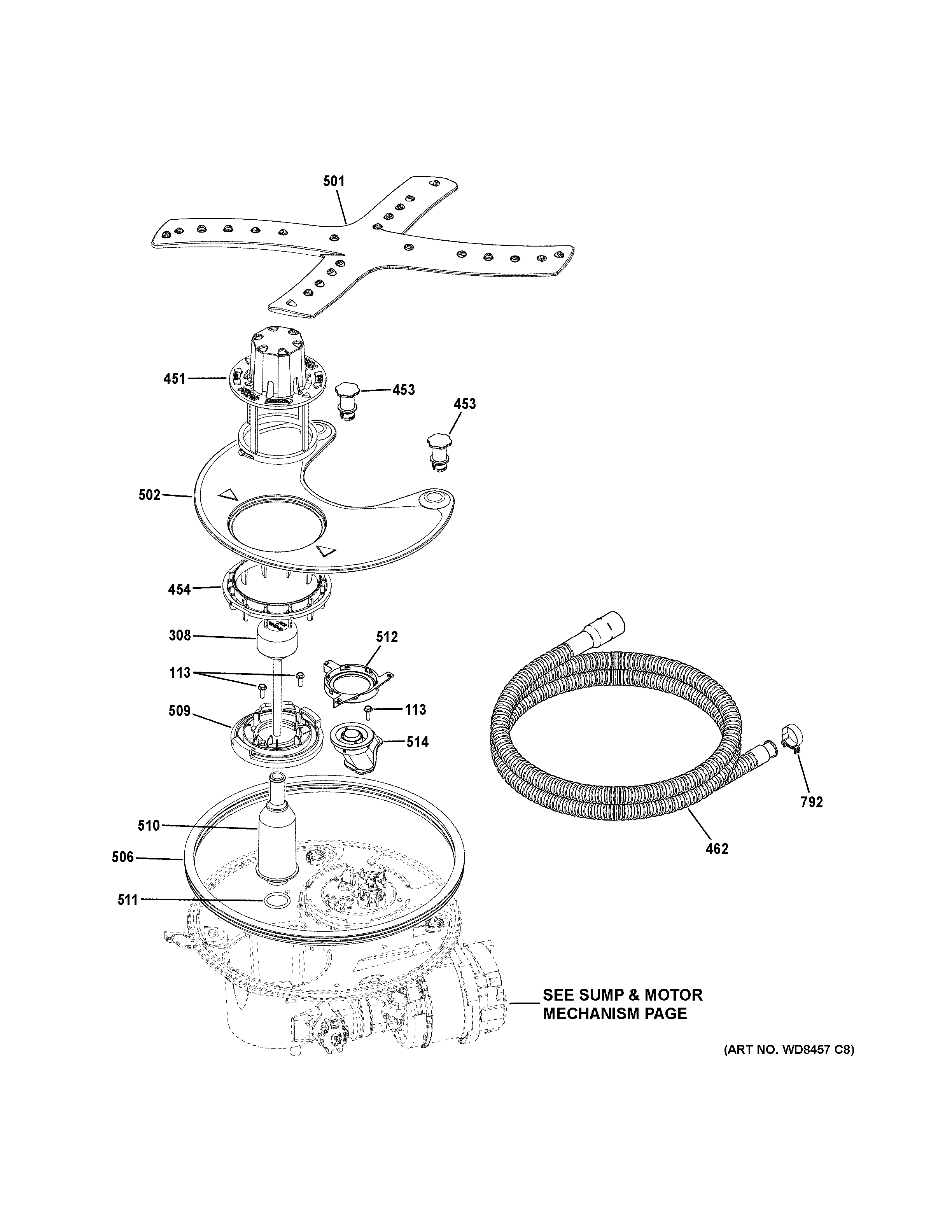

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |

Dishwasher Lower Dishrack Roller WD12X10435
#704

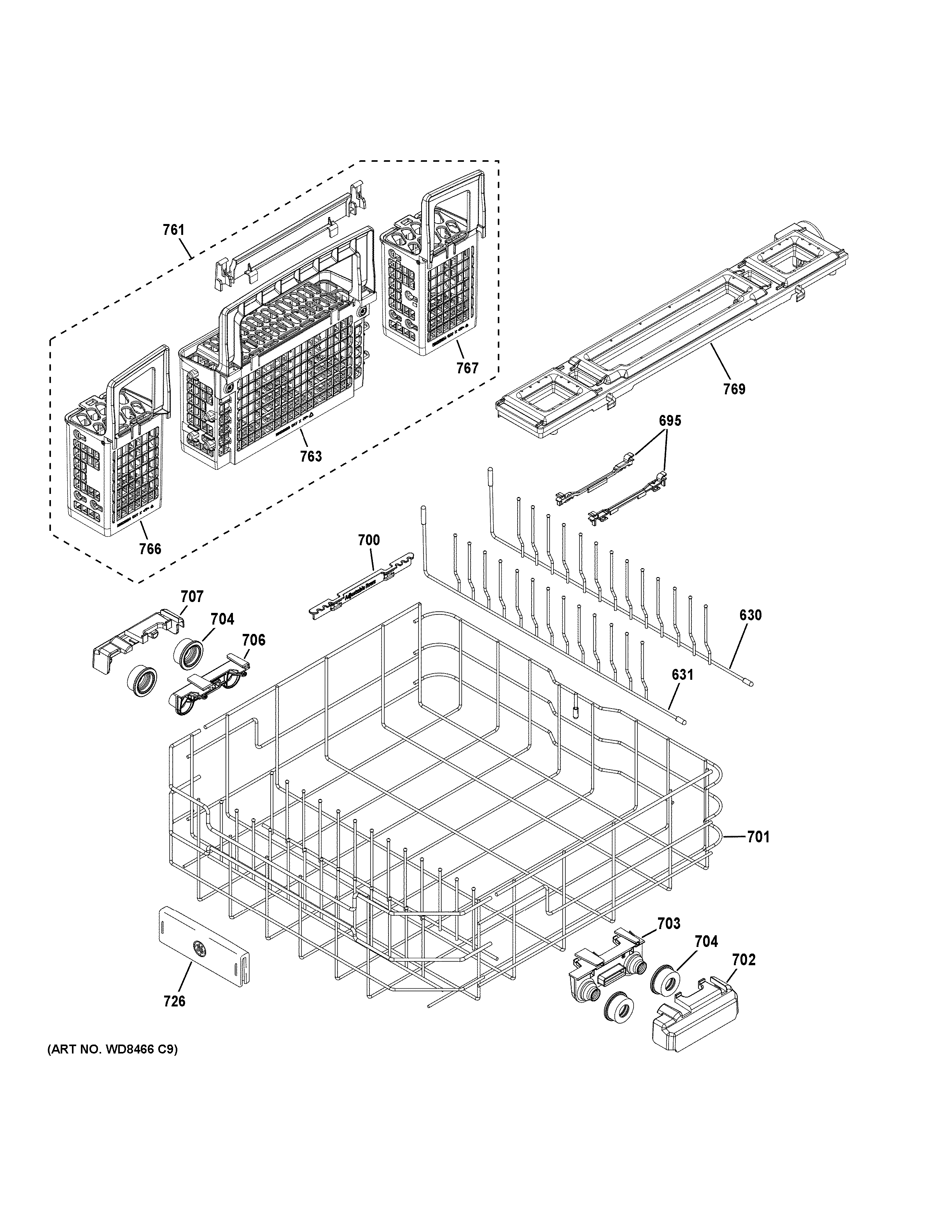

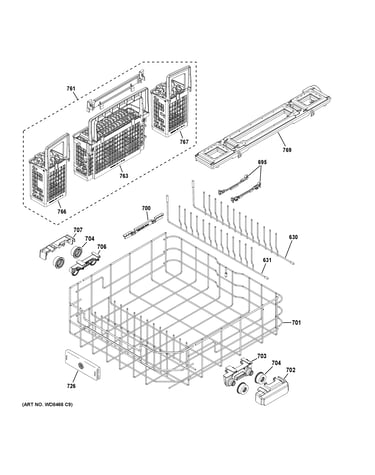

Lower rack assembly diagram

Dishwasher lower dishrack roller

Part #WD12X10435

Replaced by #WD12X26146

?
Manufacturer substitution
This part replaces WD12X10435. Substitute parts can look different from the original.
BEST SELLER
$8.44
13% OFF Phone Price : $9.70
In Stock
Drain Pump Asm WD19X24394
#325

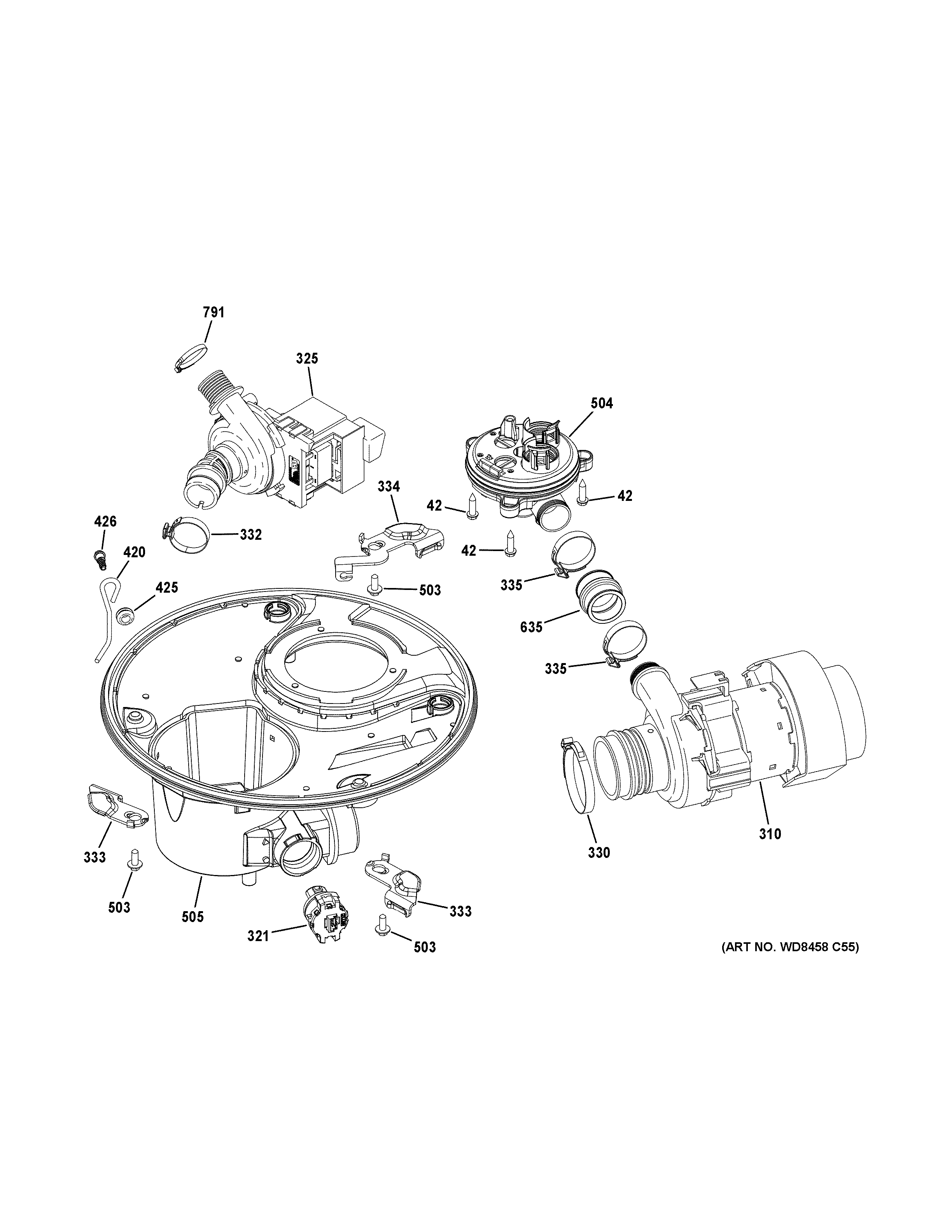

Sump & motor mechanism diagram

Drain pump asm

Part #WD19X24394

Replaced by #WD19X24829

?
Manufacturer substitution
This part replaces WD19X24394. Substitute parts can look different from the original.
BEST SELLER
$53.46
9% OFF Phone Price : $58.46
In Stock
Dishwasher Terminal Block Cover WD12X10412
#743

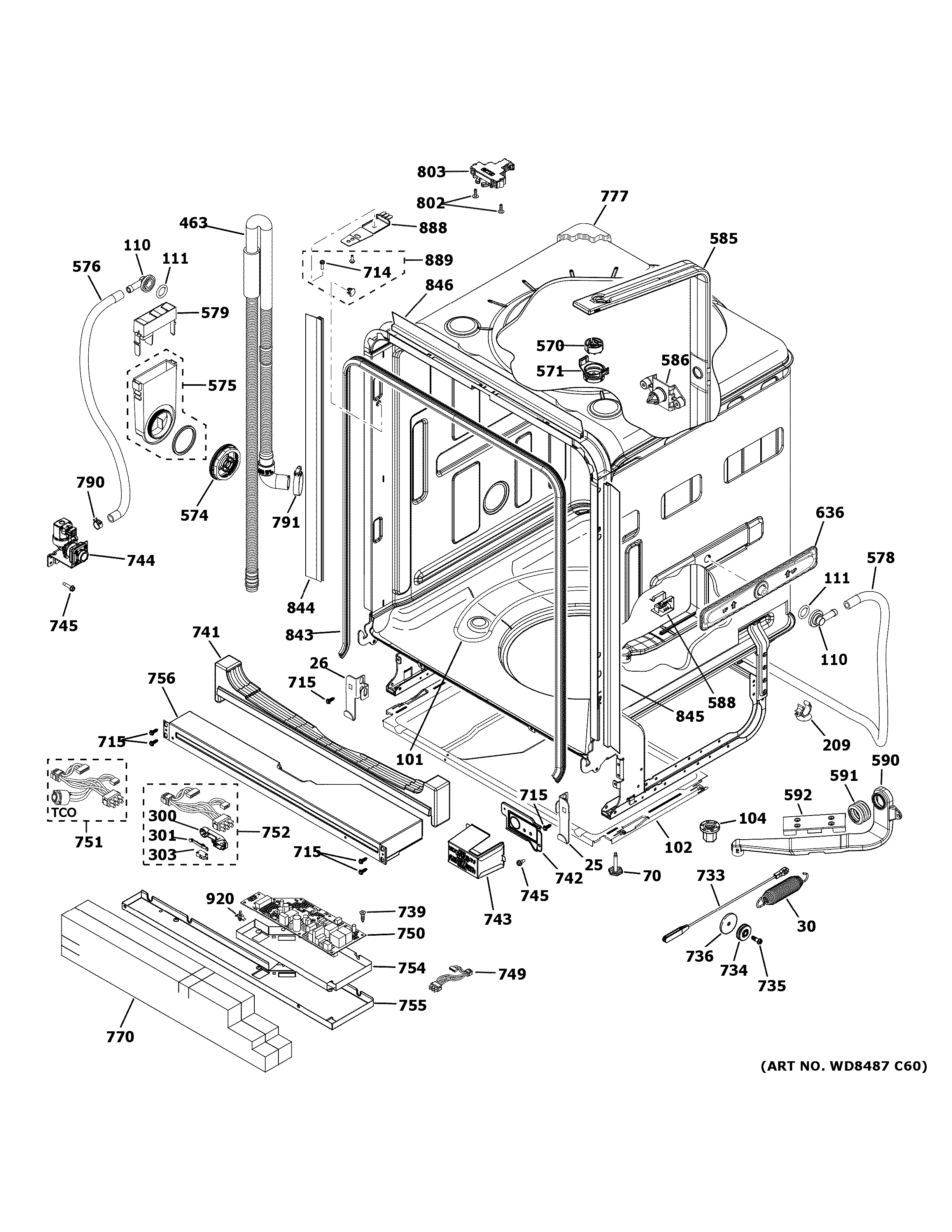

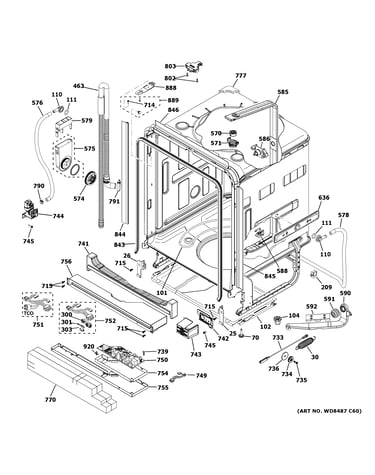

Body parts diagram

Dishwasher terminal block cover

Part #WD12X10412

BEST SELLER
This item is not returnable
In Stock
Dishwasher Installation Bracket (replaces Wd01x10598) WD01X21740
#888

Body parts diagram

Dishwasher installation bracket (replaces wd01x10598)

Part #WD01X21740

BEST SELLER
$7.09
12% OFF Phone Price : $8.09
In Stock
Dishwasher Circulation Pump Assembly (replaces Wd26x23258) WD26X22826
#310

Sump & motor mechanism diagram

Dishwasher circulation pump assembly (replaces wd26x23258)

Part #WD26X22826

Replaced by #WD26X23258

?
Manufacturer substitution
This part replaces WD26X22826. Substitute parts can look different from the original.
BEST SELLER
$109.42
10% OFF Was : $121.58
In Stock
Lower Rack WD28X22827
#701

Lower rack assembly diagram

Lower rack

Part #WD28X22827

Replaced by #WD28X30221

?
Manufacturer substitution
This part replaces WD28X22827. Substitute parts can look different from the original.
BEST SELLER
In Stock
Dishwasher Heating Element Nut WD01X10070
#104

Body parts diagram

Dishwasher heating element nut

Part #WD01X10070

BEST SELLER
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Dishwasher Vent Bezel WD24X20586
#812

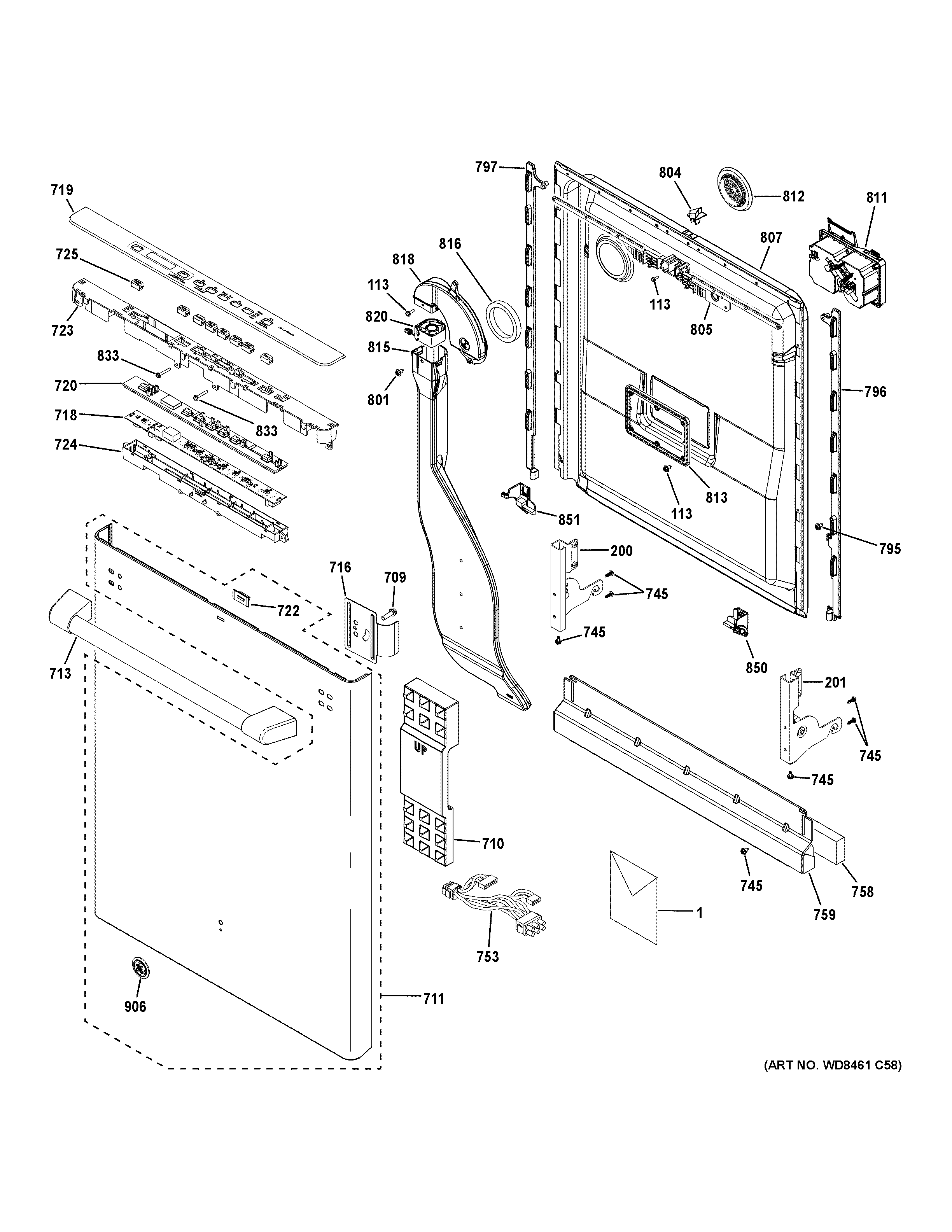

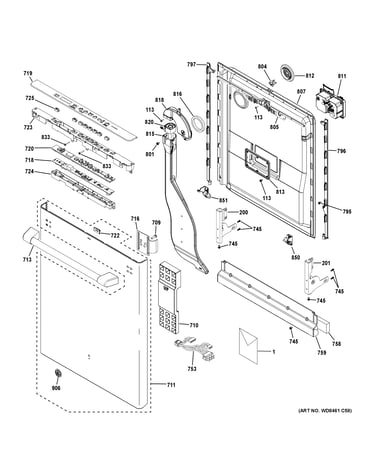

Escutcheon & door assembly diagram

Dishwasher vent bezel

Part #WD24X20586

$7.88
11% OFF Phone Price : $8.88
In Stock
Dishwasher Door Vent Seal (replaces Wd08x23666) WD08X10092
#816

Escutcheon & door assembly diagram

Dishwasher door vent seal (replaces wd08x23666)

Part #WD08X10092

$25.51
16% OFF Phone Price : $30.51
In Stock
Bottle Washer WD12X22618
#634

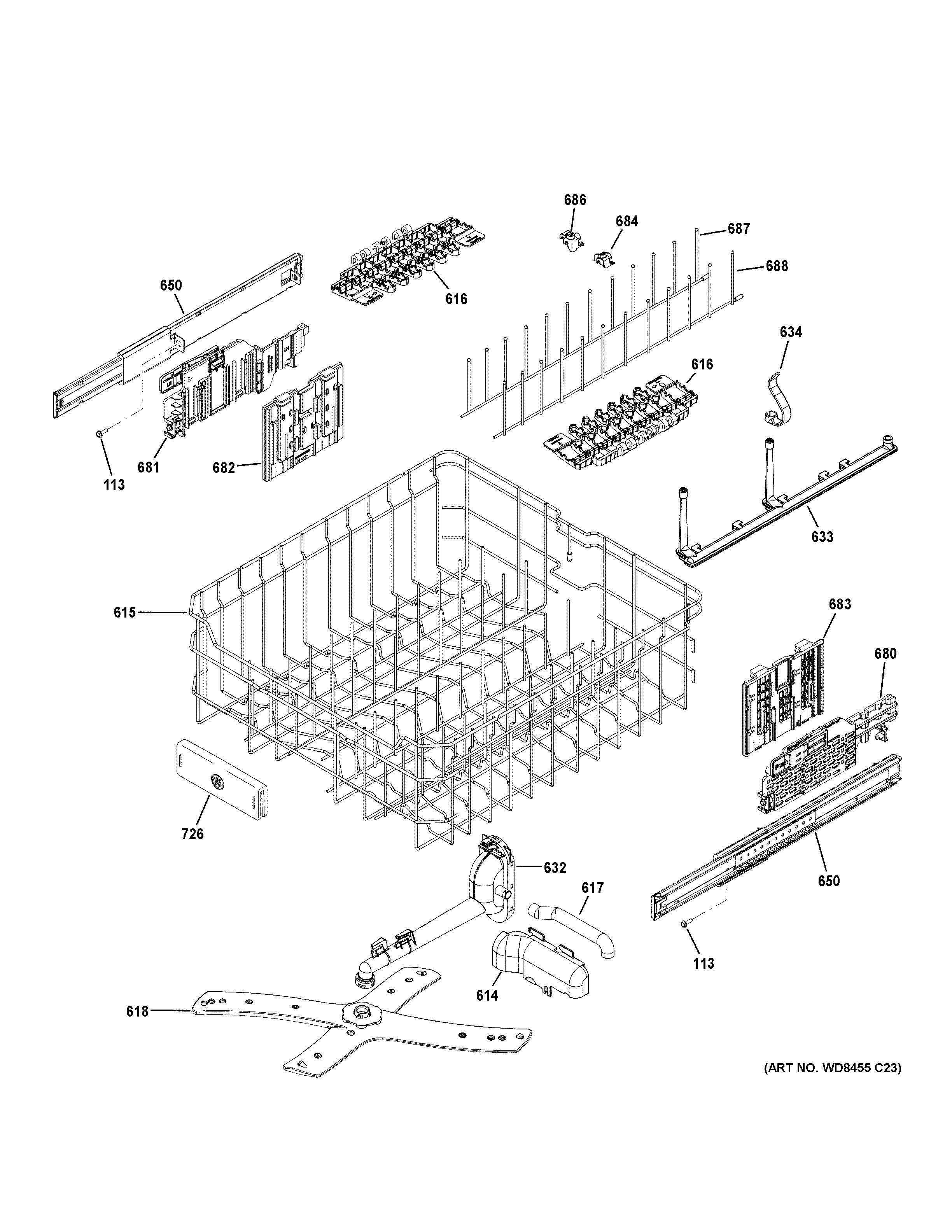

Upper rack assembly diagram

Bottle washer

Part #WD12X22618

Replaced by #WD12X25301

?
Manufacturer substitution
This part replaces WD12X22618. Substitute parts can look different from the original.
$6.51
13% OFF Phone Price : $7.51
In Stock
