Model # FAV6800AWQ Official Maytag washer

Here are the diagrams and repair parts for Official Maytag FAV6800AWQ washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

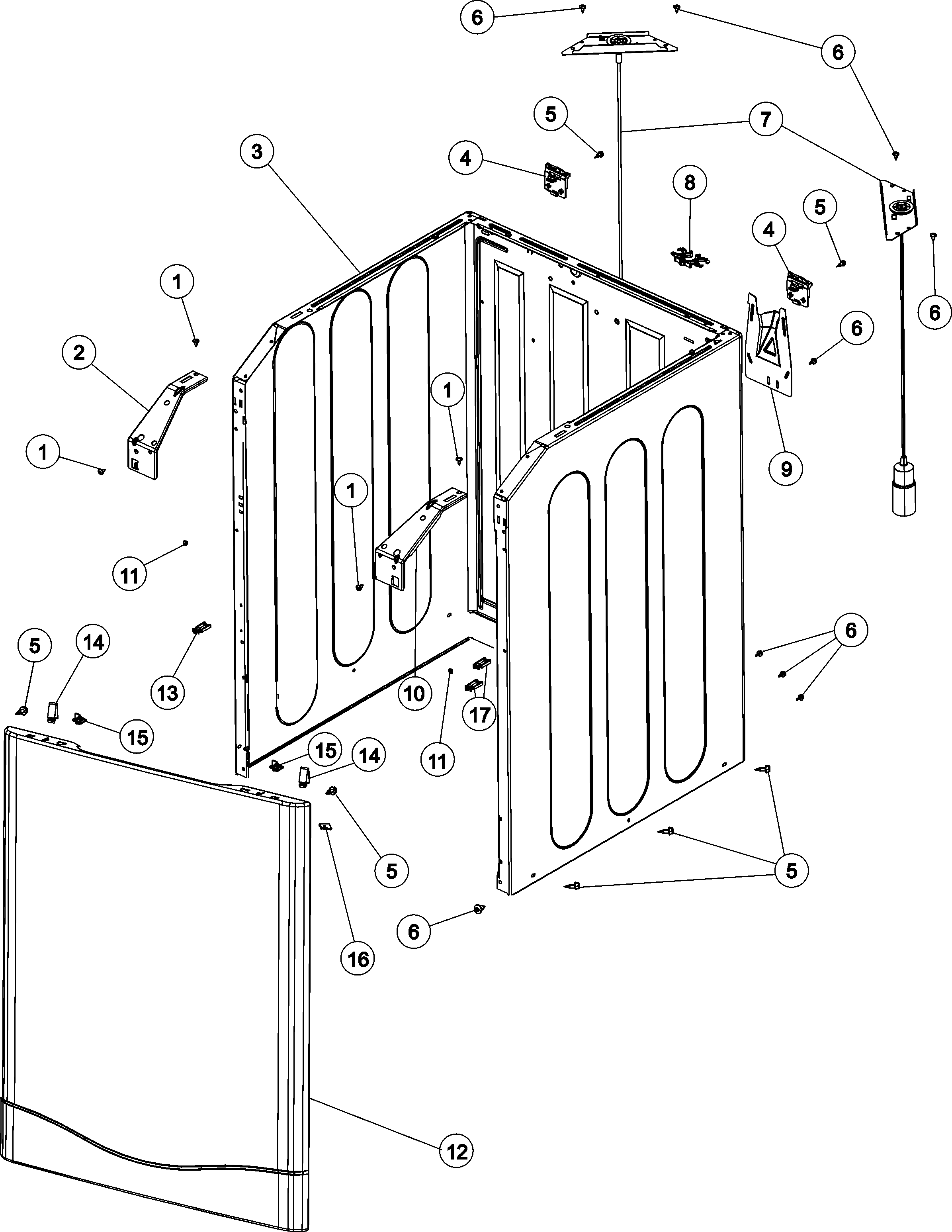

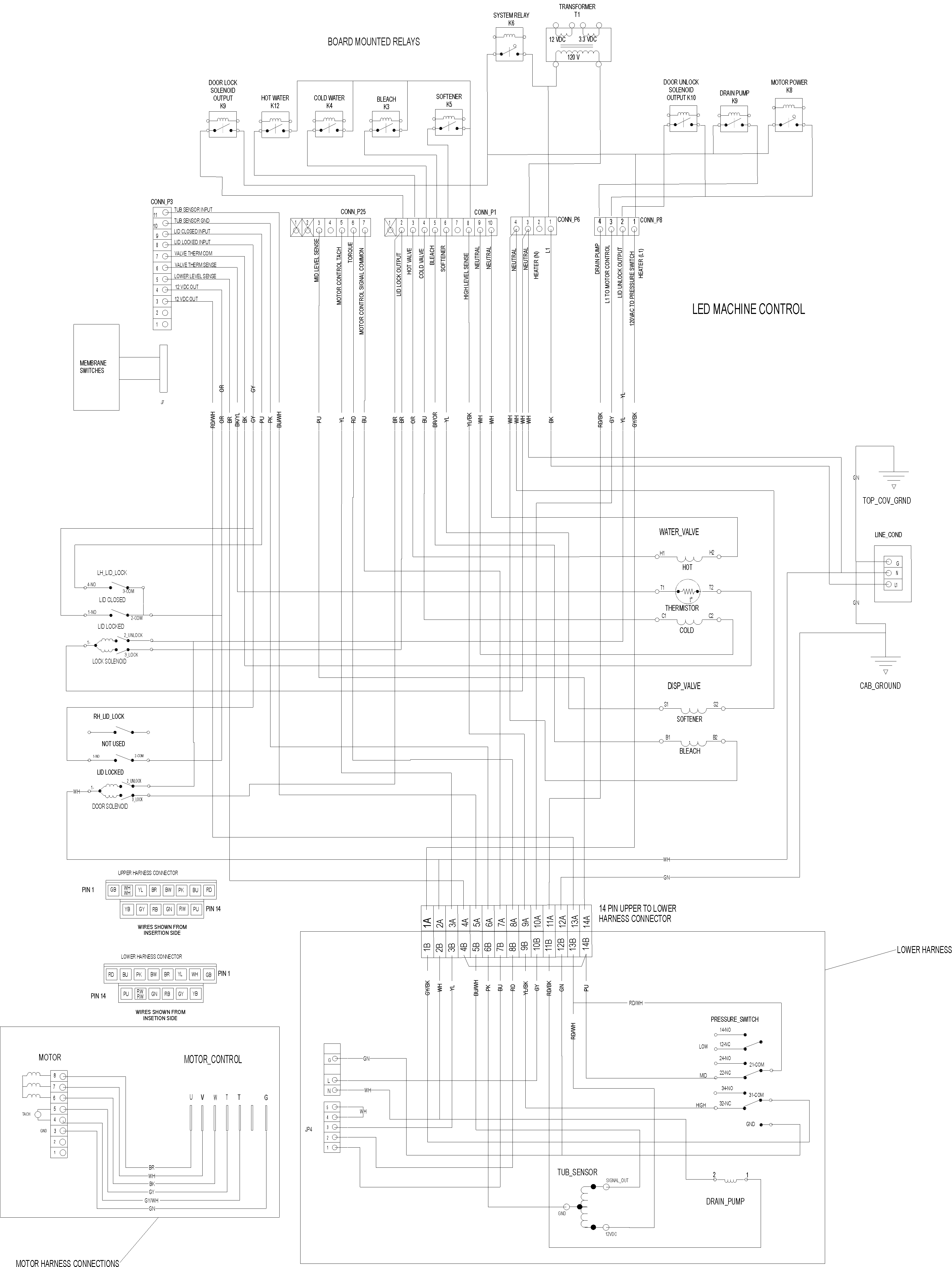

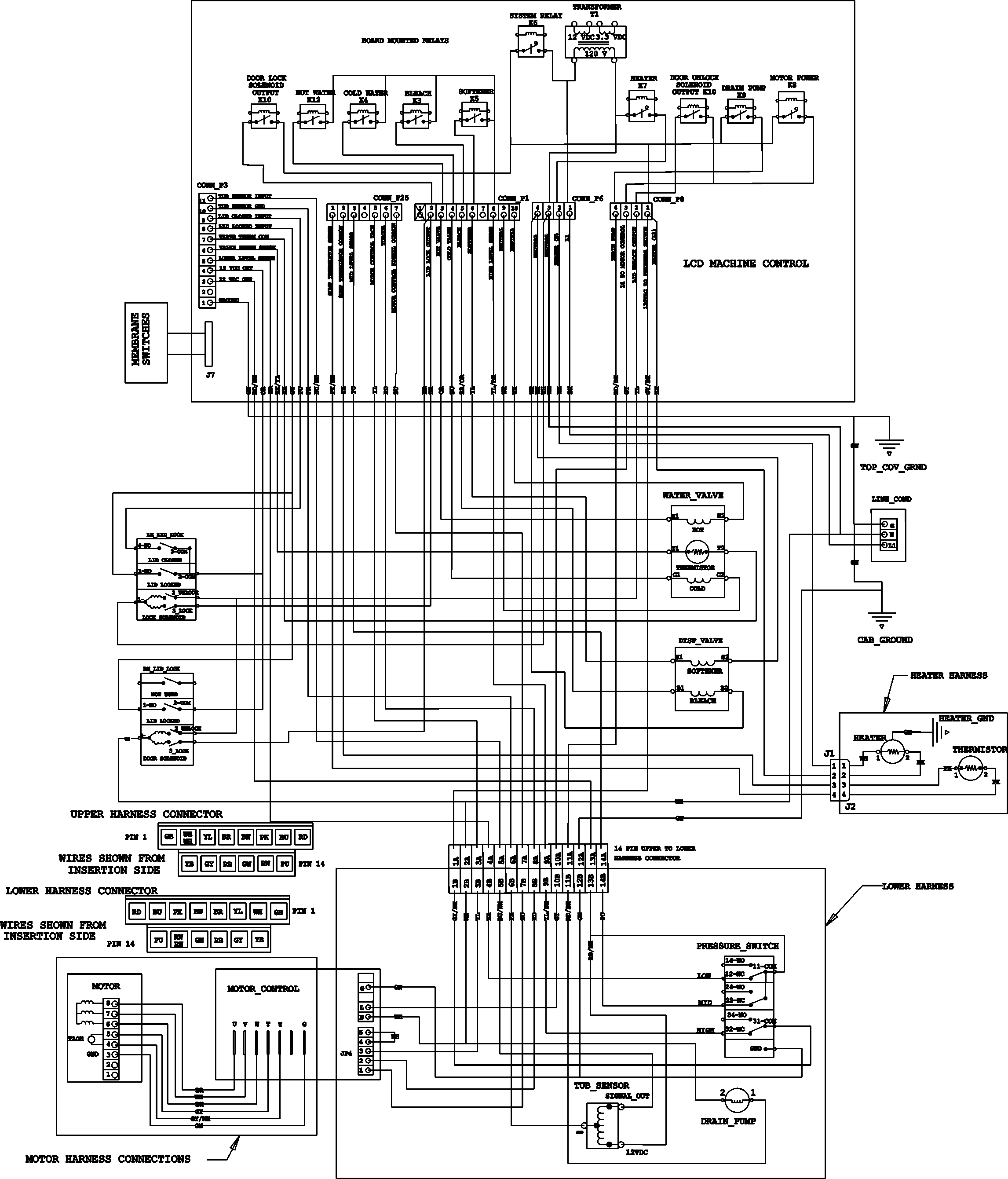

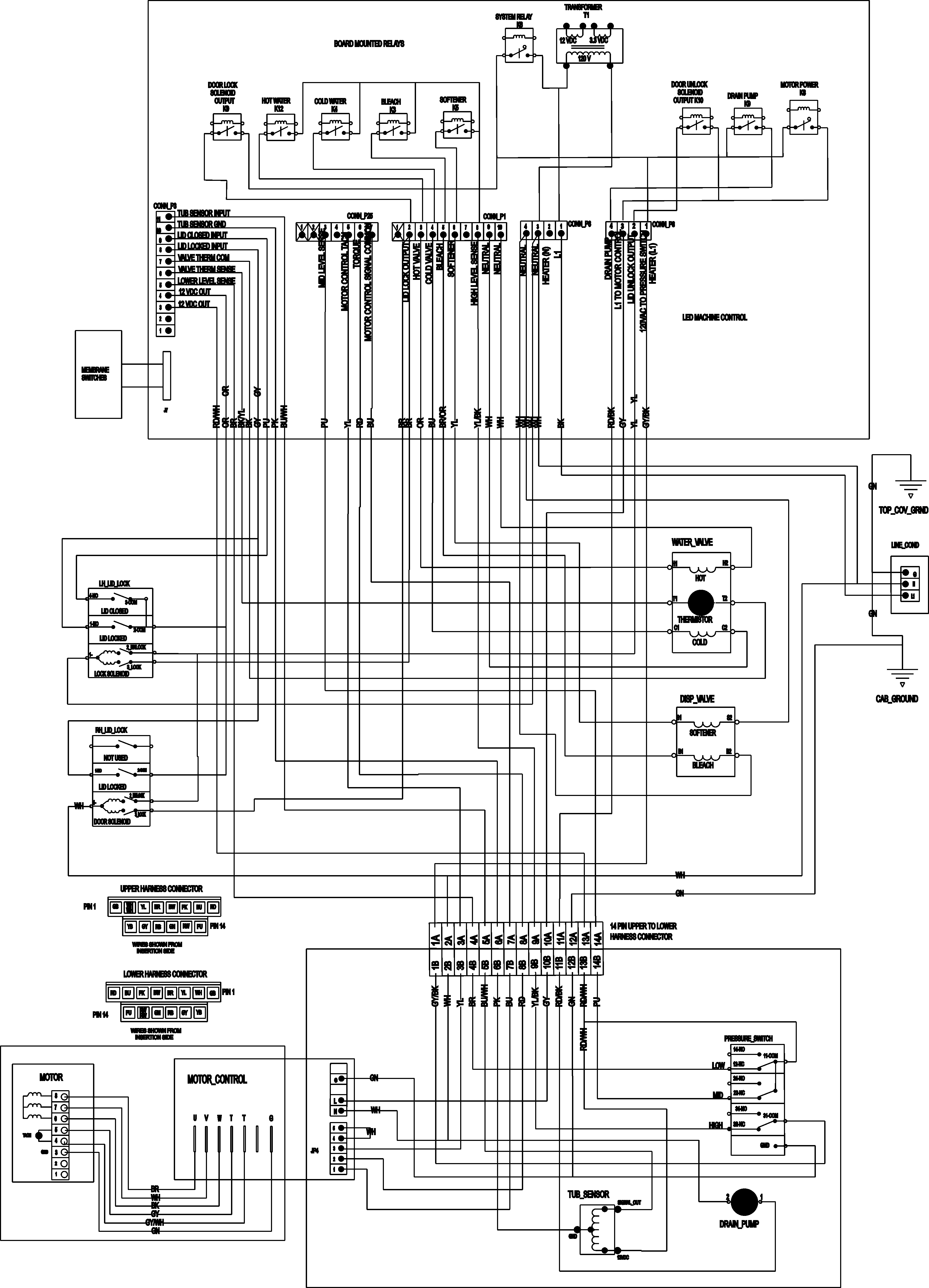

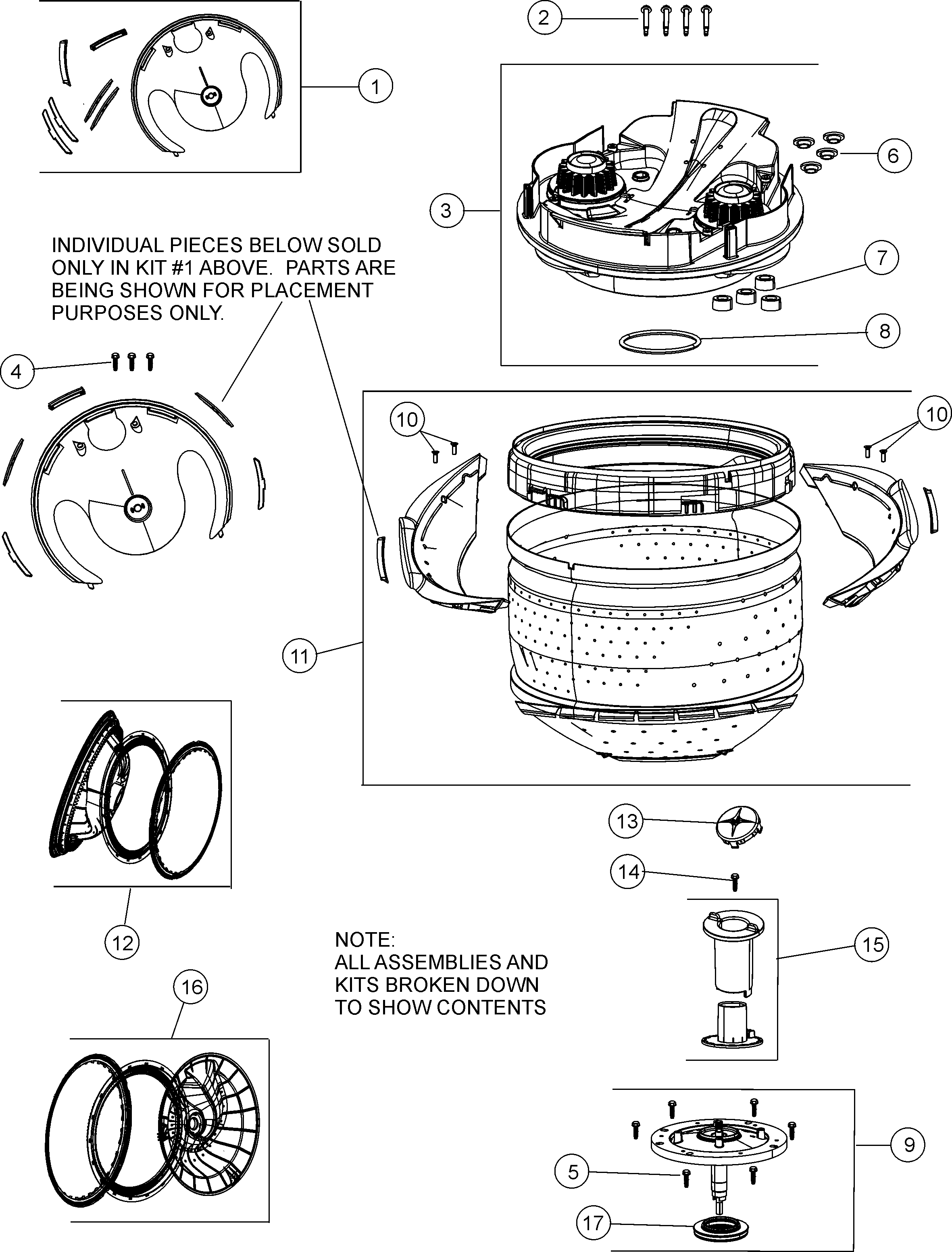

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |

Hose Clamp 22002853
#7

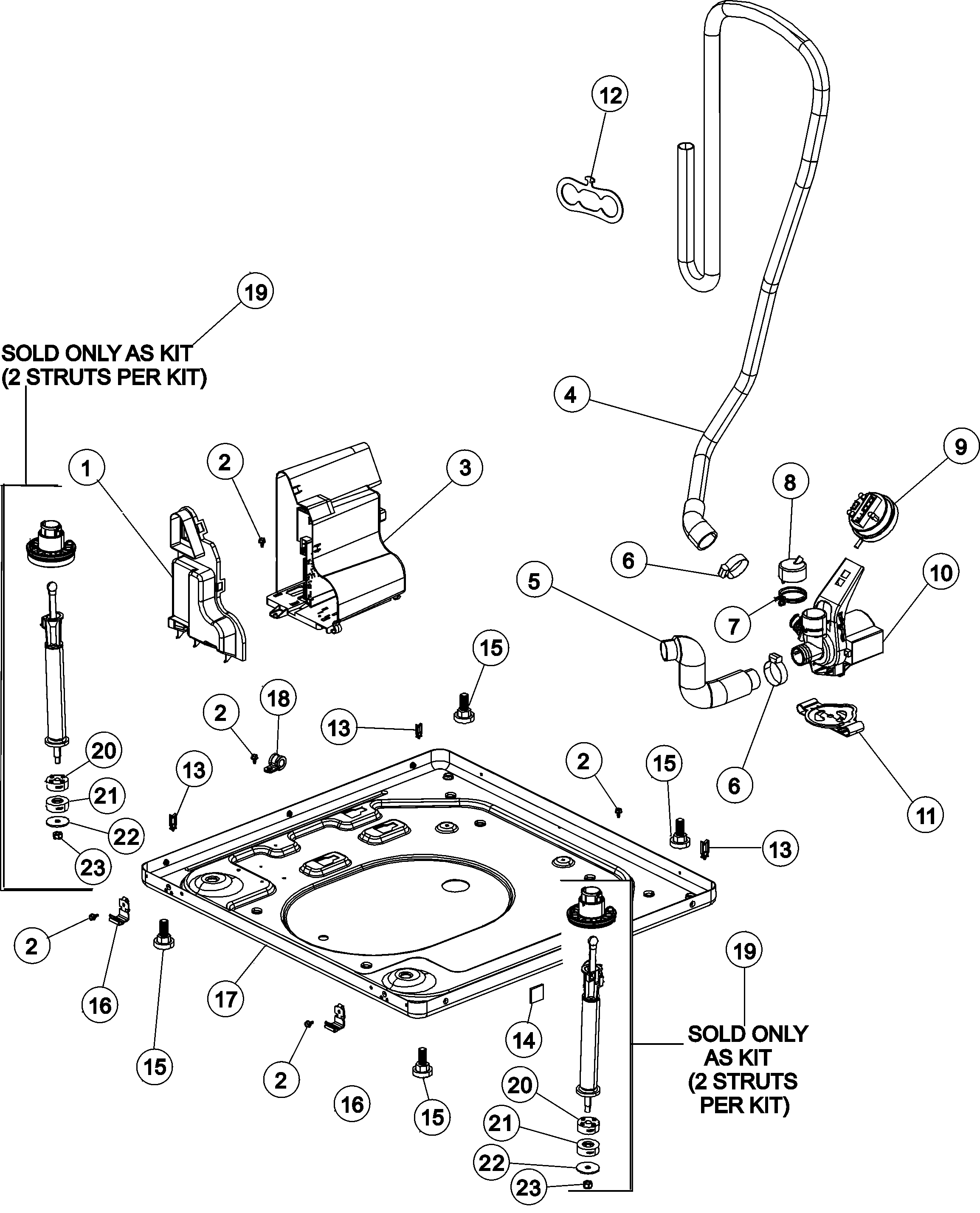

Base diagram

Hose clamp

Part #22002853

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 22002853. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Drain Hose Clamp 22001984
Drain hose clamp

Part #22001984

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 22001984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Inlet Hose 33-7891
#25

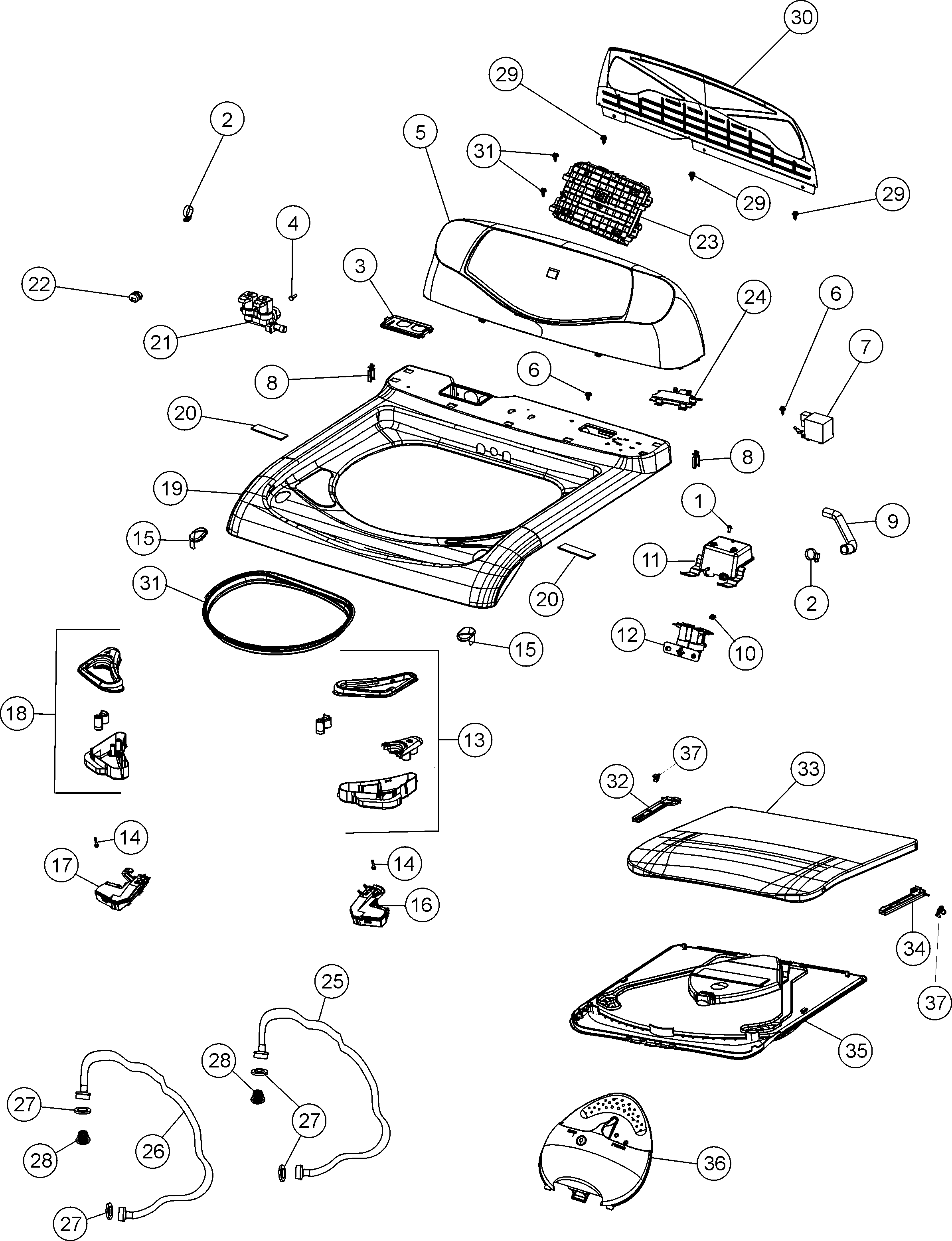

Control panel, top & lid diagram

Inlet hose

Part #33-7891

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
Screw 22002925
#29

Control panel, top & lid diagram

Screw

Part #22002925

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22002925. Substitute parts can look different from the original.
This item is not returnable
$8.12
11% OFF Phone Price : $9.12
In Stock
Screw, Serra 22003817
#6

Control panel, top & lid diagram

Screw, serra

Part #22003817

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22003817. Substitute parts can look different from the original.
This item is not returnable
$8.12
11% OFF Phone Price : $9.12
In Stock
Siphon Screw 014874
#4

Control panel, top & lid diagram

Siphon screw

Part #014874

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 014874. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Bleach Clamp 205161
#2

Control panel, top & lid diagram

Bleach clamp

Part #205161

Replaced by #WP489503

?
Manufacturer substitution
This part replaces 205161. Substitute parts can look different from the original.
This item is not returnable
$8.39
11% OFF Phone Price : $9.39
In Stock
Washer Motor Control Board 25001079
#3

Base diagram

Washer motor control board

Part #25001079

Replaced by #WP25001079

?
Manufacturer substitution
This part replaces 25001079. Substitute parts can look different from the original.
$164.69
7% OFF Phone Price : $176.69
In Stock
Pump Isolator 25001012
#11

Base diagram

Pump isolator

Part #25001012

In Stock
Washer Outer Tub 25001199
#2A

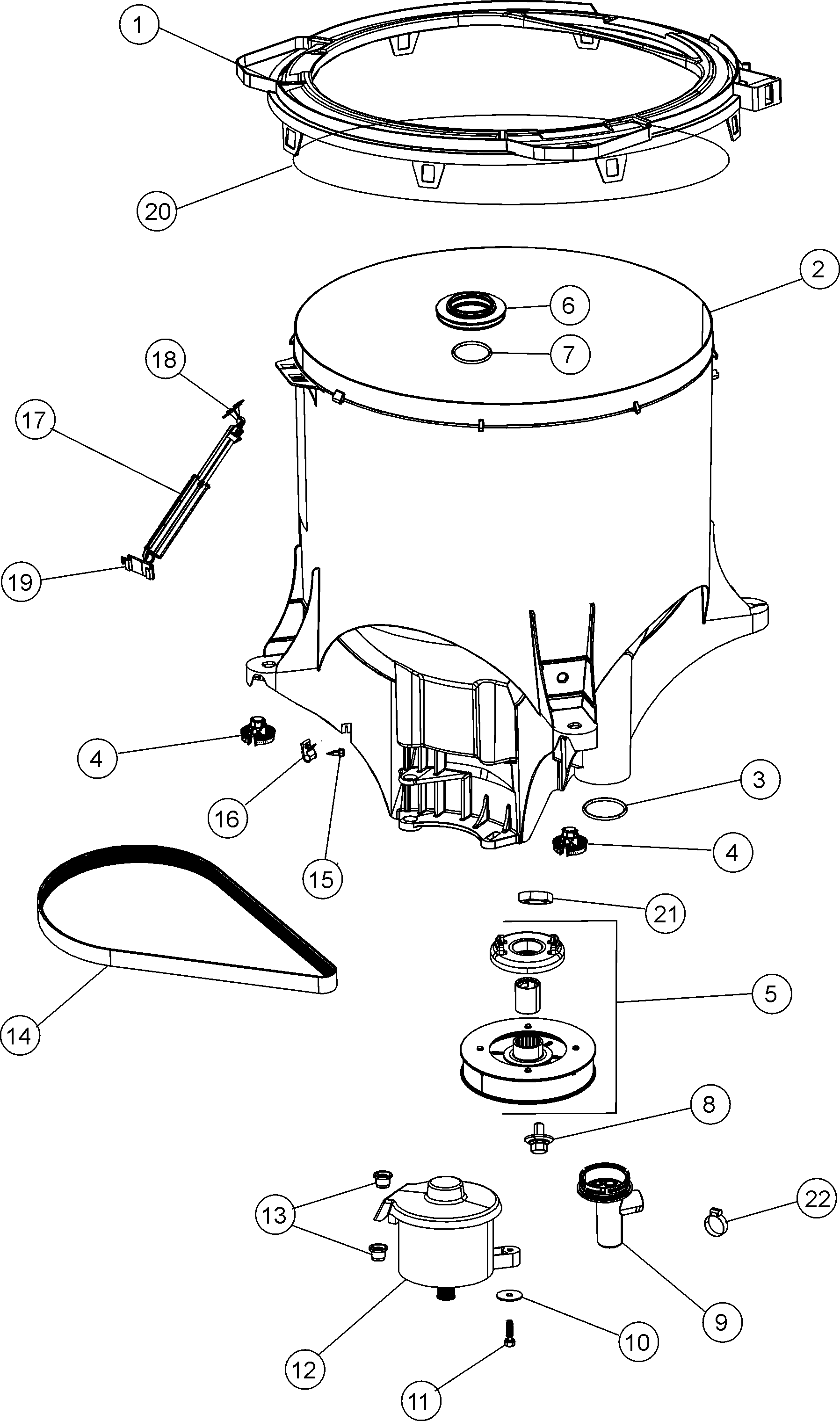

Outer tub diagram
