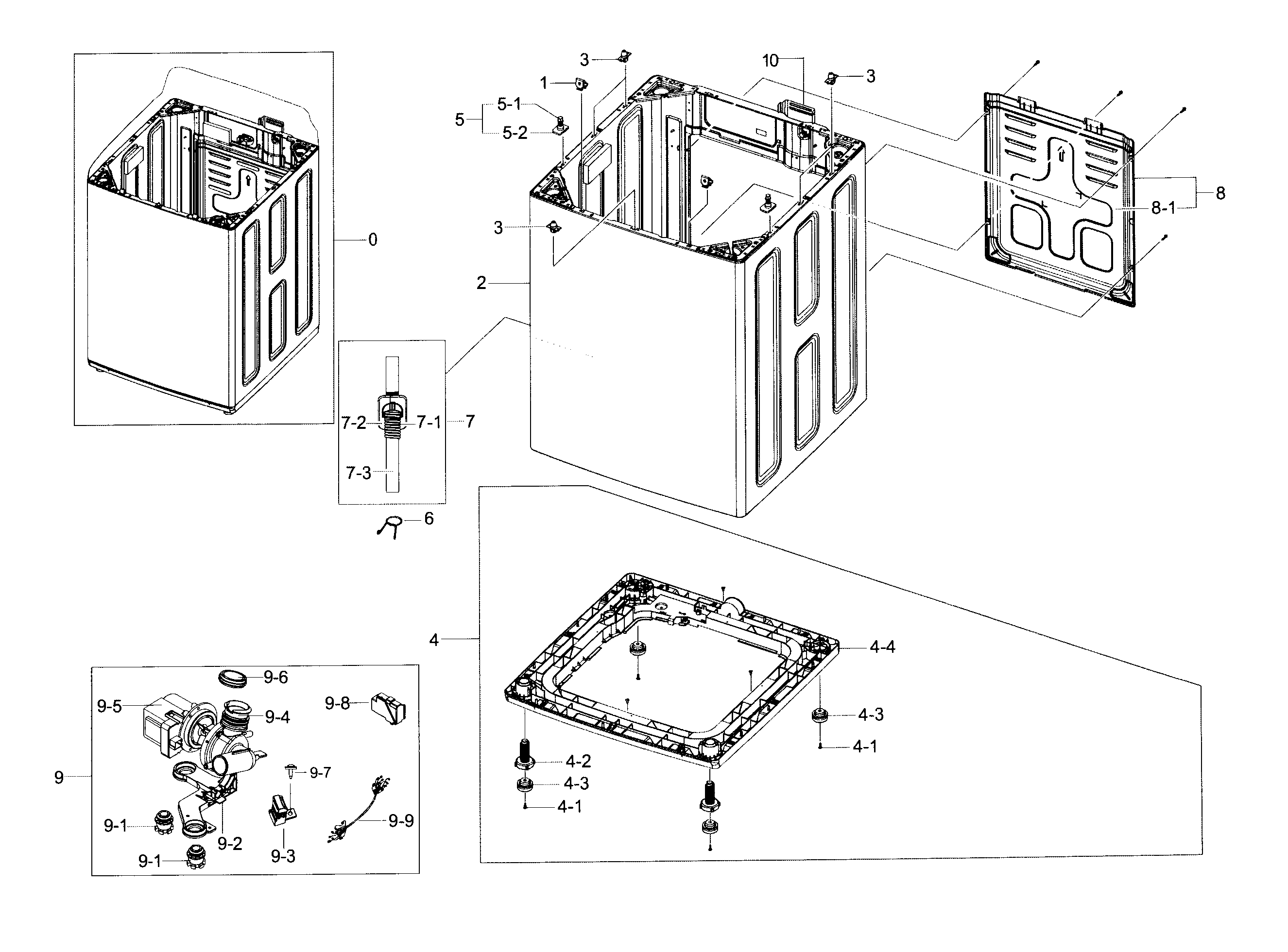

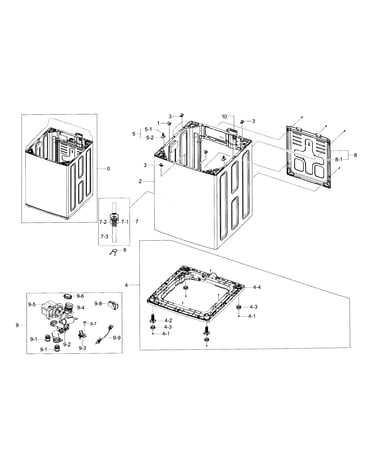

Model #WA52J8700AW/A2-00 Samsung washer

Here are the diagrams and repair parts for Samsung WA52J8700AW-A2-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 145 parts

    Washer Washplate Cap

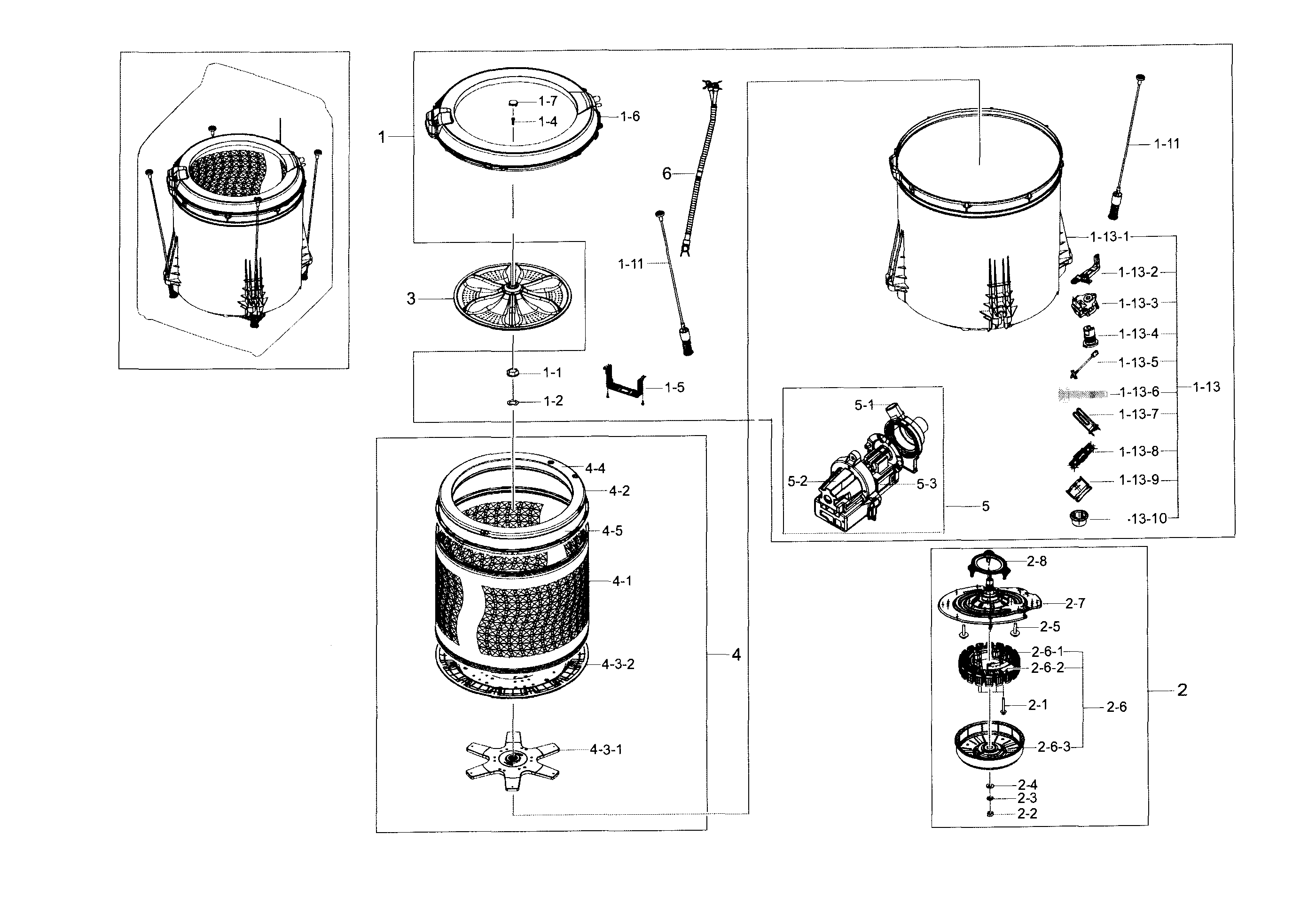

    Tub parts Diagram

    Washer washplate cap

    Part #DC66-00777A

    In Stock

    Washer Water Inlet Valve

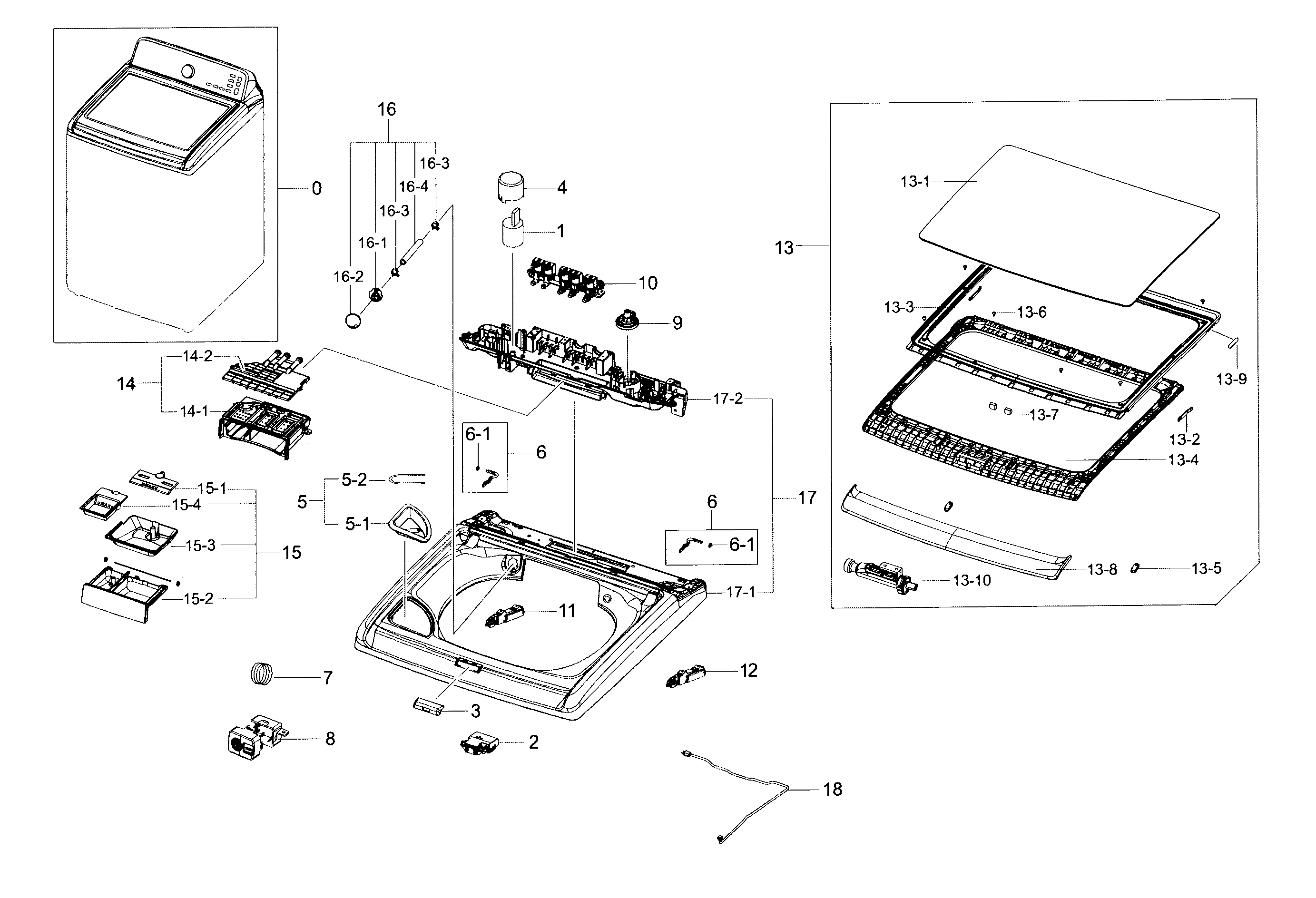

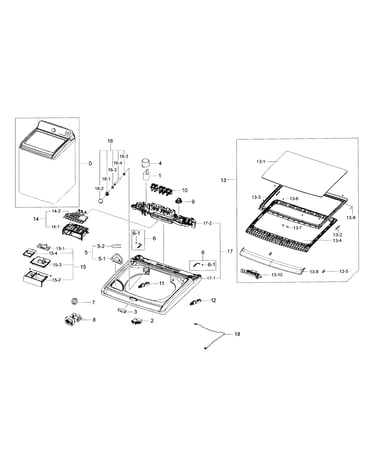

    Cover top Diagram

    Washer water inlet valve

    Part #DC97-15459G

    In Stock

    Washer Motor Rotor Position Sensor

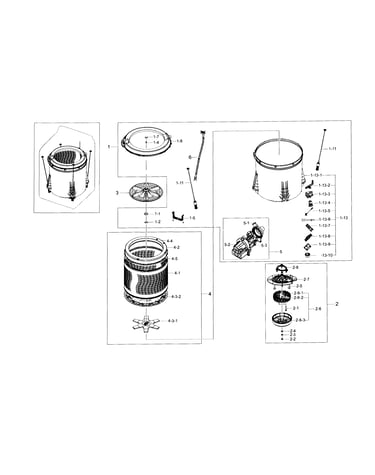

    Tub parts Diagram


    In Stock

    Washer Washplate


    Tub parts Diagram

    Washer washplate

    Part #DC97-17374A

    In Stock

    Washer Drain Hose

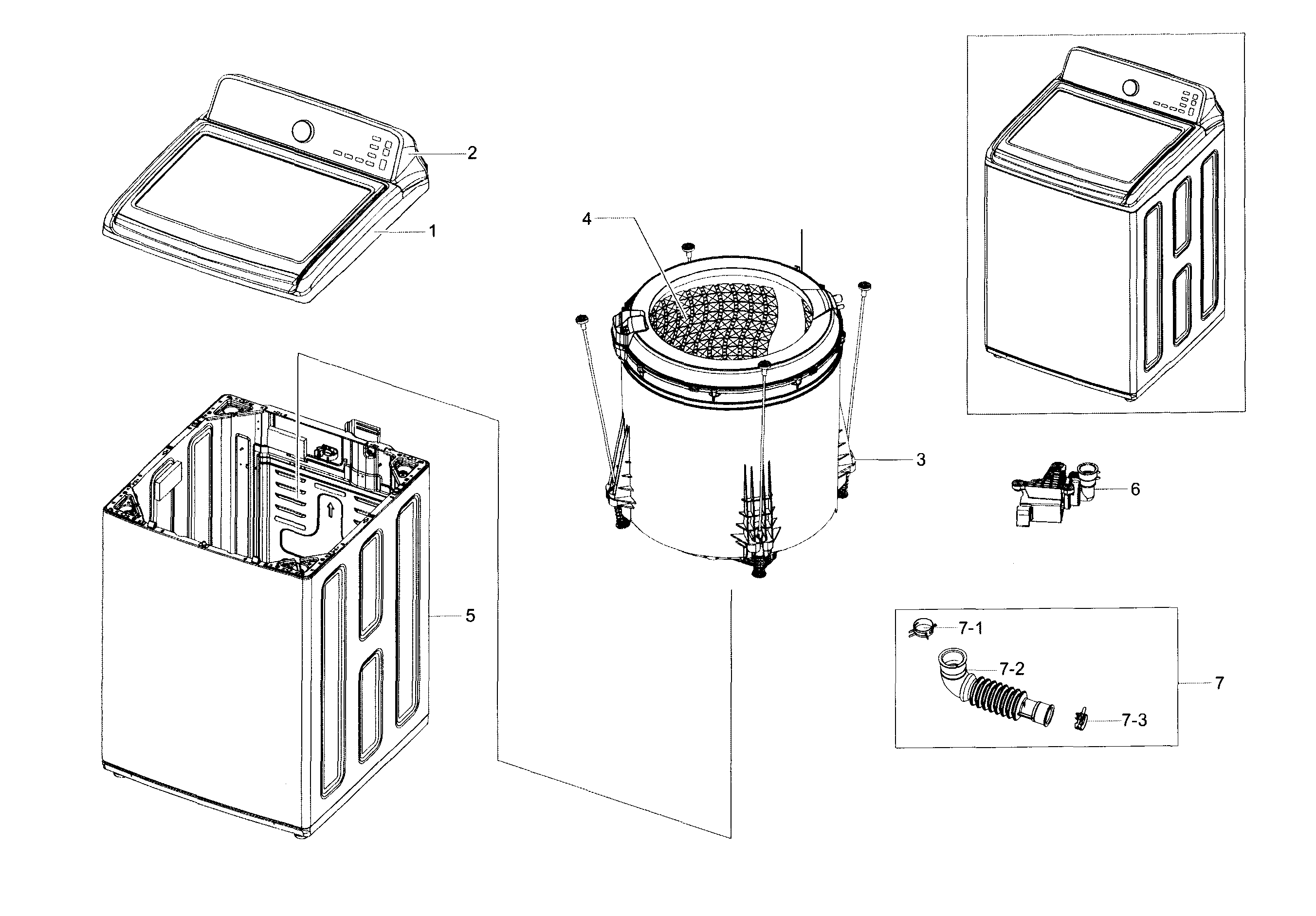

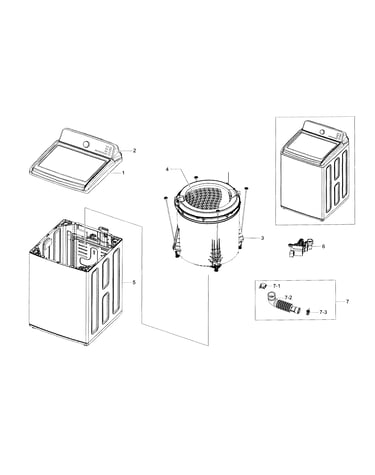

    Main assy Diagram

    Washer drain hose

    Part #DC97-17345A

    In Stock

    Washer Clutch


    Tub parts Diagram

    Washer clutch

    Part #DC31-00090B

    In Stock

    Washer Motor Rotor and Stator


    Tub parts Diagram


    In Stock

    Washing Machine Wave Washer


    Tub parts Diagram

    Washing machine wave washer

    Part #DC60-60011B
    This item is not returnable

    In Stock

    Laundry Appliance Control Knob

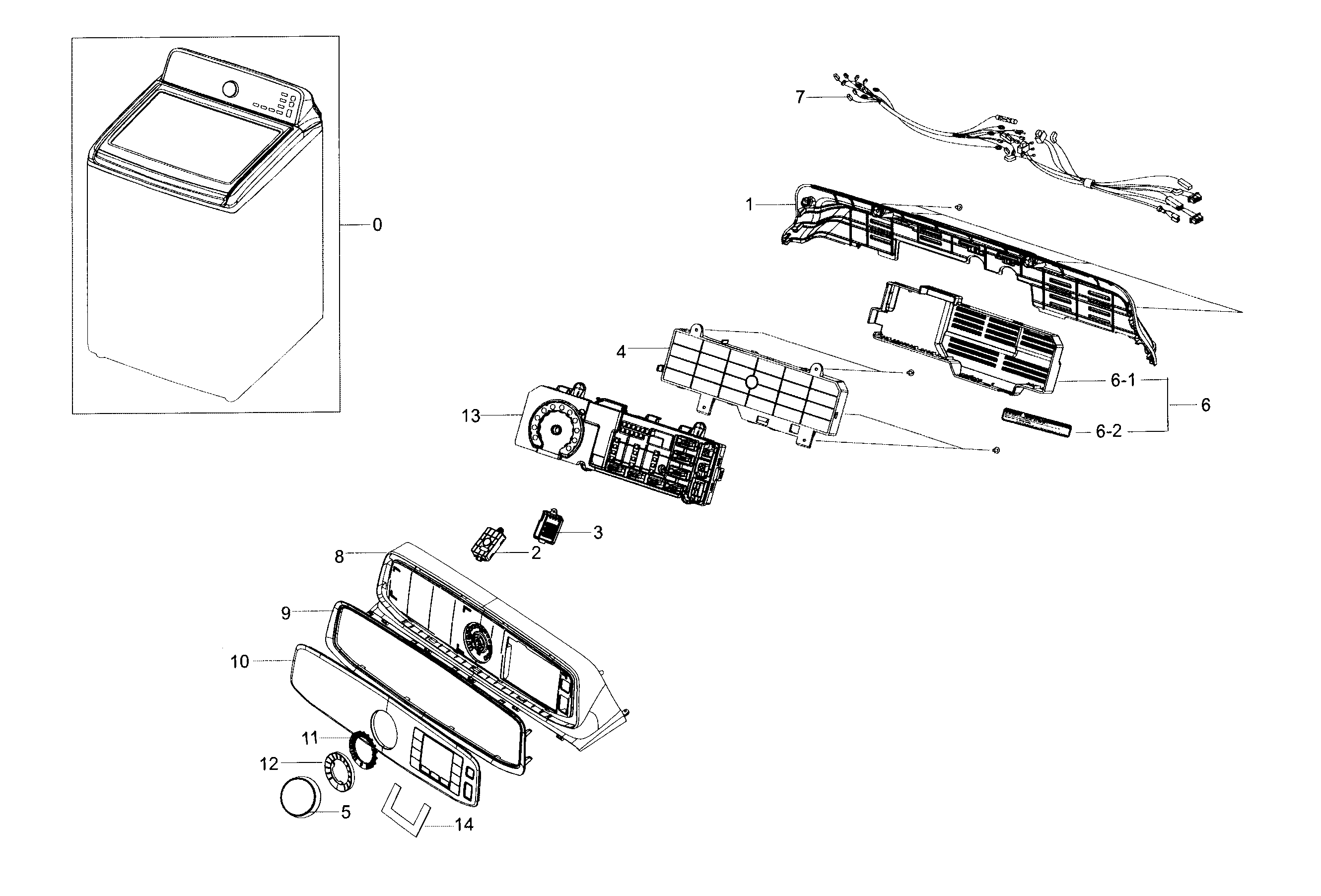

    Control panel Diagram


    In Stock

    Washer Dispenser Drawer Assembly


    Cover top Diagram


    In Stock

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
