Electric Wall Oven

Model # JT930BH3BB Official GE electric oven

Here are the diagrams and repair parts for Official GE JT930BH3BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

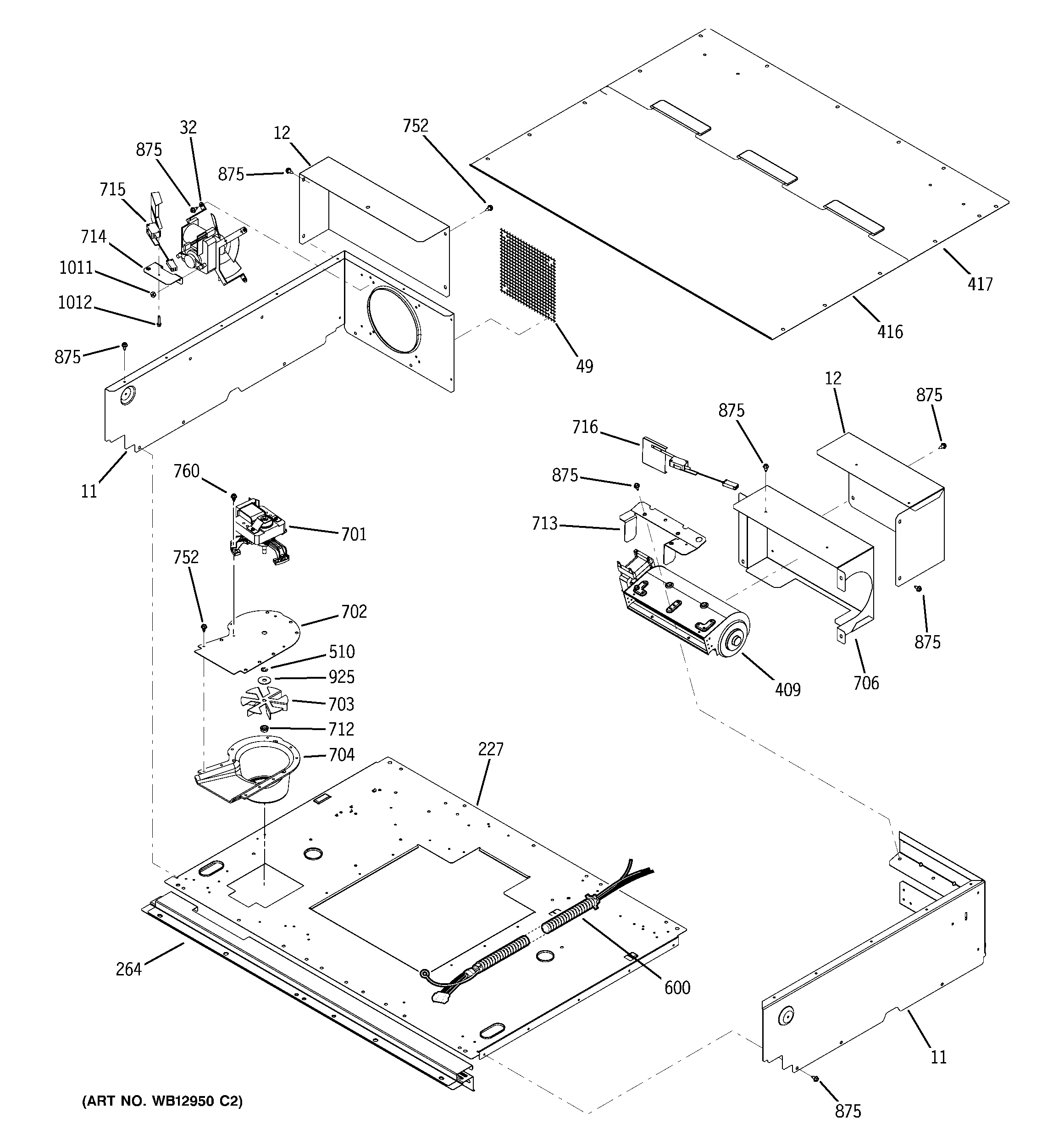

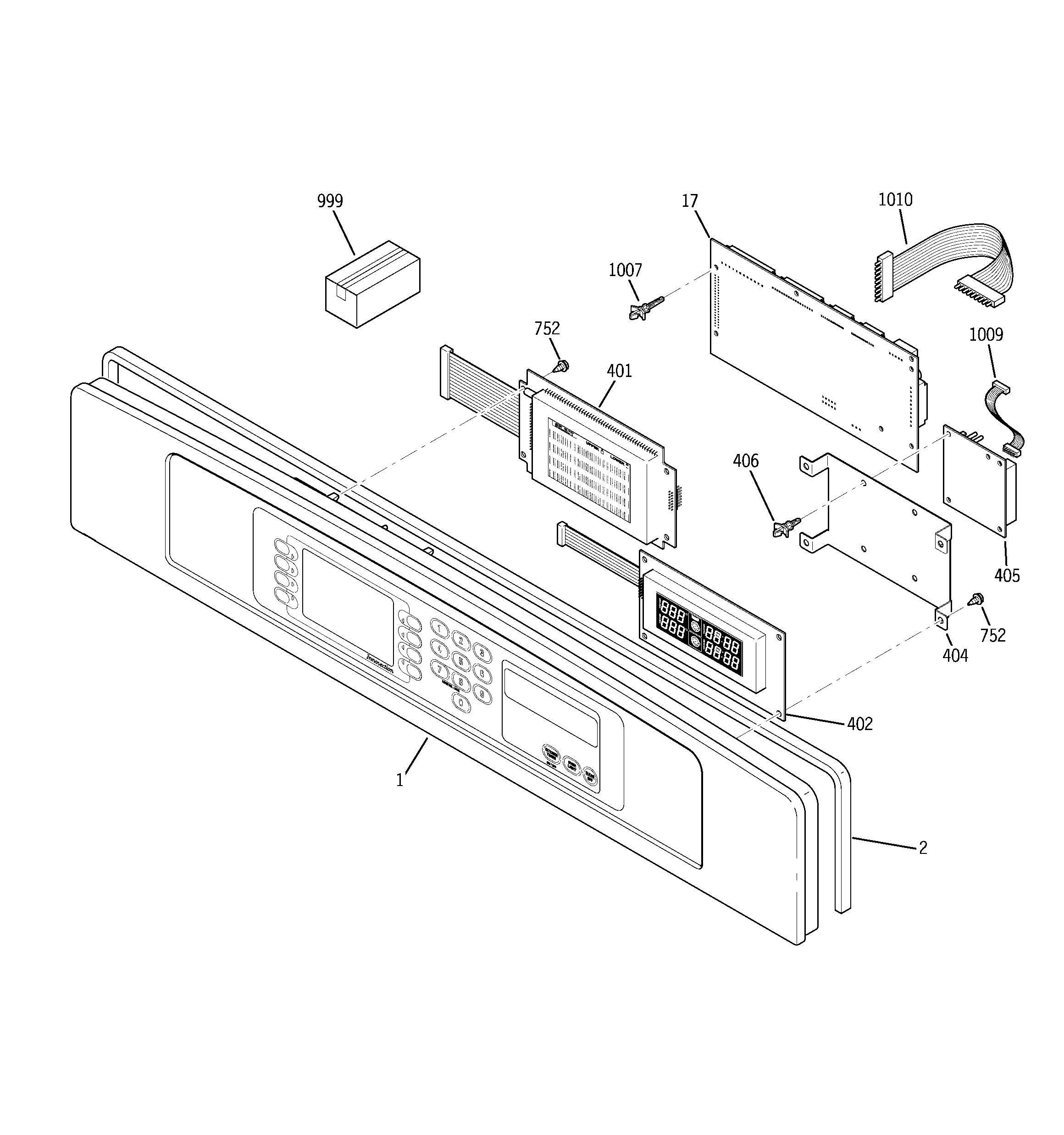

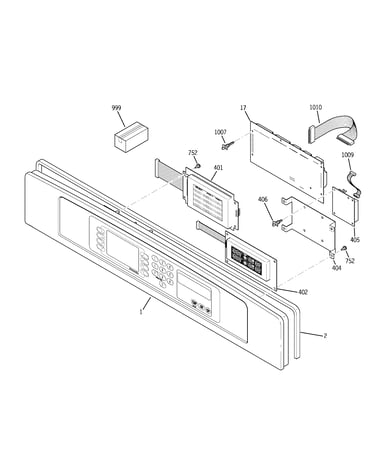

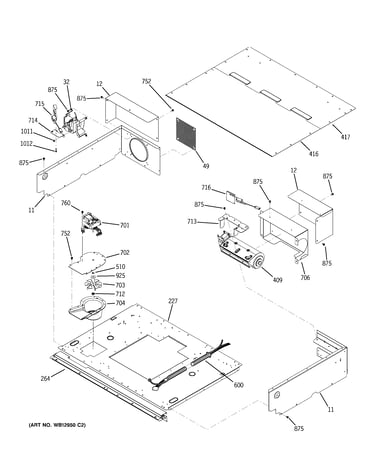

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |

Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

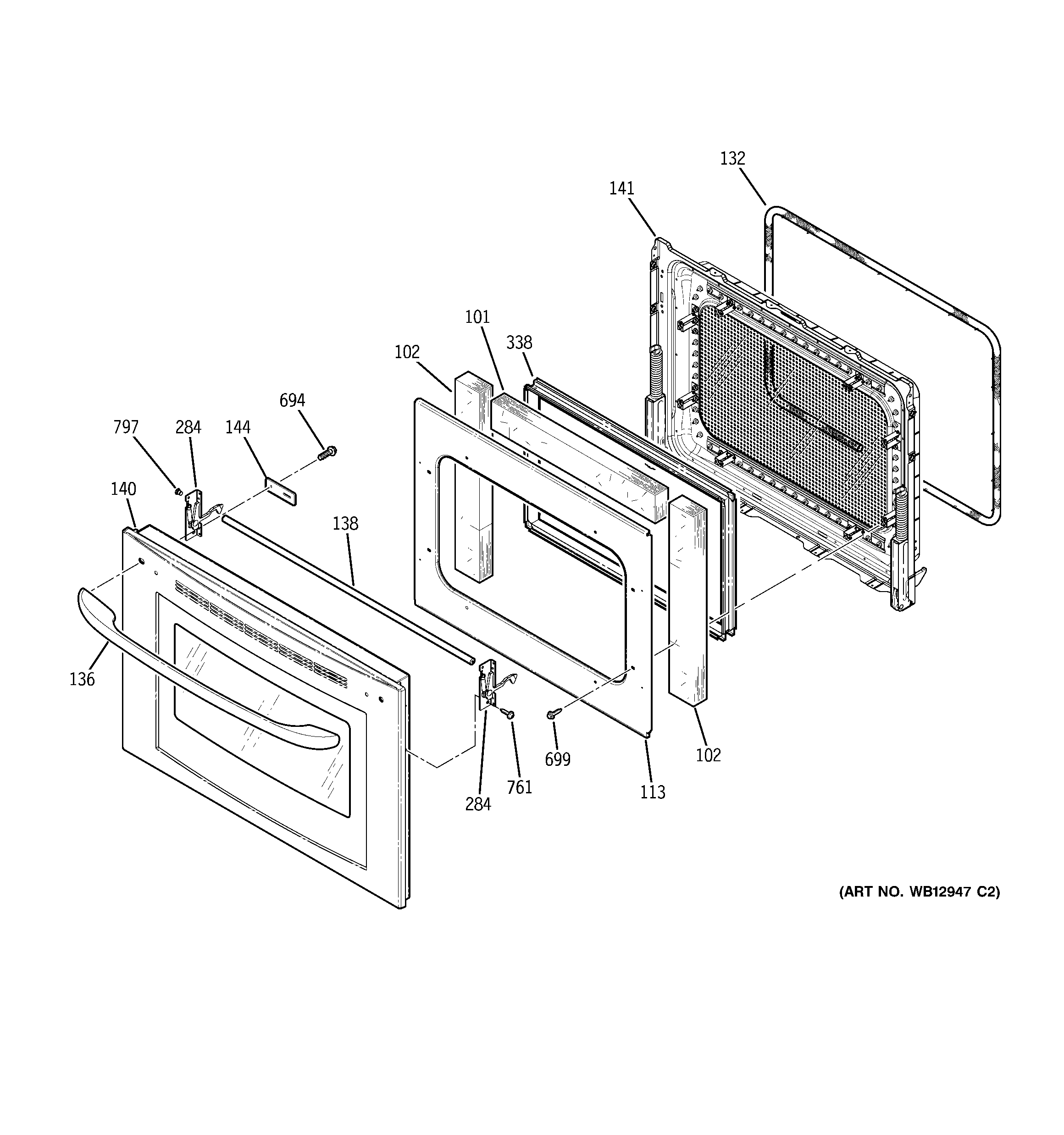

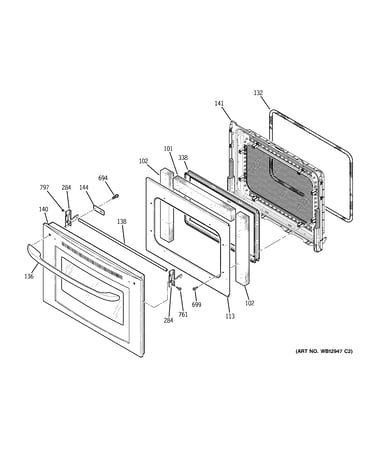

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$102.39
9% OFF Phone Price : $112.39
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#1005

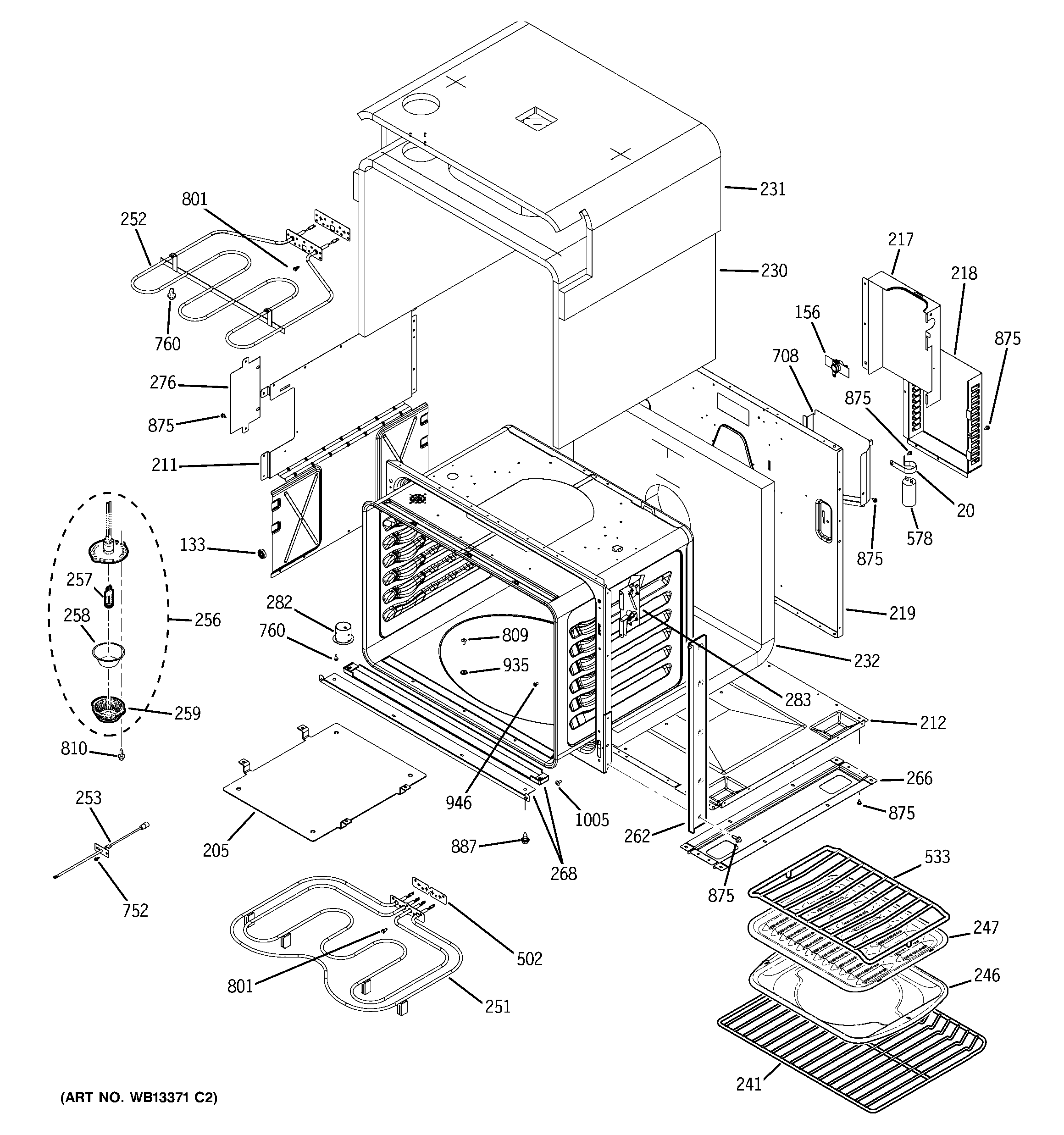

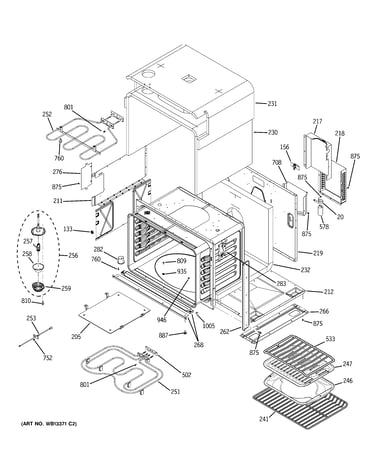

Body parts diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Screw WB01M0001
Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5150
#699

Door diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Diode WB27T10552
#580

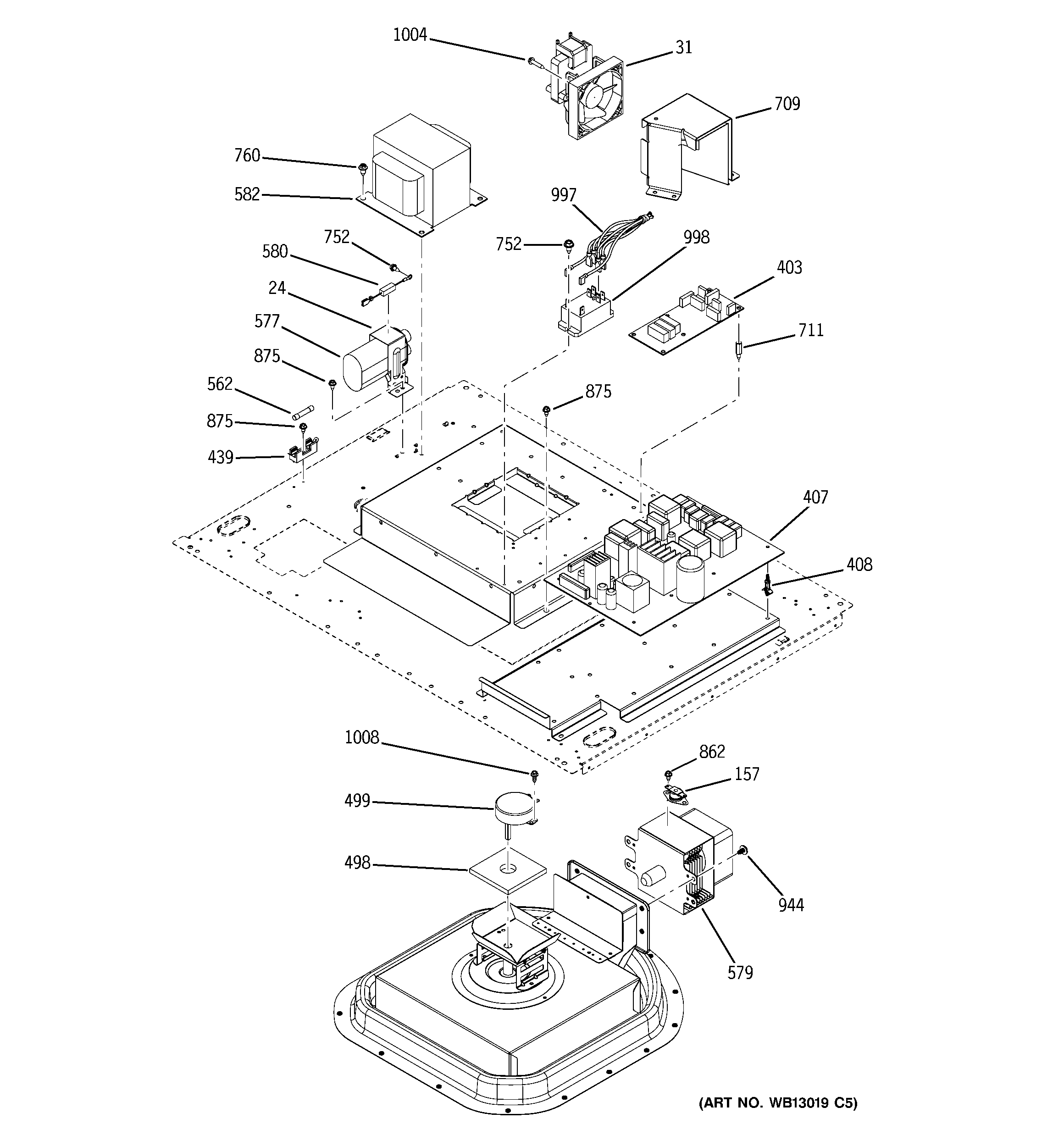

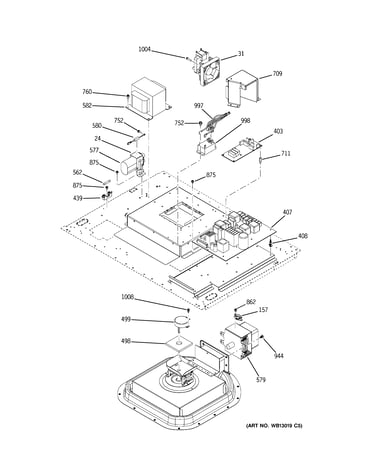

Control section diagram

Diode

Part #WB27T10552

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27T10552. Substitute parts can look different from the original.
$34.80
13% OFF Phone Price : $39.80
In Stock
Range Oven Light Lens WB25T10027
#259

Body parts diagram

Range oven light lens

Part #WB25T10027

This item is not returnable
$10.85
16% OFF Phone Price : $12.85
In Stock
Screw WB01K5028
Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
Sensor Assembly WB23T10020
#253

Body parts diagram

Sensor assembly

Part #WB23T10020

$22.08
18% OFF Phone Price : $27.08
In Stock
Range Oven Rack Assembly (replaces Wb48x5105, Wb49x10169) WB48X5108
#533

Body parts diagram

Range oven rack assembly (replaces wb48x5105, wb49x10169)

Part #WB48X5108

$21.30
19% OFF Phone Price : $26.30
In Stock
Nut WB02T10017
#977

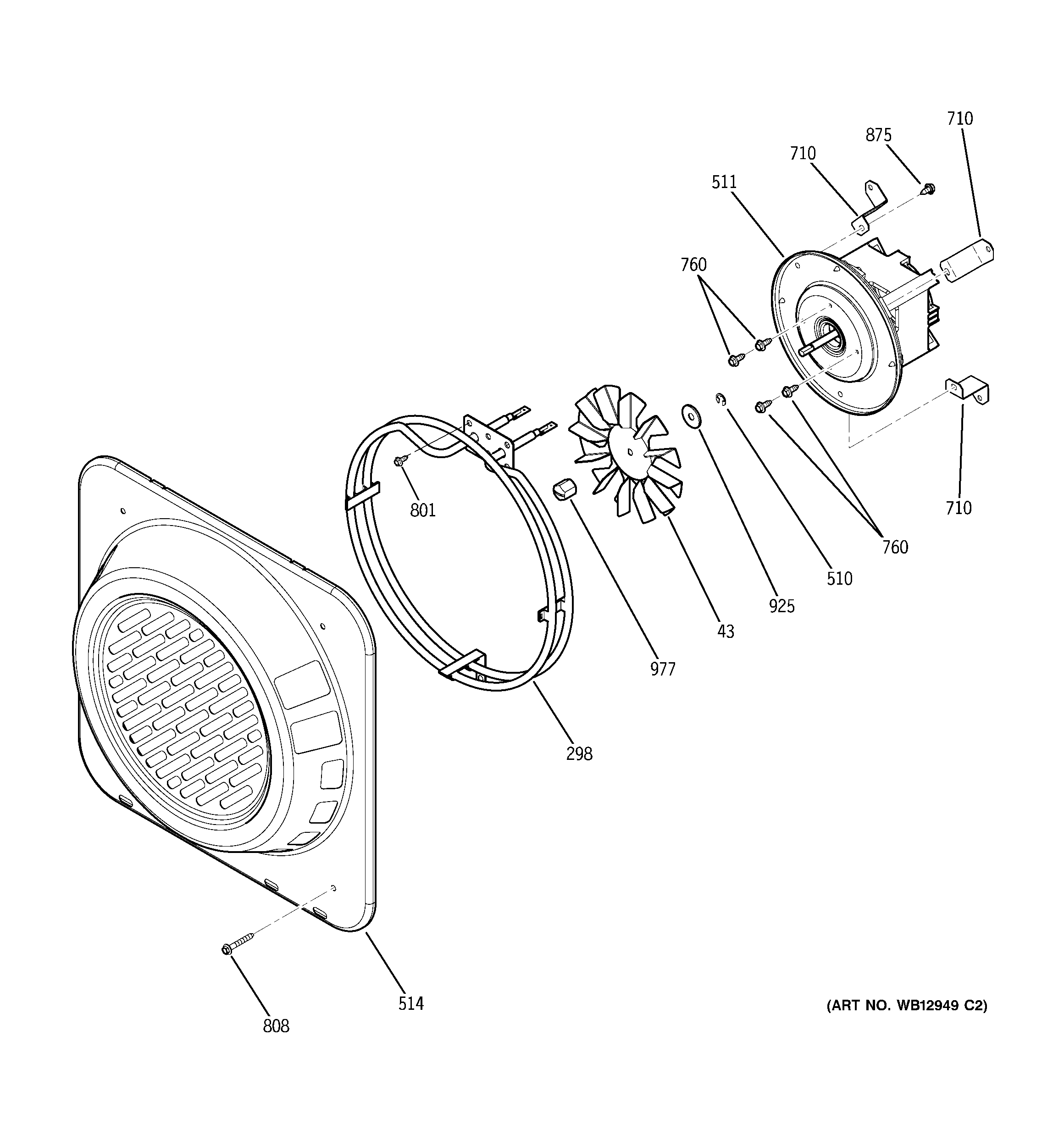

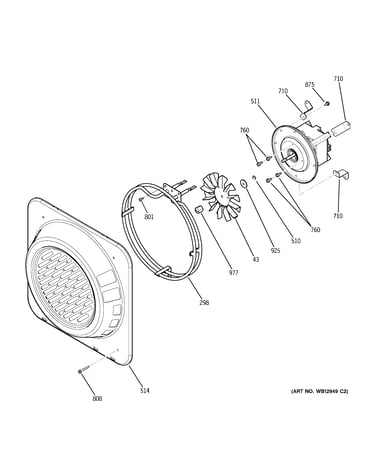

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock
