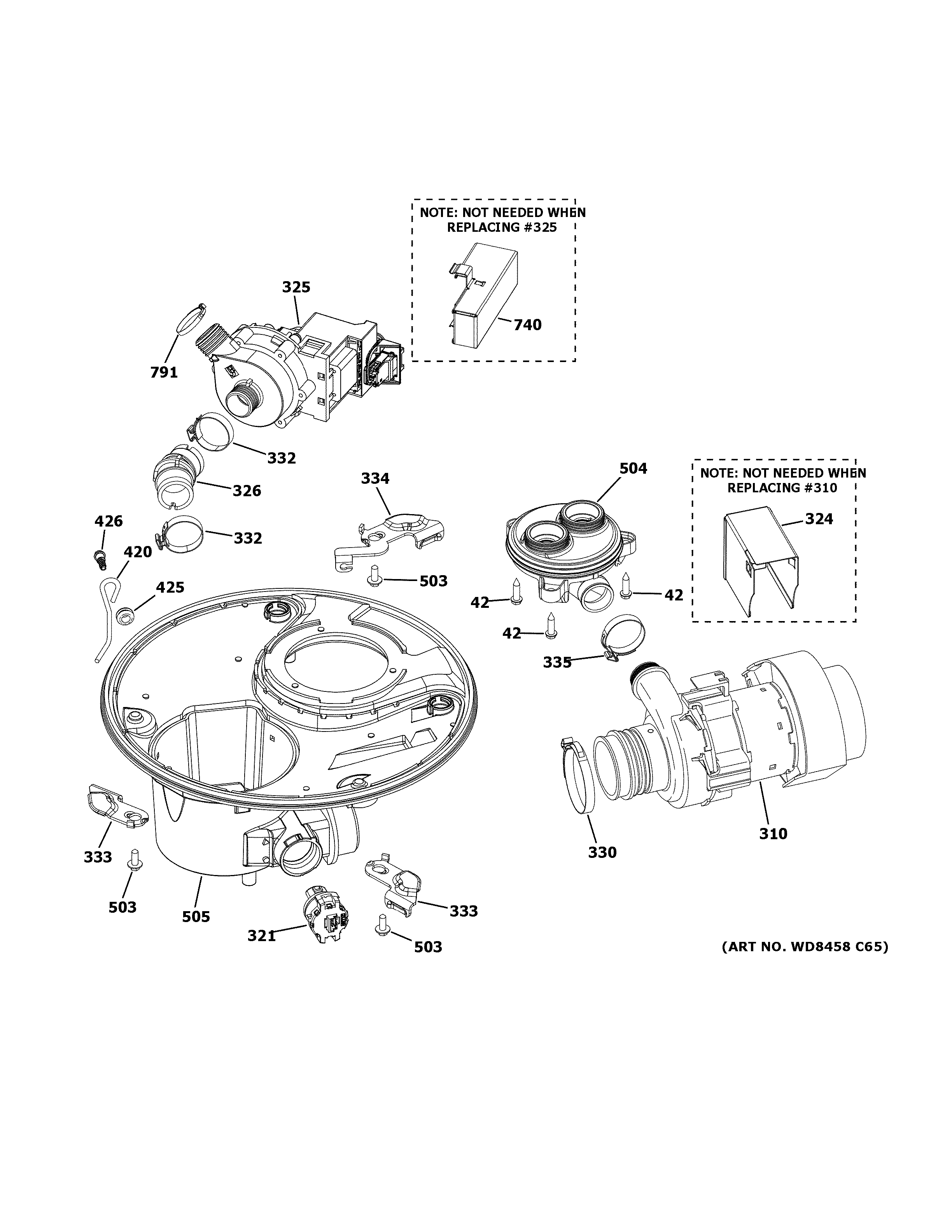

GE GDF520PSF1SS dishwasher Parts

On your GE dishwasher model GDF520PSF1SS, the model number is printed on the rating label located on the tub wall just inside the door. Open the door and look along the inside edge of the tub opening for the label that lists both the model and serial numbers.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Look on the tub wall just inside the door (around the door opening).
• Check the left side first, then scan the other side of the opening.
• Find the rating label that includes Model # and Serial #.
• Write the model number exactly as shown (letters and numbers).

What the label typically shows

Label item	What it’s used for
Model number	Matching the correct parts and diagrams for your dishwasher
Serial number	Identifying the production run for service and support

Why it matters

We use the model number to match the exact GE dishwasher parts that fit your unit (for example, a control board, door latch, or spray arm). Even small model-number differences can change which parts fit and which troubleshooting steps apply.

Next step after you find it

• Confirm the model reads GDF520PSF1SS.
• Use the model number when ordering parts or checking troubleshooting steps in the GDF520PSF1SS owner’s manual.
• If you’re diagnosing a problem, use the GE dishwasher error codes reference to narrow down the issue before replacing parts.

Last updated: February 2026

The most common GE dishwasher problems are poor cleaning from dirty filters or clogged spray arms, not draining from a restricted drain path, and not starting because the door is not fully latched. On the GE GDF520PSF1SS, routine filter cleaning and confirming the door latch closes firmly solve many complaints.

Most common issues we see (and what to check first)

• Not cleaning well: filters need cleaning; spray arm holes are blocked.
• Not draining: drain hose is kinked or the sink drain/air gap is clogged.
• Won’t start or stops mid-cycle: door opened during operation; Start status light flashing; latch not engaging.
• Leaks at the door: door seal/tub gasket is worn or not seated.
• Not drying: rinse aid is empty; heater circuit issue.

Quick checks you can do in 10 minutes

1. Turn power off at the breaker, then inspect the bottom of the tub for debris.
2. Clean the filters as described in the GDF520PSF1SS owner’s manual.
3. Spin the spray arms by hand; clear clogged jets and check for cracks.
4. Verify the door closes smoothly and latches without forcing.
5. If draining is slow, inspect the drain hose routing and clean the sink air gap (if your setup has one).

Parts that commonly fix these symptoms on GDF520PSF1SS

Symptom	Common cause	Example part for this model
Gritty dishes, weak wash	Clogged or damaged spray arm	Dishwasher spray arm, lower WD22X33499
Door won’t latch, beeping	Latch not engaging	GE dishwasher door latch lock WD21X10490
Water on floor at door	Worn seal	Tub gasket WD08X23476
No heat, poor drying	Heater not heating	Dishwasher heater element WD05X30818

Why it matters

Most “GE dishwasher problems” start as maintenance issues: a restricted filter or spray arm reduces water flow, which leads to poor cleaning, gritty residue, and longer cycles. Catching it early helps prevent pump strain and repeat clogs.

Last updated: February 2026

On the GE GDF520PSF1SS dishwasher, we remove the filter by pulling out the bottom rack, twisting the large round (ultra-fine) filter to unlock it, then lifting it out; the spray arm (spinner) typically lifts off or releases after the filter area is opened. For exact latch points and reassembly order, use the GDF520PSF1SS owner’s manual.

Steps to remove the filter

• Turn off the dishwasher and let it cool if it just ran.
• Pull out and remove the bottom rack.
• Twist the large round ultra-fine filter counterclockwise to unlock, then lift it out.
• Remove the fine filter (mesh plate) by twisting the two retaining posts at the back of the tub, then lift the mesh plate out.
• Rinse filters with warm, soapy water; use a soft sponge or soft brush for stuck-on debris.
• Reinstall in reverse order; twist the round filter to lock and secure both retaining posts.

Steps to remove the spray arm (spinner)

Many GE dishwashers in this series use a lower spray arm that releases from the hub once the lower rack is out and the filter area is accessible.

• Remove the bottom rack first.
• Check the center hub of the lower spray arm for a locking nut, clip, or twist-lock.
• Release the lock (turn or unclip), then lift the spray arm straight up.
• Inspect spray holes for seeds, glass, or labels; rinse under running water.

If the spray arm is cracked, warped, or the jets are clogged and will not clear, replace the dishwasher spray arm, lower WD22X33499.

Cleaning do’s and don’ts

Item	Use	Avoid
Filters	Warm soapy water, soft sponge	Scouring pads, stiff brushes
Spray arm	Rinse, toothpick for holes	Forcing the hub, overtightening

Why it matters

A clogged ultra-fine or fine filter can cause gritty dishes and weak wash action. Keeping the filter and spray arm clean helps restore water flow, improves cleaning performance, and reduces redepositing food soil.

Last updated: February 2026

Yes, for the GE GDF520PSF1SS dishwasher we see many customers successfully replace basic, non-wiring parts themselves (filters, spray arms, racks, door hardware) as long as power and water are shut off first and you follow the steps in the GDF520PSF1SS owner’s manual and GDF520PSF1SS installation guide.

Good DIY repairs vs. “call for service” repairs

Many repairs are straightforward hand-tool jobs; others involve electrical diagnostics or plumbing connections where safety and leak prevention matter most.

Usually DIY-friendly

• Cleaning and reinstalling the fine/ultra-fine filters (warm soapy water, soft brush)
• Replacing a spray arm such as the dishwasher spray arm, lower WD22X33499
• Replacing door hardware like the GE dishwasher door latch lock WD21X10490 or the dishwasher door latch strike WD13X10071
• Replacing rack components (for example, the dishwasher dishrack roller bracket, left WD01X35298)
• Replacing a drain hose such as the dishwasher drain hose WD24X10062 if you can access clamps and routing

Better handled by a qualified technician

• Control and wiring issues (diagnostics, live-voltage checks)
• Heater and high-current circuits (drying and heating problems)
• Persistent leaks after seal replacement or repeated tripping of a breaker

Safety steps we recommend before any repair

The manual emphasizes disconnecting power before maintenance; turning the dishwasher off at the controls does not disconnect power.

• Shut off electrical power at the breaker (not just the control panel)
• Turn off the water supply valve under the sink
• Protect the floor; keep towels and a shallow pan ready
• Take photos of wire and hose routing before removal
• Confirm the dishwasher can be removed for service (installation guidance calls this out)

Quick “which part is most likely?” guide

Symptom	Common DIY checks	Parts that often relate
Not cleaning well	Clean filters, check spray arm holes	Dishwasher coarse filter WD22X10093, dishwasher spray arm, lower WD22X33499
Door won’t latch	Inspect strike alignment, latch wear	GE dishwasher door latch lock WD21X10490, dishwasher door latch strike WD13X10071
Not draining	Check air gap (if present), hose routing	Dishwasher drain hose WD24X10062, dishwasher drain pump kit WD49X23779

Why it matters

DIY replacement can restore wash performance and prevent leaks, but dishwashers combine water and electricity. Using the correct shutoff steps and the model-specific procedures helps you avoid shock risk, water damage, and repeat failures.

Last updated: February 2026
