Model #DBSR453EB2WW Official GE electric dryer

Here are the diagrams and repair parts for GE DBSR453EB2WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 102 parts

    Dryer Drum Front Glide Pad#316

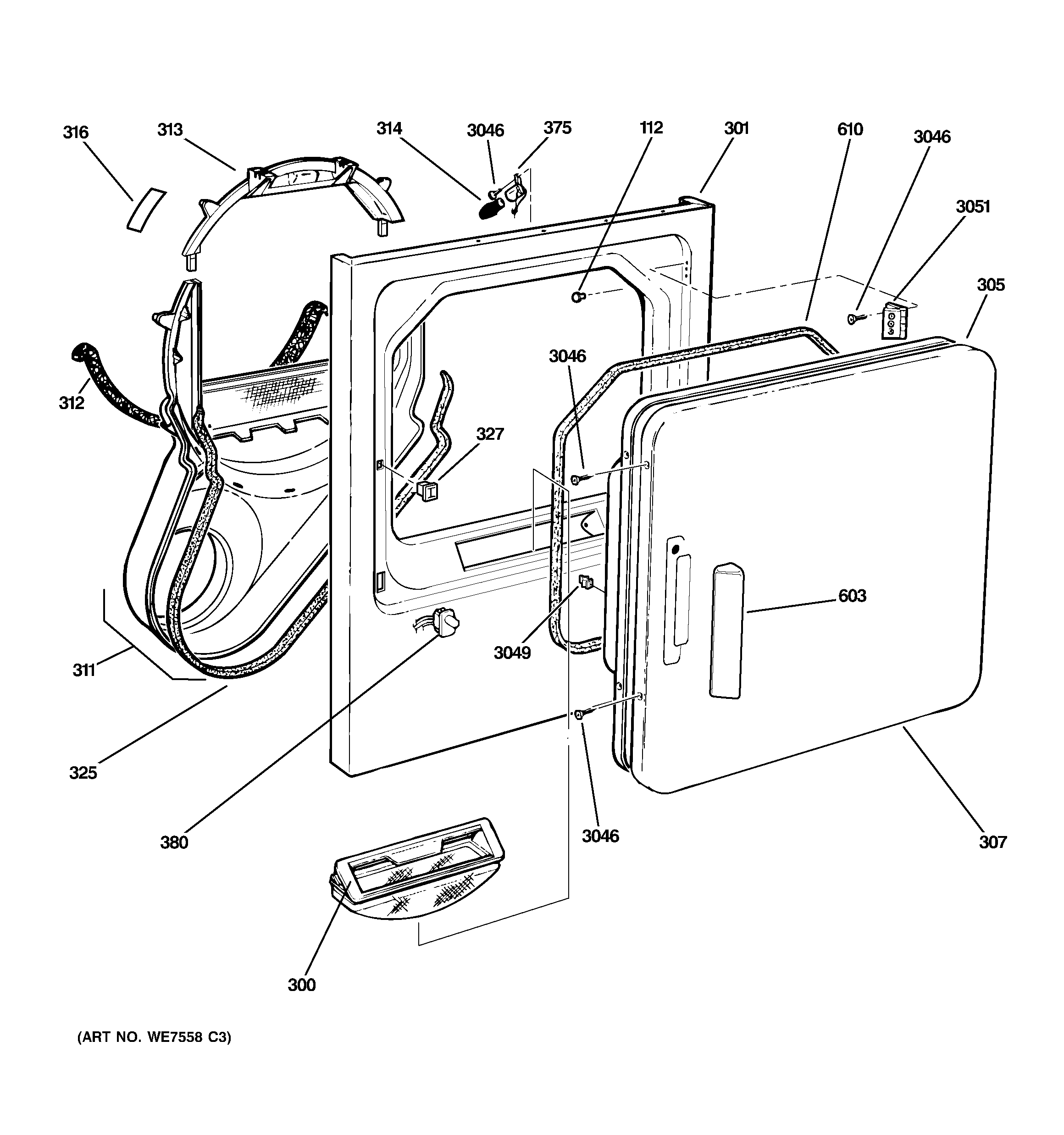

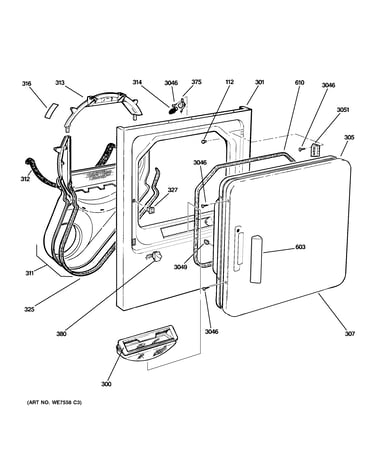

    Front panel & door Diagram

    Slide drum

    Part #WE01M0333
    Replaced by #WE1M504
    ?
    Manufacturer substitution
    This part replaces WE01M0333. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.40 |
    54% OFF
    Was: $11.79
    Dryer Drum Bearing, Front#313

    Front panel & door Diagram

    Drum bearing

    Part #WE03M0020
    Replaced by #WE3M26
    ?
    Manufacturer substitution
    This part replaces WE03M0020. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $57.62
    Dryer Lint Screen#300

    Front panel & door Diagram

    Trap lint

    Part #WE18M0019
    Replaced by #WE18X25100
    ?
    Manufacturer substitution
    This part replaces WE18M0019. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $61.99 |
    7% OFF
    Phone Price: $66.99
    Dryer Lint Chute Assembly#311

    Front panel & door Diagram

    Air duct assembly

    Part #WE14M92
    Replaced by #WE14X25080
    ?
    Manufacturer substitution
    This part replaces WE14M92. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $93.08
    Dryer Rear Bearing#3106

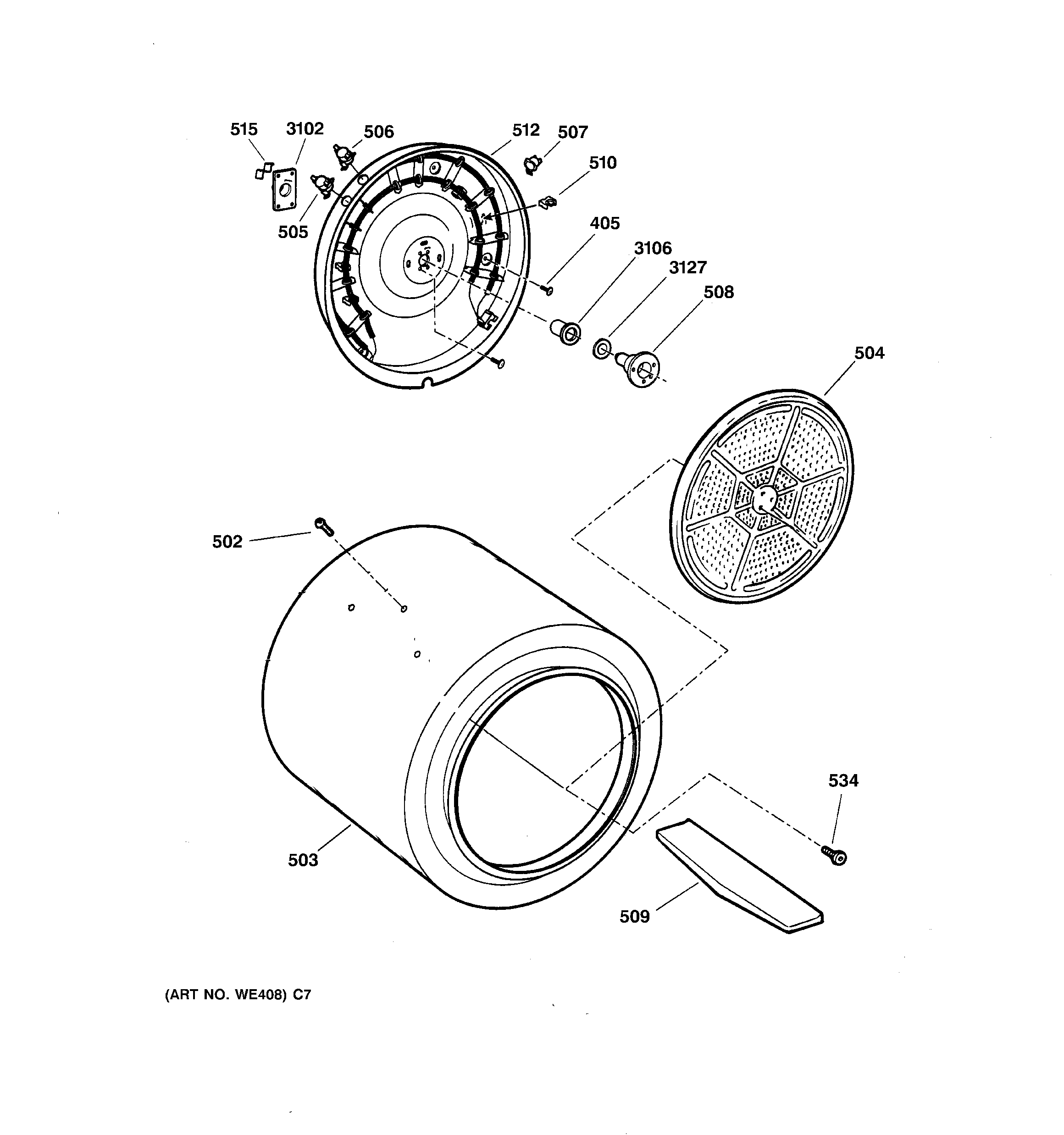

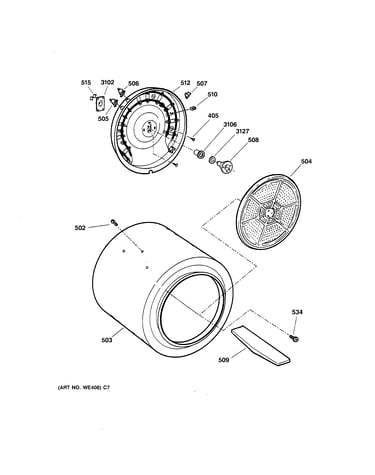

    Drum Diagram

    Dryer rear bearing

    Part #WE1M462
    BEST SELLER
    In Stock
    $18.29 |
    10% OFF
    Phone Price: $20.29
    Dryer Drum Light Bulb#314

    Front panel & door Diagram

    Lamp

    Part #WE4X718
    Replaced by #WE05X20431
    ?
    Manufacturer substitution
    This part replaces WE4X718. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $14.79 |
    12% OFF
    Phone Price: $16.79
    Dryer Timer Knob#7

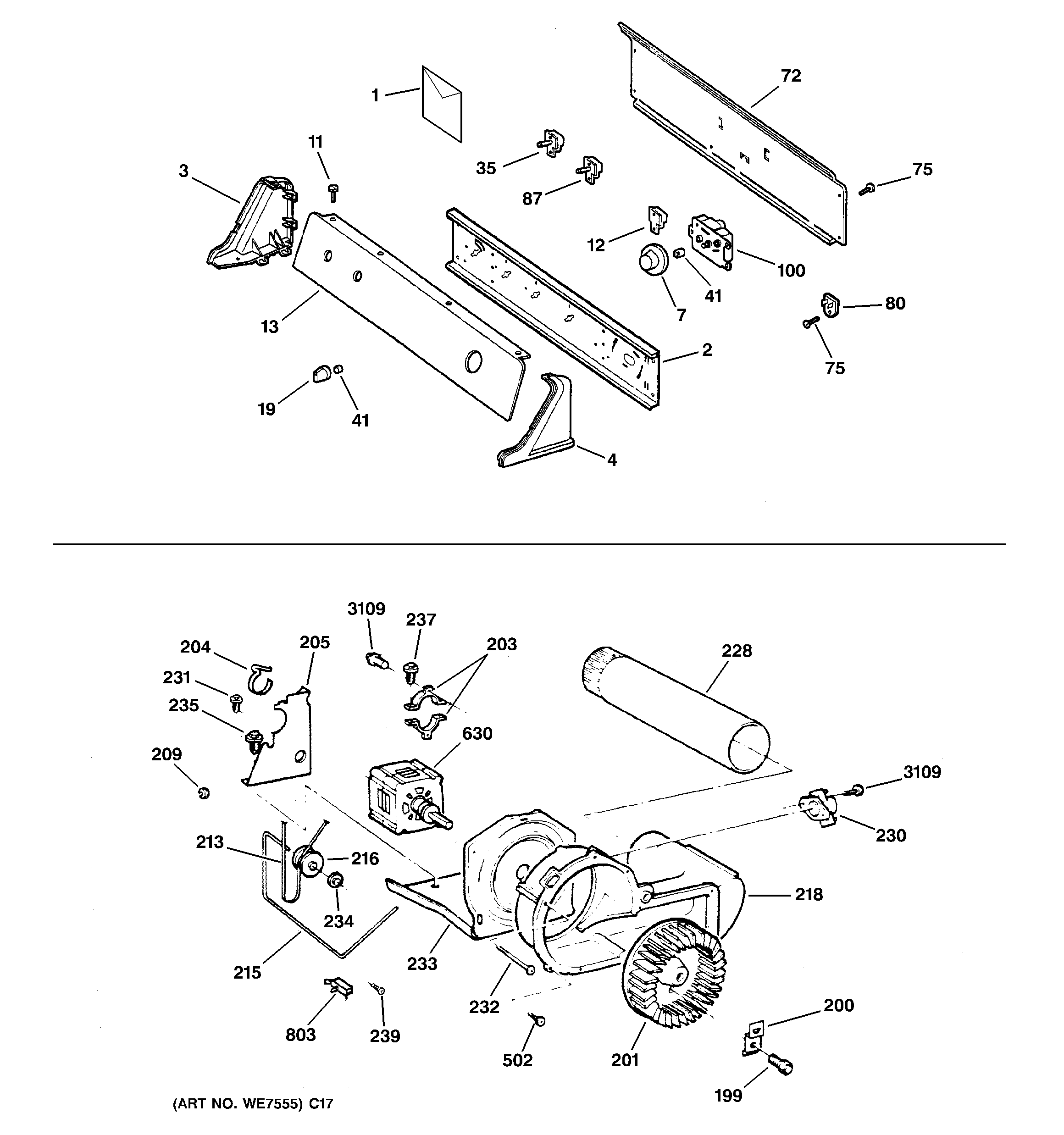

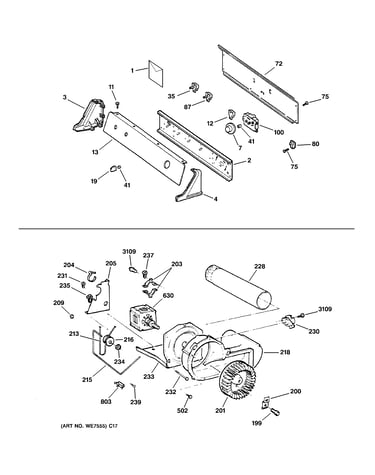

    Backsplash, blower & motor assembly Diagram

    Timer knob

    Part #WE1M443
    Replaced by #WE1M654
    ?
    Manufacturer substitution
    This part replaces WE1M443. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $30.49 |
    14% OFF
    Phone Price: $35.49
    Washer Control Knob Clip#41

    Backsplash, blower & motor assembly Diagram

    Knob clip

    Part #WE01X0980
    Replaced by #WH01X10106
    ?
    Manufacturer substitution
    This part replaces WE01X0980. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Dryer Door Catch#327

    Front panel & door Diagram

    Latch clip

    Part #WE01X0903
    Replaced by #WE1M1011
    ?
    Manufacturer substitution
    This part replaces WE01X0903. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $10.29 |
    16% OFF
    Phone Price: $12.29
    Dryer Rear Bearing O-Ring#3127

    Drum Diagram

    Dryer rear bearing o-ring

    Part #WE1M461
    BEST SELLER
    This item is not returnable
    In Stock
    $7.49 |
    12% OFF
    Phone Price: $8.49
