Whirlpool ED2GVEXVD01 side-by-side refrigerator Parts

Most Whirlpool refrigerators, including the Whirlpool ED2GVEXVD01 side-by-side refrigerator, typically last 10 to 18 years with normal household use. Consistent maintenance (clean airflow, good door sealing, and stable temperatures) is what most often determines whether you land closer to 10 years or closer to 18.

What affects lifespan the most

• Condenser coil cleanliness: dirty coils make the compressor run hotter and longer.

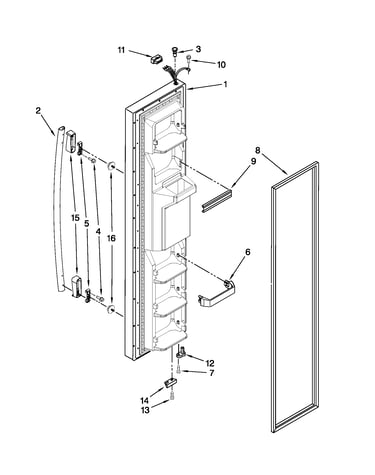

• Door gasket condition: air leaks cause longer run times and frost issues.
• Ice maker and dispenser use: heavy use increases wear on valves, motors, and seals.
• Ventilation and leveling: poor airflow around the cabinet shortens component life.
• Water quality and filter changes: reduces clogs and valve strain.

Typical lifespan by component (quick reference)

Component	What you may notice as it wears	Common maintenance action

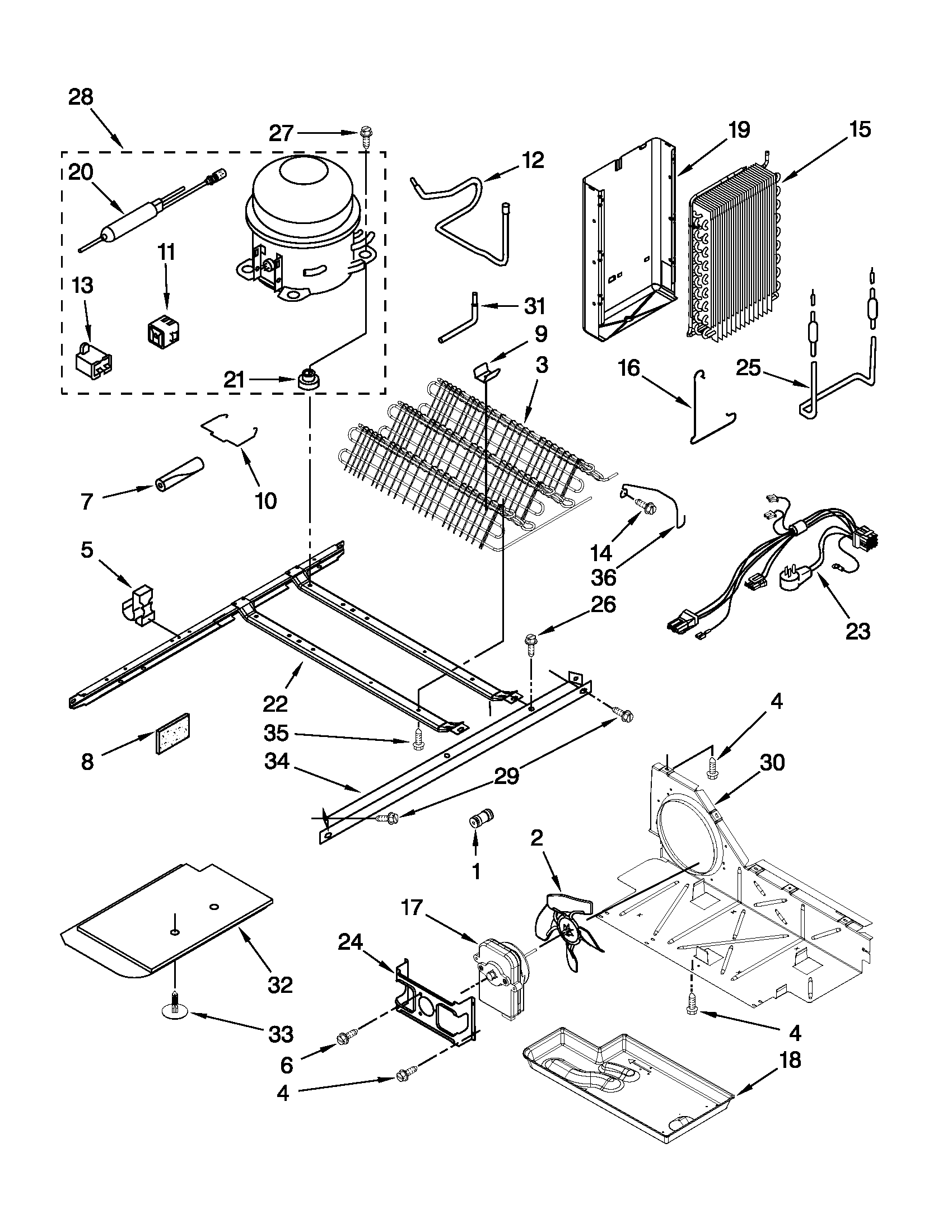

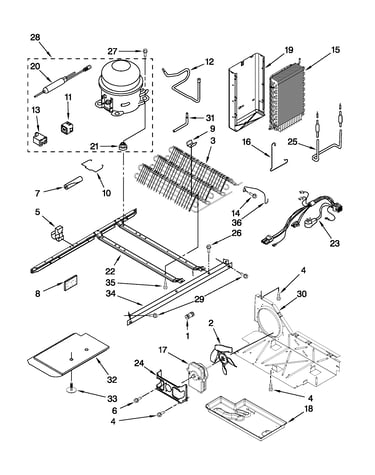

Compressor and sealed system	Warm temps, long run times	Keep coils clean, ensure airflow

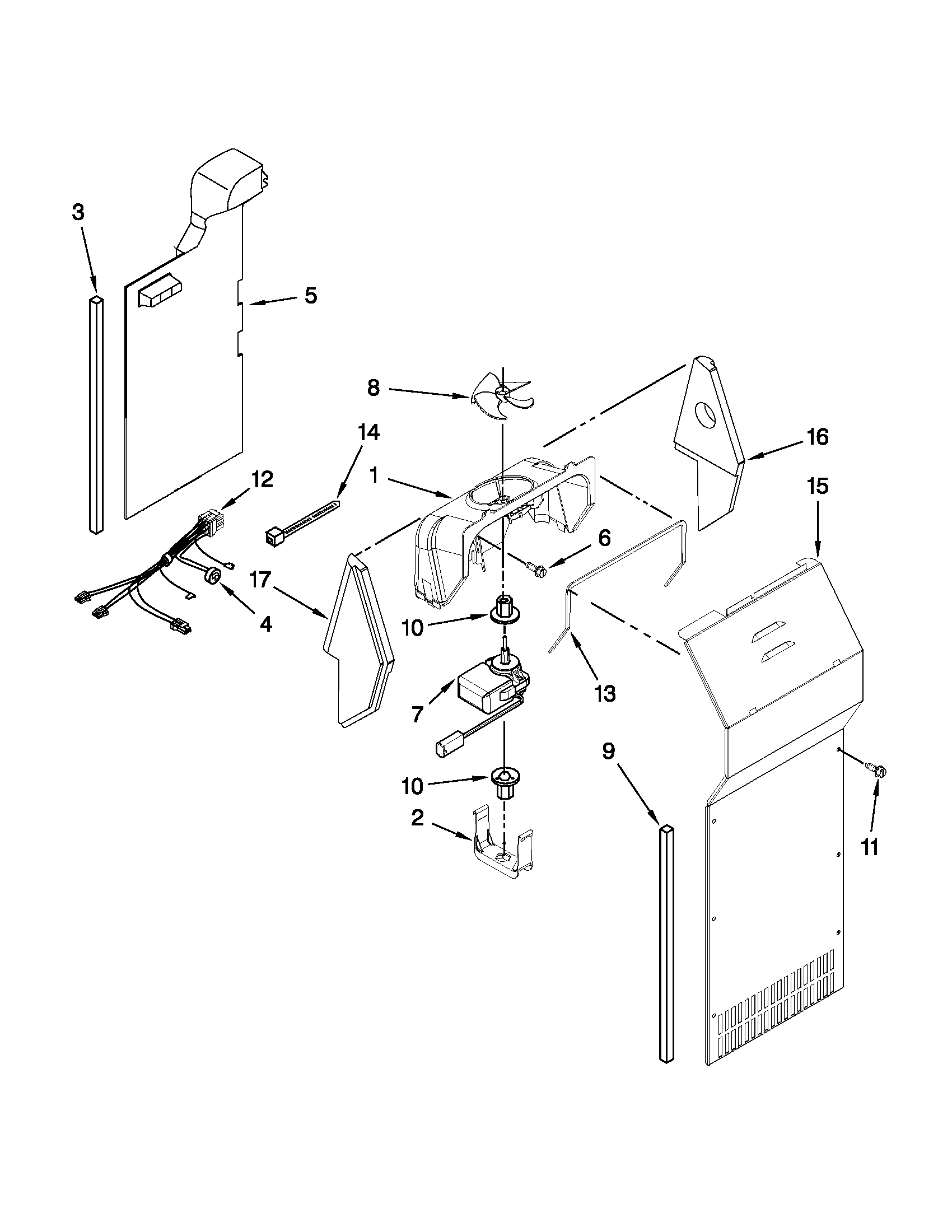

Evaporator fan system	Noisy fan, uneven cooling	Clear ice buildup, check airflow
Defrost system	Frost blanket on freezer back wall	Inspect defrost parts if frosting returns
Water and ice system	Slow water, small cubes, no ice	Replace filter, check inlet valve

Maintenance that helps you reach the high end of the range

• Clean dust from the condenser area regularly.
• Keep freezer and fresh food vents unblocked.
• Confirm doors close fully and seal evenly.
• Replace the water filter on schedule; for this model, a common replacement is the refrigerator water filter EDR3RXD1.
• Use the care and maintenance steps in the ED2GVEXVD01 owner's manual.

Why it matters

A refrigerator usually fails early from heat stress (dirty coils, poor ventilation) or air leaks (worn gaskets). Preventing those two conditions reduces run time, protects the compressor, and helps your Whirlpool side-by-side refrigerator stay reliable longer.

Last updated: February 2026

The biggest problem we see in Whirlpool refrigerators like model ED2GVEXVD01 is loss of cooling, which often traces back to restricted airflow (dirty condenser coils), a defrost system issue, or a failed air-moving component such as the evaporator fan. Water leaks and ice maker or dispenser problems are also very common.

Most common “big problems” and what they usually mean

• Not cold enough (fresh food or freezer): airflow restriction, evaporator fan issue, defrost failure, or temperature control problem

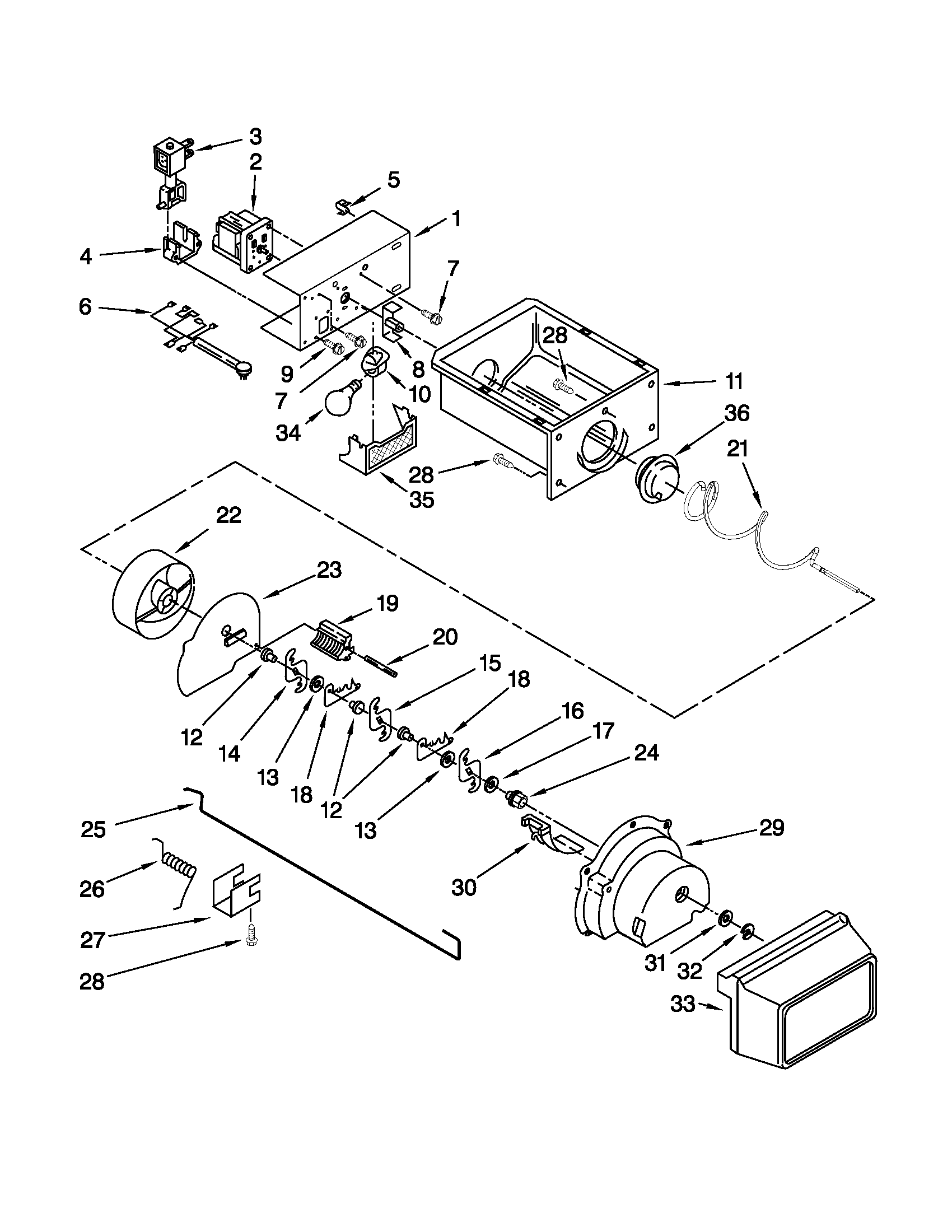

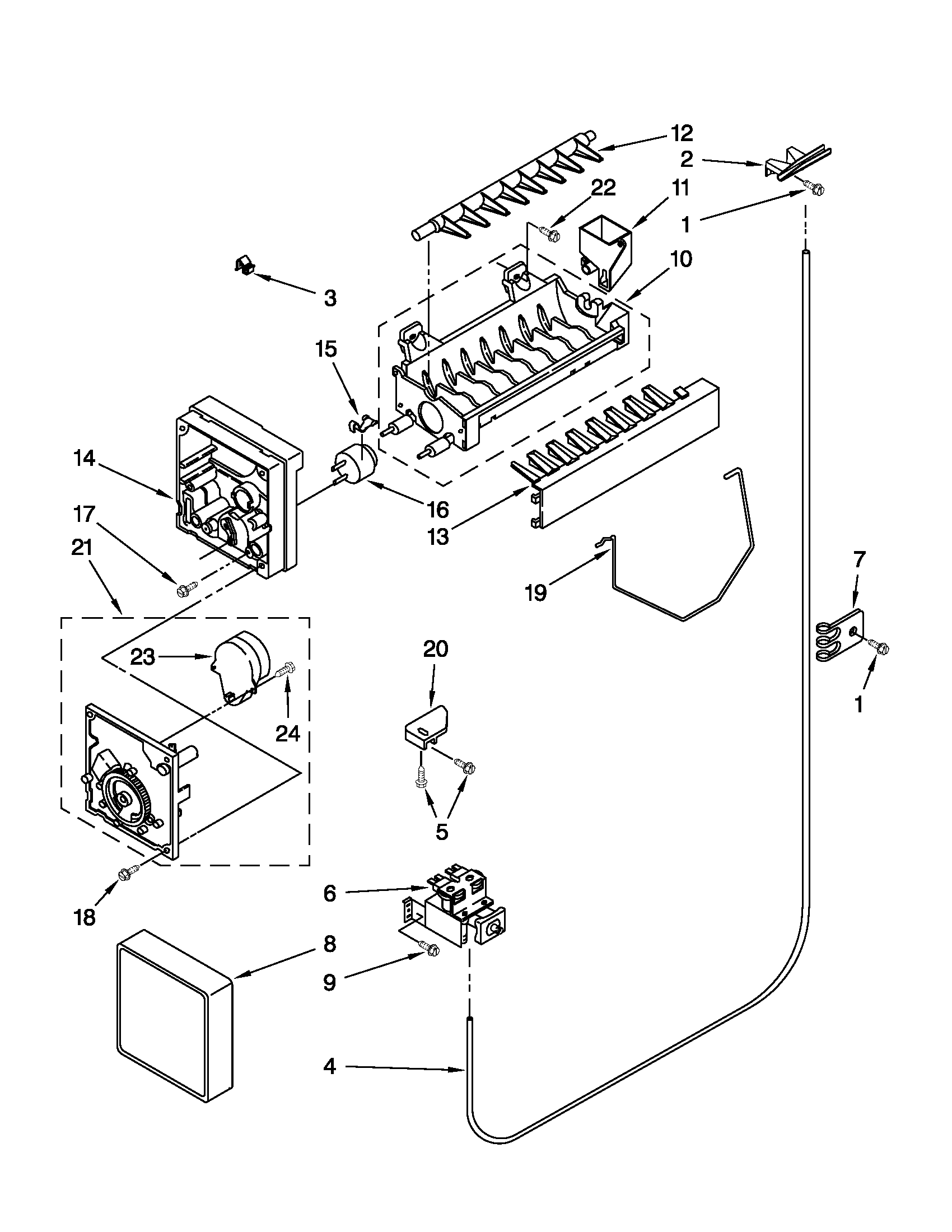

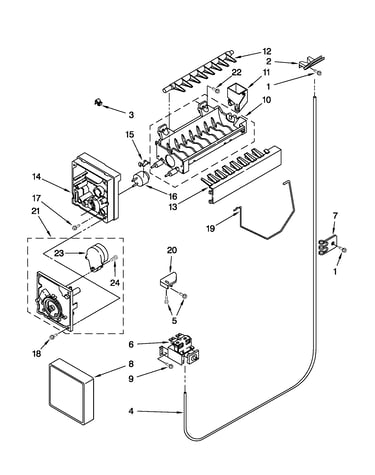

• Ice maker not making ice: water supply issue, inlet valve problem, or ice maker failure

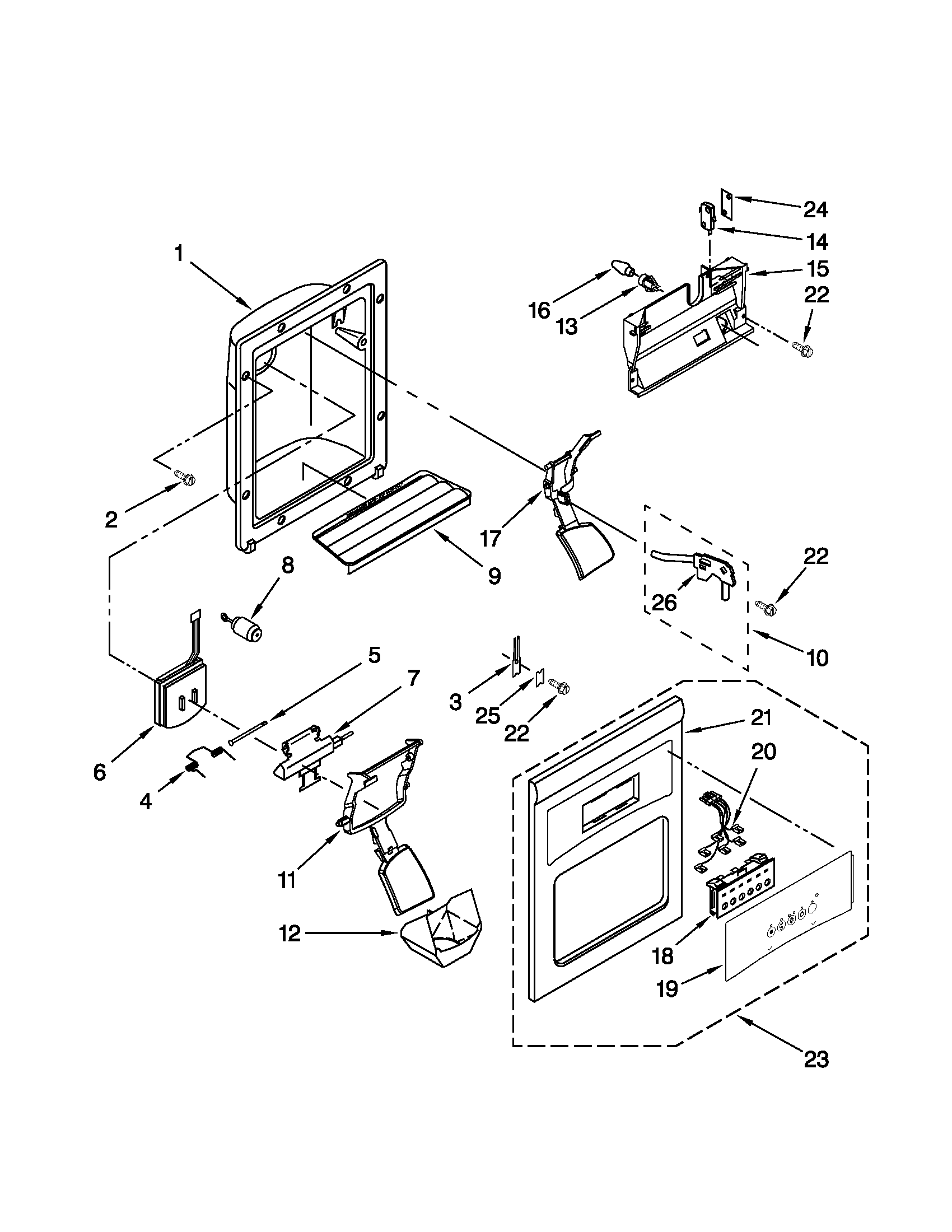

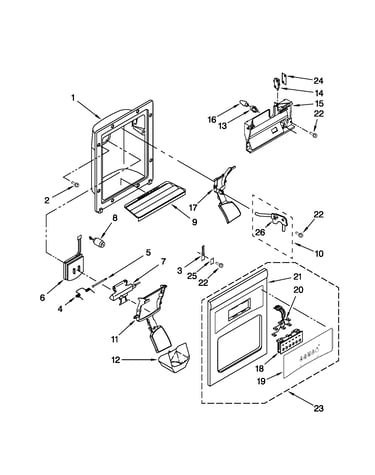

• Water dispenser slow or not dispensing: clogged filter, air in the line, or inlet valve issue
• Water leaking inside or onto the floor: clogged/iced defrost drain, loose water line, or valve seepage
• Warm spots or temperature swings: control/thermostat sensing issues or blocked vents

Quick checks we recommend first (before replacing parts)

1. Confirm airflow: make sure vents inside the refrigerator and freezer are not blocked by food packages.
2. Clean condenser coils: dust buildup can cause poor cooling and longer run times.
3. Check the freezer for heavy frost: thick frost on the back panel points to a defrost problem.
4. Verify water supply (for ice and water): shutoff valve fully open, no kinked tubing.
5. Review model-specific troubleshooting in the ED2GVEXVD01 owner's manual.

Parts that commonly fix the “big problems” on ED2GVEXVD01

Symptom	Common cause	Example part for this model
Ice maker not filling	Weak/failed valve	Refrigerator water inlet valve W10408179
Bad taste, slow water	Clogged filter	Refrigerator water filter EDR3RXD1

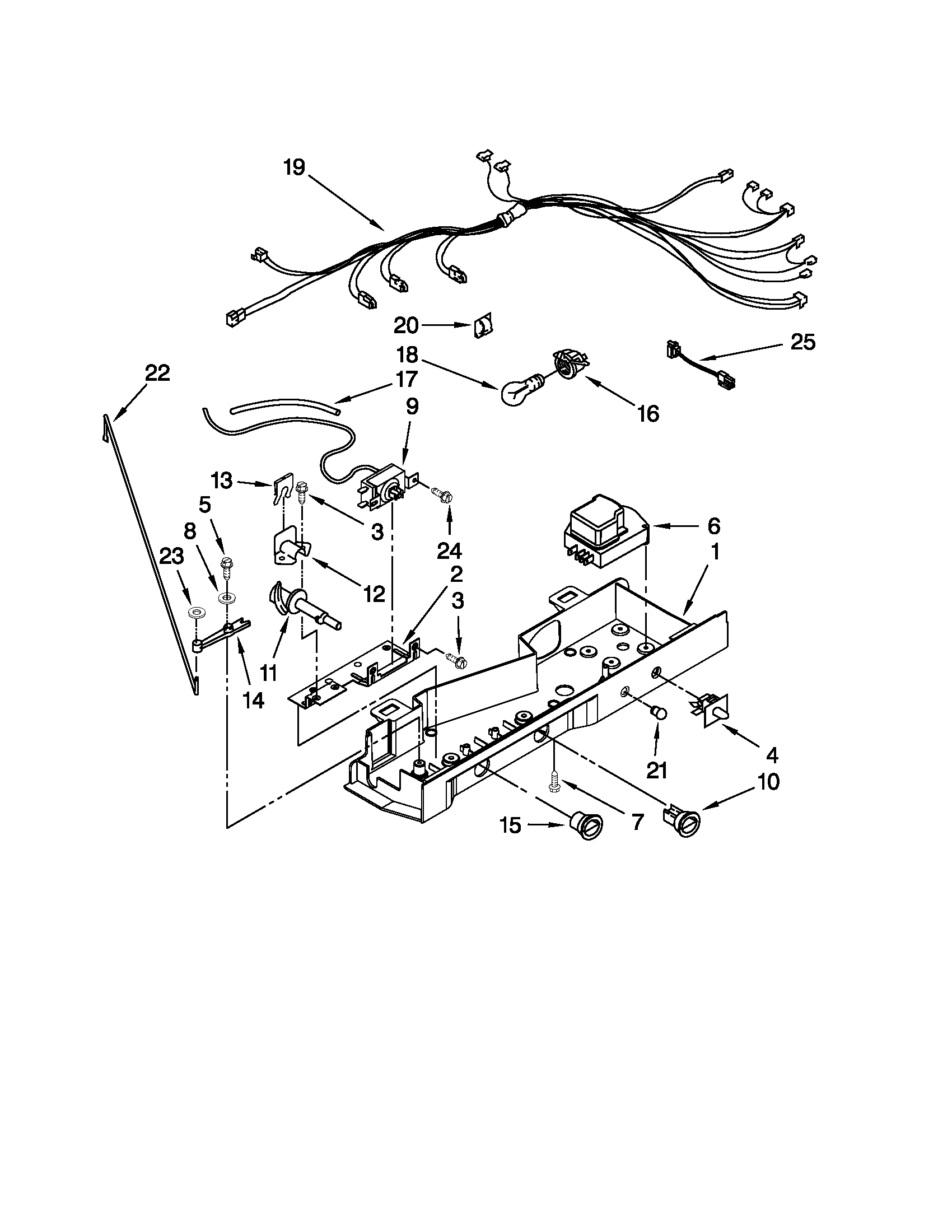

Temperature swings	Control sensing/control issue	Refrigerator thermostat (WP2198202)

Why it matters

Cooling and water-system problems can snowball: poor airflow and frost buildup reduce efficiency, and water leaks can create ice buildup or damage nearby components. Catching the root cause early usually prevents bigger repairs.

Last updated: February 2026

For your Whirlpool ED2GVEXVD01 side-by-side refrigerator, the most accurate way to find cubic feet is to look up the capacity by model number in the product literature. If you need a quick estimate, measure the usable interior space and convert cubic inches to cubic feet.

Fast ways to get the capacity

• Check the model and serial label inside the fresh food compartment; it lists the complete model number you need for lookup (ED2GVEXVD01). See the ED2GVEXVD01 owner's manual for label location details.
• Look for the capacity listed in your Use and Care Guide or product specs.
• If you do not have the published capacity handy, use the measurement method below for an estimate.

How to estimate cubic feet by measuring

1. Empty the compartment you are measuring (refrigerator section and freezer section separately).
2. Measure usable interior:
   • Width (inches)
   • Height (inches)
   • Depth (inches)
3. Multiply: width x height x depth = cubic inches
4. Convert to cubic feet: cubic inches ÷ 1,728 = cubic feet

What to include (and exclude)

• Include only open, usable space.
• Exclude door bins, thick interior walls, and areas blocked by the ice maker housing or air ducts.
• Measure around fixed shelves and drawers; removable bins can be taken out to measure more accurately.

Quick reference table

What you want	Best method	Accuracy
Official capacity	Model-based spec in literature	Highest
Approximate capacity	Interior measurements and conversion	Good
Troubleshooting space issues	Compare shelf/bin layout to manual diagrams	Good

Why it matters

Cubic feet helps you compare storage size between refrigerators, but it also affects how you organize airflow. Overpacking can restrict vents and cause uneven temperatures in a side-by-side design.

Last updated: February 2026

Yes, you can use a generic water filter in your Whirlpool ED2GVEXVD01 side-by-side refrigerator as long as it is the correct replacement type and seals properly; a poor-fit filter can cause leaks and weak water flow. For the factory-specified cartridge, follow the part and replacement details in the ED2GVEXVD01 owner's manual.

What filter type this model uses

The ED2GVEXVD01 uses a standard base filter cartridge; the factory-specified replacement is part number 4396841. If you want the Sears PartsDirect-listed replacement for this model, use the refrigerator water filter EDR3RXD1.

Before you buy a generic filter, confirm:

• It cross-references to 4396841 for fitment
• The end caps and O-rings match the original filter shape
• It installs fully and locks in place without forcing
• It is rated for drinking water filtration (look for NSF/ANSI claims on the box)
• It does not reduce dispenser flow more than your current filter

Quick compatibility check (what to look for)

Check	What “good” looks like	What to avoid
Fit and lock	Seats fully, turns/locks smoothly	Won’t lock, feels loose, needs excessive force
Leaks	No drips at the filter head after dispensing	Drips at the filter cap/head or inside the grille
Water flow	Strong, steady stream after purging	Sputtering, very slow flow, frequent air bursts
Taste/odor	Improves within a day	Plastic taste that persists

Install and purge tips (prevents most complaints)

• Dispense and discard several gallons of water after installing any new filter.
• If water sputters, keep dispensing until air clears; trapped air is common after a filter change.
• If you see leaking, remove the filter, inspect the O-rings for nicks, then reinstall firmly.
• If the filter housing threads or cap are damaged, replace the cap rather than forcing the filter.

Why it matters

A filter that is not built to the correct 4396841-style dimensions can bypass filtration, restrict water to the dispenser and ice maker, or leak into the filter compartment. Using the correct fit protects the water inlet valve, tubing, and dispenser components.

Last updated: February 2026
