Bosch SHX4AP06UC/02 dishwasher Parts
Here are the diagrams and repair parts for Bosch SHX4AP06UC/02 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

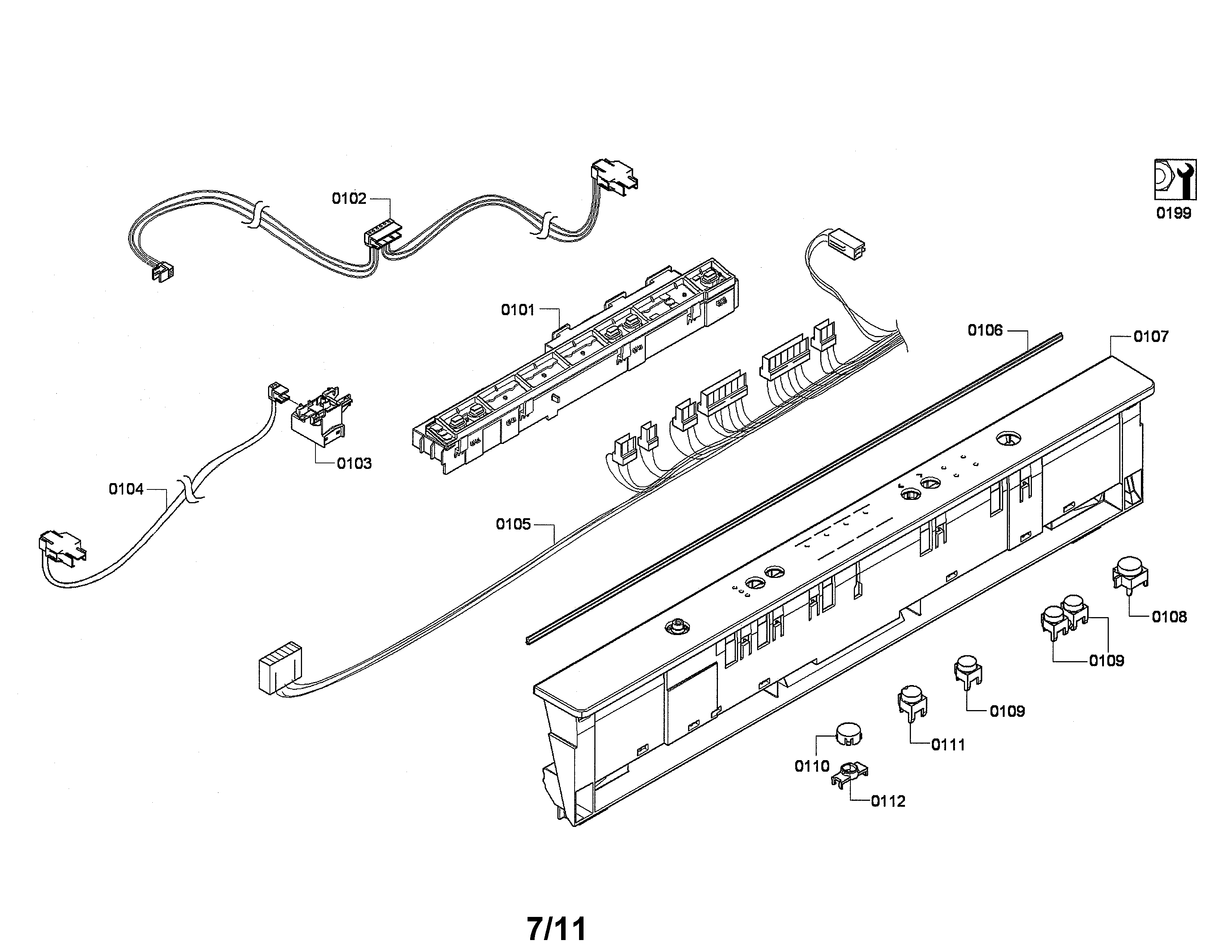

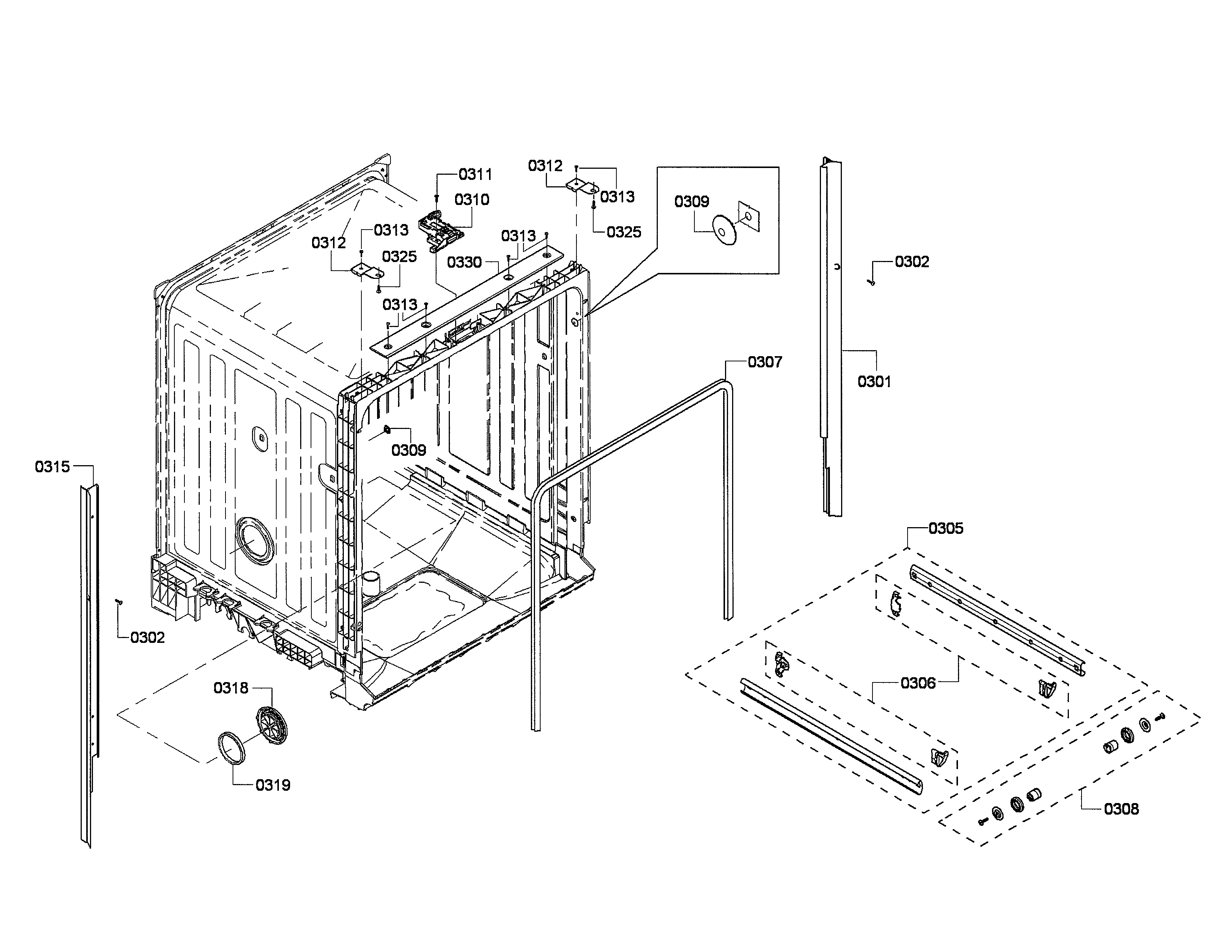

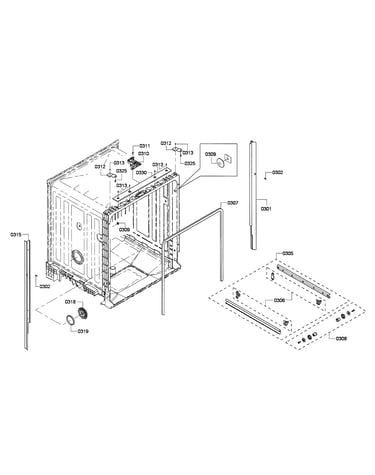

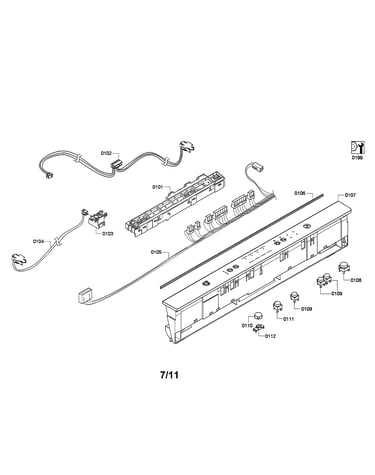

SELECT DIAGRAM
Browse Parts for SHX4AP06UC/02 Dishwasher

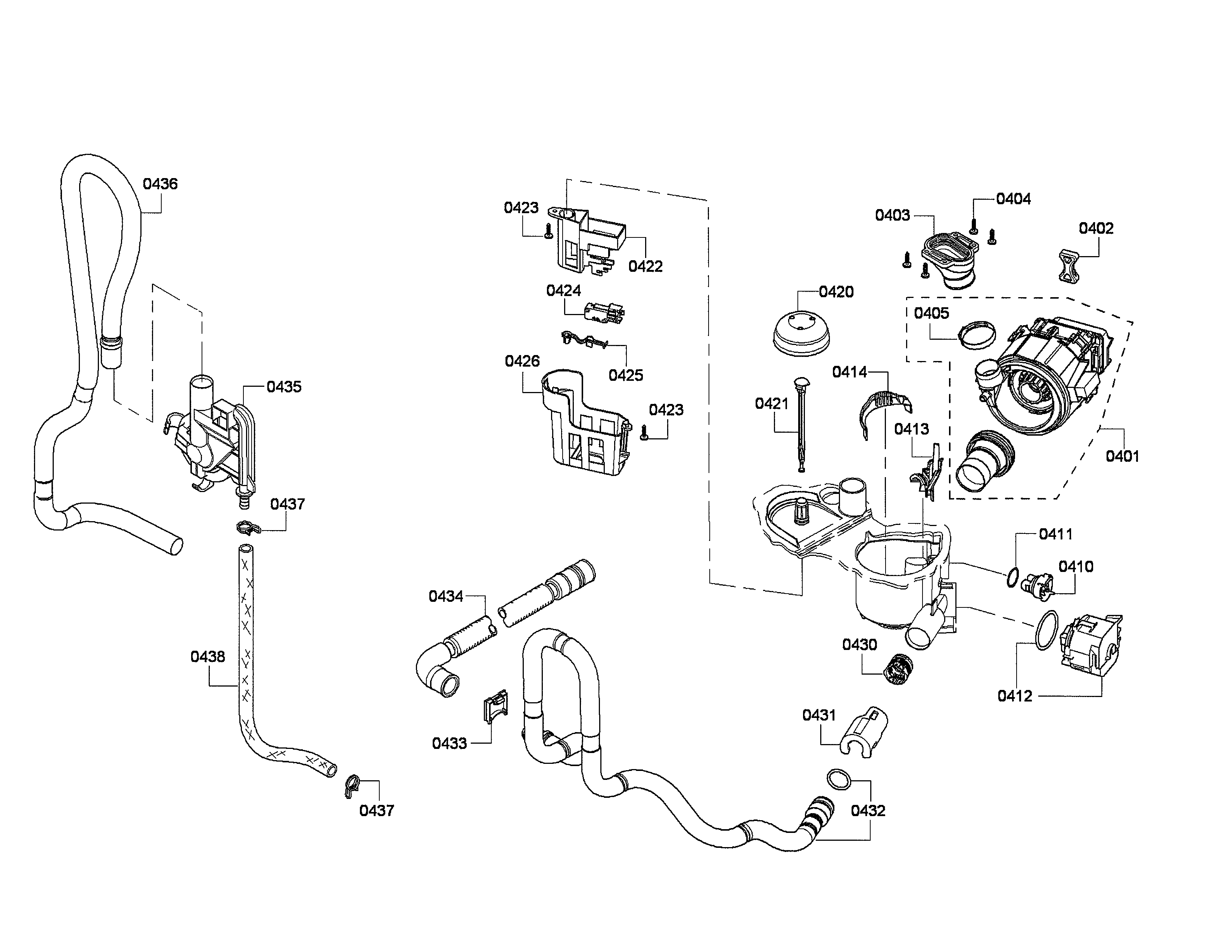

Pump/water inlet diagram
Hose Clamp
Part #172272Replaced by #00172272
Manufacturer substitutionThis part replaces 172272. Substitute parts can look different from the original.In Stock$17.8643% OFF Was : $31.15
Qty

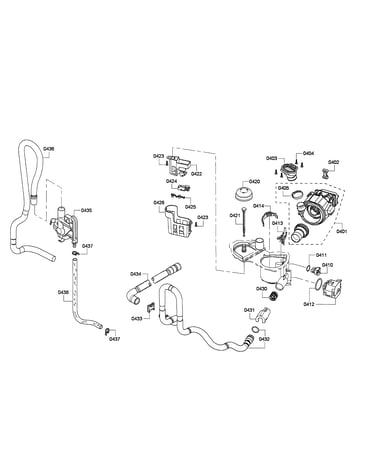

Pump/water inlet diagram
Dishwasher Drain Hose
Part #645149Replaced by #00645149

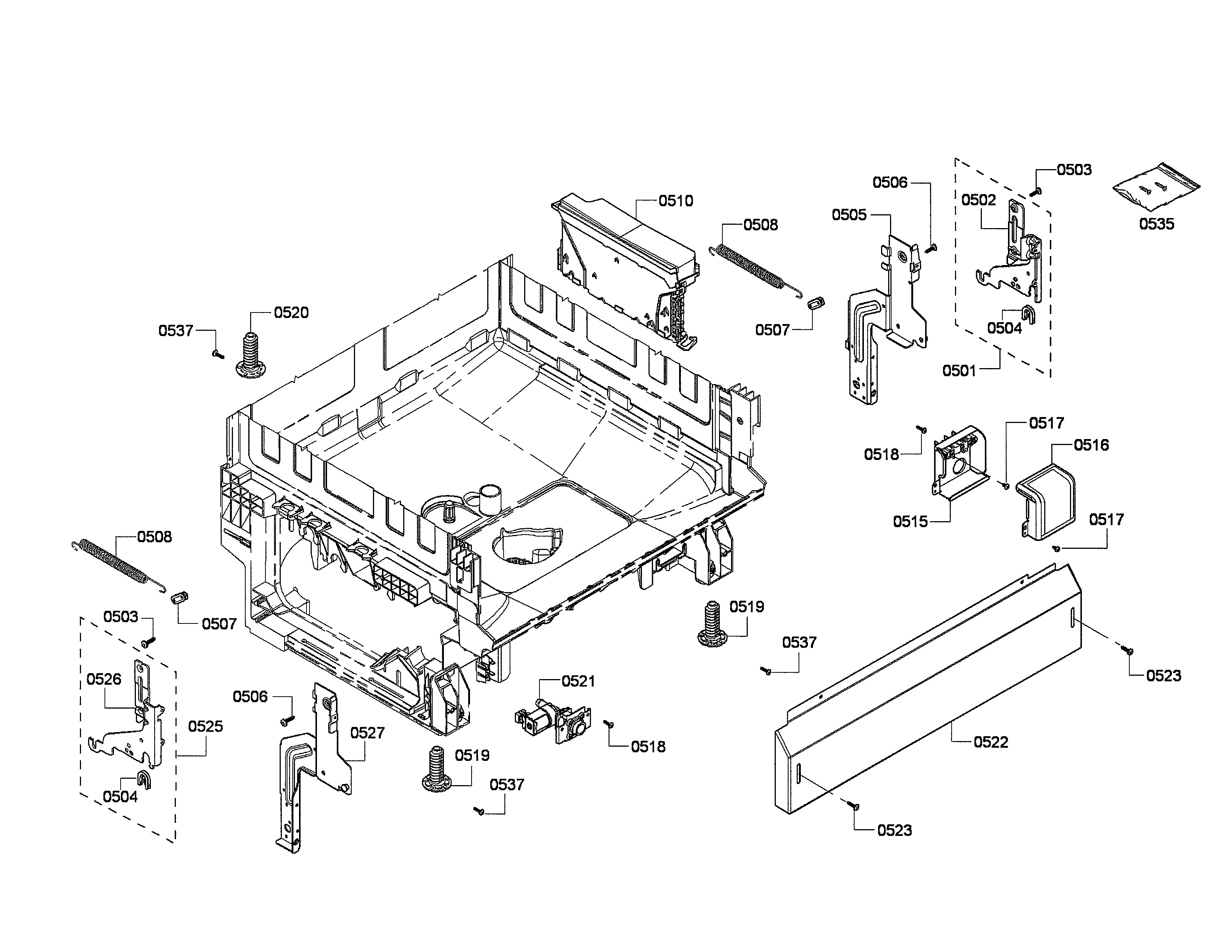

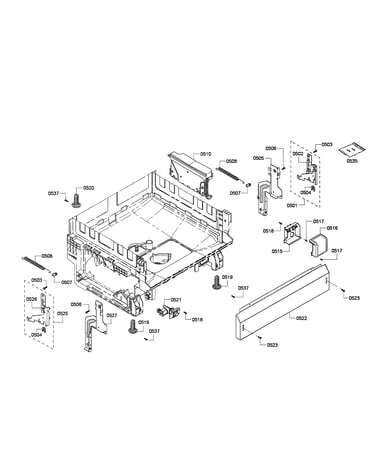

Manufacturer substitutionThis part replaces 645149. Substitute parts can look different from the original.This item is not returnableIn Stock$26.4818% OFF Phone Price : $32.48QtyBase diagram
Dishwasher Water Inlet Valve
Part #607335Replaced by #00607335
Manufacturer substitutionThis part replaces 607335. Substitute parts can look different from the original.In Stock$72.008% OFF Phone Price : $78.00QtyPump/water inlet diagram
Valve
Part #611320Replaced by #00611320
Manufacturer substitutionThis part replaces 611320. Substitute parts can look different from the original.This item is not returnableIn Stock$28.2818% OFF Phone Price : $34.28QtyBase diagram
Bearing
Part #165296Replaced by #00165296

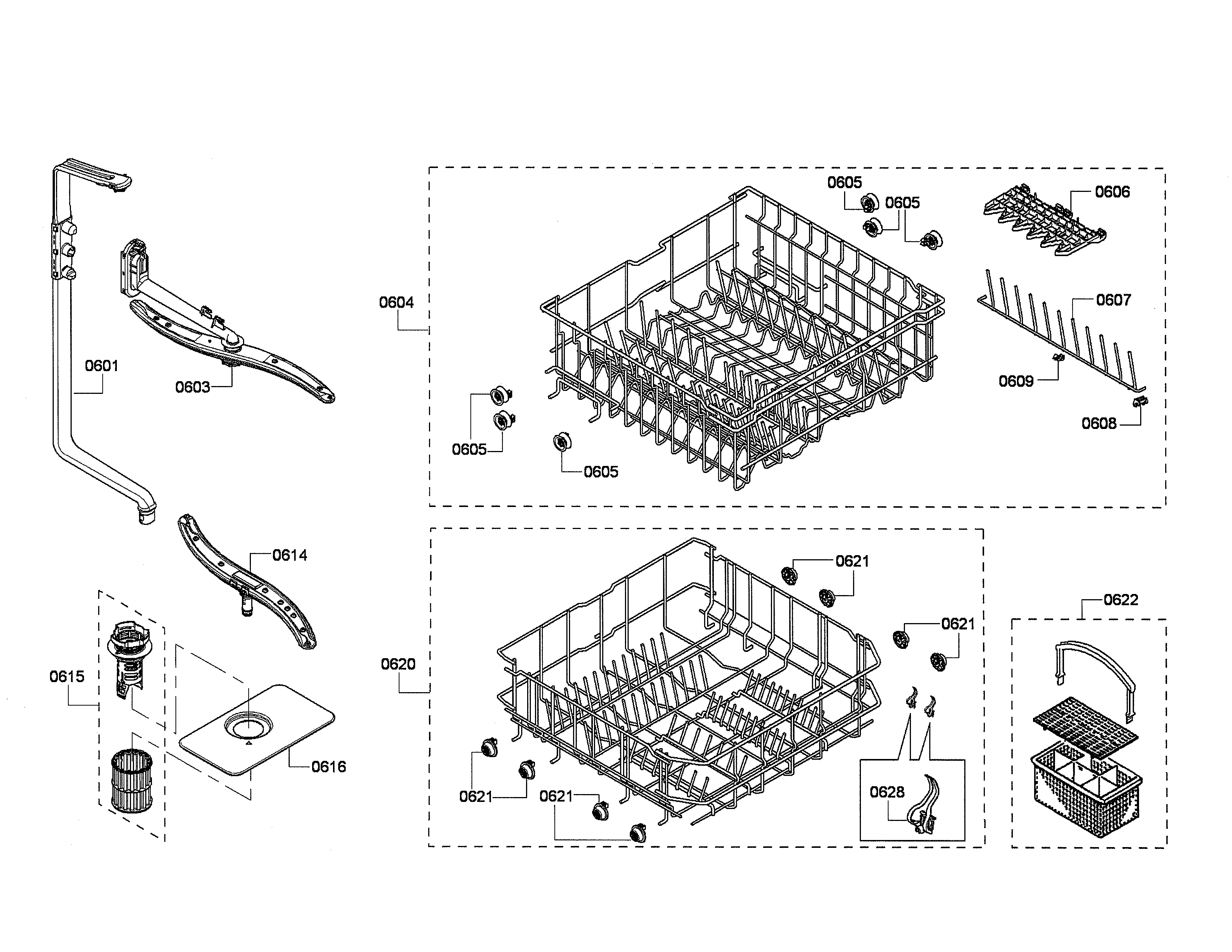

Manufacturer substitutionThis part replaces 165296. Substitute parts can look different from the original.This item is not returnableIn Stock$20.0523% OFF Phone Price : $26.05QtyRacks/spray arm diagram
Holder
Part #616990
The manufacturer no longer makes this part, and there's no substitute part

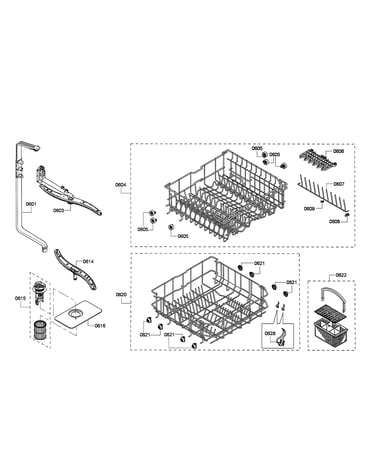

Racks/spray arm diagram
Holder
Part #616989Replaced by #00616989

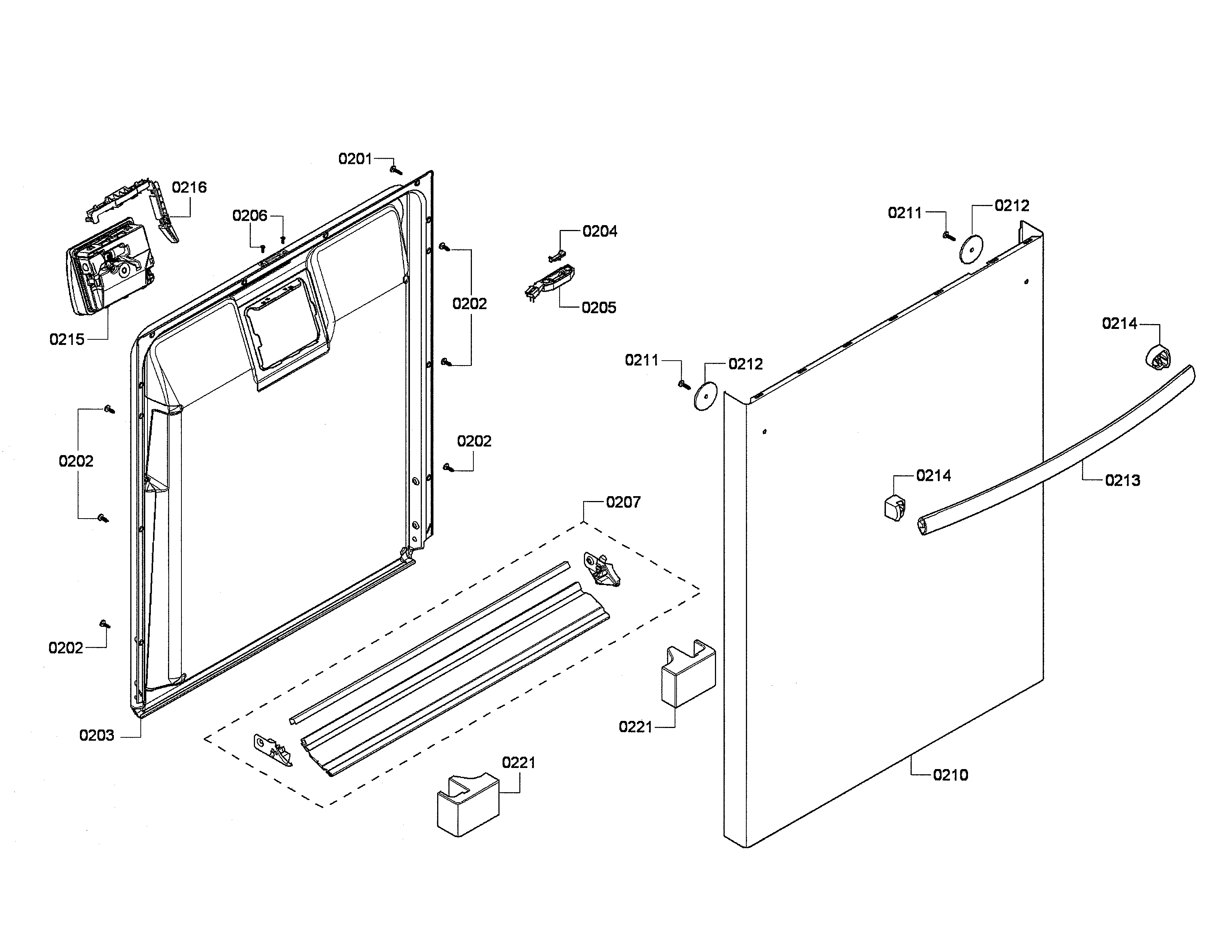

Manufacturer substitutionThis part replaces 616989. Substitute parts can look different from the original.This item is not returnableIn Stock$14.1912% OFF Phone Price : $16.19QtyDoor/dispenser diagram
Door Latch
Part #611661Replaced by #00611312

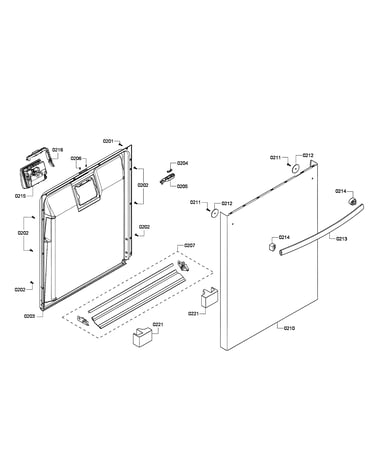

Manufacturer substitutionThis part replaces 611661. Substitute parts can look different from the original.In Stock$26.3640% OFF Was : $44.17QtyDoor/dispenser diagram
Latch
Part #611660Replaced by #00611312
Manufacturer substitutionThis part replaces 611660. Substitute parts can look different from the original.In Stock$26.3640% OFF Was : $44.17QtyRacks/spray arm diagram
Basket
Part #683972Replaced by #00248820
Manufacturer substitutionThis part replaces 683972. Substitute parts can look different from the original.In Stock$471.40$12.00 OFF Phone Price : $483.40Qty
